❖Features
Compact and powerful!

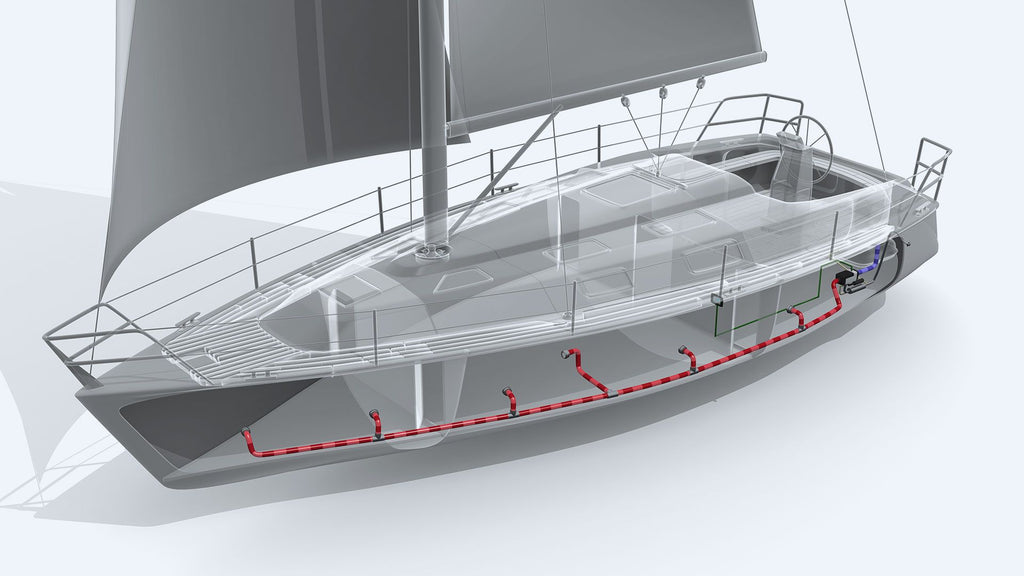

Within a short time Webasto air heaters generate pleasantly cosy warmth on
your boat. Various warm air outlets ensure excellent dehumidification of the
vessel. Air heaters are particularly suited for sailing and motor boats of up
to 45 feet.
Intelligent Blower Control.
Thanks to the control of more parameters (more sensors), the heating
regulation can now disconnect, to a certain extent, the heating output from
the blower speed. The result is a lower electrical consumption and lower noise
on regular operation (lower motor speed for same heat output).
Advantages
- 4.0 kW power for fast heating Very low electrical power consumption due to
new
- Intelligent Blower Control
- New flame detection through exhaust gas temperature sensor
- Automatic cold start function for quick warm-up
- Improved air intake silencer
- Vibration dampers for fuel line
- Compatible to new MultiControl digital user interface
- Very silent operation due to lower blower speed and silent fuel pump (DP42)
|
❖Specifications
Brand | Webasto
Model | Air Top Evo 40
Heating capacity, control range/boost (kW) | 1.5 - 3.5 / 4.0*
Fuel consumption, control range/boost (l/h) | 0.18 - 0.43 / 0.49
Nominal voltage (V) | 12 / 24
Rated power consumption, control range/
boost (W) | 15 - 40 / 55
Heating air volume flow against 0.5mbar,
control range/boost (m³/h) | 132 / 140
Fuel | Diesel
Operating temperature range (°C) | -40 to +40
Dimensions L x W x H (mm) | 423 x 148 x 162
Weight (kg) | 5.9
ECE approval number ECE R122 (heating) | E1 00 0385
ECE approval number ECE R10 (EMC) | E1 04 5529
