❖Features

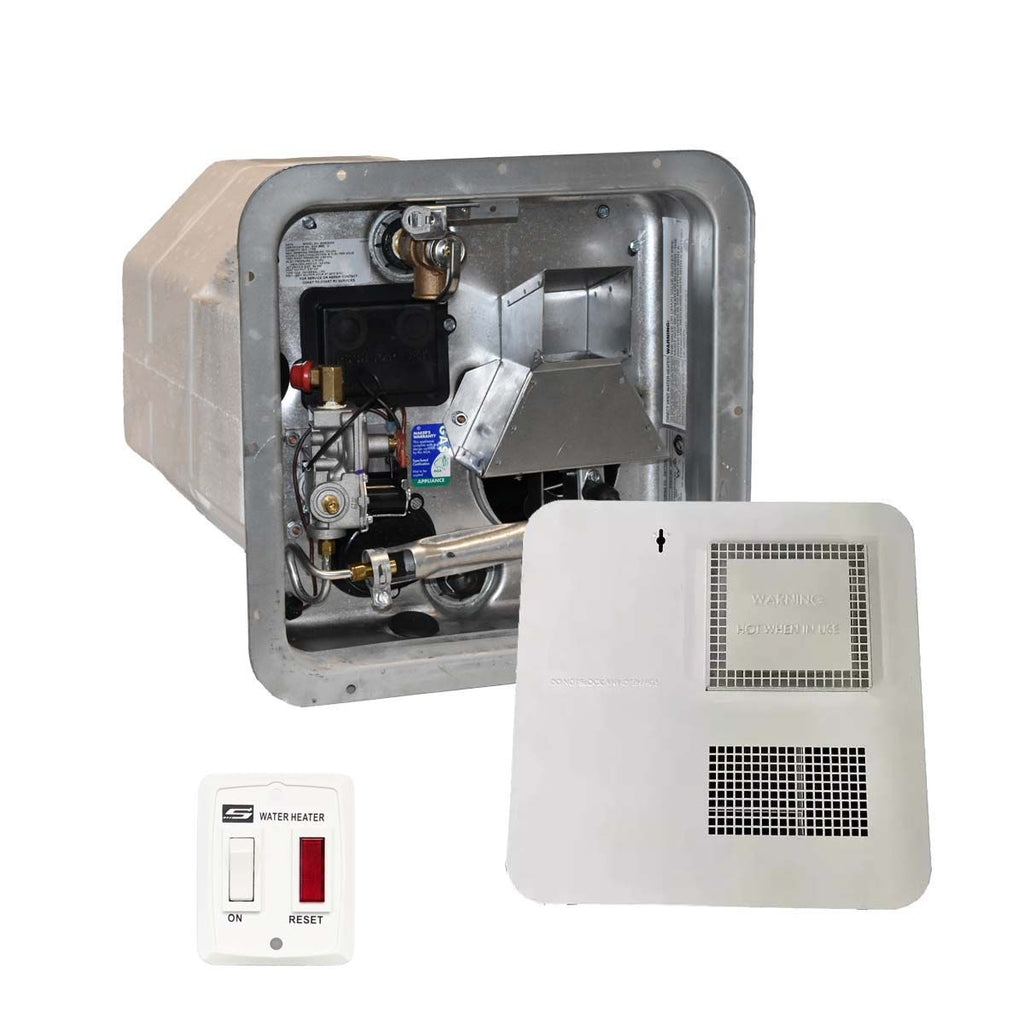

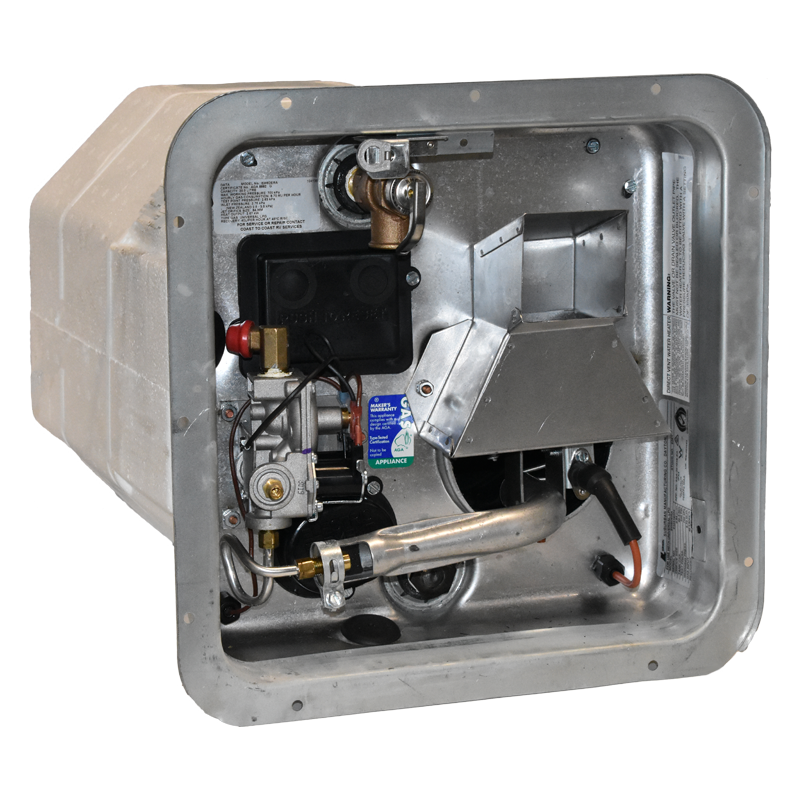

SUBURBAN SW6DERA Hot Water System - 20.3L Capacity - 12V/240V/LPG. 5261A
Product Code:
950-00036
The new line of Suburban RV water heaters is the best on the road today! Their
high recovery gas and gas-electric models come in sizes and with features to
match the requirements of almost any RV. Its high tensile steel tanks are
porcelain-lined and pressure tested twice during the manufacturing process,
ensuring tank integrity and reliability. Automatic models in the Suburban

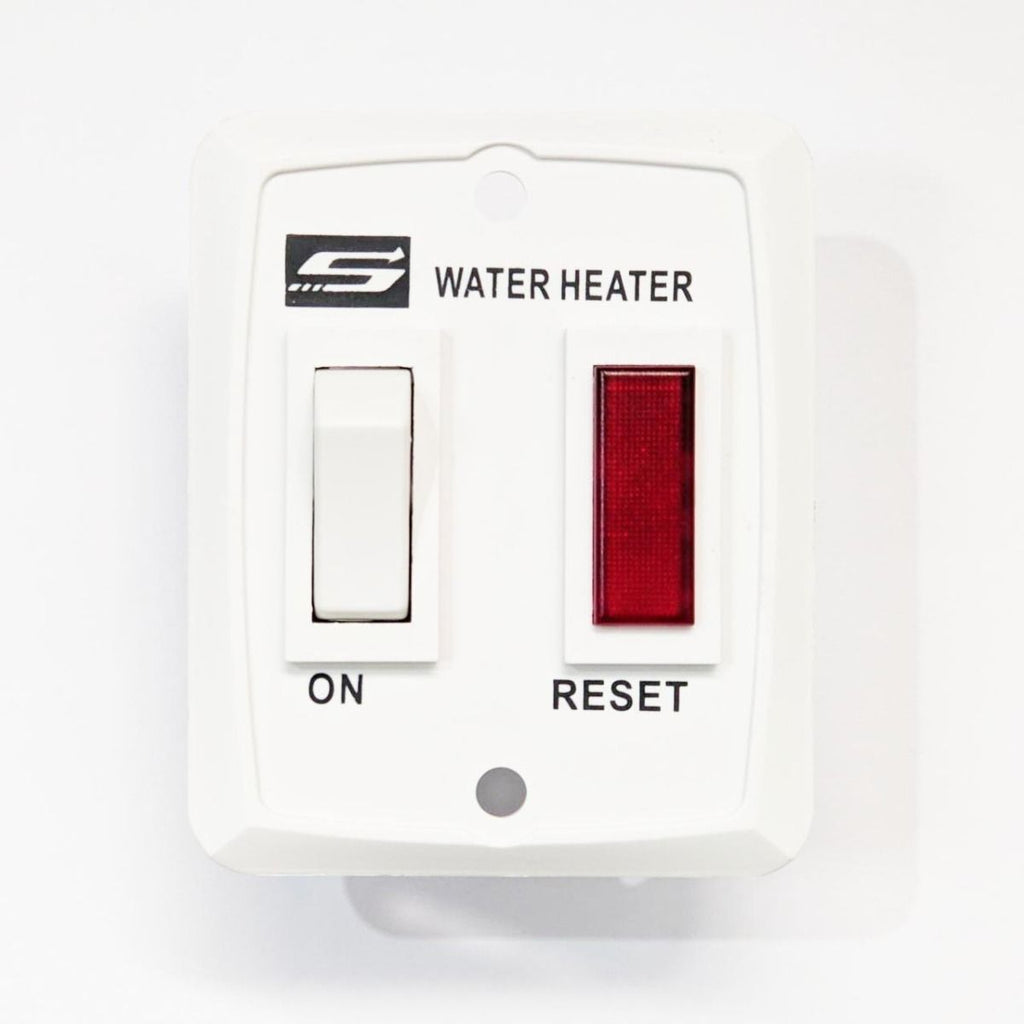

range feature direct spark ignition with a remote switch that electronically
controls the water heater from inside your RV - a simple convenience,
especially in poor weather conditions.
Don’t allow your water heater to let you down whilst travelling, ask your RV
Dealer to install a longer lasting, robust and intelligent Suburban RV water
heater today!.
Product Description
Longer Life
Heated water attacks all metals, but not porcelain. That’s why Suburban uses a
porcelain-lined, steel water heater tank with an upgraded anode rod to
“absorb” the electrolytic action just like your water heater at home.
Reduced Emissions
An improved burner design integrated with a smaller jet orifice, optimised flu
and redesigned door has culminated in reduced emissions and improved
efficiency. The result is a greener, cleaner-burning water heater.
More Convenience
All Suburban water heaters are designed for easy installation, operation and
maintenance. The limit switch, reset button and on/off electric element rocker
switch are conveniently located in a housing behind the removable outer door.
The electric heat element and combination drain plug/anode rod are also
located there.
Regulation Compliant
Suburban Water Heaters carry the following approvals:
- WaterMark Certification
- Regulatory Compliance Mark (RCM)
- Australia and New Zealand Gas Safety Certification

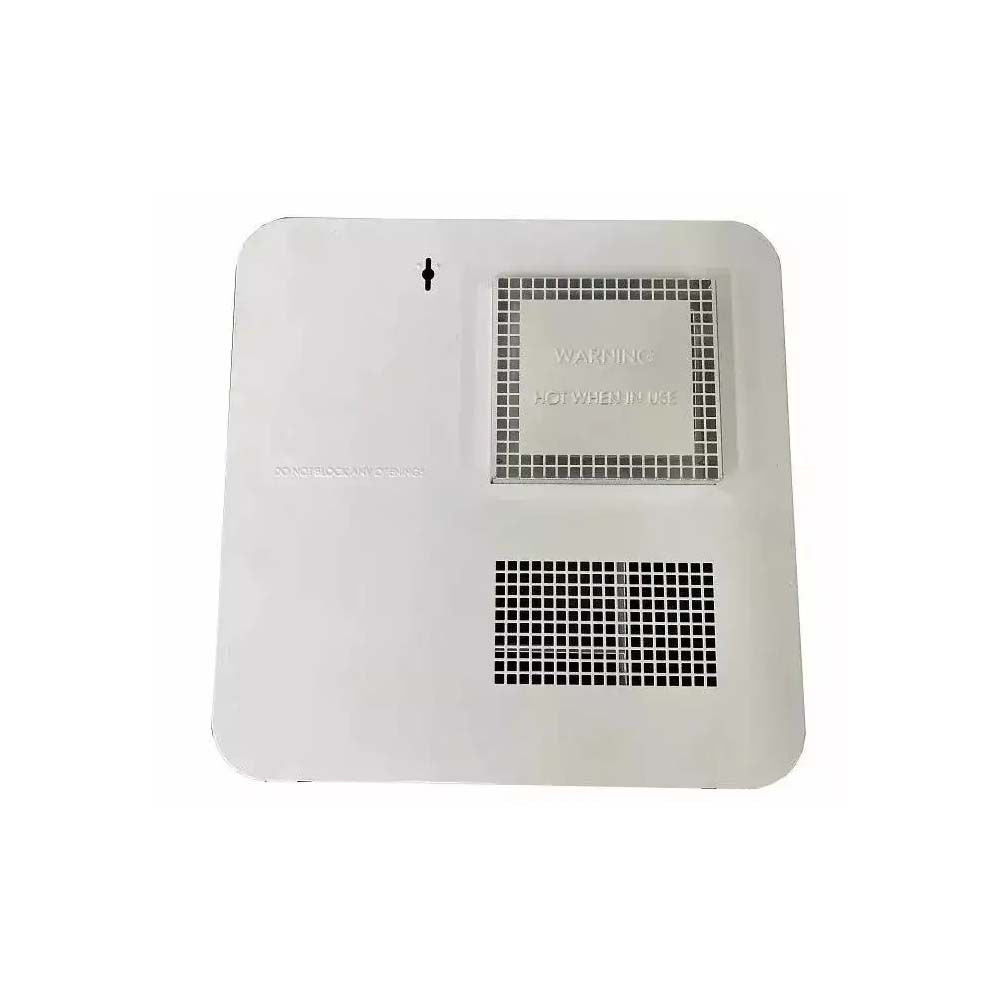

Suburban Ebony White Aus Version Radius Corner Door T/S
Product Code:
950-01312
SW4&6DERA/DRA. 6282AEB
Suburban exterior doors stand up to the elements and frequent use, with
corrosion-resistant steel finished in a tough, highsolids baked enamel for
extra chip resistance. Coast to Coast stock the standard doors which are
installed without bending flanges or installing corner gussets for easy
installation and a superior seal.
|
❖Specifications
BRAND | Suburban
SW6DERA Hot Water System |
SKU | 950-00036
CAPACITY | 20.3L
MAXIMUM WORKING PRESSURE | 700kPA
HOURLY GAS CONSUMPTION | 8.7mj/hour
TEST POINT PRESSURE | 2.63kPa
JET ORIFICE SIZE | 0.84mm
TYPE OF HEATING MEDIUM | Universal Gas/240V
RECOVERY | 40Lhr 45°C Rise
FOR AUTOMATIC GAS IGNITOR | 12Volt D.C
240 VOLT HEATING ELEMENT | 240Volt – 50HZ A.C.
ELEMENT RATING | 1440 Watts – 6 Amp
WIDTH | 320mm
HEIGHT | 320mm
DEPTH | 500mm
New Style Vented Door |
SKU | 950-01312
COLOUR | White
