❖Features

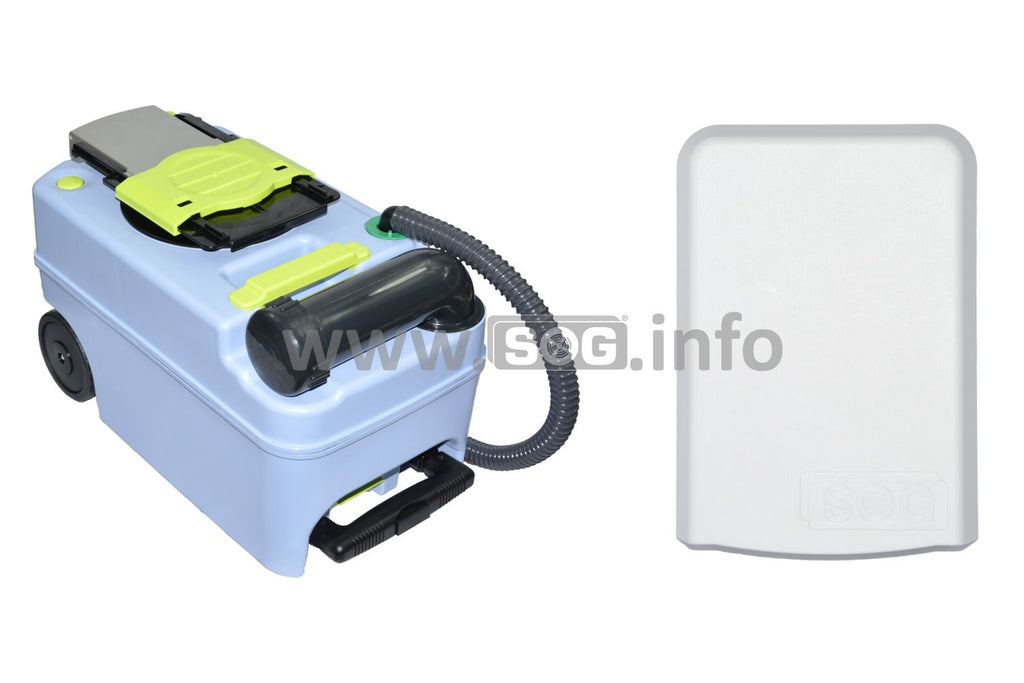

SOG ® Type 3000A | Door version | Filter housing white
suitable for all Dometic CT3000/CT4000
(Ceramic cassette toilet | Waste-holding tank with wheels 19L)
Product description
- 100 % odorless | Invrease in comfort
- 100 % chemical free | Environment Protection
- cost-saving | no addition of chemicals | no use of special paper
No more smell
The following effect is achieved through a small high-performance fan
specially developed for and with SOG® (resistant to the aggressive components
in the intake air from the sewage tank | waterproof)
- switches on automatically when the toilet slide is opened and creates a negative pressure in the waste-holding tank
- this creates a "suction" at the valve opening, which sucks in fresh air and also the smells that arise during use and directs it outside
- the inward flow of air also behaves like a seal and fully prevents any unpleasant biogases from rising out of the tank (Comfort without odor)
- the system switches off automatically when the toilet valve is closed, but continues to provide permanent aeration – as the oxygen supply – through a pipe or hose connection that is always open to the outside, thereby promoting the decomposition process
Protection of the environment
In addition to the end of odor nuisance, active toilet ventilation has the
great advantage that it works without the use of chemicals.
When the slide is closed, the hose connection of the SOG®System to the outside
ensures that the decomposition process is accelerated by the deliberate supply
of oxygen to the faeces tank. Even commercially available toilet paper is
broken down in a very short time and the use of special paper is unnecessary.
Activated charcoal
An important constituent part of the SOG® and SOG®II is activated charcoal.
This is made in a very environmentally-friendly way from organic materials
such as peat, nutshells and sugar.
This mainly consist of carbon (mostly >90%) with a highly porous structure.
The pores are connected to one another as in a sponge (open-pored).
Active charcoal is used as an adsorption material in, among other
applications, the chemical and medical industries, for the treatment of water
and waste water, and in ventilation and air conditioning systems.
SOG®+SOG® II filters offer convincing advantages
- long working life (1 year)
- complete neutralisation of odours due to seamless processing
- no formation of charcoal dust
- low weight
- compact size
Ensure that the filter is changed regularly, after one Year, to avoid
unpleasant smells from the vehicle.

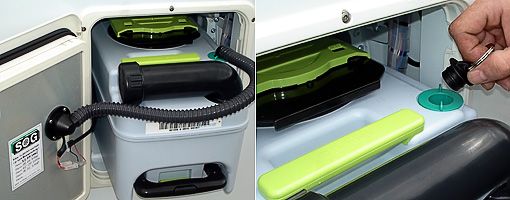

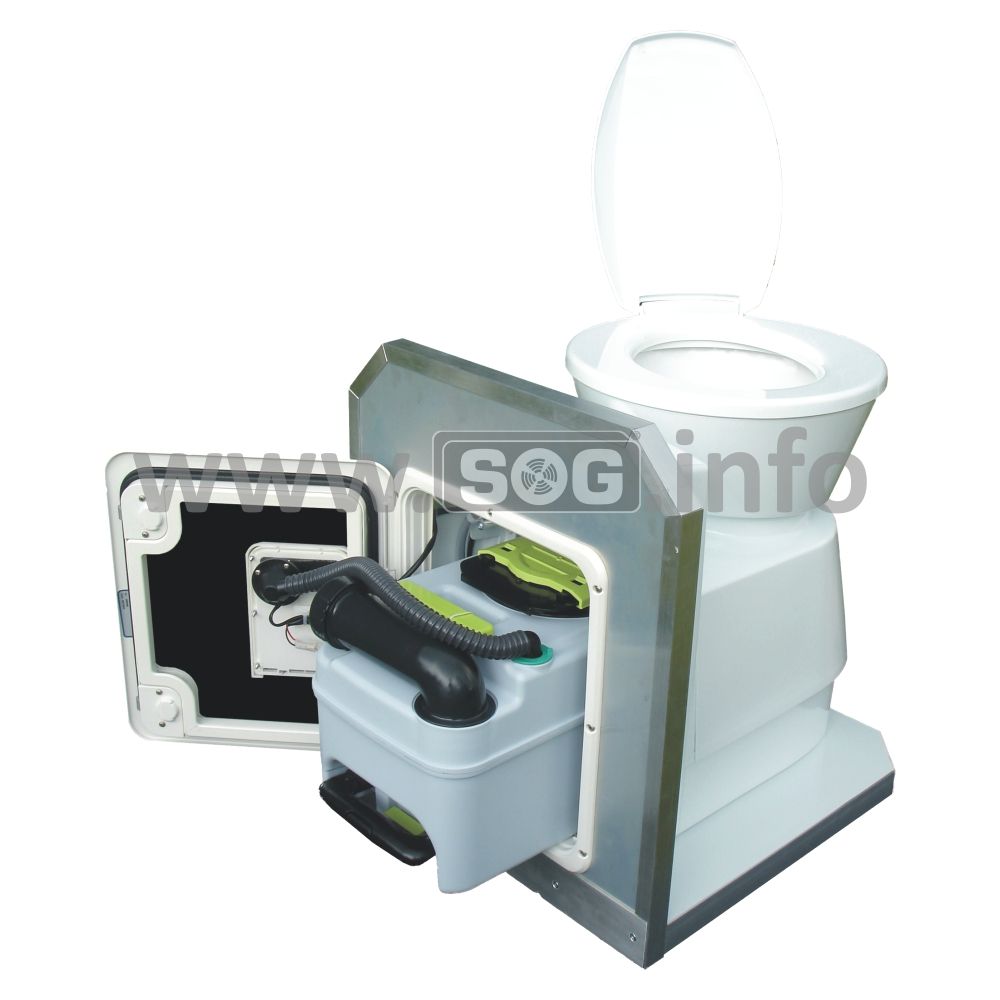

Door version

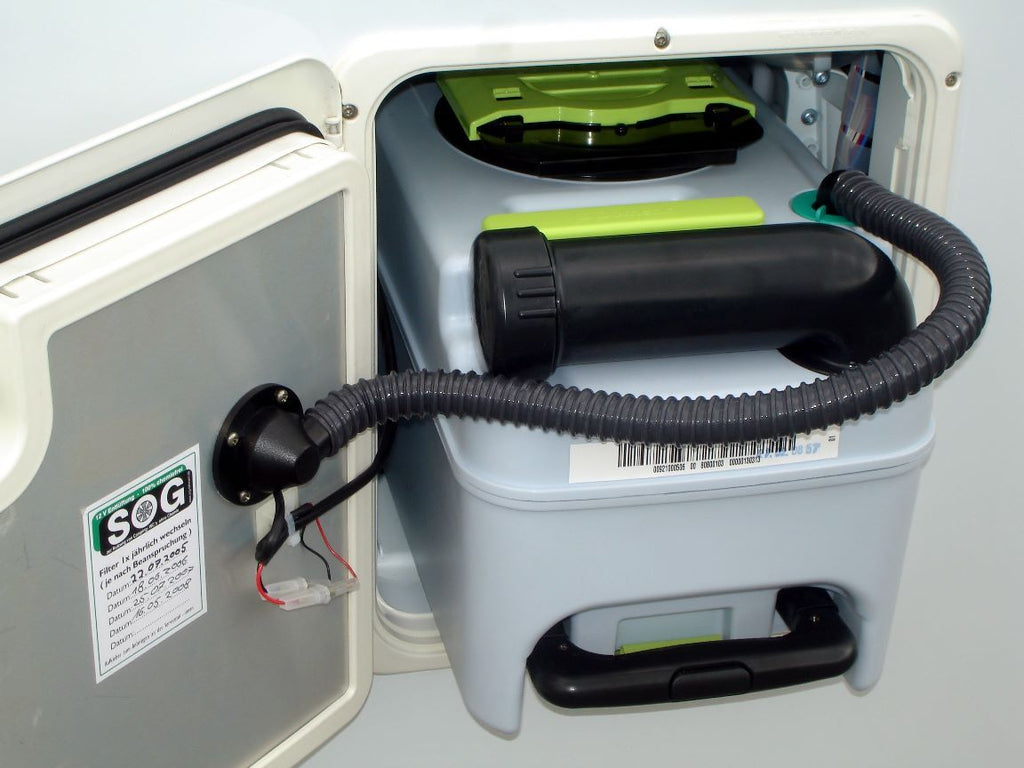

The fan is installed directly on the inside on the disposal flap.
The housing with the activated charcoal filter is mounted on the outside. The
shapely plastic housing is available in white, pale grey, dark grey, black and
can also be painted in the same colour as the camper van or caravan.
SOG® for the service flap is the easiest form of air extraction to install.

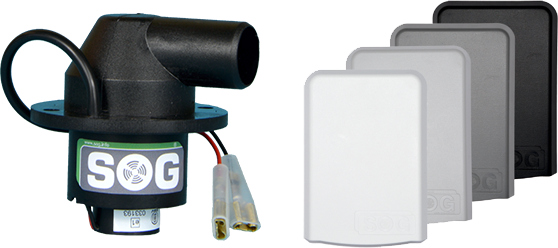

Contents of the complete SOG technology kit
- Fan motor integrated in the housing
- Exhaust hose with connector
- Adapter parts for connection to the cassette
- Sealing plug (for use when the cassette is emptied)
- Cable set with switch for power supply of the fan (during use)
- complete small parts for assembly
- Assembly instructions (very detailed)
- Filter housing in corresponding color selection with activated carbon filter
|
❖Specifications
Brand | SOG
Model | Type 3000A (Door Version)
Color | White
Operation | 12volt, 0.43watts
Weight | 0.6kg
Shipping Dimensions(mm) | 220 x 190 x 80
Manufacturers Warranty | 1 year
