SOG®II- Type 3000A | floor version - suitable for Dometic CT3000/CT4000

|

❖Features

SOG ®II Type 3000A | Floor version

suitable for all Dometic CT3000/CT4000
(Ceramic cassette toilet | Waste-holding tank 19L with wheels)

Product description

• 100 % odorless | Invrease in comfort
• 100 % chemical free | Environment Protection
• cost-saving | no addition of chemicals | no use of special paper

No more smell
The following effect is achieved through a small high-performance fan specially developed for and with SOG® (resistant to the aggressive components in the intake air from the sewage tank | waterproof)

• switches on automatically when the toilet slide is opened and creates a negative pressure in the waste-holding tank
• this creates a "suction" at the valve opening, which sucks in fresh air and also the smells that arise during use and directs it outside
• the inward flow of air also behaves like a seal and fully prevents any unpleasant biogases from rising out of the tank (Comfort without odor)
• the system switches off automatically when the toilet valve is closed, but continues to provide permanent aeration – as the oxygen supply – through a pipe or hose connection that is always open to the outside, thereby promoting the decomposition process

Protection of the environment
In addition to the end of odor nuisance, active toilet ventilation has the great advantage that it works without the use of chemicals.

When the slide is closed, the hose connection of the SOG®System to the outside ensures that the decomposition process is accelerated by the deliberate supply of oxygen to the faeces tank. Even commercially available toilet paper is broken down in a very short time and the use of special paper is unnecessary.

Activated charcoal
An important constituent part of the SOG® and SOG®II is activated charcoal.
This is made in a very environmentally-friendly way from organic materials such as peat, nutshells and sugar.

This mainly consist of carbon (mostly >90%) with a highly porous structure. The pores are connected to one another as in a sponge (open-pored).

Active charcoal is used as an adsorption material in, among other applications, the chemical and medical industries, for the treatment of water and waste water, and in ventilation and air conditioning systems.

SOG®+SOG® II filters offer convincing advantages

• long working life (1 year)
• complete neutralisation of odours due to seamless processing
• no formation of charcoal dust
• low weight
• compact size

Ensure that the filter is changed regularly, after one Year, to avoid unpleasant smells from the vehicle.

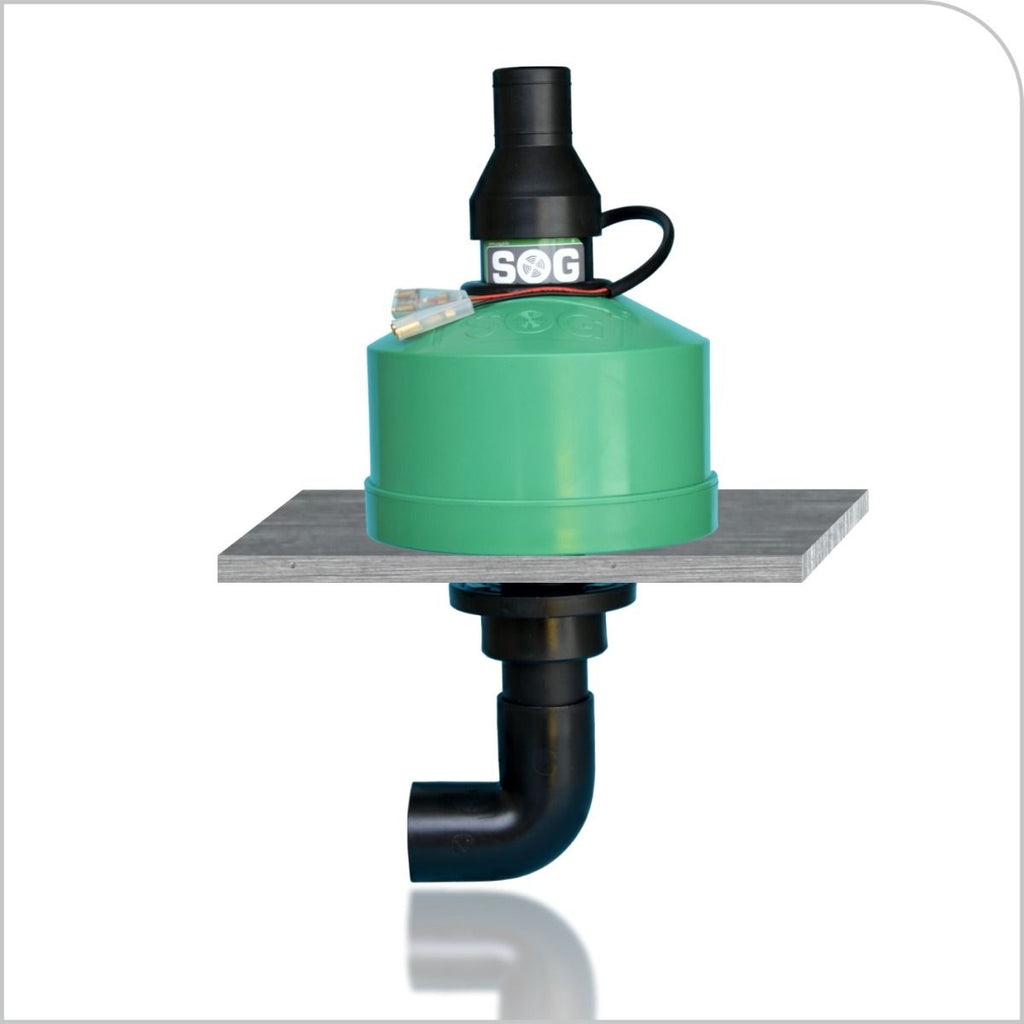

Floor version

The SOG®II compact unit offers a wide variety of options for ventilating toilets..

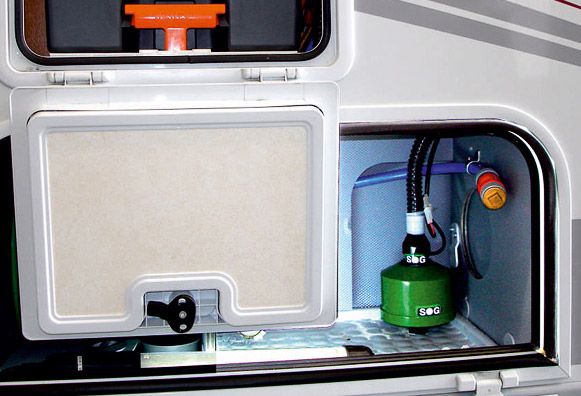

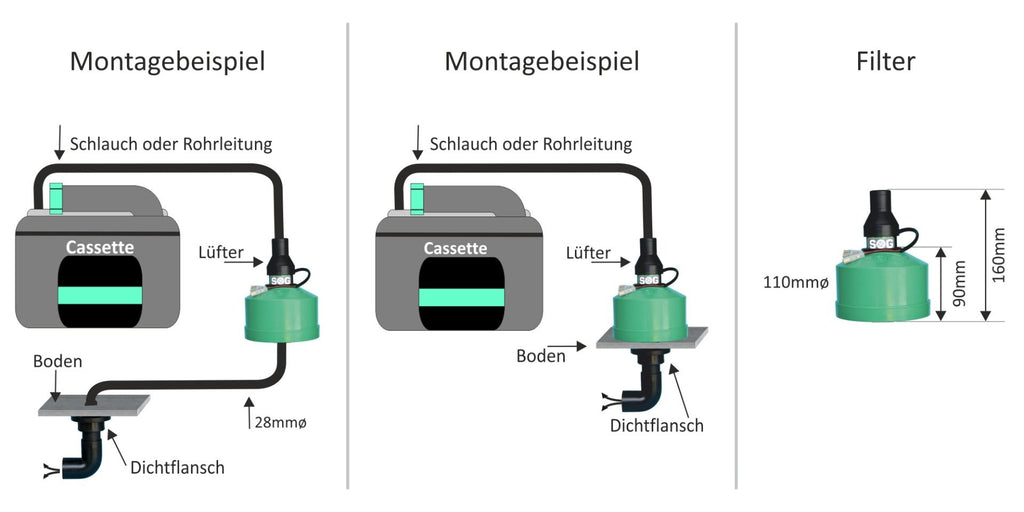

The unit consists of a replaceable filter cartridge in which there is the fan. This can be placed at any desired distance up to three metres from the toilet and ventilates through any desired point above the floor (e.g. in the garage, under the bench, in the double floor or in the stowage compartment).
We recommend that the SOG®II floor version is installed in caravans where the service flap of the toilet exists directly into the awning. The specially developed filter unit works so efficiently that the extracted odour-laden air is completely neutralised.
SOG®II thus offers an air extraction version that permits a wide variety of installation locations in addition to simple retrofitting. (Filter: 90 mm H, 110 mm Ø I Filter unit with fan: 160 mm H)

Contents of the complete SOG technology kit

• Fan motor integrated in the housing

• Exhaust hose with connector
  The hose supplied has a length of 65 cm. If you install the filter cartridge further away from the toilet (up to three meters possible), you will need a gas-tight hose (also available in the online shop)

• Adapter parts for connection to the cassette

• Sealing plug (for use when emptying the cassette)

• Cable set with switch for power supply of the fan (during use)

• complete small parts for assembly

• Assembly instructions (very differentiated)

• Filter cartridge green

• Floor lead-through with sealing flange and base

|

❖Specifications

Brand | SOG
Model | Type 3000A (floor version)
Shipping Weight | 1.05kg
Shipping Dimensions(mm) | 200 x 170 x 190
Manufacturers Warranty | 1 year
