Outdoors, every little detail counts. Traditional shower awnings often do just that—making it harder to access what you need when you need it. That’s where the San Hima shower awning with its 90° swing arm comes in—it gives you an unblocked path, everything’s right where you need it. First off, the swing arm lets you access your gear without having to awkwardly maneuver around the setup, especially when you’ve got a bunch of stuff. The roof rolls back for fresh air, but when privacy’s a priority—whether you’re showering, changing, or using the toilet—the roof can be rolled up for full coverage. Made with 420D Oxford fabric and 280GT polyester-cotton, this shower tent is water-resistant (5,000mm) and offers UPF 50+ protection. The silver lining blocks any silhouettes, while the built-in LED light makes sure you’re never in the dark. With pockets for towels, clothes, and shower zippers with Velcro, everything’s within arm’s reach, making showering hassle-free.

FEATURES

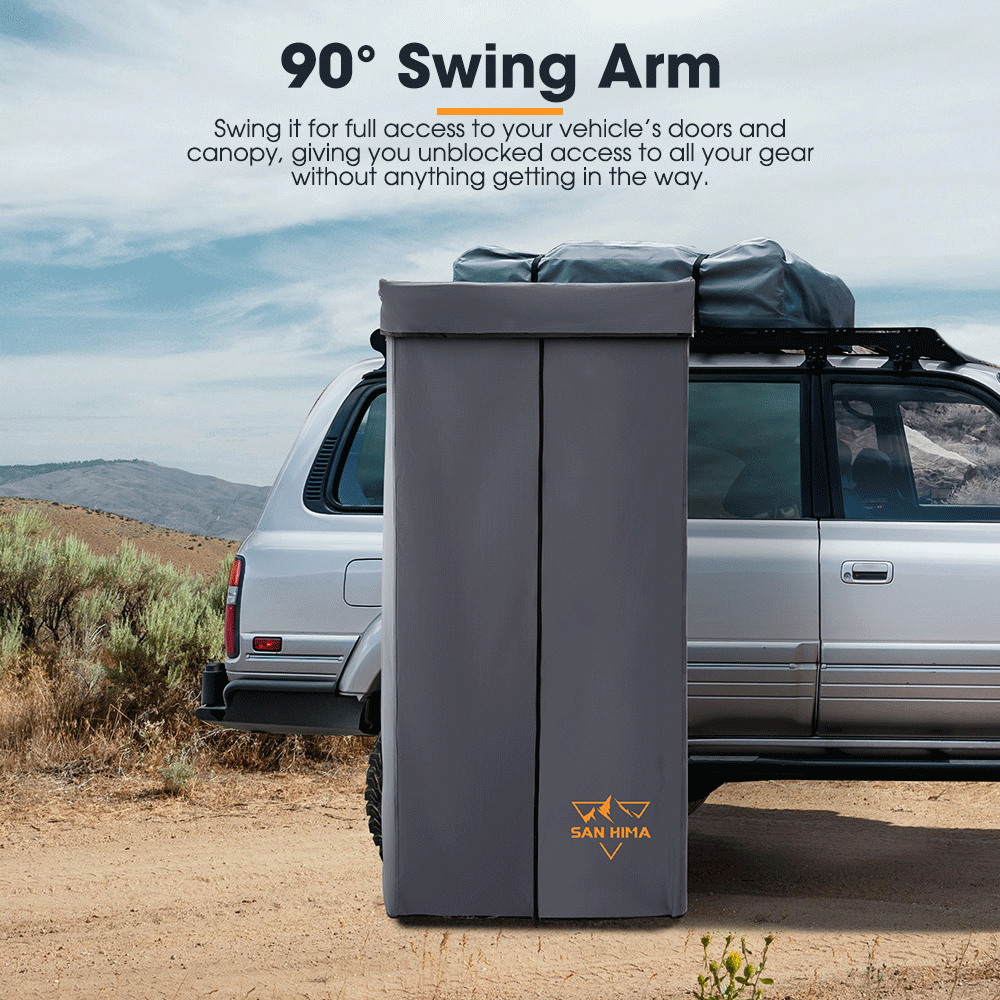

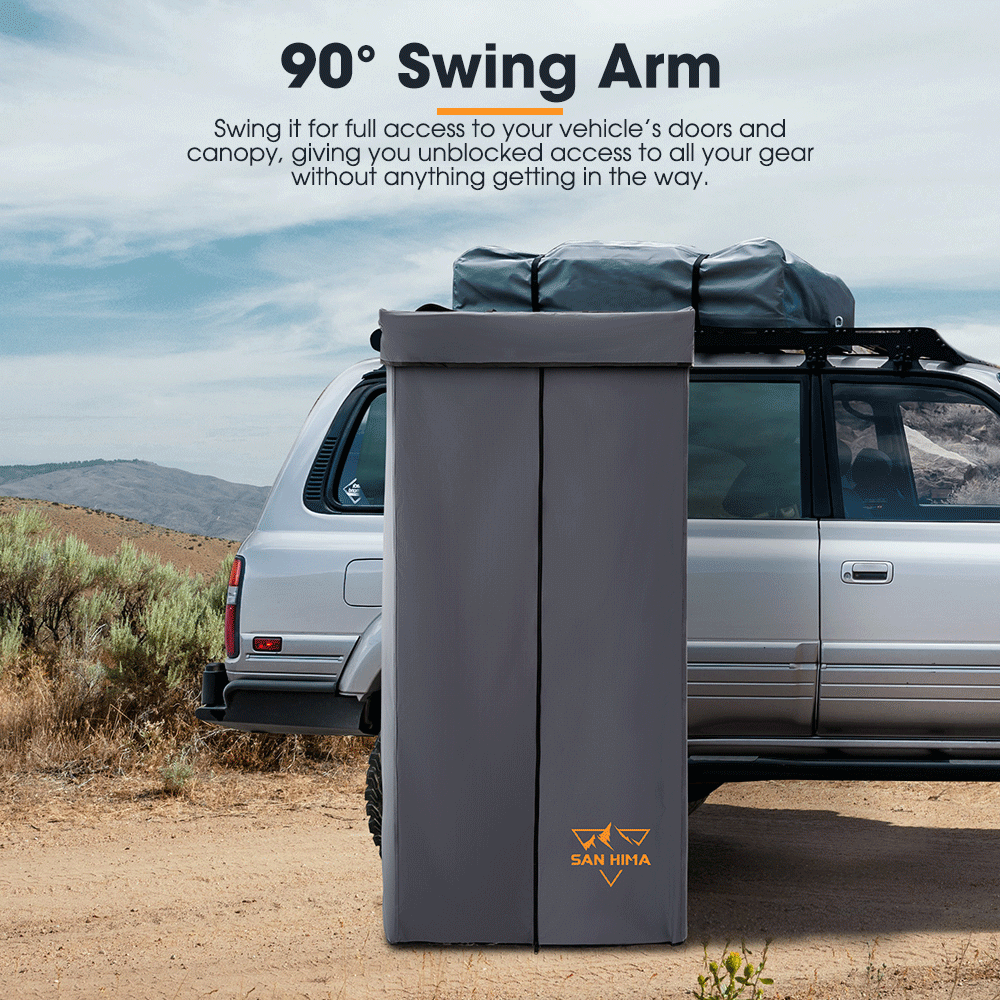

90° Swing Arm: Swing it for full access to your vehicle’s doors and canopy, giving you unblocked access to all your gear without anything getting in the way.

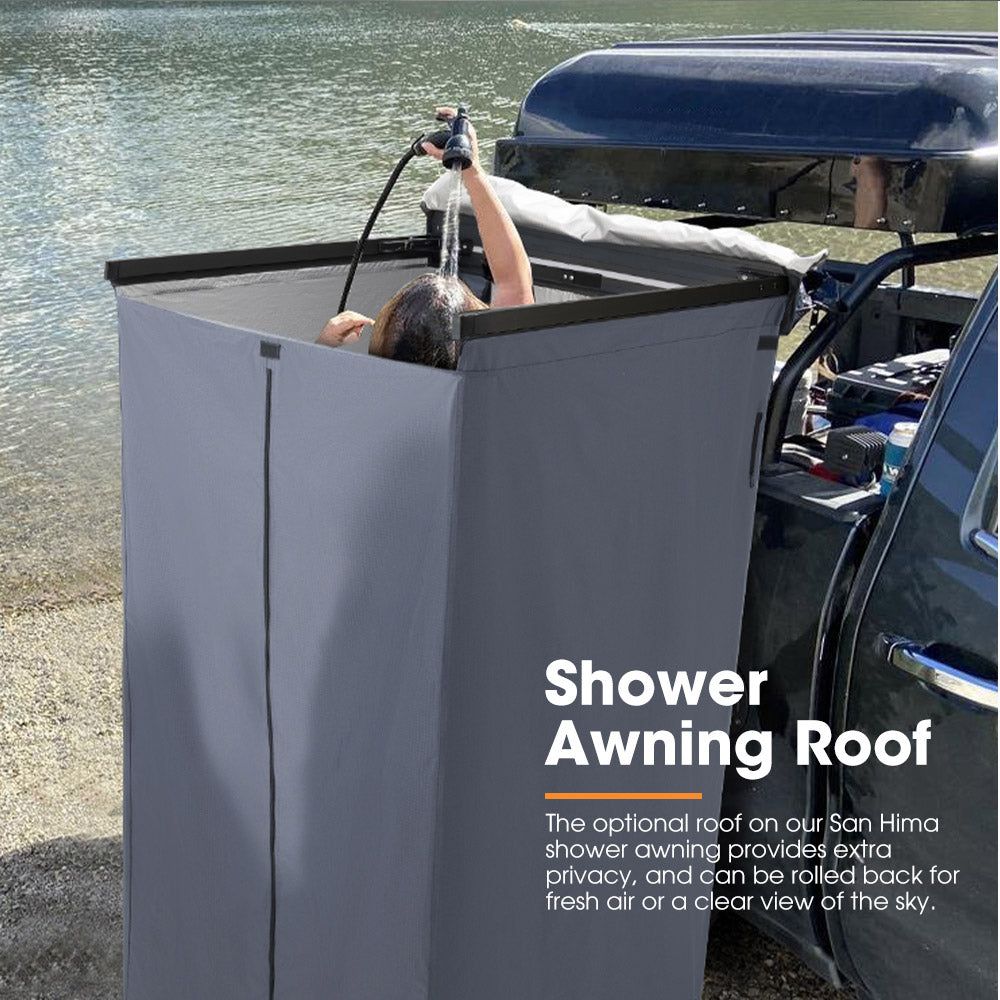

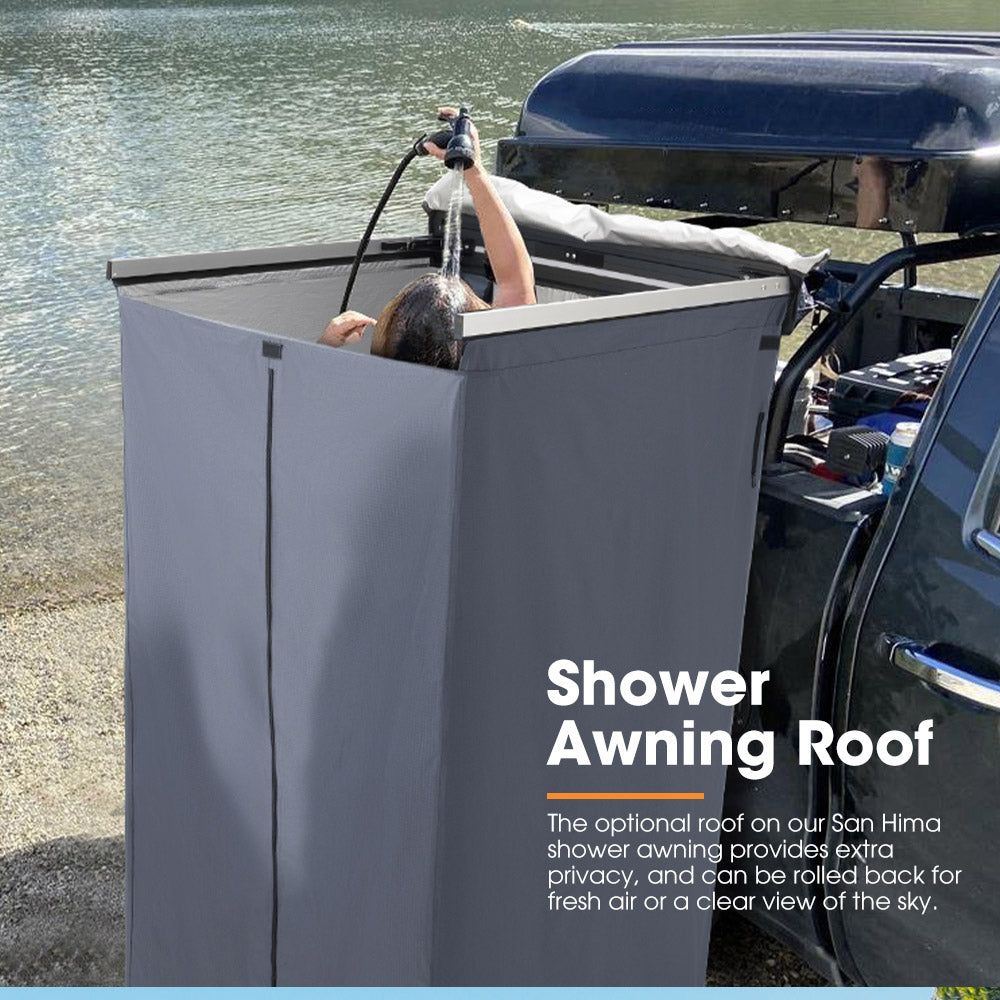

Shower Awning Roof: The optional roof on our San Hima shower awning provides extra privacy, and can be rolled back for fresh air or a clear view of the sky.

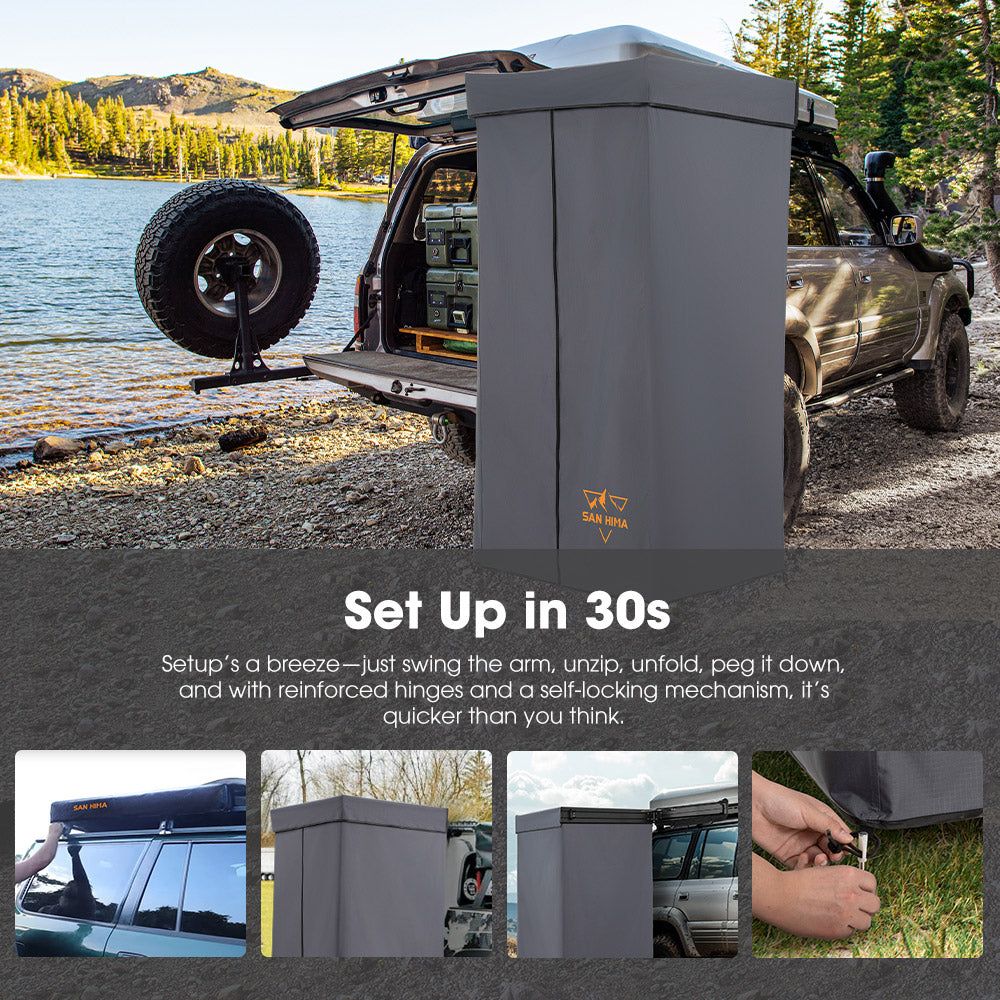

Set Up in 30s: Setup’s a breeze—just swing the arm, unzip, unfold, peg it down, and with reinforced hinges and a self-locking mechanism, it’s quicker than you think.
Easy Installation: It easily mounts to your 4x4 roof rack or camper trailer, with self-locking reinforced hinges for solid stability during setup and takedown.
Blackout Privacy: The black lining ensures you’re completely hidden—whether you're showering, changing, or on the toilet, it blocks any chance of prying eyes.
No Sagging: Four tie-down points with pegs keep the shower awning taut, so you can hang towels or store toiletries without any drooping.
Store It Quick, Travel Easy: When you’re done, pack it away in the UV-resistant, waterproof 1,000 GSM PVC travel cover for neat, easy storage.

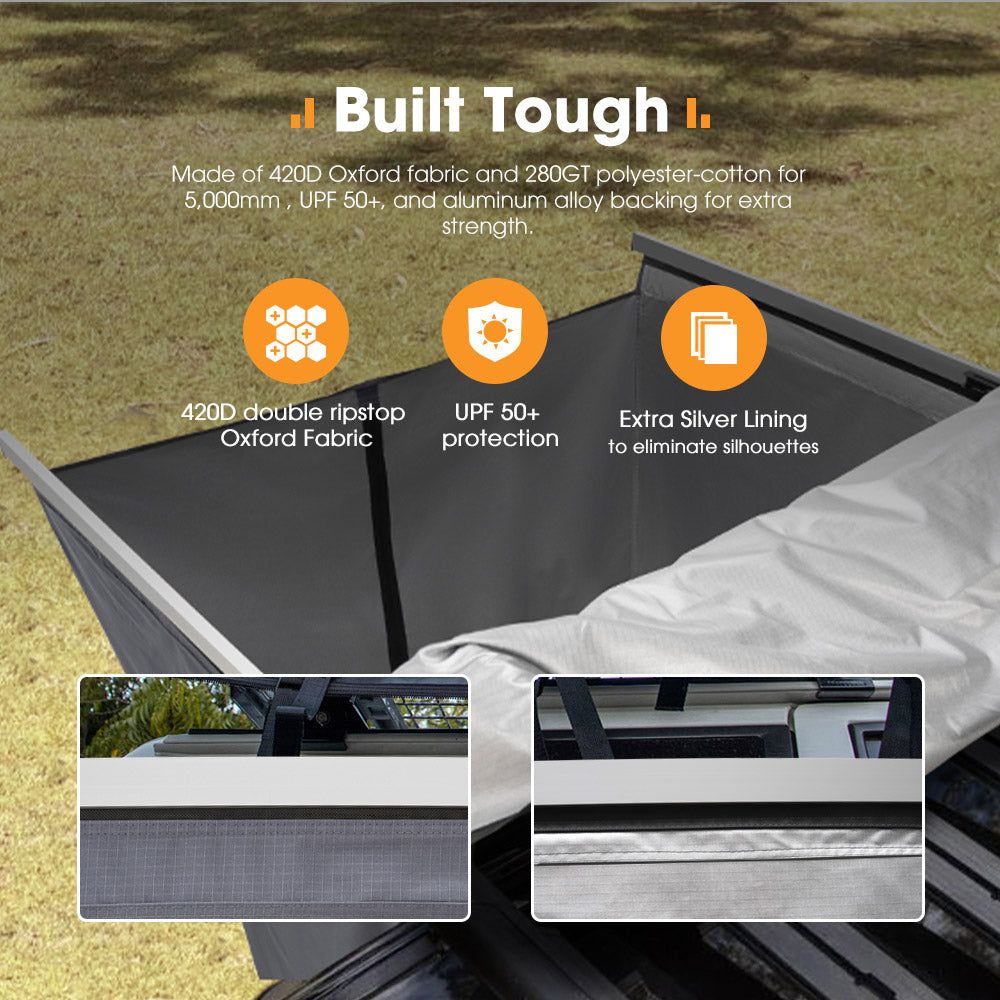

Built Tough: Made of 420D Oxford fabric and 280GT polyester-cotton for 5,000mm waterproofing, UPF 50+, and aluminum alloy backing for extra strength.
LED Light Inside: Enjoy a well-lit shower with the built-in LED strip, offering 867 lumens of bright, reliable lighting whenever you need it.

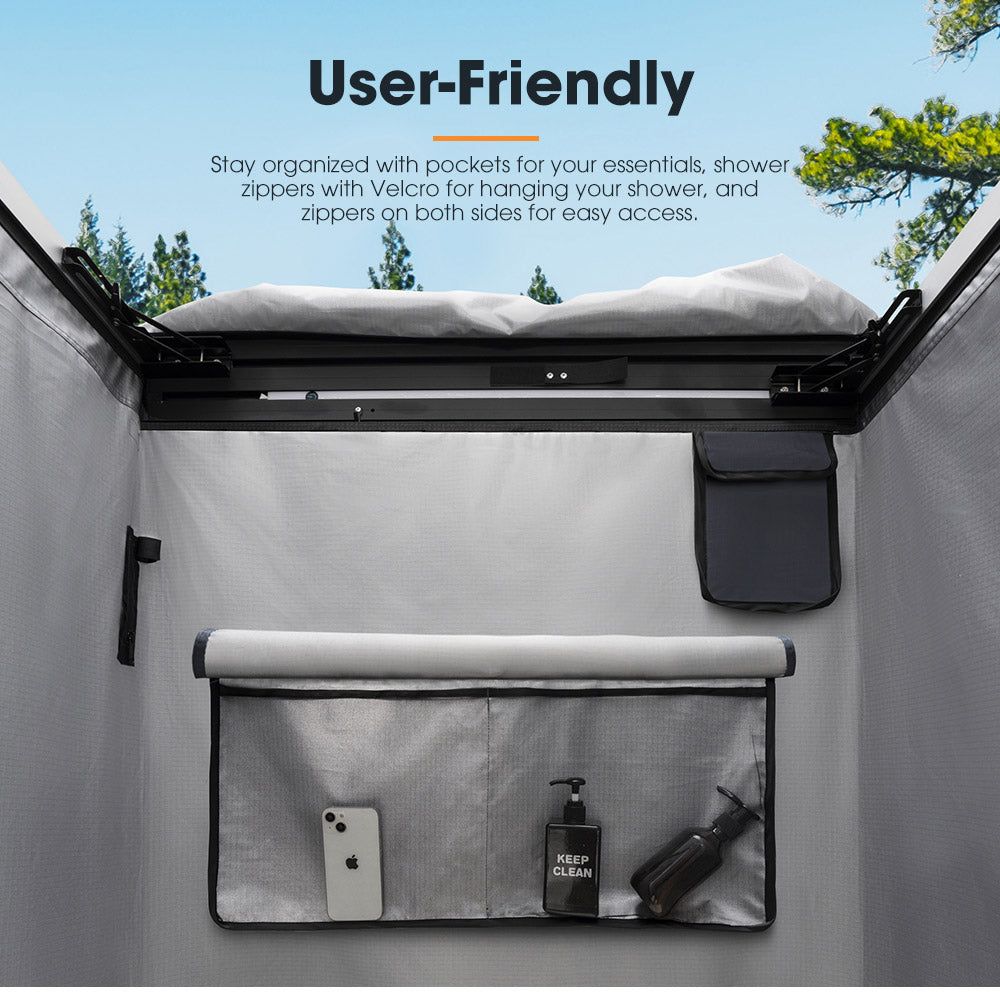

User-Friendly: Stay organized with pockets for your essentials, shower zippers with Velcro for hanging your shower, and zippers on both sides for easy access.

SPECIFICATIONS
Shower Tent
Material:420D Oxford Fabric & 280GT Polyester-Cotton
Water Column:5,000mm
UV ProtectionUPF 50+
Brackets Material:Powder Coated Steel
Swing Arm:Carbon Structural Steel

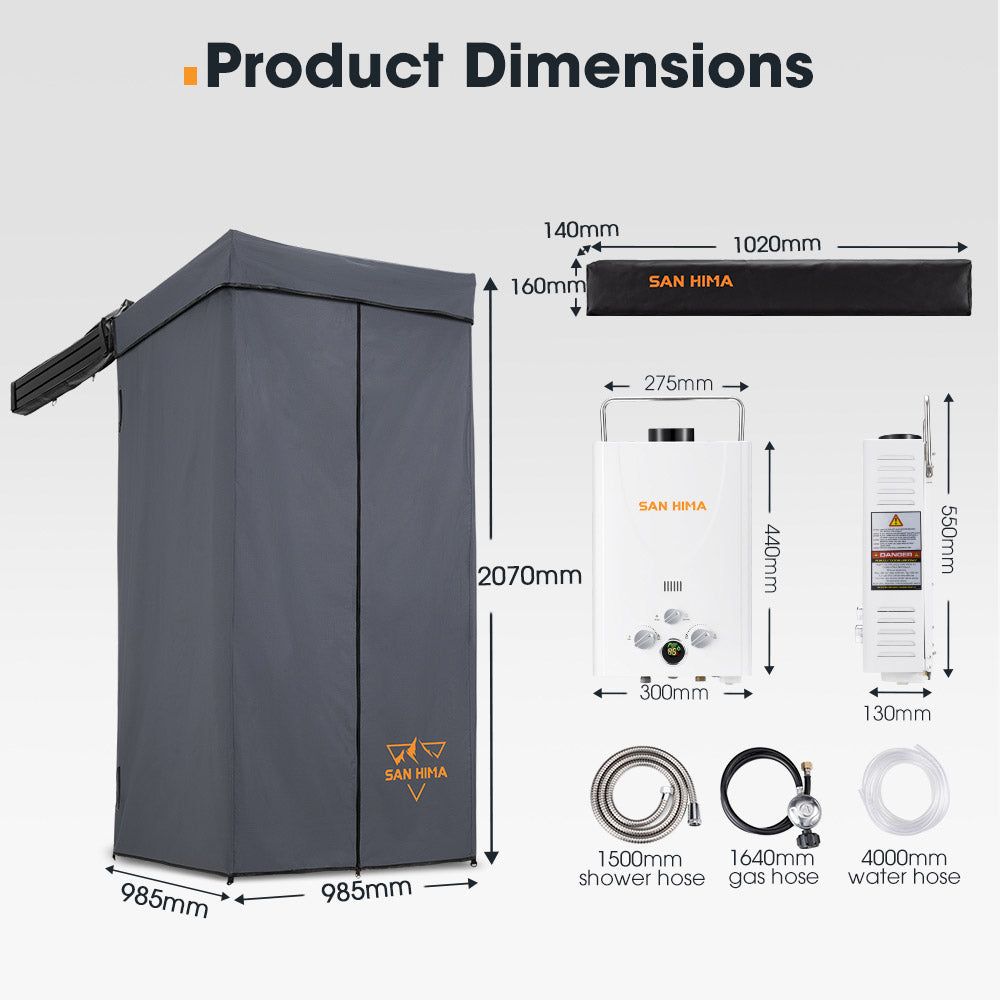

Folded Dimension:102 x 16 x 14cm(LxHxW)
Unfolded Dimension:98.5 x 98.5 x 207cm(LxHxW)
Package Size:106 x 17 x 17cm(LxHxW)
Package Weight:15.7Kg
Travel Cover
Material:1,000 GSM PVC
Water Column:8000mm
UV Resistant:Yes
LED Light
Rated Voltage:5V
Rated Power:10W
Lumens:867
Connector:USB-A
Gas Water Heater
Gas Input Connection:G
Water Input Connection:G
Water Output Connection:G
Package Size:66 x 35 x 19cm(LxWxH)
Package Weight:7.84KG
Heat Exchanger
IAPMO:GMK10498
Injector Size (mm) :0.61
Total Nominal Gas Consumption (MJ/h):28
Gas Pressure (kPa):2.8
Min Water Pressure (MPa):0.3
Max Water Pressure (MPa):1.0
Power (kw):7.7
Water Flow Rate (max)

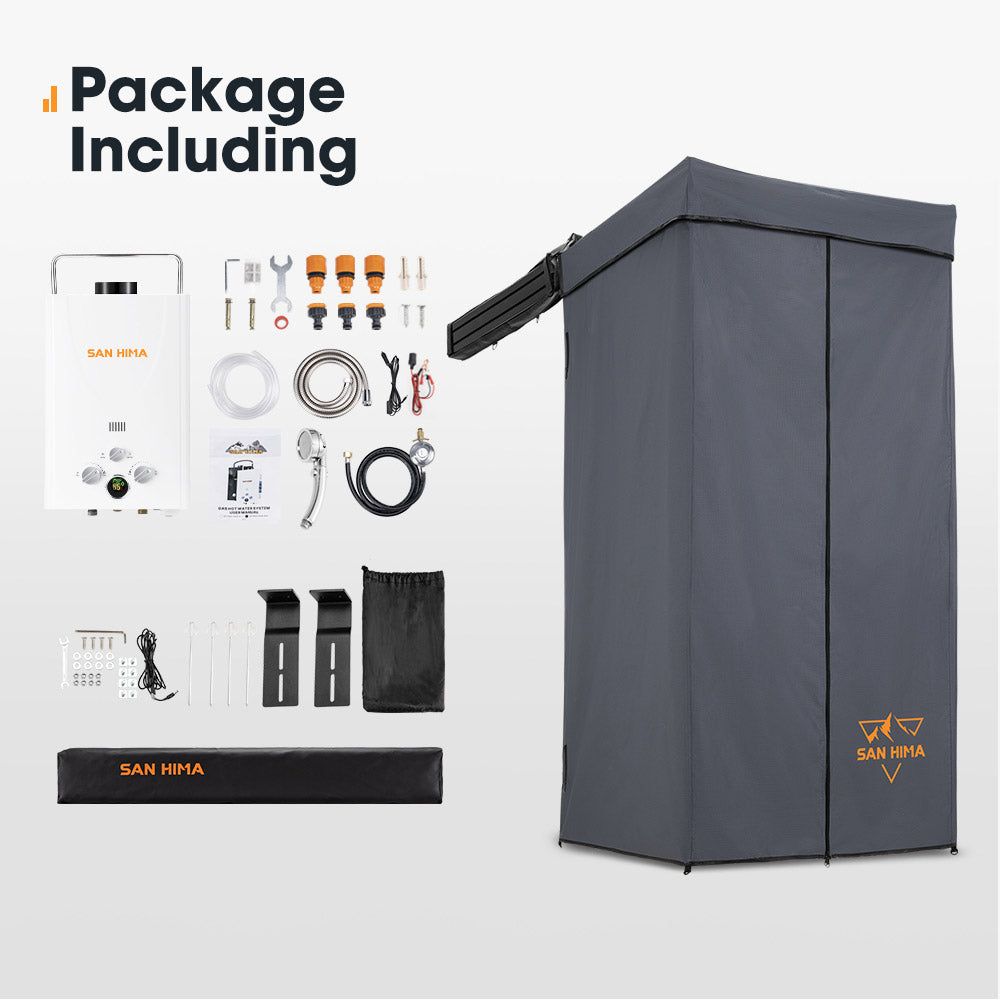

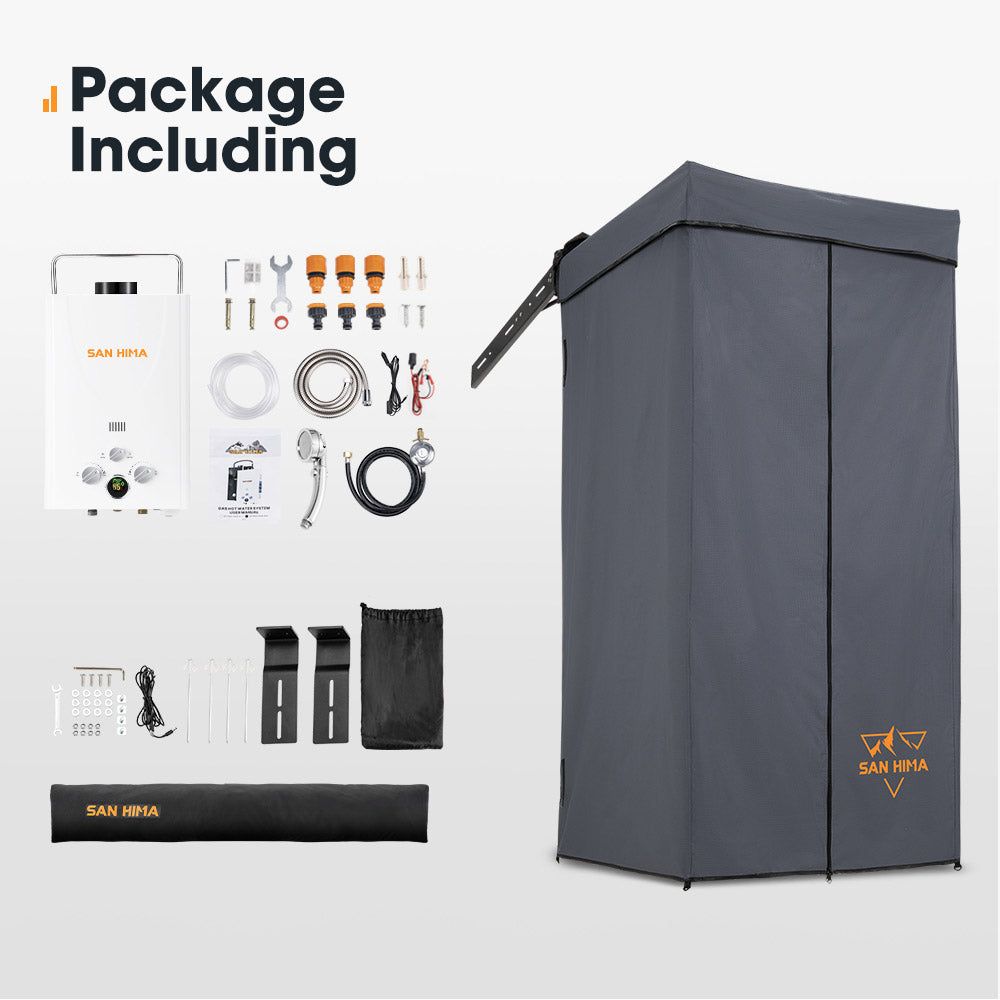

PACKAGE INCLUDES

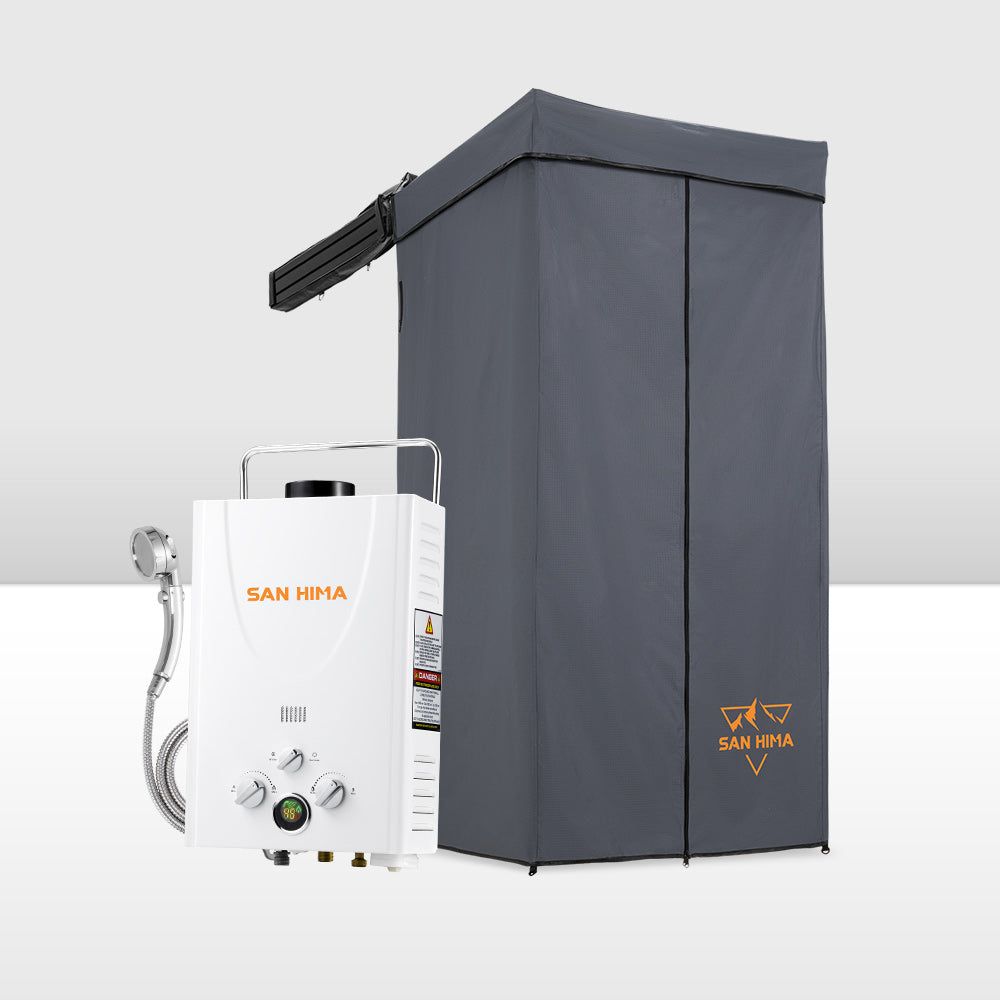

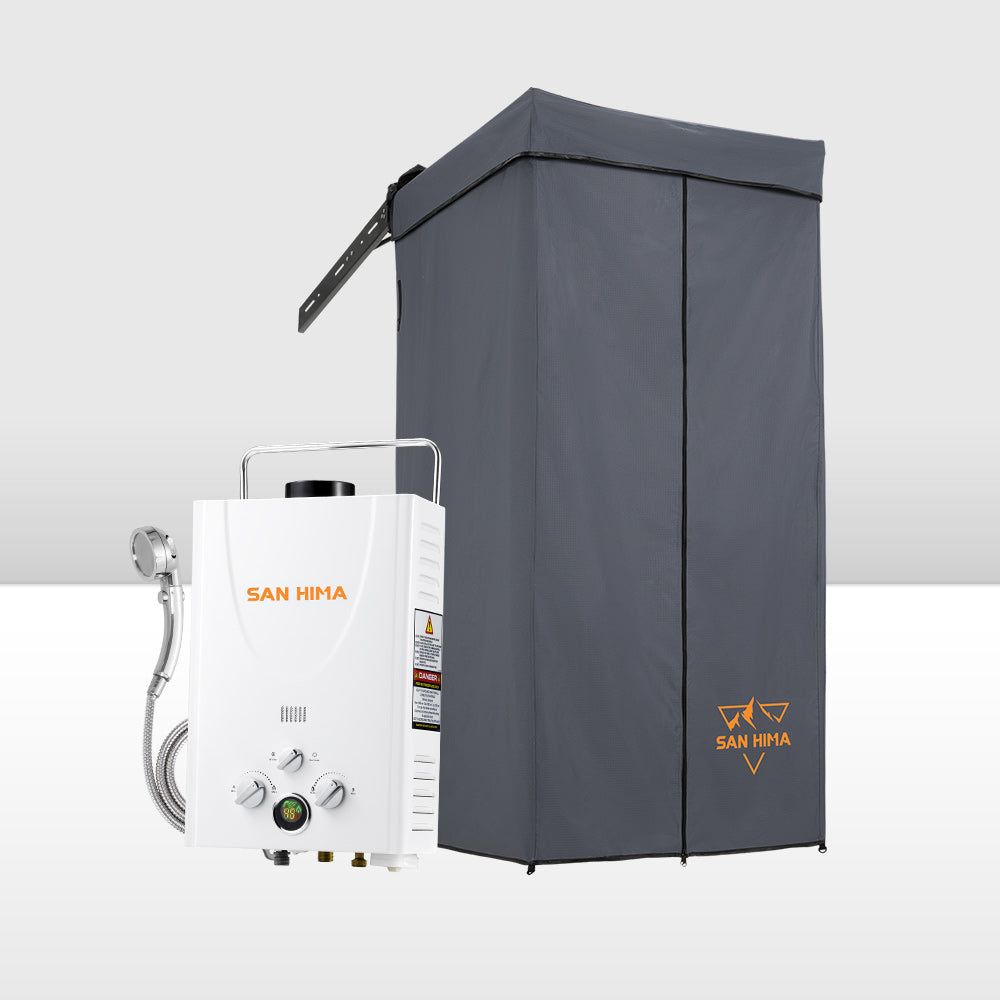

1 x San Hima Shower Awning with Swing Arm

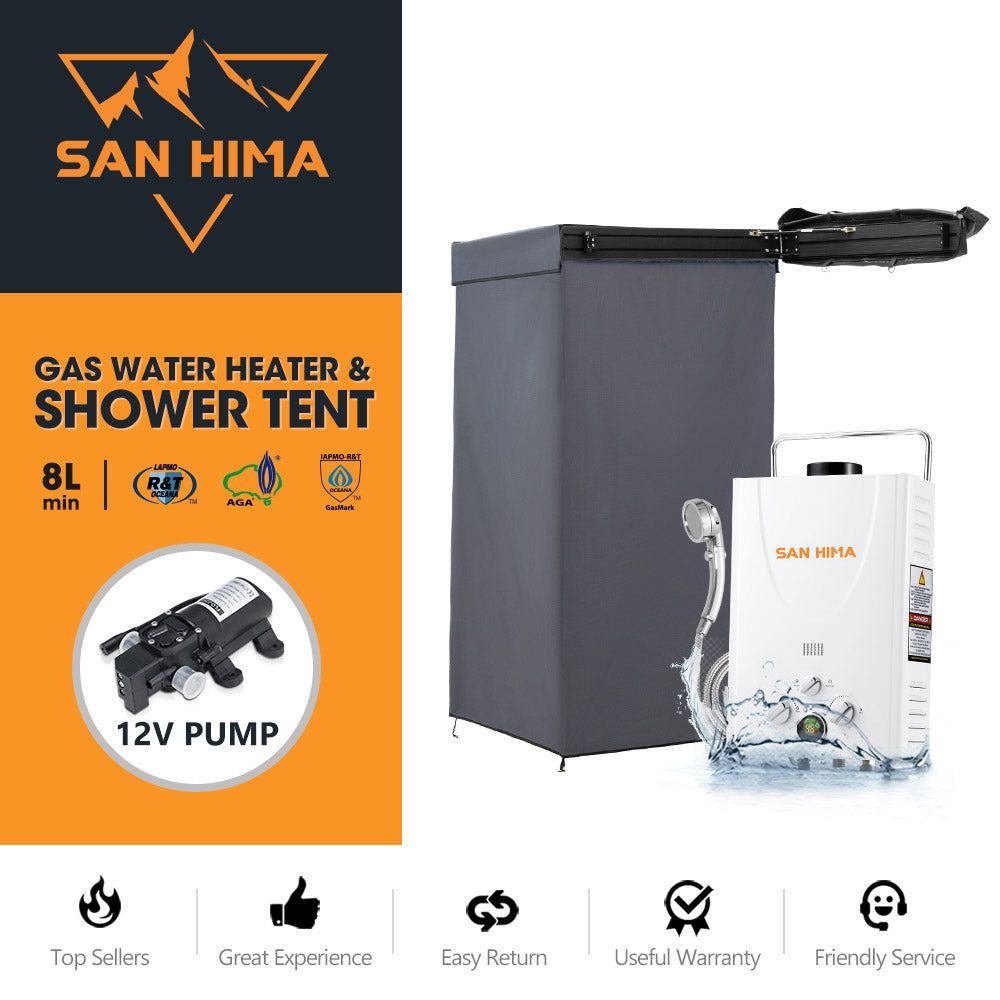

1 x San Hima Gas Hot Water Heater
2 x L-shaped Brackets & 1 x Charging Cable For Shower Awning
Set of Mounting Kit For Shower Awning
1 x Shower Head & 1 x Shower Hose & 1 x Shower Head Holder For Gas Hot Water Heater

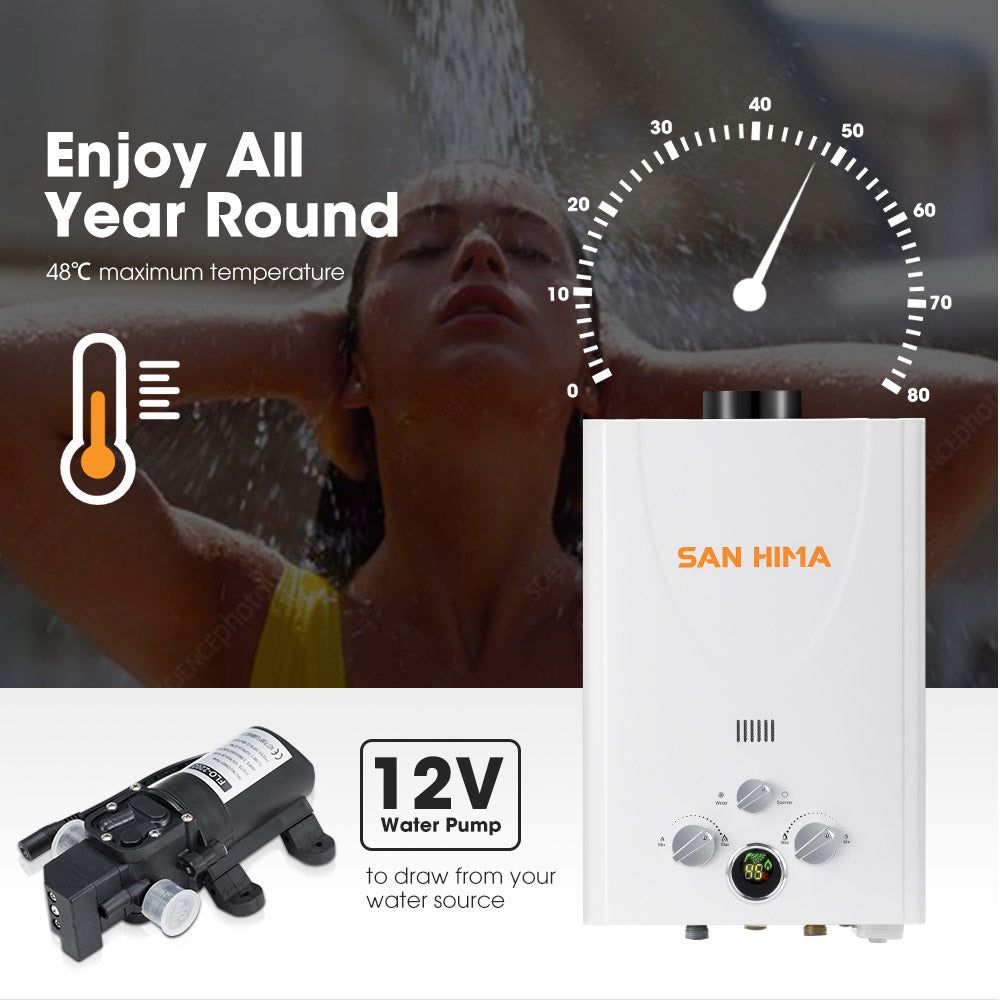

1 x Gas Regulator with Gas Hose & 1 x Portable 12V Water Pump For Gas Hot Water Heater
1 x Cable with Cig Socket 1 x Cable with Alligator Clips For Gas Hot Water Heater
1 x Water Hose & 1 x Thread Seal Tape & 3 x Quick Connectors For Gas Hot Water Heater
1 x Inlet Filter & 1 x Installation Kit x 1 x User Manual For Gas Hot Water Heater
2 x User Manuals

WARRANTY

1 Year Warranty For Shower Tent
2 Years Warranty For Gas Water Heater
