DESCRIPTION
Are you tired of taking the guesswork out of your equation, wondering when the
batteries you’re using will die and, well…leave you in the dark? If so, let
the San Hima LiFePO4 battery handle that for you. With its smart Bluetooth
tech, you can monitor its status in real time, so you’re never caught off

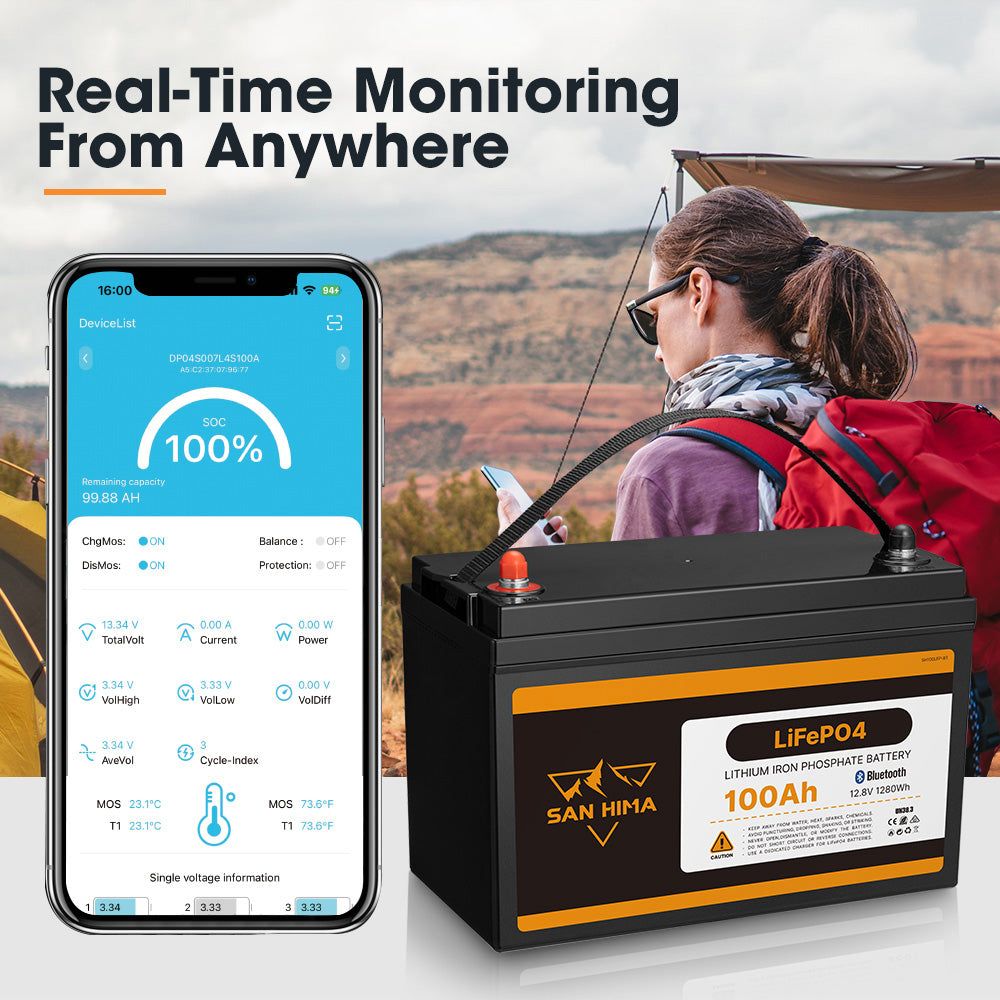

guard. Connecting the LiFePO4 battery to your smartphone is a breeze. Just
download the app—available on both the App Store and Google Play—and link it
via Bluetooth. From there, you can track its capacity, status, and temperature
in real time. IEC-62619 approved for Australian lithium standards and crafted
with Grade A prismatic cells, our battery boasts 6,000 cycles of performance.
Plus, its advanced BMS protects against overvoltage, overcurrent,
overdischarge, overcharge, and overheating, ensuring reliable operation in
tough conditions. With a continuous discharge current of 100A, it has the
power to run energy-hungry appliances, making it the ideal companion for all
your adventures.
FEATURES

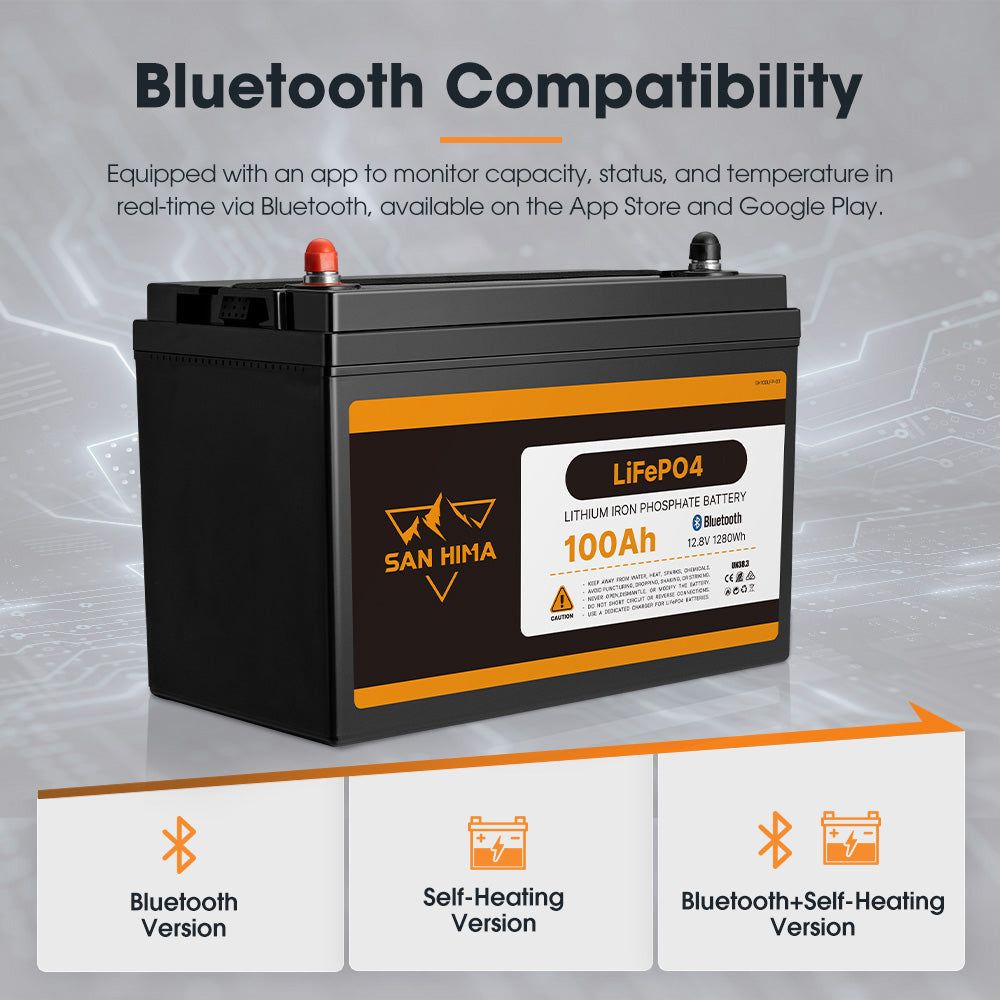

Bluetooth Compatibility: Equipped with an app to monitor capacity, status, and
temperature in real-time via Bluetooth, available on the App Store and Google
Play.

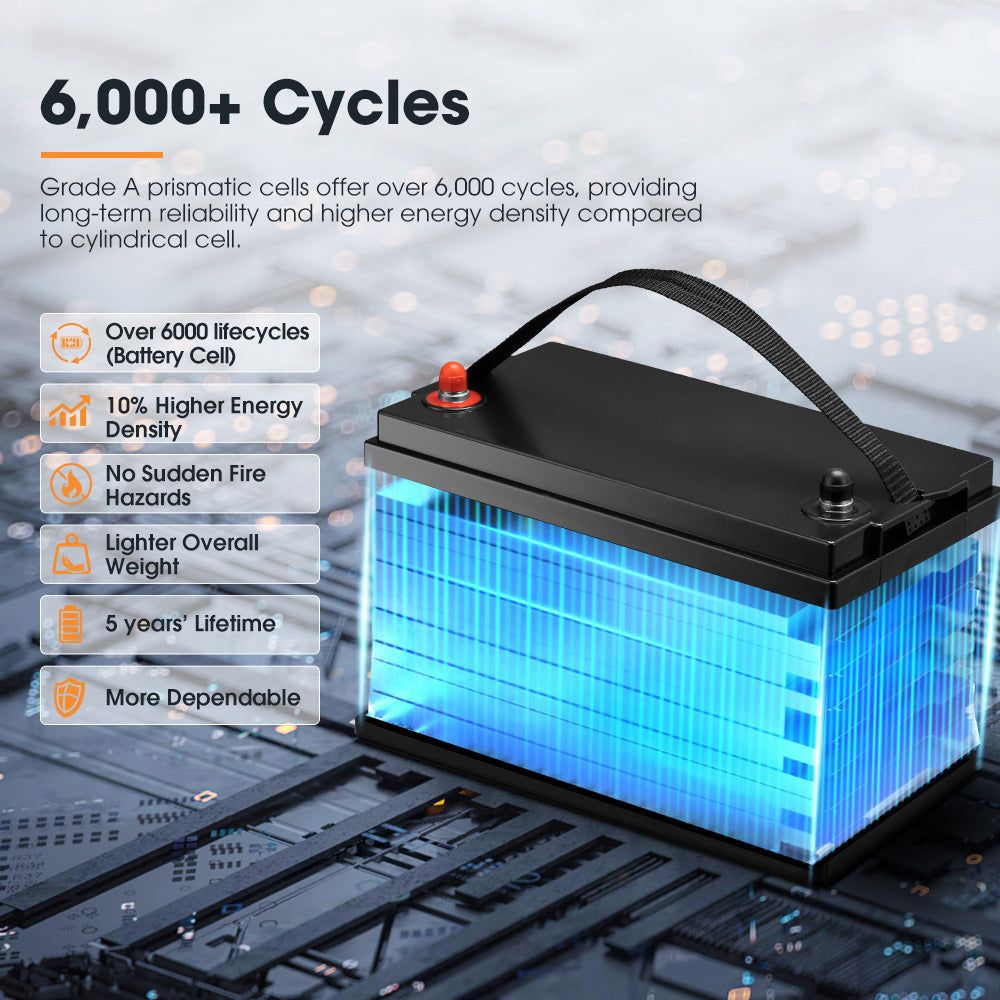

Safety Standard: IEC-62619 certified to meet Australian lithium safety
standards, our battery with Grade A prismatic cells delivers an astonishing
6,000 cycles.
Flexible Configurations: Tailor your setup with options for 2s & 2p
configurations, maximizing output potential for situations like power outages
or hurricanes.

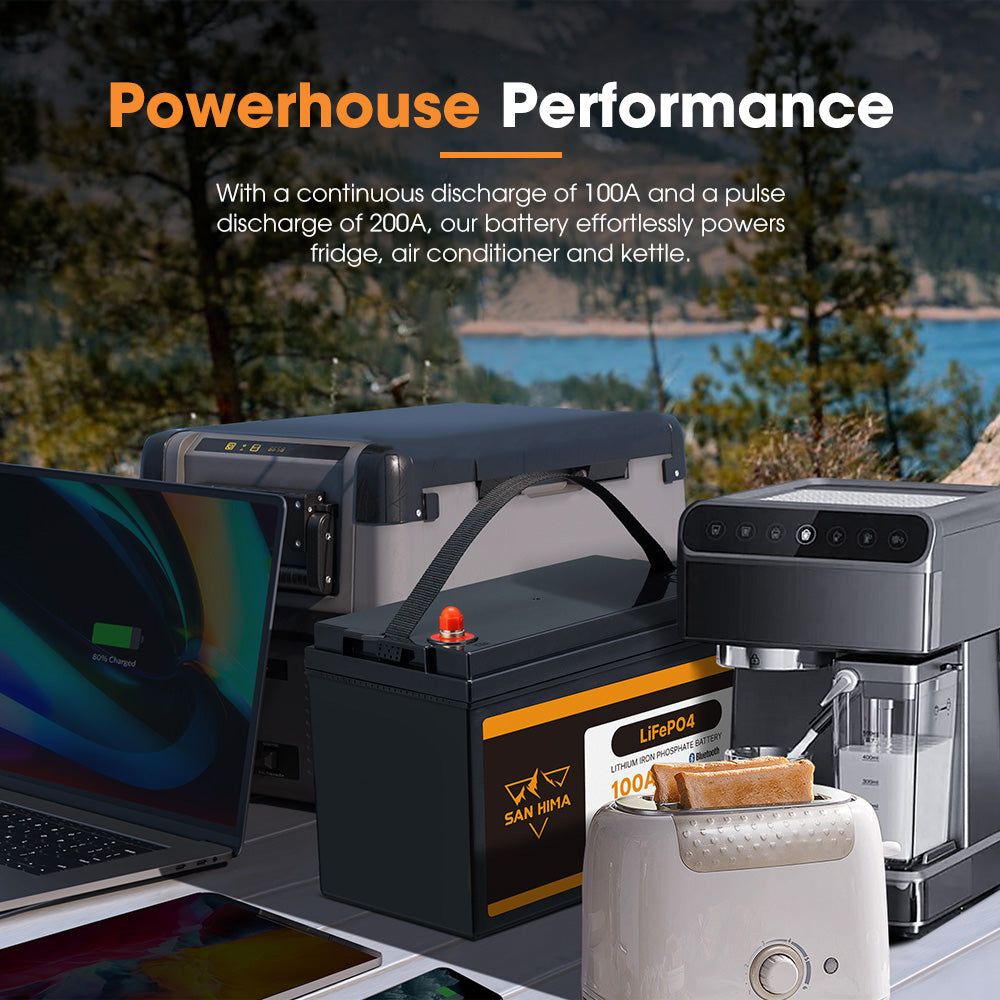

Powerhouse Performance: With a continuous discharge of 100A and a pulse
discharge of 200A, our battery effortlessly powers fridge, air conditioner and
kettle.
Smarter BMS: Upgraded for overvoltage, overcurrent, overdischarge, overcharge
and overheat protection, minimizing cell degradation for safer operation.

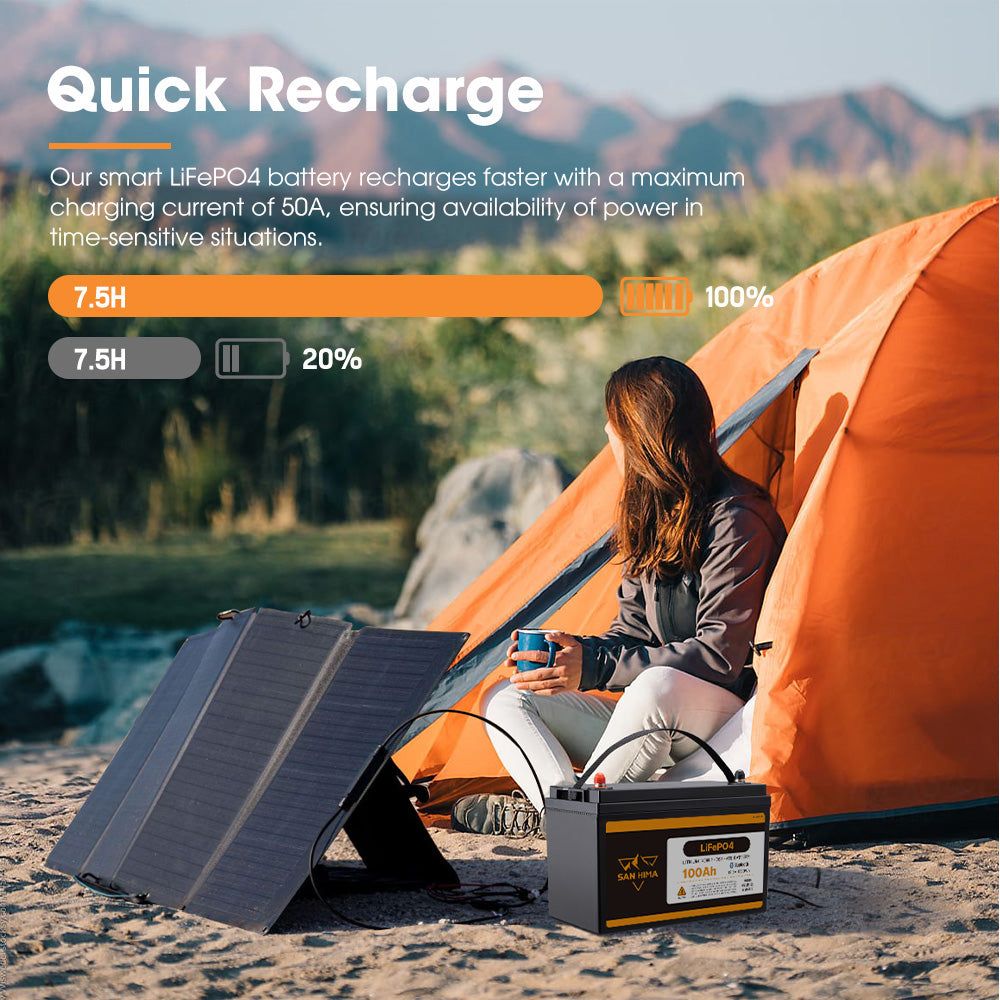

Quick Recharge: Our smart LiFePO4 battery recharges faster with a maximum
charging current of 50A, ensuring availability of power in time-sensitive
situations.
Extended Usable Capacity: Our battery safely allows discharge to 80~90%,
maximizing operational times compared to AGM batteries limited to 50%
discharge.
Fire-Resistant Housing: Provides vertical burning resistance, reducing fire
spread risks, especially in remote areas with delayed emergency responses.
Massive Capacity: Eliminate the need for multiple batteries with our single
smart 100Ah LiFePO4 battery, capable of handling substantial power demand with
ease.
Minimal Self-Discharge: Our LiFePO4 battery maintains minimal self-discharge,
preserving charge for months in storage, ensuring reliable power whenever
needed.
SPECIFICATIONS
Cell Type:Prismatic LiFePO4
Rated Capacity:100Ah
Nominal Voltage:12.8V
Cycle Life:6,000 (0.2c; DoD 80%)
Recommended Charge Current for Maximum Life:20A
Max. Continuous Charge Current:50A
Max. Continuous Discharge Current:100A
Max. Pulse Discharge Current (3s):200A
Charge Cut-off Voltage:14.4V
Discharge Cut-off Voltage:10.8V
Standby (Float) Voltage:10.8V~14.4V
Max. Modules in Series/Parallel Configuration:2S/2P or 2S 2P
Self-discharge (Per Month):3%
Internal Resistance:15m
Operating Temperatures:-0C~55C
Storage Temperatures:-20C~45C
Relative Humidity:95RH
Certifications:CE，IEC 62619

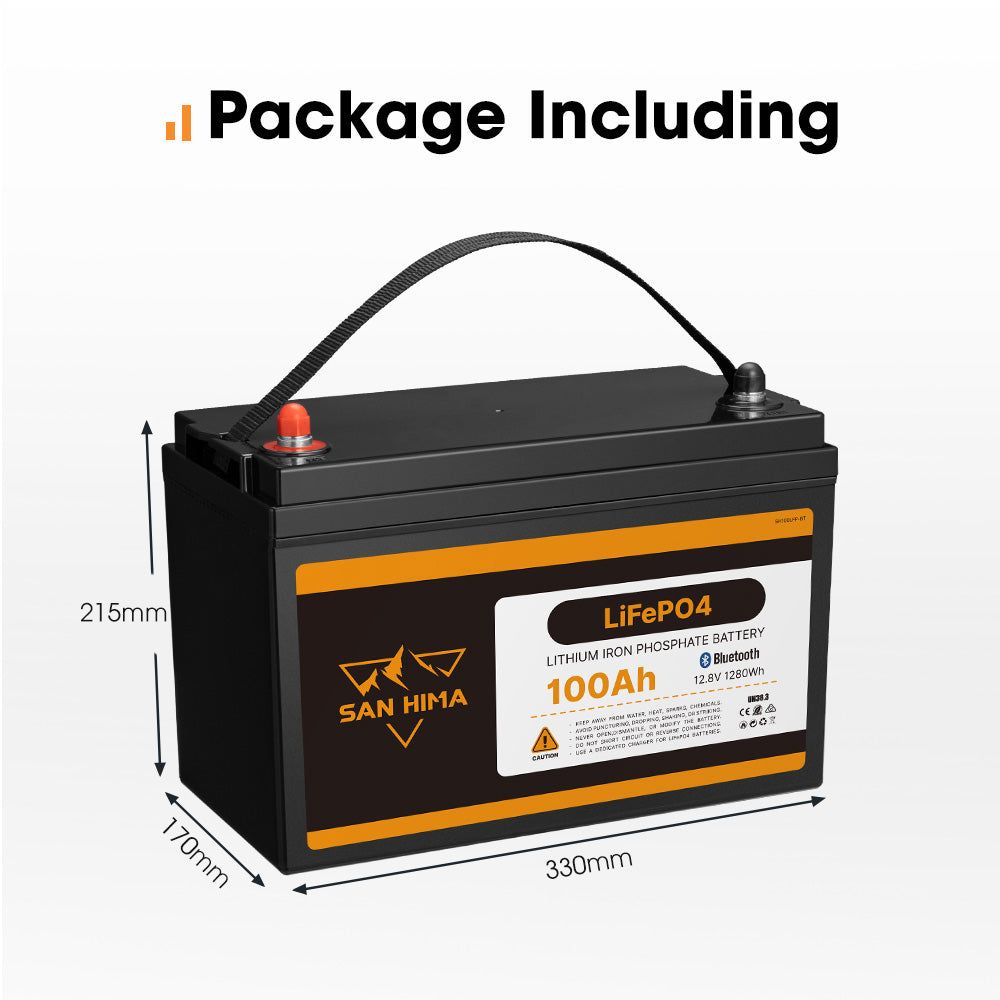

Package Size:365mm x 225mm x 205mm
Package Weight:10.6KG
PACKAGE INCLUDES

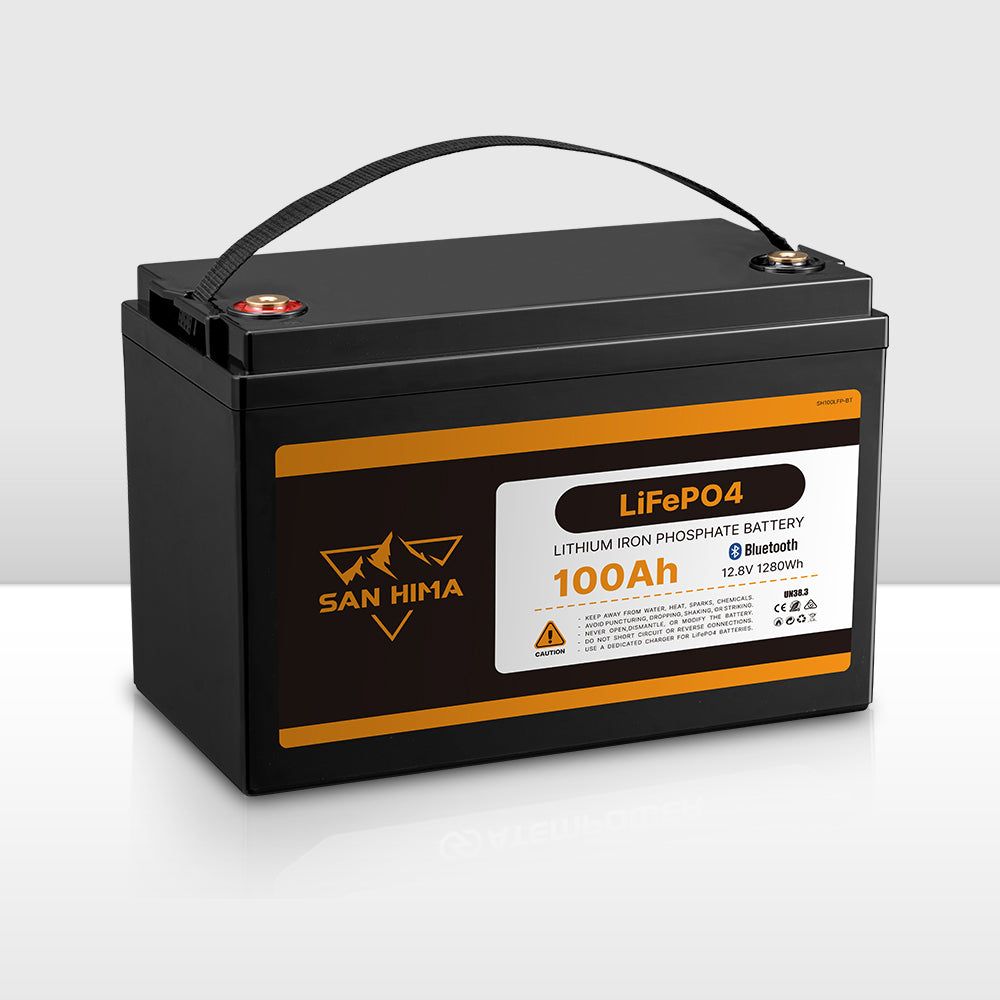

1 x San Hima 100Ah Smart LiFePO4 Battery
1 x User Manual
WARRANTY
5 Years Warranty
