DESCRIPTION

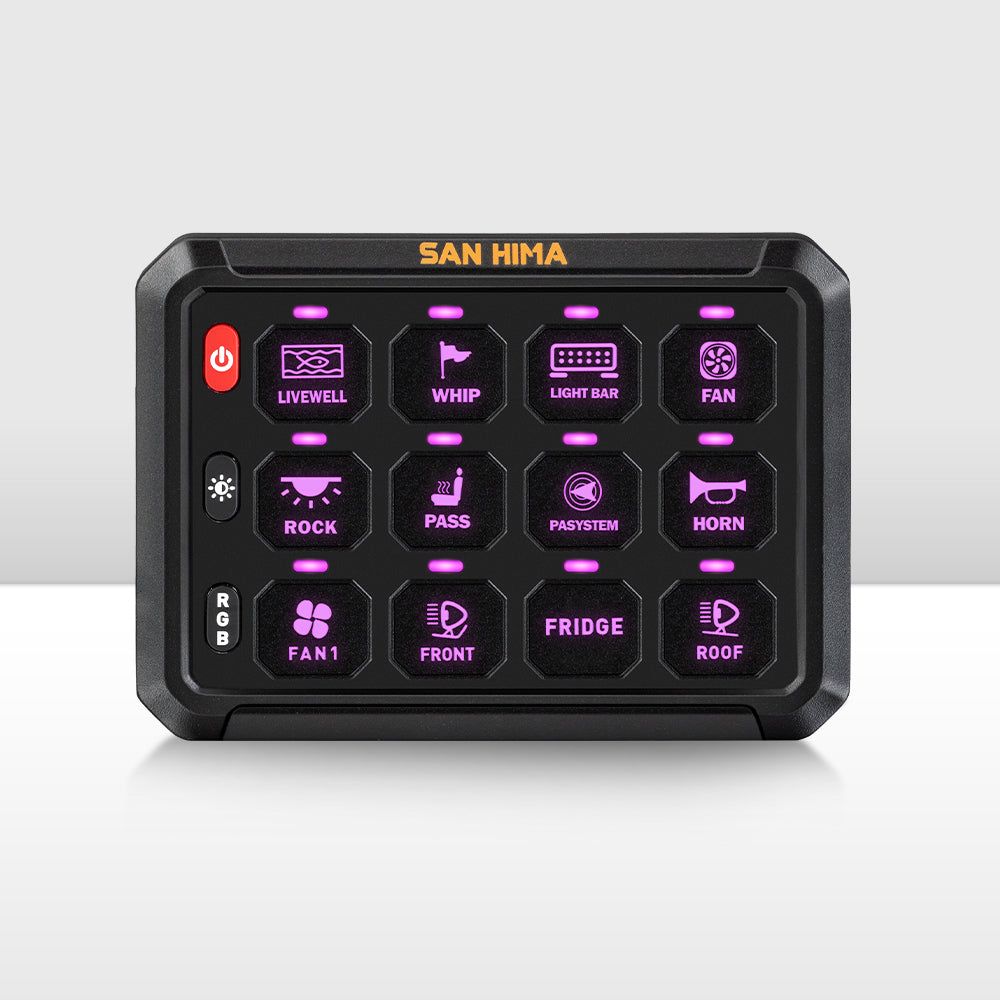

The SAN HIMA 12 Gang Switch Panel gives you full control over 12 circuits.
Manage it effortlessly from your smartphone using the Bluetooth App. Equipped
with 4x30A, 2x20A, 2x15A, and 4x10A fused switches, offering a maximum
combined input of 80 Amps - the perfect solution for flexible and efficient
management. The switch panel can be directly connected to the main or
auxiliary battery, powering your devices reliably. And each circuit features a
system failure indicator for quick connection confirmation. A 100 Amp circuit
breaker, blade fuses, and high-power solid-state relays offer comprehensive
electrical protection while the aluminium housing with an IP65 rating resists
elements. It also comes with dual-sided outlets, essential hardware, and two
bracket options for flexible wiring and easy installation. Plus, with a
5-level brightness adjustment, RGB color changing, and reusable labels, you
can personalize your experience. Make your next adventure even more special
with the panel.
FEATURES

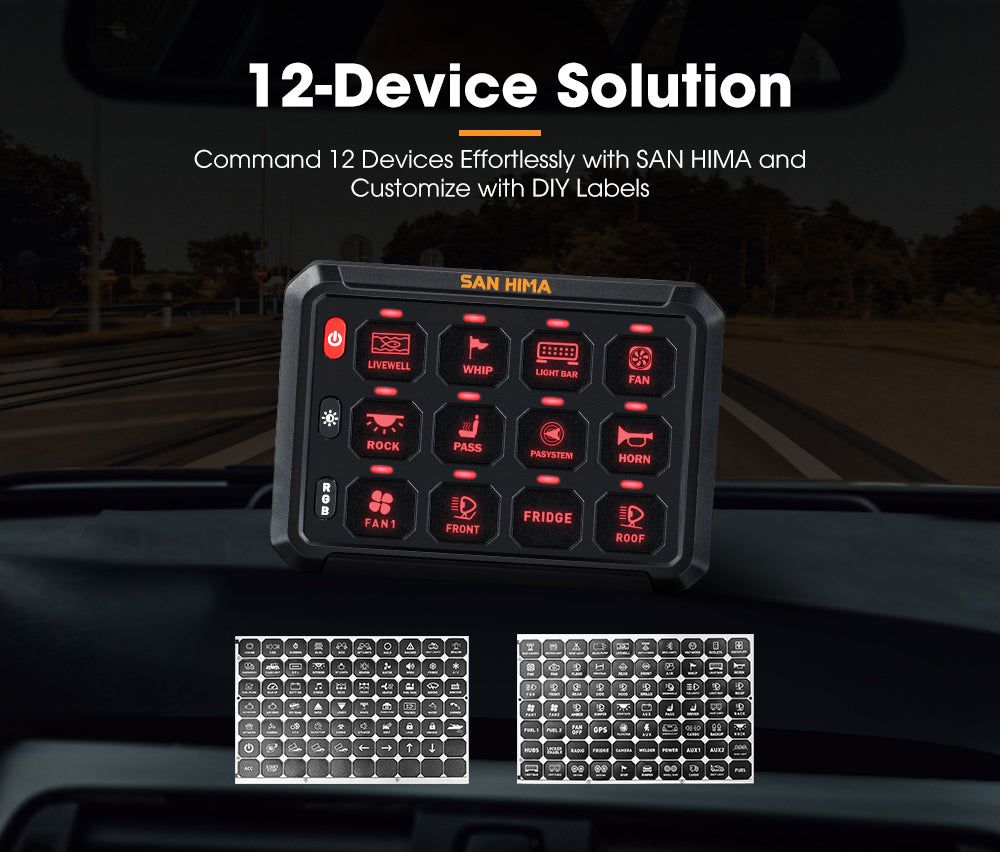

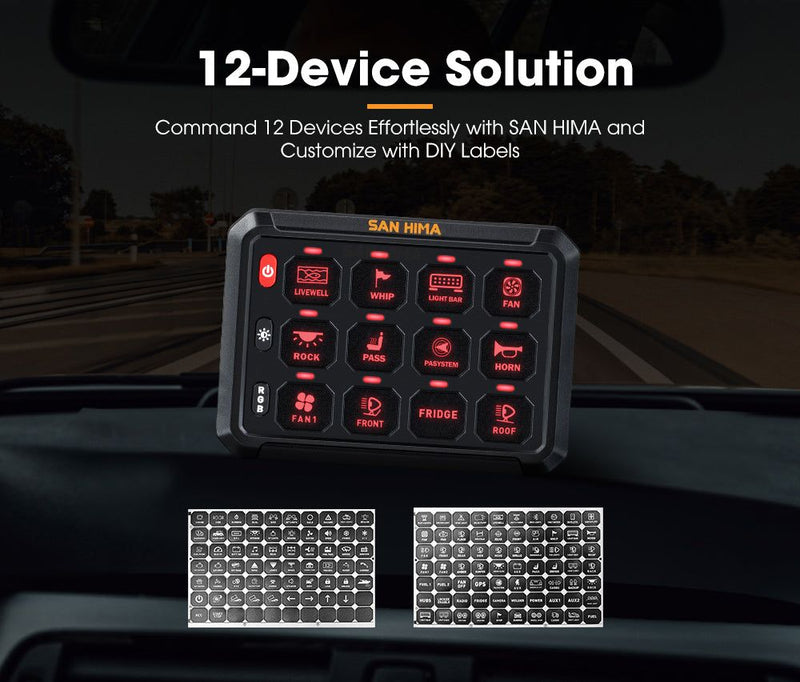

Simplify 12-Device Control: Easily command up to 12 devices with SAN HIMA
switch panel by a simple tap and customize it with reusable DIY labels.

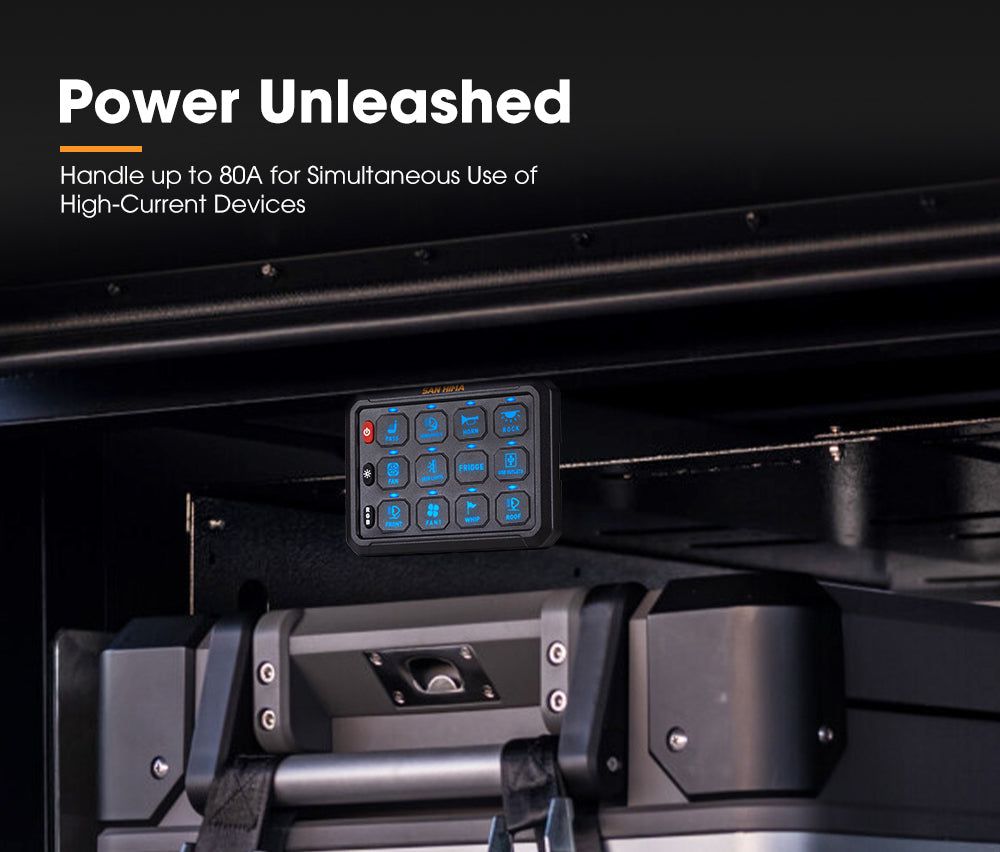

High Current Capacity: Capable of handling up to 80A, our switch panel
empowers simultaneous use of high-current devices, such as electric heaters.
Bluetooth Enabled: Switch panel and Bluetooth App work in sync and the built-
in Bluetooth allows you to program and control the system anytime, anywhere.

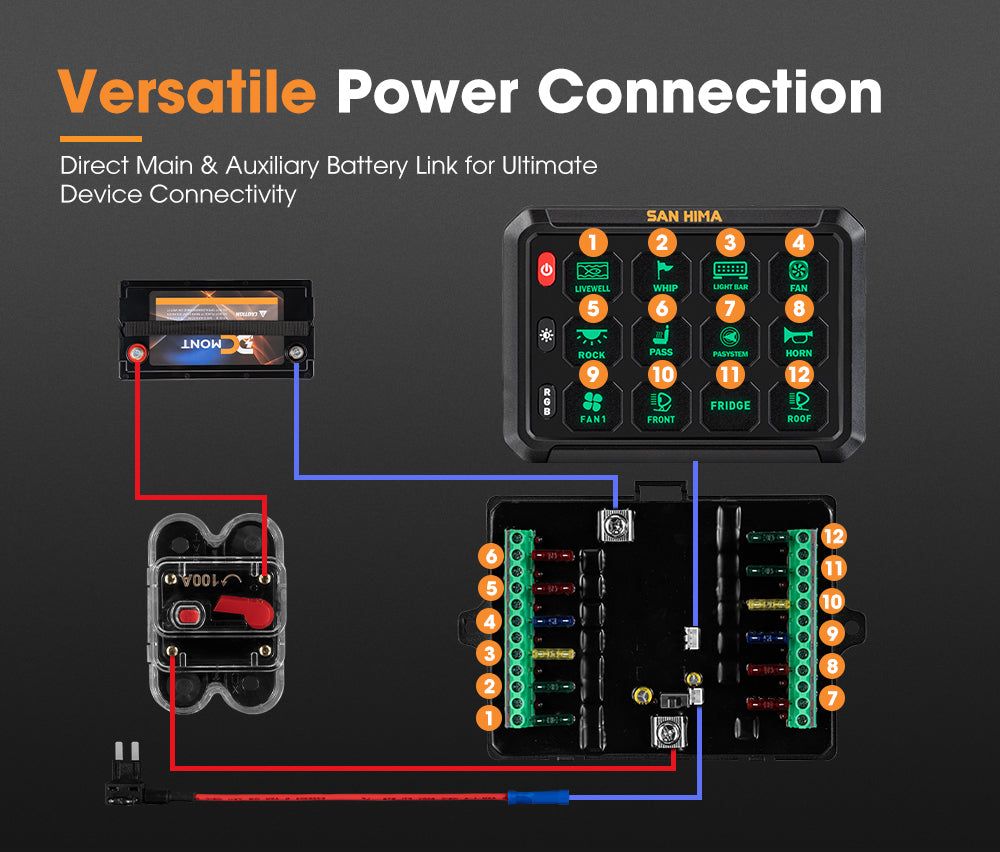

Multi-Battery Compatibility: The control box of our switch panel can be
directly connected to either the main or auxiliary battery for increased
device flexibility.
Failure Indicator: Each circuit is applied with a system failure indicator,
ensuring your devices are correctly connected at all times.

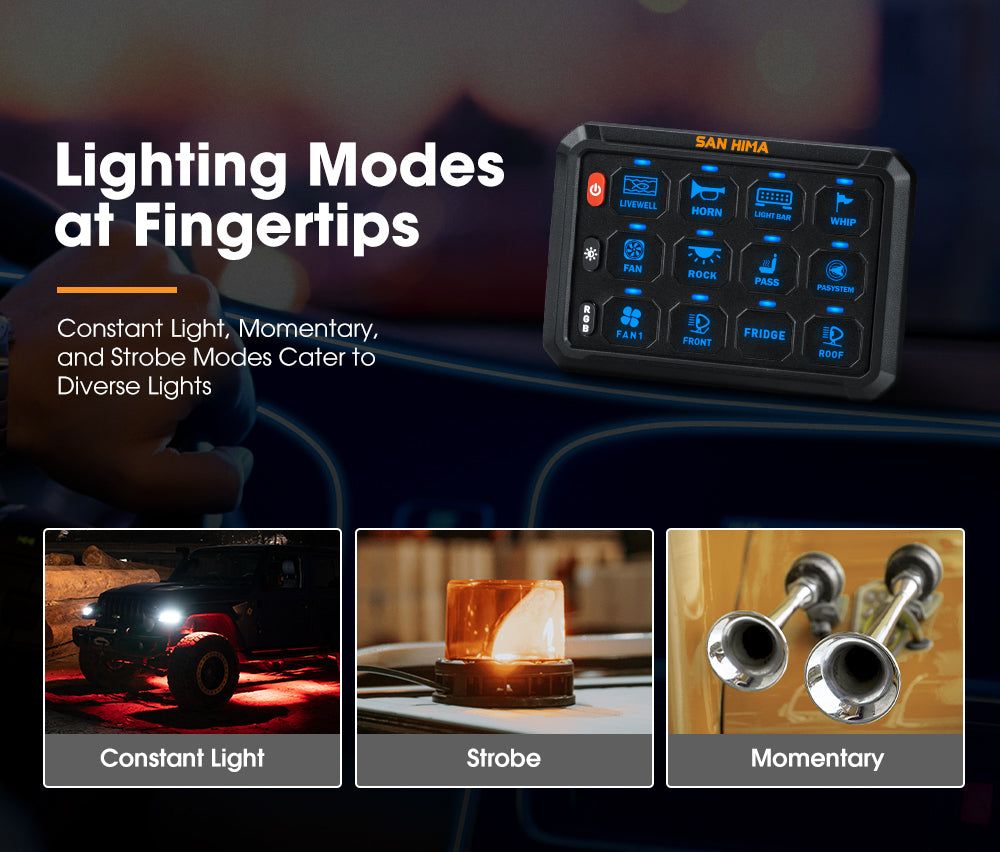

Three Lighting Modes: Effortlessly control a variety of lights with our switch
panel, navigating through Constant Light, Momentary, and Strobe modes.
Durable Construction: Encased in aluminum with an IP65 rating, our switch
panel withstands dust and splashing water on your journey.
Two-Sided Outlet: Our switch panel features a current control box that
bifurcates the output into two sides, facilitating flexible wiring and
minimizing wire clutter.

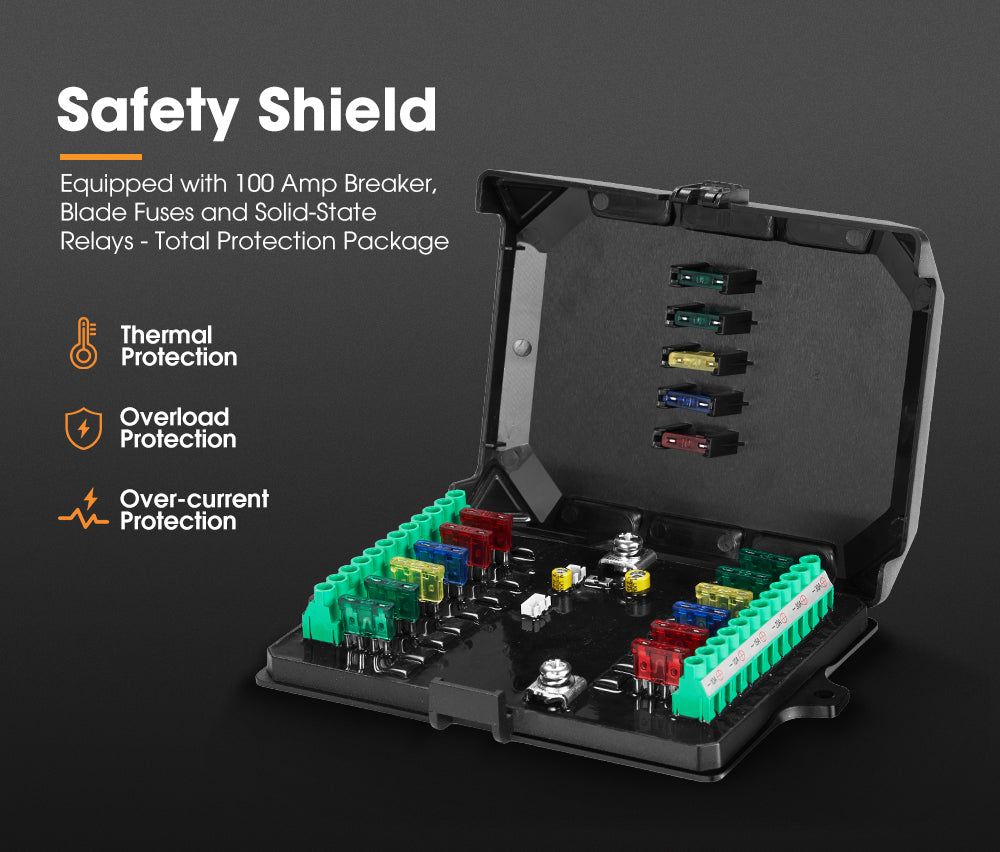

Enhanced Safety: Equipped with a 100Amp circuit breaker, blade fuses, and
compact solid-state relays, it ensures thermal, overload and over-current
protection.

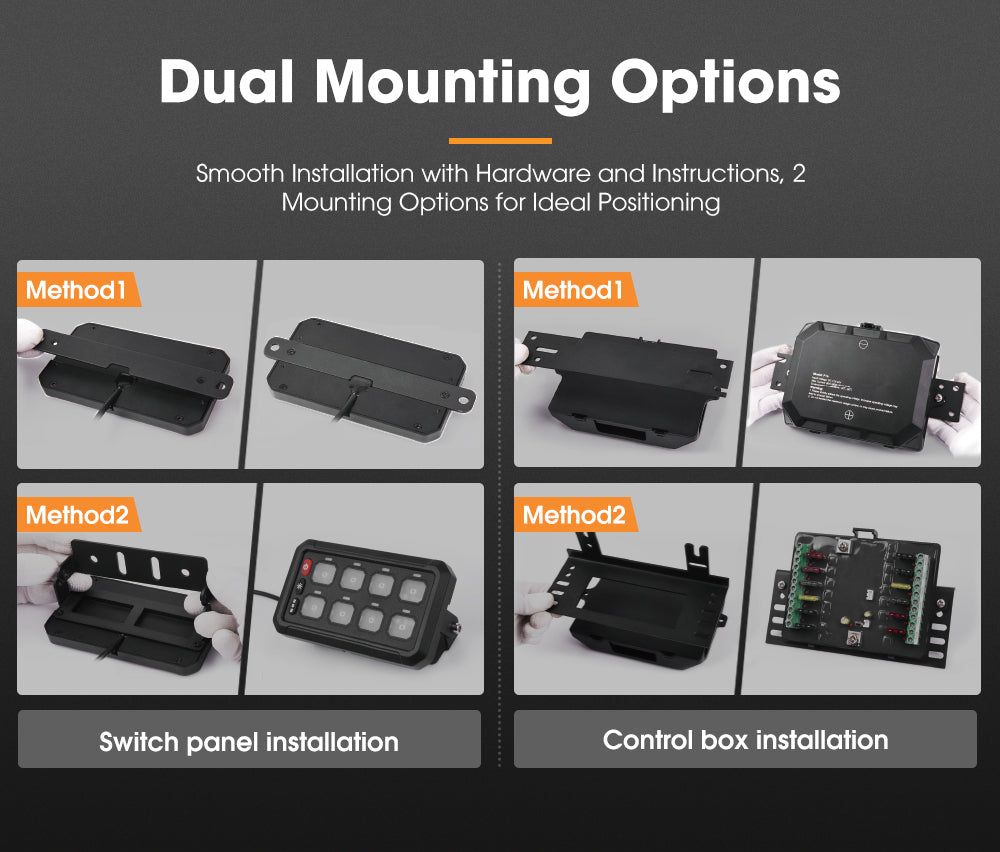

Multi-Position Mounting: Equipped with essential hardware and instructions,
offering two bracket options for optimal vehicle placement.
SPECIFICATIONS
Housing:Aluminum
Black Battery Cable：13AWG x 450cm
Waterproof：IP65
Bluetooth：Yes
Control Box
Base：Aluminum
Voltage：12V/24V DC
Maximum Current:80A
Heavy Duty Circuit Breaker
Current:100A

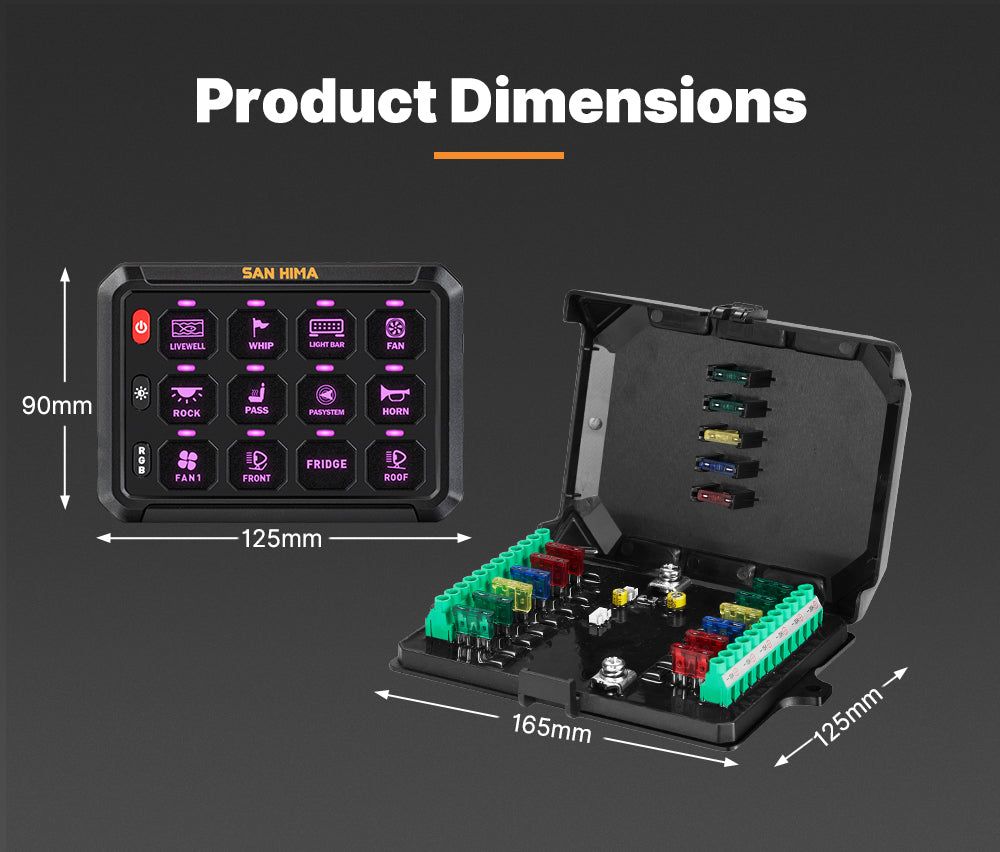

Package Size:307mm(L) x 217mm(W) x 82mm(H)
Package Weight:2.2Kg

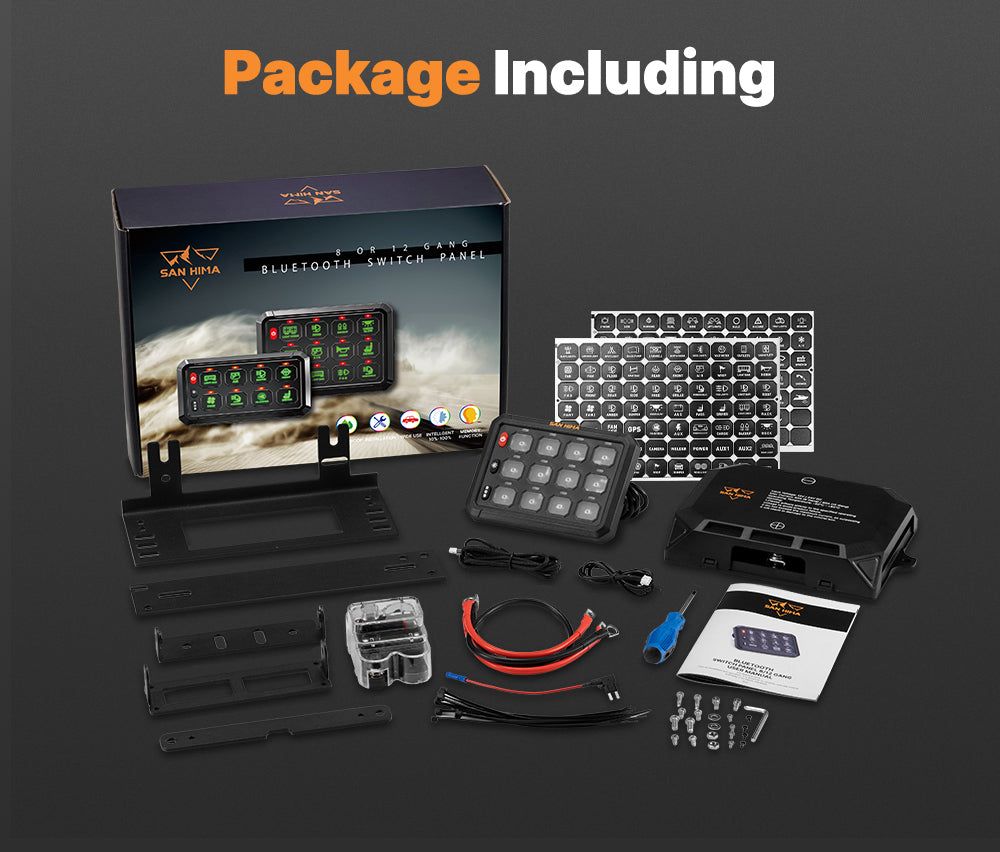

PACKAGE INCLUDES
1 x SAN HIMA Bluetooth 12 Gang Switch Panel
1 x Control Box
1 x Heavy Duty Circuit Breaker
1 x 7AWG x 60cm Black Battery Cable
2 x 7AWG x 25cm Red Battery Cables
1 x 13AWG x 150cm Black Battery Cable
1 x 13AWG x 15cm Red Battery Cable
1 x Allen Key Tool
Set of Mounting Kit
1 x User Manual
WARRANTY
2 Years Warranty
