DESCRIPTION
If you've ever faced an unfamiliar trail in darkness, you know the frustration
of poor lighting. That's why the Lightfox Rigel Series 30″ LED light bar is
essential. With Vision Drive Tech, Oslon® LEDs, and 13° spot/ 90° flood beam,
it enhances visibility, allowing you to spot obstacles, terrain changes with
ease. Now, onto our Rigel Series LED light bar. It features Osram’s® Oslon®
LEDs, providing focused beams and light guides for better visibility. With a

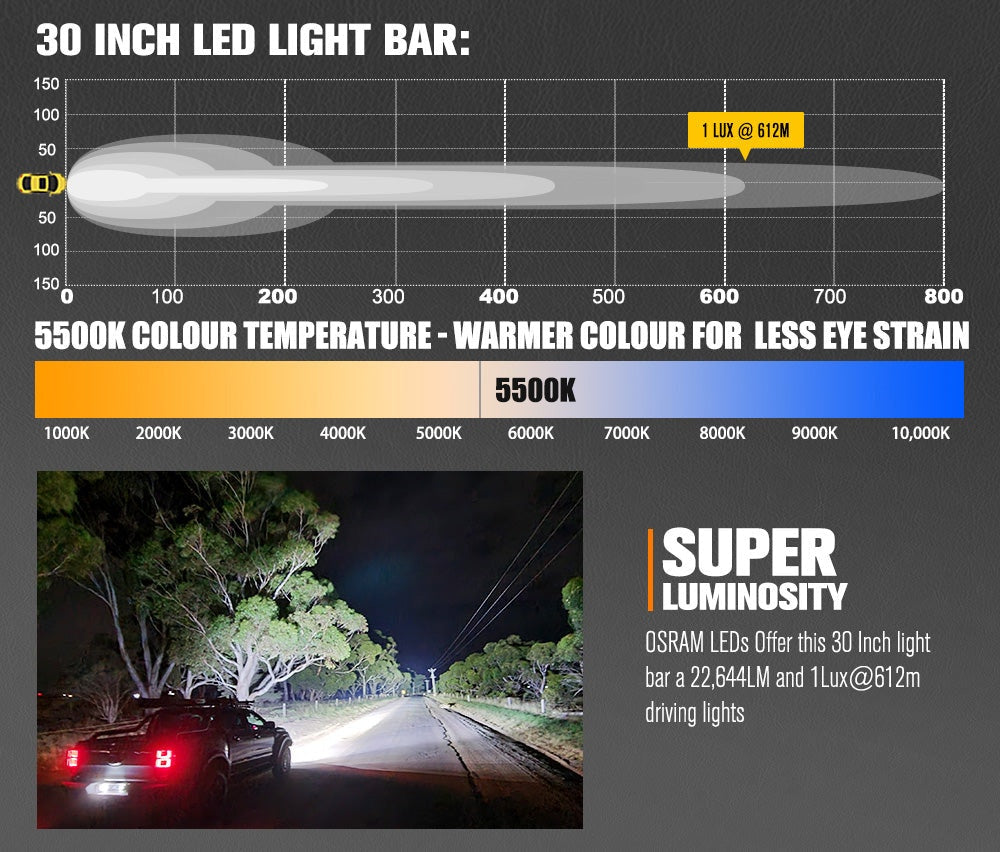

powerful output of 22,644 lumens, 1 Lux at 612 meters, and a color temperature
of 5,500K, it’s designed for long-range visibility while being easy on the
eyes. Plus, it's tough with AkzoNobel powder coating to withstand UV exposure
and corrosion. Installation's a breeze, and it looks sleek on your 4x4’s bull
bar, roof rack or UTV’s roof. The vibrant die-cast aluminum color caps add a
nice touch, injecting a sporty edge into your 4x4. We've also improved the
breather system to prevent condensation buildup inside.
FEATURES

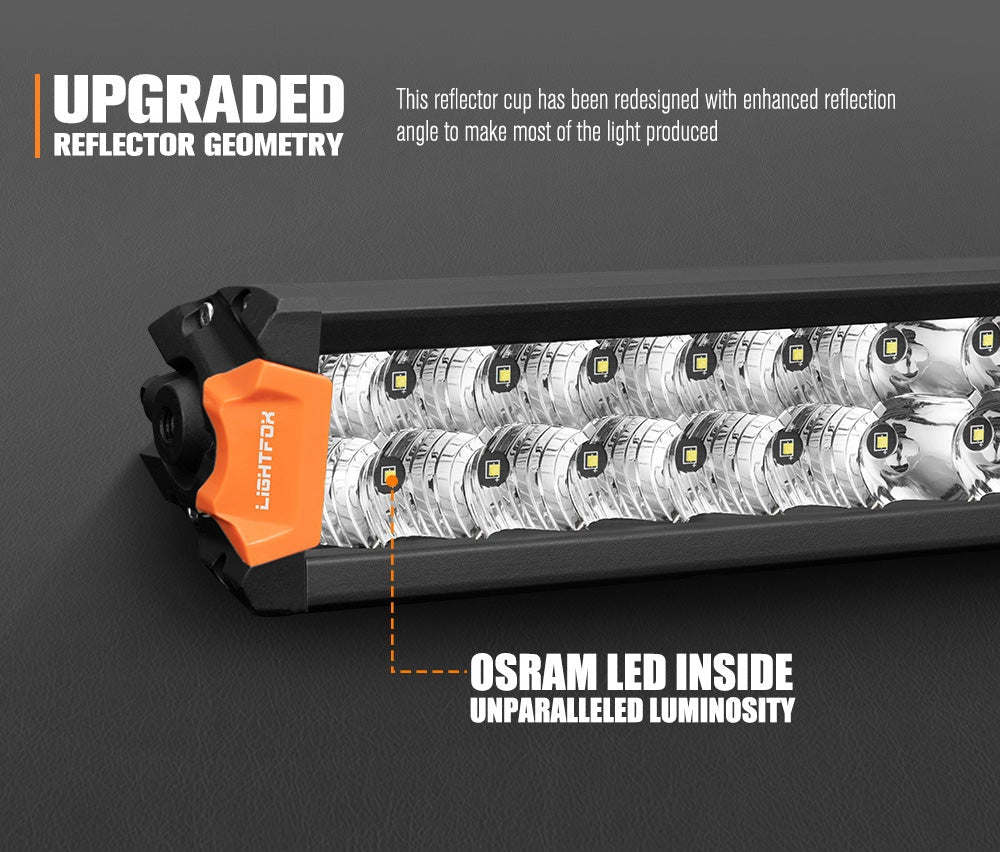

Vision Drive Tech: Our Vision Drive Tech utilizes advanced curved and
metalized reflectors to capture more light and deliver smooth, clean beams.

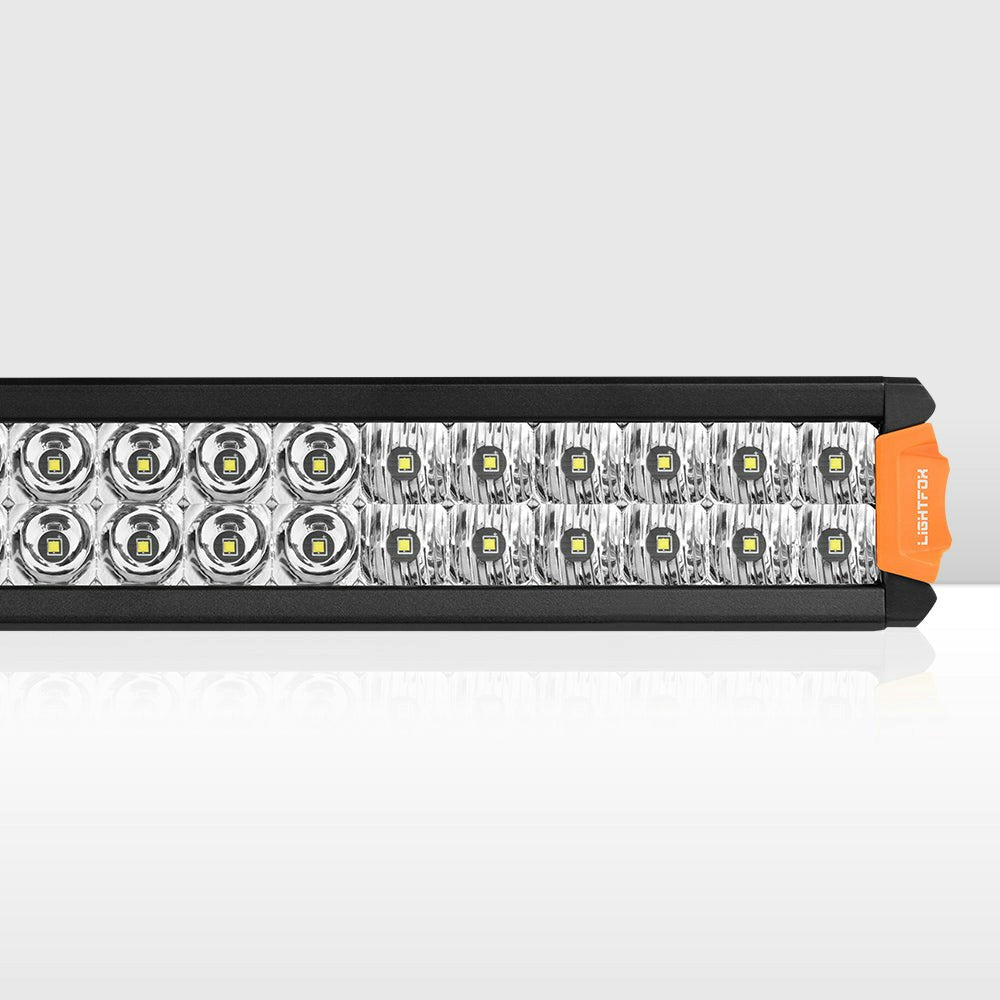

Ultra Vision: Lightfox combines 13° spot beam and 90° flood beam in a dual row
configuration for maximum visibility in all conditions.
OSLON® Powered: Our 30″ light bar features OSRAM’s® finest OSLON® LEDs,
producing 22,644lm and 1Lux@612m with focused beams for ultimate brightness.
Warm Light: Our Rigel Series 30 inch light bar features 5,500K CCT, providing
you with a warm, inviting light that will keep you safe and comfortable on the
road.

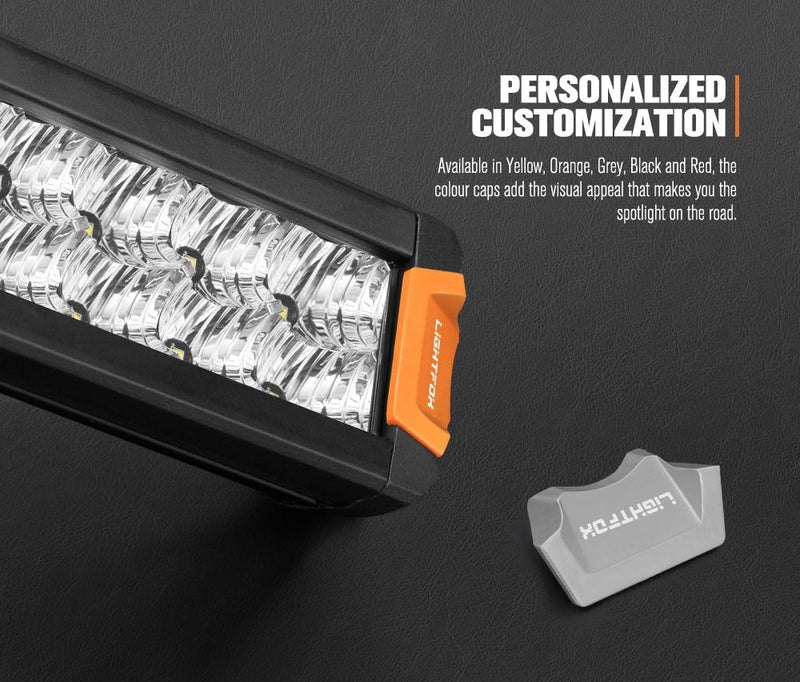

Vibrant Color Caps: Add a sporty, adventurous edge to your 4x4 with our die-
cast aluminum caps, available in vibrant yellow, orange, grey, black, and red.
Circuit Safe: Our 30-inch Rigel Series LED light bar features built-in
protection against flashing and reverse polarity, ensuring consistent and
smooth operation.
Condensation Free: The upgraded breather system manages pressure changes to
prevent condensation buildup, maintaining a stable internal environment.
Complete Protection: With IP68 protection and screwless design with UV resin,
our off road light bar is completely protected against dust and heavy
washdown.
Tough & Durable: AkzoNobel powder coating offers UV & corrosion protection for
aluminum housing. Anti-scratch PC lens and robust brackets enhance durability.

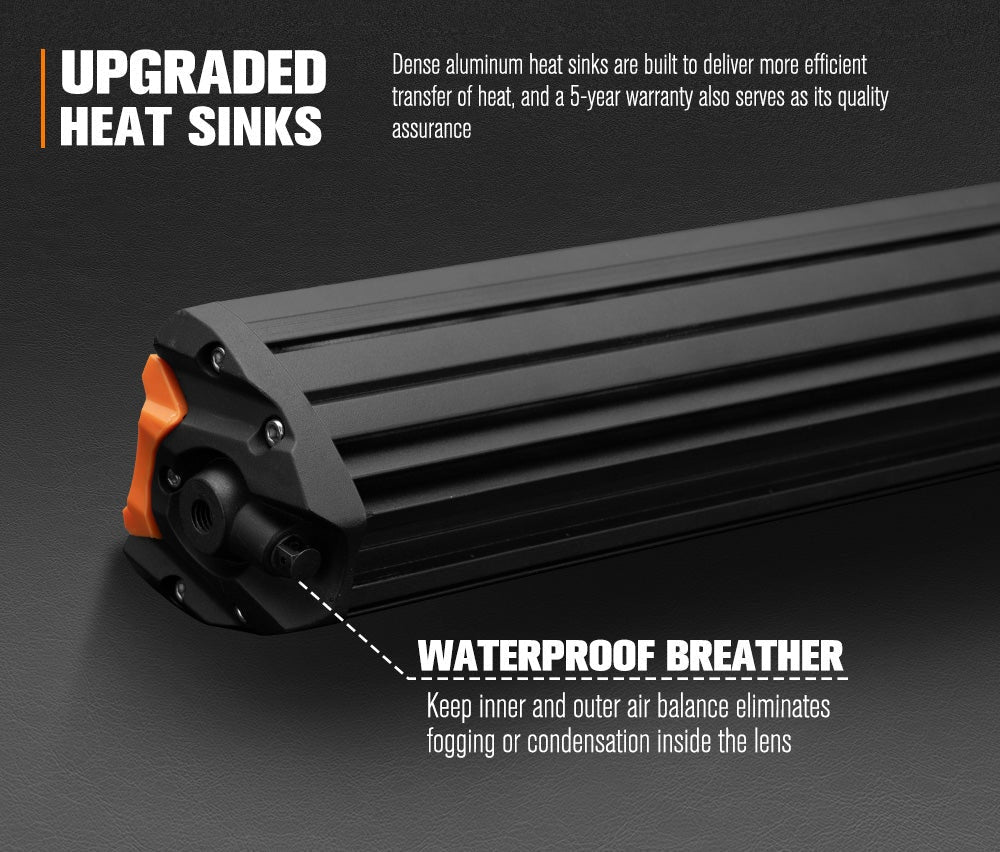

Efficient Cooling: With integrated heat sinks, the Rigel Series LED light bar
ensures optimal heat transfer, extending its lifespan to up to 50,000 hours.
SPECIFICATIONS
Bulb Type:LED
Chip:3W* 60 OSRAM OSLON
Theoretical Output:180W
Housing Heat Sinks:Aluminum
Lens:Strengthened PC
Coating:AkzoNobel Powder
Sealing Material:UV Resin

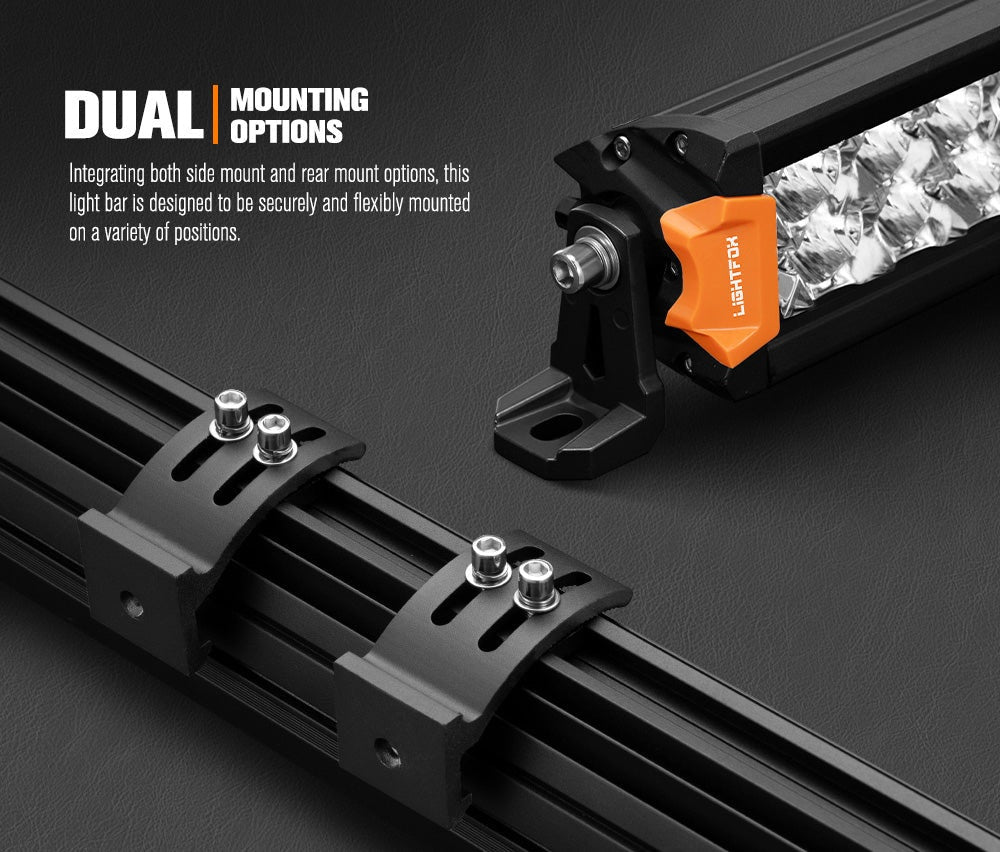

Side Bracket:Forged Iron
Bottom Bracket:Aluminum
Raw Lumens:22,644LM
Lux Rating:1Lux@612m
Color Temperature:5,500K
Reflector Distribution:12 Flood + 36 Spot +12 Flood
Spot Beam:13
Flood Beam:90
Amp Draw:9.6A@12V
Expected Lifespan:50,000 Hours
Relative Light Intensity:78% (150C)
Operating Temperature Range:-40C (-40F) ~ 150C (302F)
Waterproof:IP-68 Rating

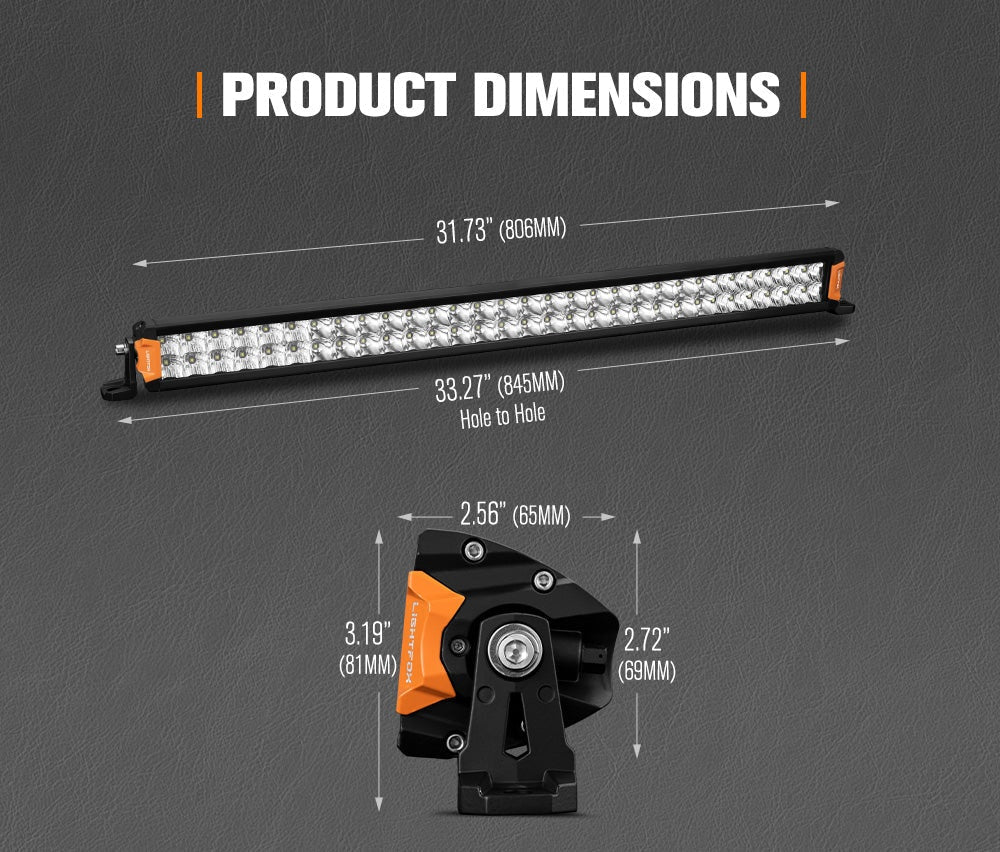

Package Size:88 x 9.3 x 9.5cm
Gross Weight:3.2kg

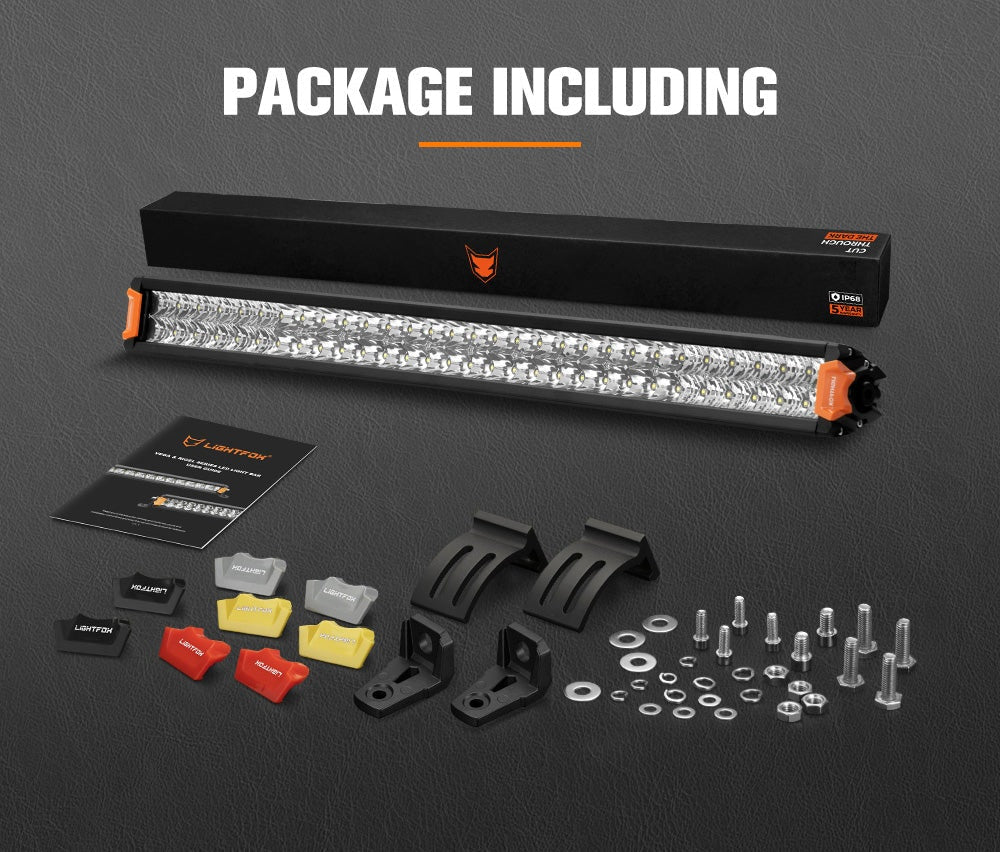

PACKAGE INCLUDES
1 x Lightfox 30" LED Light Bar
2 x Side Brackets
2 x Bottom Brackets
1 Set Of Mounting Hardware
4 Pairs Of Colour Caps
1 x User Manual
WARRANTY
5 Years Warranty
