❖Features

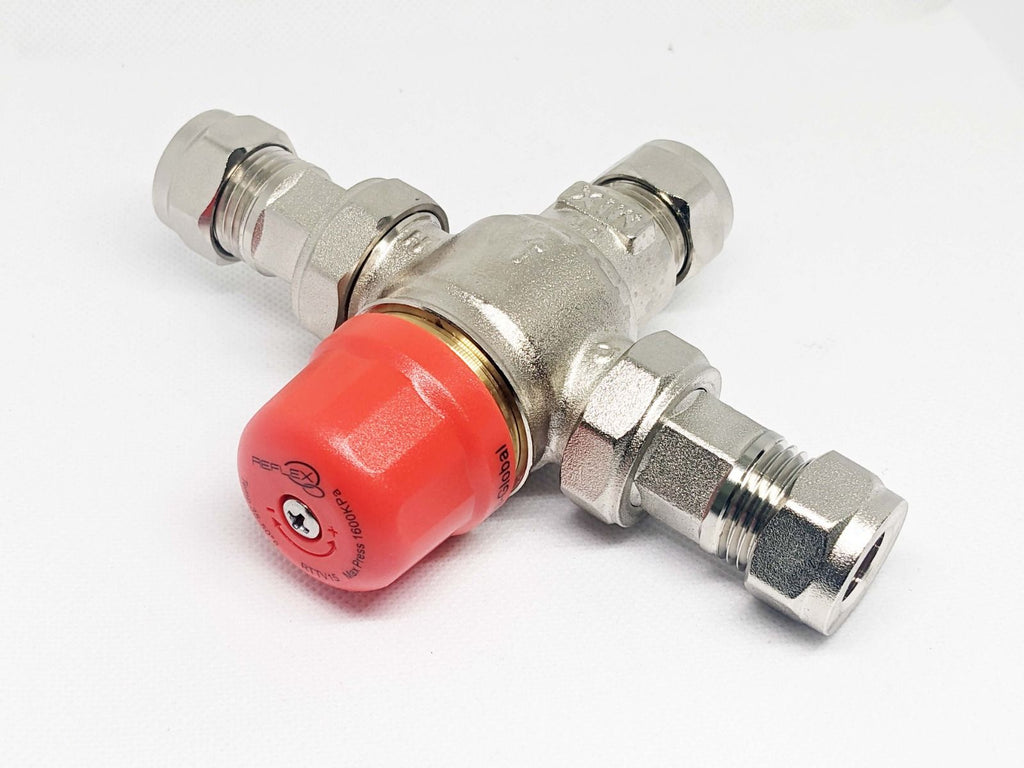

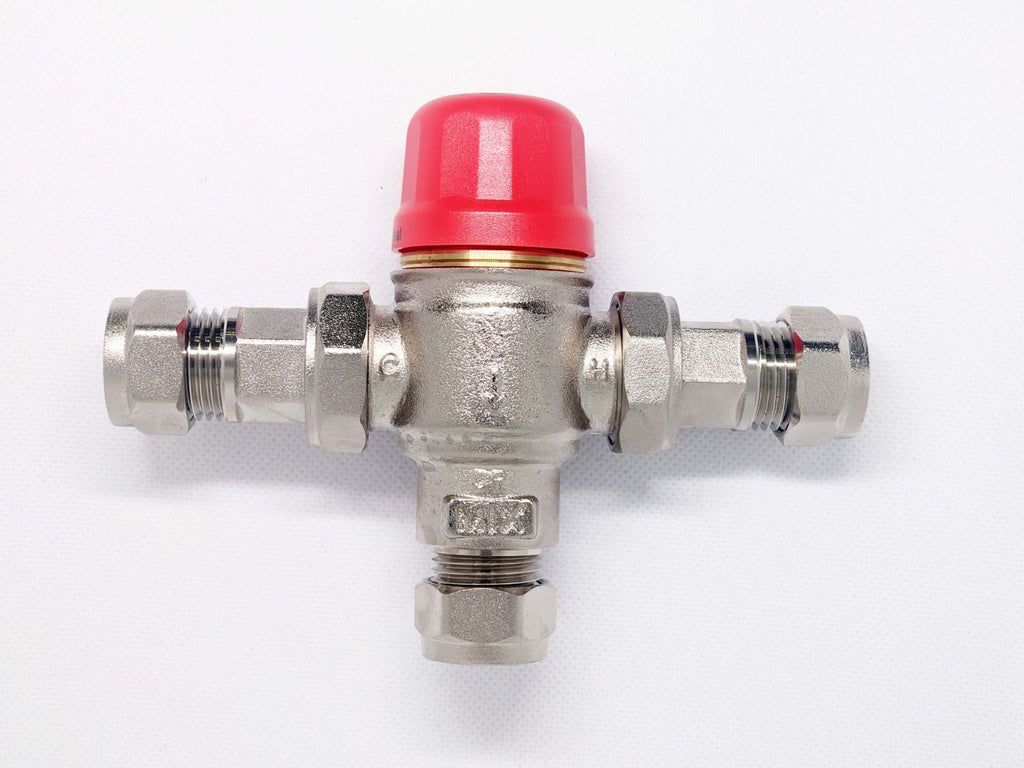

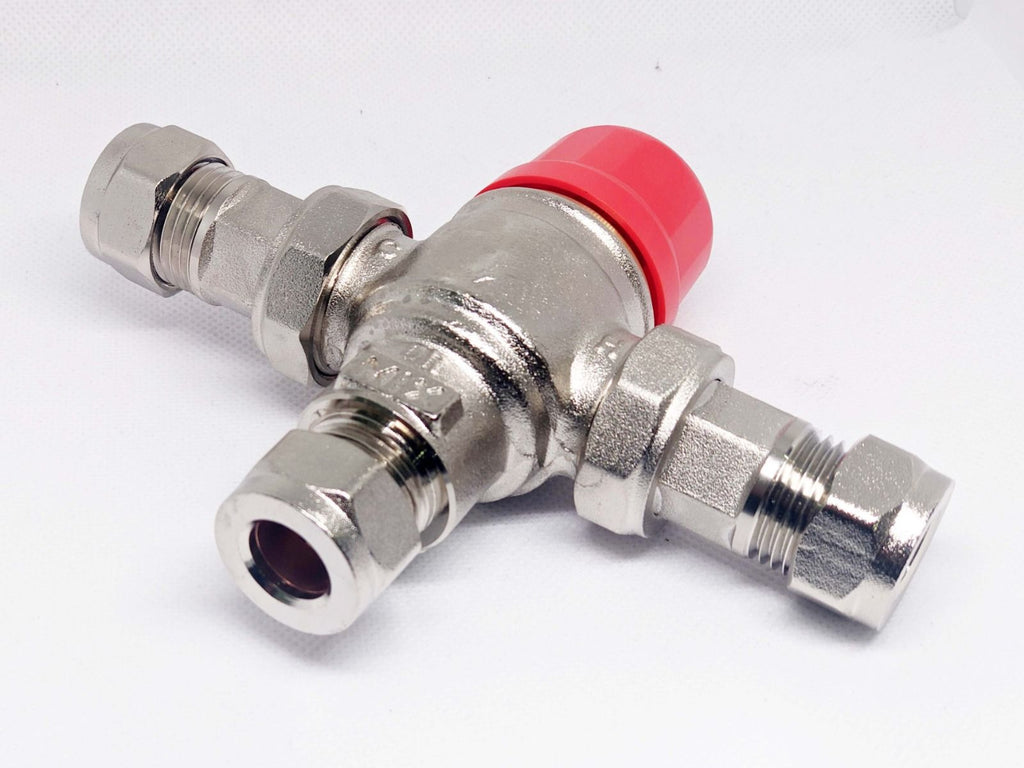

TEMPERING VALVE ASSEMBLIES STANDARD
The mini tempering valve blends hot and cold water to prevent hot water
scalds.
Suitable for standard water heaters.
Comes complete with compression nuts and olives.
SPECIFICATION:-
- Adjustable outlet temperature
- Tamper proof adjustment
- DR brass body
- Integral non-return valves
- 15mm / 1/2" BSP in size
- Complies with AS4032.2
- WaterMark Certified
- Red Cap for standard water heaters
TVA SPECIFICATIONS & FEATURES
| Model | DN Size | A | B | C | D
---|---|---|---|---|---
TVA15C-I | 15mm | 144 | 58 | 113 | 67
The REFLEX PLV is ideal for installation with high-pressure storage water
heaters. When fitted to the inlet supply line to a water heater, its purpose
is to control the inlet supply line pressure to a pre-set maximum, and to
remain in the open position if the pressure in the supply line falls below the
pre-set maximum. Other applications include dishwashers, washing machines, tap
mixers and water filtering systems.
INSTALLATION REQUIREMENTS
Pressure limiting valves (PLV) must be installed in accordance with AS/NZS
3500 National Plumbing and Drainage Code and all Government requirements must
be met.
REFLEX valves should always be installed by a licensed plumber in accordance
with National Plumbing and Drainage Code AS/NZS 3500 and comply with any Local
Authority requirements.
|
❖Specifications
Brand | Reflex
Model | RTTV15
Hot water supply temperature | 65°C - 99°C
Cold water supply temperature | 5°C - 30°C
Adjustable outlet temperature range | 40°C - 55°C (Reflex Tempering Valve -
RTV)
5°C - 30°C (Reflex Mini Tempering Valve - RMTV)
Accuracy temperature differential | ±3°C (tested to AS4032.2 between 40°C &
50°C)
Minimum temperature differential | 10°C
Maximum supply pressure hot & cold | 1600kPa Static
Maximum supply pressure hot & cold | 500kPa Dynamic
Maximum supply pressure imbalance | 2:1 Dynamic
Maximum inlet pressure variation | ±10%
Flow rate minimum | 4 litres/min
Shipping Weight | 0.6kg
Shipping Dimensions(mm) | 130 x 130 x 60
