❖Features
Sure Break 12V Emergency Trailer Breakaway Kit
Projecta Sure Brake® Trailer Breakaway Kit, which ensures safety in a towing
disconnection emergency. It is a requirement in all Australian states that
trailers exceeding 2000kg gross trailer mass be fitted with a breakaway system
that, in the event of the trailer disconnecting while towing, will activate
its electric brakes and bring safely to a stop.

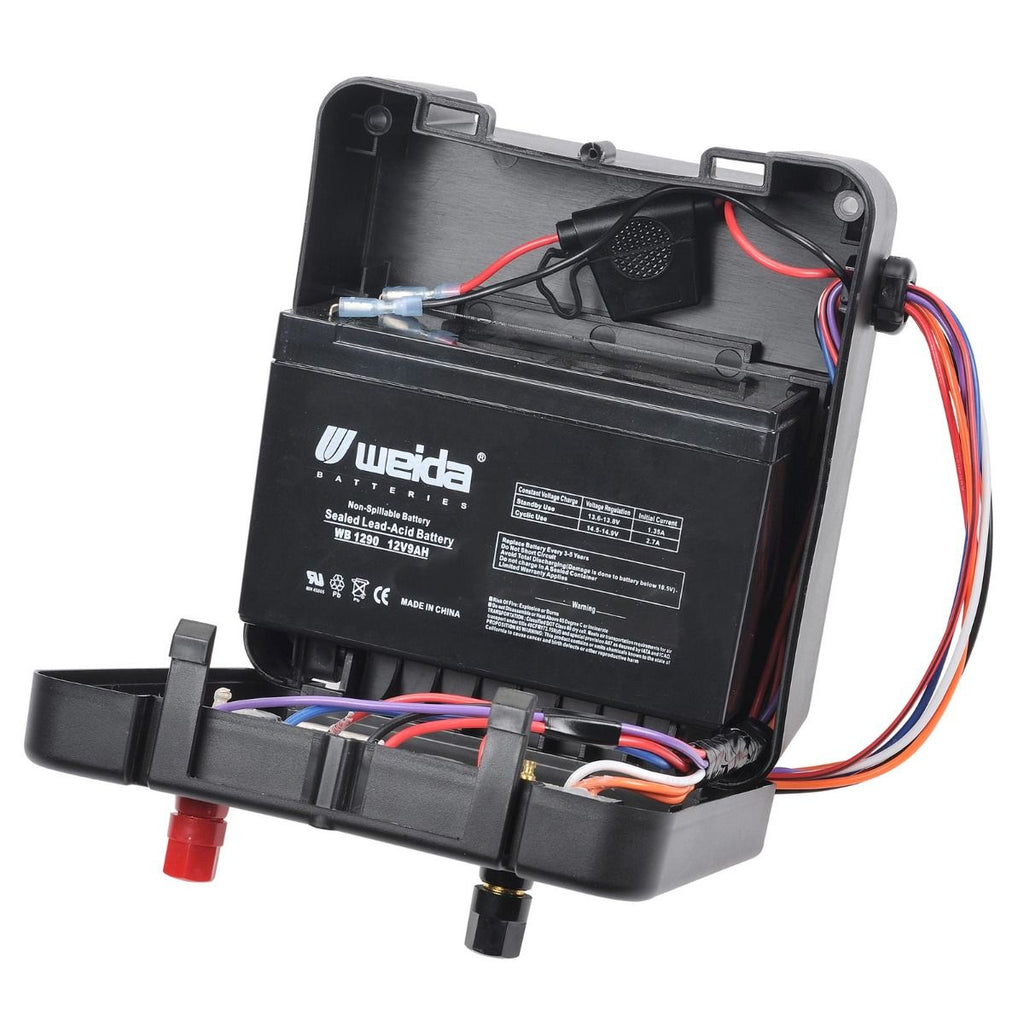

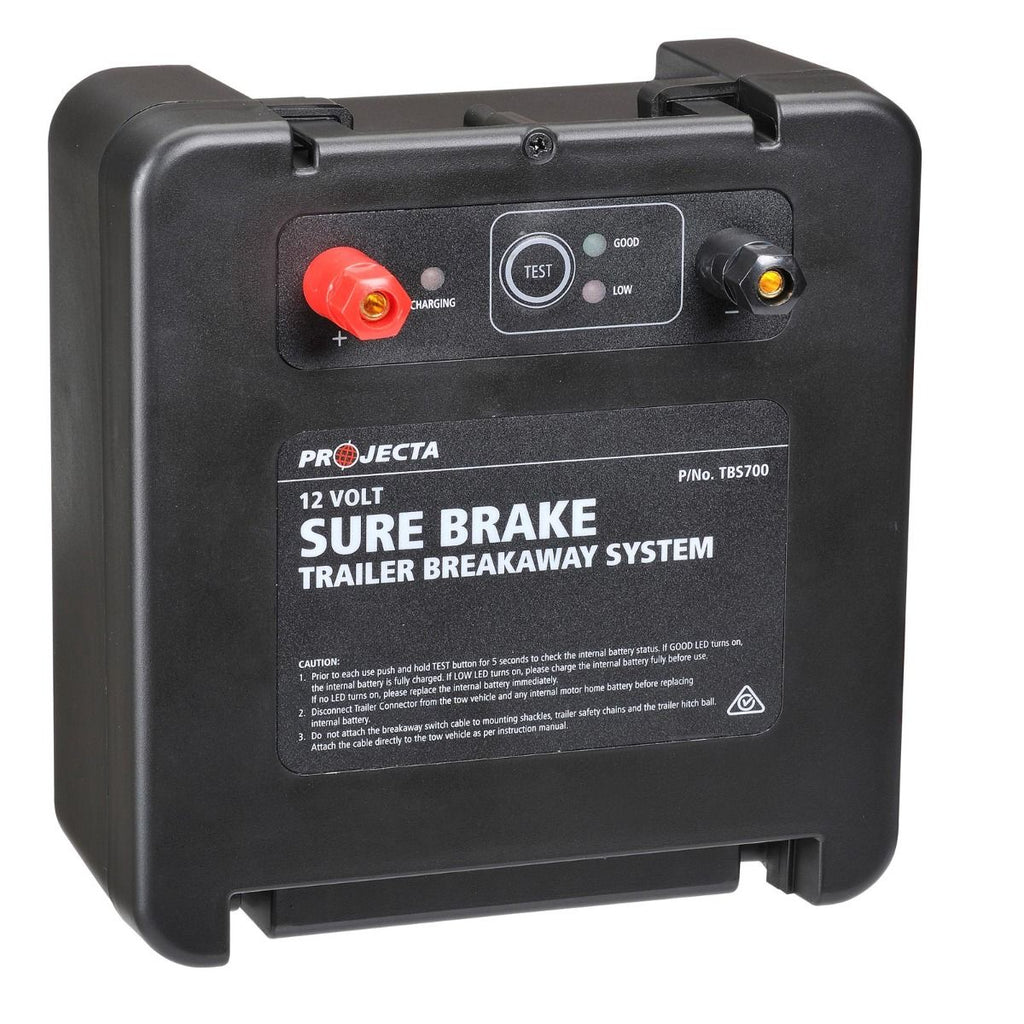

The TBS700 Sure Brake® accomplishes this with a durable, all-in-one case that
houses its own 12V battery and charger and can be installed out of view,
leaving only the plunger, lanyard and caribiner visible. The battery case can
be hard wired to the tow vehicle alternator, or charged externally via its

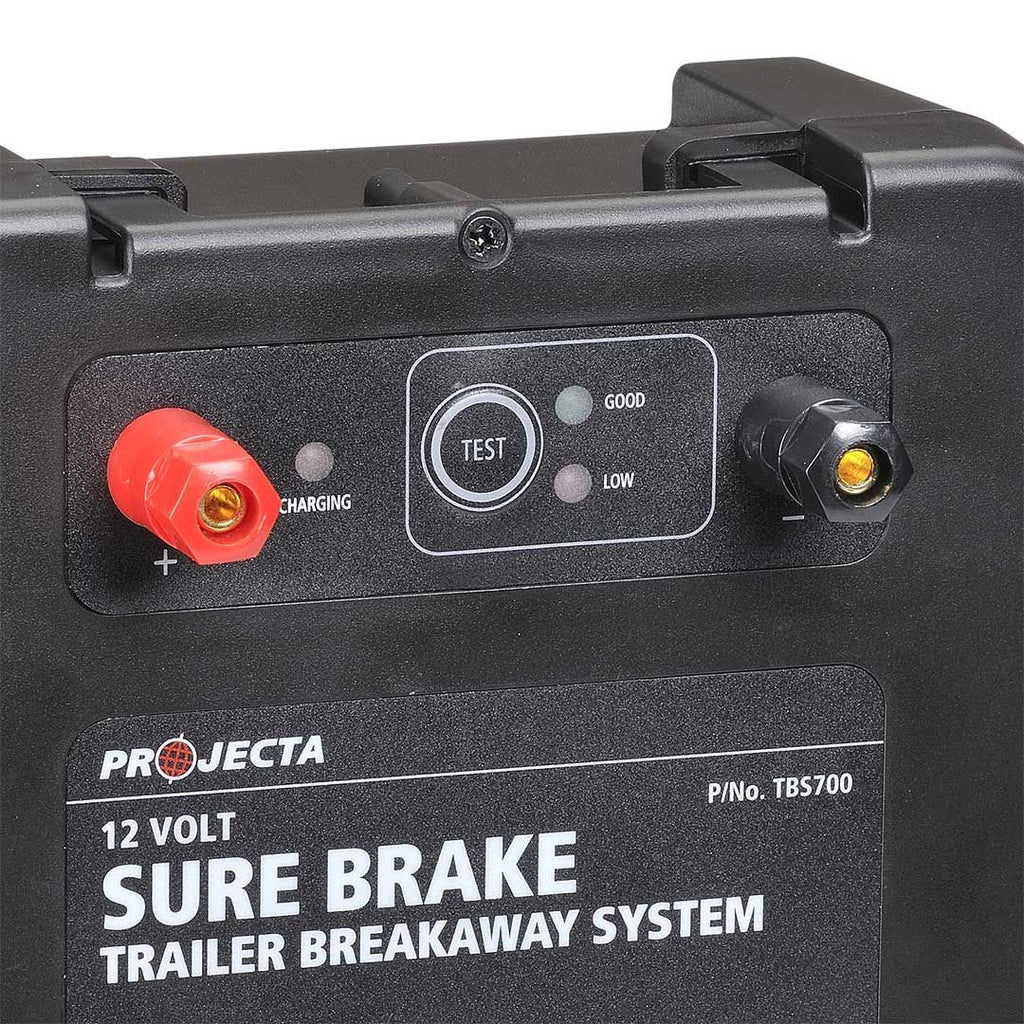

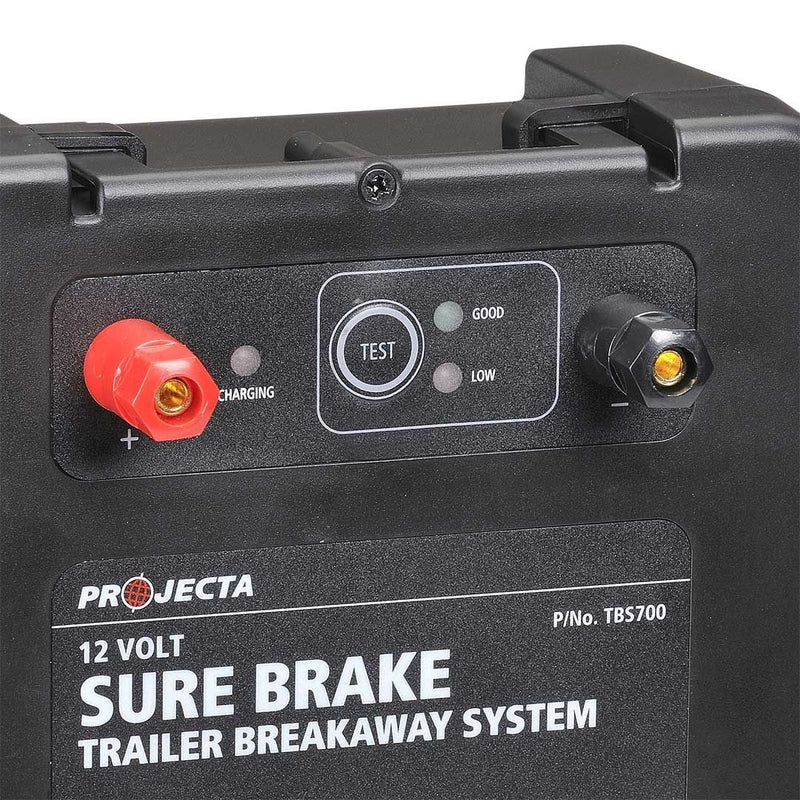

terminal posts on the front, ensuring its 12V 7A battery always has charge. A
test button allows for easy checking of battery status and there is a remote
monitoring output wire for those who wish to install the battery case out of
reach or monitor from the tow vehicle cabin.
FEATURES

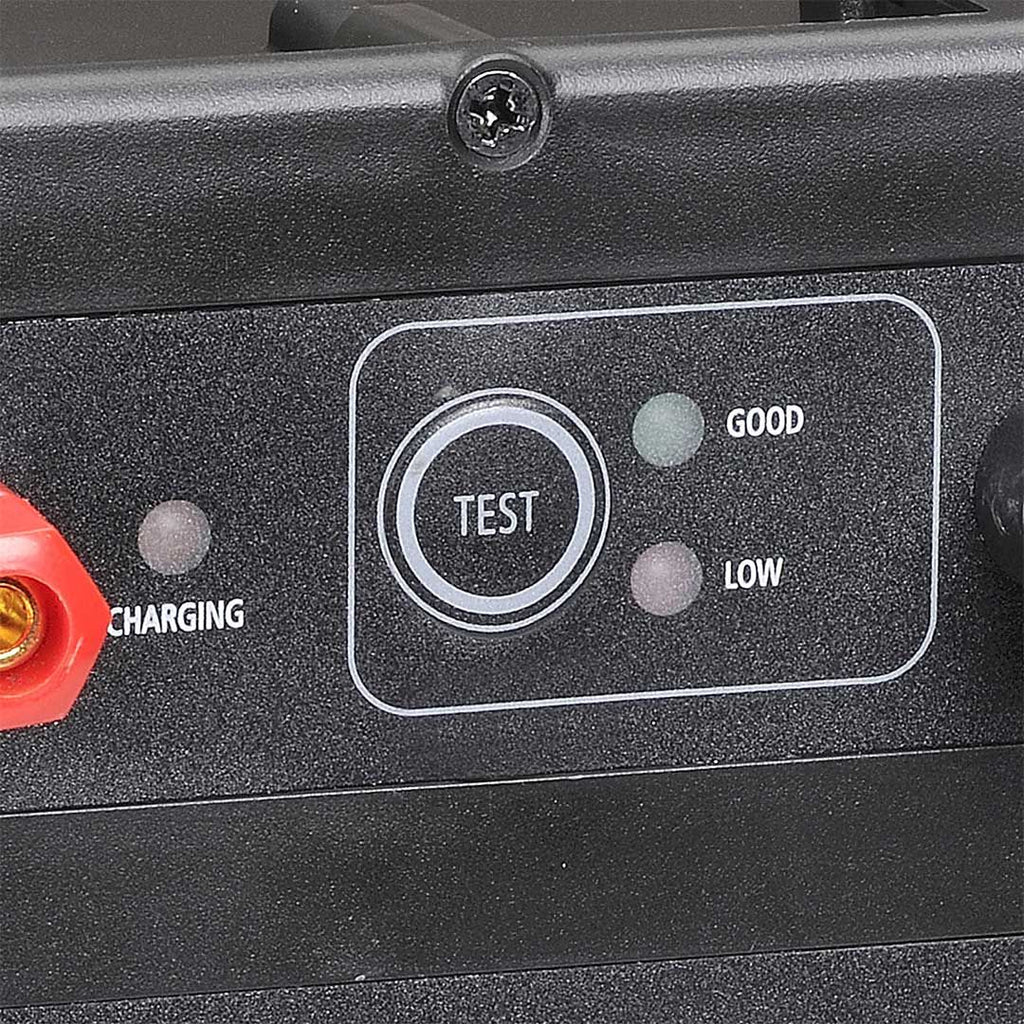

Battery monitoring
A push-to-test button and status LEDs allow a quick check of battery condition
and charging status.
Ease of installation
Durable battery case houses everything except the breakaway switch and can be
installed anywhere in or on the trailer.
Multiple charging options
Charging options include vehicle (Inc. Smart Alternators), caravan battery,
solar, and AC battery chargers.

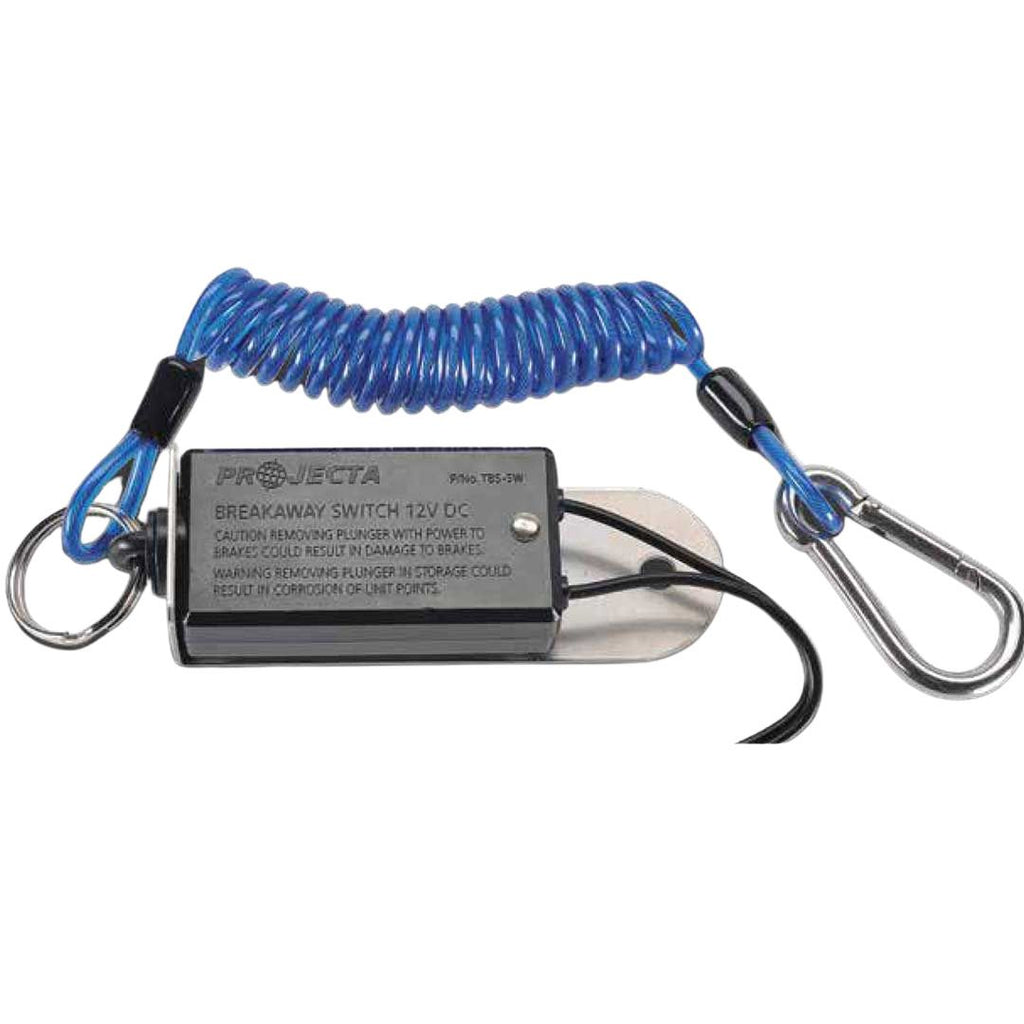

Breakaway switch with coiled cable & carabiner
A push-to-test button and status LEDs allow a quick check of battery condition
and charging status.

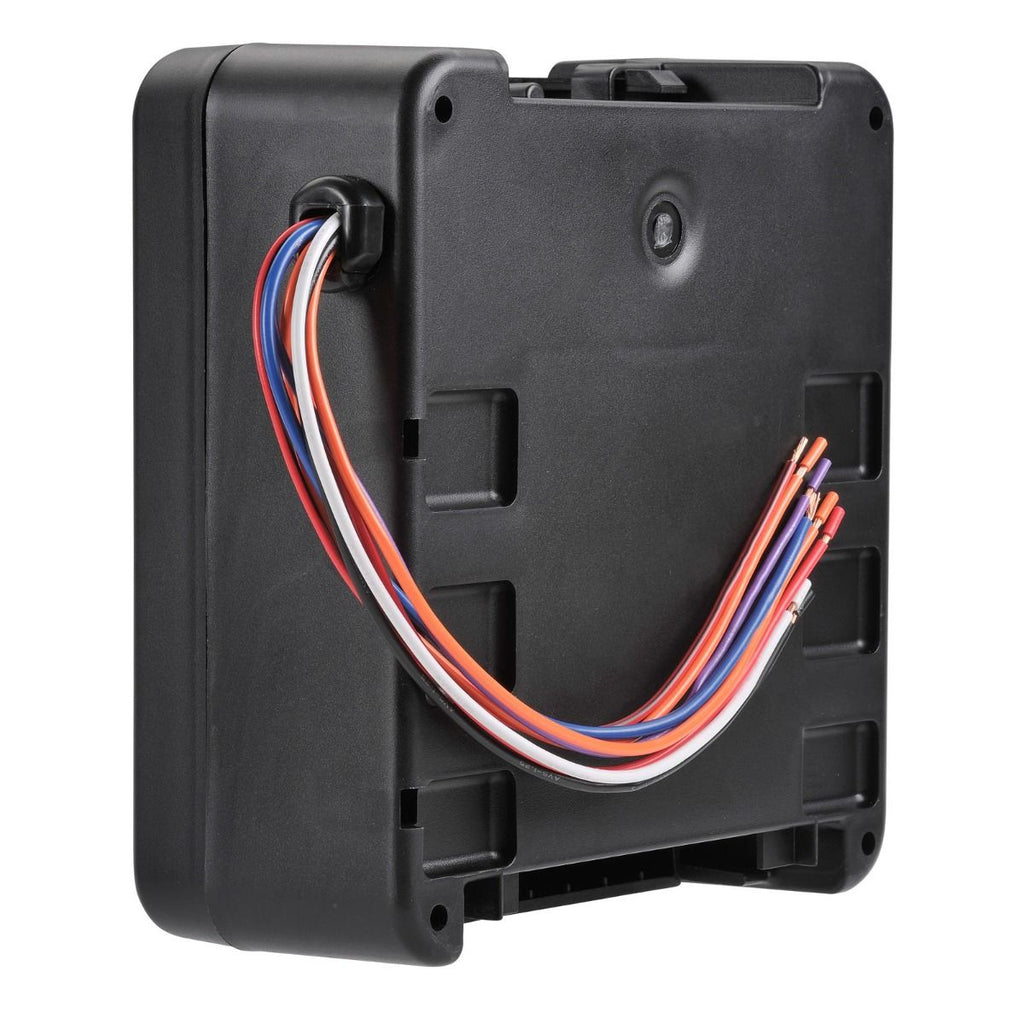

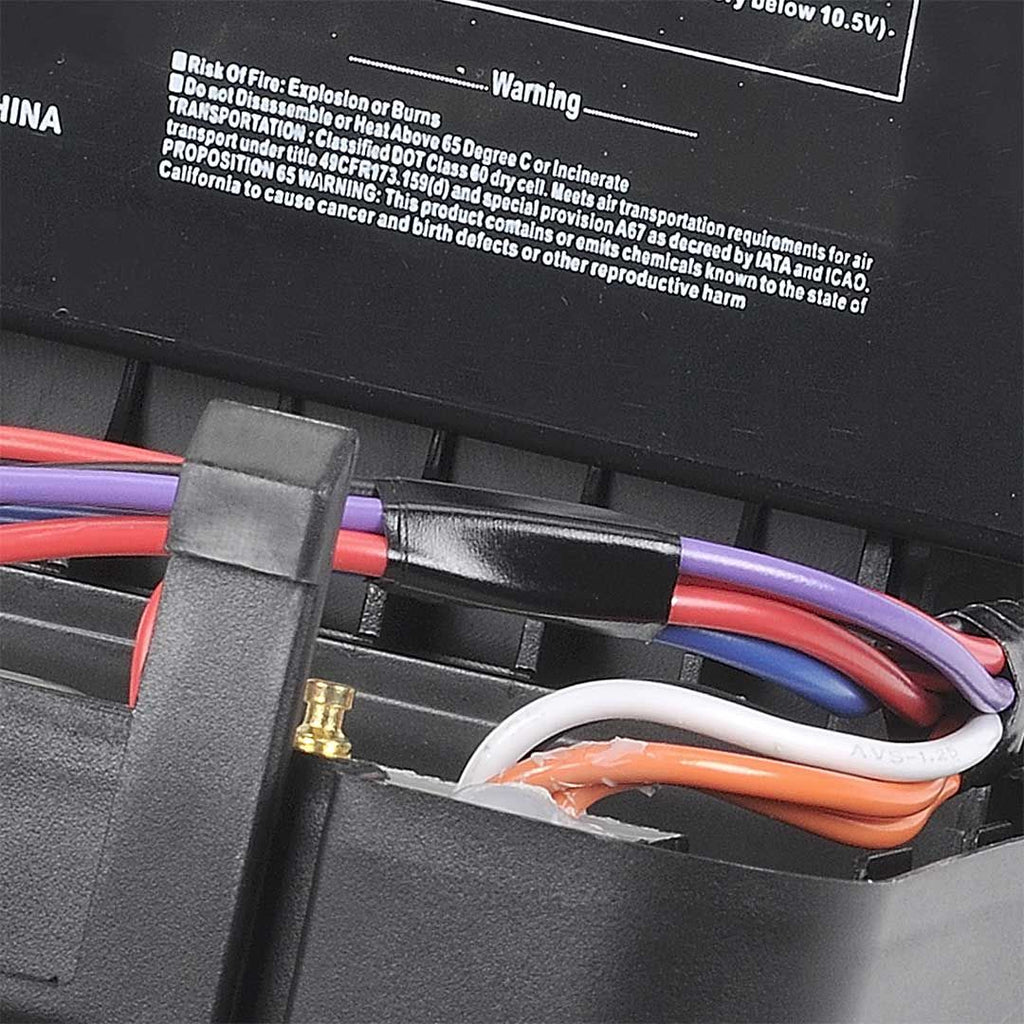

Pre-wired
Pre-wired colour coded inputs and outputs for ease of installation.
|
❖Specifications
Brand | Projecta
Part Number | TBS700
Battery | 12V 7Ah Sealed Lead-Acid
Charging Input | 12V, via alternater, house battery or external
Charging Mode | Trickle (≥13.5V)
Status L.E.Ds (Under Load) | Green=good (>11.5V)
Red=poor (<11.5V)
Protections | Overvoltage, overcurrent, short circuit, reverse polarity
Dimensions | 185mm x 170mm x 50mm
Meets EMC Standard | IEC61000-6-3, meets ADR 38
