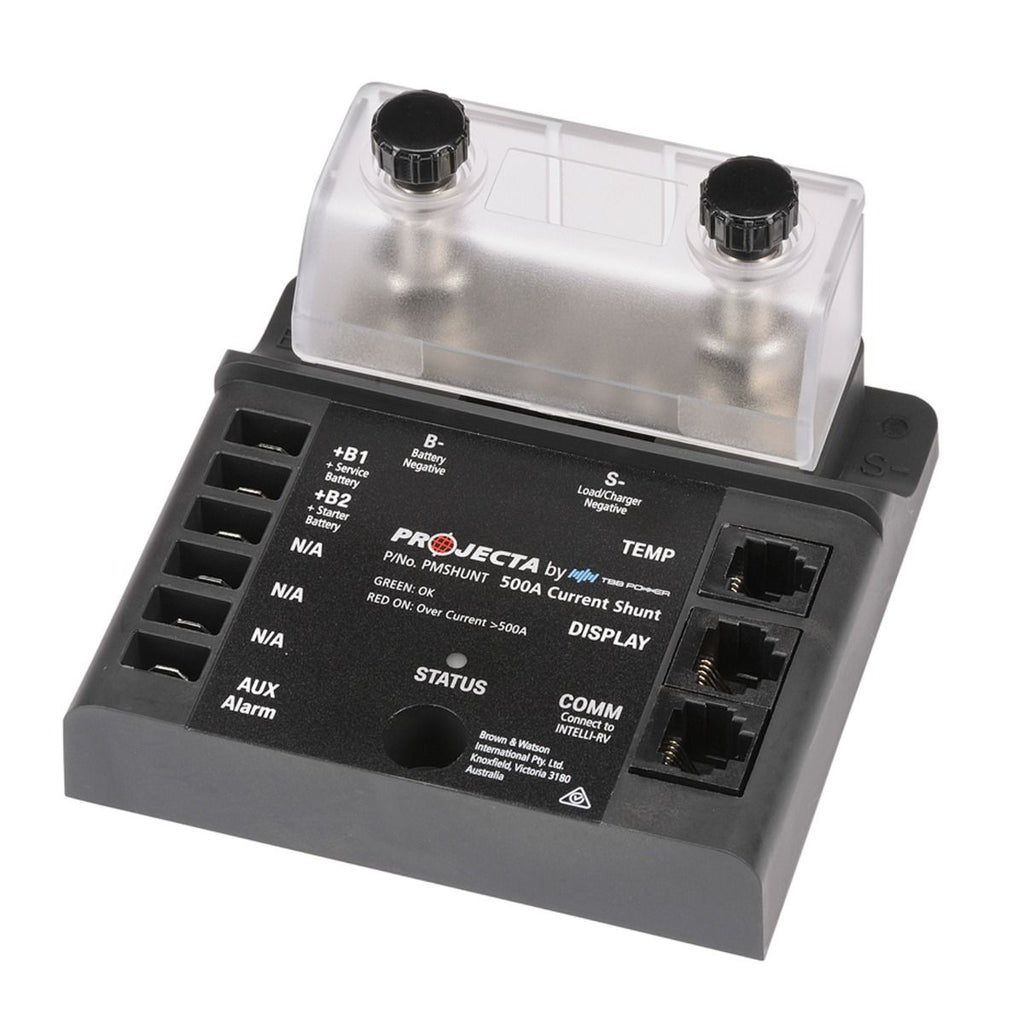

Projecta PMSHUNT 500Amp Shunt With Cables T/S PM300 & PM400

|

❖Features

500Amp Shunt With Cables

This 500Amp current shunt is an ideal partner for Intelli-RV when an inverter or a 3rd party DCDC charger is connected directly to the battery.

PROJECTA has introduced an optional 500A external current shunt to its INTELLI-RV power management range, allowing the INTELLI-RV System to accurately measure large power loads, keeping an accurate State of Charge. Instead of bypassing INTELLI-RV system with direct battery connection, installers can now wire an inverter to the external shunt, which will communicate with the INTELLI-RV system.

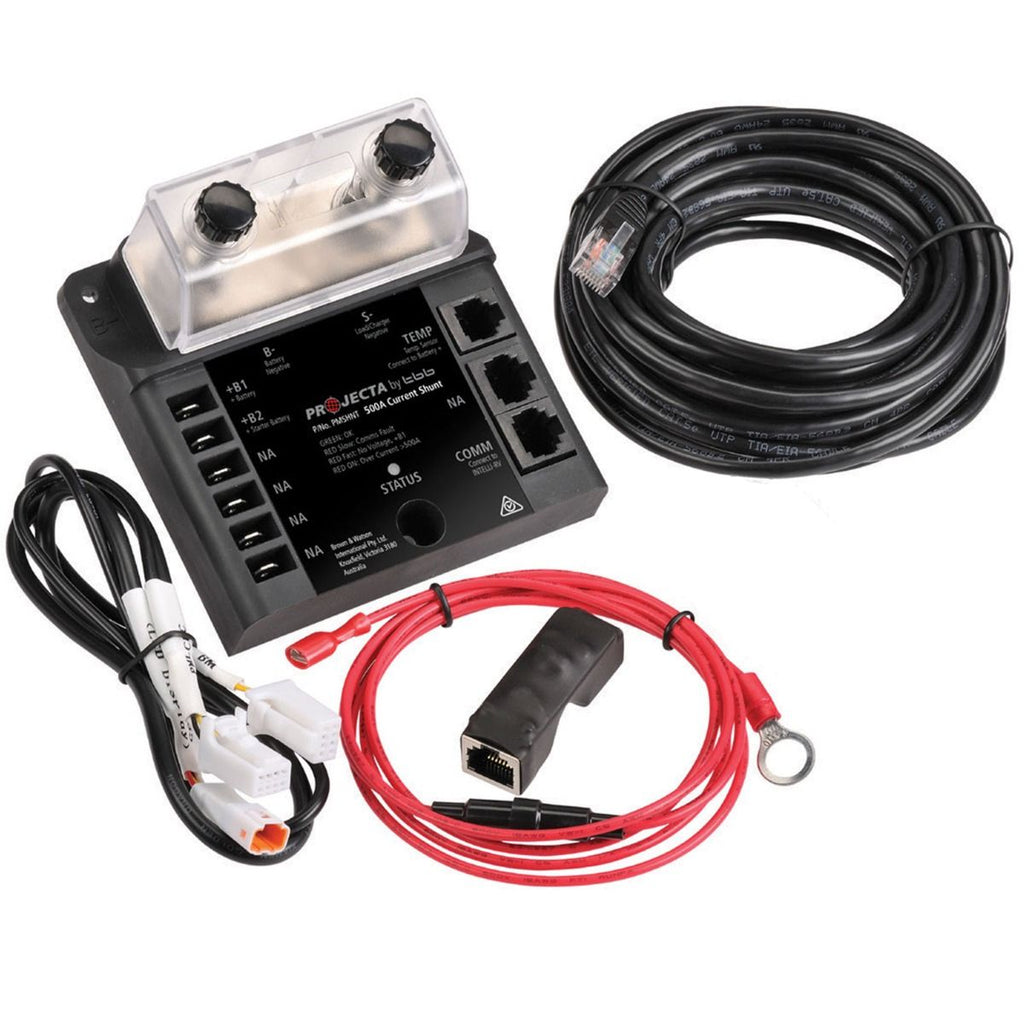

The unit comes as a kit complete with all wiring and connectors required to connect to an INTELLI-RV management system.

The INTELLI-RV external current shunt is compatible with all PM2xx, PM3xx and PM4xx series systems and AGM/GEL/Wet/Lithium battery types.

Connecting an inverter directly to a battery can produce inaccurate State of Charge information on INTELLI-RV remote monitoring LCD screens and the smart phone app. By wiring an inverter to the external shunt, the inverter's power draw is accurately represented and accounted for on displays.

In addition to inverters, installers may also use this 500A shunt to connect large DC-DC chargers to an INTELLI-RV system.

|

❖Specifications

Brand | Projecta
Part Number | PMSHUNT
CONTINUOUS CURRENT | 500A
VOLTAGE | 7-95V
BATTERY TYPES | GEL, AGM, WET, LITHIUM
WORKING TEMPERATURE | -20 ~ 50°C
STORAGE TEMPERATURE | -30 ~ 70°C
VOLTAGE ACCURACY | ±0.3%
CURRENT ACCURACY | ±0.4%
IP RATING | IP20
SHUNT CURRENT DRAW | 15mA
