Projecta Intelli-Charge 25 Amp Dual Battery Charger | IDC25X

|

❖Features

Intelli-Charge 25 Amp Dual Battery Charger | IDC25X

Projecta's next generation in dual battery management, ideal for 4WD and camper trailer applications. Provides an advanced charge simultaneously from both solar and alternator inputs.

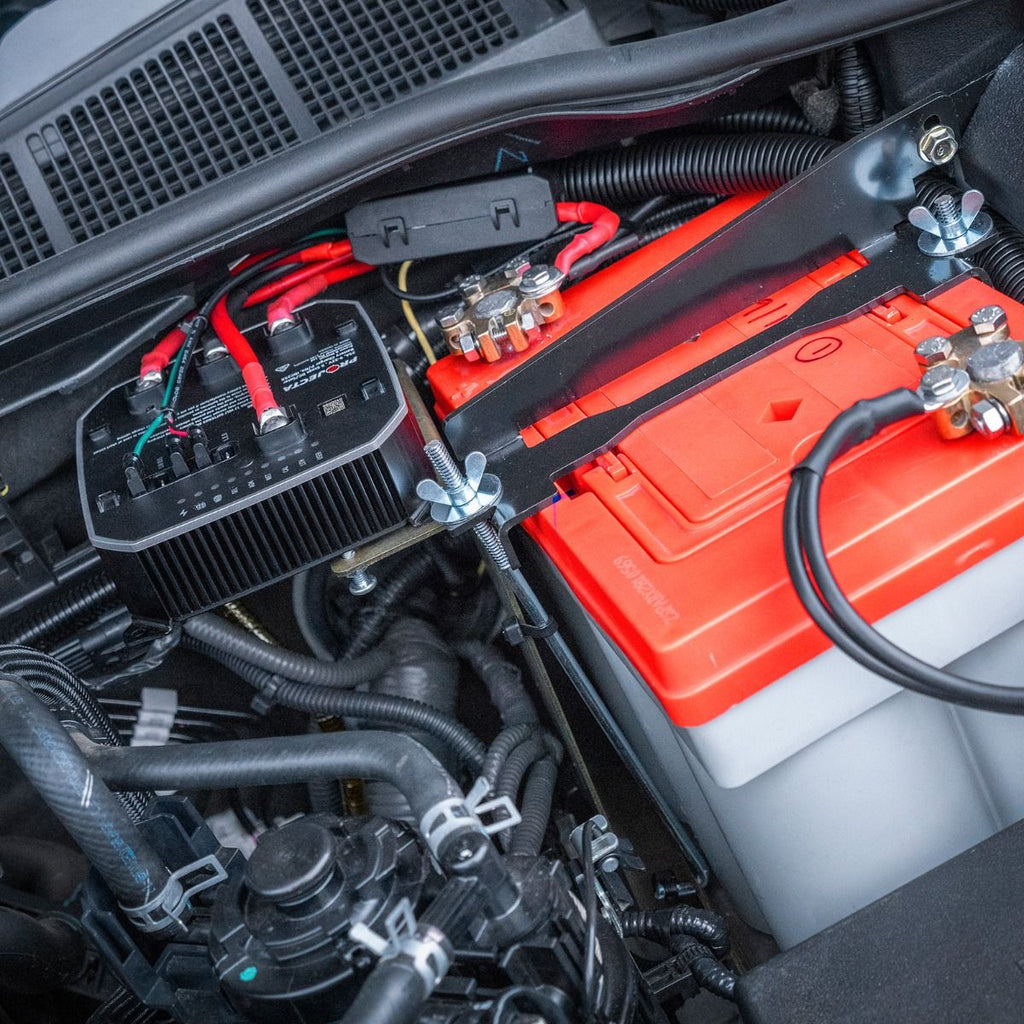

Market leading temperature compensation allows IDC25X to provide 25A charge both in hot and cold climates making it ideal for under bonnet installation.

Features

WORKS HARDER IN TOUGHER CONDITIONS

This super-efficient design is engineered to perform reliably in hot conditions, with a maximum charging capacity of 75°C. It operates up to 90°C, ideal for under-the-bonnet use. It offers the highest level of protection against dust, water, and pressure washing (IP68 & IP69K). Fully potted with thermal epoxy resin, it ensures durability and resistance..

WILL NOT LET YOU DOWN IN REMOTE LOCATIONS

Proudly designed and tested in Australia, this product offers high quality and reliability. It utilizes top-notch electronic components for an extended lifespan. Its ultra-efficient power conversion maximizes battery charging while reducing strain on the charger, ensuring longevity. Engineered to meet heavy vehicle standards, it is resistant to vibration and shock. Backed by a 5-year warranty, it provides peace of mind.

PROVIDES THE BEST POSSIBLE CARE FOR YOUR BATTERY

Utilizes 3 and 5 stage charging for fast and effective charging. It adjusts the charge with automatic temperature compensation, optimizes performance in different climates. Voltage drop compensation ensures accurate charge voltage. It supports simultaneous charging with solar and alternator inputs. The charger employs efficient MPPT solar charging for optimal performance, even in shaded areas. It also includes a convenient lithium wake-up mode for one- button charging activation, even if the battery's BMS is off.

MOST CONNECTED DC/DC CHARGER

The Projecta Intelli-IQ is a compatible companion for this product. It enables users to conveniently set up, monitor, and control the device remotely. Accessible through a smartphone or the Intelli-IQ interface, it offers a user- friendly experience. The setup process is made simple with single wire connectivity. Additionally, the app provides the option for firmware upgrades, ensuring the device stays up-to-date with the latest features and improvements.

5 YEAR WARRANTY

Ensured durability with our 5 year warranty

|

❖Specifications

Brand | Projecta
Part Number | IDC25X
Mechanical |
Dimensions | 149(L) x 122(D) x 42(H) mm
Weight | 1180g
Contruction |
Housing Material | Aluminium
Cover Material | ABS+PC
Electrial |
Alternator Input Voltage | 9-32V
Maximum Solar Input
Voltage | 32Vdc
Solar Controller Type | MPPT
Standby Current | 8mA
Suits Smart Alternator | Yes
Maximum Input Current | 35A
Output Current | INPUT: 9-11Vdc 20A
INPUT: 11-32Vdc 25A
Charging Stages | 3/5 Stages
Protection | Reverse Connection, Over and under voltage, Over temperature
Temperature Compensation | -10°C to +90°C
Charger Temperature Derating | e.g. 25A up to 75 Degrees
Max Charger Temperature | Up to 75 degrees
Display | Optional IQD2
Battery Chemistry | GEL, AGM, WET, CALCIUM & LiFePO4
Recommended Input Fuse | 50A (Not supplied) – FK25A Recommended
Recommended Output Fuse | 50A (Not supplied) – FK25A Recommended
Environmental |
IP Rating | IP68 & IP69K
Operating Temperature | -10°C to +90°C
Vibration Rating | Heavy Vehicle
Vibration Tested | Yes
Mechanical Shock Tested | Yes
Salt Spray | Yes
Certification |
ECE R10 | Yes
CISPR11 | Yes
RCM | Yes
CE | Yes
RoHS | Yes
REACH | Yes
Other |
Warranty | 5 Years
Kit Includes | 4x mounting screws
4x mounting screw washers
4x heat shrink for power cables
5 x quick connector
4x power screw lugs
4x power screw washers
4x power ring terminals
1x 5m temperature loom
Accessories/Spare Parts | IDC25XC cover,
IDCXFS Lug fastners,
IDC25XLS Lugs,
IDCXTMP temp sensor loom,
IDCXBTS quick connectors,
IDCXGDB ground distribution bus
FK25A fuse kit
Operating Mode |
Vehicle Voltage Range | | 12Vdc | 24Vdc
---|---
VSR Mode - Default (Ignition Override Not
Connected) | | Turn On
13.4-16.5Vdc | Turn Off
<12.8Vdc | Turn On
26.8-32.0Vdc | Turn Off
<25.6Vdc
---|---|---|---
Low Voltage Mode - Ignition Override cable
connected to ignition switch (Ignition On) | | Turn On
12.2-16.5Vdc | Turn Off
<11.9Vdc | Turn On
24.4-32.0Vdc | Turn Off
<23.8Vdc
---|---|---|---
