❖Features
Storage compartment air conditioner and heater in one
Practical timer function to switch the appliance on and off automatically
Select the temperature in one degree increments
In heat pump mode, heats with up to 1700 W
Can be used at camp sites with fuses from six amperes
Lightweight, just 23.5 kilograms
Special features
- The storage compartment air conditioning system can be used to cool and heat the vehicle.

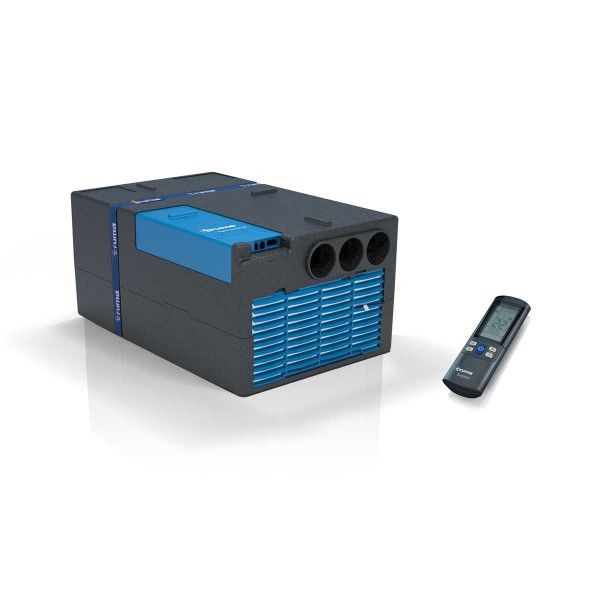

- The remote control allows you to easily adjust the air conditioner.

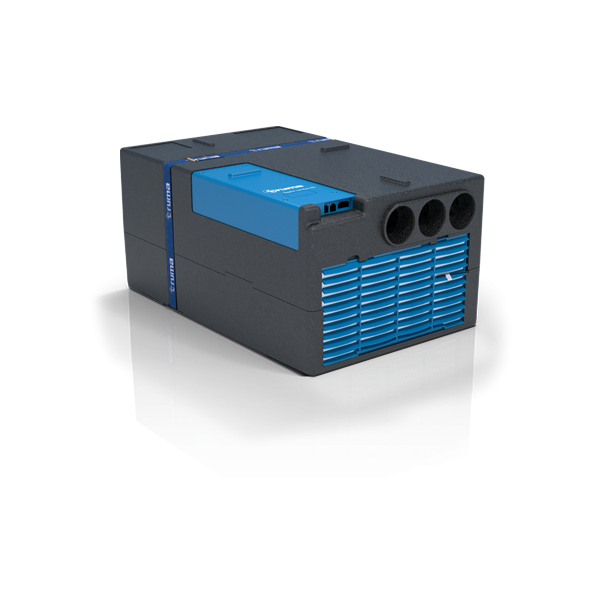

Cool down in your caravan: the Saphir comfort RC

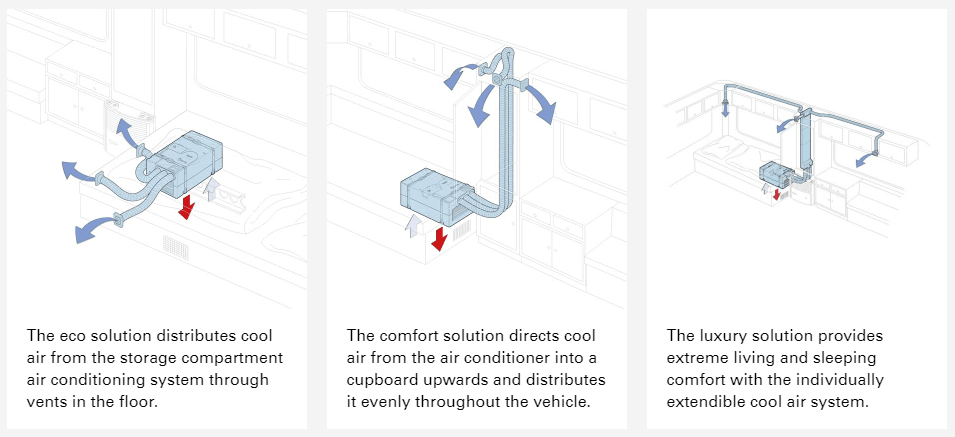

This space saving Truma air conditioning system is installed in the storage
area of your van. Saphir comfort RC is extremely quiet distributing air
through individual vents. Having this system built into your van will shift
the center of gravity further down in your van.
Saphir comfort RC is a powerful storage compartment air conditioning system
that cools very quickly and efficiently. In cooling mode, the Saphir also
dehumidifies and cleans the air with the integrated fluff and particle
filters. Thanks to the reversible cooling circulation system it can also be
used as a heater with heat pump. With a heat output of 1700W, the appliance
generates pleasant warmth, especially during spring and autumn.

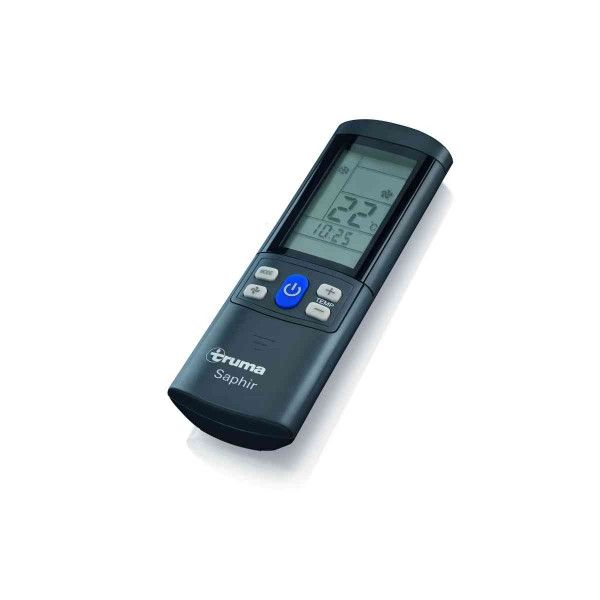

The storage compartment air conditioning system can be adjusted by remote
control or on the digital CP plus control panel. If, in addition to the air
conditioner, you also have a Truma Combi heater in your vehicle, you can use
automatic climate control.
Your authorised Truma dealership will install the Saphir comfort RC centrally
in a storage compartment, such as a storage bench. Thanks to the pre-assembled
fixing system, it is installed very quickly. The storage compartment air
conditioning system is ideal for vehicles between 5.5 and about 6.5 metres
long. For larger vehicles, we recommend that you install two Saphir air
conditioning systems.
What makes the Aventa compact special
- Cools very efficiently
- The smallest air conditioning system in its class: space-saving installation in a storage bench
- Ideal for allergy sufferers: not only cools the air, but also cleans and dehumidifies it
- Four operating modes (cooling, heating, automatic, air circulation) and three fan speeds
- In sleep mode, the internal fan operates at a slow speed and is therefore very quiet
Kit Includes:
- 1 x 44035-03 - TRUMA SAPHIR REVERSE CYCLE AIR CON.
- 1 x 40040-29200 - Intake grill circulation air, rectangular
- 3 x 40171-05 - End outlet EN black
- 3 x 40181-01 - End outlet nut, agate grey
- 3 x 40241-01 - Clamp Duct
NOTE: This product requires ducting to complete the installation.
|
❖Specifications
Brand | Truma
Model | SAPHIR-R/C-KIT
Power supply | 230 V – 240 V ~. 50 Hz
Power consumption. cooling | 4.2 A
Power consumption. heating | 3.7 A
Start-up current | 20 A (150 ms)
Cooling power | 2400 W
Heating power | 1700 W
Deployment range | +4 °C to +43 °C
Weight (without installation material) | approx. 23.5 kg

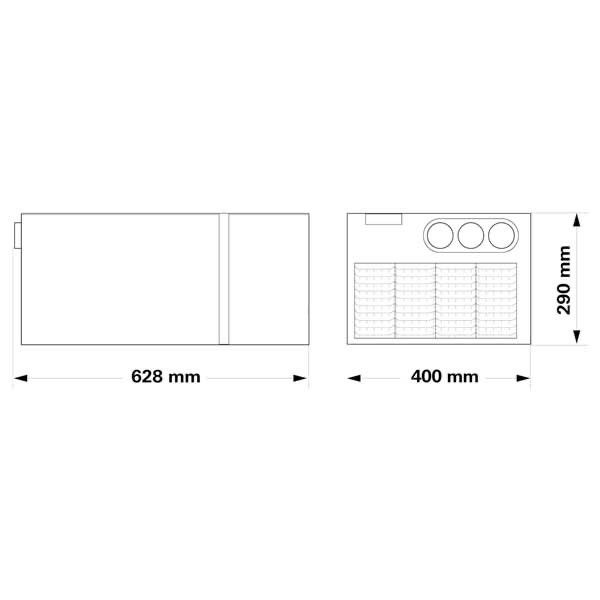

Dimensions (L x W x H) | 628 x 400 x 290 mm
Built-in dimensions (L x W x H) | 858 x 440 x 290 mm
Volumetric air flow | max. 380 m³/h
Maximum incline during operation | 8%
Outer dimensions (L x W x H) | —
Inner dimensions (L x W x H) | —
Roof cut-out (L x W) | —
