❖Features

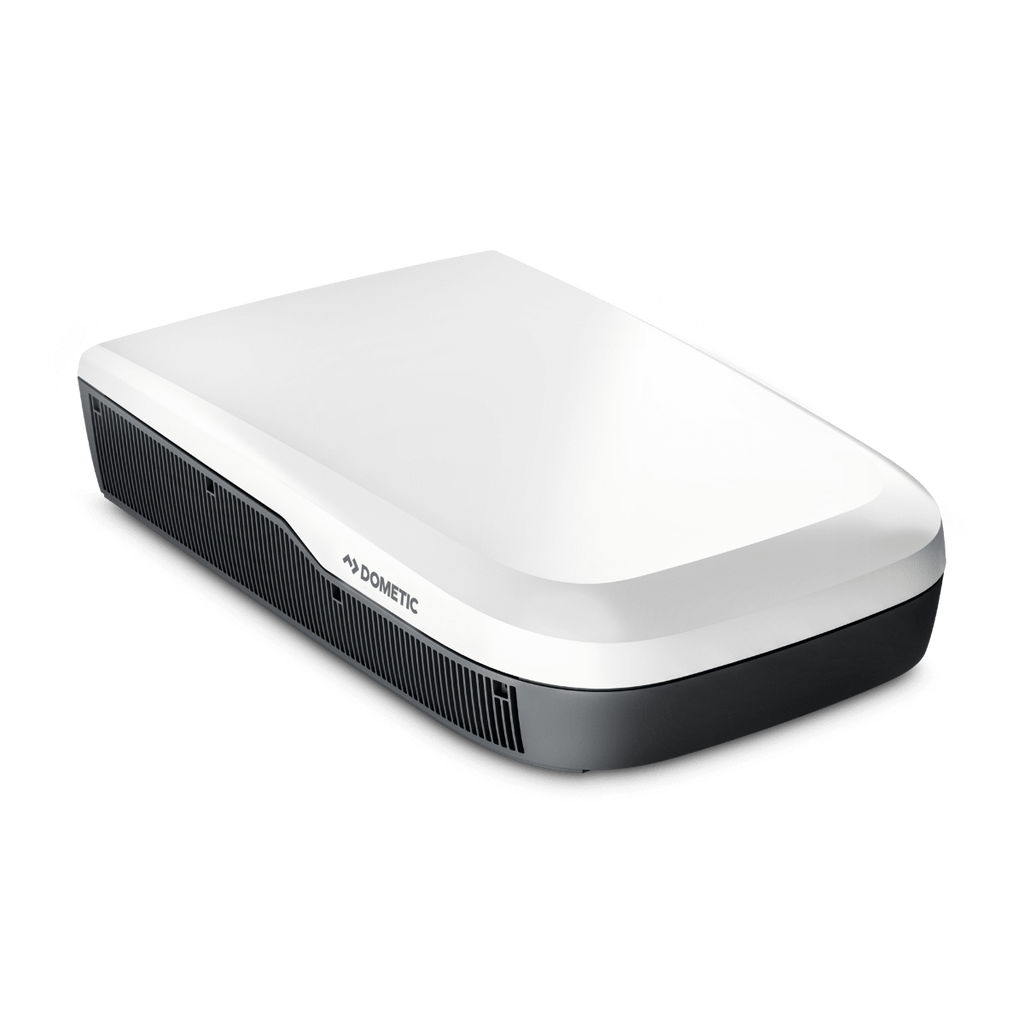

Dometic FreshJet 7 Series Pro
Roof air conditioner, 2900 W, electronic inverter compressor
The FreshJet 7 Series RV air conditioner features a streamlined design
throughout the range, combined with superior cooling performance, optimised
airflow, and the quietest operation yet. The Dometic FreshJet 7 Series Pro is
designed for medium to large caravans and motorhomes with significantly
improved cooling compared to previous generations. The CleanAir technology
ensures circulating air is fresh and clean thanks to the built-in air
purification system. The Series 7 features the next generation of Dometic’s
leading inverter technology, Dometic’s most energy efficient range yet,
perfect for off-grid adventures.
Product Highlights
Superior energy efficiency
Reduced power consumption allows a longer run time on batteries and generators
CleanAir technology
Keeps your RV smelling fresh and clean thanks to the inbuilt air purification
system
Premium air distribution box (ADB) with full connectivity
The air distribution box, is packed with new technology and features such as
touch control panel and remote, integrated ambient LED light and
Wifi/Bluetooth connectivity
Next generation of Dometic inverter technology
The quietest and smoothest operation ever, perfect for off-grid adventures
Modern and fresh design
Aerodynamically shaped rooftop unit
Lightweight and compact

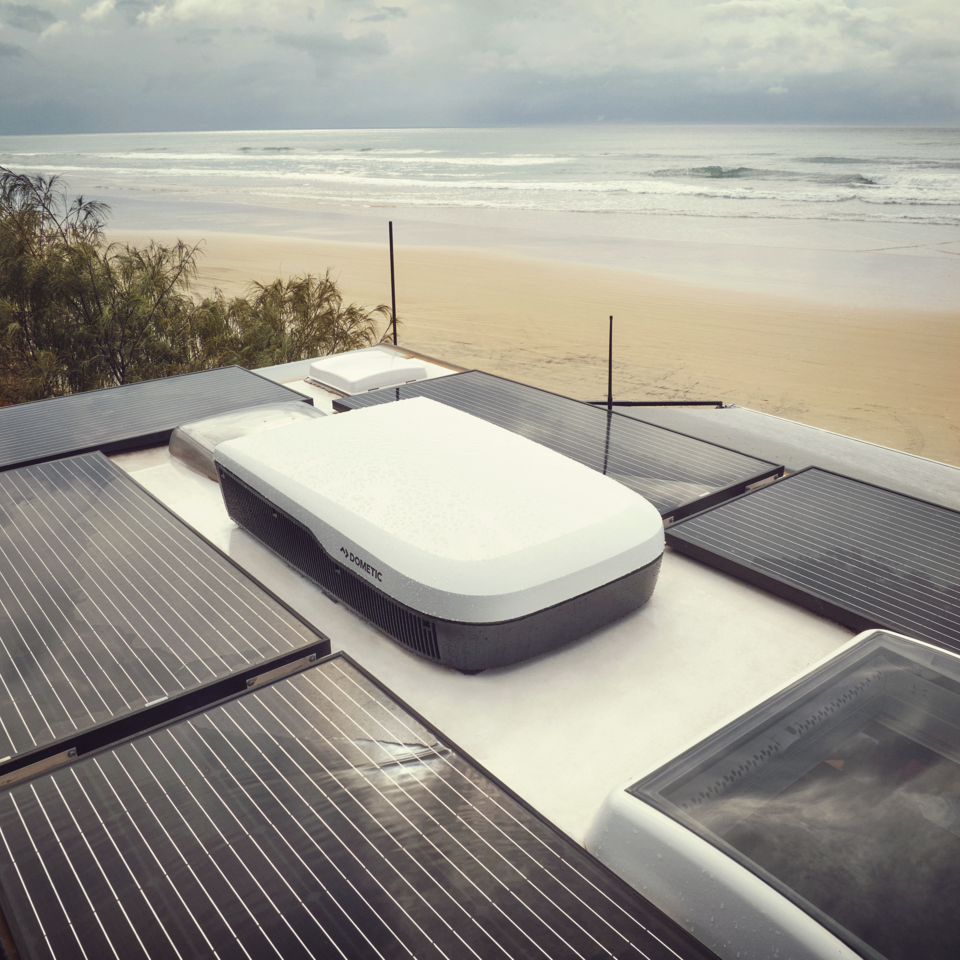

Ideal for optimised rooftop layout with solar panels and other devices
Features
- Superior cooling and heating performance. Heating Capacity: 2692W. Cooling Capacity: 2910W
- Optimised airflow
- Quiet operation
- Remote and full Wi-Fi/Bluetooth connectivity, controlled using the Dometic Climate app
- CleanAir technology
- Installation dimensions: 700mm x 1090mm x 242mm (Air Conditioner) | 518mm x 579mm x 48mm (ADB)
- Suitable for vehicles up to approximately 5.8m (19ft)
- Current Consumption Cooling Max (A): 7.3

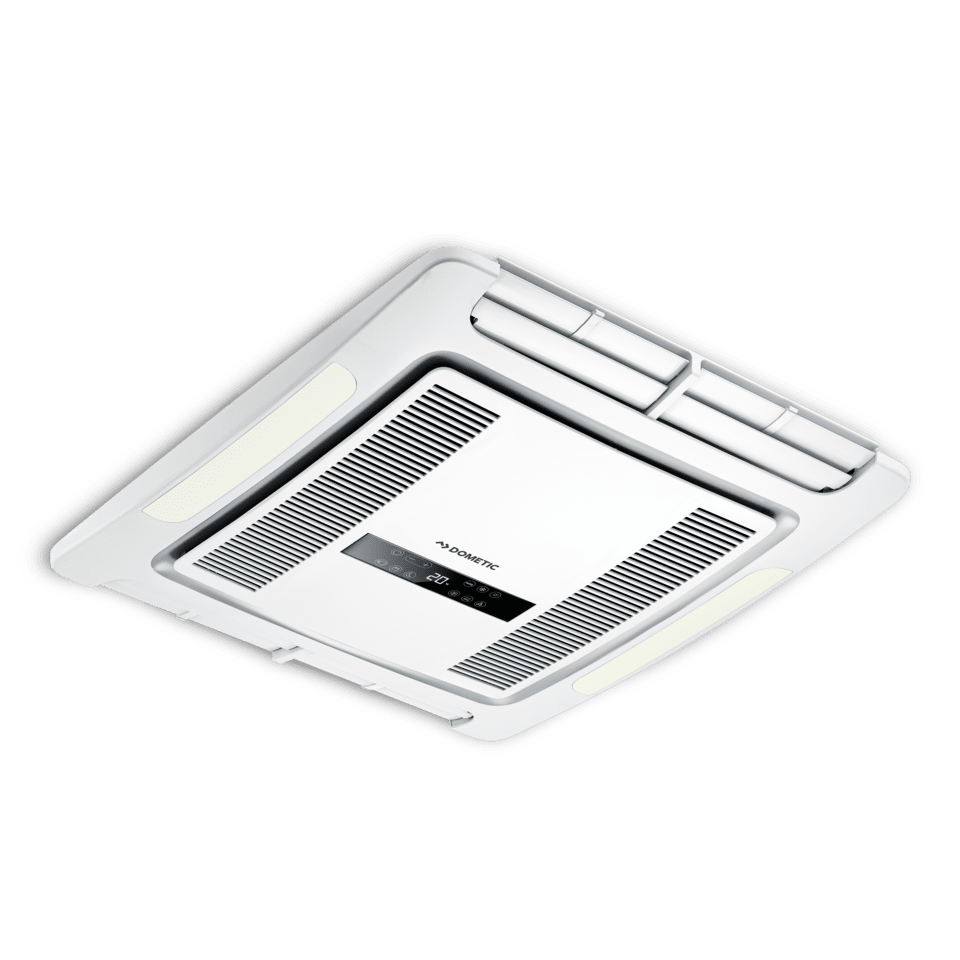

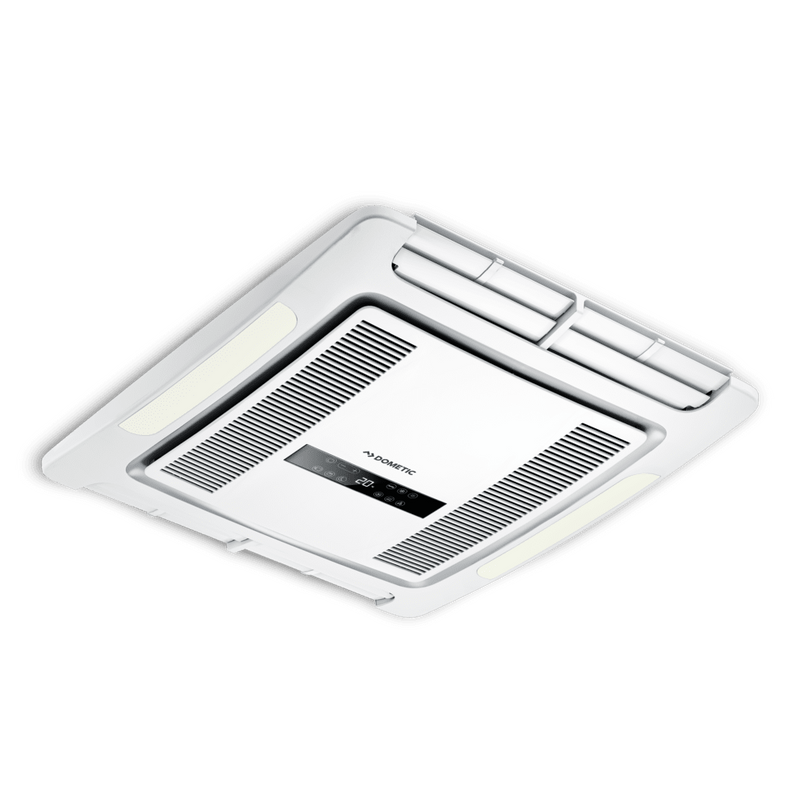

Dometic FreshJet ADB
Air distribution box, electronic controls, LED light, inbuilt air purifier
Designed to complement Dometic’s FreshJet series of RV air conditioners, the
air distribution box (ADB) features a premium look and feel to give you the
best in-cabin experience. The in-built CleanAir technology ensures circulating
air is fresh and clean thanks to the air purification system. The ADB gives
you complete control over the system, along with remote and full Wi-Fi/
Bluetooth connectivity, cooling and heating is only a touch of a button away.
Product Highlights

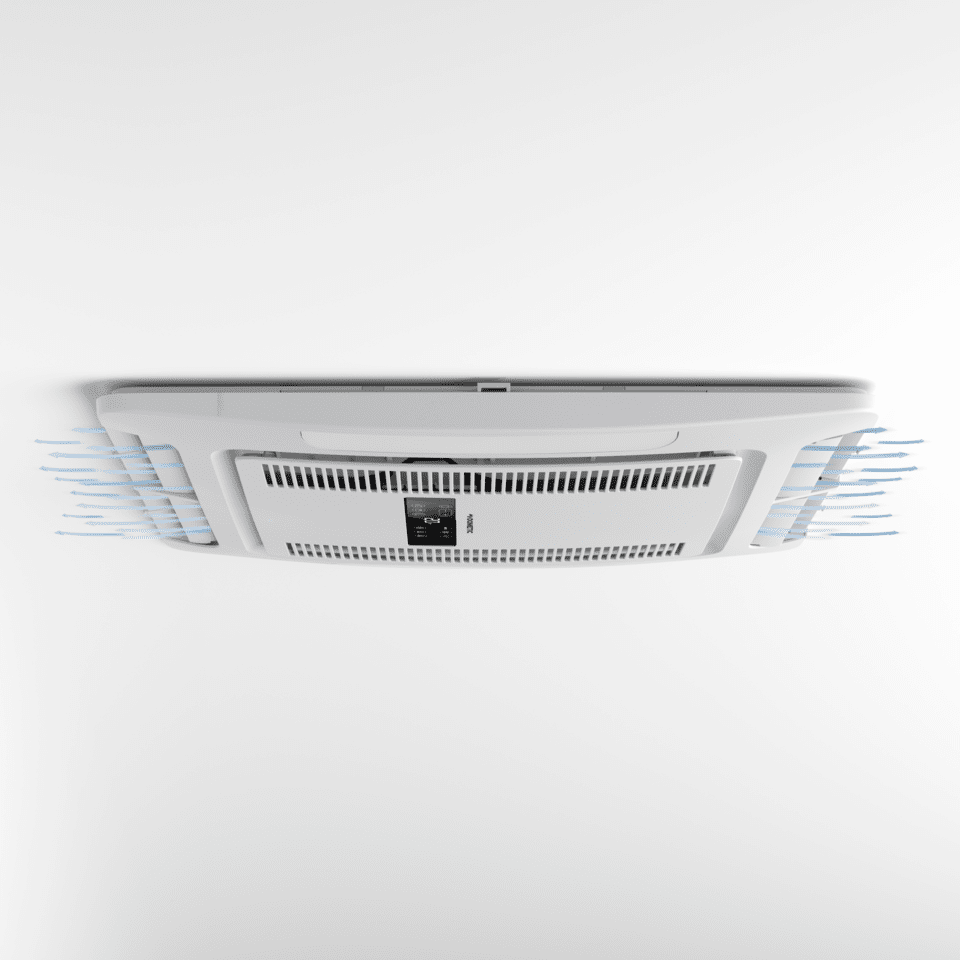

Optimized airflow
Low-profile air distribution box with powerful front and back airflow

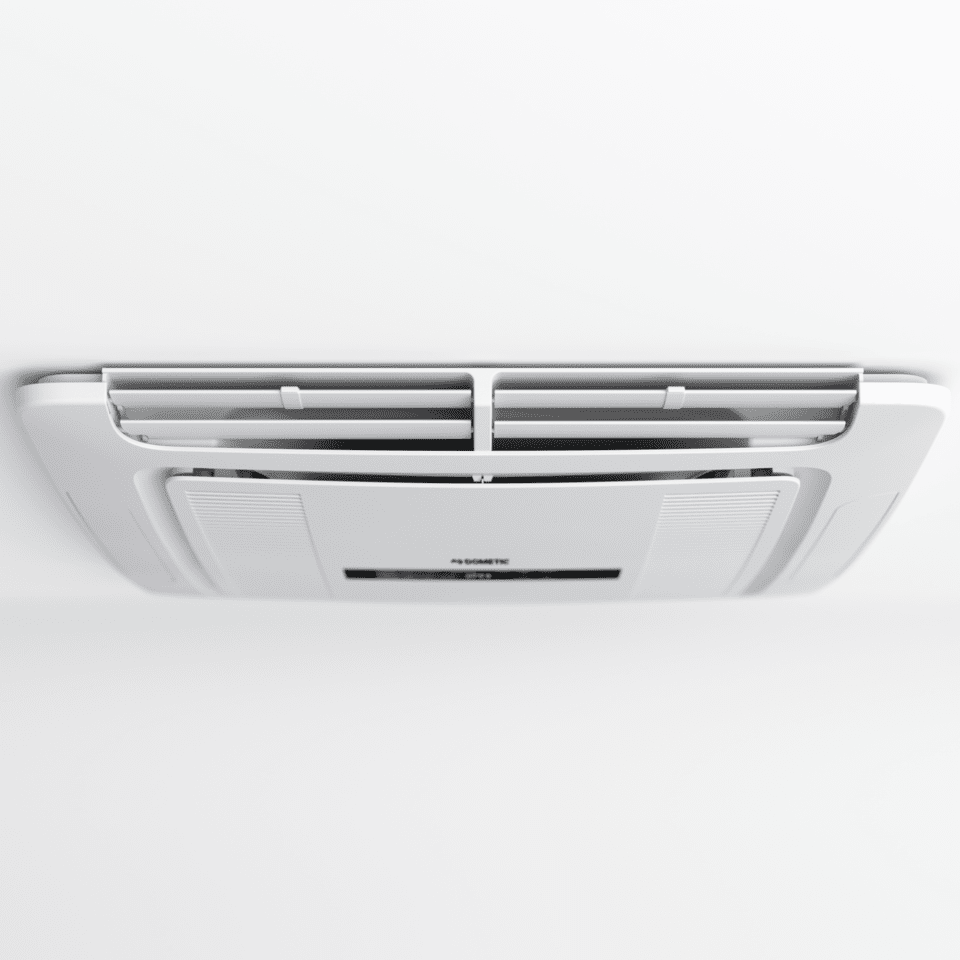

Adjustable outlet vents
Simply adjust the direction of the airflow with your fingertips

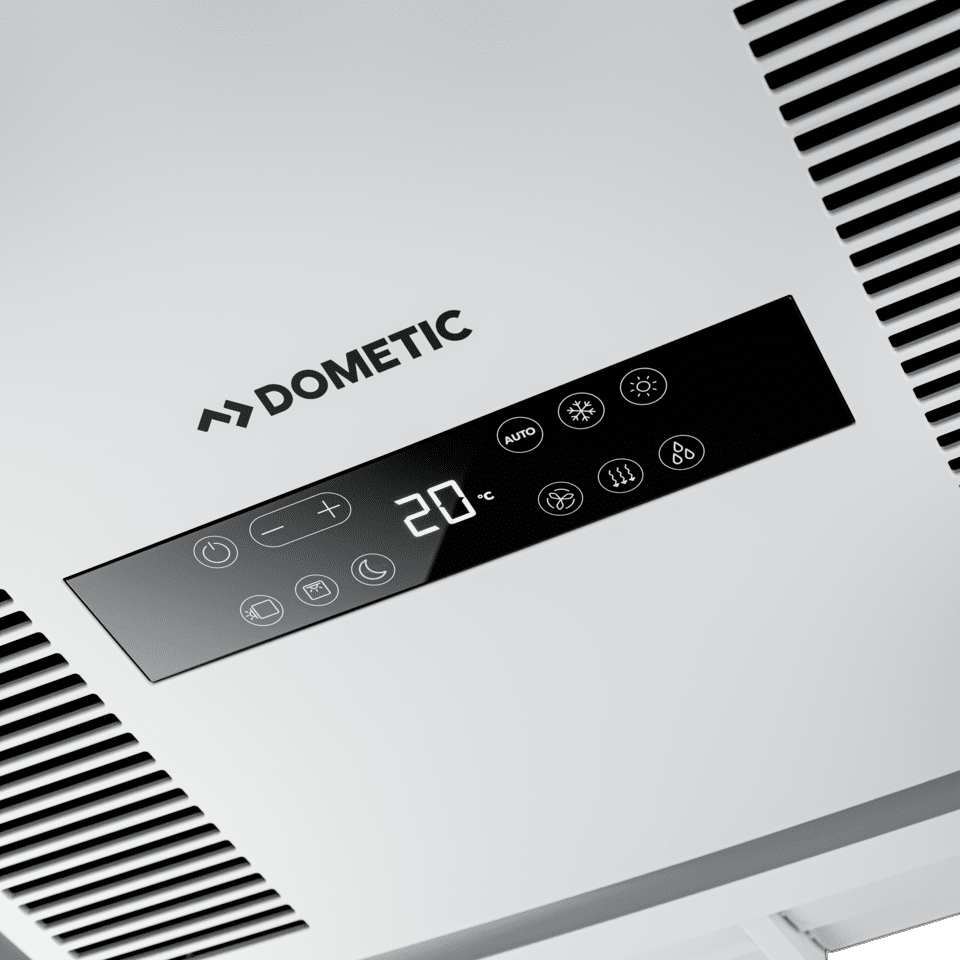

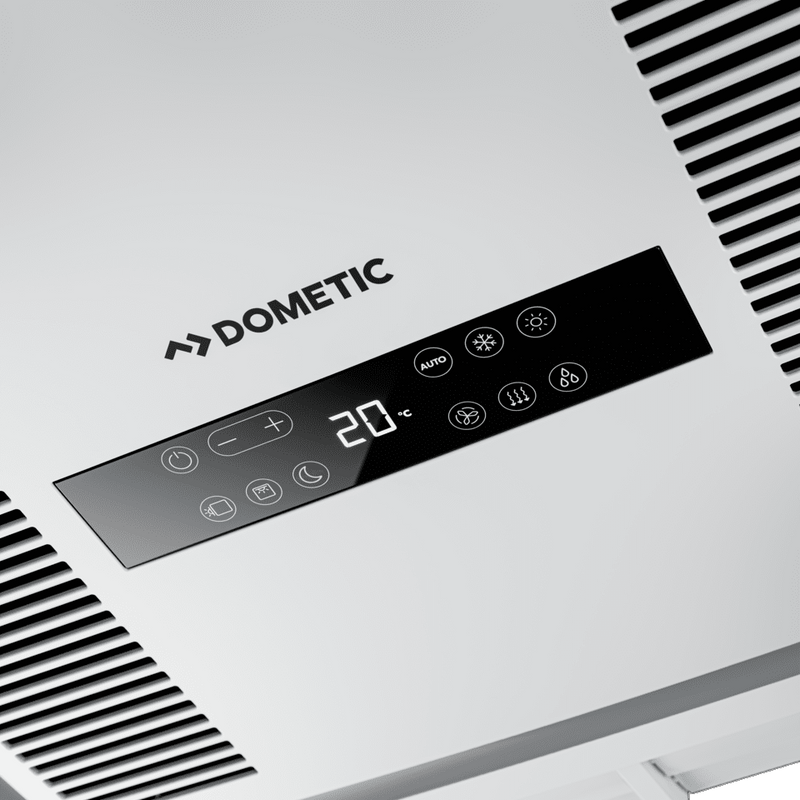

Intuitive touch control
Simply set the temperature and blower level you want
CleanAir technology
Effectively reduces bacteria and odors to keep your RV smelling fresh and
clean

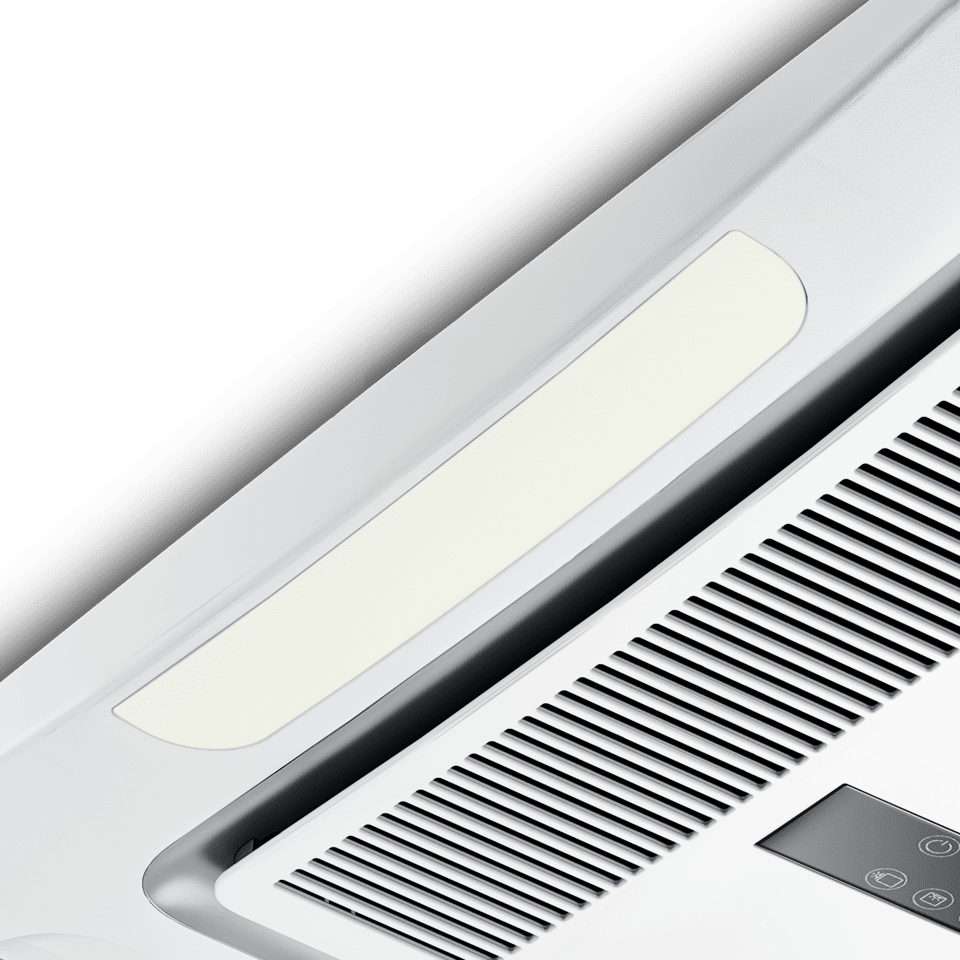

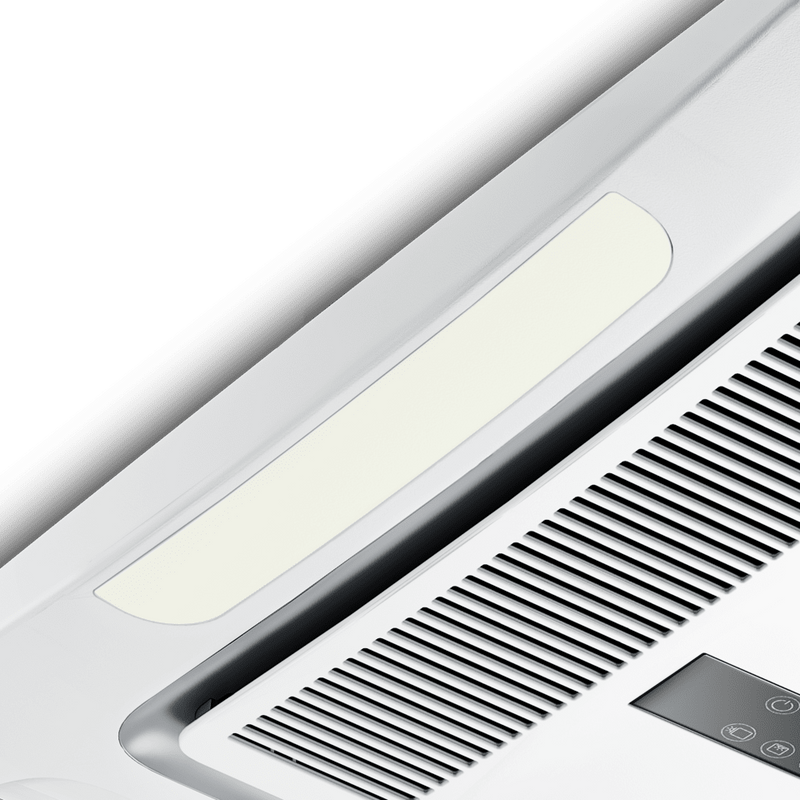

Integrated lighting
Warm white LEDs create a beautiful, soft ambient light

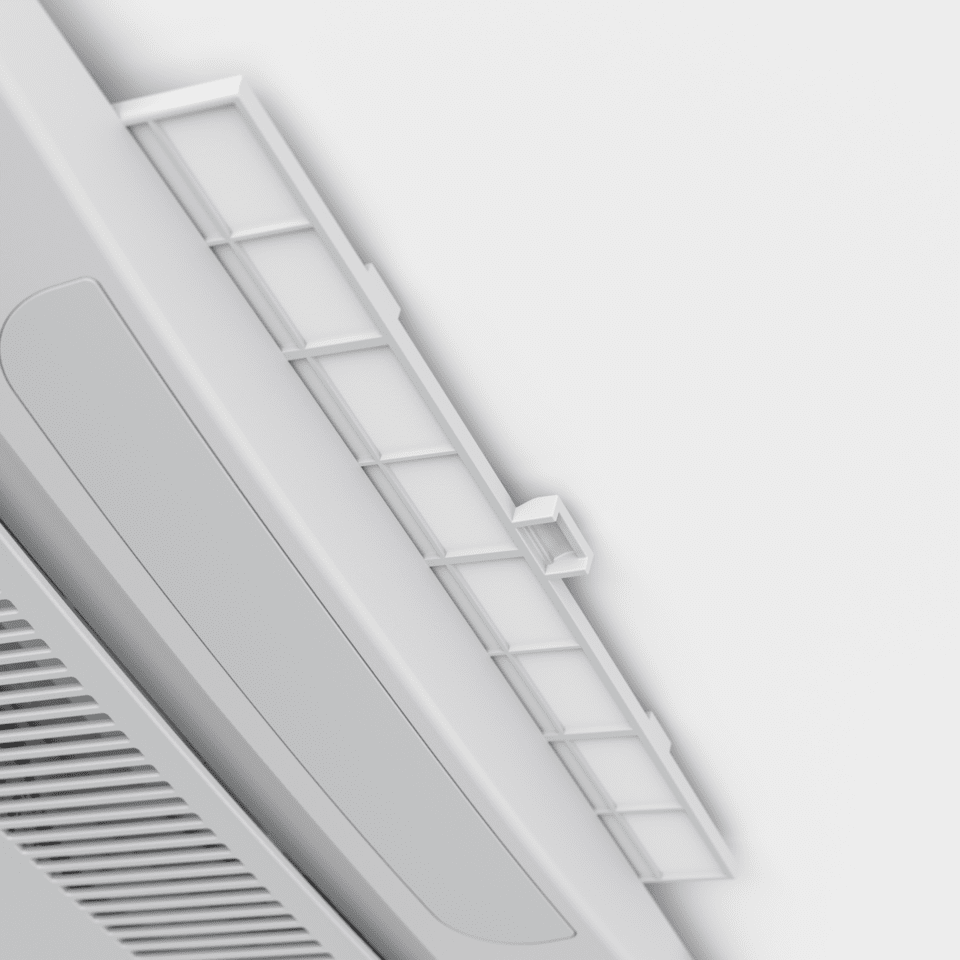

Reusable dust filter
Easy to remove for cleaning
Features
- Optimized airflow for increased efficiency and reduced noise
- Integrated touch control display – unique in the market
- Integrated lighting – cool white LEDs for soft ambient light
- Vertically adjustable outlet vents for individual airflow regulation
- CleanAir air purifier system – keeps your RV smelling fresh and clean
- Low-profile design (just 68 mm high) leaves more headroom in the cabin
- Reusable dust filter – easy to remove for cleaning
Includes:
Dometic FreshJet 7 Series Pro Roof Top Air Conditioner, 9620001685
Dometic FreshJet FJX ADB, 9620001693
|
❖Specifications
Brand | Dometic
FreshJet 7 Series Pro
General |
SKU number | 9620001685
Model | FJX7337IHP
Model on label | FJX7337IHPWHCS-B
Scope of delivery | Air conditioner RTU with packing, including manual
Product Description | RV air conditioner
Dimensions |
Dimensions product depth, [mm] | 1090
Dimensions product height, [mm] | 240
Dimensions product width, [mm] | 700
Net weight, [kg] | 36.80
Electrical |
Input voltage (AC), [V] **
| 220-240
Input frequency, [Hz] **
*| 50/60
Required AC circuit protection max, [A] *
*| 8
*Performance |
Power consumption - Cooling mode (ISO 5151), [W] **
| 1623
Power consumption - Heat pump (ISO 5151) - Display **
*| 1276
*Additional |
Thermostat control | Electronic Thermostat
Certificates **
| CBCEECE R10RCM
**Logistics |
EAN-13 | 6975399590071
Dimensions parcel depth, [mm] | 1150
Dimensions parcel height, [mm] | 285
Dimensions parcel width, [mm] | 780
Parcel weight, [kg] | 43
FreshJet ADB
Brand | Dometic
General |
SKU number | 9620001693
Model | FJXADBD
Model on label | FJXADBDLRCWHCL-B
Scope of delivery | ADB, Remote control, installation material
Product Description | Air distribution box, electronic controls, LED light,
inbuilt air purifier
Dimensions |
Dimensions product depth, [mm] | 579
Dimensions product height, [mm] | 48
Dimensions product width, [mm] | 518
Net weight, [kg] | 3.90
Additional |
Certificates **
| CBCEECE R10KCRCM
**Logistics |
EAN-13 | 6975399590019
Dimensions parcel depth, [mm] | 630
Dimensions parcel height, [mm] | 140
Dimensions parcel width, [mm] | 550
Parcel weight, [kg] | 6
