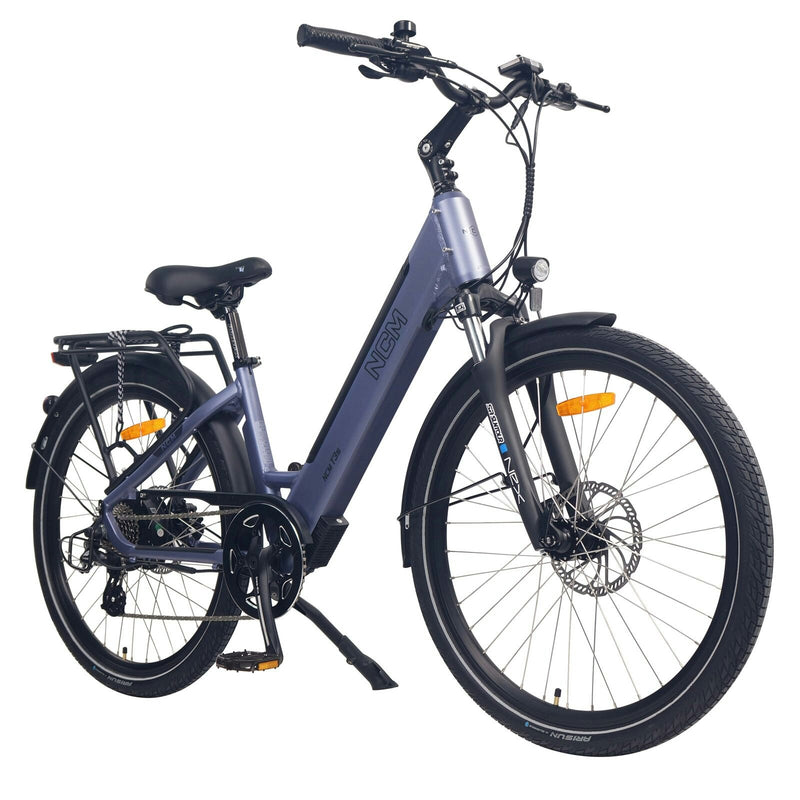

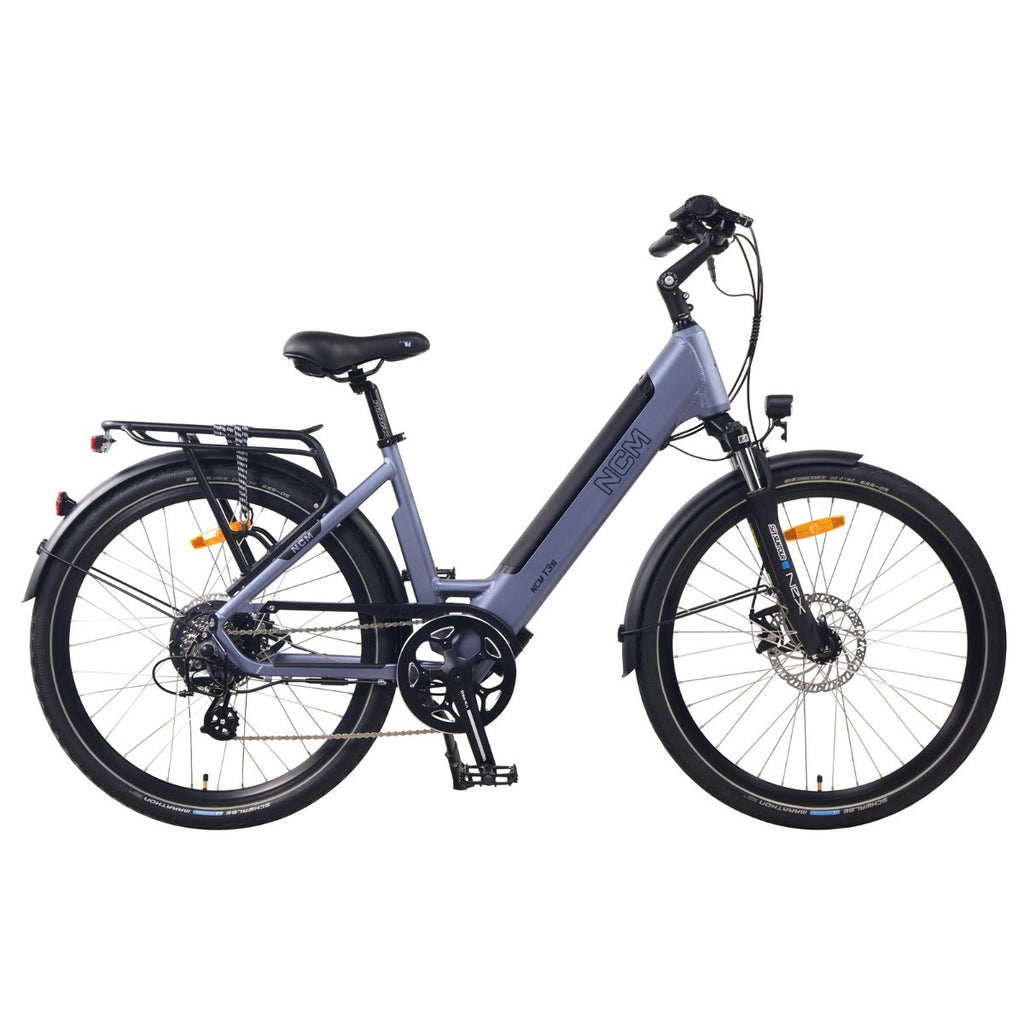

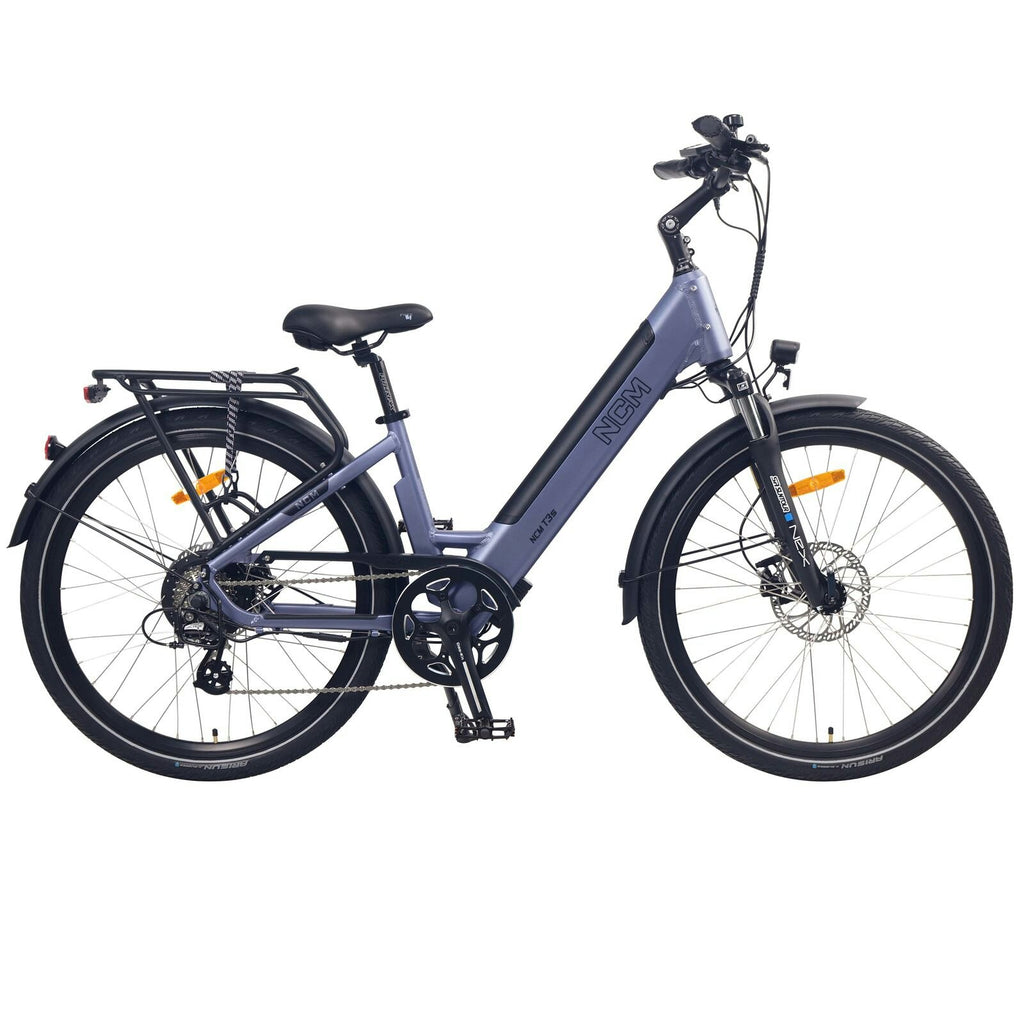

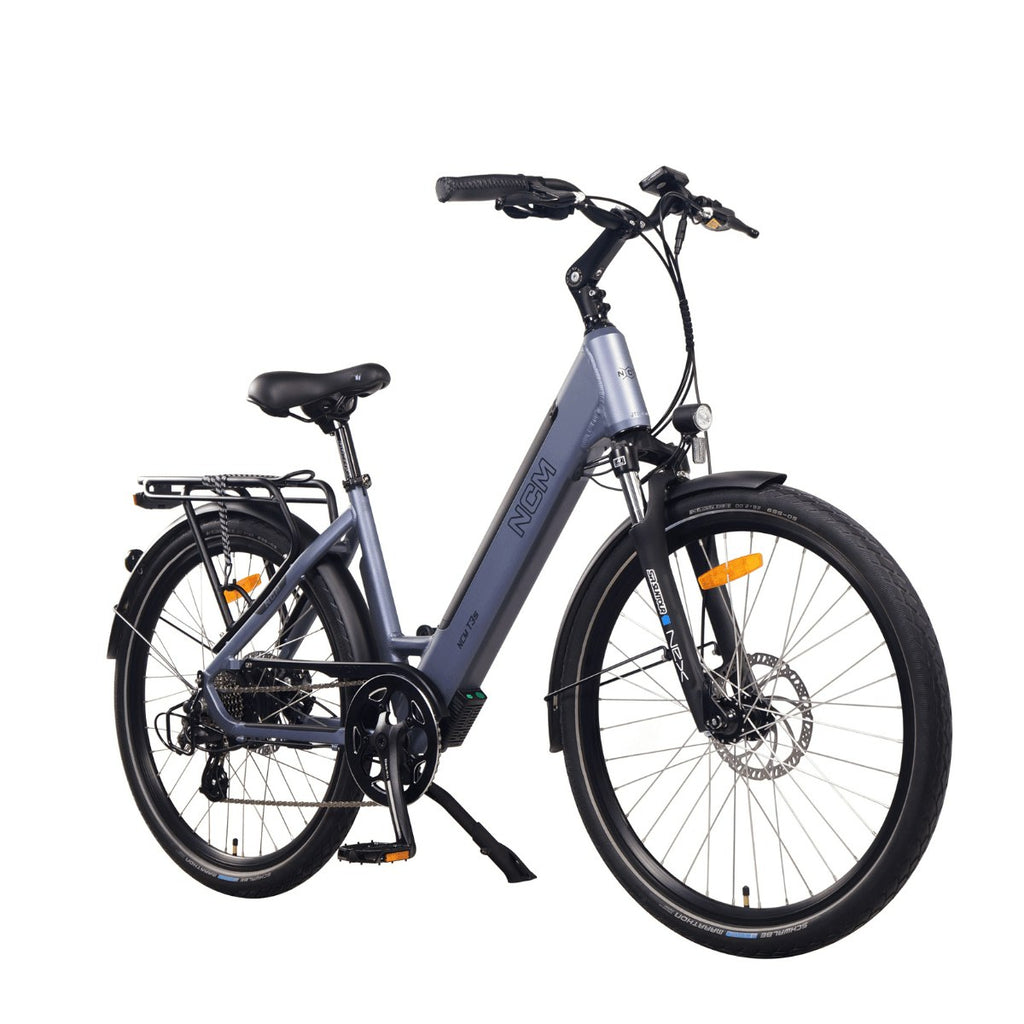

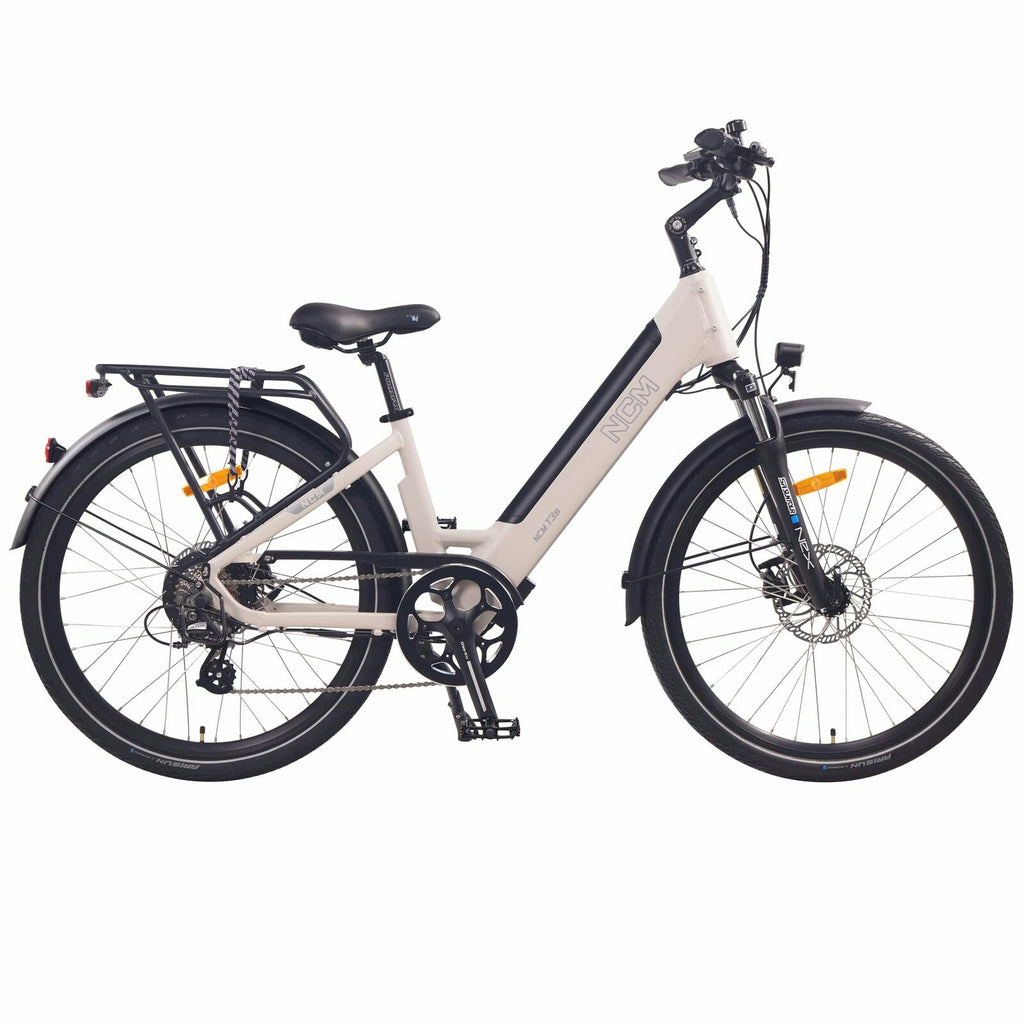

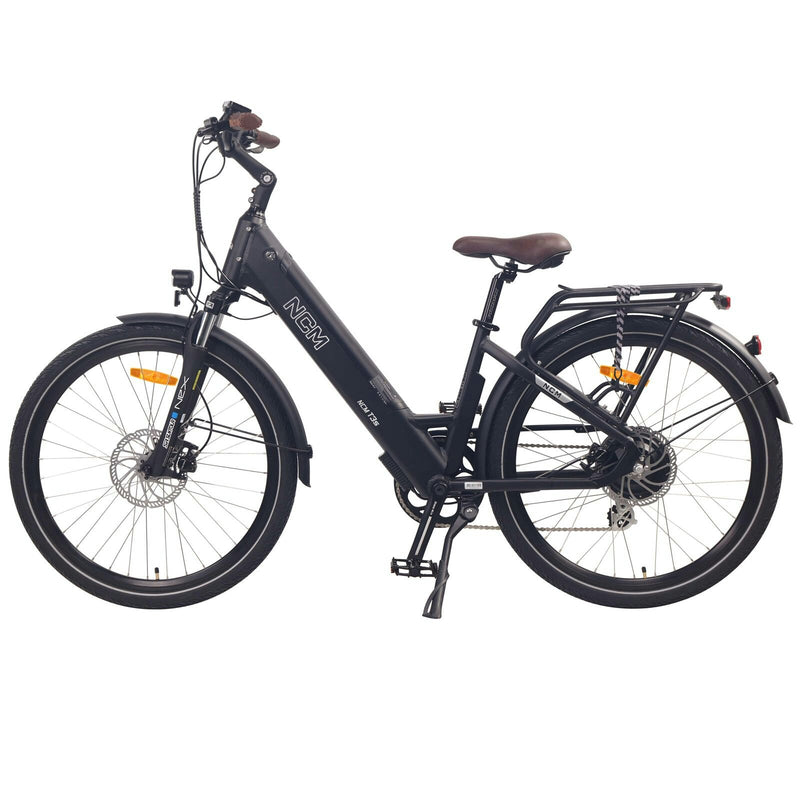

NCM T3S Step-Thru Trekking E-Bike, City Electric Bike, 250W-500W, 48V 12Ah 576Wh Battery

Leon Cycle is the manufacturer of NCM and ET.Cycle Electric Bikes. Buy from Leon Cycle & we will guarantee for our product quality, & warranty.

Do you want to avoid traffic jams and still arrive quickly and safely at your destination? Then our E-Trekking and City Bikes are just the thing for you. Roadworthiness, comfort, and elegance are the main features of our NCM Milano T3s Electric Trekking Bike.

The new NCM Milano T3s is the brand new generation of the NCM brand. Successor to the flagship NCM Milano, it features a new reinforced fully integrated, and removable battery in the frame, a sleek new design, improved ergonomics, and versatility ready to tackle any journey, short or long. The T3s offer more comfort and control than ever before and guarantee a pleasant ride thanks to an upright seating position, a low through frame, and optimized ergonomics with adjustable handlebars and a gel-padded saddle. This Electric Bicycle is fully equipped for your daily commutes. Whether you are trying to get to work on time, while being sweat-free, or need to rush to your favorite place in style, NCM Milano T3s lets you cover your daily journeys with ease.

Key Features

• Ergonomic bicycle Grips
• Comfortable sitting posture
• All important controls are easily accessible
• Supplied with 48V to deliver a high-output power
• Up to 500W Peak Motor Power
• Over 576Wh capacity for a longer distance
• Up to 120 km Battery Range (depending on the conditions)
• Easily removable battery so you can charge it anywhere

General Information

Weight: 26”= 27kg / 28" = 28 kg
Type: E-Trekking
Wheel size: 26” / 28"
Load capacity: Max. 125kg
Maximum speed: 25km/h

Battery Information

Lithium-ion Battery

Model: i6-4812
Ratings: DC 48V, 12Ah, 576Wh

Electric parts

Motor: Das-Kit, X15 Rear-drive motor, 48V 250W-500W, 25km/h
Controller: Das-Kit, CT5-i6, 48V 18A
Charger: 48V 2A
Battery: Das-Kit I6-4812H,48V 12AH, 576WH
Average range: 40-120km depending on assistance level
Display: LCD Das-Kit L7T with Throttle
Front/Rear Light: Spanninga, Kendo, 48V, 30 Lux Spanninga, / Solo, with 2xAAA batteries

Bike parts

Frame: Alu. 6061, 26"420MM
Handelbar: FQ, FQ-155, Width 640mm, BK
Fork: Suntour, NEX 26”
Brake Levers: Das-Kit, L:DK-01E, with brake sensor, R:DK-01, Black
Brakes F/R: Tektro Mechanical Disc Brakes, MD-M280,180mm rotor
Chain derailleur: Shimano, Altus M310, 7 speed
Crankset: Das-Kit, CT48A, Black

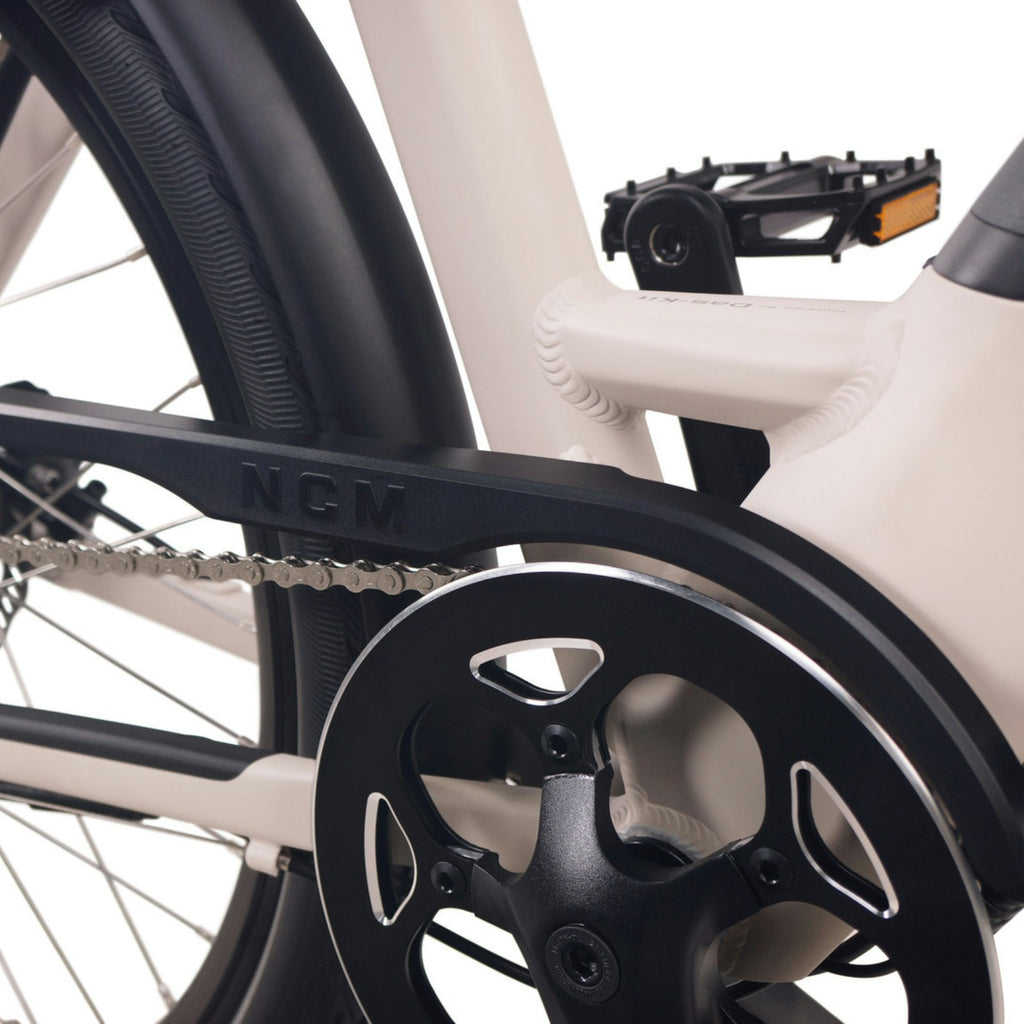

Chaincover: T7, new
Gear shift: Shimano, Altus M310, 7 speed
Tyre: Schwalbe, Marathon, 26"2.0
Saddle: Selle Royal, Freeway
Seatpost: Promax, SP-884, with suspension, 27.2*300MM
Handles: Selle Royal, brown (imitation leather)
Pedals: Wellgo, B087, black
Rack: Rear rack with elastic straps

Manufacturer Warranty

1 year warranty on all electronic parts (including battery, motor, controller, display, and lights)
2 year warranty on the bike frame
Apart from manufacturing defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.

​​ *​ ​Disclaimer: *Once you received the e-bike, we recommend to have it assembled by a professional in bike shops near you and also get your bike serviced after 1 month of use to ensure all aspects of the bike are set and calibrated correctly.
