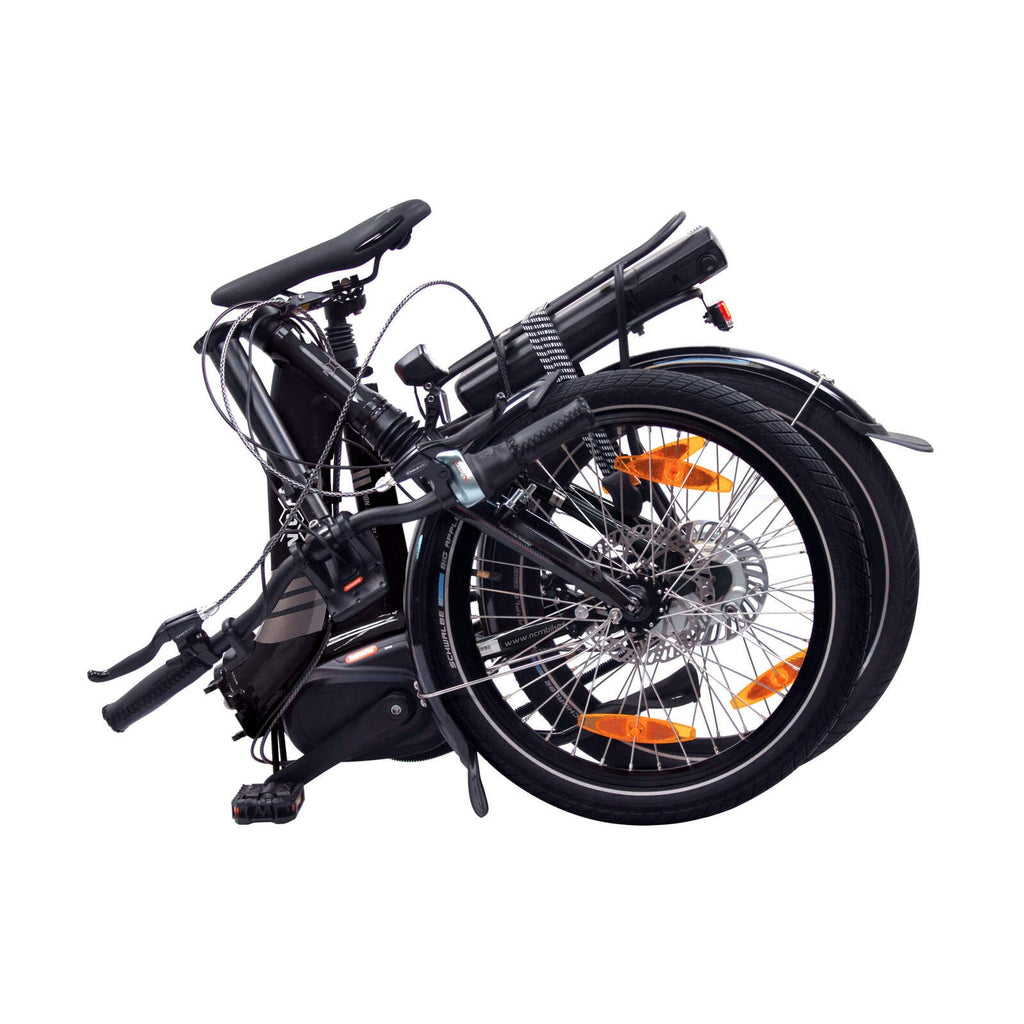

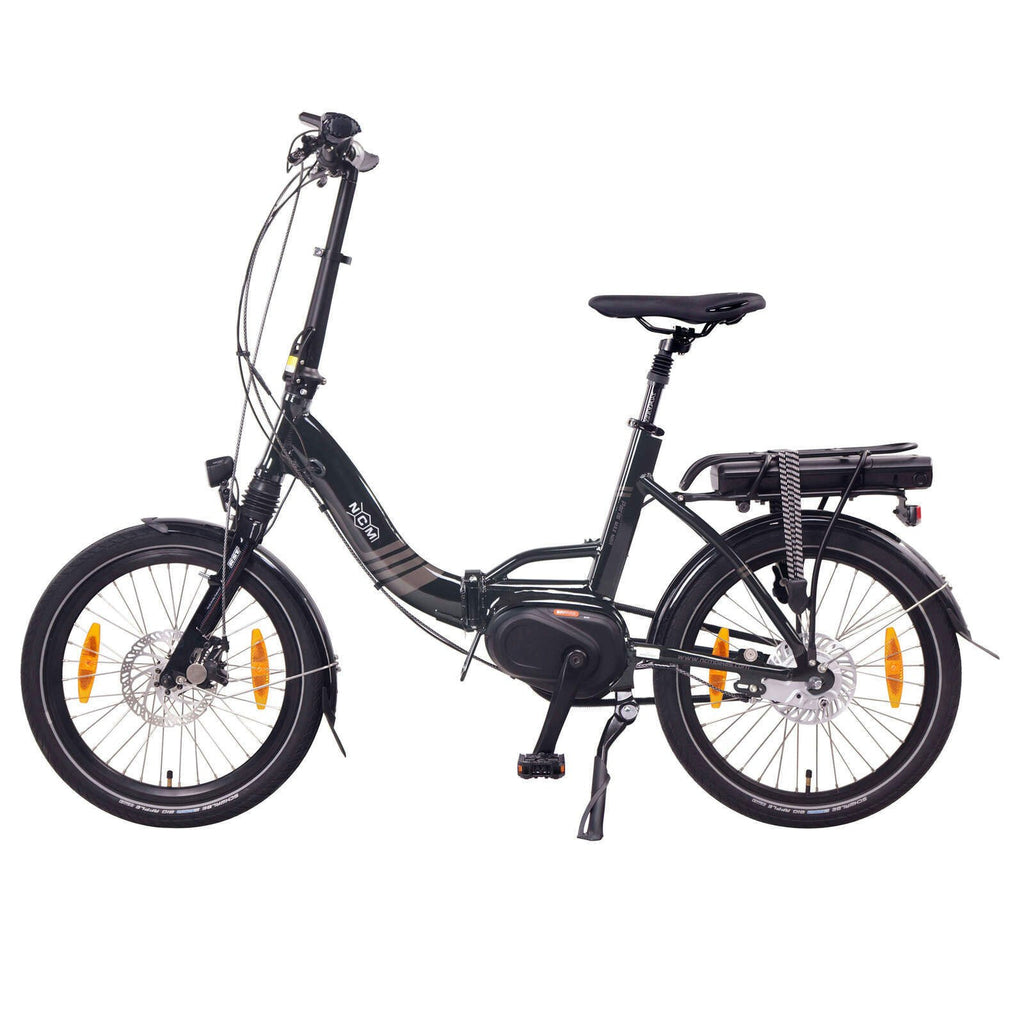

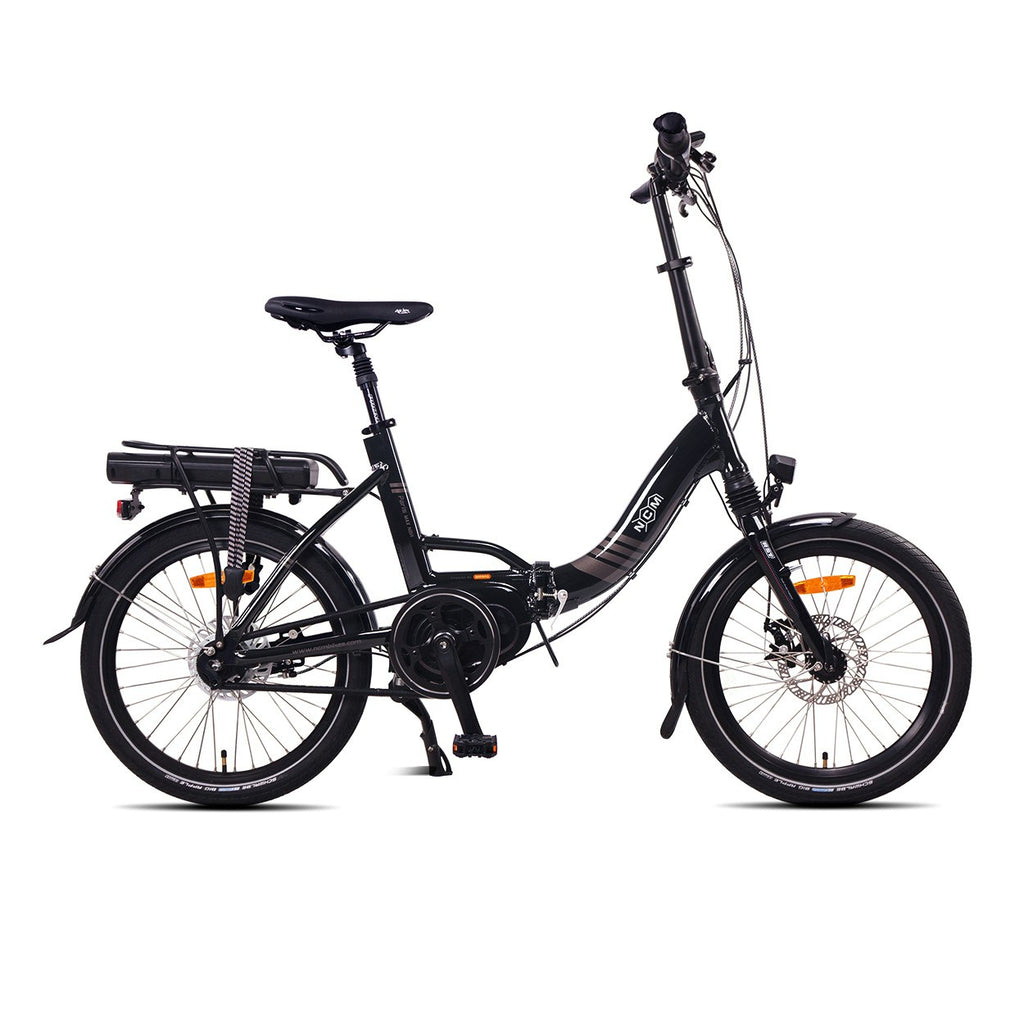

NCM Paris Max N8R Folding E-Bike, 250W-500W 36V 14Ah 504Wh Battery [Size 20"]

The NCM Paris Max is an NCM, curvy foldable bike series. With a lower tube design and a large rear-mounted battery for extra range. NCM foldable Bikes are designed to be compact and lightweight, whilst also providing high-quality strength and reliability.

Key Features

• Ergonomic bicycle Grips
• Comfortable sitting posture
• All important controls are easily accessible
• Supplied with 36V to deliver a high-output power
• Up to 500W Peak motor power
• Over 504Wh capacity for a longer distance
• Up to 100 km Battery Range (depending on the conditions)
• Easily removable battery so you can charge it anywhere

General Information

Weight: 25kg (55lbs)
Type: Folding Wheel size: 20”
Load capacity:125kg (275lbs)
Maximum speed: 25km/h

Electric parts

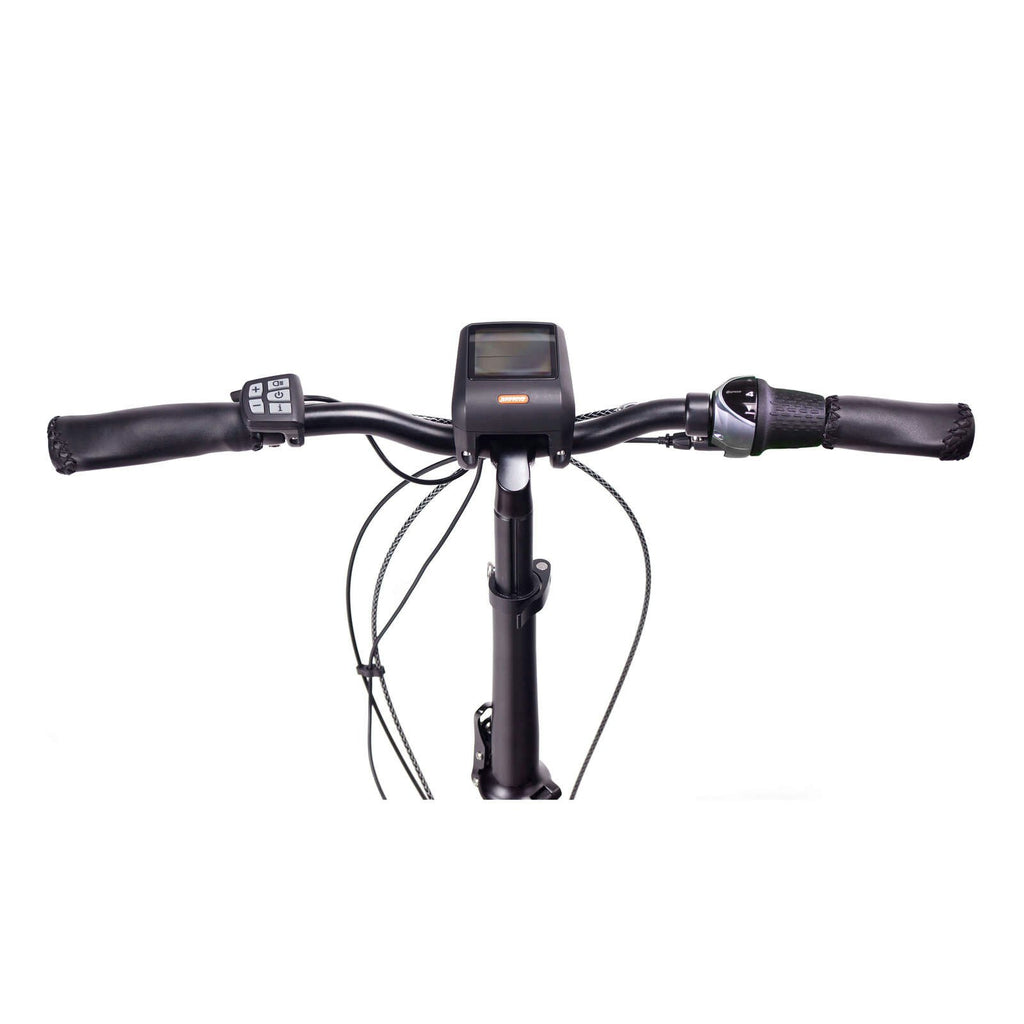

Display: Bafang Max, LCD Display
Controller: Bafang Max
Charger: 36V 2A, AU standard (EESS Number: E2022081360)
Motor: Bafang, MAX, 36V 250W-500W, 25KM/H, Middle drive motor
Battery: DEHAWK, R4Y-3614E, 36V 14AH, 504WH depending on assistance level
Front/Rear Light: Spanninga, KENDO, 36V, 20 Lux over bike battery / Spanninga, SOLO with 2xAA batteries

Battery Information

Lithium-ion Battery
Model: B1U-3614
Ratings: DC 36V, 14Ah, 504WH

Bike parts

Frame: Alu. 6061, 20"395MM
Fork: RST, SS-A2, Middle suspension
Brake Levers: Tektro, with brake sensor on both sides
Brakes F/R: Tektro Mechanical Disc Brake; R: Shimano Roller-Brake
Crank: Bafang, MAX, 44T
Rear Derailleur: Shimano, NEXUS, 8 Speed with rollar brake
Tyres: Schwalbe, Big Apple, 20"2.0
Saddle: Selle Royal, New Ariel-A158H, BK
Seat Post: Promax, Alu., SP-884, 27.2*350MM, with suspension, BK
Grips: Selle Royal, Brown synthetic leather
Pedals: Wellgo, F178, Foldable pedal, BK
Mudguard: Yungfang, 20", Black (Alu+plastic)
Rack: Rear rack with elastic straps

Warranty

• Leon Cycle provides 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
• Leon Cycle provides 2 years warranty on the bike frame. For more warranty information visit our FAQs.
• Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.

​​ *​ ​Disclaimer: *Once you received the e-bike, we recommend to have it assembled by a professional in bike shops near you and also get your bike serviced after 1 month of use to ensure all aspects of the bike are set and calibrated correctly.​
