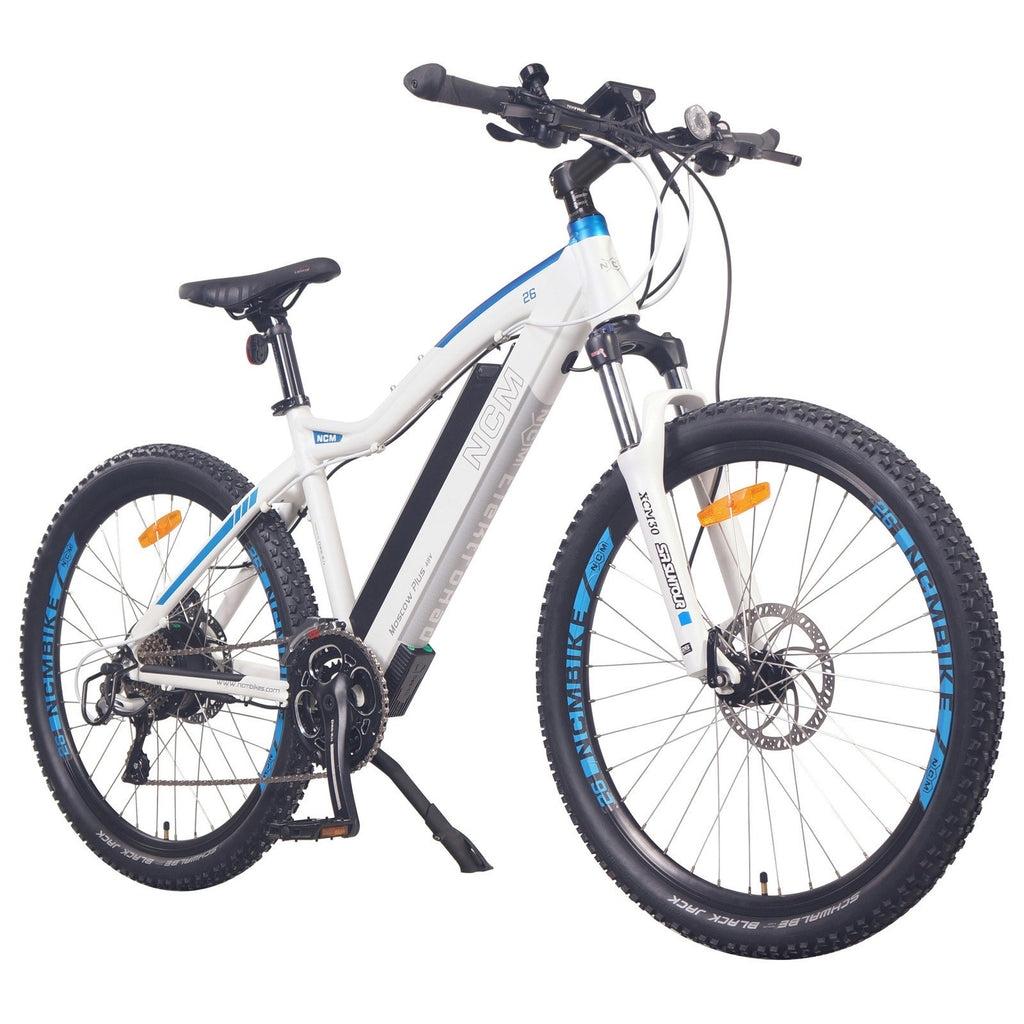

NCM Moscow Plus Electric Mountain Bike,E-Bike, 250W-500W, E-MTB, 48V 16Ah 768Wh

Specifications

General Information

• Weight: 27,5”= 28kg / 29”= 29kg
• Type: E-Mountainbike
• Wheel size: 27,5” / 29”
• Load capacity: Max. 125kg
• Maximum speed:15.5mph

ELECTRIC PARTS

• Display: Das-Kit, L7B, LCD, 6 Assistant levels, up to 4mp/h power assist walk
• Controller: Das-Kit, CT5-I5, 48V 15A
• Charger: Inclueded DC483AU 48V 2A with round plug
• Motor: Das-Kit, X15, 48V 250W, 15.5mp/h, rear motor wheel

• Battery: i5-4816P, 48V 16Ah, 768Wh Panasonic Cells,
  Li-NCM-18650 incl. USB port
  (charging mobile devices with 1A)

• Distance approx. 40-90 miles depending on assistance level.

• Front/Rear Light: Have to be purchased separately. Not included. Front/Rear reflector incl., cat's eye

BIKE PARTS

• Frame: Aluminium 6061, 27,5“ 480MM / 29"*520MM,
• Fork: Suntour, XCM-27.5 / 29” with suspension and lock-out
• Brake Lever: Tektro, with brake sensor on both sides
• Brakes: F/R: Hydraulic Tektro Disc Brakes

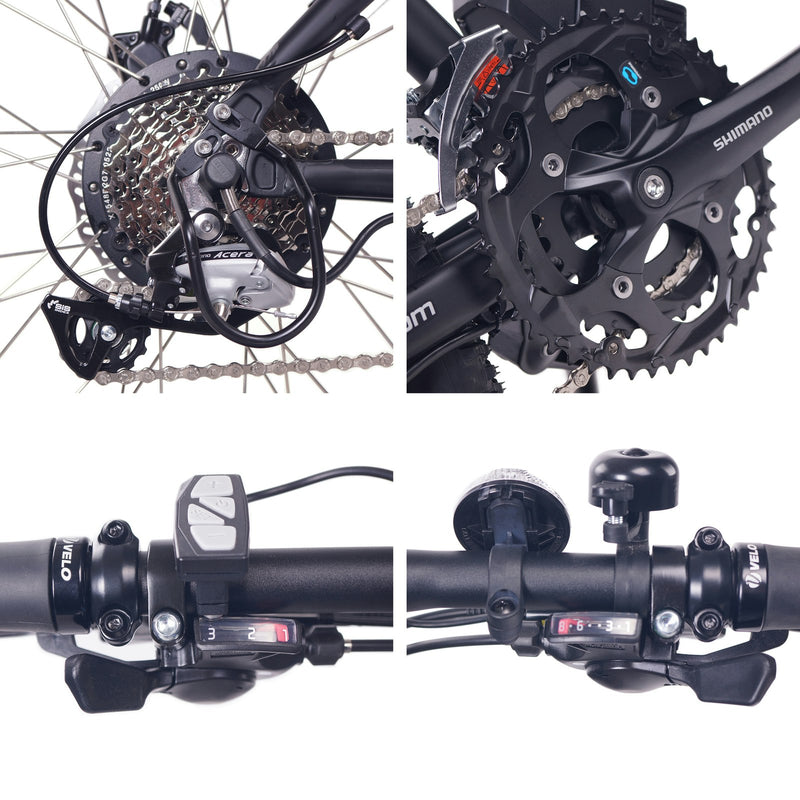

• Crank: Shimano, FC-M361, 170mm, 28/38/48T
• Gearshift: Shimano, Altus, F: SL-M310-L, 3 Gang, R:SL-M310-8R, 8 Gang
• Rear Derailleur: Shimano, Acera, RD-M360, 8 speed
• Tire: Schwalbe, SMART SAM 27,5"* / 29"* 2.25
• Saddle: VELO designed by NCM, black
• Seat Post: Promax, Alu.MA-471, Ext 90mm
• Grip: VELO, ergonomic, black/grey (synthetic)
• Pedal: Wellgo. B087, black

Warranty

• 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
• 2 year warranty on the bike frame
• Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.

​Disclaimer: Once you received the e-bike, we recommend to have it assembled by a professional in bike shops near you and also get your bike serviced after 1 month of use to ensure all aspects of the bike are set and calibrated correctly.
