❖Features

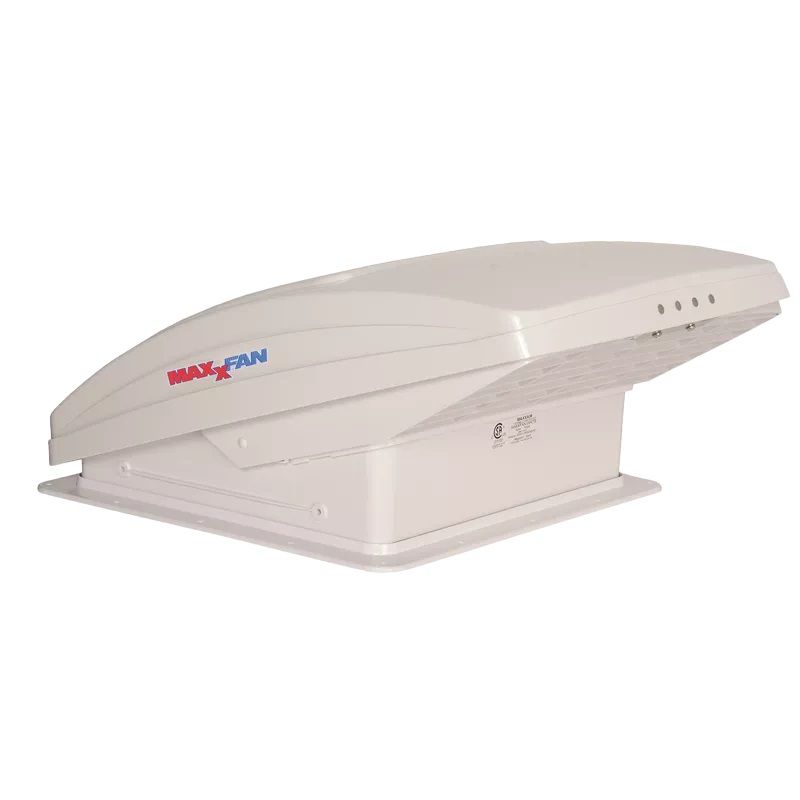

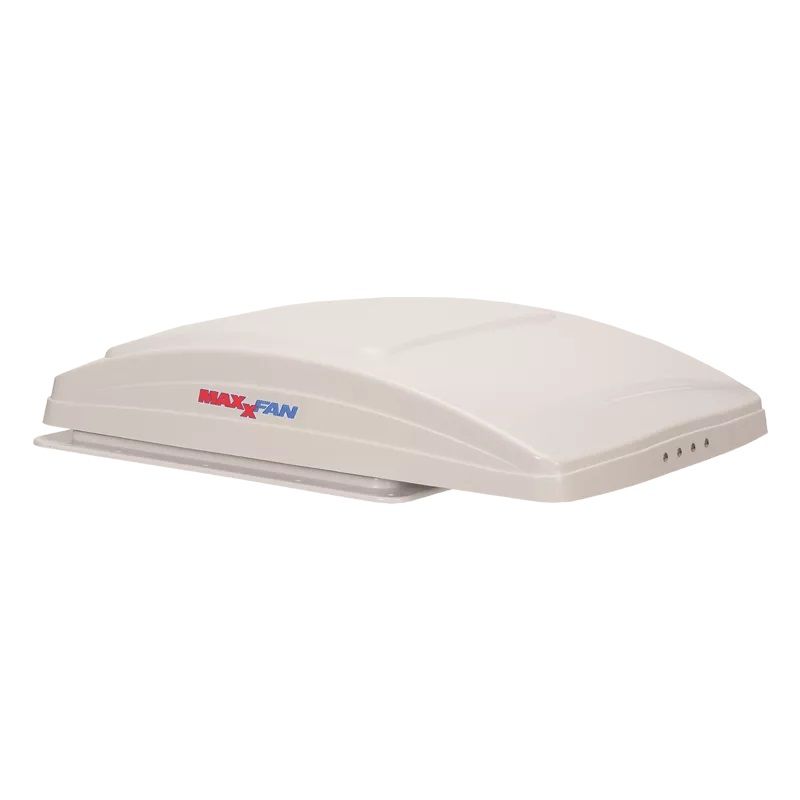

RV ventilation has never been easier than with a MaxxFan. They’ve been used in
the US RV market since 1988, and they are now exclusively available from Coast
to Coast. The MaxxFan Plus and the MaxxFan Deluxe, both have a manual option
and an electric opening option, and they also have a ceiling mounted control
panel that is easy to use and read.
Product Description

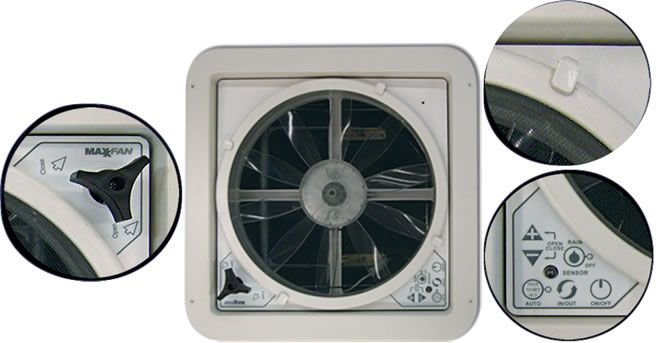

- Removable flyscreen – simply twist the L-clamps and remove for cleaning!
- Installs onto all standard 14” x 14” (356mm x 356mm) roof openings
- Powerful 10-speed fan motor
- Fan can run even if the lid is closed (select ‘Ceiling Fan Mode’) and can be used in “intake” and “exhaust” modes
- Provides over 900CFM, keeping your RV cool and comfortable
- Twin lifting arms limit vibrations cause by wind when in the ‘open’ position
Specifications
- Amp Draw on High: 2.5A
- Amp Draw on Low: 0.16A
- Dimensions (closed): 589L x 421W x 128H (mm)
- Dimensions (open): 589L x 421W x 230H (mm)
- Installed Weight: 5.4kg
- Roof Thickness: 25mm (min) – 90mm (max)
|
❖Specifications
Brand | MAXXAIR
Model | MAXXFAN Deluxe
Amp Draw on High | 2.5A
Amp Draw on Low | 0.16A
Weight | 5.4kg
Dimension (closed) | 589(l) x 421(w) x 128(h) mm
Dimension (open) | 589(l) x 421(w) x 230(h) mm
Permanent Airflow | 82cm Squared
Roof Thickness | 22mm (min) - 90mm (max)
Warranty | 2 year
