DESCRIPTION
Whether you’re powering LED light bars or spotlights, this harness is built to
support both with strength and flexibility. Perfect for off-road adventures,
it ensures your lights work flawlessly, helping you see every challenge ahead.
Simple yet tough, it has got your back every mile of the way. Built tough for
the wildest rides, the Lightfox wiring harness features high-efficiency 12 AWG
cables, ensuring consistent power with minimal voltage drop even on rough
terrain. The two 60A relays handle high current loads, keeping your lights
bright and steady while reducing the risk of overload. With a waterproof DT
3-pin connector and a 50A in-line fuse, your setup stays protected against the
elements, from rain and mud to intense heat. Featuring a plug-and-play design,
it connects directly to your high beam system for effortless control between
two backlight and driving light modes, all while maintaining full ADR
compliance—no complex wiring required. Experience seamless performance with Li
FEATURES

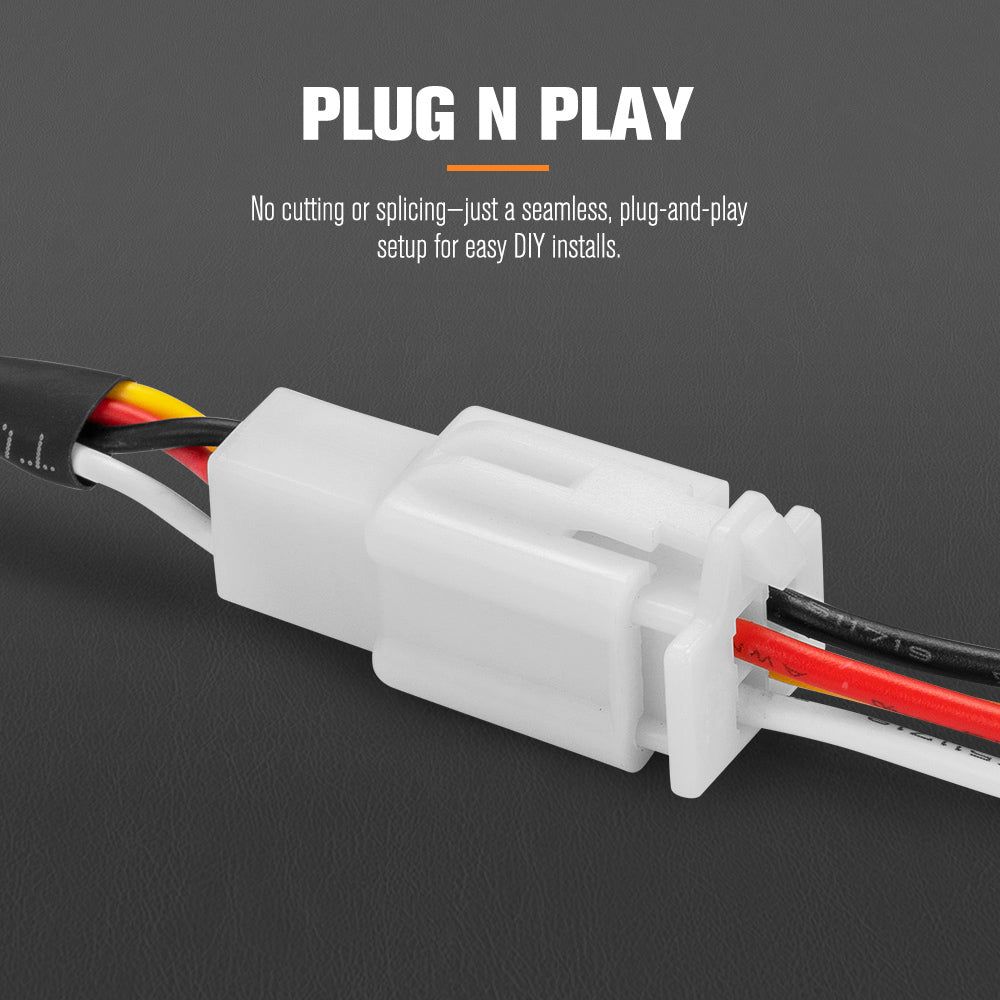

Plug & Play: Enjoy a hassle-free setup with a true plug-and-play design that
doesn’t require cutting, splicing, or complex wiring – ideal for DIY
installation.
High-Beam Ready: Easily syncs with your high beam system and is fully ADR-
approved, meeting top safety and performance standards for reliable, compliant
lighting.

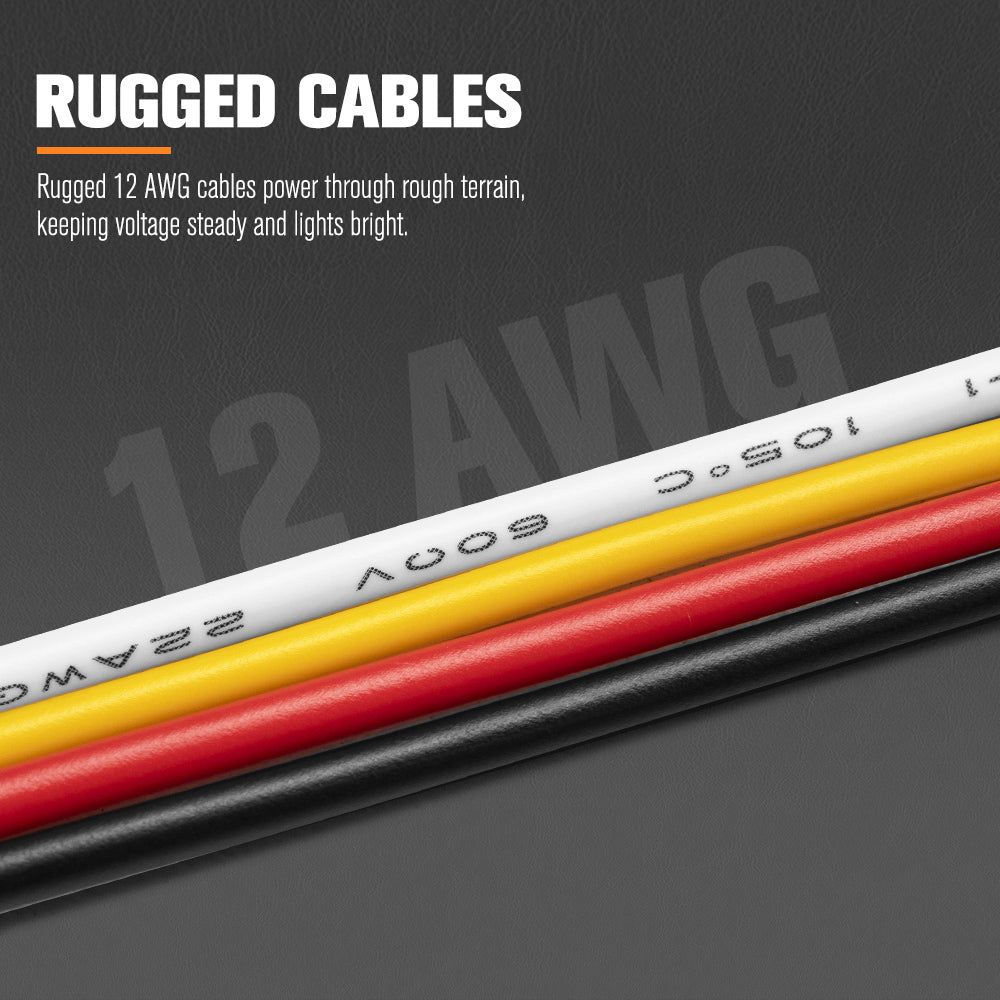

High-Efficiency Cables: Rugged 12 AWG cables deliver consistent power with
minimal voltage drop, handling rough terrain and heavy loads without breaking
a sweat.

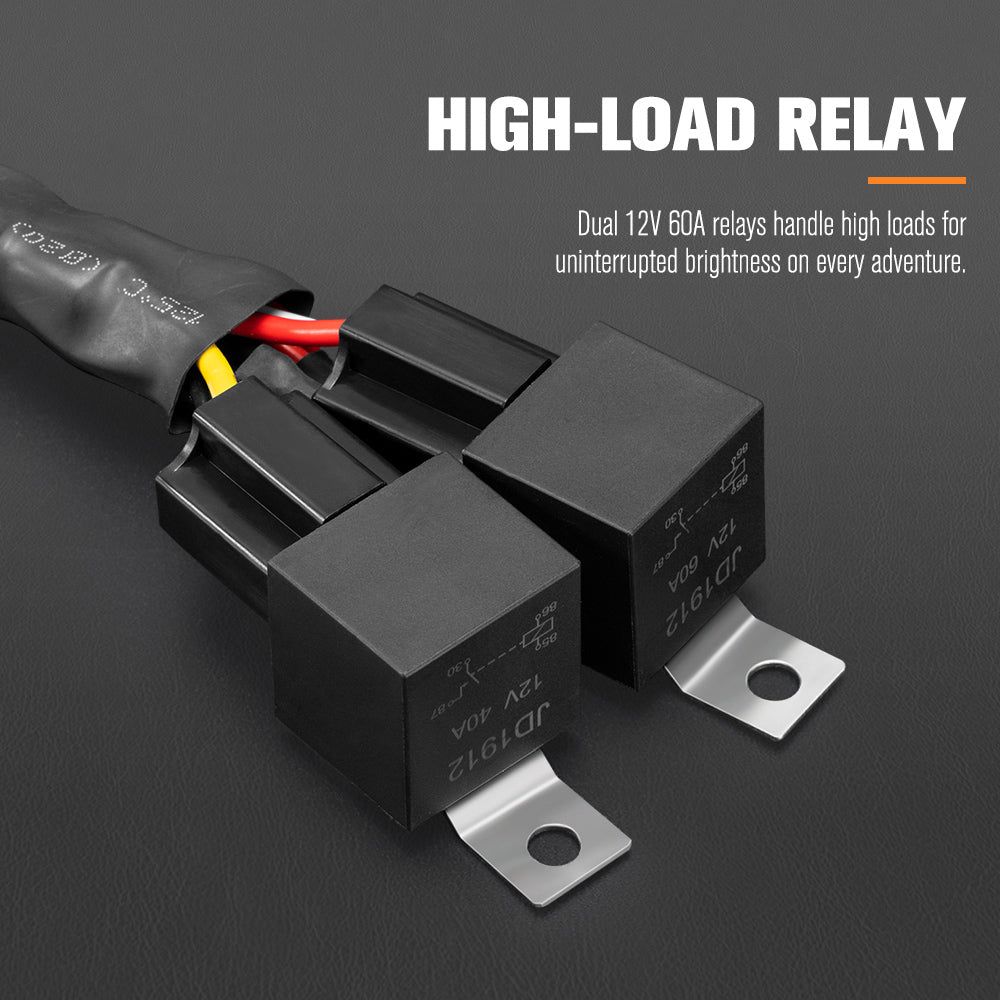

High-Power Relay: Features dual 12V 60A relays to handle high current loads,
delivering steady power and reducing the risk of overload for uninterrupted
lighting.

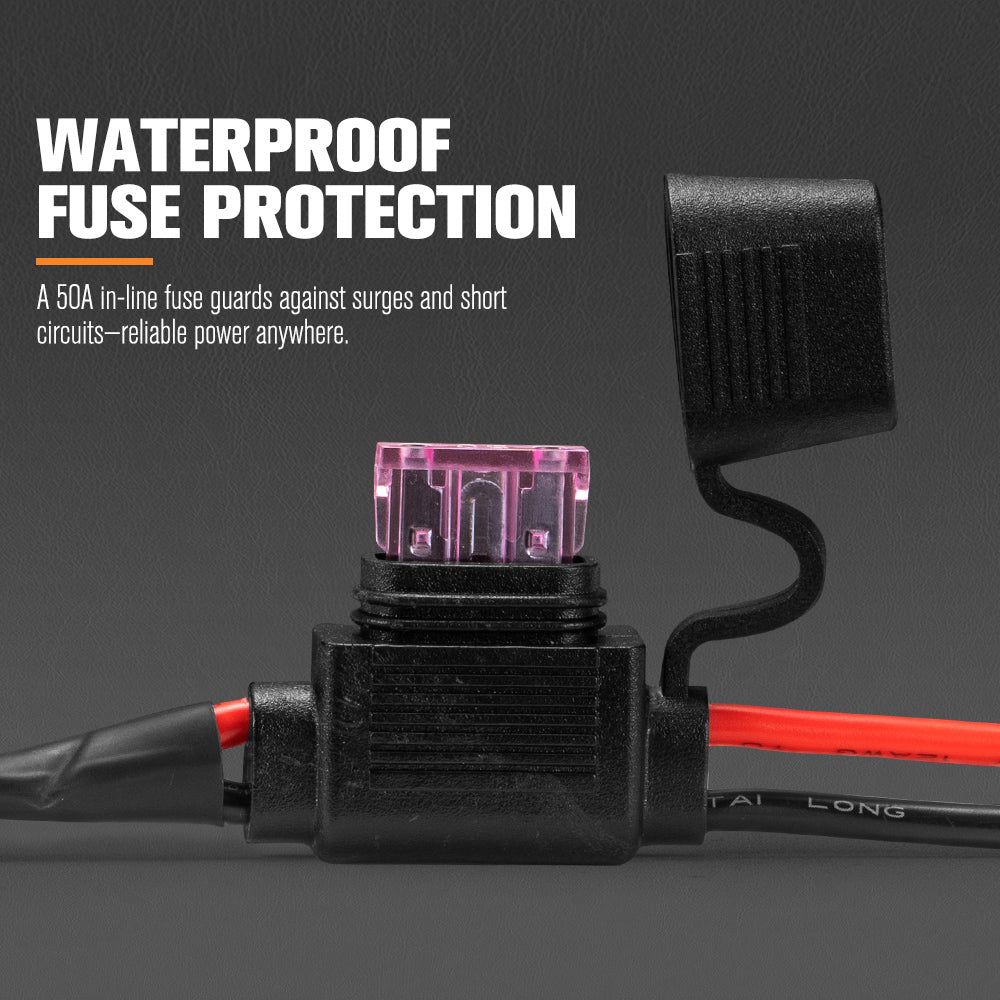

Integrated Fuse: Equipped with a waterproof 50A in-line fuse for essential
surge and short-circuit protection, keeping your system secure no matter where
you roam.

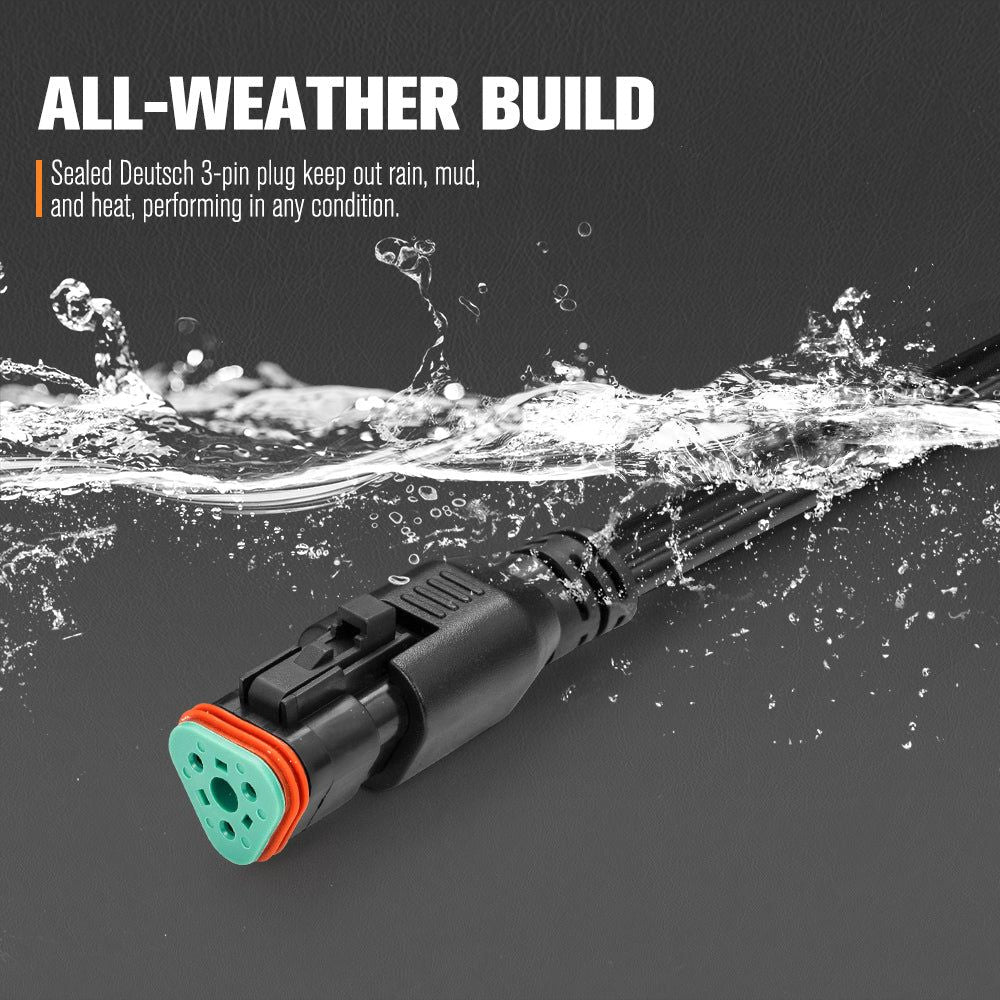

Weatherproof Build: Waterproof Deutsch 3-pin plug and tough materials
withstand rain, mud, and extreme heat, keeping your setup running in the
harshest conditions.

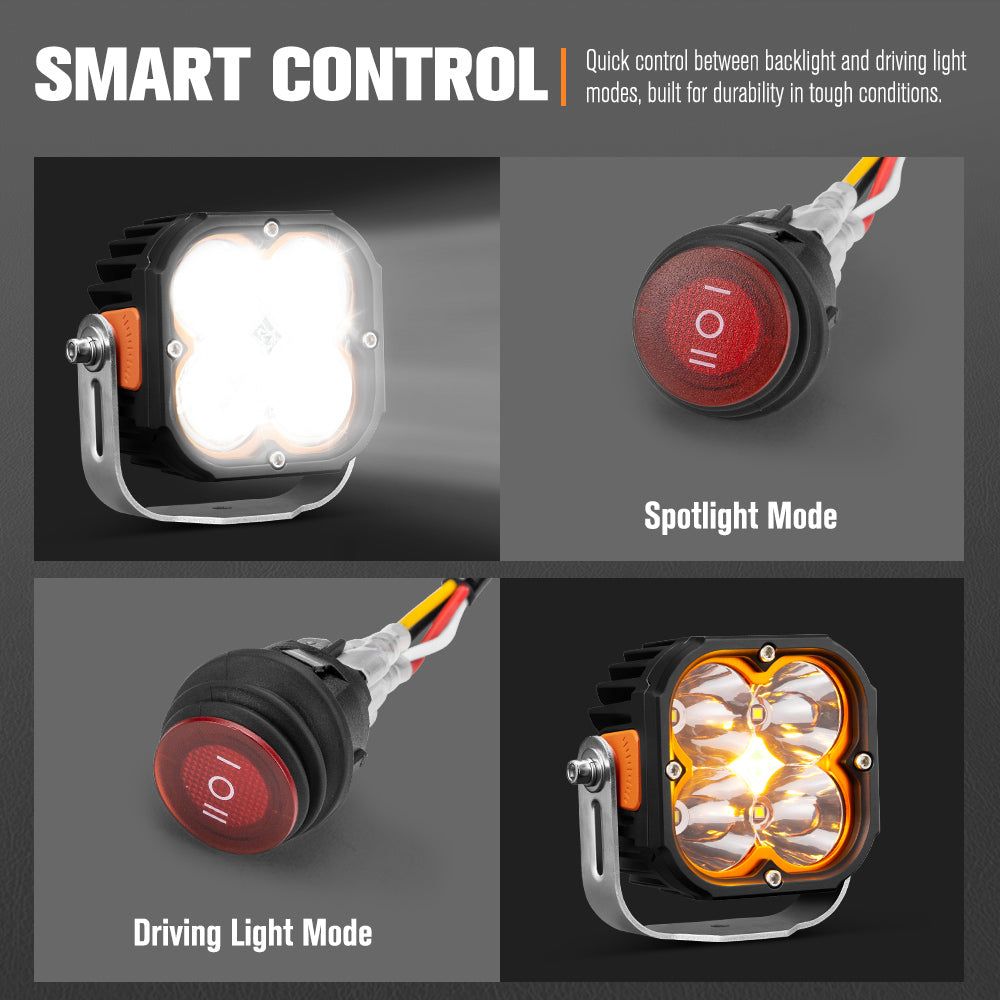

Flush Mounted Switch: The pre-wired switch offers effortless control between
backlight and driving light modes, enabling quick adjustments to suit any
adventure.
Off-Road Durability: Designed for tough terrain, the Lightfox harness offers
excellent conductivity and flexibility, powering your lights on every
adventure.
Extra Reach for Any Rig: Extended cable length offers plenty of installation
flexibility, letting you mount lights wherever you need them on your vehicle.

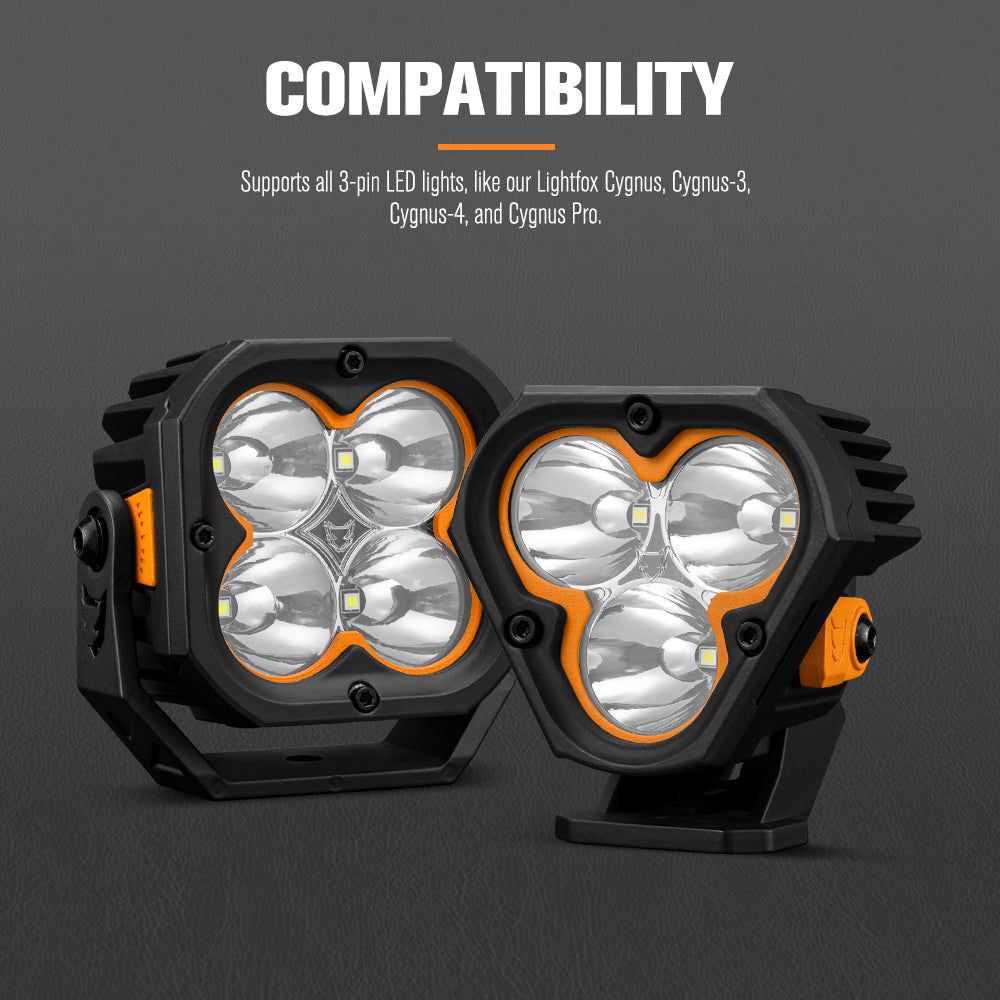

Compatibility: Supports all 3-pin LED lights, like our Lightfox Cygnus,
Cygnus-3, Cygnus-4, and Cygnus Pro.
SPECIFICATIONS
Cable Gauge:12 AWG
Wiring Rating:12vDC 60A
Relay Rating:12vDC 60A
Fuse:50A Waterproof In-Line Fuse
Connector Type:DT 3-Pin waterproof connector
Compatibility:Cygnus, Cygnus-3, Cygnus-4, Cygnus Pro

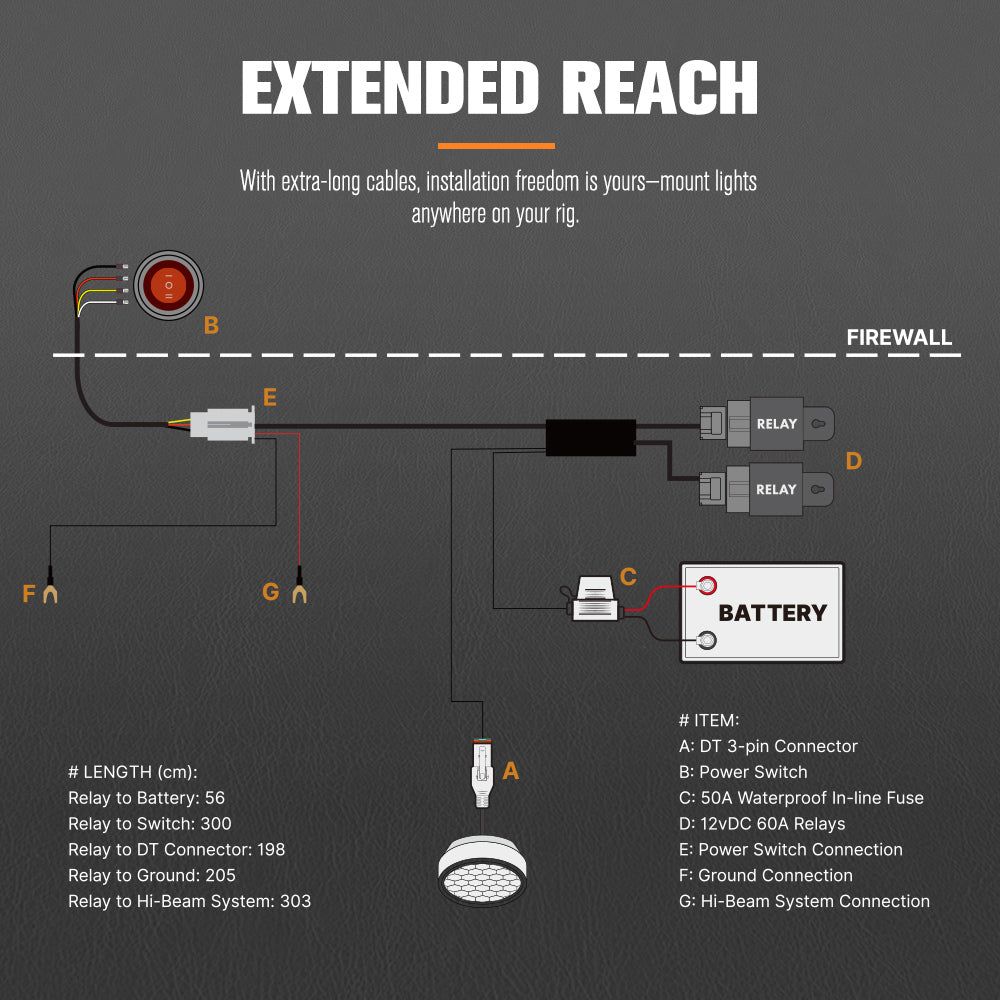

Length:
Relay to battery:56 cm
Relay to switch:300 cm
Relay to DT connectors:198 cm
Relay to ground:205 cm
Relay to high beam system:303cm
Package Size:26cm x 9cm x 9cm
Package Weight:0.6Kg
PACKAGE INCLUDES

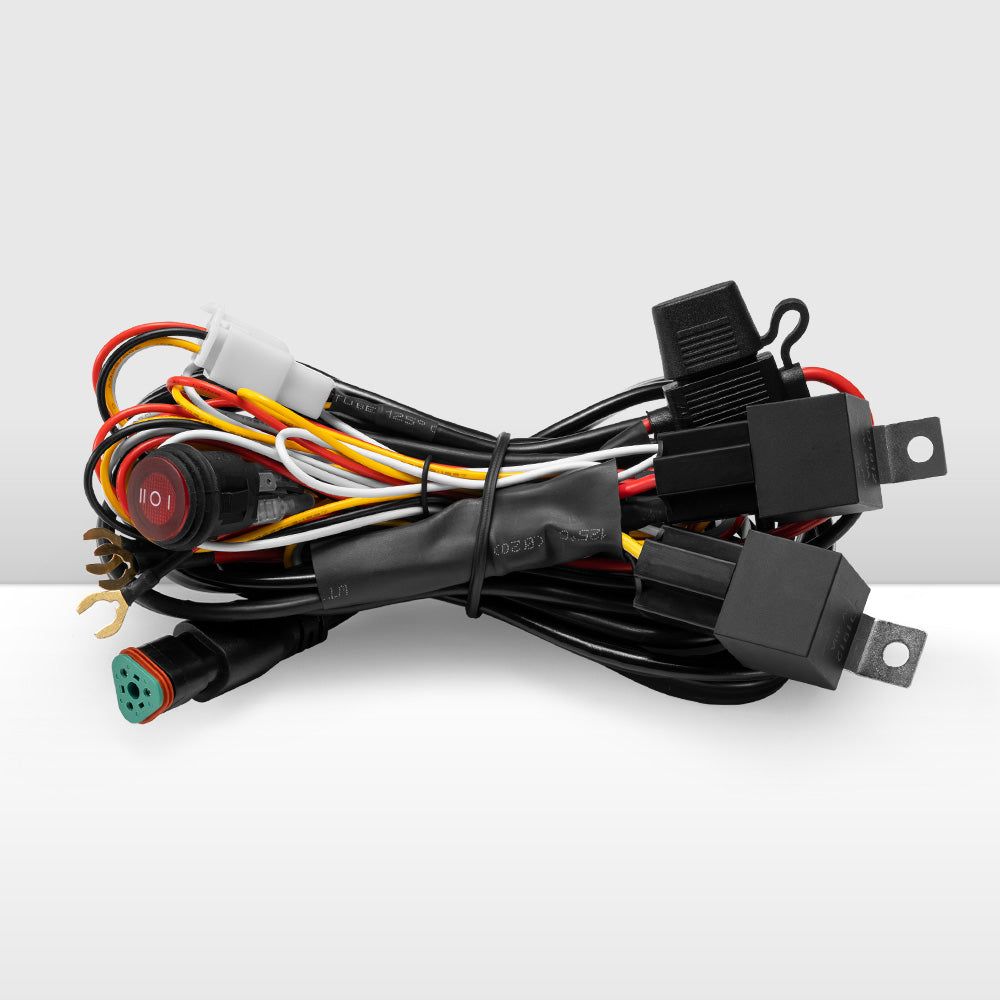

1 x Lightfox High Beam Wiring Harness with DT 3-Pin Connector
1 x Wiring Harness Diagram
WARRANTY
2 Year Warranty
