DESCRIPTION
Whether you’re powering LED light bars or spotlights, this harness is built to
support both with strength and flexibility. Perfect for off-road adventures,
it ensures your lights work flawlessly, helping you see every challenge ahead.
Simple yet tough, it has got your back every mile of the way. Built tough for
the wildest rides, the Lightfox wiring harness features high-efficiency 14 AWG
cables, ensuring consistent power with minimal voltage drop even on rough
terrain. The two 40A relays and a power take-off handle high current loads,
keeping your lights bright and steady while reducing the risk of overload.
With waterproof DT 3-pin connectors and a 40A in-line fuse, your setup stays
protected against the elements, from rain and mud to intense heat. Featuring a
plug-and-play design, it connects directly to your high beam system for
effortless control between two backlight and driving light modes, all while
maintaining full ADR compliance—no complex wiring required.
FEATURES
Dual Output: The Lightfox wiring harness provides dual outputs to power both
LED bars and spotlights, adapting seamlessly to any lighting setup you need.

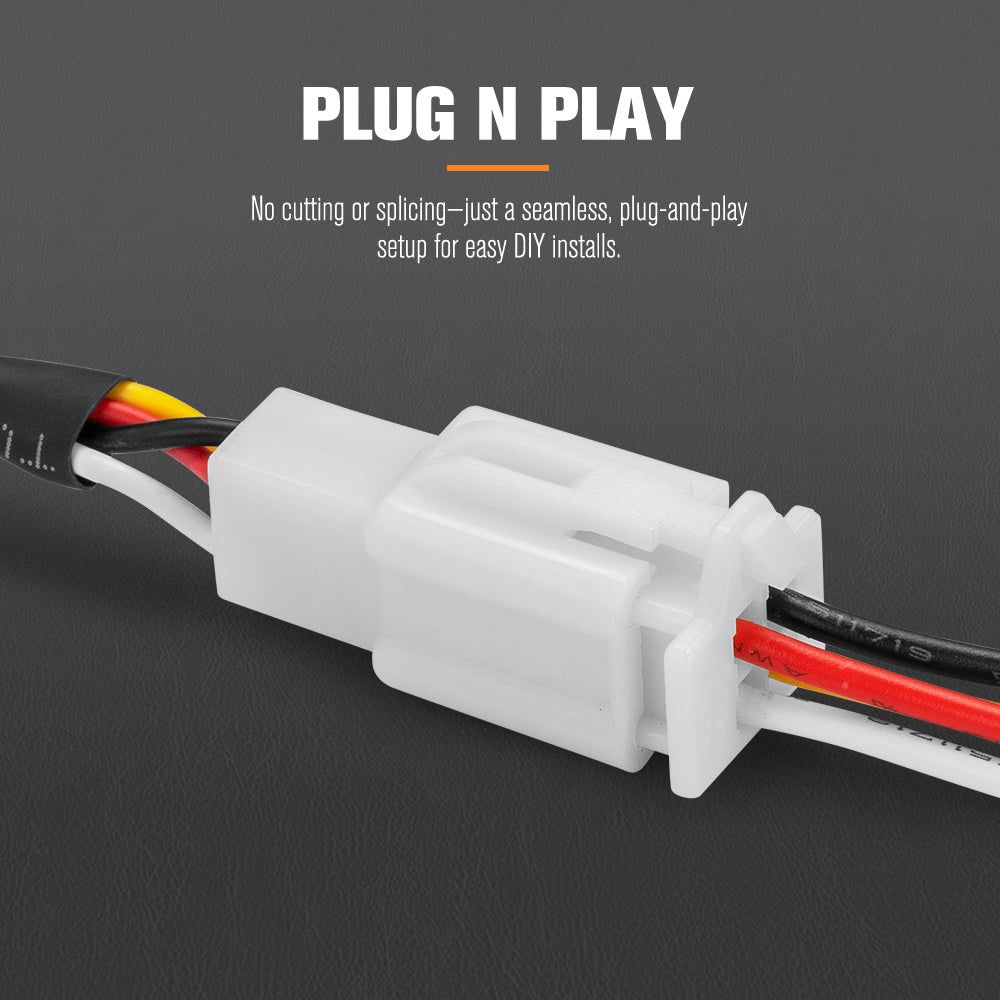

Plug & Play: Enjoy a hassle-free setup with a true plug-and-play design that
doesn’t require cutting, splicing, or complex wiring – ideal for DIY
installation.

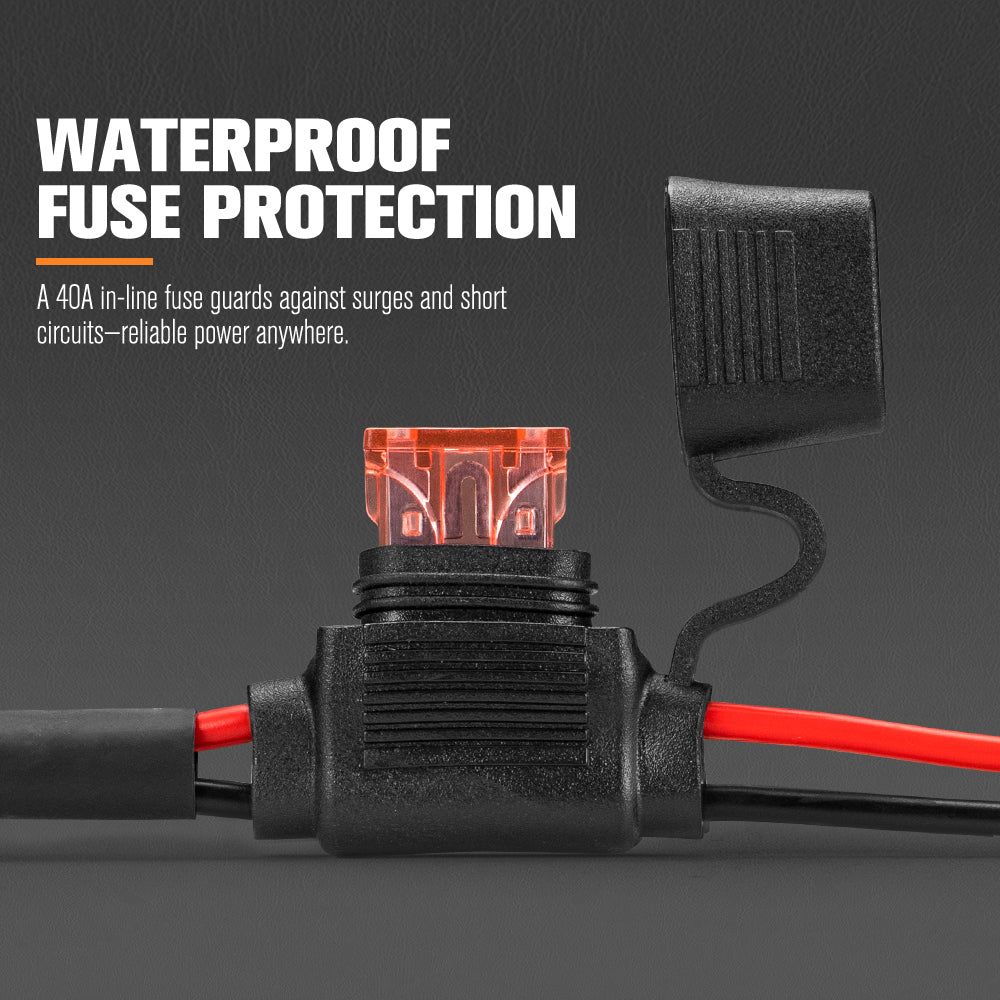

Integrated Fuse: Equipped with a waterproof 40A in-line fuse for essential
surge and short-circuit protection, keeping your system secure no matter where
you roam.

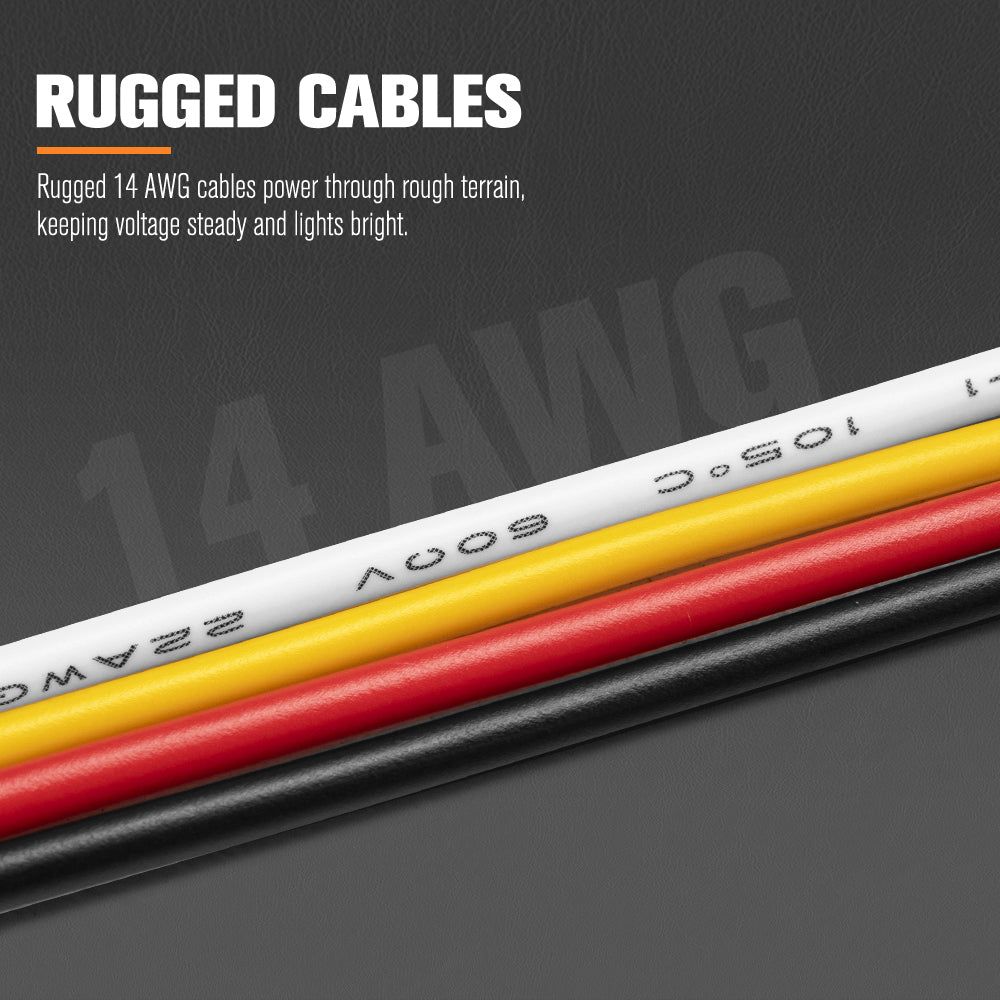

High-Efficiency Cables: Rugged 14 AWG cables deliver consistent power with
minimal voltage drop, handling rough terrain and heavy loads without breaking
a sweat.

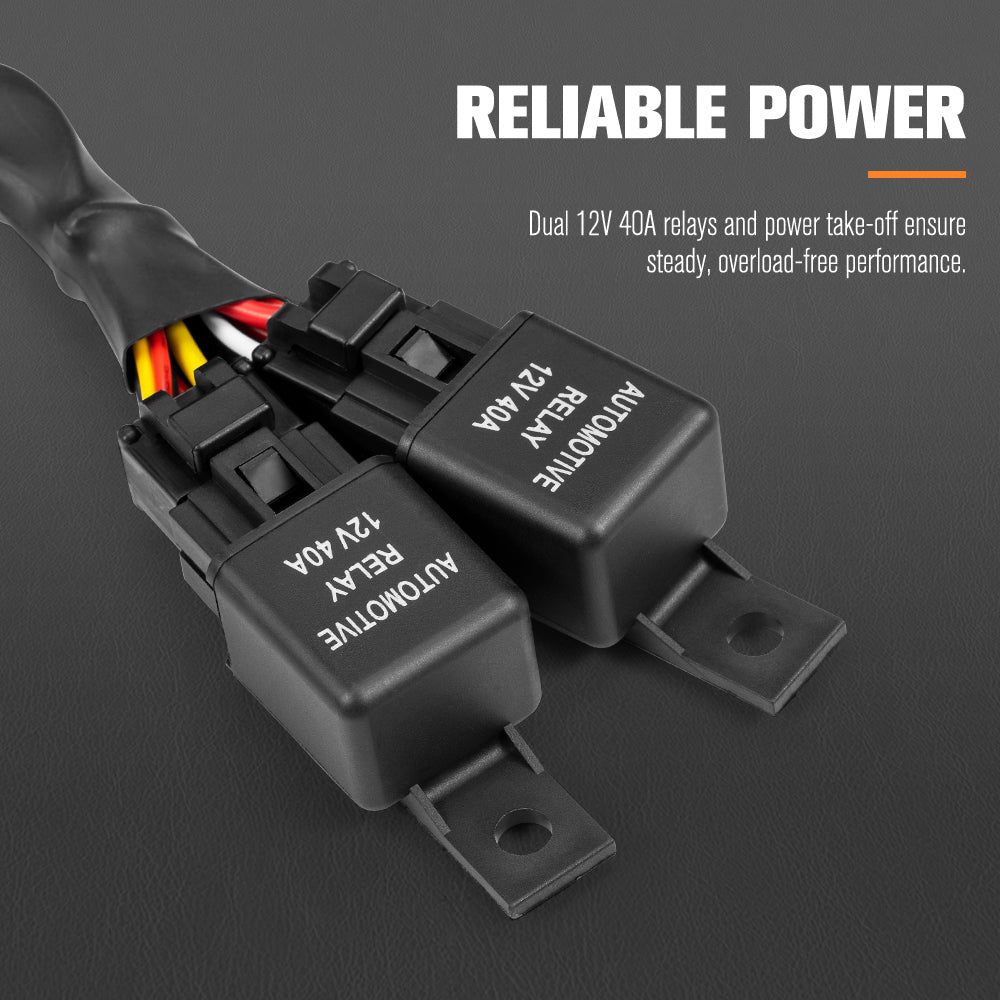

Reliable Power Delivery: Dual 12V 40A relays and power take-off ensure smooth,
uninterrupted lighting performance, while safeguarding against overloads.
Integrated Fuse: Equipped with a waterproof 40A in-line fuse for essential
surge and short-circuit protection, keeping your system secure no matter where
you roam.

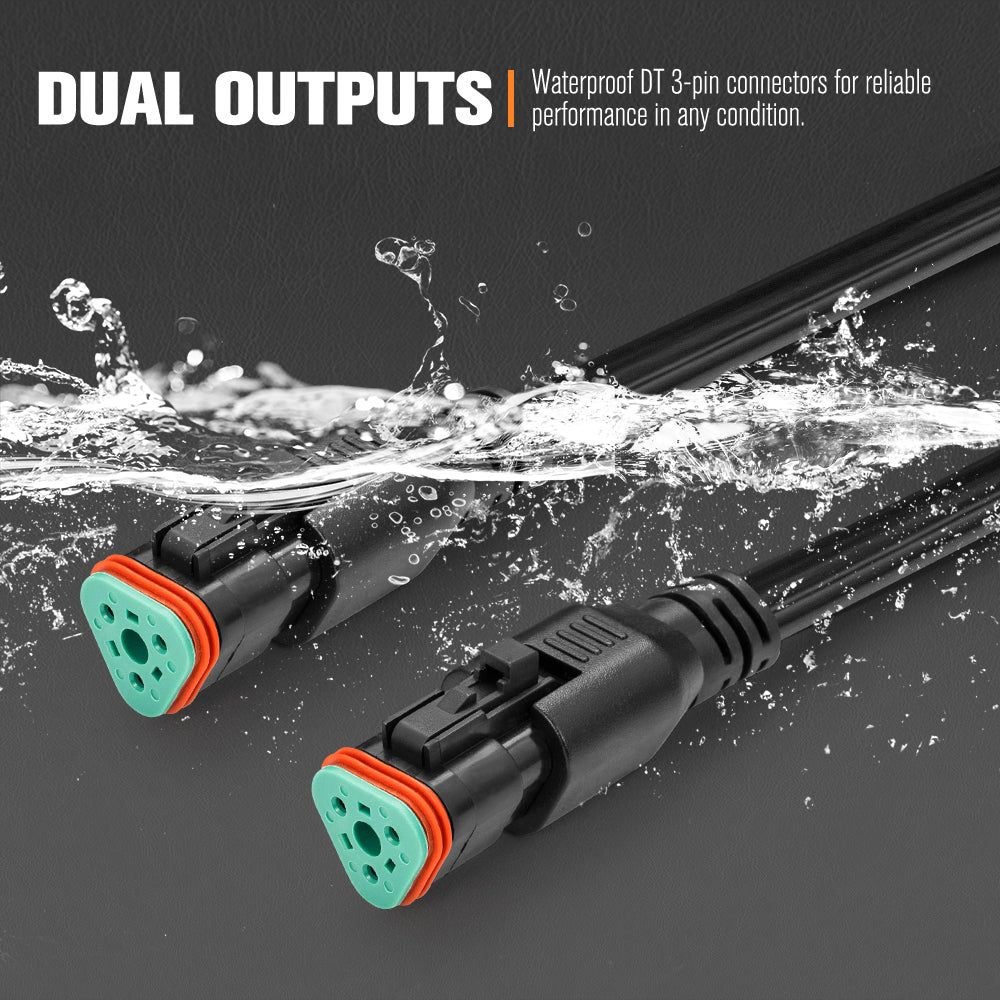

Weatherproof Build: Waterproof Deutsch 3-pin plugs and tough materials
withstand rain, mud, and extreme heat, keeping your setup running in the
harshest conditions.
Flush Mounted Switch: Engineered for ease, this pre-wired, waterproof switch
offers seamless on/off control at your fingertips—ruggedly built to withstand
any journey.
Off-Road Durability: Designed for tough terrain, the Lightfox harness offers
excellent conductivity and flexibility, powering your lights on every
adventure.
Extra Reach for Any Rig: Extended cable length offers plenty of installation
flexibility, letting you mount lights wherever you need them on your vehicle.

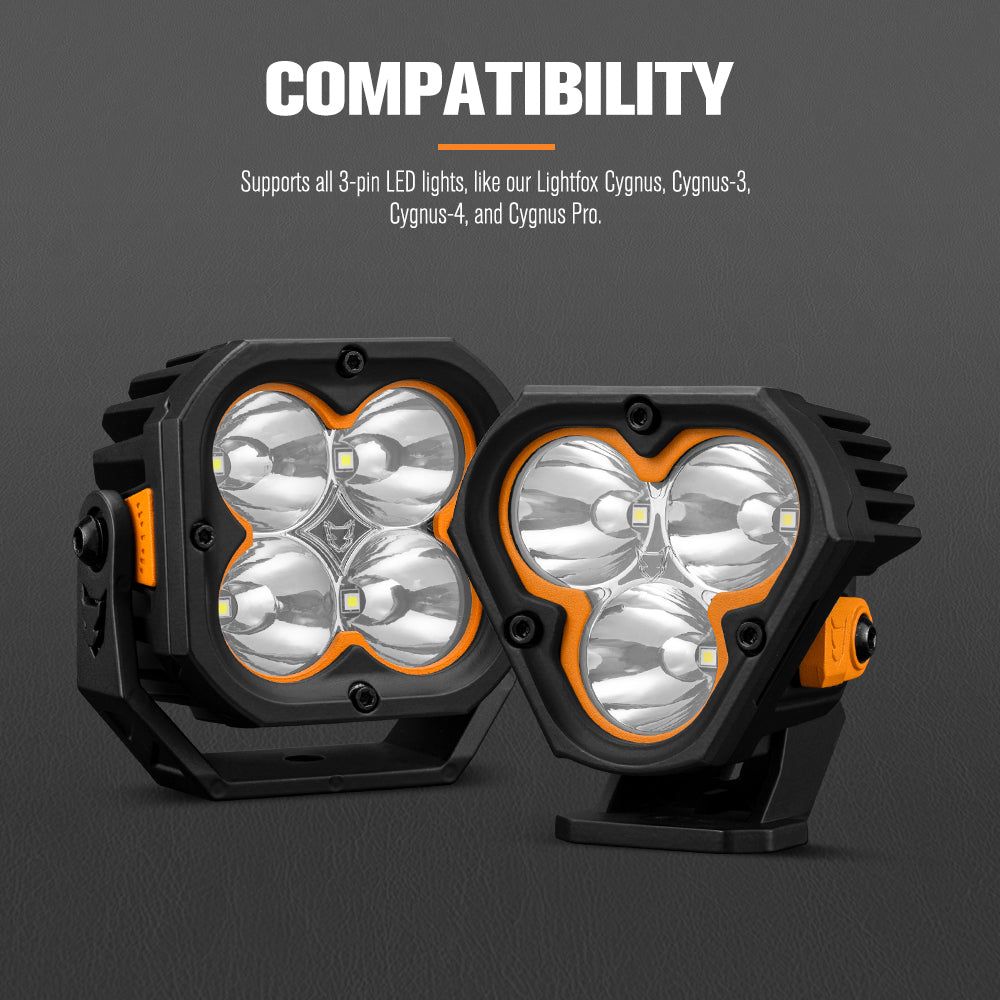

Compatibility: Supports all 3-pin LED lights, like our Lightfox Cygnus,
Cygnus-3, Cygnus-4, and Cygnus Pro.
SPECIFICATIONS
Cable Gauge:14 AWG
Wiring Rating:12vDC 40A
Relay Rating:12vDC 40A
Fuse:40A Waterproof In-Line Fuse
Connector Type:Dual DT 3-Pin waterproof connectors
Compatibility:Cygnus, Cygnus-3, Cygnus-4, Cygnus Pro
Max Load40A (12v)
Length:

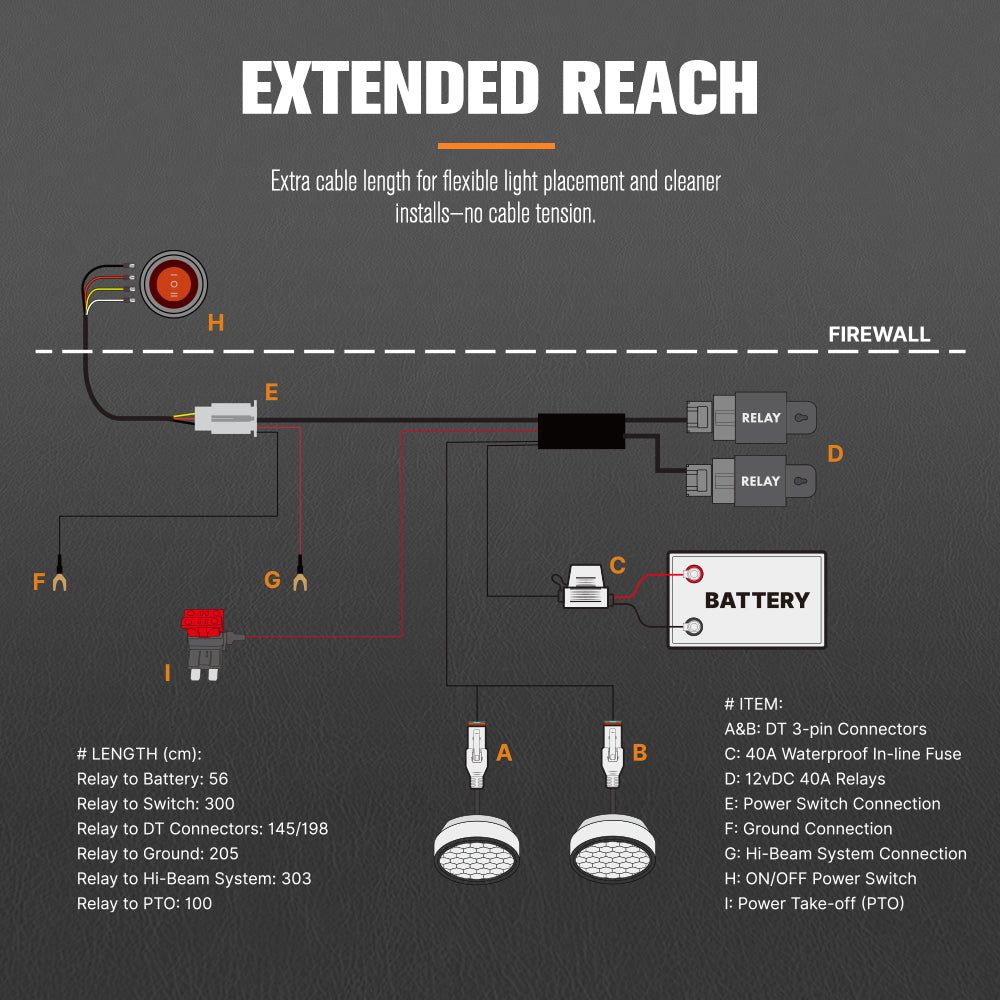

Relay to battery:56 cm
Relay to switch:300 cm
Relay to DT connectors:145/198 cm
Relay to ground:205 cm
Relay to high beam system:303cm
Relay to PTO:100 cm
Package Size:26cm x 9cm x 9cm
Package Weight:0.6Kg
PACKAGE INCLUDES

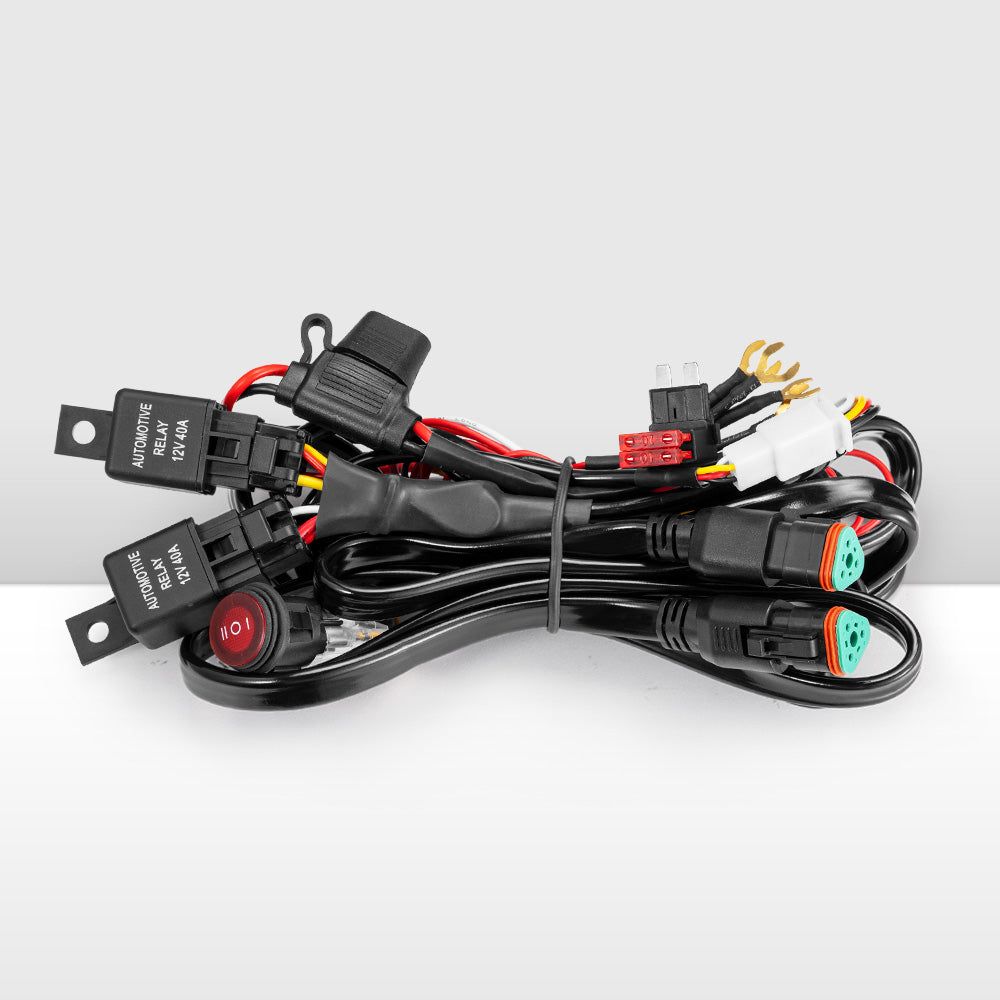

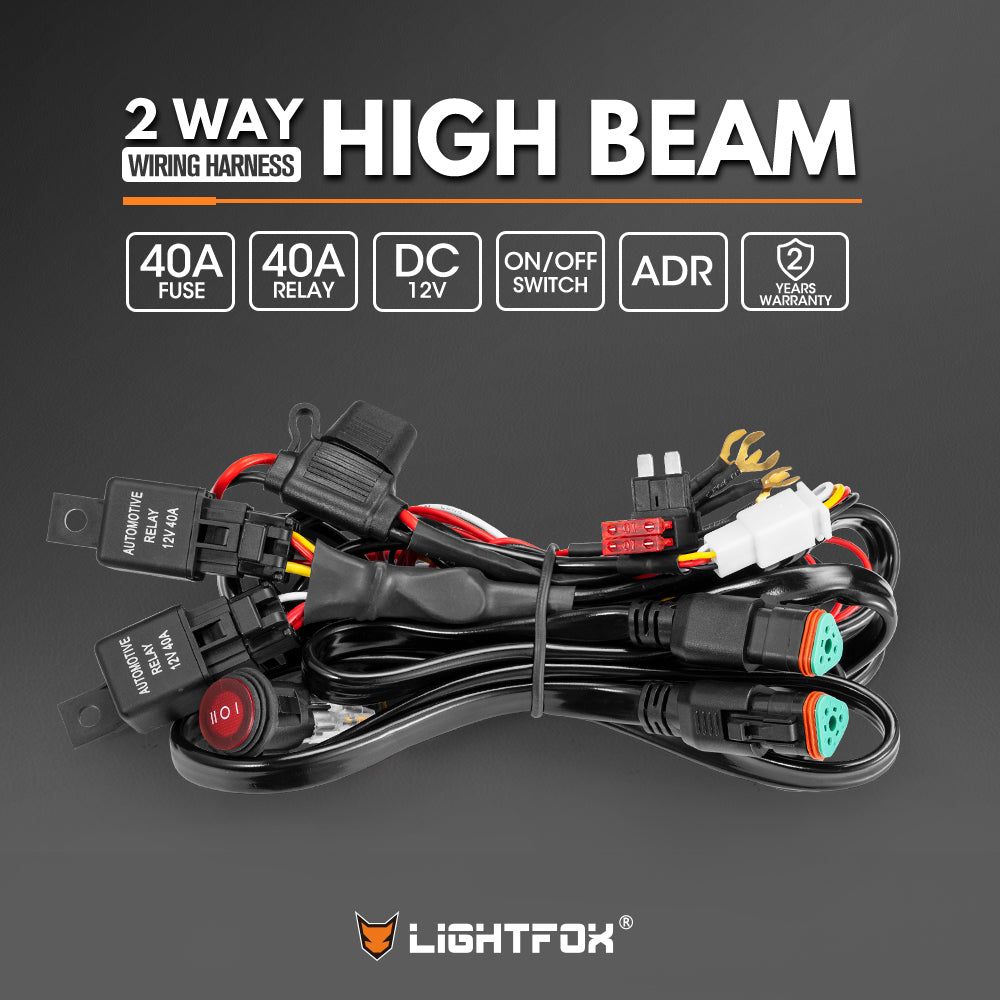

1 x Lightfox Dual Output High Beam Wiring Harness with DT 3-Pin Connectors
1 x Wiring Harness Diagram
WARRANTY
2 Year Warranty
