DESCRIPTION
Whether you’re powering LED light bars or spotlights, this harness is built to
support both with strength and flexibility. Perfect for off-road adventures,
it ensures your lights work flawlessly, helping you see every challenge ahead.
Simple yet tough, it has got your back every mile of the way. Built tough for
the wildest rides, the Lightfox wiring harness features high-efficiency 14 AWG
cables, ensuring consistent power with minimal voltage drop even on rough
terrain. The 40A relay handles high current loads, keeping your lights bright
and steady while reducing the risk of overload. With waterproof DT connectors
and a 40A in-line fuse, your setup stays protected against the elements, from
rain and mud to intense heat. Featuring a plug-and-play design, it connects
directly to your high beam system for seamless control and full ADR
compliance—no complex wiring required. Experience seamless performance with
Lightfox, where simplicity meets durability for your every adventure.
FEATURES

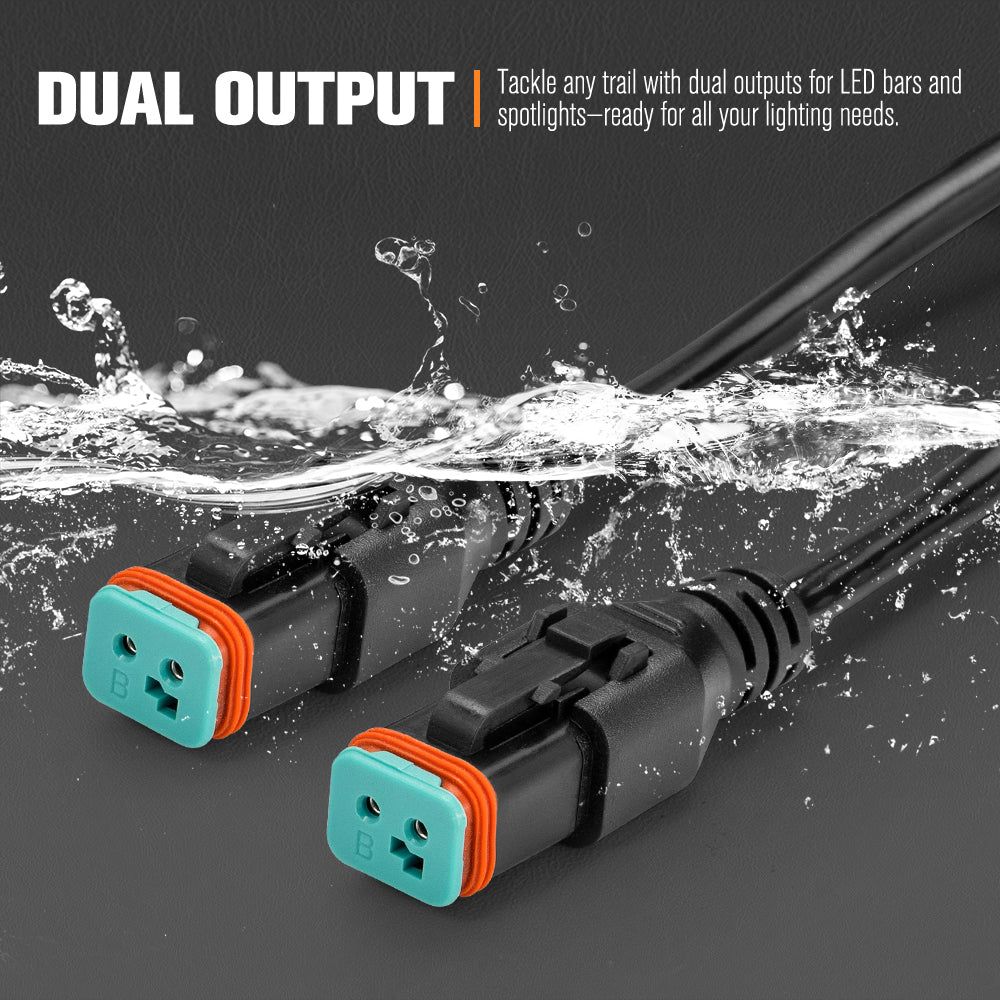

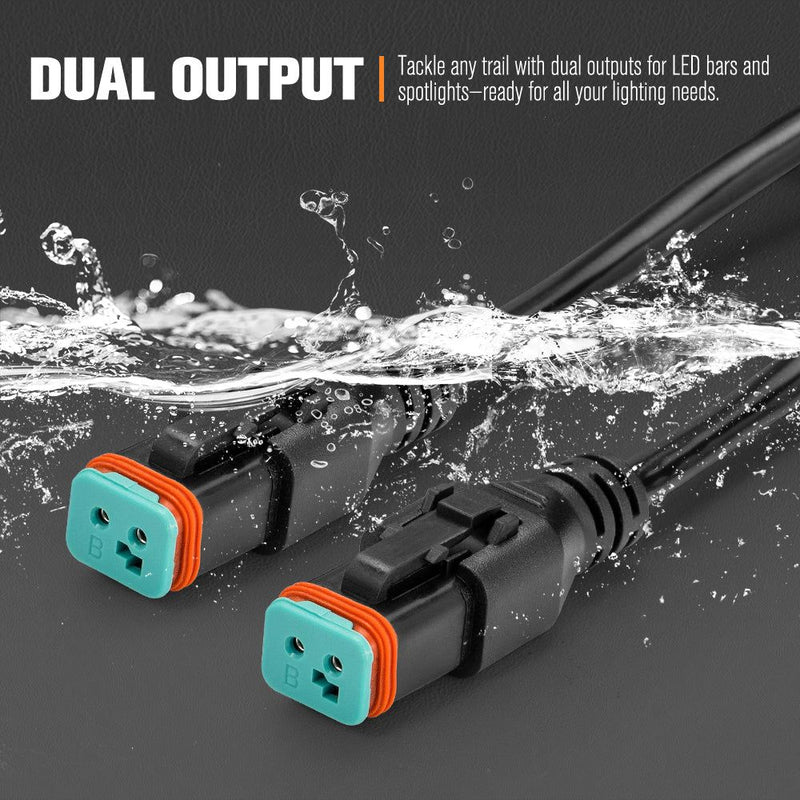

Dual Output: The Lightfox wiring harness provides dual outputs to power both
LED bars and spotlights, adapting seamlessly to any lighting setup you need.

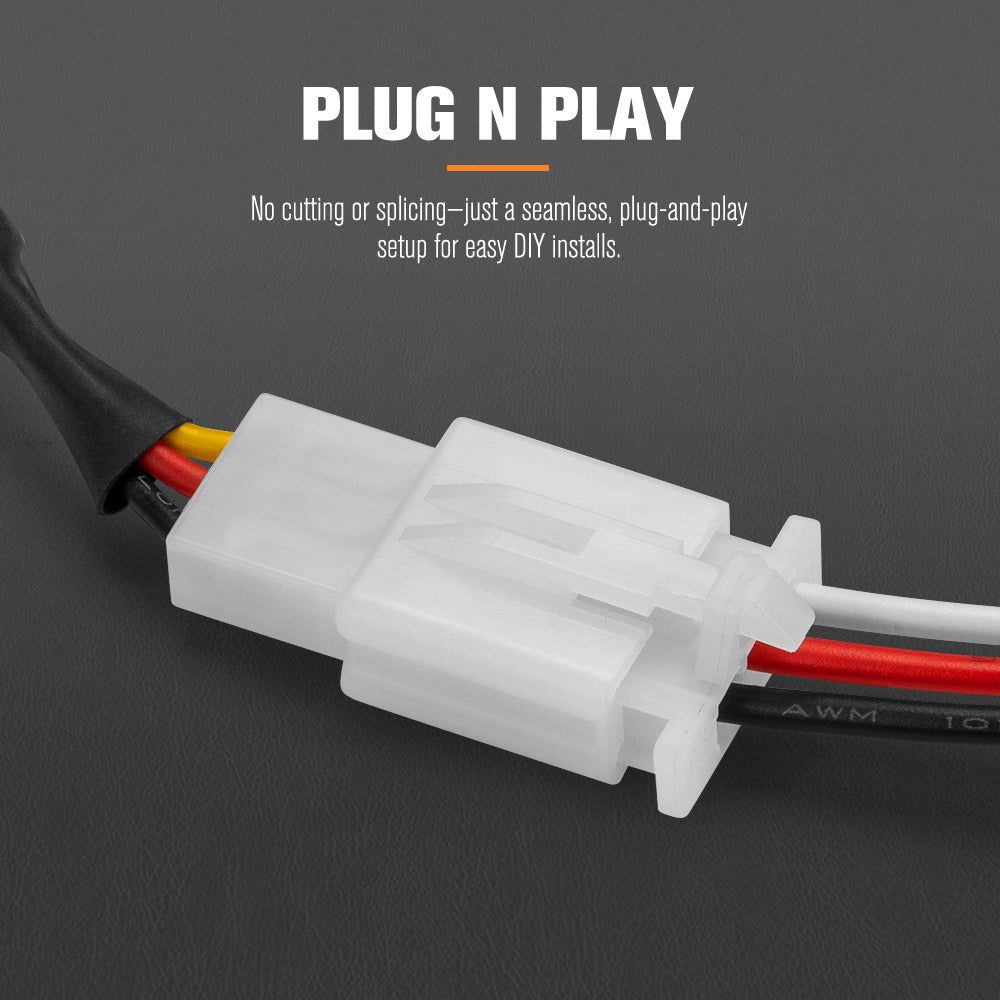

Plug & Play: Enjoy a hassle-free setup with a true plug-and-play design that
doesn’t require cutting, splicing, or complex wiring – ideal for DIY
installation.
High-Beam Ready: Easily syncs with your high beam system and is fully ADR-
approved, meeting top safety and performance standards for reliable, compliant
lighting.

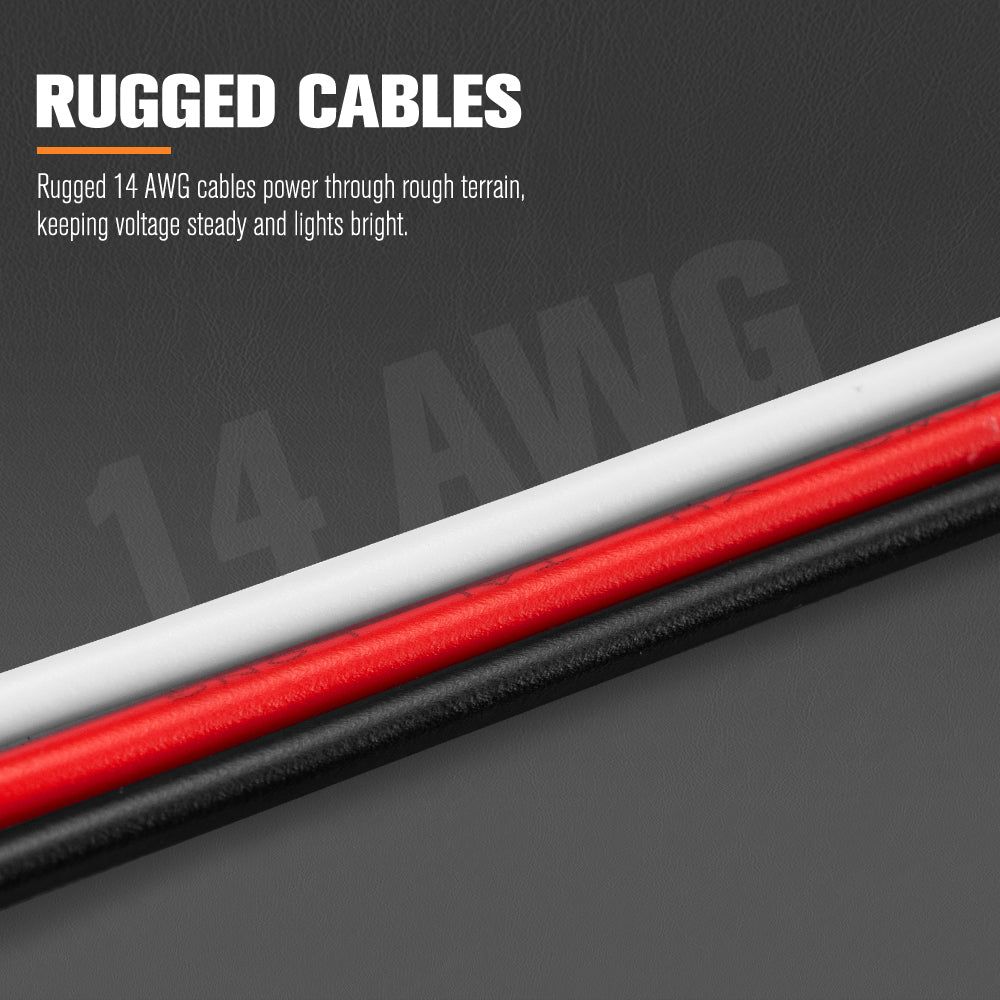

High-Efficiency Cables: Rugged 14 AWG cables deliver consistent power with
minimal voltage drop, handling rough terrain and heavy loads without breaking
a sweat.

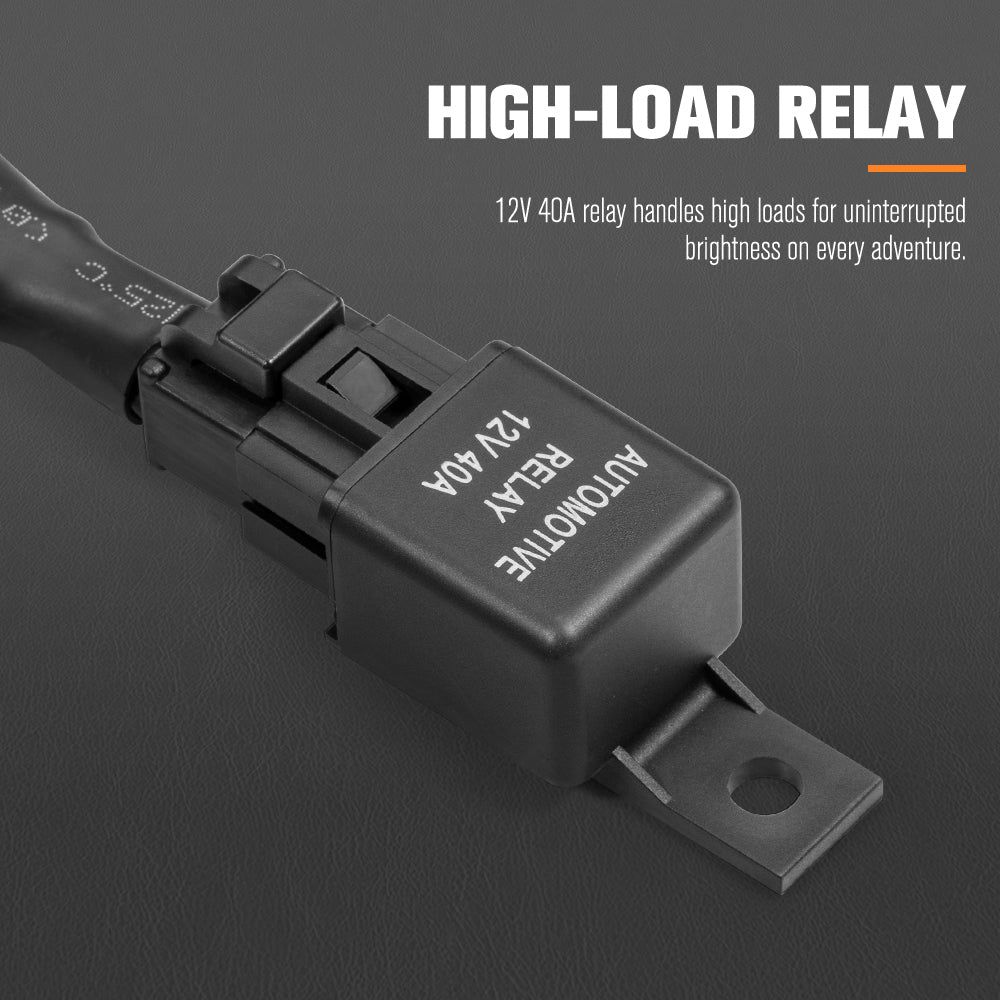

High-Power Relay: Features a 12V 40A relay to handle high current loads,
delivering steady power and reducing the risk of overload for brighter,
uninterrupted lighting.

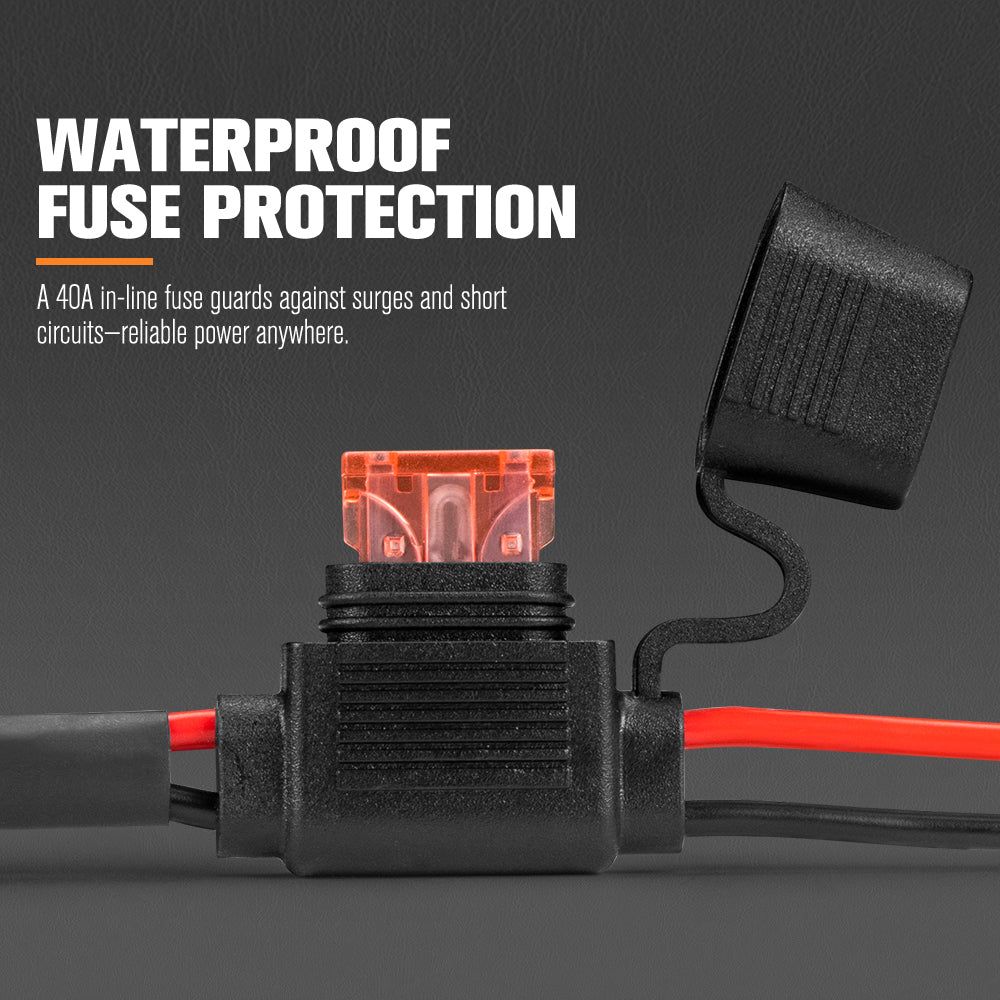

Integrated Fuse: Equipped with a waterproof 40A in-line fuse for essential
surge and short-circuit protection, keeping your system secure no matter where
you roam.
Weatherproof Build: Waterproof Deutsch plugs and tough materials withstand
rain, mud, and extreme heat, keeping your setup running in the harshest
conditions.
Flush Mounted Switch: Engineered for ease, this pre-wired, waterproof switch
offers seamless on/off control at your fingertips—ruggedly built to withstand
any journey.
Off-Road Durability: Designed for tough terrain, the Lightfox harness offers
excellent conductivity and flexibility, powering your lights on every
adventure.
Extra Reach for Any Rig: Extended cable length offers plenty of installation
flexibility, letting you mount lights wherever you need them on your vehicle.
SPECIFICATIONS
Cable Gauge:14 AWG
Wiring Rating:12vDC 40A
Relay Rating:12vDC 40A
Fuse:40A Waterproof In-Line Fuse
Connector Type:Dual DT 2-Pin waterproof connectors
Max Load40A (12v)

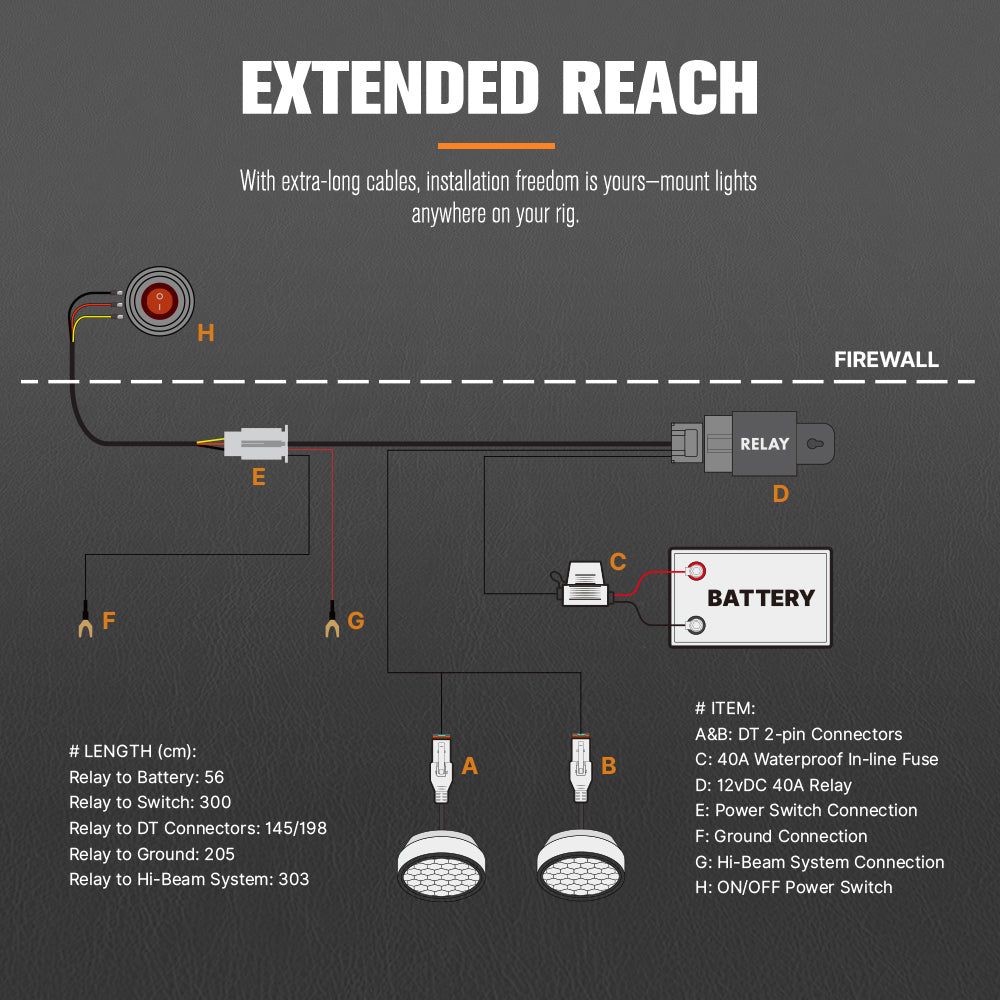

Length:
Relay to battery:56 cm
Relay to switch:300 cm
Relay to DT connectors:145/198 cm
Relay to ground:205 cm
Relay to high beam system:303cm
Package Size:26cm x 9.1cm x 9.1cm
Package Weight:0.45Kg

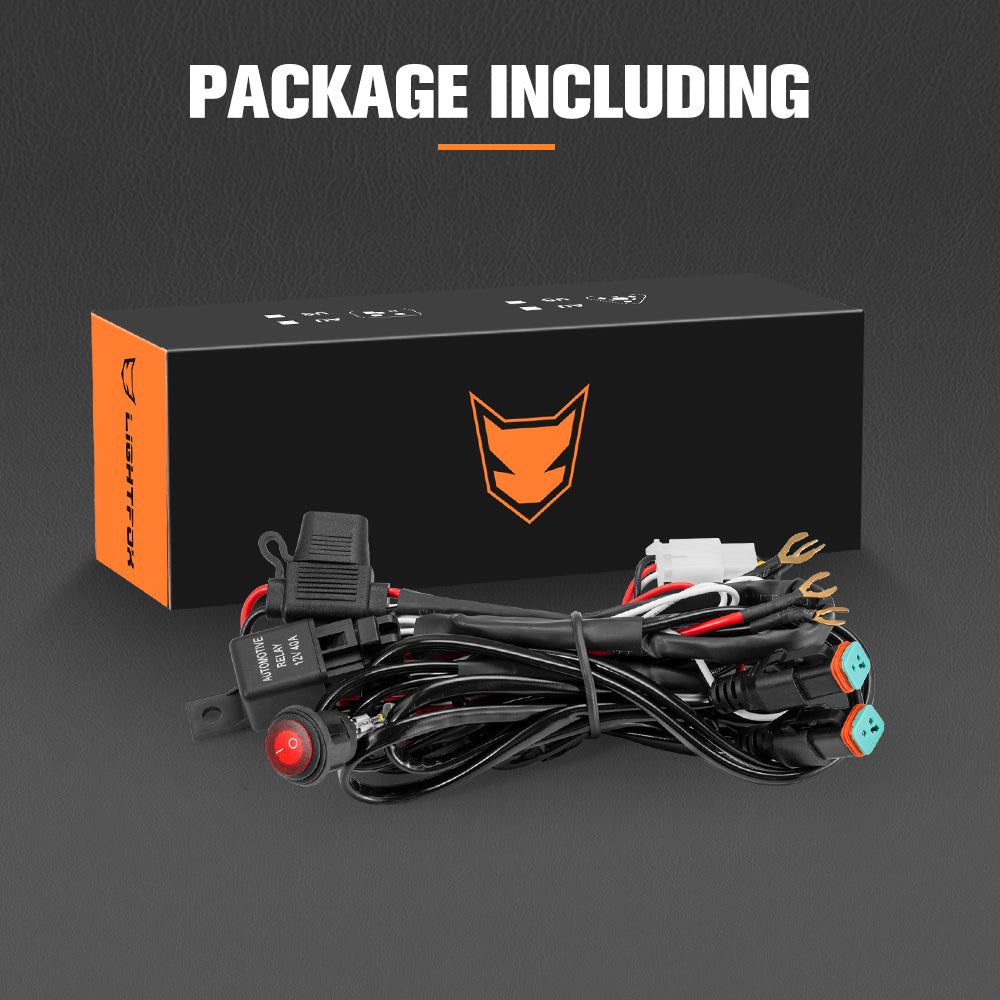

PACKAGE INCLUDES

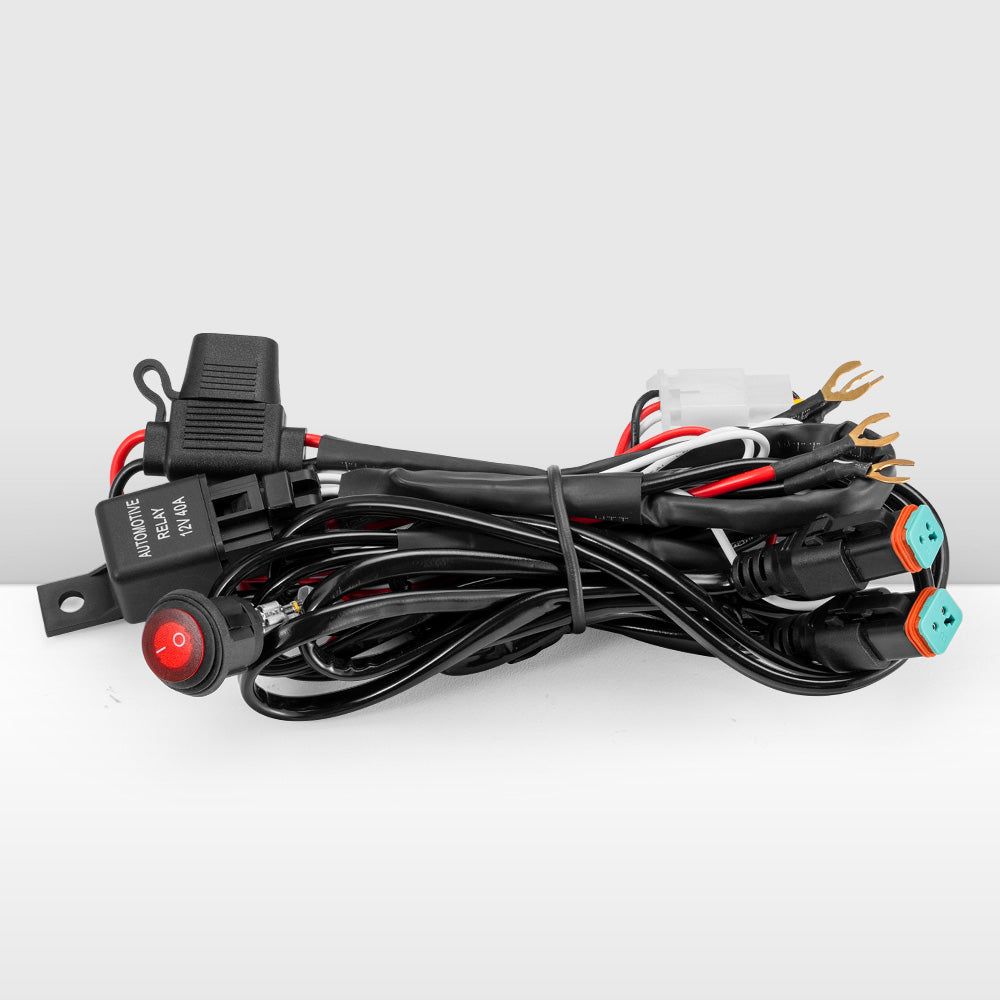

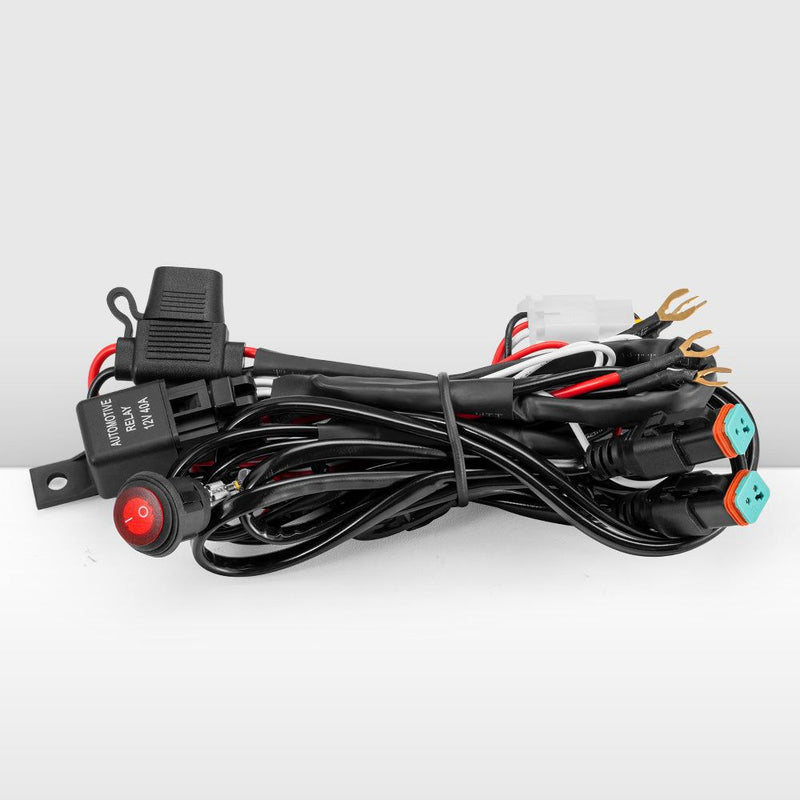

1 x Lightfox Dual Output High Beam Wiring Harness with DT 2-Pin Connectors
1 x Wiring Harness Diagram
WARRANTY
1 Year Warranty
