DESCRIPTION
XRS™ Connect is an Australian Made radio platform designed to be smart,
adaptable and rugged. Featuring a professional grade speaker microphone
complete with a class-leading 2-watt speaker, customisable buttons and a high
contrast OLED screen guaranteeing a crystal clear, anti-glare display. Enabled
by Bluetooth® wireless technology, XRS™ Connect is the first of a new
generation of connected UHF CB radios with unique features never seen before.
They are the first ever UHF CB radios with App control, introducing new
features such as creating and sharing scan lists and providing instant access
to the entire Australian and New Zealand registered analogue frequency
database. As with many other smart devices, XRS™ Connect products are software
upgradable via the XRS™ Connect app, keeping users up-to-date with the latest
features and technology.
FEATURES
Bluetooth Wireless Technology – Smartphone Control

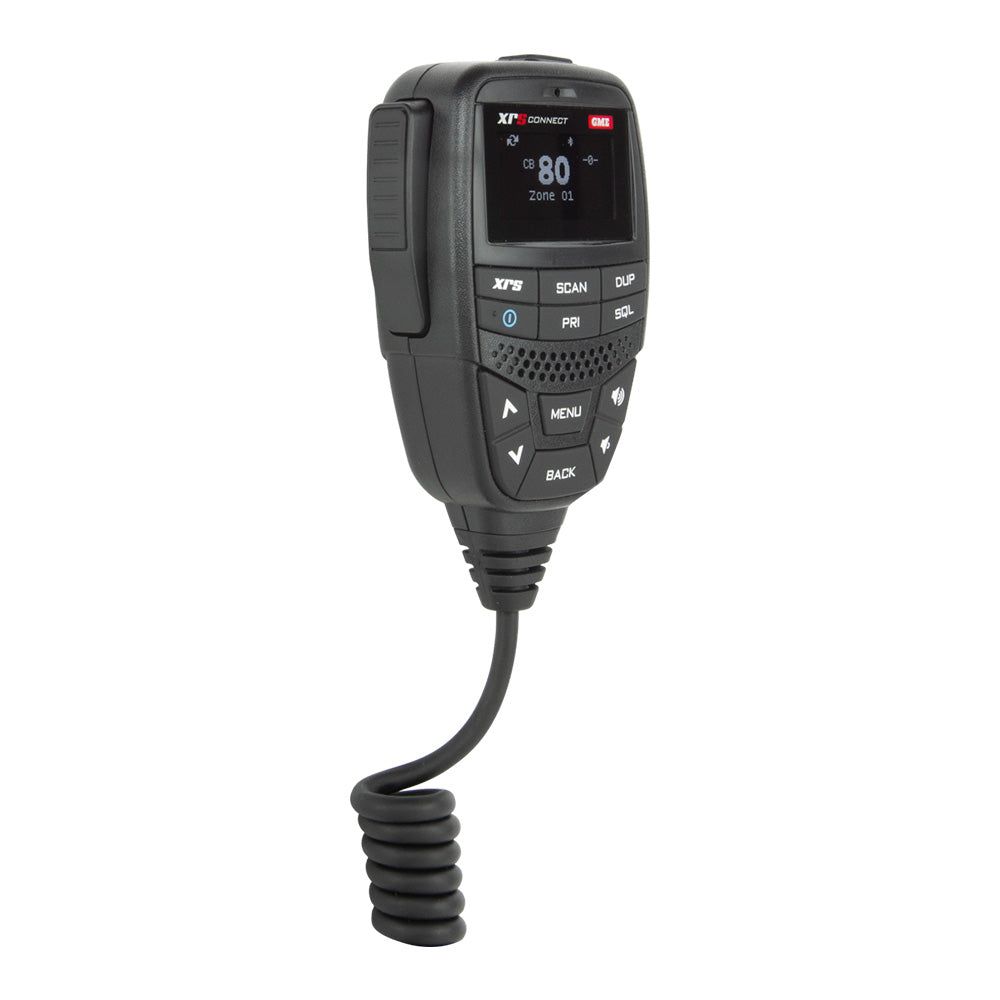

Professional Grade OLED Speaker Microphone
Class-leading 2 Watt Front-facing Speaker
User-customisable Buttons
Super Compact Design
Download the XRS Connect App on Google Play or the App Store
SPECIFICATIONS
ELECTRICAL
Compliant Specification: Meets AS/NZS 4365 for radio communications equipment
in the UHF citizen and personal radio service
Frequency Range: 476.425 477.4125 MHz
Number of Channels: 80 UHF CB
Channel Spacing: 12.5 kHz
Operation Mode: Simplex or half Duplex with repeater talk around
Scanning Speed: 20 ms per channel (50 channels per second)
Antenna Impedance: 50 Ohms nominal
Operating Voltage Range: 10-16 volts DC
Battery Polarity: Negative Earth
Nominal Battery Voltage: 12 volts DC
Over Voltage Protection: 30 volts DC maximum. At 18 volts DC the channel
display flashes Hi DC for 5 seconds on receive. The RF power is reduced and TX
flashes on transmit
Over Current Protection: In-line 2A Fuse
Standard Test Voltage: 13.8 volts DC
Reverse Voltage Protection: Diode Crowbar
Operating Temperature: -10C to 60C
Transmitter
RF Output: 5.0 watts max
Modulation: FM
Maximum Deviation: Less
PACKAGE INCLUDES

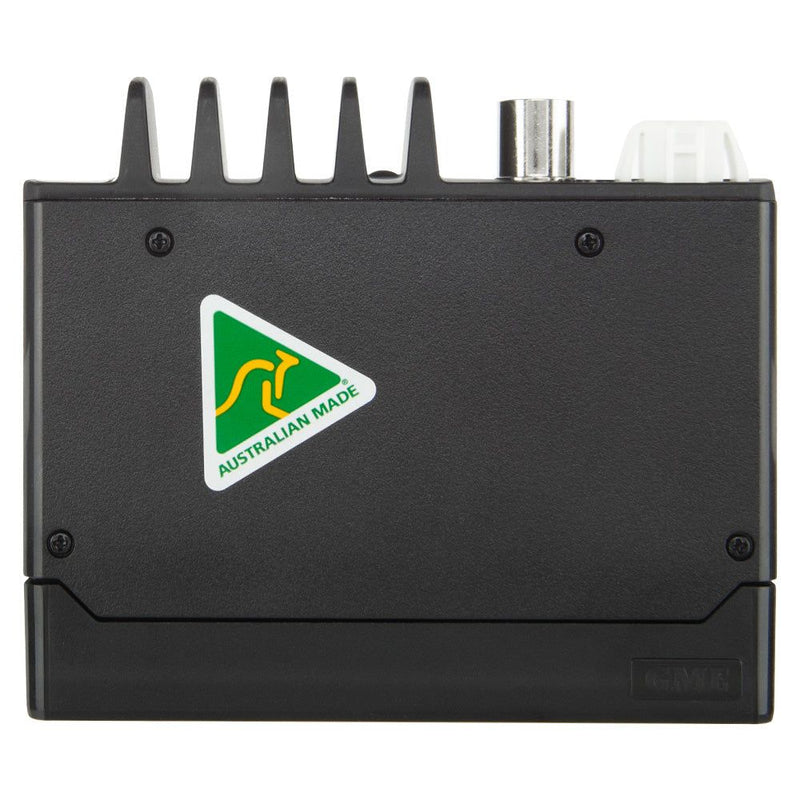

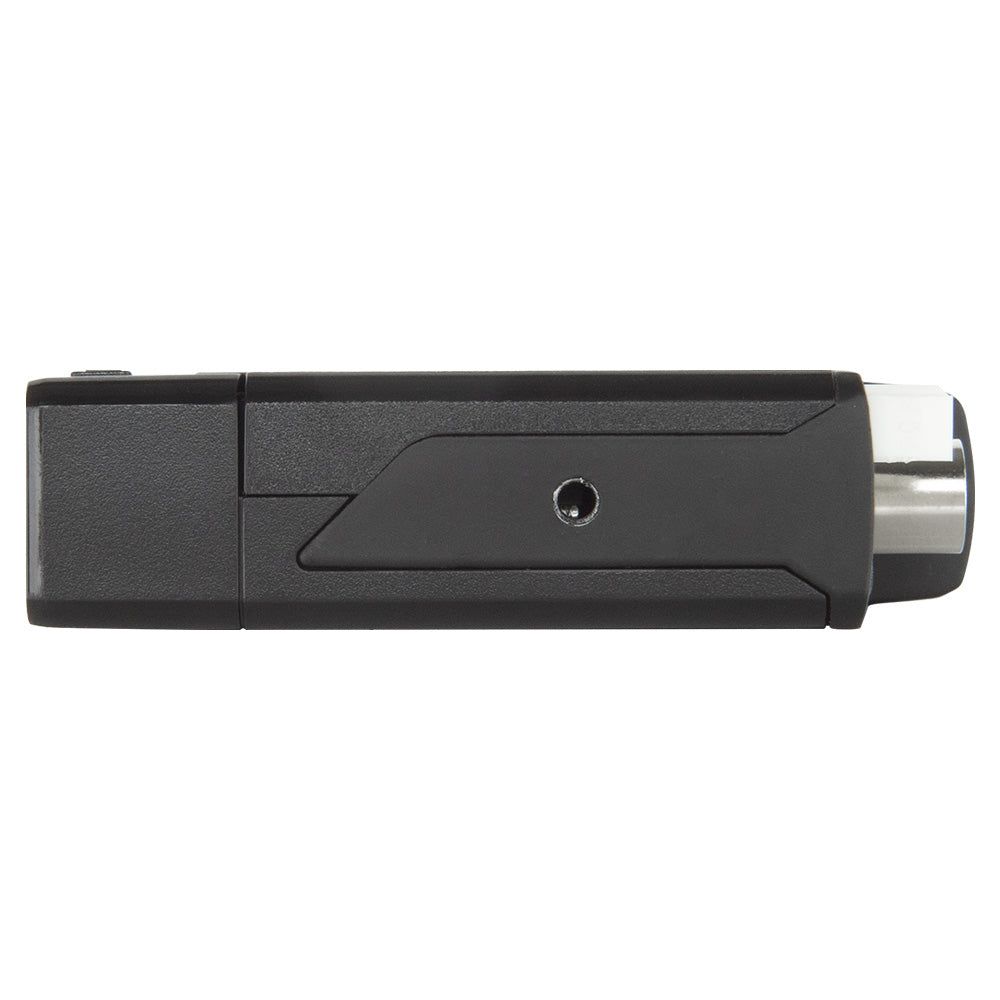

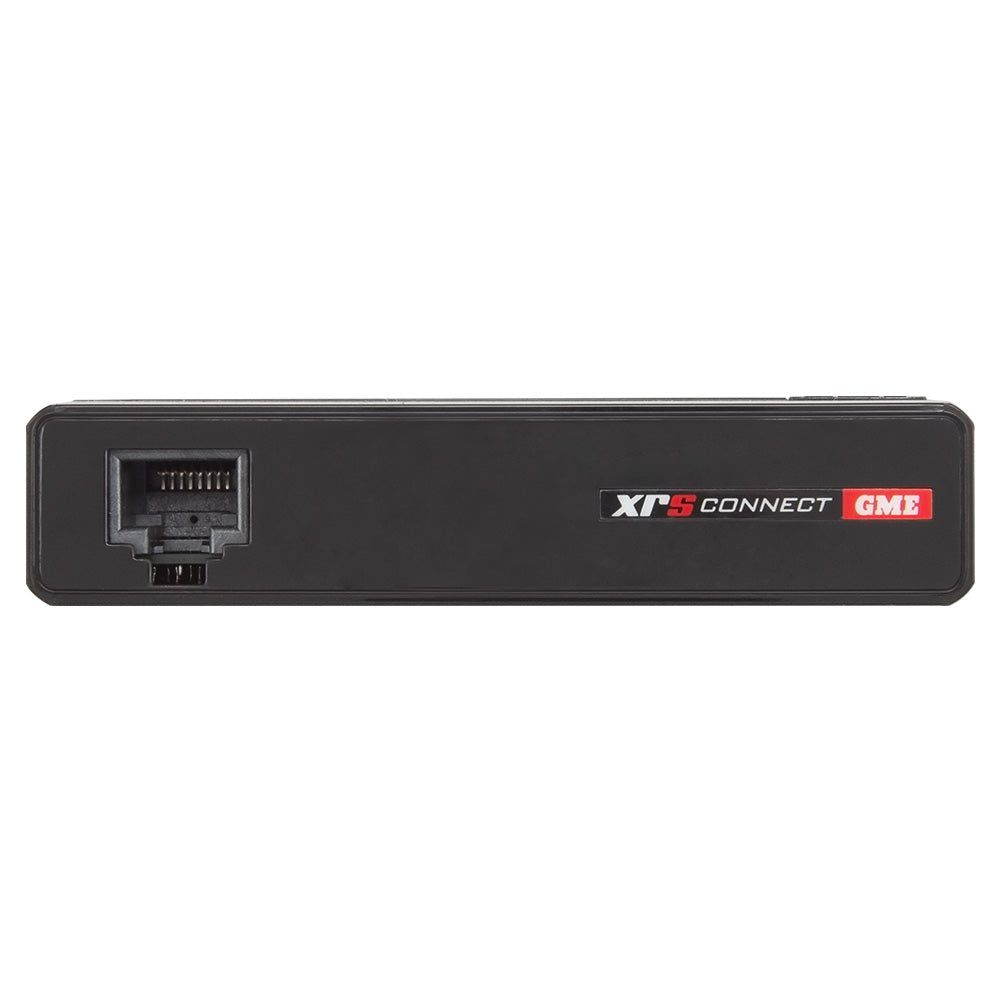

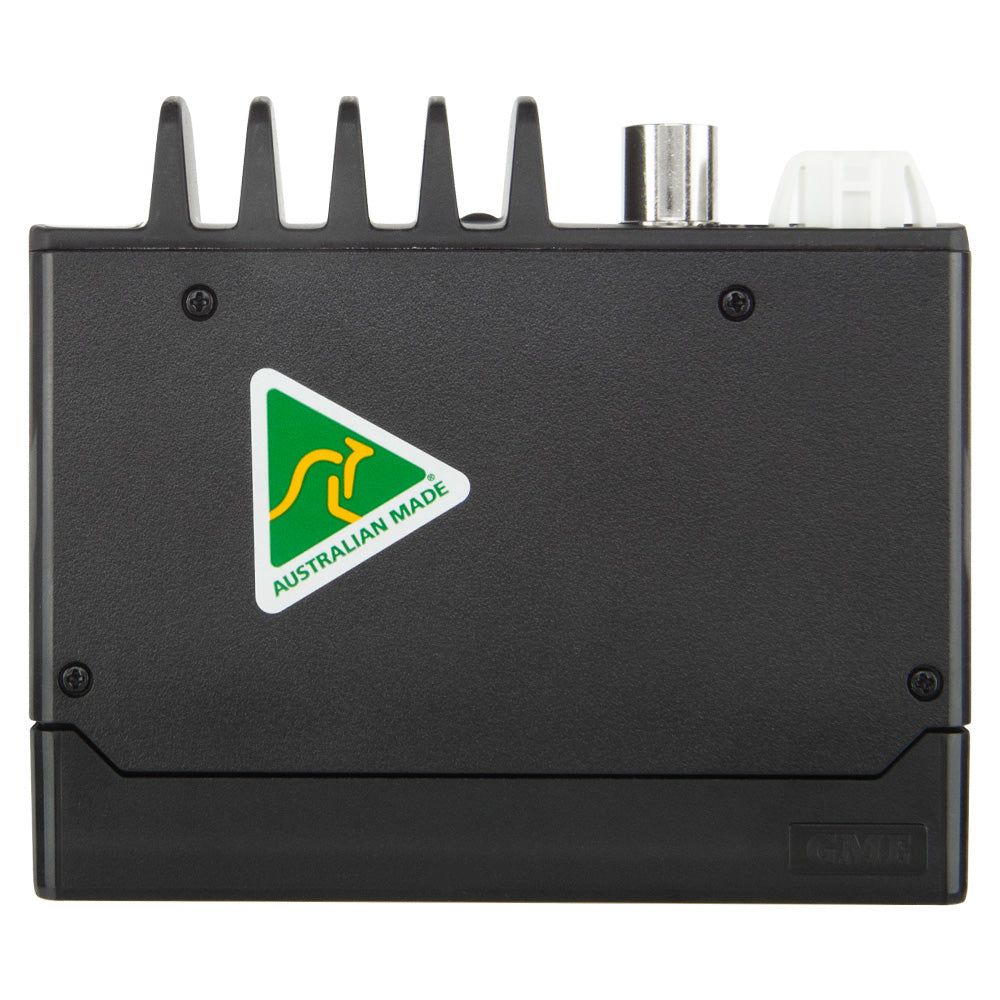

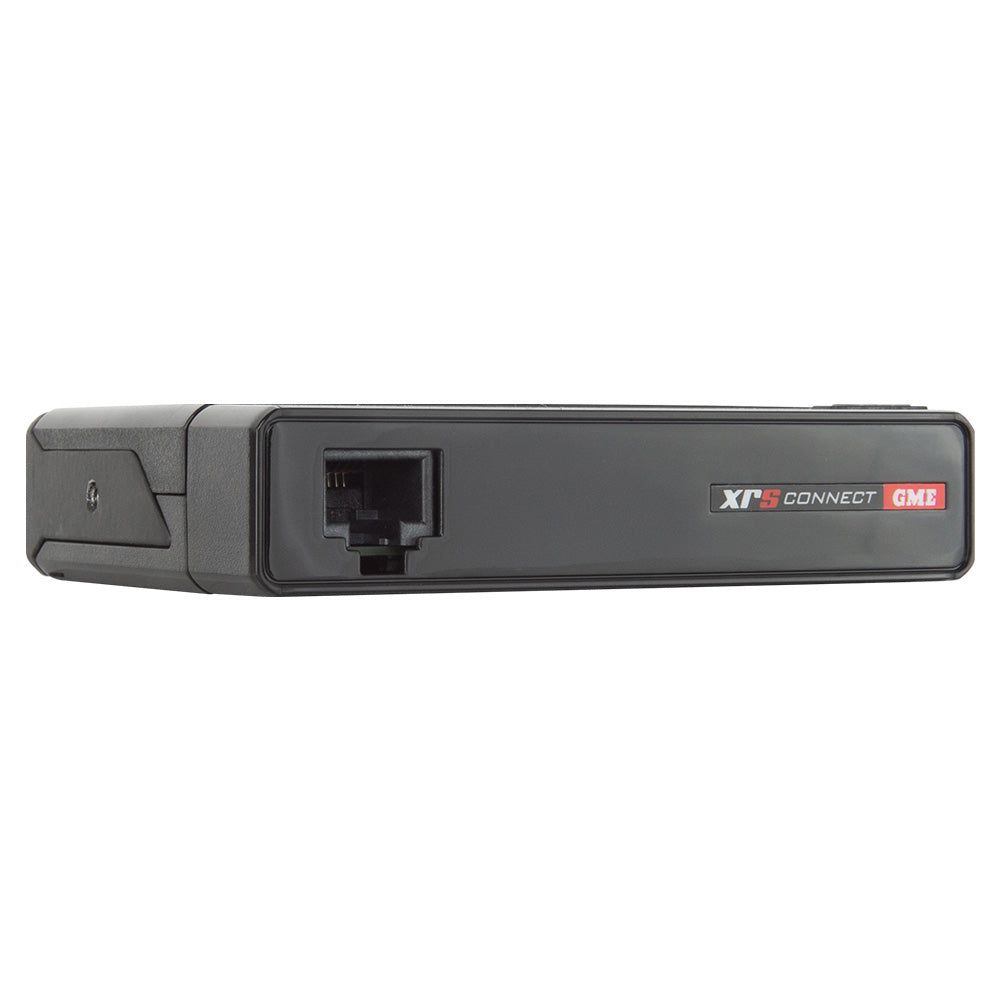

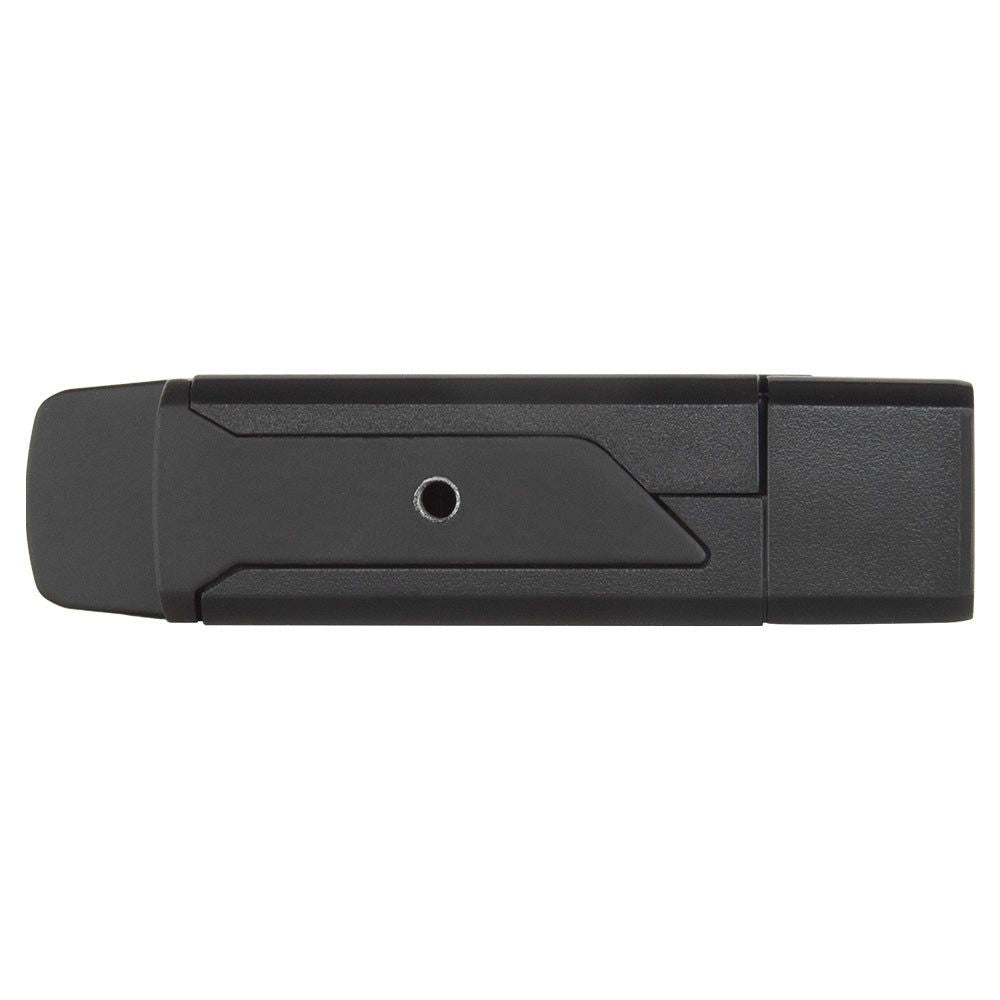

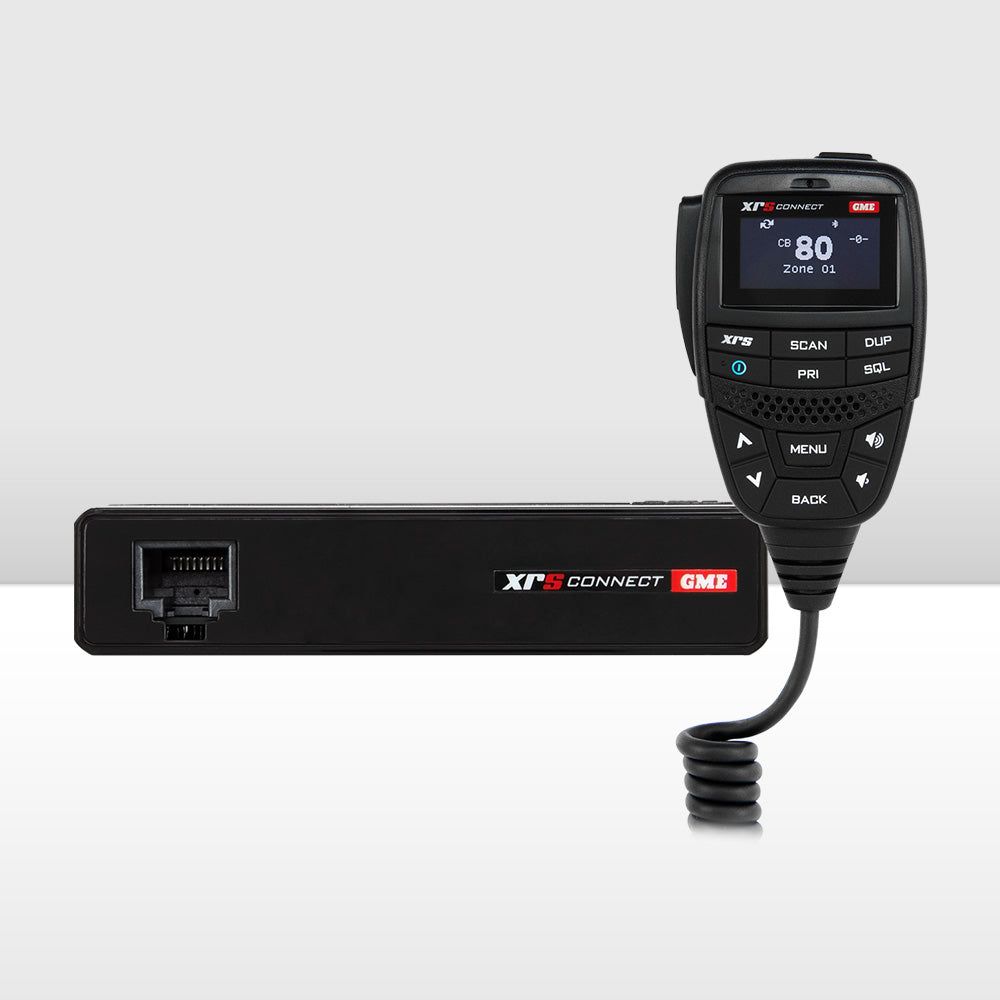

XRS™ Connect UHF CB Radio (XRS-330C)

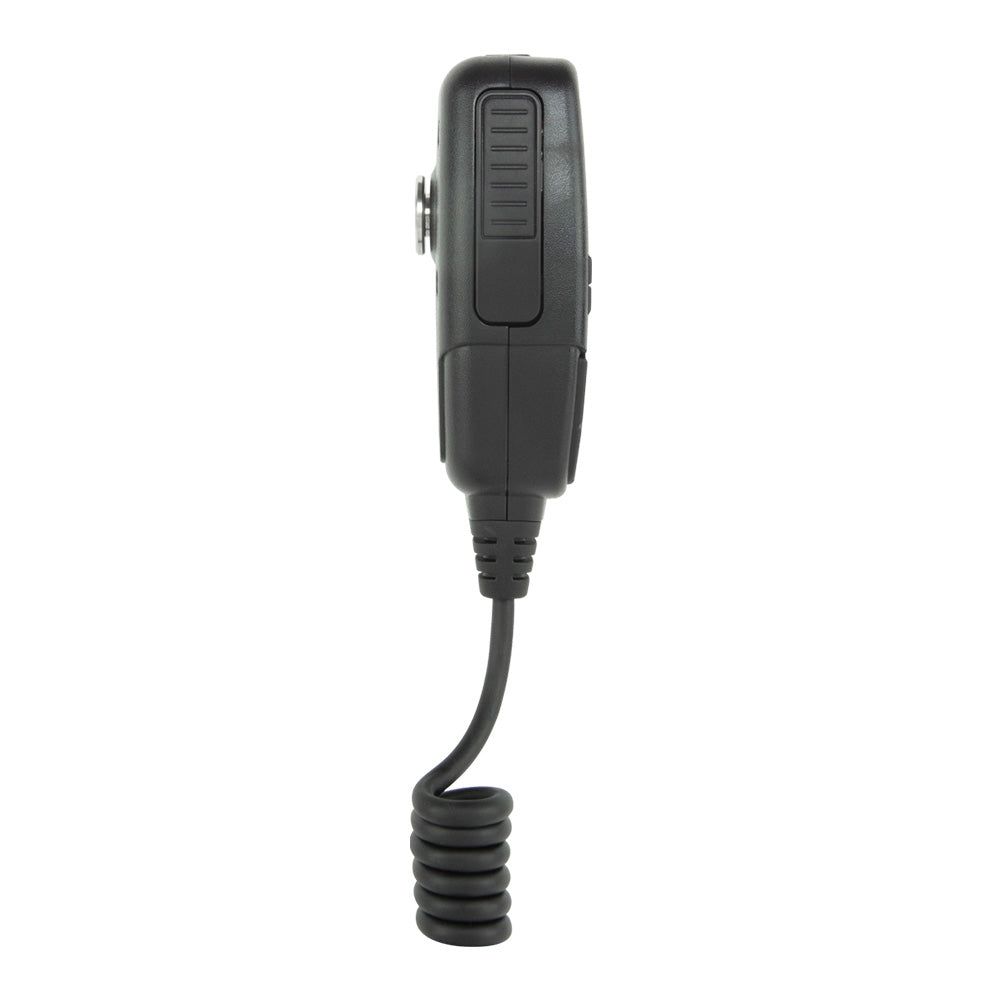

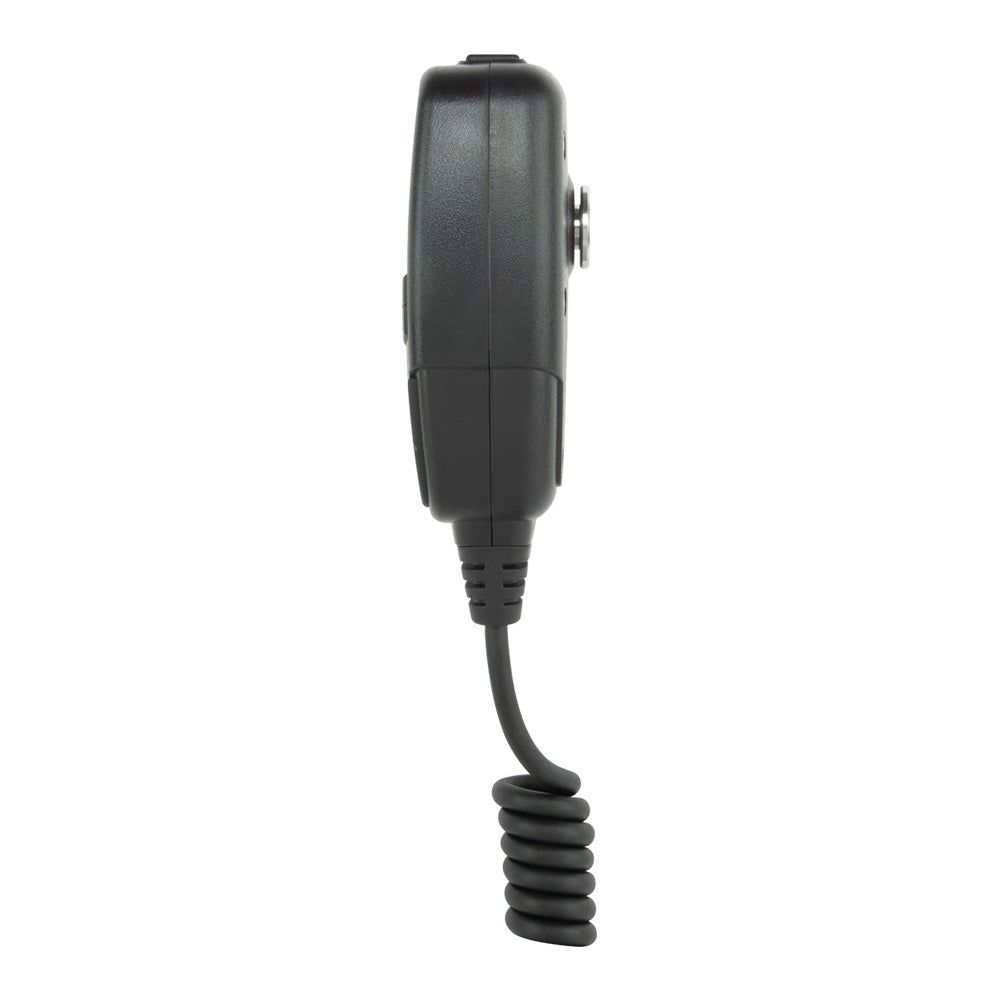

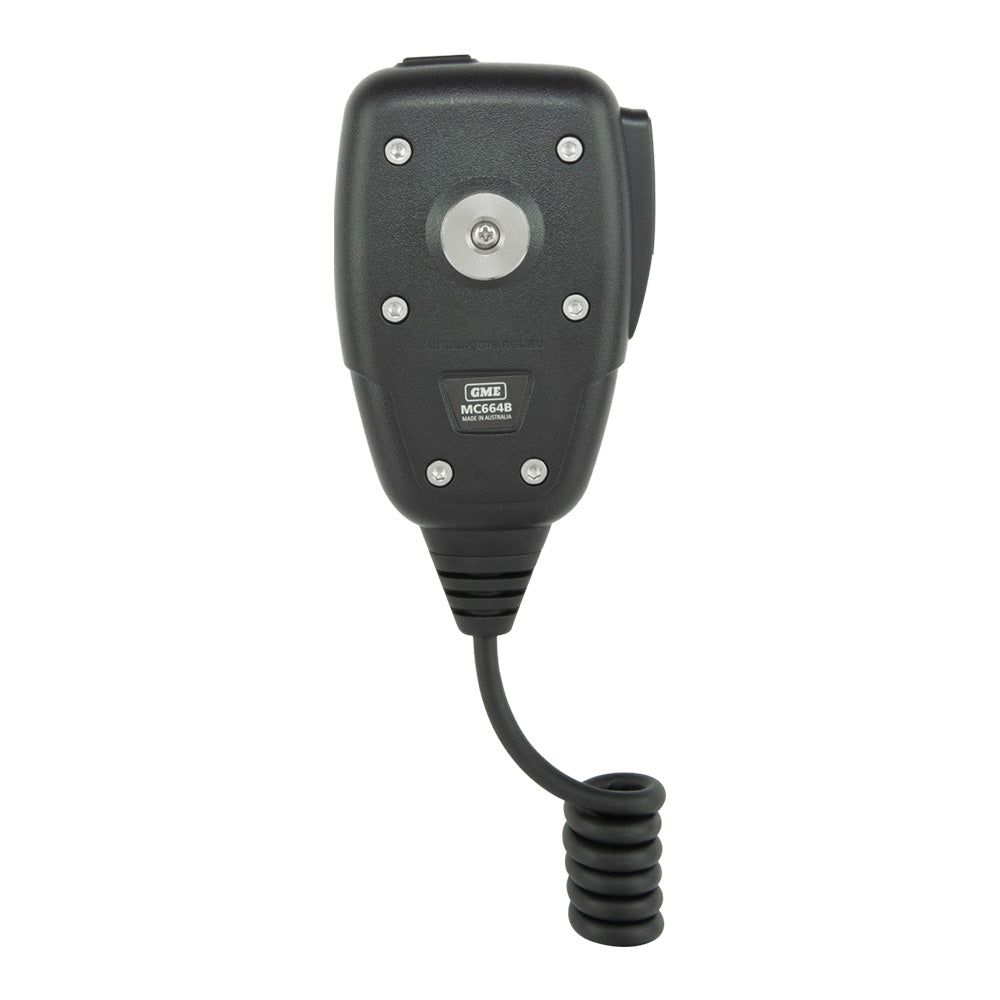

Professional-grade Speaker Microphone (MC664B)
Microphone Mounting Bracket (MB206)
Microphone Extension Lead (LE040)
Microphone Extension Adaptor Kit (AD008)
12V DC Power Lead (LE09)
Mounting Bracket
Mounting Hardware
Quick Start Guide
WARRANTY
5 Years Warranty
