❖Features
THE SUM OF AUDIO INNOVATION

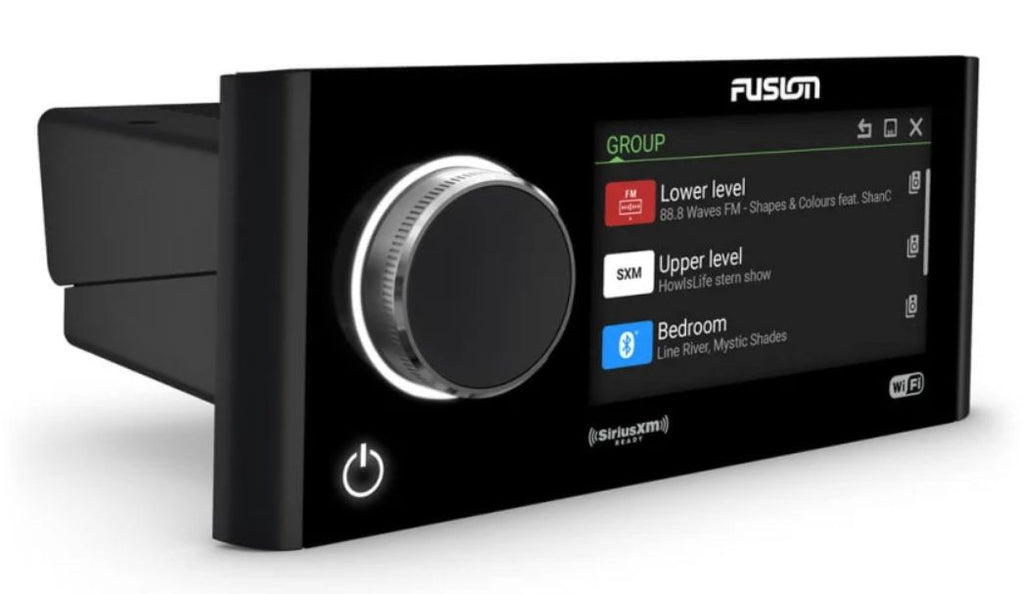

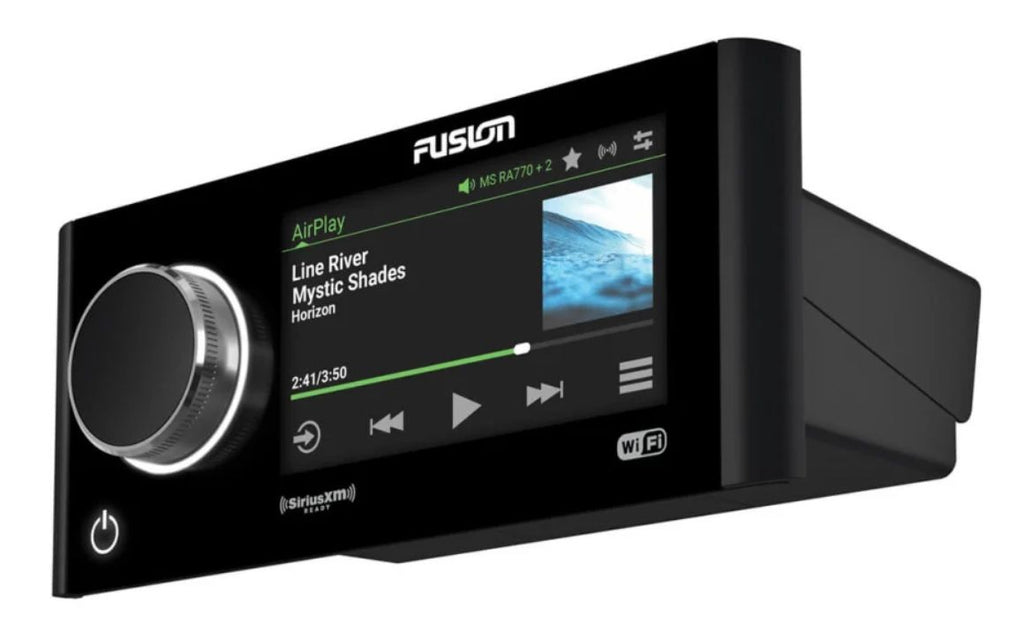

The world’s first touchscreen marine stereo with the AirPlay® 2 software
feature and built-in Wi-Fi® connectivity, Apollo RA770 has redefined audio
excellence with revolutionary technology and innovative design.

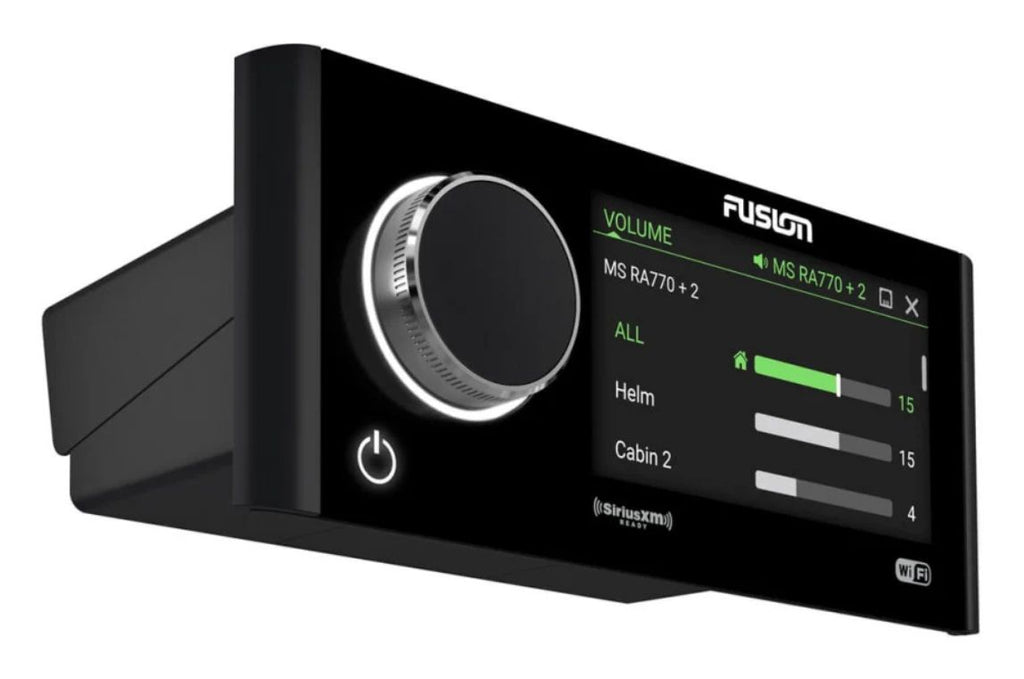

Custom audio profiles for each zone on your boat to deliver superior quality
audio.
Audio streaming with Wi-Fi technology provides high-quality audio with a
faster data transfer rate.
Experience seamless high-quality audio streaming from your music app via the
AirPlay® 2 software feature1.
Enjoy the freedom of musical choice with Fusion’s PartyBus™-Network
technology1.

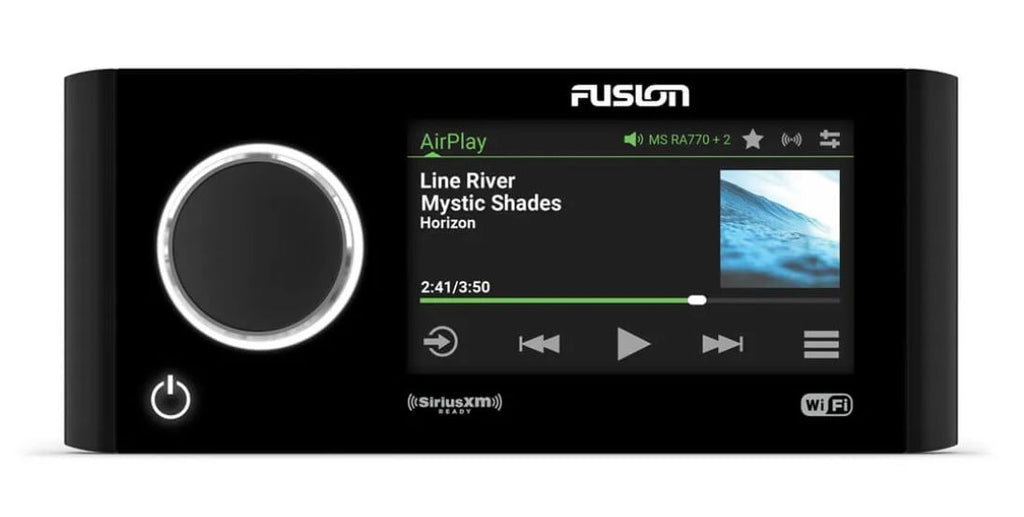

This 4.3-inch touchscreen includes play, pause and skip functions using
touch display commands.
Control your music from a compatible multifunction display (MFD), smart
device or Garmin watch.
IN THE BOX
Mounting gasket
Four 8-gauge, self-tapping screws
Two screw covers
Power and speaker wiring harness
Auxiliary-in, line-out, and subwoofer-out wiring harnesses
2 metre NMEA 2000® drop cable
Dust cover
Documentation
|
❖Specifications
Brand | Fusion
Model | MS-FR6021
General

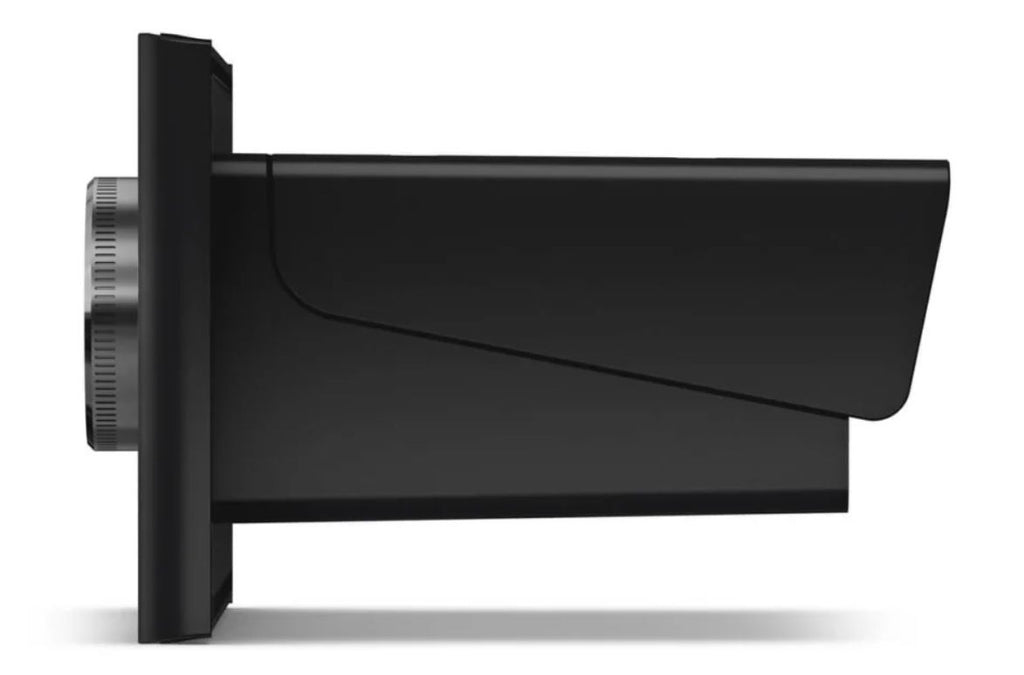

Physical dimensions | Stereo dimensions (H x W x D): 82 x 192 x 119.4 mm
Weight | 750 g
Water rating | IPX6 and IPX7 (front panel only, when properly installed)
Power input | 10.8-16 VDC
Operating temperature range | 0° to 50° C
Current (max.) | 15 A
NMEA 2000 LEN | 1 (50 mA)
Bluetooth wireless range | Up to 10 metres
ANT wireless range | Up to 3 metres
Wireless frequencies/protocols | Wi-Fi 2.4 GHz @ +15 dBm nominal
Bluetooth 2.4 GHz @ +10 dBm nominal
ANT 2.4 GHz @ +4 dBm nominal
Compass-safe distance | 150 mm
Stereo features
Display | 4.3-inch capacitive touch glass colour LCD
Built-in amplifier | Class-D (2 Ohm stereo-stable)
Peak power | 280 W
Rated power output (2 Ohm) | 43 W rms x 4 @ 14.4 V input < 10% THD
Rated power output (4 Ohm) | 26 W rms x 4 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing | Yes (with preconfigured DSP profiles)
PartyBus™-Network capabilities | Yes (wired or wireless)
Fusion-Link™ control | Yes (with MFD, smartphone and Garmin watch)
Multi-Zone™ technology | 4 zones
Built-in Wi-Fi | Yes
Bluetooth wireless technology | Yes
ANT wireless technology | Yes
SiriusXM-ready | Yes (requires SiriusXM Connect vehicle tuner)
DAB+ ready | Yes (requires DAB100A antenna module)
Optical audio input | Yes
NRX remote compatibility | Yes
Multi-language interface | Bulgarian / Chinese (Simplified) / Chinese
(Traditional) / Croatian / Czech / Danish / Dutch / English / Finnish / French
/ German / Greek / Italian / Japanese / Korean / Norwegian / Polish /
Portuguese (BR) / Portuguese (PT) / Slovenian / Spanish / Swedish / Thai /
Turkish
Software updates | Over-the-air software updates via the Fusion-Link app, USB
Warranty | 3 years
Sources
Sources | AM / FM / Bluetooth / Apple AirPlay 2 / digital optical input / USB
audio / iPhone / iPod / AUX x2 / UPnP / MTP / SiriusXM-Ready (USA only,
requires optional SiriusXM Connect vehicle tuner) / DAB+ ready (available in
Europe and Australia only)

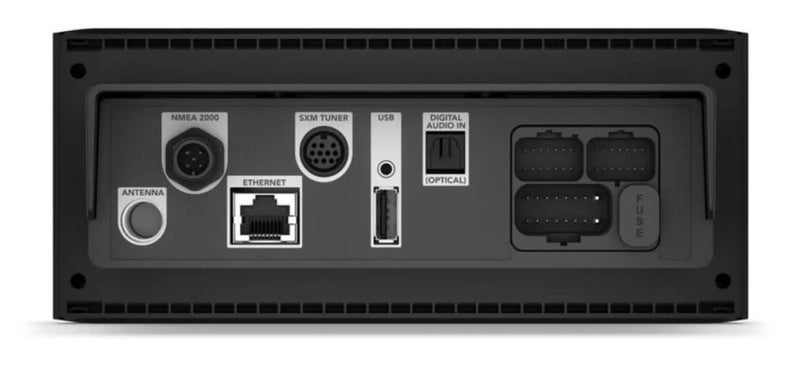

Connectivity
Auxiliary input | Two RCA inputs (AUX1, AUX2)
Optical audio input | One digital optical input (SPDIF) port
Ethernet | One Ethernet port
NMEA 2000 | One NMEA 2000 port
USB 2.0 | One USB 2.0 port
SiriusXM satellite radio | One SiriusXM port (requires SiriusXM Connect
vehicle tuner; does not support traffic and weather)
AM/FM radio | One Motorola antenna connector port
Speaker | 4 x speaker connections (2 zone amplified)
RCA pre-out (left, right and subwoofer) | 4 zones (requires external
amplification)
Line out | 4 (1 x L + R per zone, requires external amplification)
Subwoofer out | 1 x mono output (requires external amplification)
