DESCRIPTION

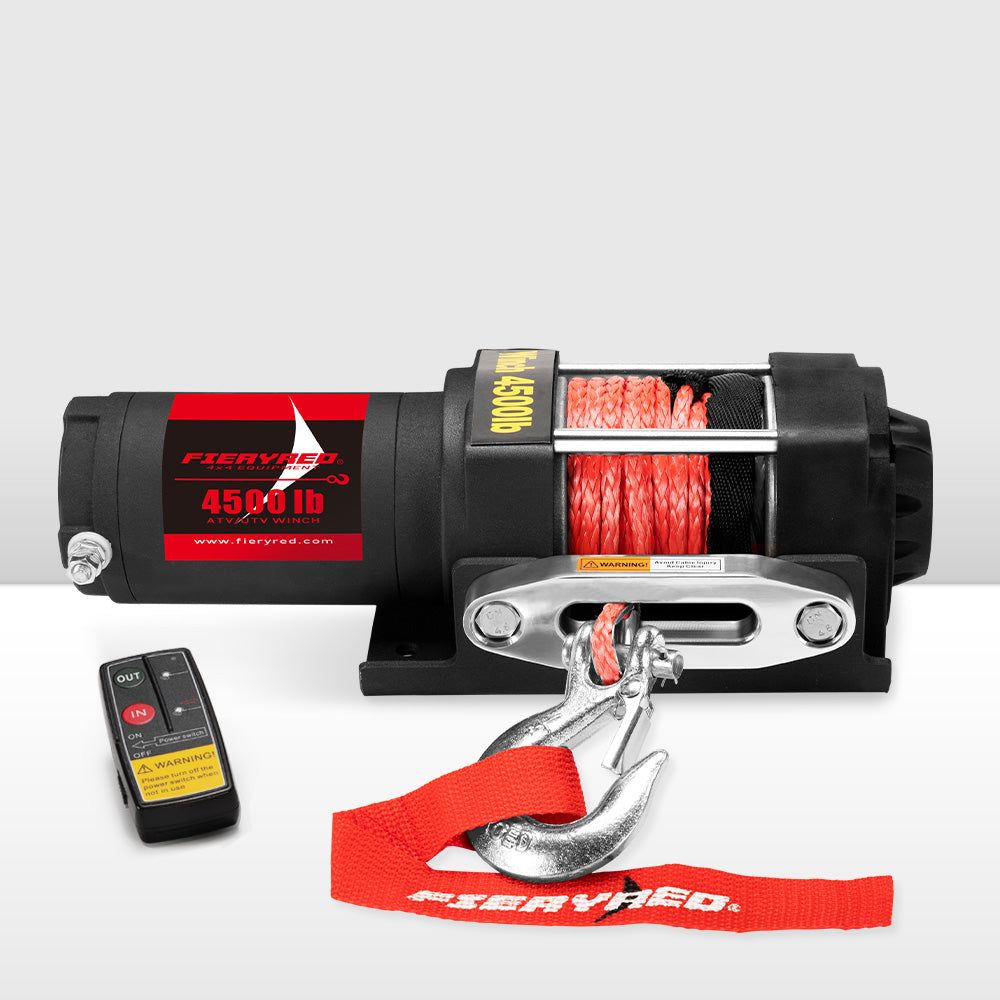

If you are looking for a reliable and go anywhere winch, please look no
further, this Fieryred 1.9 HP winch is electrically powered that is able to
generate 4,500 lbs of hefty pulling power, which serves as a testament to its
stronger gear ratio of 153:1 and a differential planetary gear train inside.
This electric muscle features rainproof construction and a sealed engine to
ensure reliable performance. And the 3 stage planetary gear system guarantees
ultimate pulling power and smoothness.and the clutch lever will perfectly fit

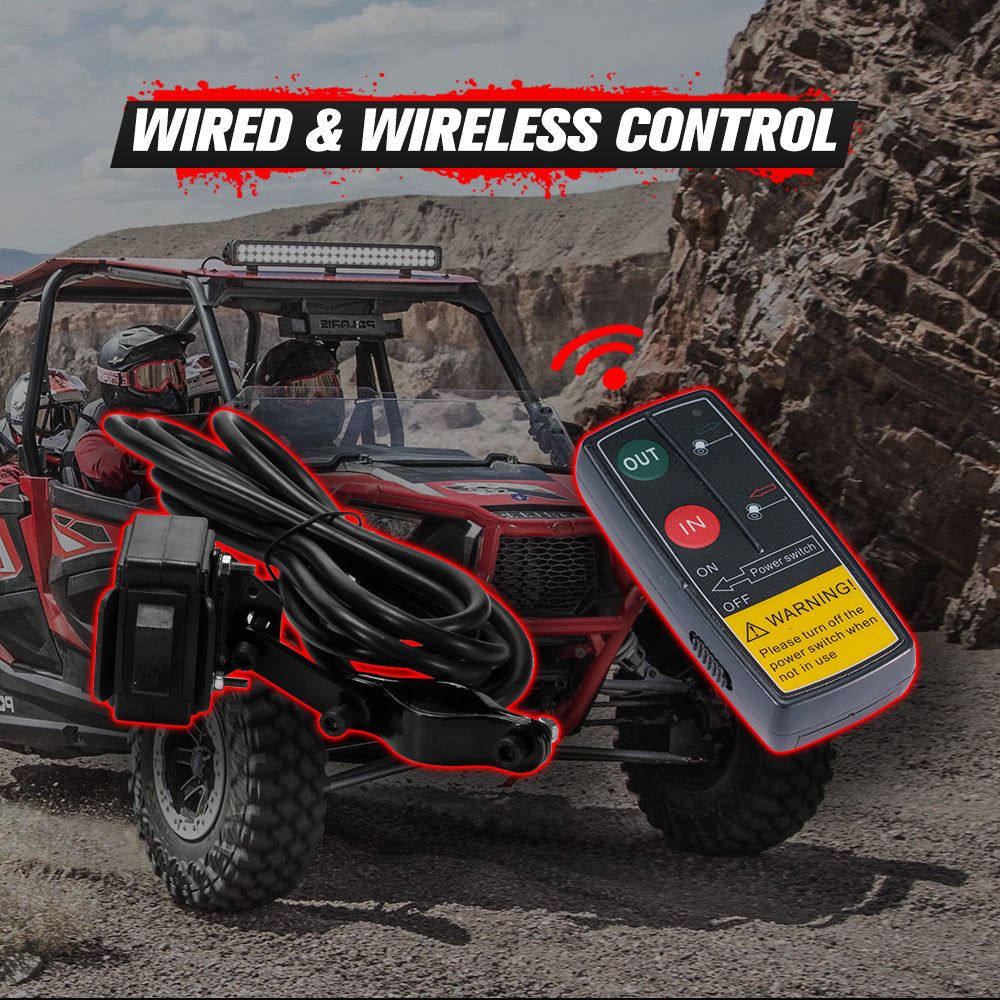

your hand, whether you wear gloves or not. The wireless remote control can
effectively avoid getting things tangled up.Boasting a peerless performance,
but comes at a fair price, this winch kit a must buy for fast, robust and
reliable results.
FEATURES
Designed vehicle recovery only, particular for ATV, UTV.It is not only more
efficient, but quieter as well.

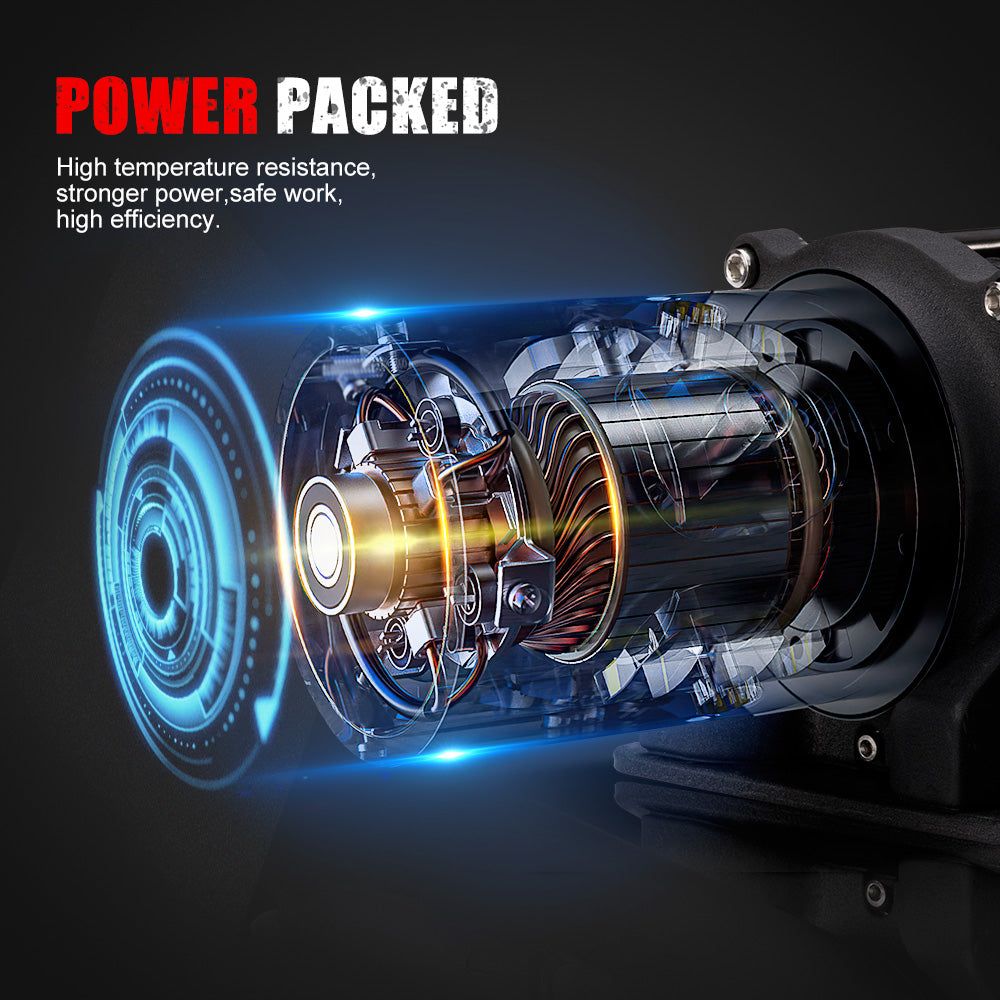

Powerful sealed 1.9 HP motor and a full metal 3-stage planetary gear train
that makes line speed faster under load.

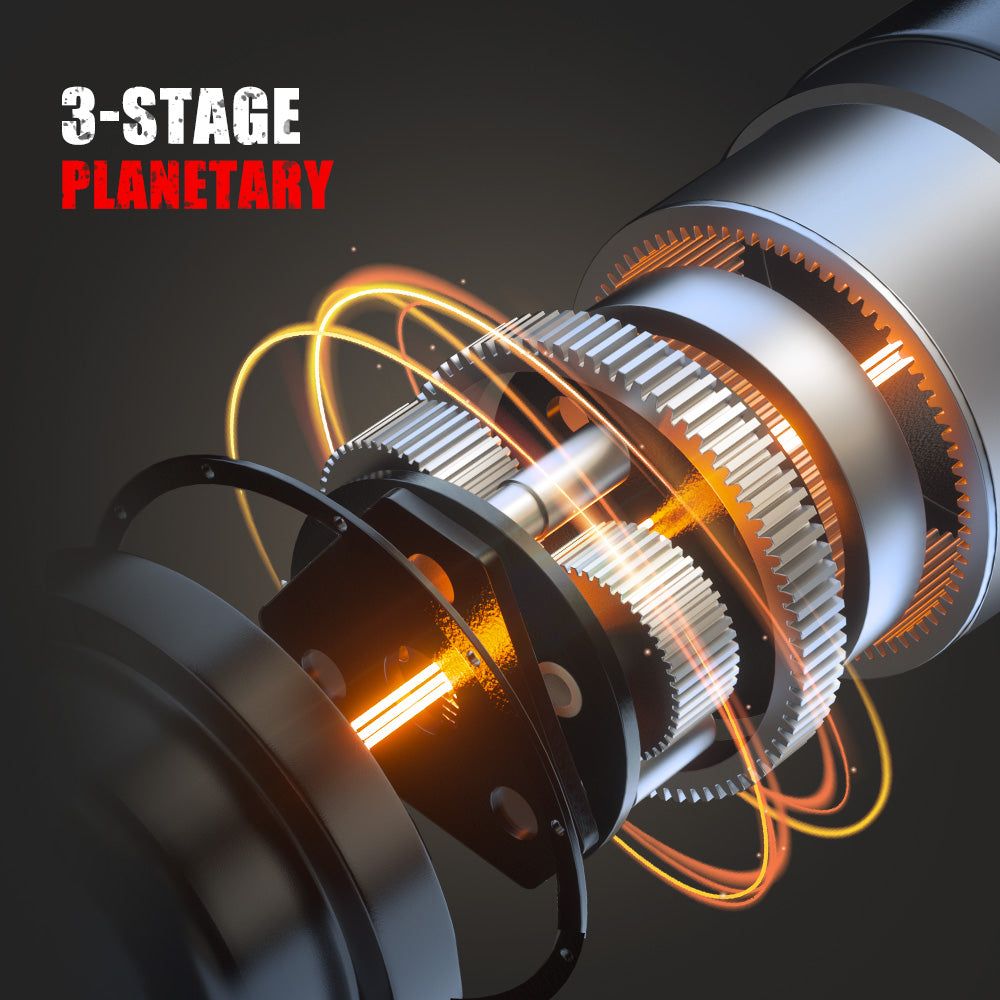

Equipped with a gear reduction ratio of 153:1 and a Three-stage planetary gear
train, a guarantee for stronger pulling capacity.
Designed for solid performance against corrosion and moisture, a great bonus
for those living in rainy and stormy areas.

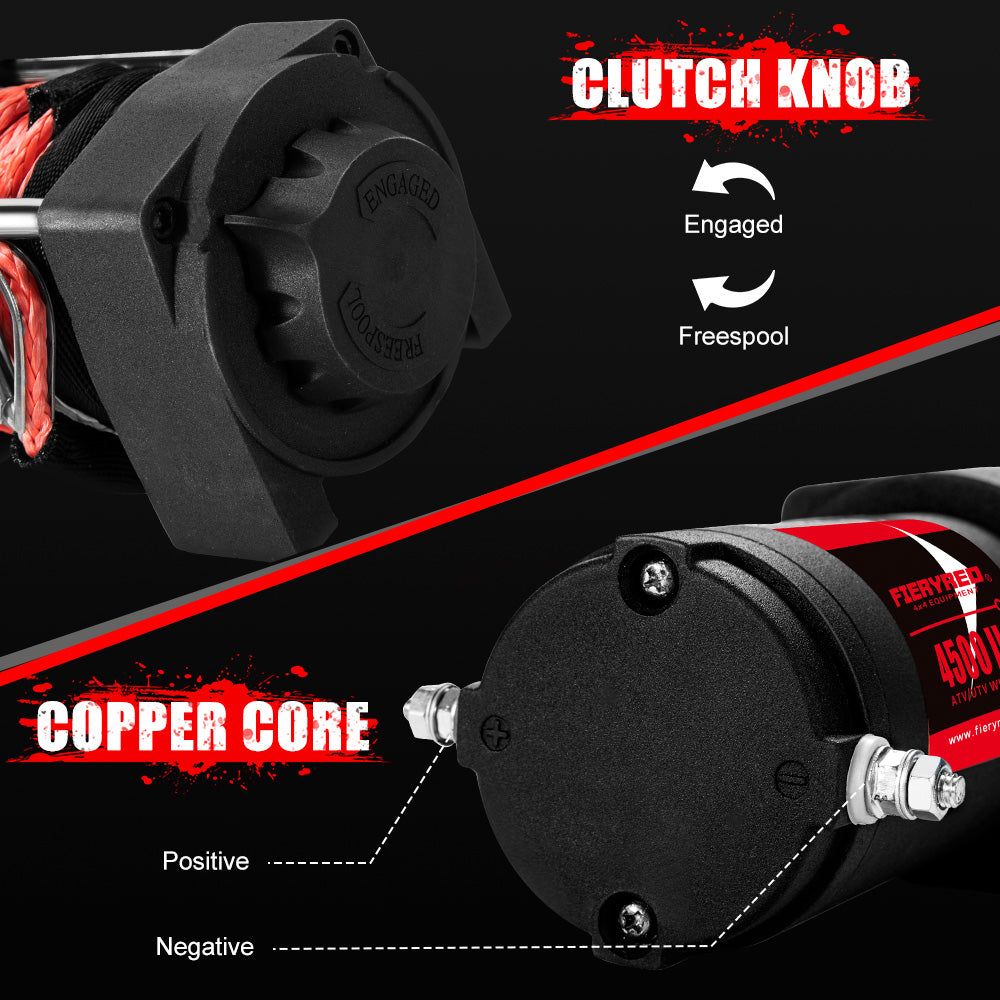

Noted: Pls. connect two long wires to power supply,and connect two short wires
to motor!
This winch is designed only for pulling along a horizontal surface not for
lifting a load under any circumstances. When winching, you should stop pull
the wire rope when red colored warning appears.
Do not operate the winch at an angle of more than 15°, because angles greater
than this will deform or damage parts of the winch.
When hoisting, the winching capacity is only 1/5 compared with pulling along a
horizontal surface.Always ensure the clutch is fully engaged or disengaged.
Failure to do so will significantly reduce winching capacity.
It is highly recommended to use batteries of more than 80A. Failure to do so
will also reduce the winching capacity.
Note: Avoid angle pull.The winch line should not exceed a 15° up and down for
horizontal,or a 45° angle left or right from straight ahead.
SPECIFICATIONS
Rated line pull: 4500LBS(2041kg) single line
Motor:1.9HP Permanent Magnet
Gear Reduction Ratio: 153:1
Gear train:3-Stage planetary

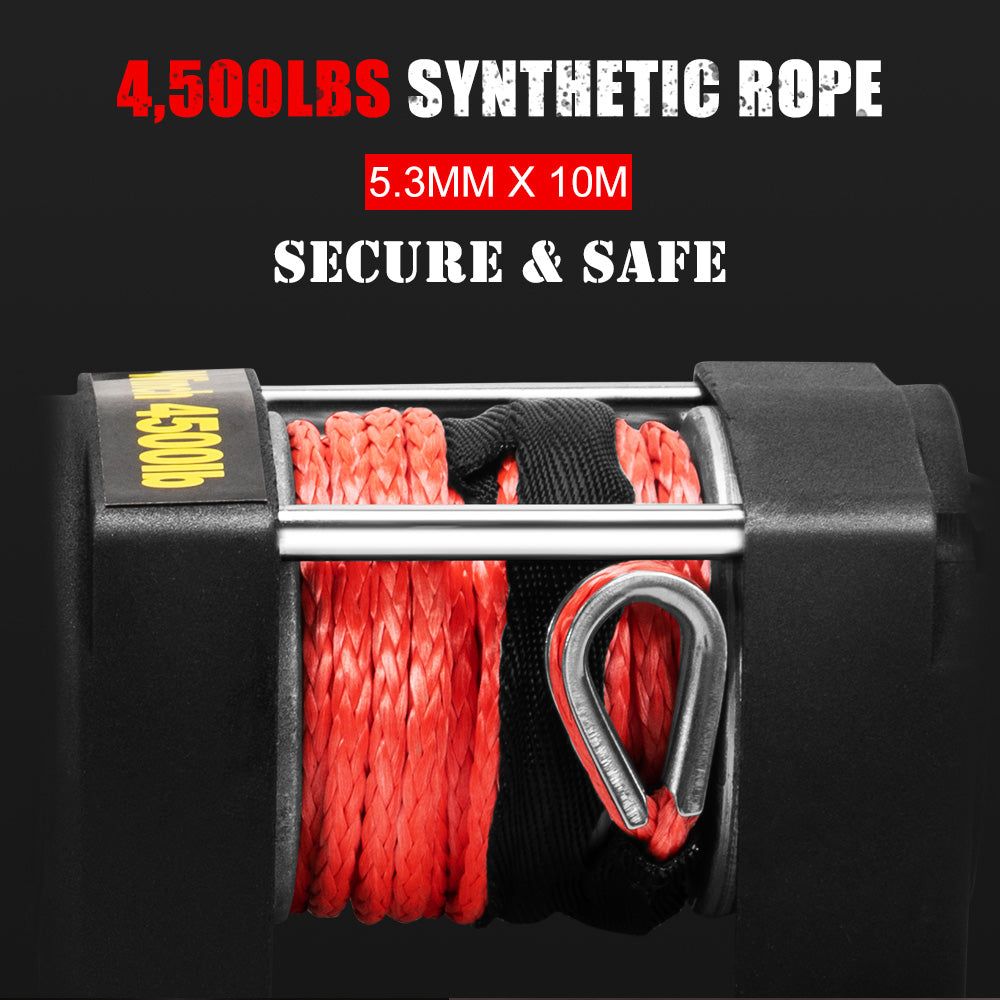

Cable: Dia.5.3mm x Length (10m)
Control:Remote Switch
Clutch:Sliding Ring Gear
Breaking action:Automatic In-the-Drum
Remote control battery type:Alkaline Battery

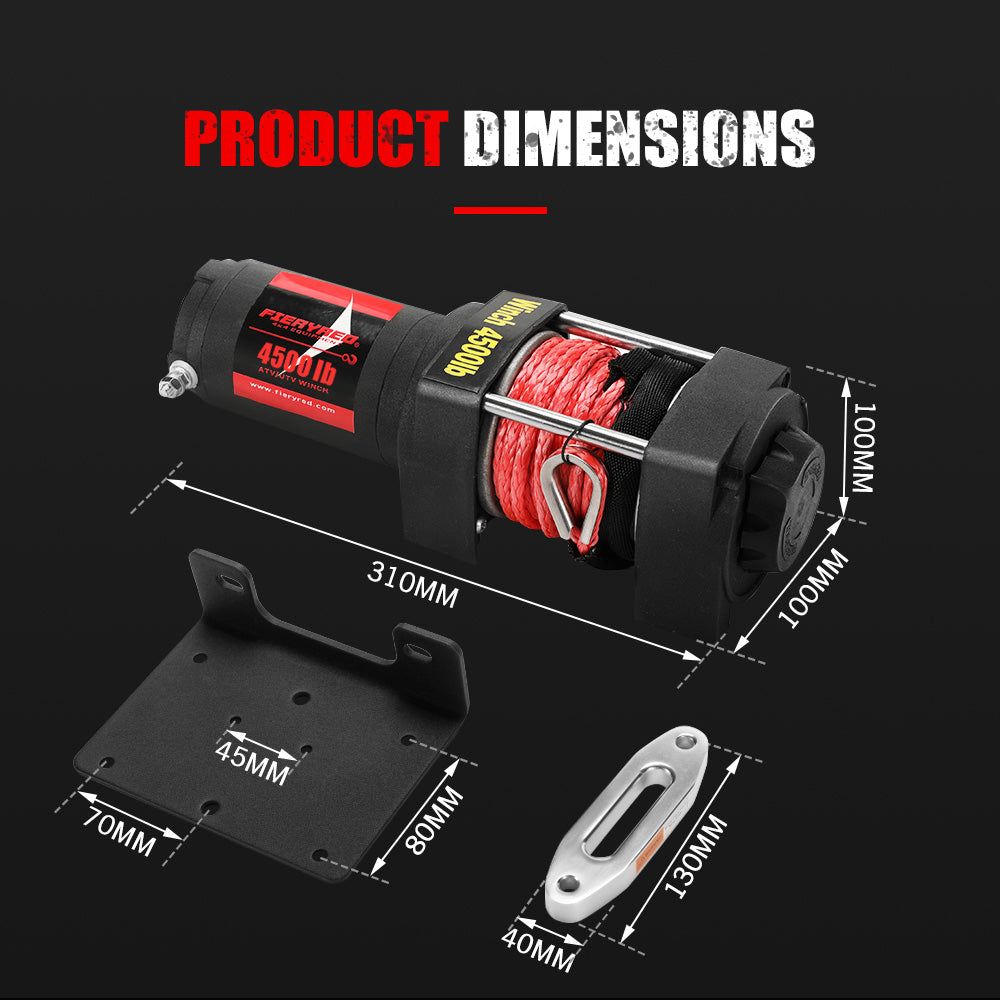

Overall Dimension(LxWxH): 316 x 120 x 106mm
Package Size: 36.5 x 32 x 15.5cm
Gross Weight:7.3kg
PACKAGE INCLUDES
1 x 4500LBS Electric Winch
1 x Wireless Remote Control
1 x Wire Control Box

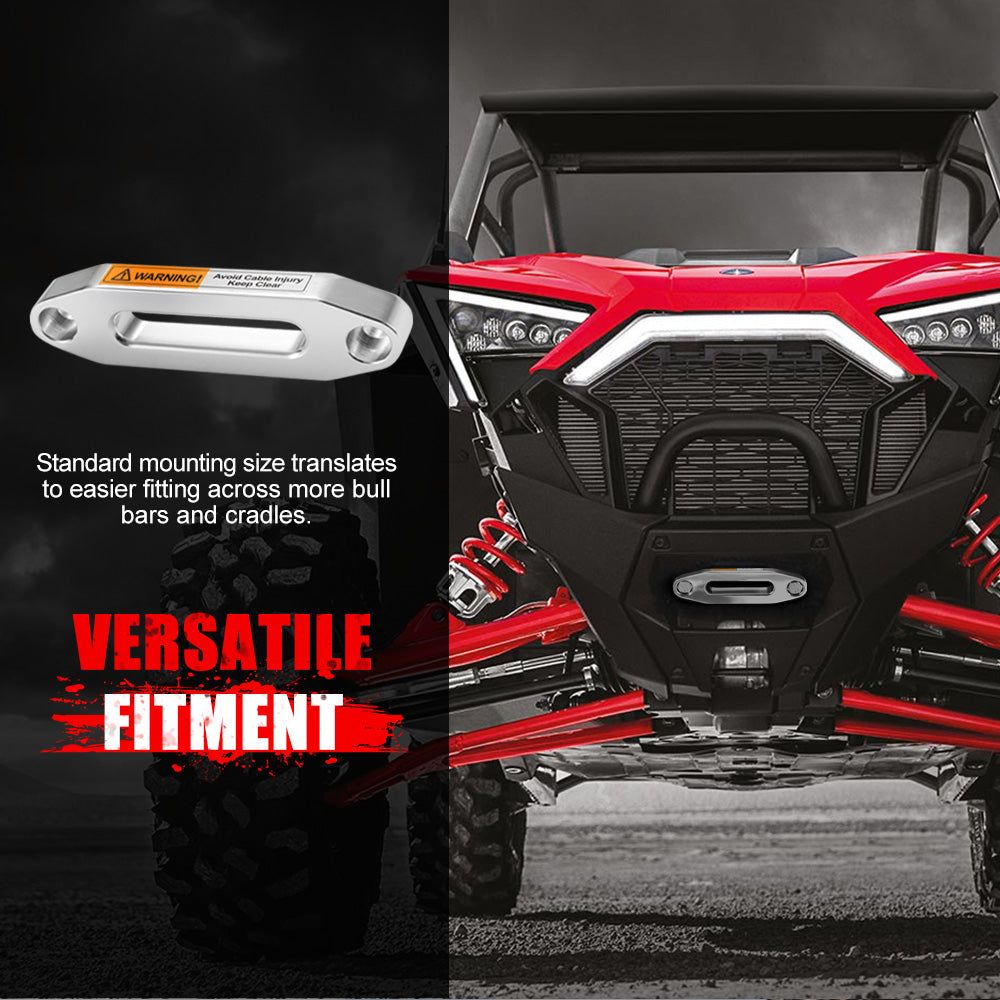

1 x Alloy Hawse Fairlead
1 x Installation Mounting Plate
1 x Clevis Hook
1 x Cable Controller
Set of Bolts
1 x Manual
WARRANTY
1 Year Warranty
