FEATURES

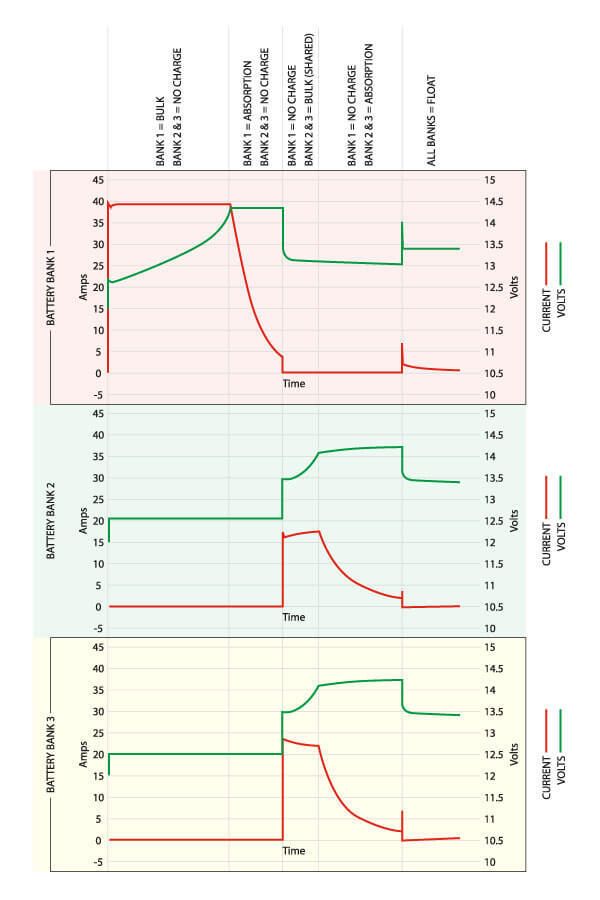

Multistage Charging: Fully automatic multistage battery charger with the ability to charge 3 separate battery banks.

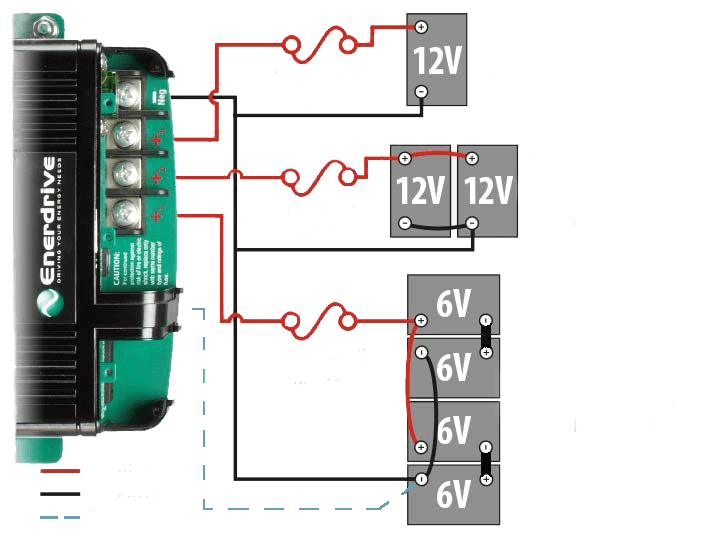

Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.
Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.
Current Control: User adjustable current output (e.g. Dial the 60amp unit back to run off a 1kVA generator).

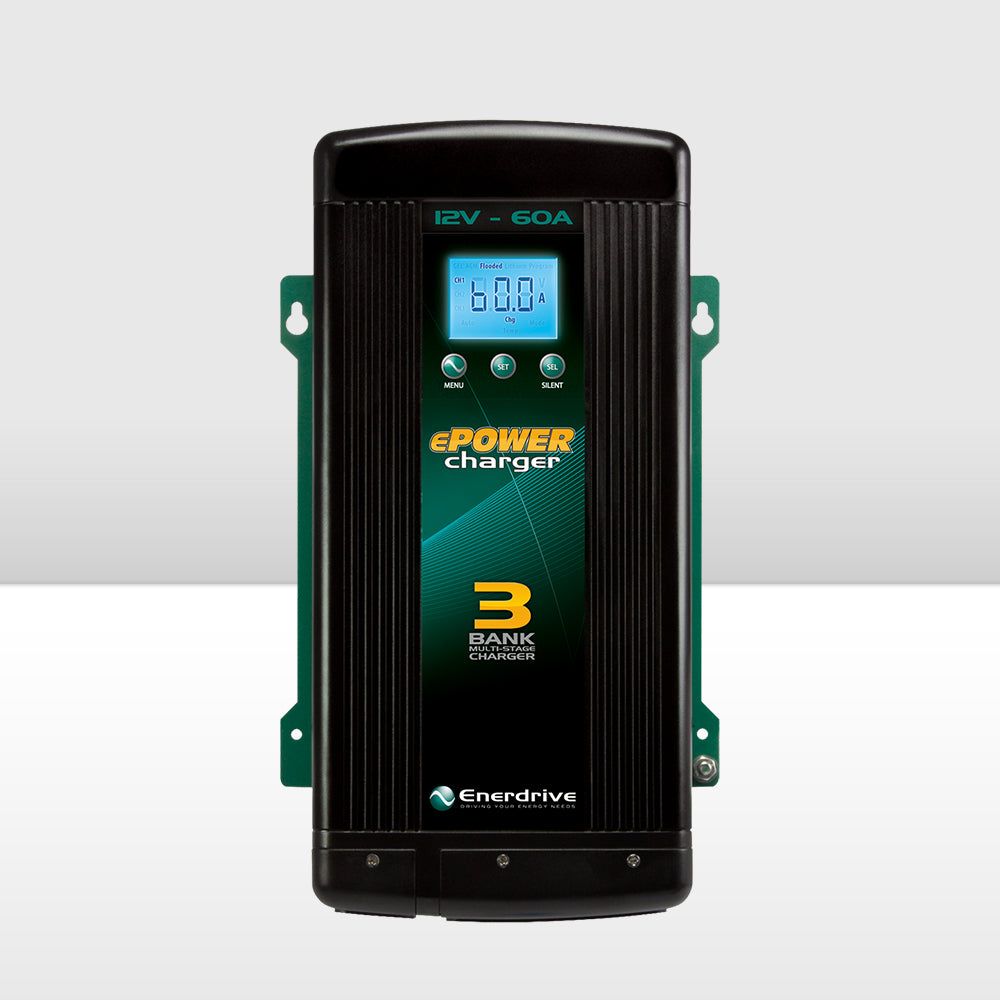

Smart Charging: The ePOWER 60A battery charger will regulate its output based on the loads connected to your battery banks.
Wide AC Input Range: Operates on both 110V / 60Hz and 240V / 50Hz.

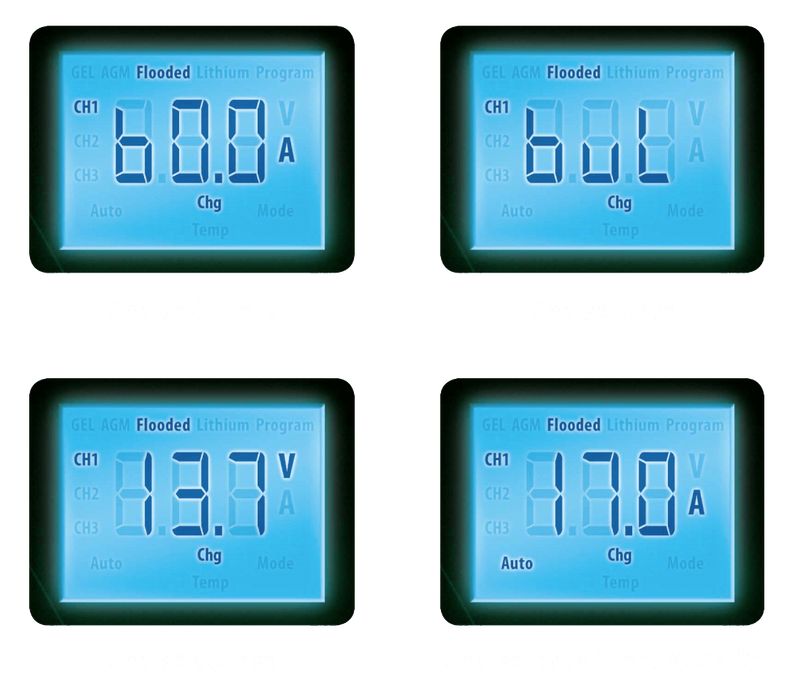

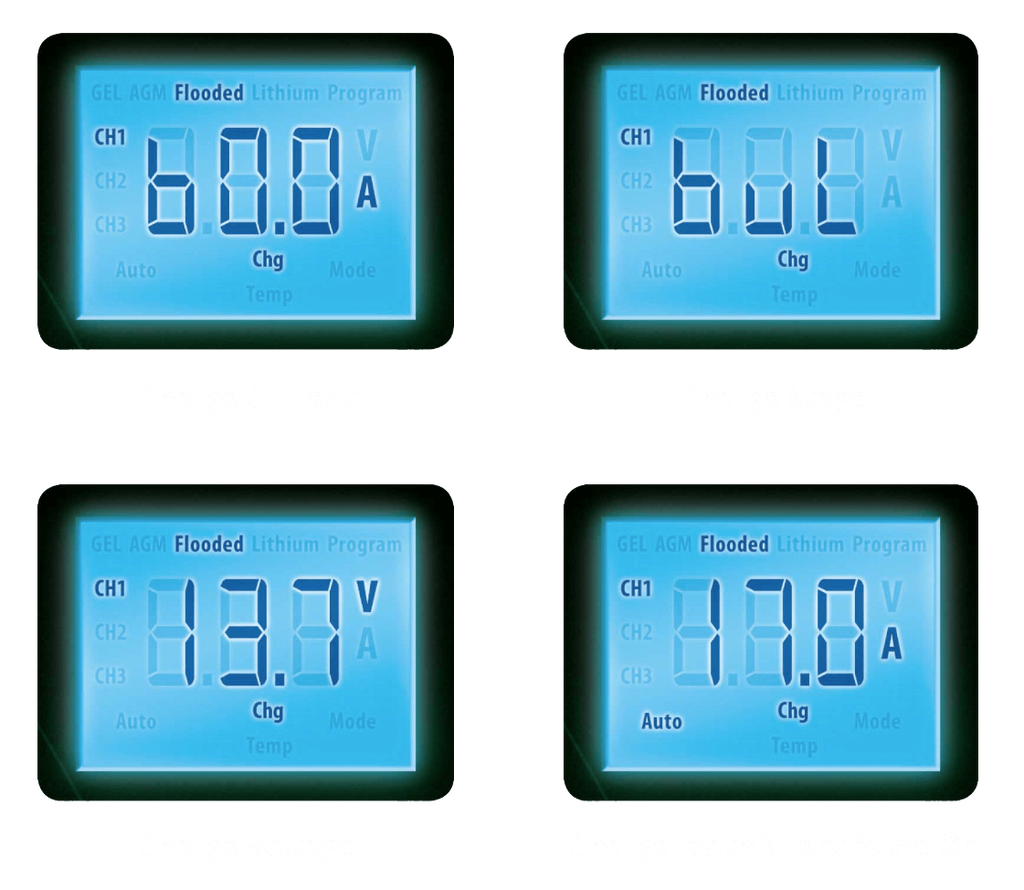

LED Display: Easy to use “set and select” menu along with scrolling charger status.
Silent Mode: Disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.
Temperature Sensor: Battery temperature sensor included with 3 meter cable.
5 Year Warranty from an Australian company renowned for customer support.

SPECIFICATIONS
Model EN31260
CHARGER OUTPUT
Output Current (Maximum) 60A
OUTPUT VOLTAGE RANGE
Charge 14.2 15.5 V
Float 13.4 13.8 V
Equalize 16.0 V
DC Output Bank Three (1 fully independent, 2 common with diode isolation)

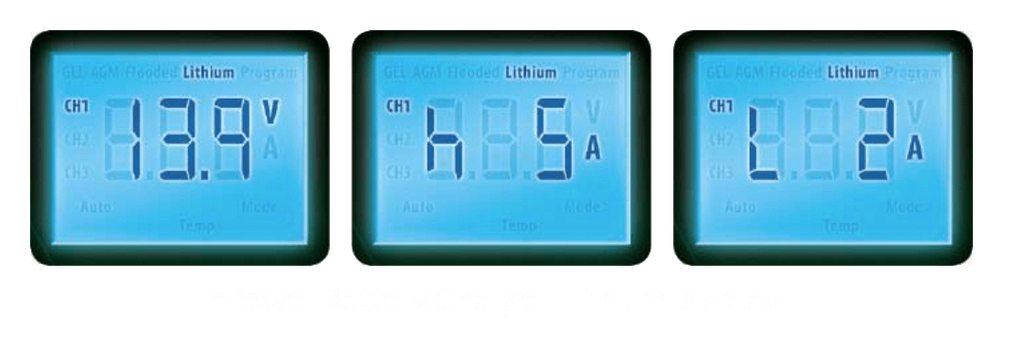

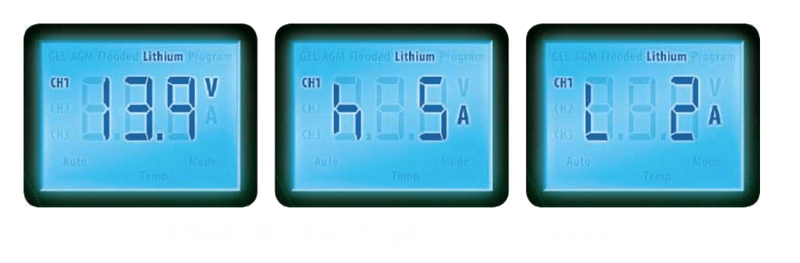

Selectable Battery Type Gel, AGM, Flooded, Lithium, Program
Standby Current 2 mA
CHARGER INPUT
AC Input Voltage (Nominal) 90 to 265 VAC
AC Input Operating Range 207-265 Vac (5.9 A Max)90-125 Vac (11.3 A Max)
AC Input Frequency Range 47 63 Hz
Power Consumption 1050W (Full Load)
Power Factor Correction Yes
Charger Efficiency 82%
PROTECTION AND FEATURES
Reverse Polarity Yes, (with user replaceable fuse/s)
Over Charge Yes, unit shutdown
Over Temperature Yes, unit de-rated and shutdown
Output Short Circuit Yes, (with user replaceable fuse/s)
Cooling Forced air ventilation (thermo controlled fan)
Temperature Setting Hot, Normal, Cold (no sensor
PACKAGE INCLUDES
1x 60A Smart battery charger

WARRANTY
5 Years Warranty
