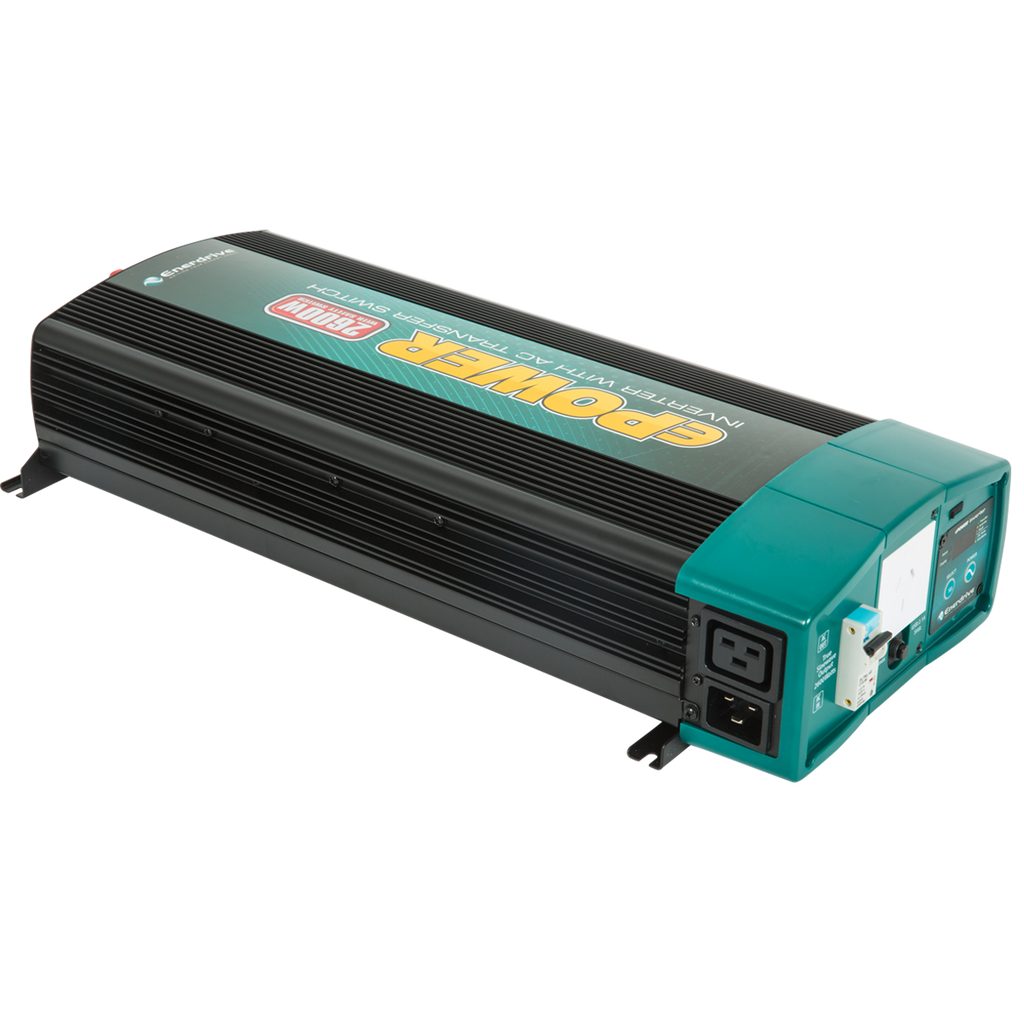

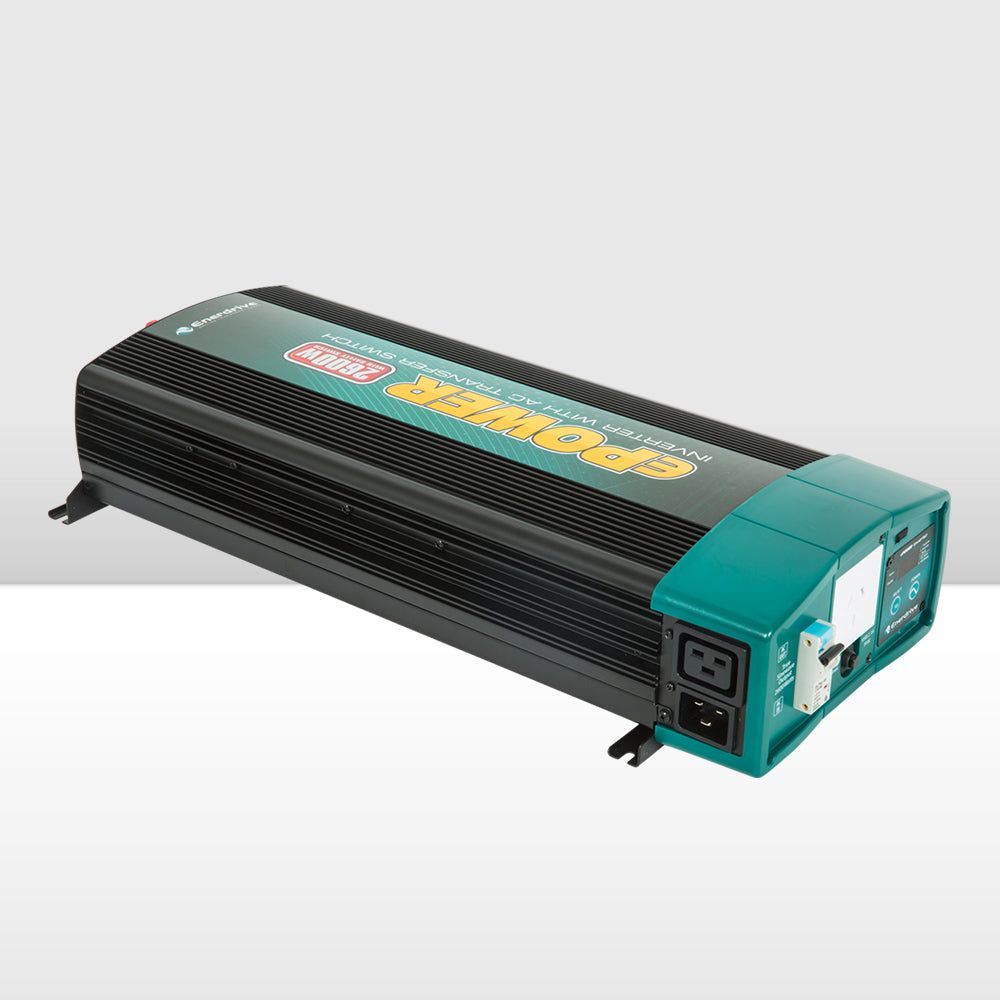

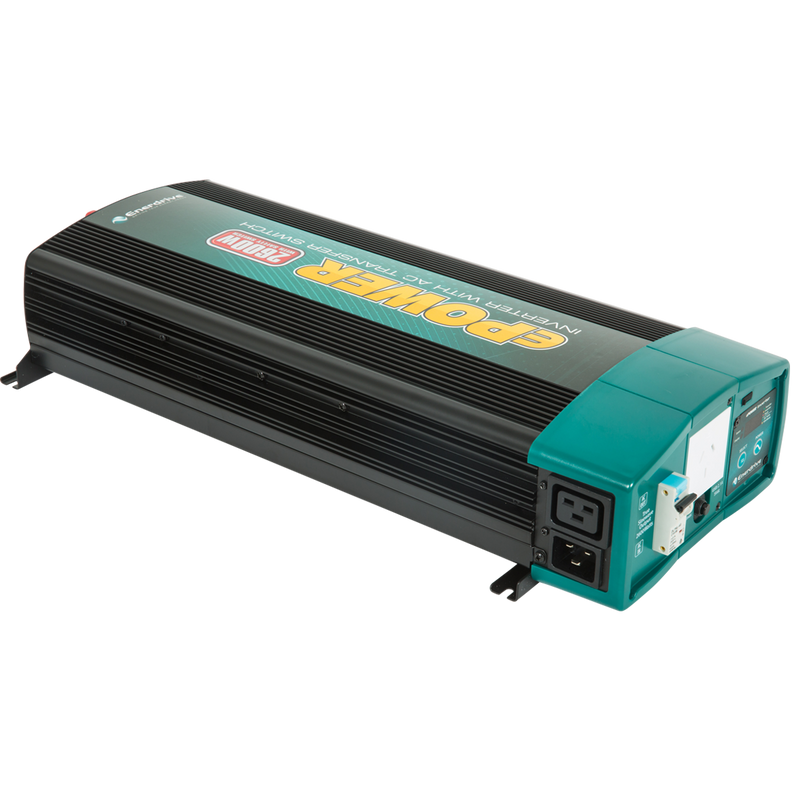

EPOWER 2600W/12V W/RCD & AC TFER Switch

DESCRIPTION

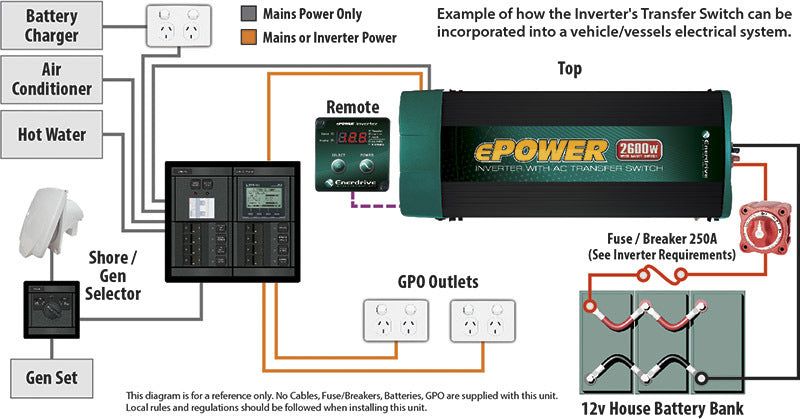

The ePOWER 2600W Inverter with AC Transfer & Safety Switch is one in a family of affordable, high quality, professional level inverters by Enerdrive. By using the latest power conversion technology, ePOWER inverters deliver clean and energy efficient true sine wave AC power from your DC supply. This ePOWER Inverter incorporates a 16A AC Transfer Switch which allows for seamless AC power transfer between Mains/Generator and Inverter. This helps to keep your appliances running with almost no break time on AC transfer and allows for a much simpler installation on-board. Also included in the unit is a RCD Safety Switch. This switch monitors the flow of electricity through the inverter and detects any problems that may pose a risk to personal safety and switches the output power off within 0.03 of a second. The ePOWER 2600W is built to operate basic equipment such as power tools, computers, microwave ovens, televisions and other appliances that use up to 2600W of power for operation.

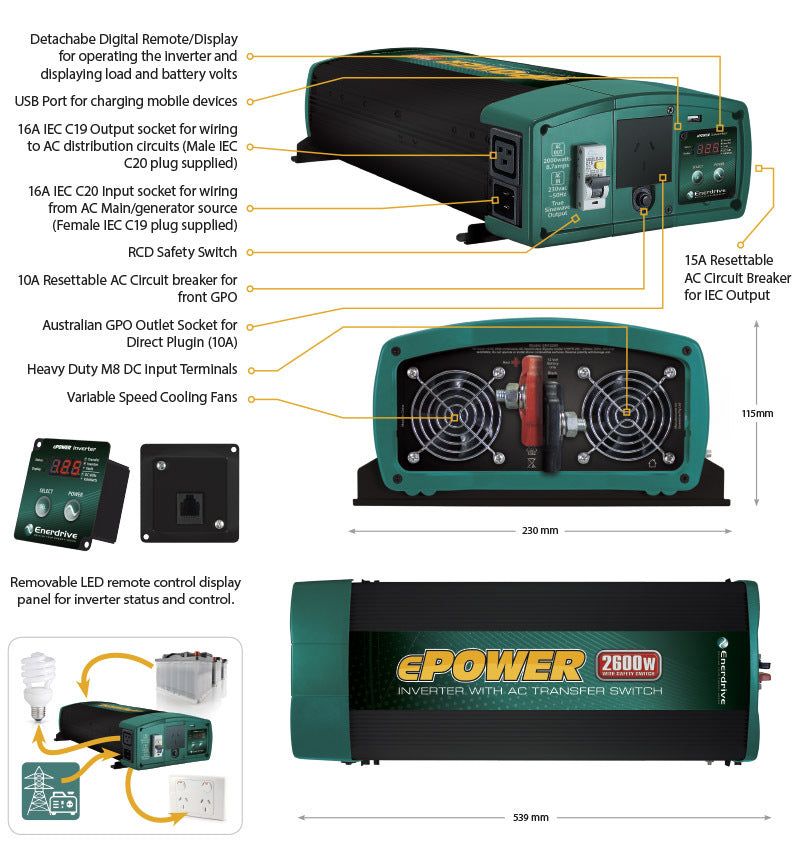

FEATURES
Seamless 16A AC Internal Transfer Switch

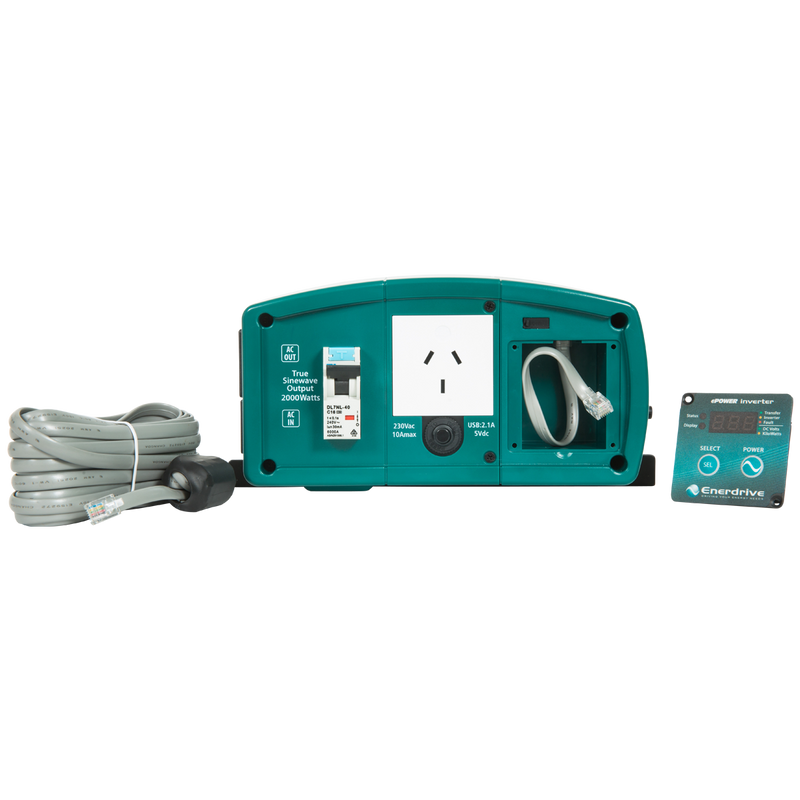

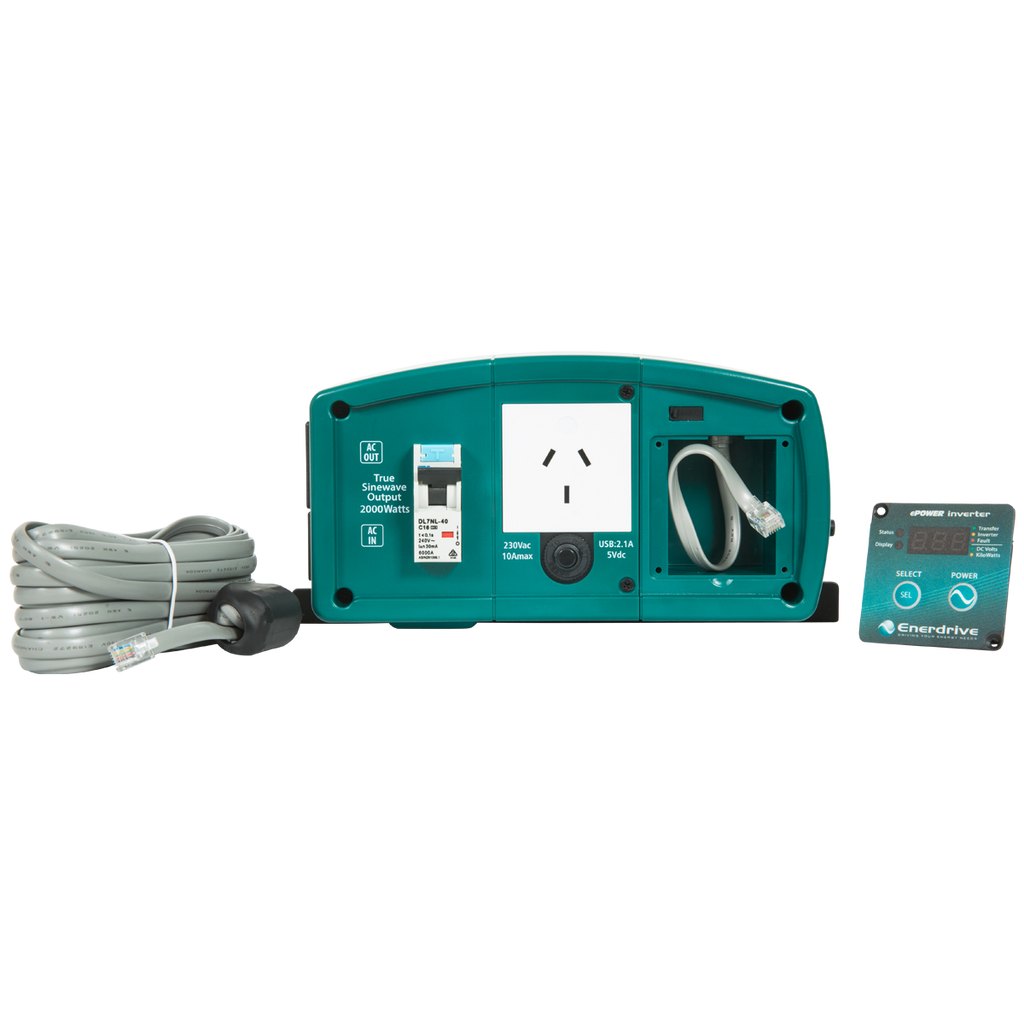

AC RCD/Safety Switch with test button

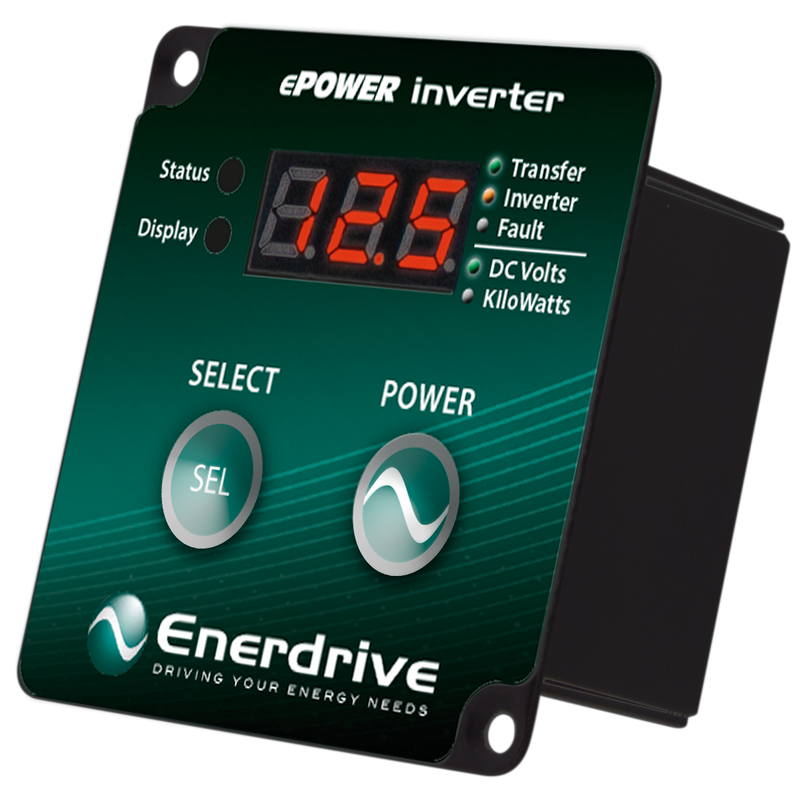

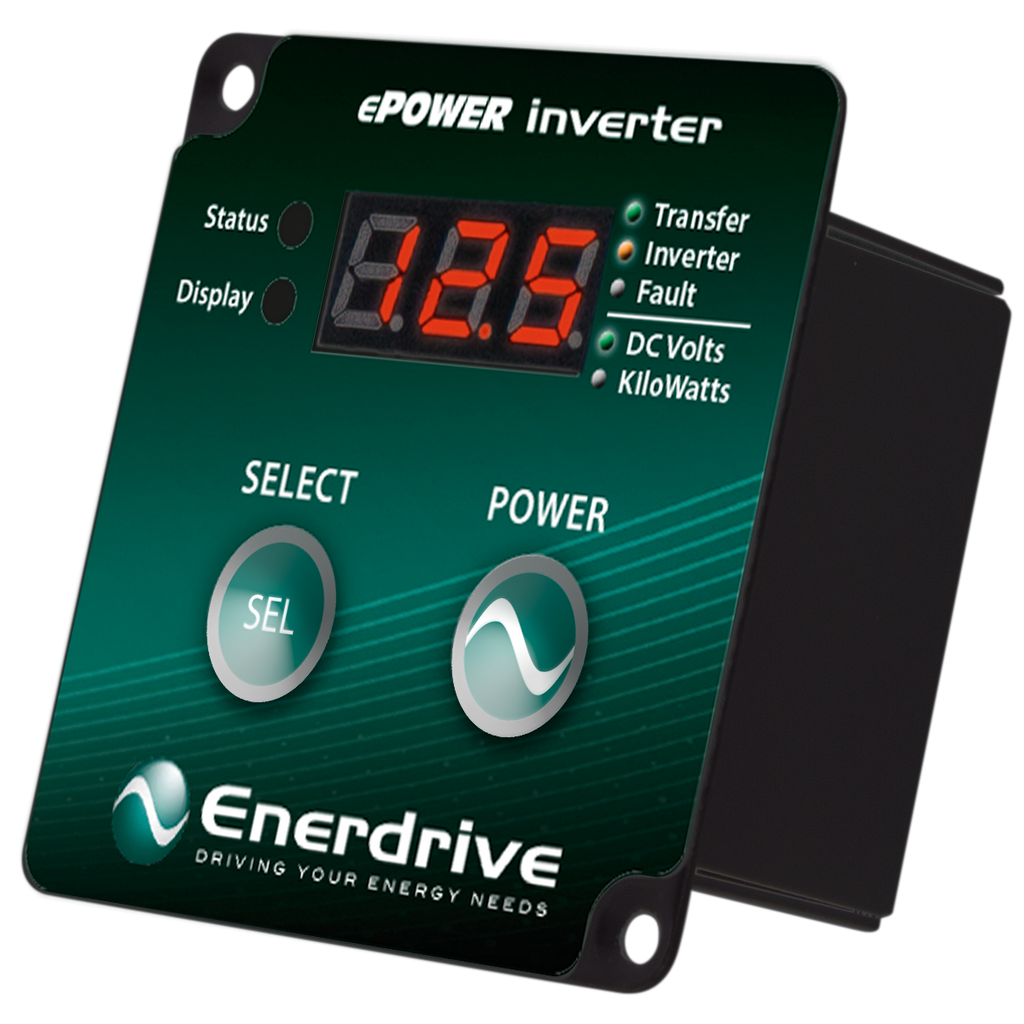

Removable LED Remote Control Display Panel
Regulated Pure Sine Wave Output
Silent Operation
Compact Size for Easy Installation
USB Port for charging USB devices

SPECIFICATIONS

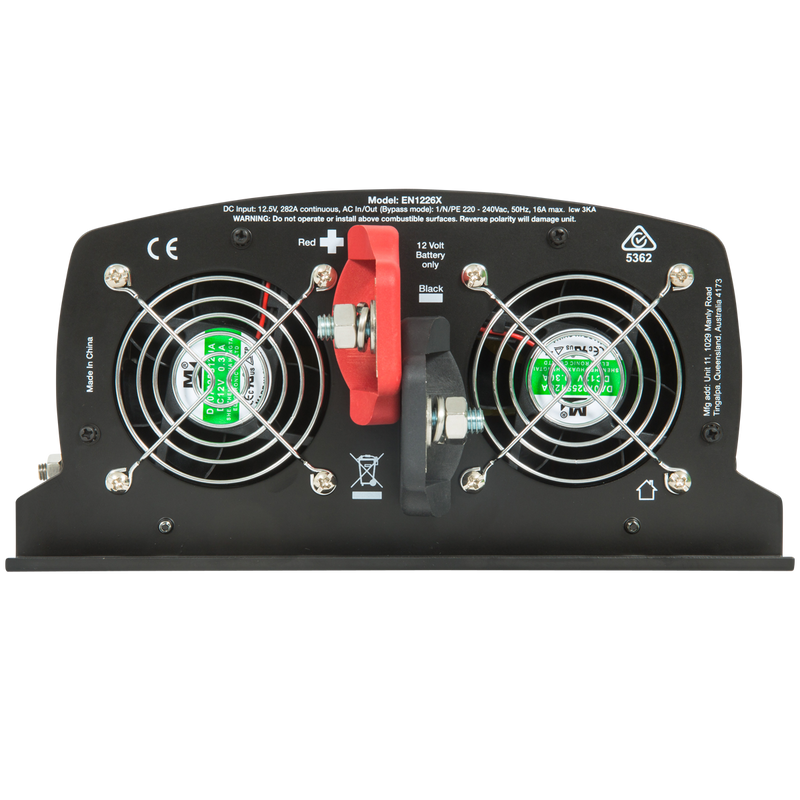

Model Description EN1226S-X
AC Output Power 2600W
AC Output Current 11.3A
AC Output Voltage 230 Vac / 50 Hz
AC Output Waveform Sinewave (3% THD)
Nominal DC Input Voltage 12.5 VDC
No Load battery draw 1.5 ADC
DC Input Voltage operating range 10.5 15.5 VDC
Under Voltage Alarm 11.0 / 12.1 VDC
Under Voltage Alarm Recovery 11.3 / 12.3 VDC
Under Voltage Shutdown 10.5 / 11.8 VDC
Under Voltage Shutdown Recovery 12.0 / 12.6 VDC
Over Voltage Shutdown 15.5 VDC
USB Port 5V, 2.1A
AC Transfer Switch
Transfer Time 30 ms
Transfer Relay Rating 16A (resistive load)
AC Input socket IEC-C20 16A max
AC Output socket IEC-C19 16A max
AC Output Front GPO 10A max
Safety and Environmental
Conformance All required Australian Standards , CE LVD: EN/IEC 62040-1, IEC61558-2-16
EMI / EMC CE EMC: EN/IEC 62040-2 category C1
Agency Markings RCM , CE
Operating Temperature 0C to 40C
Storage
PACKAGE INCLUDES
1 x Inverter with AC Transfer

WARRANTY
5 Years Warranty
