Enerdrive ePOWER 1000W True Sine Wave Inverter

|

❖Features

Australian GPO Outlets

True sine wave output is ideal for operating motor loads, and to reduce stress on surge protection circuitry, meaning potentially longer equipment life

Audio alarm with warning/error codes to alert user to check inverter condition before unit shutdown

Automatic shutdown protects overload, over temperature and low/high battery conditions

High surge capacity for products that require more power to start (2 x constant)

High efficiency conversion of battery available power to AC power

Mounting brackets for permanent installation

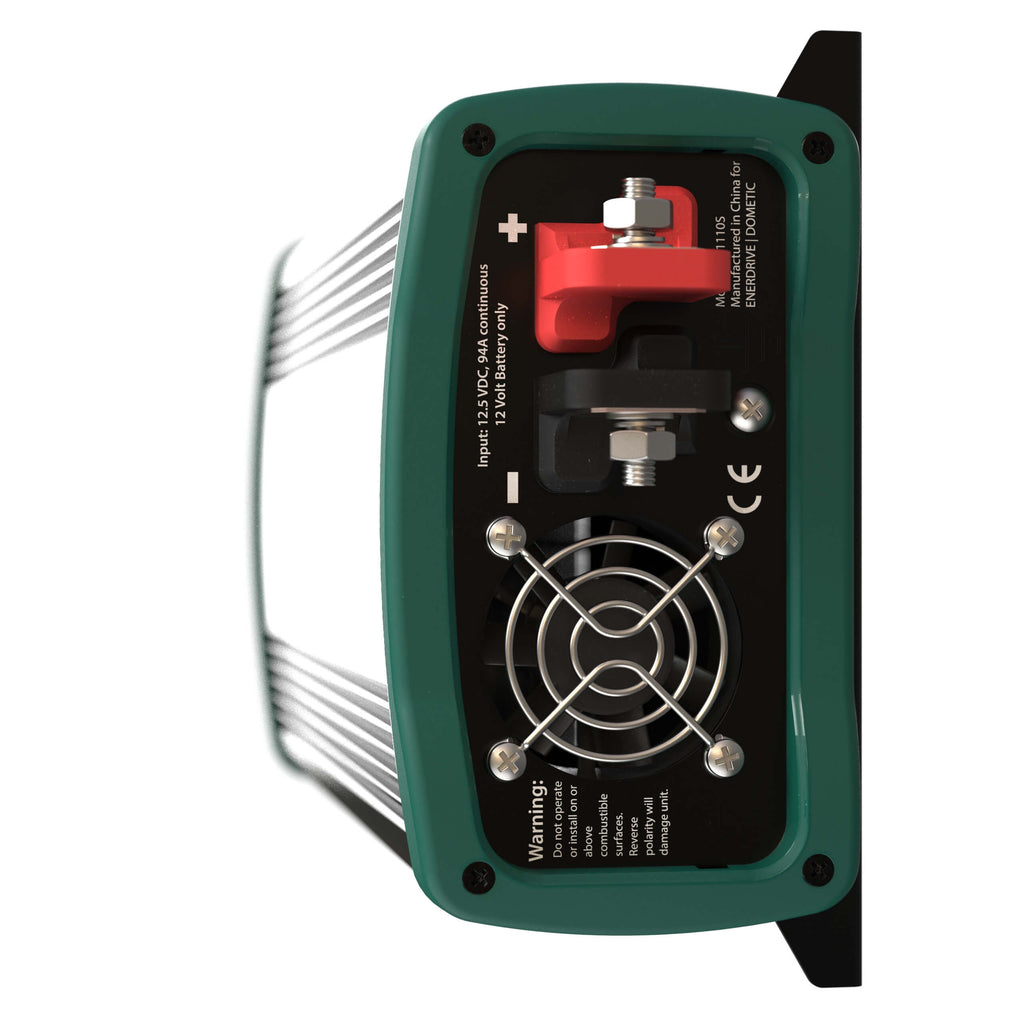

Heavy duty DC battery stud connectors

Includes 5V USB port

|

❖Specifications

Brand | Enerdrive
Model | EN1110S
AC Output Power | 1000W
AC Output Current | 4.3A
AC Surge Power (Peak) | 2000W
AC Output Voltage | 230 Vac / 50 Hz
AC Output Waveform | True Sinewave
AC Output Socket | 1 outlet
Nominal DC Input Voltage | 12.5 VDC
No Load battery draw | < 1.2 ADC
DC Input Voltage operating range | 10.5 – 15.5 VDC
Under Voltage Alarm | 11.2 VDC
Under Voltage Shutdown | 10.5 VDC
Under Voltage Recovery | 11.8 VDC
Over Voltage Shutdown | 15.5 VDC
USB | 5V, 750 mA
Safety and Environmental |
Conformance | All required Australian Standards
Agency Markings | RCM
Operating Temperature | 0°C to 40°C
Storage Temperature | -20°C to 60°C
Relative Humidity | 5-90% noncondensing
Operating Altitude | Up to 3000 meters above sea level
Weights and Dimensions |
Weight | 2.9Kg
Dimensions (W x L x H) | 177 x 325 x 90mm
Warranty | 2 Years

Load

| Consumption | Estimate Run time
Cordless Phone | 5W | 80 hrs
Clock/Radio | 8W | 65 hrs
Table Lamp | 40W/60W | 22 hrs/ 15 hrs
Freezer (8.8 cu. ft.) | 80W | 12 hrs
20″ LCD TV | 100W | 10.5 hrs
Refrigerator (18 cu. ft.) | 120W | 8.3 hrs
Microwave (mid-size) | 1000W | 44 min
Coffee Maker | 1200W | 35 min
Vacuum | 1400W | 28 min
