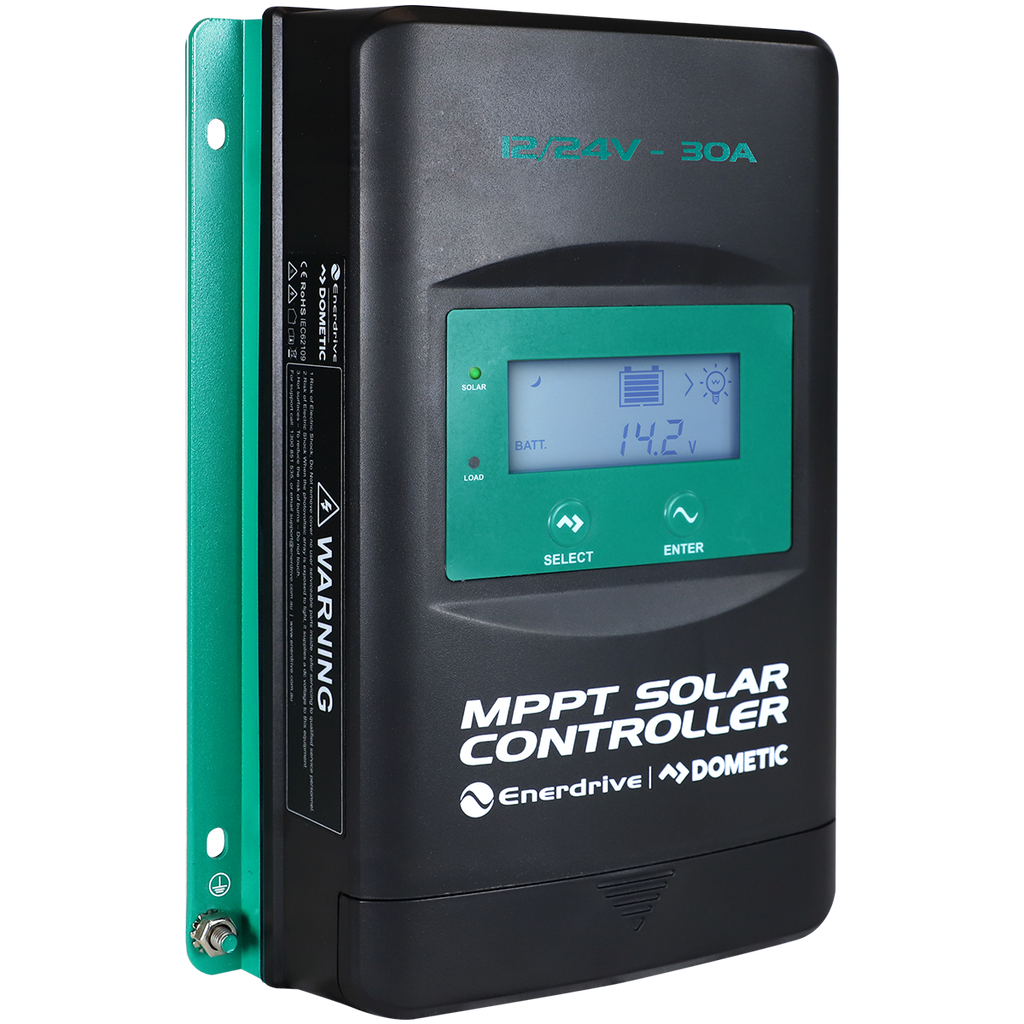

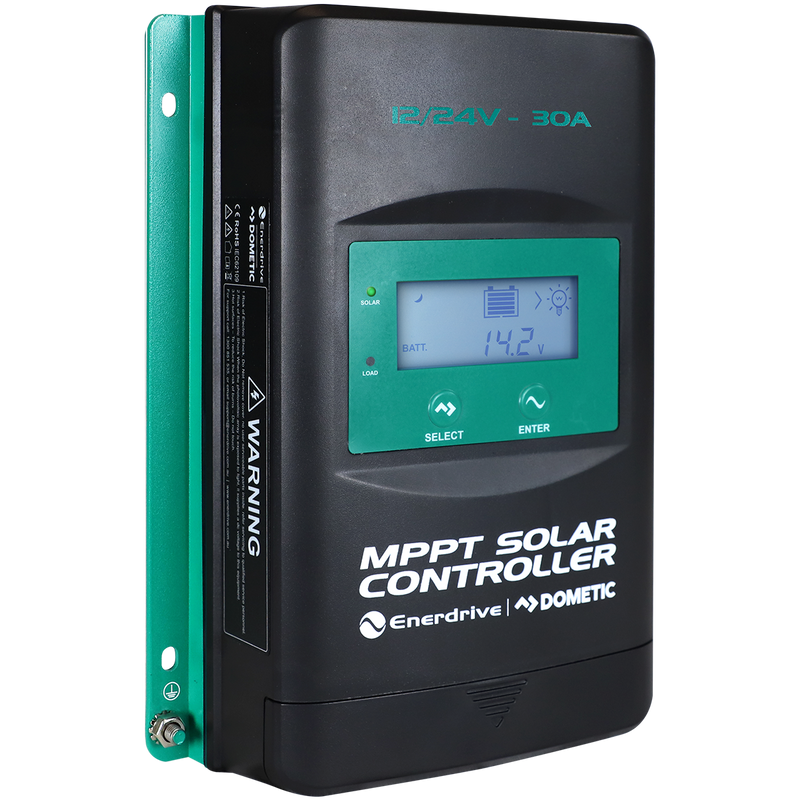

Enerdrive EN43530 MPPT Solar Charge Controllers

|

❖Features

CE certification (LVD EN/IEC62109,EMC EN61000-6-1/3)

LCD display

Advanced MPPT technology & ultra-fast tracking speed guarantee’s tracking efficiency up to 99.5%

Maximum DC/DC transfer efficiency is as high as 98.6%.

Advanced MPPT control algorithm to minimize the MPP lost rate and lost time

Accurate recognition and tracking of multi-peaks maximum power point

Wide MPP operating voltage range

Support lead-acid and lithium batteries

Real-time energy statistics function

Power reduction automatically over temperature value

Multiple load work modes

Comprehensive electronic protection

IP33 Ingress protection

Comms port included for future applications

|

❖Specifications

Brand | Enerdrive
Model | EN43530
ominal Voltage Range | 12/24VDC Auto Select ¹
Battery Voltage Range | 8 ~ 32V
Maximum Battery Current Output | 30A
Maximum Load Current Output | 30A
Maximum PV Open Circuit Voltage | 100V ²
| 92V ³
MPPT Voltage Range | (Battery Voltage + 2V) - 72V
Maximum PV Array Power Recommended | 450W/12V
| 900W/24V
Maximum PV Array Power Allowed (Overdrive) | 540W/12V
| 1080W/24V
Efficiency (Maximum) | 98.60%
Self Consumption | ≤30mA (12V)
| ≤16mA (24V)
Temperature Compensate Coeffcient ⁴ | -3mV/°C/12V (Default)
Grounding | Common Negative
RS485 Interface | 5VDC/200mA (RJ45)
LCD Backlight Timeout | Default: 60S, Range,: 0~999S (OS: the backlight is ON all the time)
ENVIRONMENTAL PARAMETERS |
Environmental Temperature ⁵ | -25°C ~ +50°C
Storage Temperature Range | -20°C ~ +70°C
Relative Humidity | ≤95%, N.C.
IP Rating | IP33
MECHANICAL PARAMETERS |
Dimensions (mm) LxWxH | 230 x 165 x 63
Mounting Hole Dimensions (mm) | 173 x 156
Mounting Hole Size | ɸ5mm
Maximum Cable Size (Connector Input/Output) | 8AWG (10mm²)
Recommended Cable Size (Connector Input/Output) | 8AWG (10mm²)
Warranty | 5 year
1. When lithium battery is used, the system voltage can’t be identified automatically.
2. At minimum operating environment temperature.
3. At 25°C environment temperature.
4. When lithium battery is used, the temperature compensate coefficient must be 0, and can’t be changed.
5. The controller can supply full load working in the environment temperature. When the internal temperature reaches 81°C, the reduced charging power mode is turned on.
