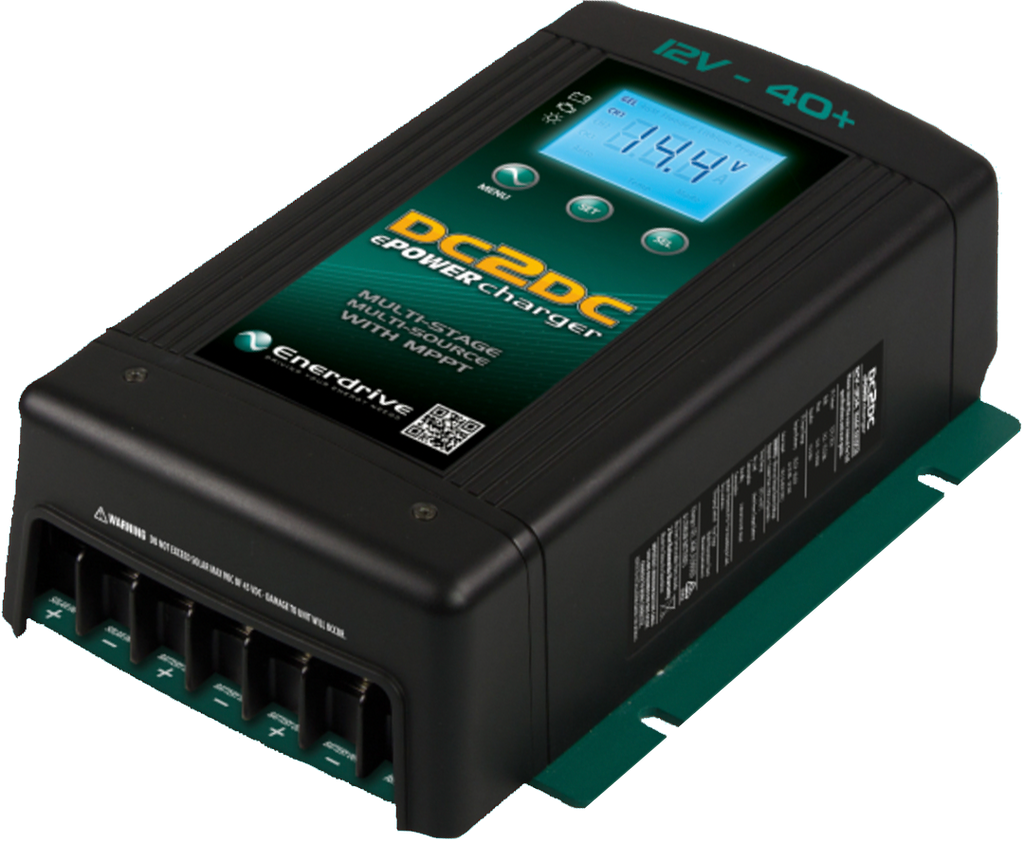

ENERDRIVE DC To DC Battery Charger 12V 40A+

DESCRIPTION

If you are looking for the best DC to DC charger money can buy, Enderdrives ePOWER EN3DC40 12v/40a DC to DC Battery Charger is our top pick. This Enerdrive ePOWER 40a/12v EN3DC40 DC to DC charger truly stands out from its competitors. Engineered to perfection and manufactured to the highest possible quality, it's easy to see why Enerdrive is quickly overtaking the market. The Enerdrive ePOWER 40a/12v EN3DC40 DC to DC charger is a fully automatic multistage, multi-input battery charger that has the capacity to charge from solar power using the integrated Maximum Power Point Tracking (MPPT) Solar Controller or from an alternator connected to a battery. The main/house battery can be charged from any of the two accessible inputs: the engine when moving, or the solar panels. Both functions are managed internally by the device itself without the use of external relays, making it completely automatic to select between the engine or the solar power.

FEATURES
Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output

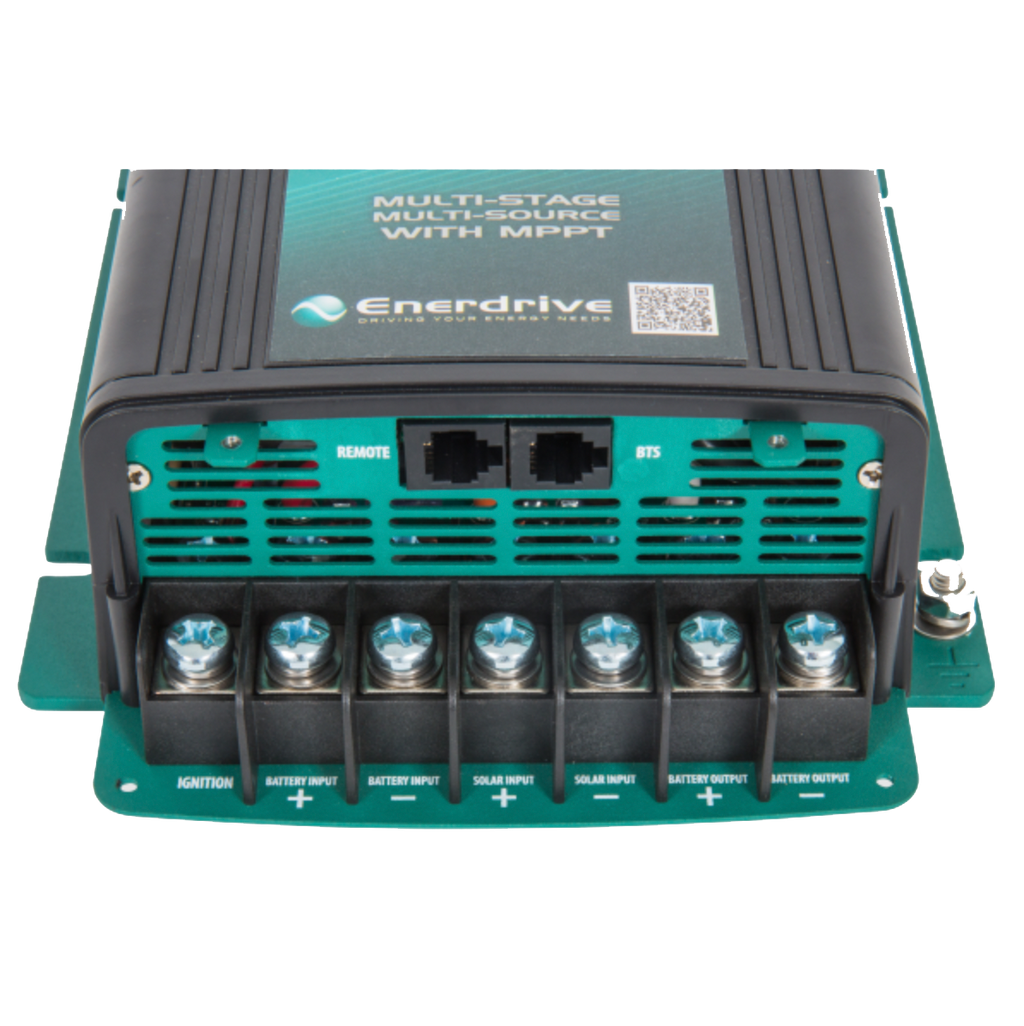

DC M6 screw terminals that will allow for large battery cable connection between all sources
A dedicated Maximum Power Point (MPPT) solar regulator
The same battery algorithms as included in our AC mains ePOWER battery charger. GEL, AGM, Flooded, Lithium and the ability to create a full custom profile
Vehicle input allows for either 12 or 24v and a maximum solar input of 45V/800W
40A+ output up to 40+°C with thermo controlled fan cooling

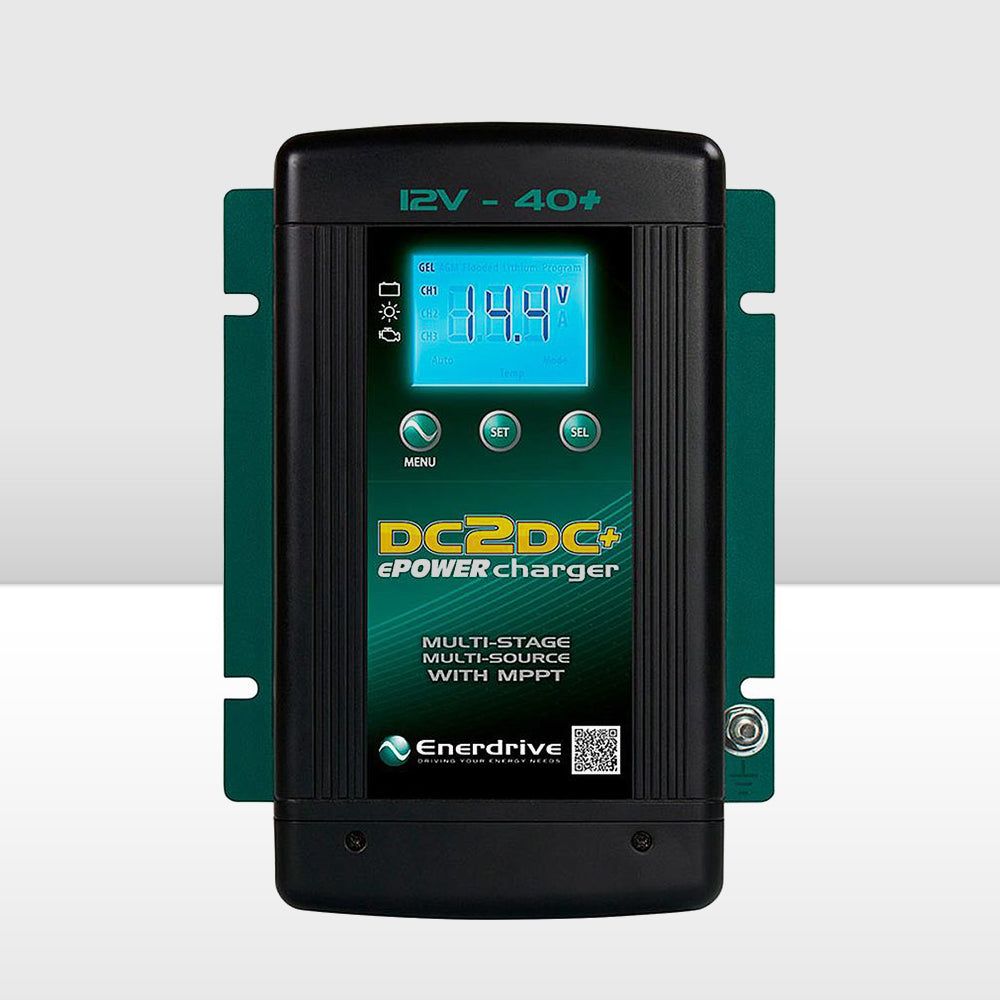

Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
Temperature sensor included with charger for more accurate battery charging

SPECIFICATIONS
Model EN3DC40+
Output Voltage 12V Nominal (8.0V min)
Output Current (Maximum) 40A ~ 50A
Output Power 775W
Selectable Battery Type Gel, AGM, Flooded, Lithium, Program
Charger Voltage Range 13.8V 15.5V
Float Voltage Range 13.0V 13.8V
Charger Current (User Selectable) 5/10/15/20/25/30/35/40/45/50A (default 40A)
Equalize Voltage (Flooded Battery) 15.5V
Equalize Charging Current 10% of Bulk Current Setting
Charging Control 2 stage / 3 stage selectable (Default 3 stage)
DC Output Bank Single
Current draw from CH1 when not in use 50mA
Battery Temperature Setting Low/ Normal/ High (Battery Temperature Sensor Standard)
Efficiency 95%
INPUT Rating (CH2 MPPT Solar)
Input Voltage 14.5 45VOC
Maximum Input 23V input, 500W (600W allowable) 37.5V-45V input, 750W (800W allowable)
INPUT Rating (CH3 Start/Alternator)
Input Voltage 10.5 16VDC / 21 32VDC
Dimensions
Height x Width x
PACKAGE INCLUDES
1 x DC-DC Charger

WARRANTY
5 Years Warranty
