DESCRIPTION

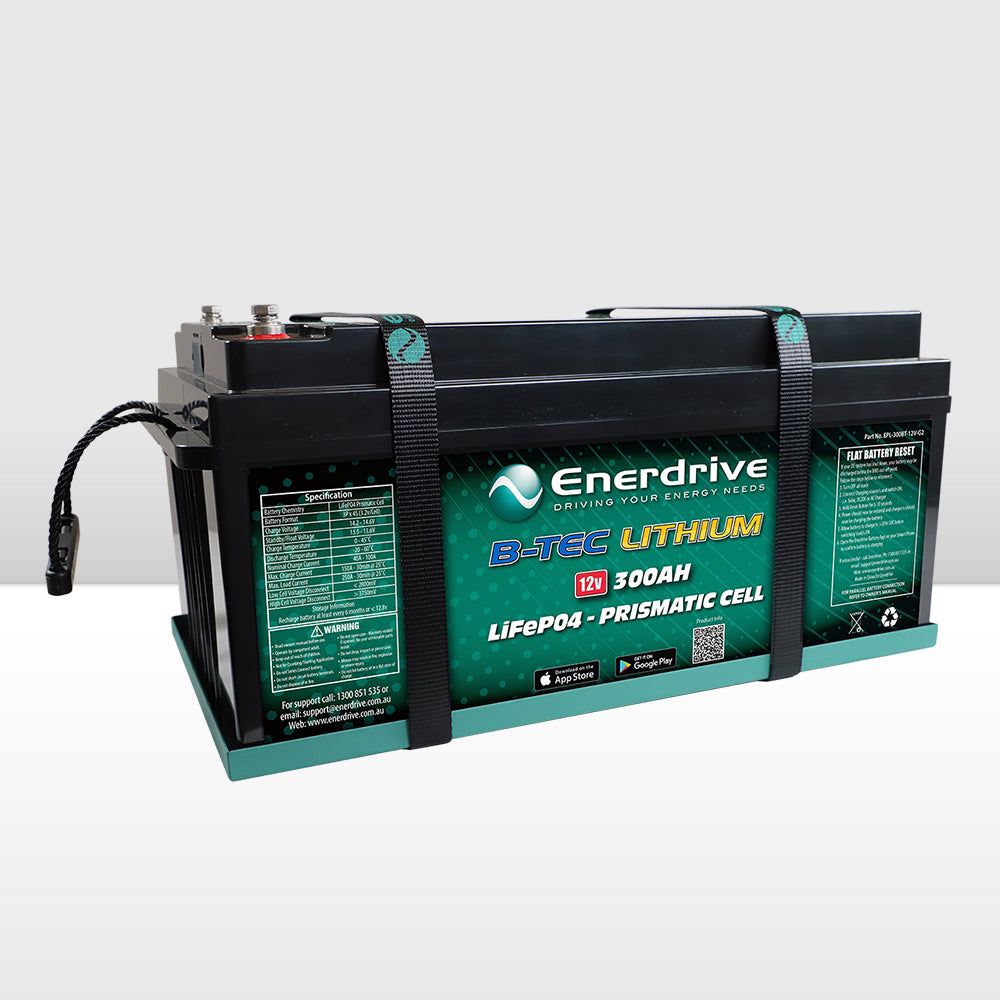

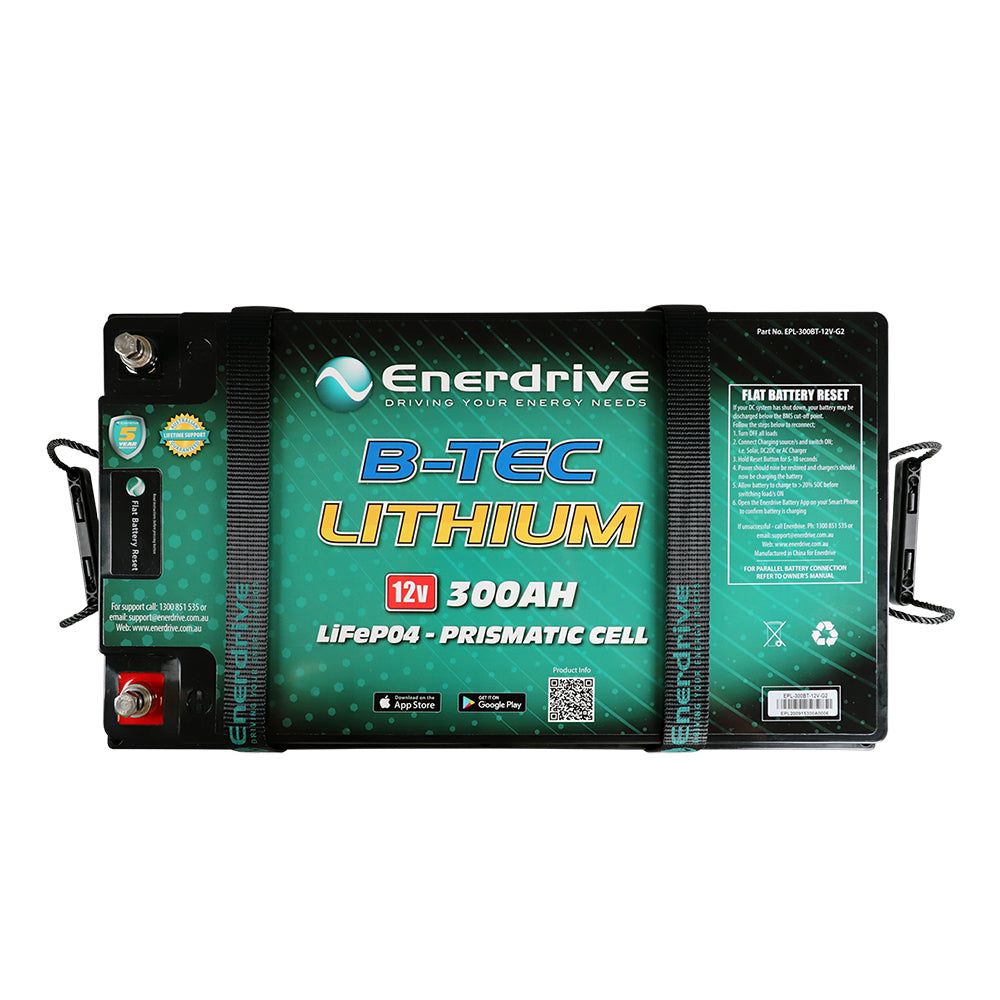

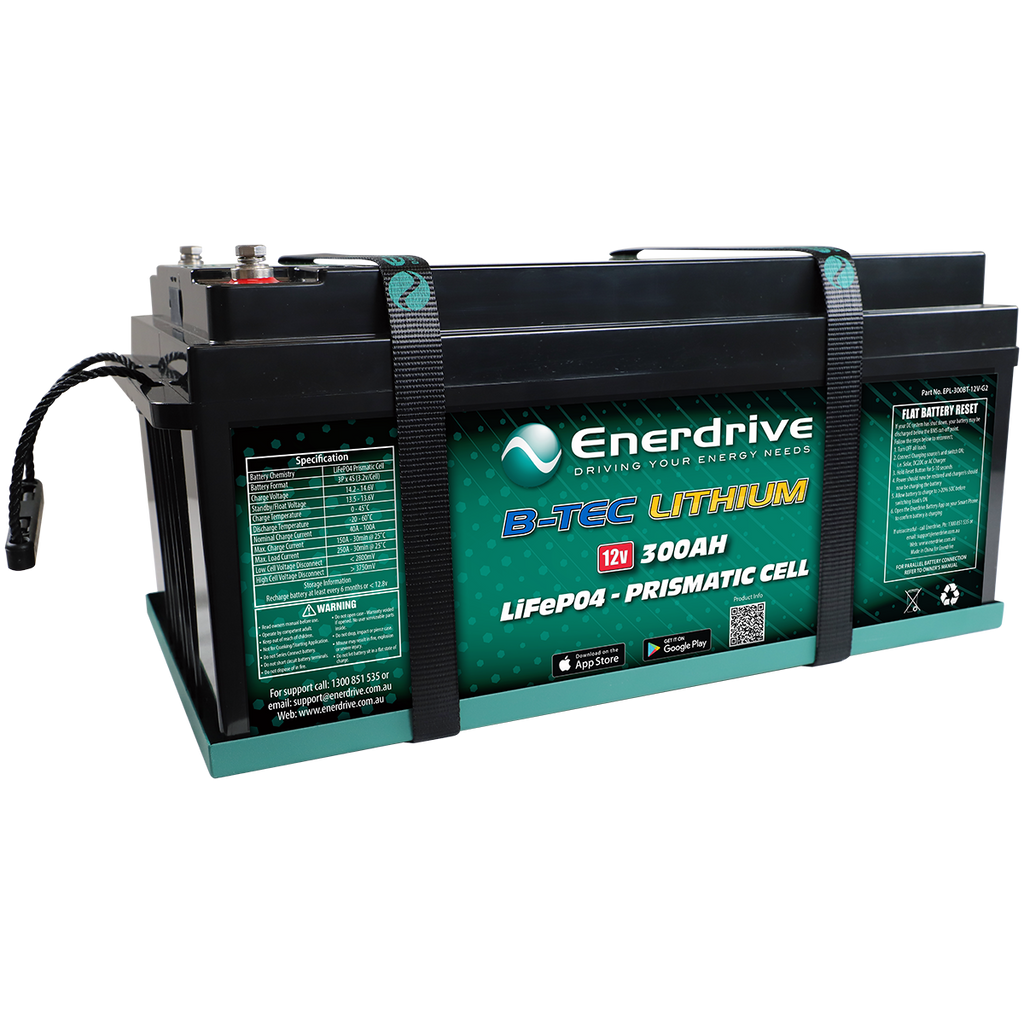

Available in 12v 300Ah capacity, the Enerdrive B-TEC G2 lithium battery is
designed and intended for use in deep cycle applications where a single
battery is required that meets the amp hour capacity. The Enerdrive B-TEC G2
battery incorporates wireless Battery Monitoring Technology. By downloading
the Android™ or Apple® app to your smartphone or tablet device, you can
monitor the following information:Battery Capacity,Battery Voltage,Battery
Current (Amps),Battery State of Charge (SOC),Battery State of Health
(SOH),Battery Status,Individual Cell Voltage,Battery Temperature,Battery
Cycles,Battery Alarms,Battery Event Information The battery is also equipped
with an internal Battery Management System that can monitor and optimise each
Prismatic cell within the battery during normal operation. It will protect the
battery pack from over charge, over discharge, over temperature & short
circuit. The BMS helps to ensure safe and accurate operation of the battery.
FEATURES
The Enerdrive B-TEC G2 battery provides 60% more usable power than its
equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes
for a superior alternative.
The Enerdrive B-TEC G2 battery is perfect for camper trailers, 4WD’s (AUX
battery), caravans, small water craft, low power communication sites or any
other application that requires the use of a single deep cycle battery that
meets the amp hour capacity.
The G2 now incorporates a “Built-In Reset Button” making re-starting a flat
battery a breeze. No longer do you need to apply a voltage to the battery
terminals to wake up the battery. Press the button and within seconds, the
battery will come back to life ready to accept a charge source to rejuvenate
the battery.
The new G2 also includes a RS485 communications port located on the top of the
battery. This port allows for integration onto other CanBus systems for data
monitoring and recording.
The New Enerdrive Generation 2 (G2) B-TEC 300Ah Lithium Battery now comes with
a 5 year warranty, giving you peace of mind that this product will keep you
covered.
With over 8 years of researching, designing and testing lithium batteries and
the associated charging systems, Enerdrive are at the forefront of lithium
battery systems in Australia. Enerdrive are the only Australian company that
can supply a fully integrated self-branded energy system to suit your setup.
With over 4000 complete systems in operation Australia wide, Enerdrive is
regarded as the leader in the field of lithium batteries and energy systems
for Mobile, Marine and Remote applications.
Please Note; The G2 battery is capable to be paralleled to a second G2
battery. For maximum performance and lifespan of your G2 battery, no more than
4 batteries should be connected together to increase your overall capacity.
Overall loads when paralleled should not exceed the current limits of a single
batteries BMS.
The G2 300Ah battery is able to accept a maximum inverter capacity of 3000W
only. Exceeding the maximum inverter capacity can damage the BMS Management
within the battery.
SPECIFICATIONS
Model Description EPL-300BT-12V G2
Nominal Voltage 12.8V
Nominal Capacity 300Ah
Cycle Life (DOD 80% under controlled conditions) 2000 Cycles
Standard Charge Specification (Lithium profile charger required)
Battery Charge Temperature 0 ̴ 45C
Normal Charge Voltage CV/CC* 14.20 ̴ 14.60V
Standby (Float) Voltage 13.50 ̴ 13.80V
Maximum Charge Current 190A @ 25C for 30mins
Recommended Charge CurrentFor Maximum Life, Charge in the lower amperage range
60~120A
Standard Discharge Specification
Battery Discharge Temperature -20 ̴ 60C
Battery Output Voltage Range 11.00 ̴ 14.60V
Maximum Discharge/Pulse Current 250A @ 25˚C 5˚C for 15 mins
Pulse Discharge Current 450A for 1.0s
Discharge Cut-off Voltage 11.20V
Over-Charge Protection
Over-charge Protection Per Cell 3.90V 0.03V
Over-charge Release Per Cell 3.60V 0.05V
Over-charge Release Method Discharge below release voltage
Over-Discharge
PACKAGE INCLUDES
1 x LiFePO4 Battery
WARRANTY
5 Years Warranty
