DESCRIPTION

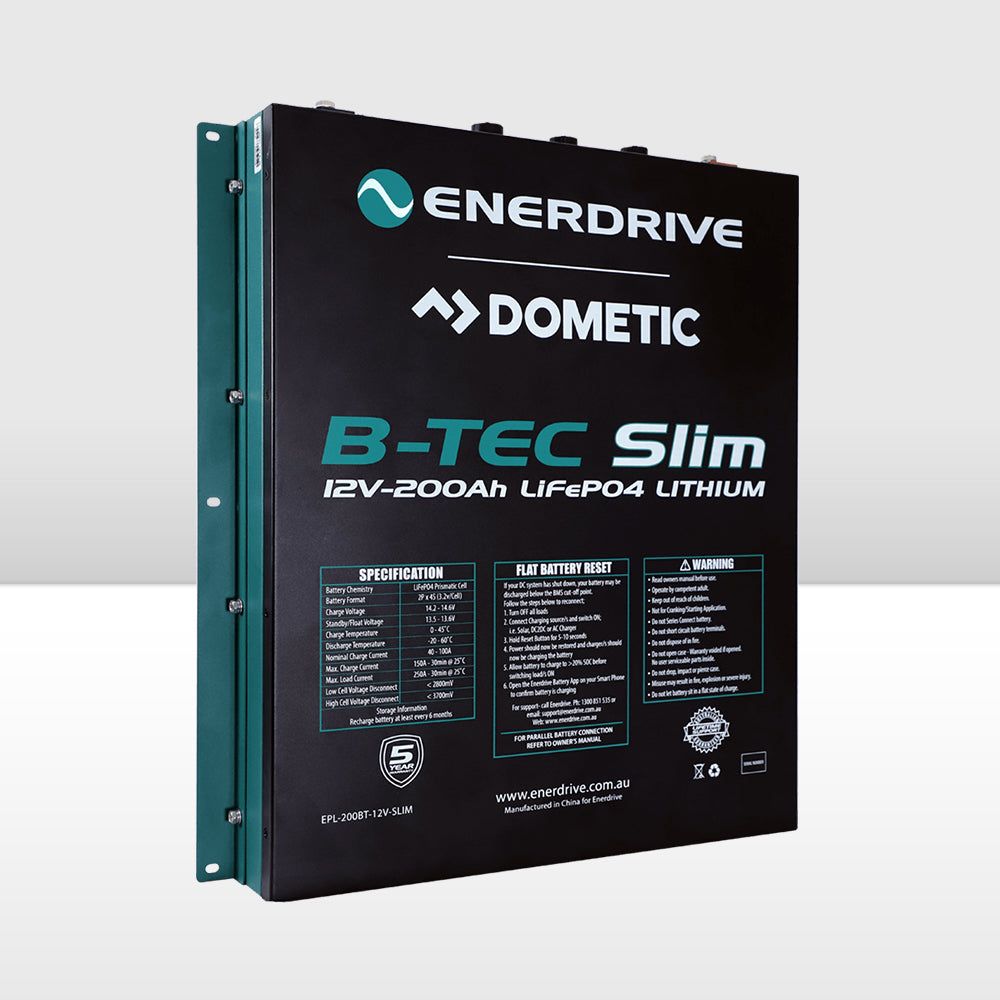

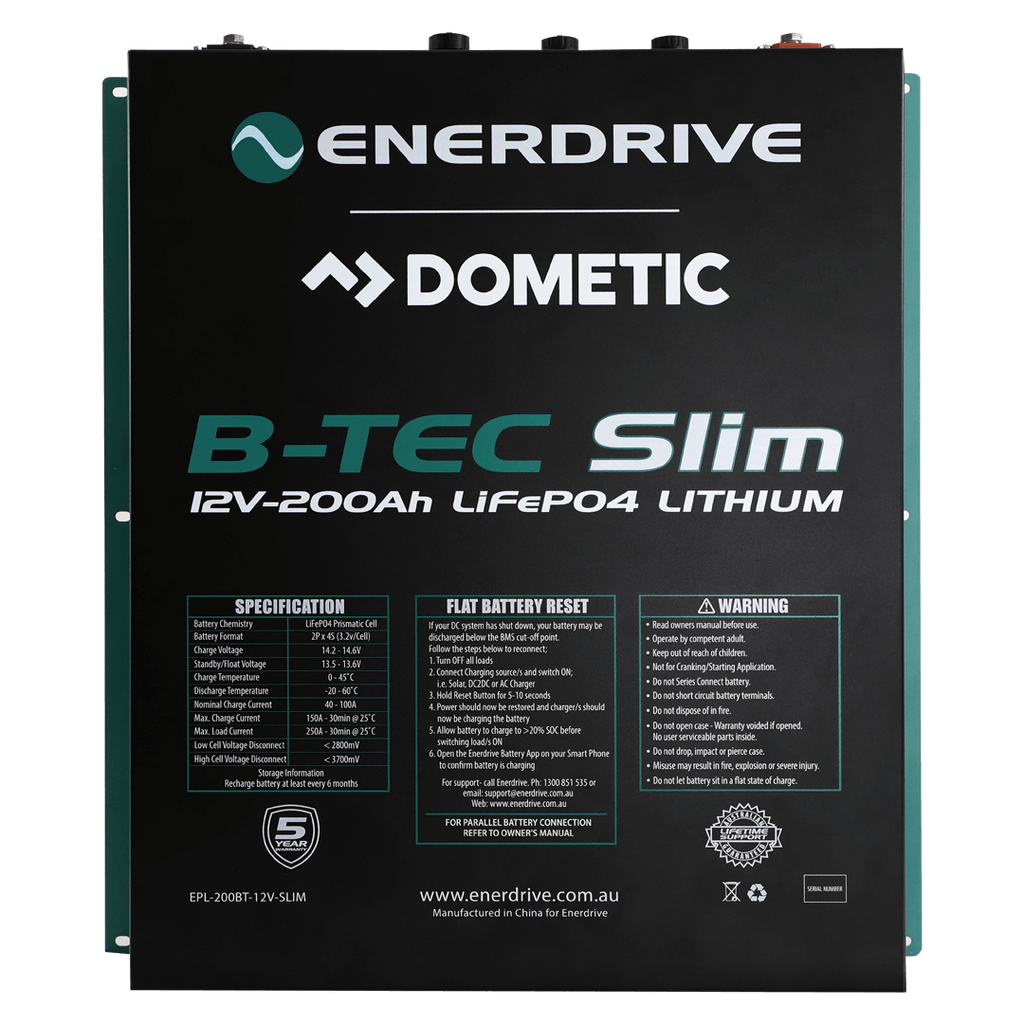

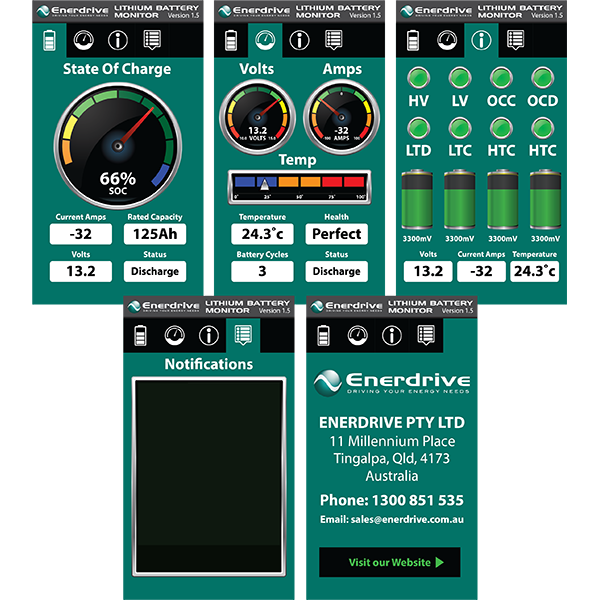

The new 200Ah ePOWER B-TEC Slimline lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity. The Enerdrive Enerdrive B-TEC Slimline battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information:Battery Capacity,Battery Voltage,Battery Current (Amps),Battery State of Charge (SOC),Battery State of Health (SOH),Battery Status,Individual Cell Voltage,Battery Temperature,Battery Cycles,Battery Alarms,Battery Event Information The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

FEATURES

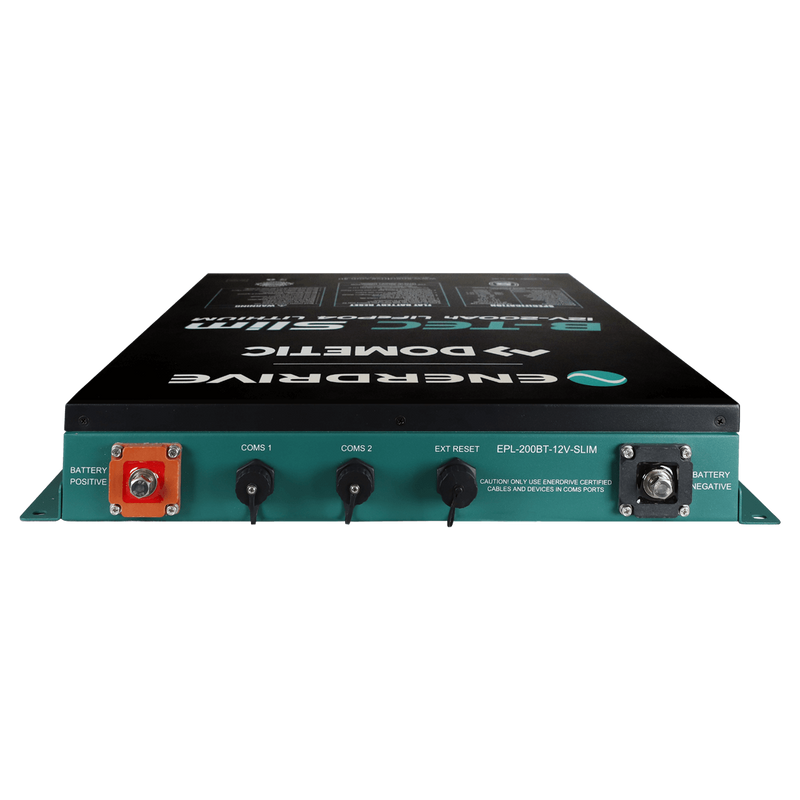

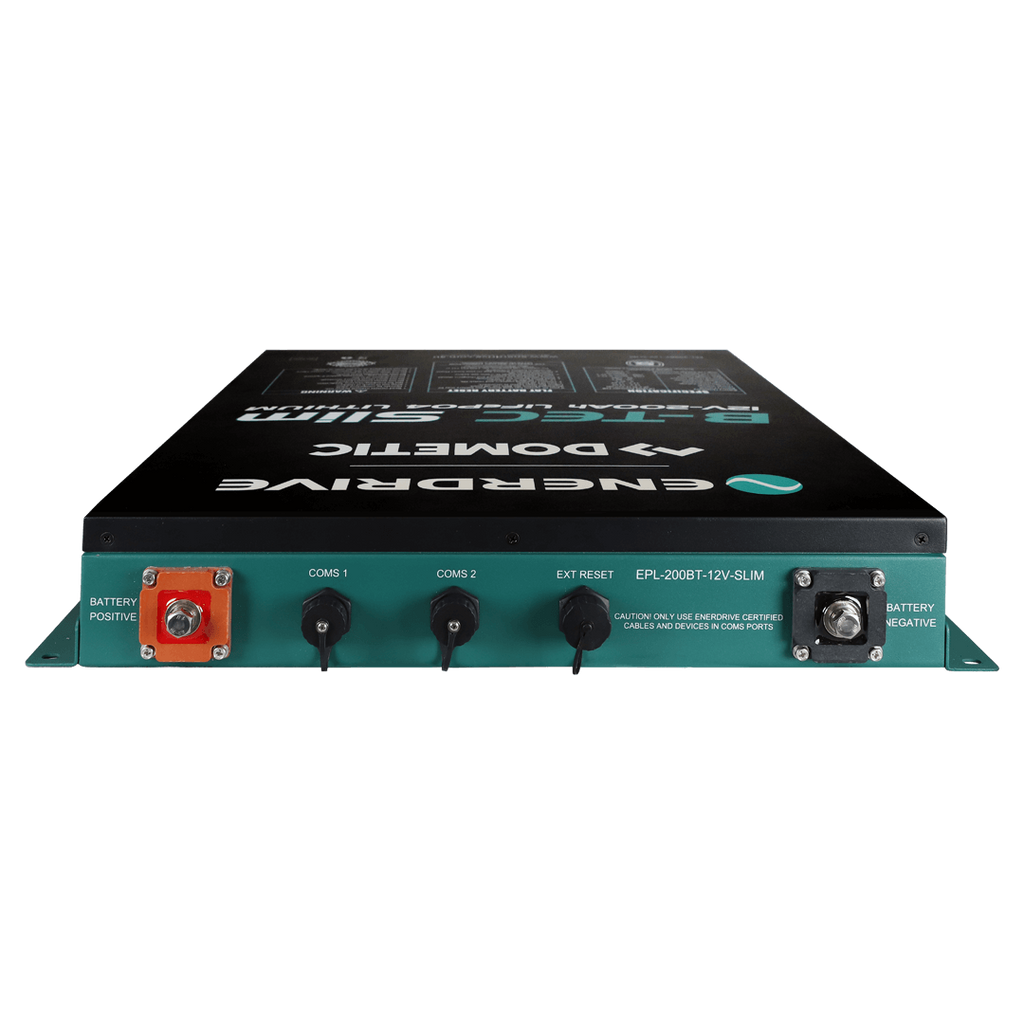

Extremely compact size W 530 x H 600 x D 83 mm. All connection points for the battery are at one end including all Comms Ports and Reset Port.
Reset button is not included on the battery itself, we have opted for a button that can be remotely mounted elsewhere in the install. This allows for a much easier restart process for customers and also keeps the battery more water tight with less chance of water ingress.
Comms Ports are both RJ45 remote ports with CAN output. Both are reserved for future integration and functionality.
Water resistant metal casing meeting IP64 rating and all external bolts and fittings are blind so limits the chance for water to travel from external to internal. Rubber style seals between all metal framing. Frames overlap as well to help avoid water ingress.

SPECIFICATIONS
Model Description EPL-200BT-12V-SLIM
Nominal Voltage 12.8V
Nominal Capacity 200Ah
Cycle Life (DOD 80% under controlled conditions) 2000 Cycles
Standard Charge Specification (Lithium profile charger required)
Battery Charge Temperature 0 ̴ 45C
Normal Charge Voltage CV/CC* 14.20 ̴ 14.60V
Standby (Float) Voltage 13.50 ̴ 13.80V
Maximum Charge Current 150A @ 25C for 30mins
Recommended Charge Current for Maximum Life 60A-120A
Standard Discharge Specification
Battery Discharge Temperature -20 ̴ 60C
Battery Output Voltage Range 11.00 ̴ 14.60V
Maximum Discharge/Pulse Current 250A@25C 5C for 30mins
Pulse Discharge Current 450A for 1.0s
Discharge Cut-off Voltage 11.20V
Over-Charge Protection
Over-charge Protection Per Cell 3.90V 0.03V
Over-charge Release Per Cell 3.60V 0.05V
Over-charge Release Method Discharge below release voltage
Over-Discharge Protection
Over-discharge Protection
PACKAGE INCLUDES
1 x LiFePO4 Battery

WARRANTY
5 Years Warranty
