❖Features
Two totally independent DC Inputs for both engine and solar regulation
charging one house battery bank output

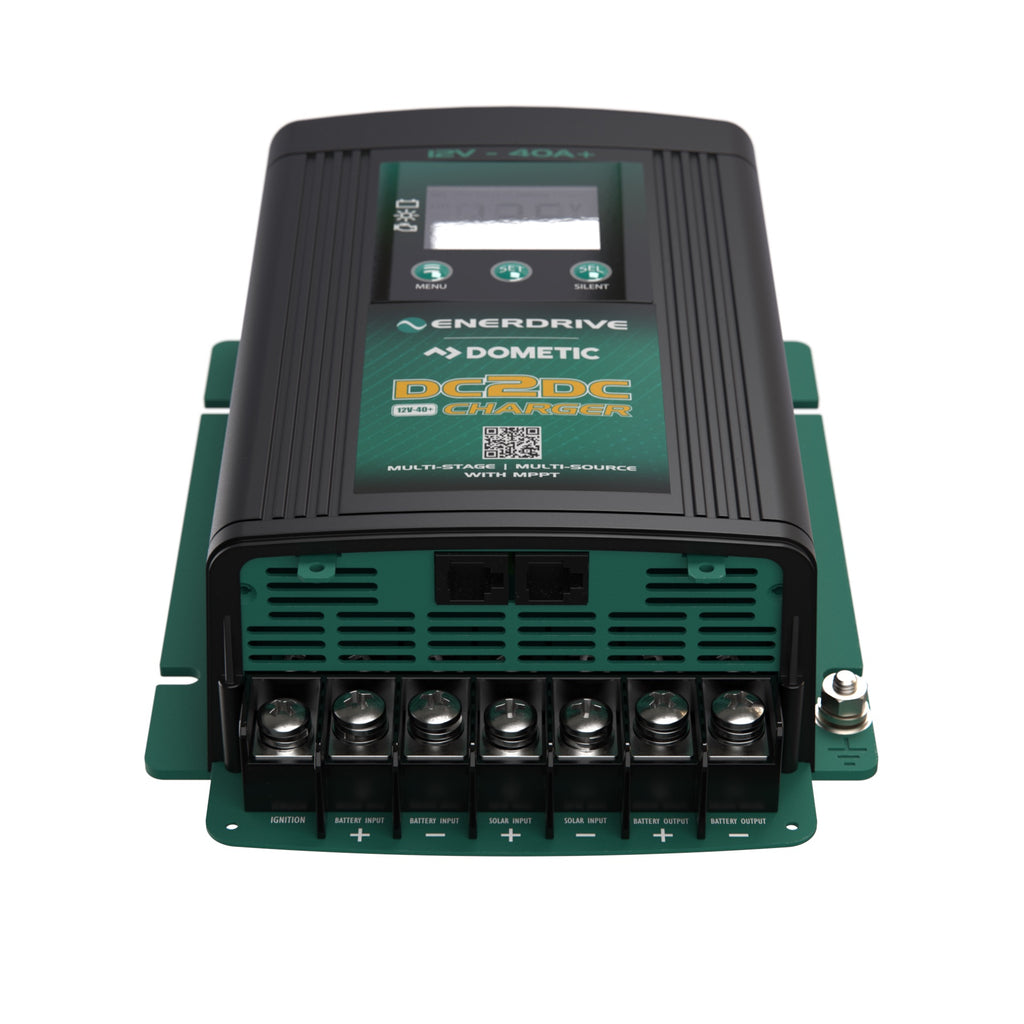

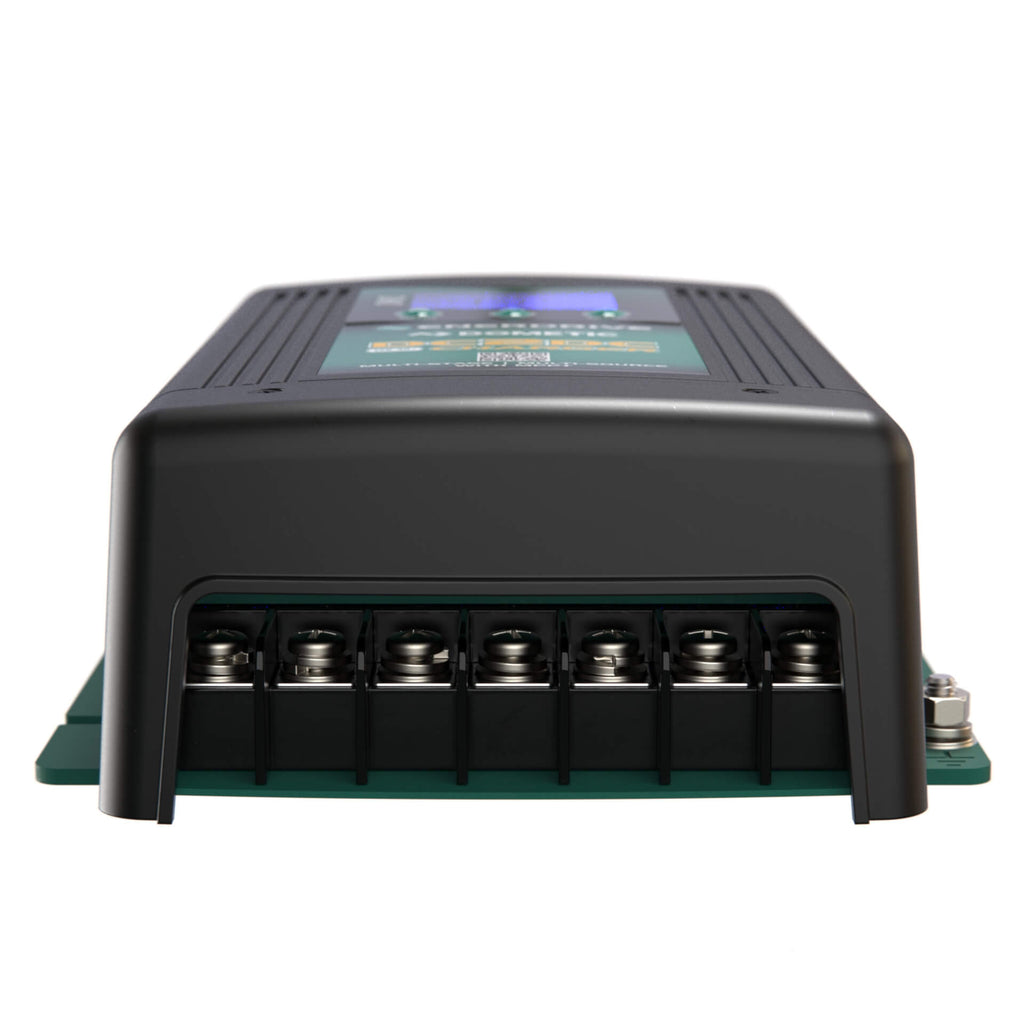

DC M6 screw terminals that will allow for large battery cable connection
between all sources
A dedicated Maximum Power Point (MPPT) solar regulator
The same battery algorithms as included in our AC mains ePOWER battery
charger. GEL, AGM, Flooded, Lithium and the ability to create a full custom
profile
Vehicle input allows for either 12 or 24v and a maximum solar input of
45V/800W
40A+ output up to 40+°C with thermo controlled fan cooling

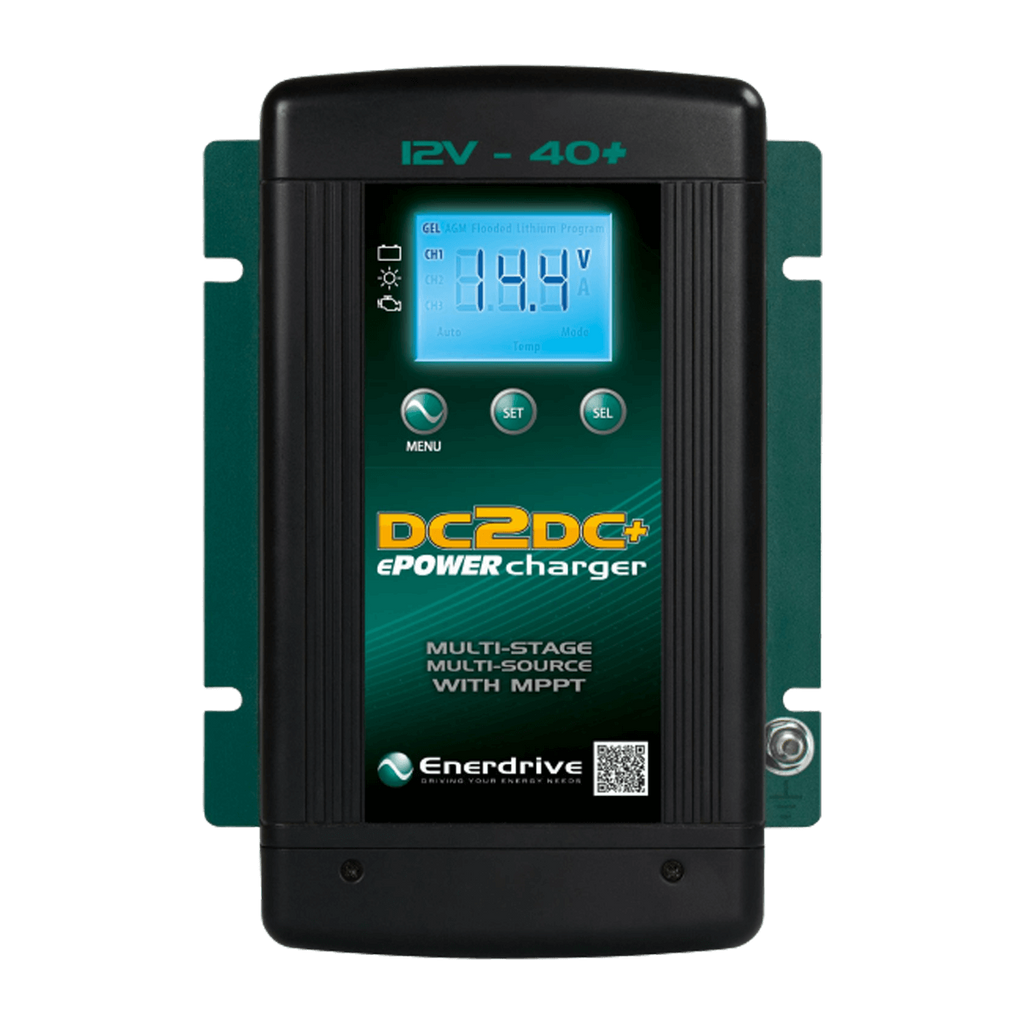

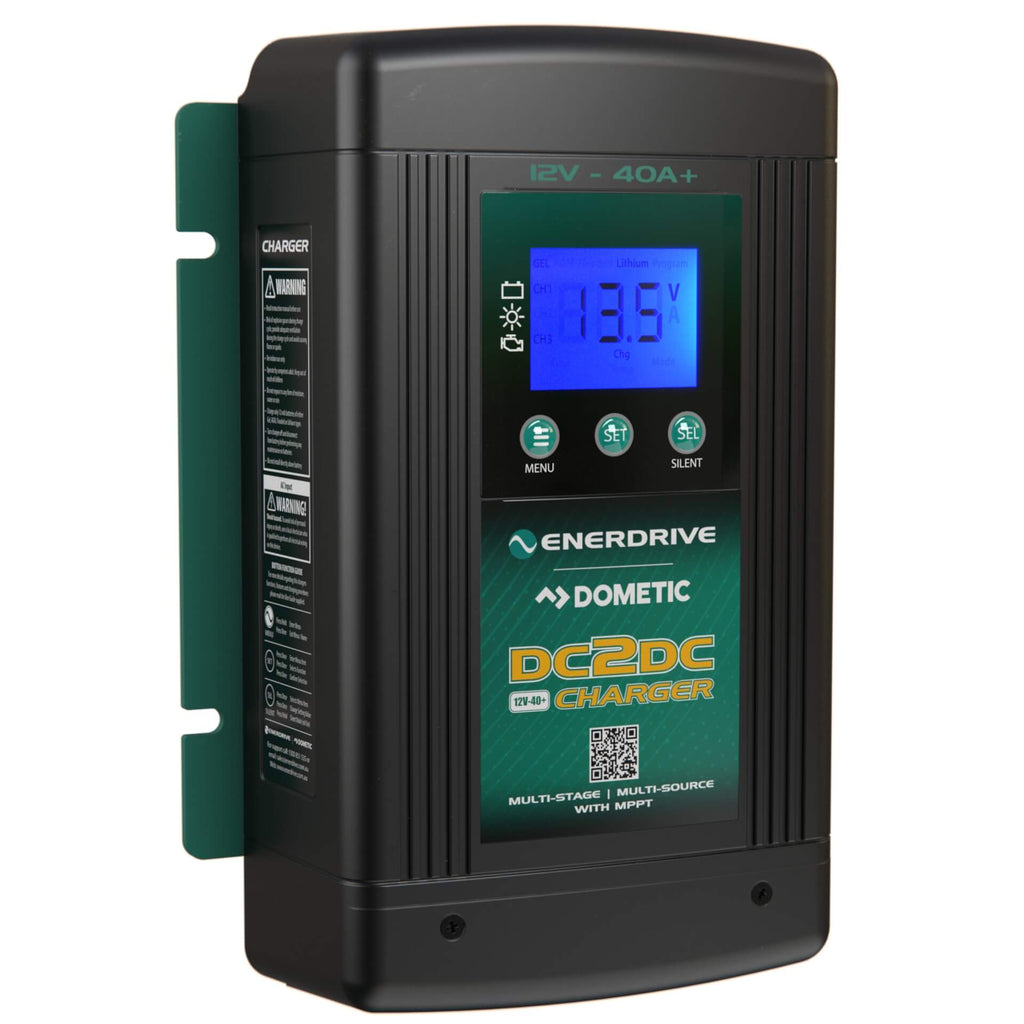

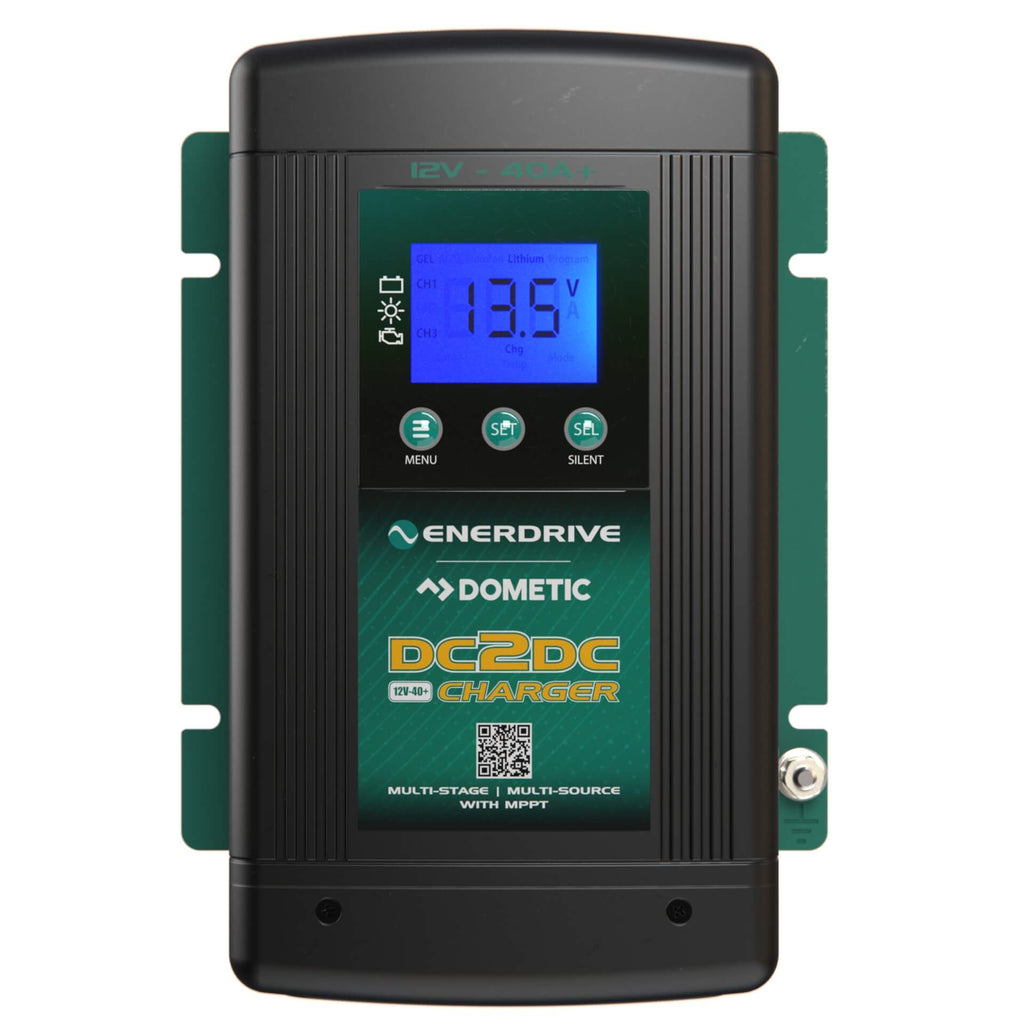

Fully programmable LCD display to show which source is charging the battery
along with charger status, voltage and amperage
Temperature sensor included with charger for more accurate battery charging
|
❖Specifications
Brand | Enerdrive
Model | EN3DC40+
Output Rating
Output Voltage | 12V Nominal (8.0V min)
Output Current (Maximum) | 40A ~ 50A
Output Power | 775W
Charger DC Output (CH1):
Selectable Battery Type | Gel, AGM, Flooded, Lithium, Program
Charger Voltage Range | 13.8V – 15.5V
Float Voltage Range | 13.0V – 13.8V
Charger Current (User Selectable) | 5/10/15/20/25/30/35/40/45/50A (default
40A)
Equalize Voltage (Flooded Battery) | 15.5V
Equalize Charging Current | 10% of Bulk Current Setting
Charging Control | 2 stage / 3 stage selectable (Default 3 stage)
DC Output Bank | Single
Current draw from CH1 when not in use | < 50mA
Battery Temperature Setting | Low/ Normal/ High (Battery Temperature Sensor
Standard)
Efficiency | 95%
INPUT Rating (CH2 – MPPT Solar)
Input Voltage | 14.5 – 45VOC
Maximum Input | ≤ 23V input, 500W (600W allowable) ≥37.5V-45V input, 750W
(800W allowable)
INPUT Rating (CH3 – Start/Alternator)
Input Voltage | 10.5 – 16VDC / 21 – 32VDC
Dimensions
Height x Width x Depth | 242mm x 172mm x 74mm
Unit Weight | 1.85 Kg
Shipping Weight | 2.17 kg
Warranty | 5 year
