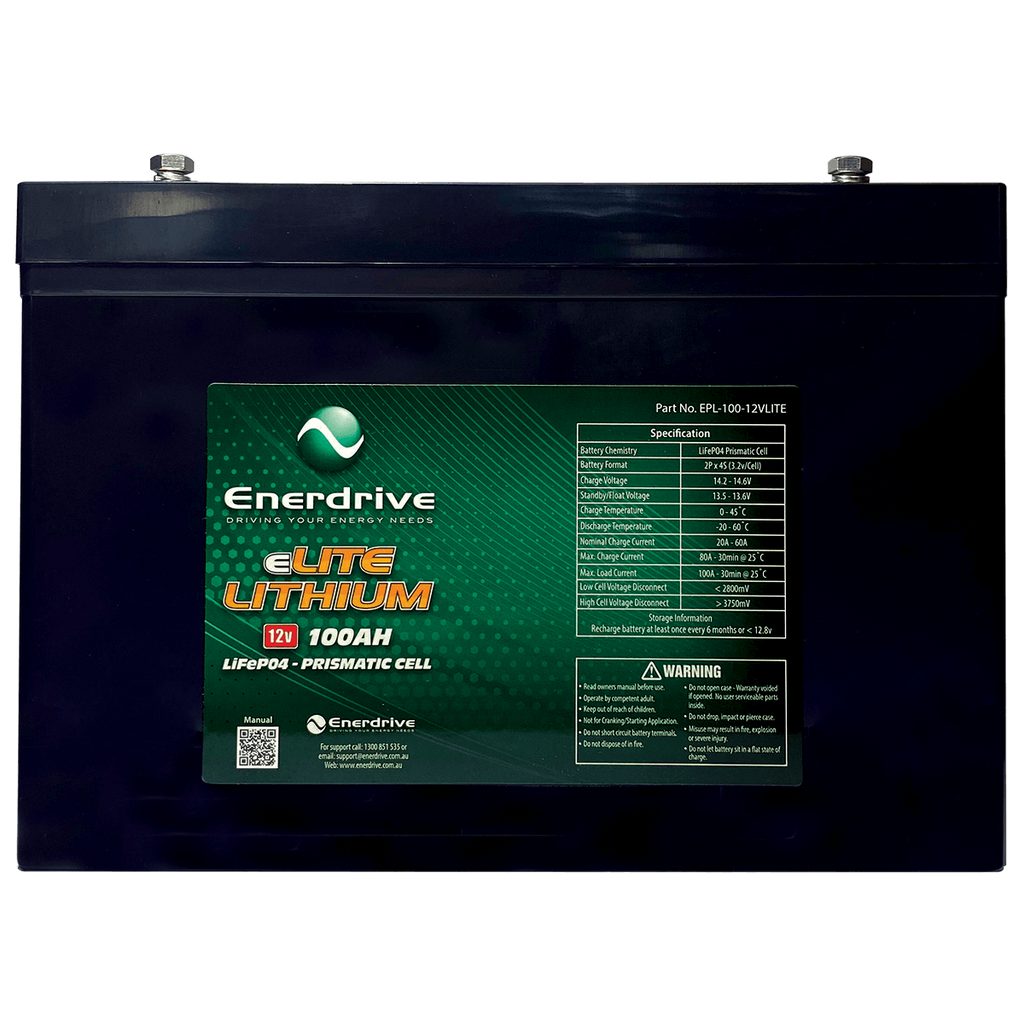

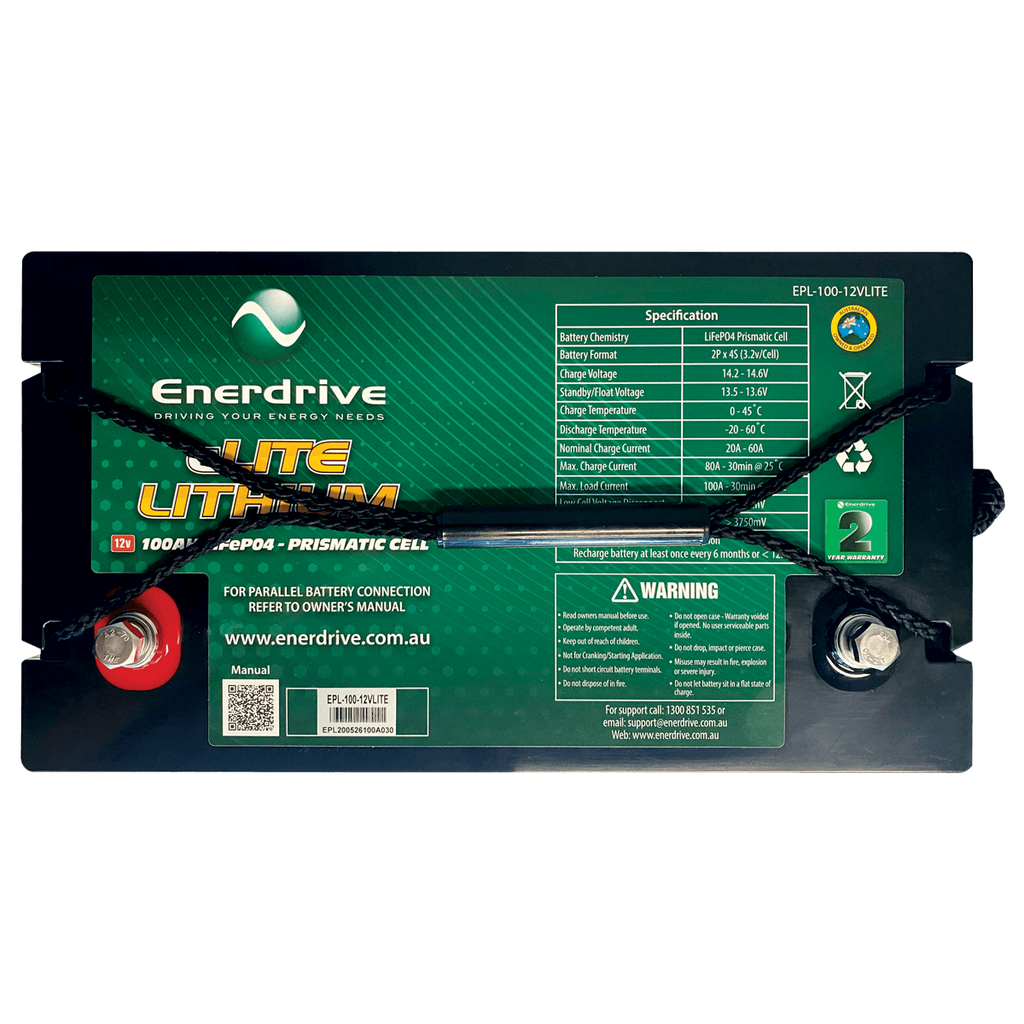

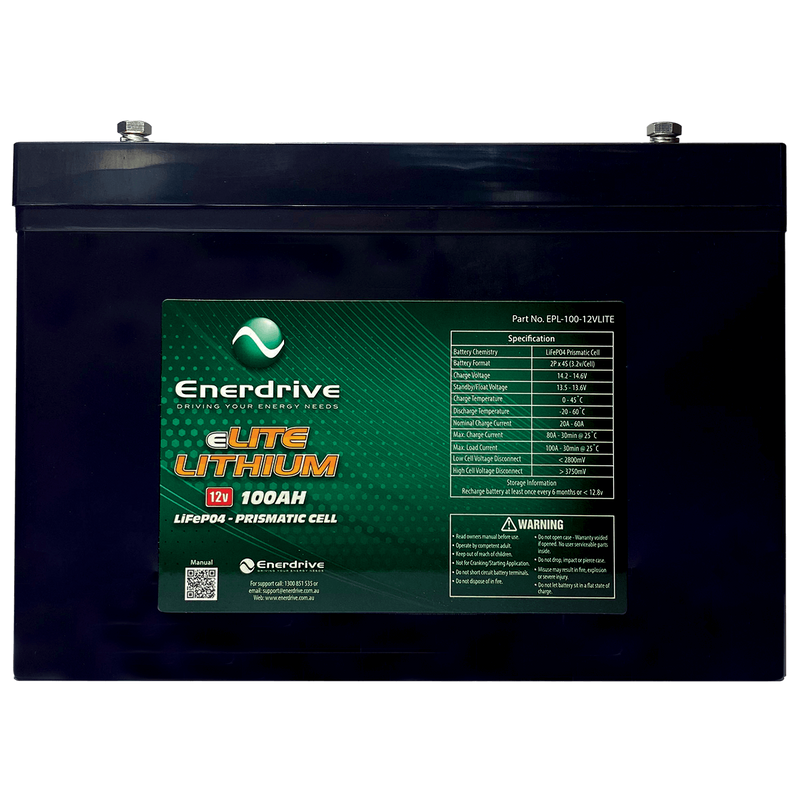

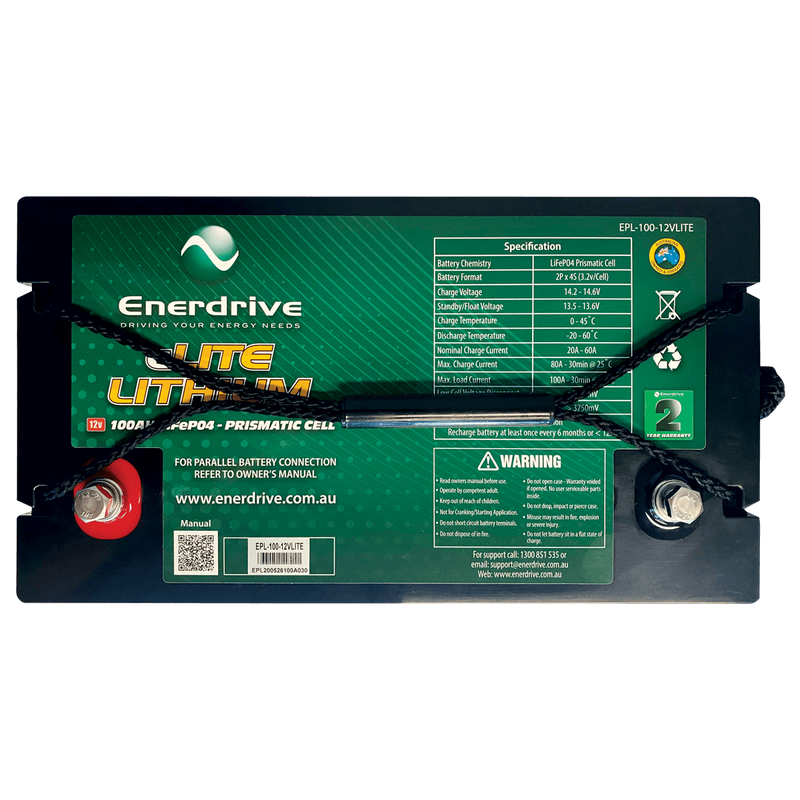

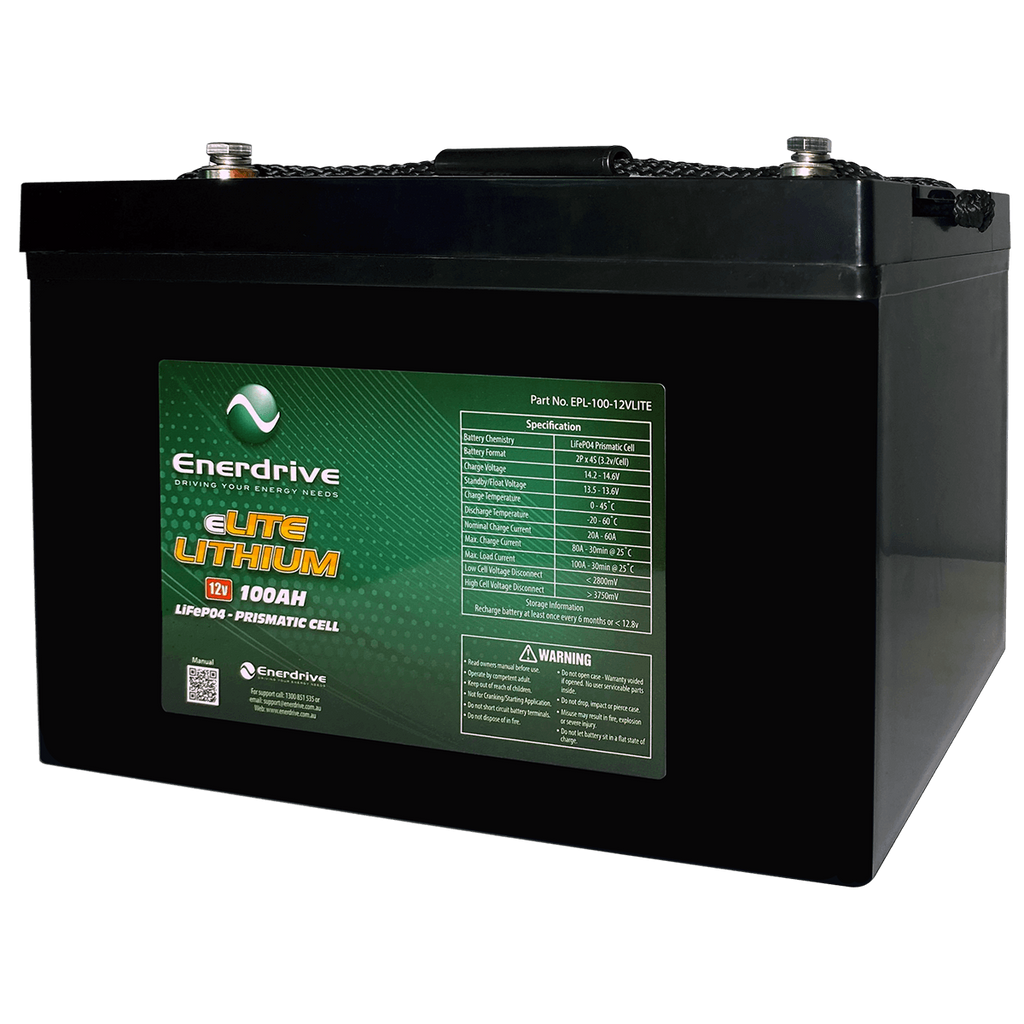

Enerdrive 12V 100Ah eLITE Lithium Battery

|

❖Features

Battery Management System

The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

Size & Weight Savings

Lithium v AGM Capacities;

• 100Ah Lithium = 160Ah AGM
• 125Ah Lithium = 200Ah AGM
• 200Ah Lithium = 320Ah AGM
• 300Ah Lithium = 480Ah AGM

(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).

The Enerdrive eLITE battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

The Enerdrive eLITE battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

With over 7 years of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.

With over 3000 complete systems in operation Australia wide, Enerdrive is regarded as the leader in the field of lithium batteries and energy systems for Mobile, Marine and Remote applications.

Please Note; The eLITE battery is capable to be paralleled to a second eLITE battery of the same size. For maximum performance and lifespan of your eLITE battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.

The 100Ah battery is able to accept a maximum inverter capacity of 1000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.

If you are requiring a battery system larger than eLITE , please look at the ePOWER B-TEC battery range or the Enerdrive Pro Series Power Pack Systems of which can offer multiple parallel and series connections with Active Cell Balancing Protection across the entire pack.

This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use ONLY.

|

❖Specifications

Brand | Enerdrive
Model | EPL-100-12VLITE
Nominal Voltage | 12.8V
Nominal Capacity | 100Ah
Cycle Life (DOD – 80% under controlled conditions) | ≥ 2000 Cycles
Standard Charge Specification (Lithium profile charger required)
Battery Charge Temperature | 0 ̴ 45°C
Normal Charge Voltage CV/CC* | 14.20 ̴ 14.60V
Standby (Float) Voltage | 13.50 ̴ 13.60V
Maximum Charge Current | 80A @ 25°C for 30mins
Recommended Charge Current for Maximum Life | ≤33A
Standard Discharge Specification
Battery Discharge Temperature | -20 ̴ 60°C
Battery Output Voltage Range | 11.00 ̴ 14.60V
Maximum Discharge Current | 100A @ 25°C ± 5°C for 30mins
Pulse Discharge Current | 450A for 1.0s
Discharge Cut-off Voltage | ≤11.20V
Circuit Protection | The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.
Over-Charge Protection
Over-charge Protection Per Cell | 3.90V ± 0.03V
Over-charge Release Per Cell | 3.60V ± 0.05V
Over-charge Release Method | Discharge below release voltage
Over-Discharge Protection
Over-discharge Protection Per Cell | 2.50V ± 0.05V
Over-discharge Release Per Cell | 3.20V ± 0.05V
Over-discharge Release Method | Apply Charge/Voltage ≥12.8V
Battery Manual Reset Button | No
Over Current Protection
Discharge Over Current | 110A for 30s – 450A for 1s
Protection Reset Time | 5s Auto Release
Over Current Release Method | Disconnect Load
Over Temperature Protection
Battery Discharge Over Temperature | Protection to 65°C ± 5°C
| Release at 50°C ± 5°C
Battery Charge Over Temperature | Protection to 55°C ± 5°C
| Release at 45°C ± 5°C
Short Circuit Protection | Auto release after 5s
Mechanical Characteristics
Dimensions | Length 310mm
Designed to be mounted in the upright position | Width 170mm
| Height 225mm
Weight | Approx 12kg
Storage Information
Temperature & Humidity Range | ≤ 30 days -20°C ̴ 35°C, 45 ̴ 75% RH
| ≥ 30 days -10°C ̴ 30°C, 45 ̴ 75% RH
Self-discharge Rate | ≤ 3% Per Month
