DESCRIPTION

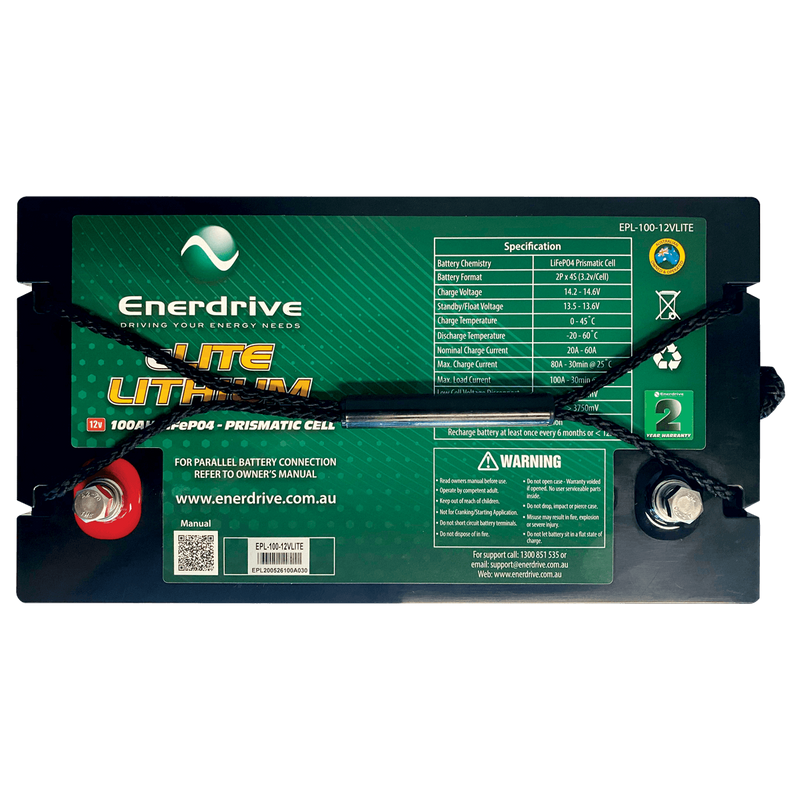

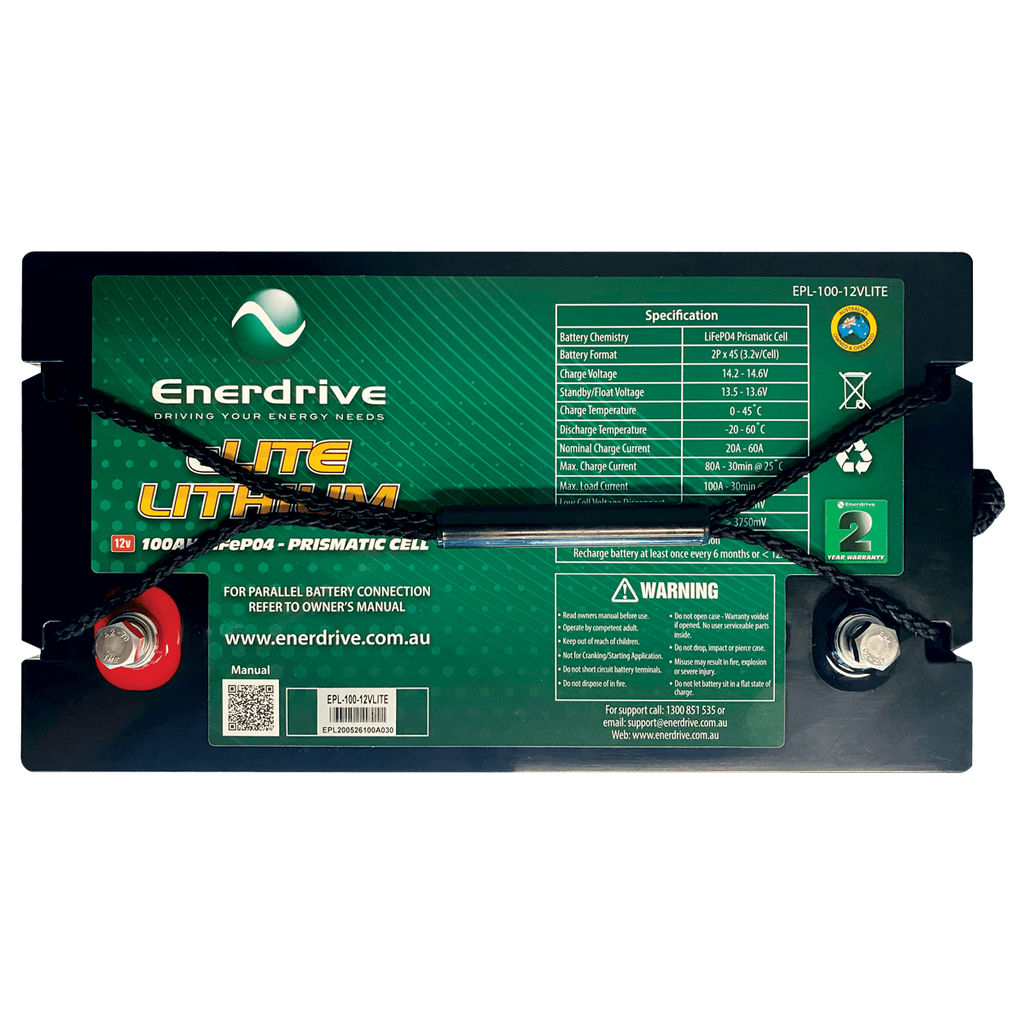

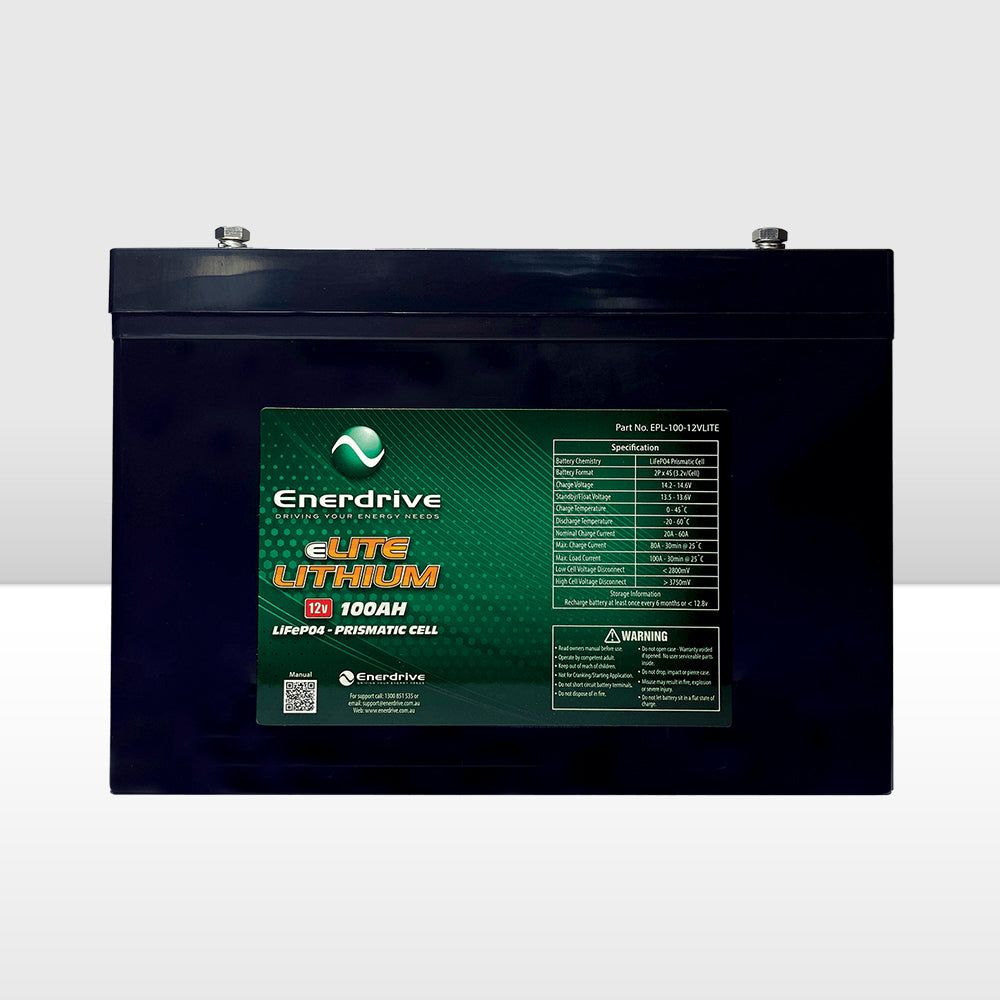

The new Enerdrive 12v 100Ah eLITE Lithium Battery has been designed as an
“entry level” lithium battery for the customer who wants to get into the
lithium market without having to spend big. This unit is a stripped back
version of the ever popular 100Ah B-TEC Lithium battery but, without all the
bells and whistles. Wireless Battery Monitoring Technology, not in this little
beauty. To save costs, we decided to remove the monitoring option from the
eLITE. Does this reduce the quality of the battery?, certainly not. Its all
about offering a high quality battery at an entry level price. The battery is
also equipped with an internal Battery Management System that can monitor and
optimise each Prismatic cell within the battery during normal operation. It
will protect the battery pack from over charge, over discharge, over
temperature & short circuit. The BMS helps to ensure safe and accurate
operation of the battery.
FEATURES
The Enerdrive eLITE battery provides 60% more usable power than its equivalent
lead acid cousin and being nearly 50% lighter and 30% smaller makes for a
superior alternative.
The Enerdrive eLITE battery is perfect for camper trailers, 4WD’s (AUX
battery), caravans, small water craft, low power communication sites or any
other application that requires the use of a single deep cycle battery that
meets the amp hour capacity.
With over 7 years of researching, designing and testing lithium batteries and
the associated charging systems, Enerdrive are at the forefront of lithium
battery systems in Australia. Enerdrive are the only Australian company that
can supply a fully integrated self-branded energy system to suit your setup.
With over 3000 complete systems in operation Australia wide, Enerdrive is
regarded as the leader in the field of lithium batteries and energy systems
for Mobile, Marine and Remote applications.
Please Note; The eLITE battery is capable to be paralleled to a second eLITE
battery of the same size. For maximum performance and lifespan of your eLITE
battery, no more than 2 batteries should be connected together to increase
your overall capacity. Overall loads when paralleled should not exceed the
current limits of a single batteries BMS.
The 100Ah battery is able to accept a maximum inverter capacity of 1000W only.
Exceeding the maximum inverter capacity can damage the BMS Management within
the battery.
If you are requiring a battery system larger than eLITE, please look at the
ePOWER B-TEC battery range or the Enerdrive Pro Series Power Pack Systems of
which can offer multiple parallel and series connections with Active Cell
Balancing Protection across the entire pack.
This product is not suitable to mount anywhere with a possibility of being
exposed to the elements. It is an electronic product designed for internal use
ONLY.
SPECIFICATIONS
Model Description EPL-100-12VLITE
Nominal Voltage 12.8V
Nominal Capacity 100Ah
Cycle Life (DOD 80% under controlled conditions) 2000 Cycles
Standard Charge Specification (Lithium profile charger required)
Battery Charge Temperature 0 ̴ 45C
Normal Charge Voltage CV/CC* 14.20 ̴ 14.60V
Standby (Float) Voltage 13.50 ̴ 13.60V
Maximum Charge Current 80A @ 25C for 30mins
Recommended Charge Current for Maximum Life 33A
Standard Discharge Specification
Battery Discharge Temperature -20 ̴ 60C
Battery Output Voltage Range 11.00 ̴ 14.60V
Maximum Discharge Current 100A @ 25C 5C for 30mins
Pulse Discharge Current 450A for 1.0s
Discharge Cut-off Voltage 11.20V
Over-Charge Protection
Over-charge Protection Per Cell 3.90V 0.03V
Over-charge Release Per Cell 3.60V 0.05V
Over-charge Release Method Discharge below release voltage
Over-Discharge Protection
Over-discharge Protection Per
PACKAGE INCLUDES
1 x LiFePO4 Battery
WARRANTY
5 Years Warranty
