❖Features

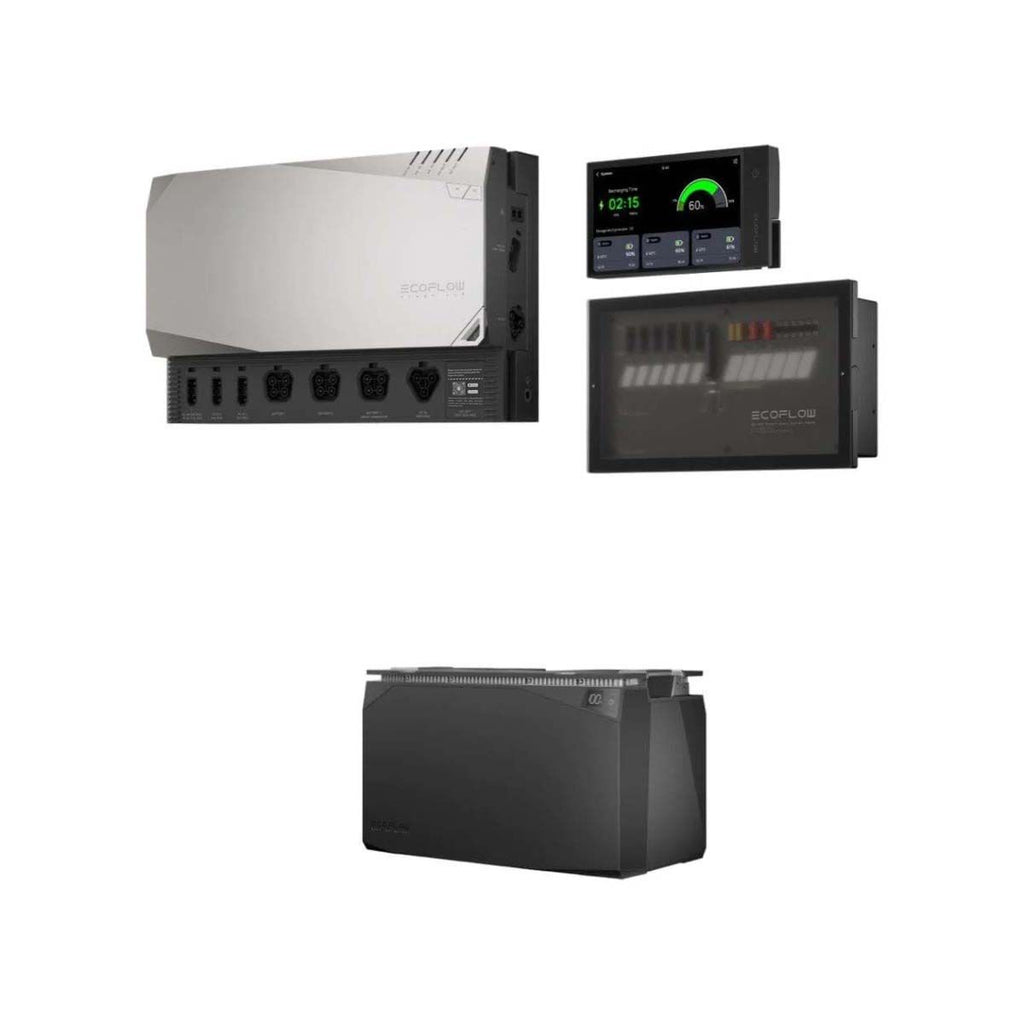

The EcoFlow Power Kits consist of the LFP Battery , Power Hub ,
AC/DC Smart Distribution Panel and Power Kit Console.
The Modular Power System aims to meet the needs of customers in off-grid
scenarios such as caravans, off-grid build, recreational marine, and home
backup.
The Modular Power System is extremely easy to install straight out of the box.

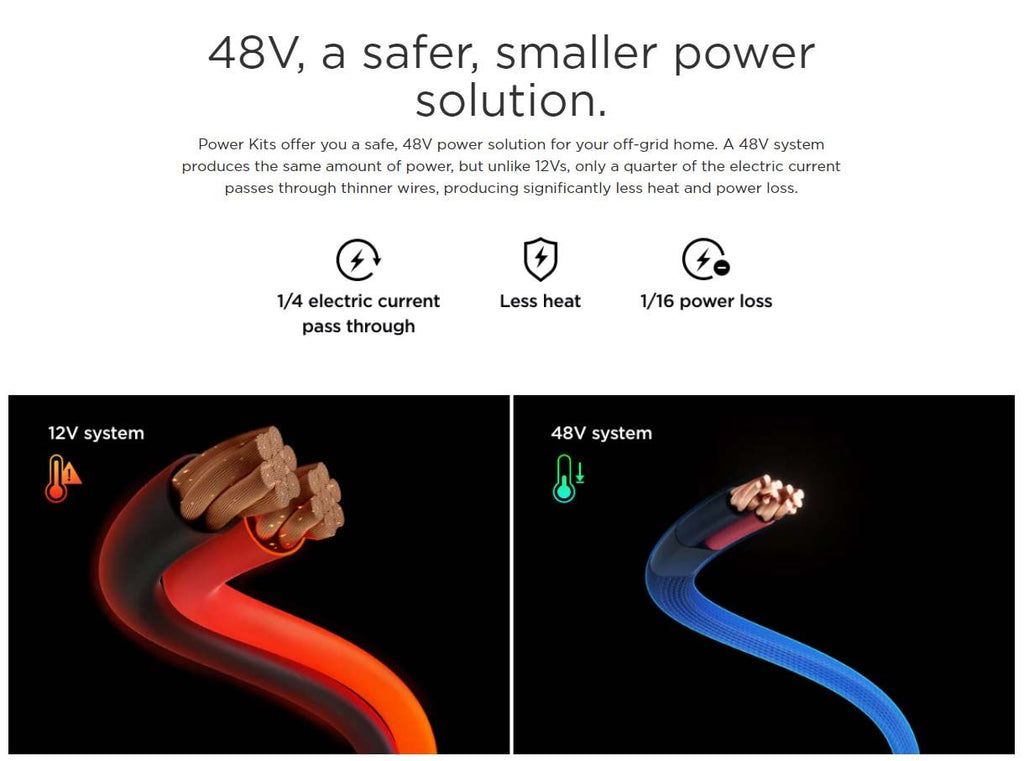

Using 48V battery system significantly reduces the gauge and weight of battery
cables, reducing wiring cost and increasing safety. The system's power
consumption can be monitored anytime and anywhere via EcoFlow App.
The Modular Power System supports multiple charging methods, including solar
charging, alternator charging, smart generator charging, and AC charging. It
is capable of outputting 12V or 24V DC and 120V AC (according to local
standards) via the AC/DC Smart Distribution Panel, allowing it to power most
AC and DC devices.
5kWh Power Kits offer energy for carefree off-grid living and RV trips, as
well as saving you space. What’s more, you can upgrade your Power Kit to 15kWh
by adding two more atteries.

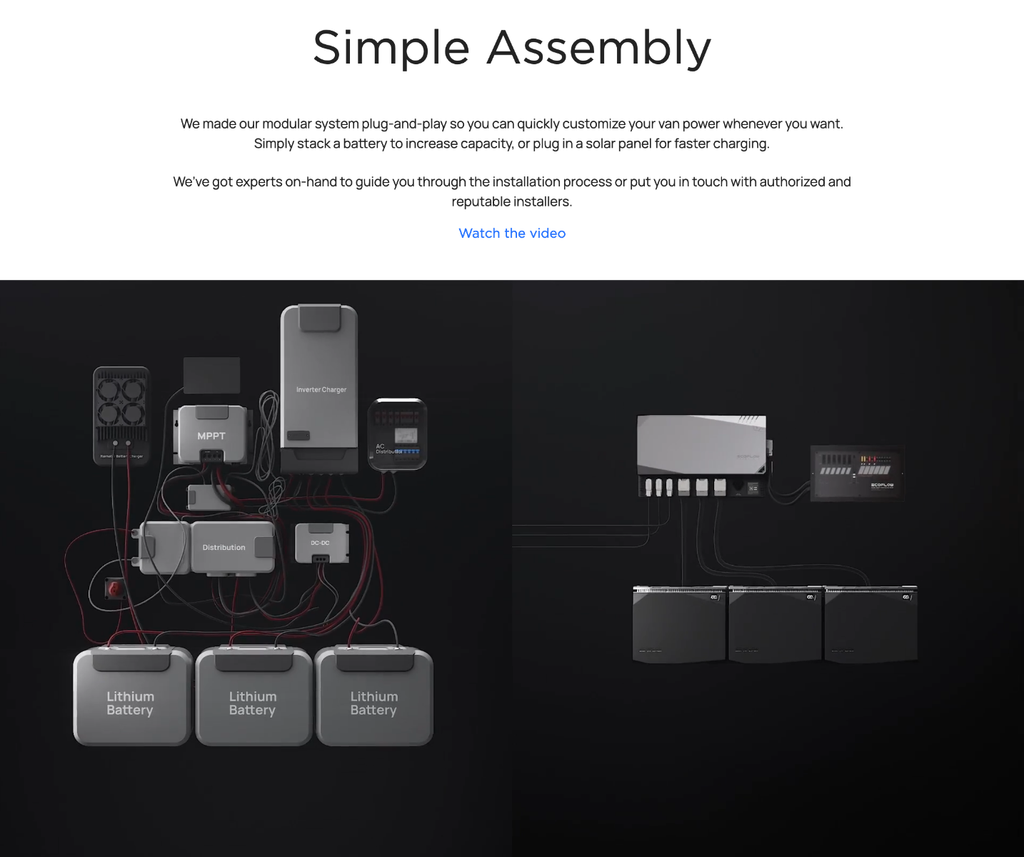

Easy Set Up: The integrated EcoFlow Power Hub has a simple plug-and-play
design, allowing you to expand and customize your kit faster than any other
power solution on the market.

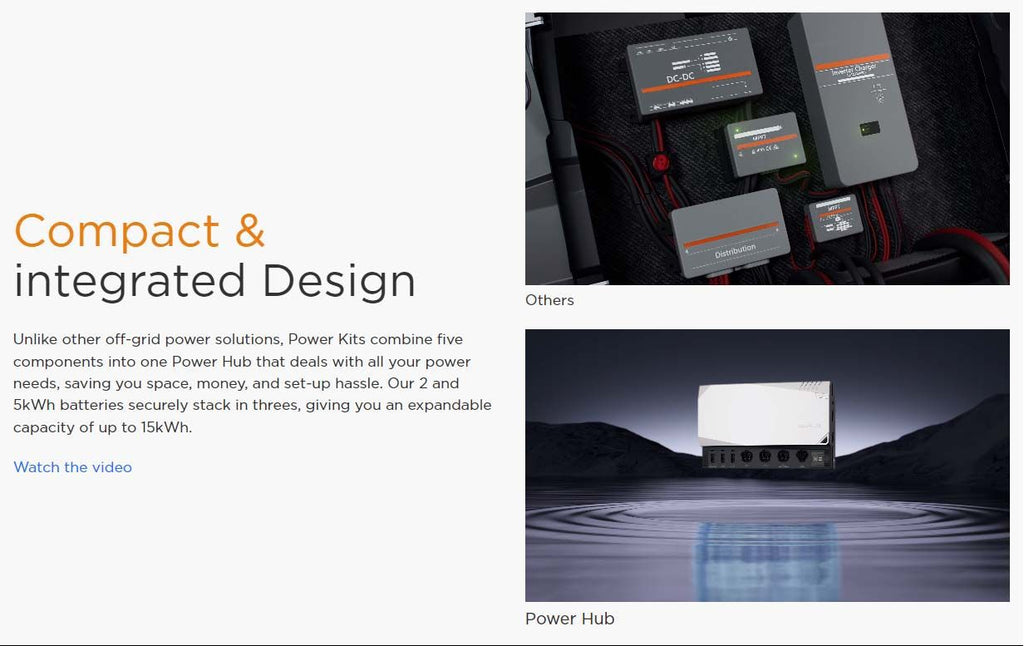

Save Space: EcoFlow Power Hub combines two MPPT solar charge controllers,
one battery charger with MPPT, one DC-DC step-down converter, and an inverter-
charger. With fewer modules and thinner wires, this 48V system saves you space
and installation hassle.
Charge Your Way: EcoFlow Power Kits support multiple charging methods. Get
plenty of solar power, use your alternator, plug in shore power, or even use
an EcoFlow Smart Generator for emergency charging.
LFP BATTERY
Built-in auto heating to use in as low as -4°F

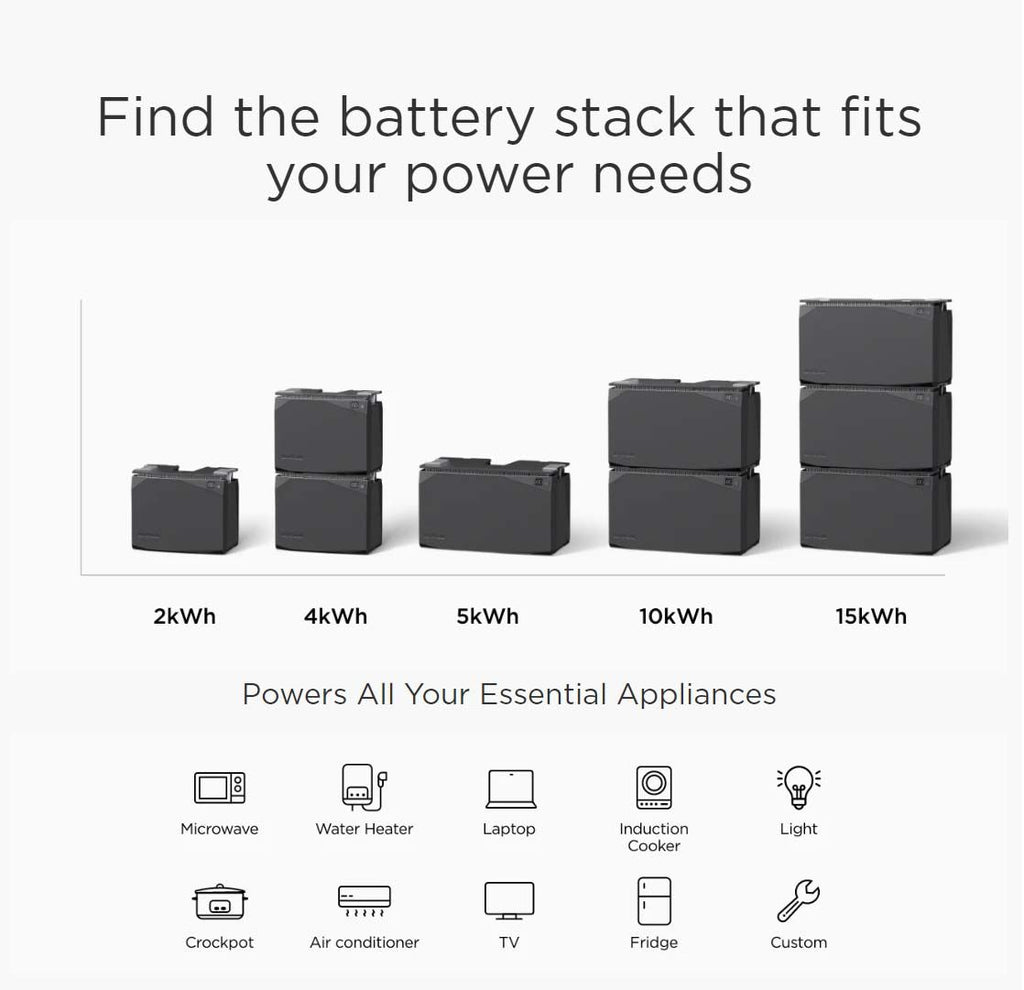

Stackable and expandable up to 6kWh/15kWh
Hot-swap enabled for safety protection
Advanced BMS for battery protection and smart control
Long-lasting, 3000/3500+ 100%/charging cycles
POWER HUB
The heart of Power Kits with a 3600W AC Output
5 components in 1, with 2 MPPT solar chargers, 1
DC-DC battery charger with MPPT, 1 Inverter-charger, and 1 DC-DC converter
Built-in Wi-Fi and Bluetooth
AC/DC SMART DISTRIBUTION PANEL
Safe power distribution
Easy installation
Customize your own power
Track your energy
POWER KIT CONSOLE
Customize charging and discharging levels and methods
Monitor real-time data
Stay up-to-date
Includes:
1x Power Hub
1x 5kWh LFP Battery
1x Cable Pack
1x AC / DC Smart Distribution Panel
1x Power Kit Console
1x Battery Mounting Strap
|
❖Specifications
Brand | Ecoflow
Model | 5kWh Power Independence Kits
5KWh LFP Battery
**
**General Information
Net weight | Approx. 89.5 lbs(40.6 kg)
Dimensions | 19.7 x 10.2 x 11.8 in
500 x 260 x 300 mm
Nominal Capacity | 5120Wh(100Ah)
Nominal Voltage | 51.2V
Configuration | 16S2P
Charging Cut-off Voltage | 57.6V
Discharging Cut-off Voltage | 40V
Max Continued Charging Current | 80A
Max Continued Discharge current | 100A
Battery Chemistry | LiFePO4
Cycle life | 3,500 cycles to 80% capacity
IP Rating | IP54
Operating Temperature
Discharge Temperature Range | -20°C~50°C (-4°F~122°F)
Charge Temperature Range | -20°C~50°C (-4°F~122°F)
(auto-heating below 0°C (32°F))
Humidity Range | Max. 90%RH
Storage Temperature | -20°C~50°C (-4°F~122°F)
(optimal 15°C~25°C (59°F~77°F))
Power Hub
Basic Information
Net Weight | 14 kg (31 lbs)
Dimensions (L × W × H) | 48 cm × 14 cm × 30 cm (18.9“ x 5.5” x 11.8“)
Wi-Fi | Supported (<120 Meters)
Bluetooth (v4.0) | Supported (<15 Meters)
Output Spec
AC Output | Pure sine wave, 3600 W (surge 7200 W, 100 ms), 230 V, 50 Hz
(Australian Version: 240 V, 50 Hz)
Linear derating to 1800 W when 40℃ (104°F) < Ambient Temperature < 60℃ (140°F)
Derating to 3000 W when battery voltage < 49 V
Maximum AC Output
Supported by X-Boost | 5200 W
DC Output | 13.6 V 70 A, maximum power: 1000 W
or 26.4 V 60 A, maximum power: 1600 W
Input Spec
AC Input Power | 3000 W maximum power, 15 A maximum current,
supported by EcoFlow X-Stream Technology
AC Input Voltage | 220–240 V, 50 Hz/60 Hz
Alternator Input 2/3
PV Input 2/3 | 13–60 V 30 A, maximum power: 1600 W
15–60 V 30 A, maximum power: 1600 W
Alternator Input 1
PV Input 1 | 13–60 V 60 A, maximum power: 1600 W
15–60 V 30 A, maximum power: 1600 W
Battery Port Spec
Battery Port (x3) | 40-60 V 100 A, supports up to three 2kWh or 5kWh LFP
batteries, which are sold separately.(Not recommended to use one Power Hub
with both EFM100-BPB and EFM100-BP at the same time.)
Operating Environment
Operating Temperature | –25°C to 60°C (-13°F to 140°F)
Storage Temperature | –25°C to 60°C (-13°F to 140°F)
Other
EcoFlow Smart Generator | 1800 W maximum charging power, sold separately.
AC/DC Smart Distribution Panel
Basic Information
Net Weight | 2.6 kg (5.8 lbs)
Dimensions (L x W xH) | 35.4 cm x 21cm x 9.8 cm
(14" x 8.3" x 3.9")
Output Spec
AC Output | Six circuits, maximum current 10 A each circuit
220-240 V, 50 Hz
DC Output | Six controllable circuits + Six regular circuits, maximum current
20 A each circuit 10–30 VDC
Input Spec
AC Input | 220-240 V, 50 Hz
Maximum current 30 A
DC Input | 10–30 VDC
Maximum current 70 A
Operating Environment
Operating Temperature | –25°C to 60°C ( -13°F to 140°F )
Storage Temperature | –25°C to 60°C ( -13°F to 140°F )
Power Kit Console
Basic parameters
Net weight | 450 g (1lb) (Bracket included)
Dimensions | 204.5 mm × 113.3 mm × 22.3 mm / (8" × 4.5" × 0.9")
Screen size | 154.2 mm × 85.9 mm (6" × 3.4")
Screen resolution | 1024 (H) × 600 (V)
Touch control | Supported
DC Input / RJ45
DC Input / USB-C
DC Output / USB-A | 12V / 1A, 12W Max
5V / 2A, 10W Max
5V / 1A, 5W Max
Operating temperature | -20°C to 50°C (-4°F to 122°F)
