EcoFlow 2kWh Power Independence Kits (Power Hub, LFP Battery, AC/DC Smart Distribution Panel, Power Kit Console)

|

❖Features

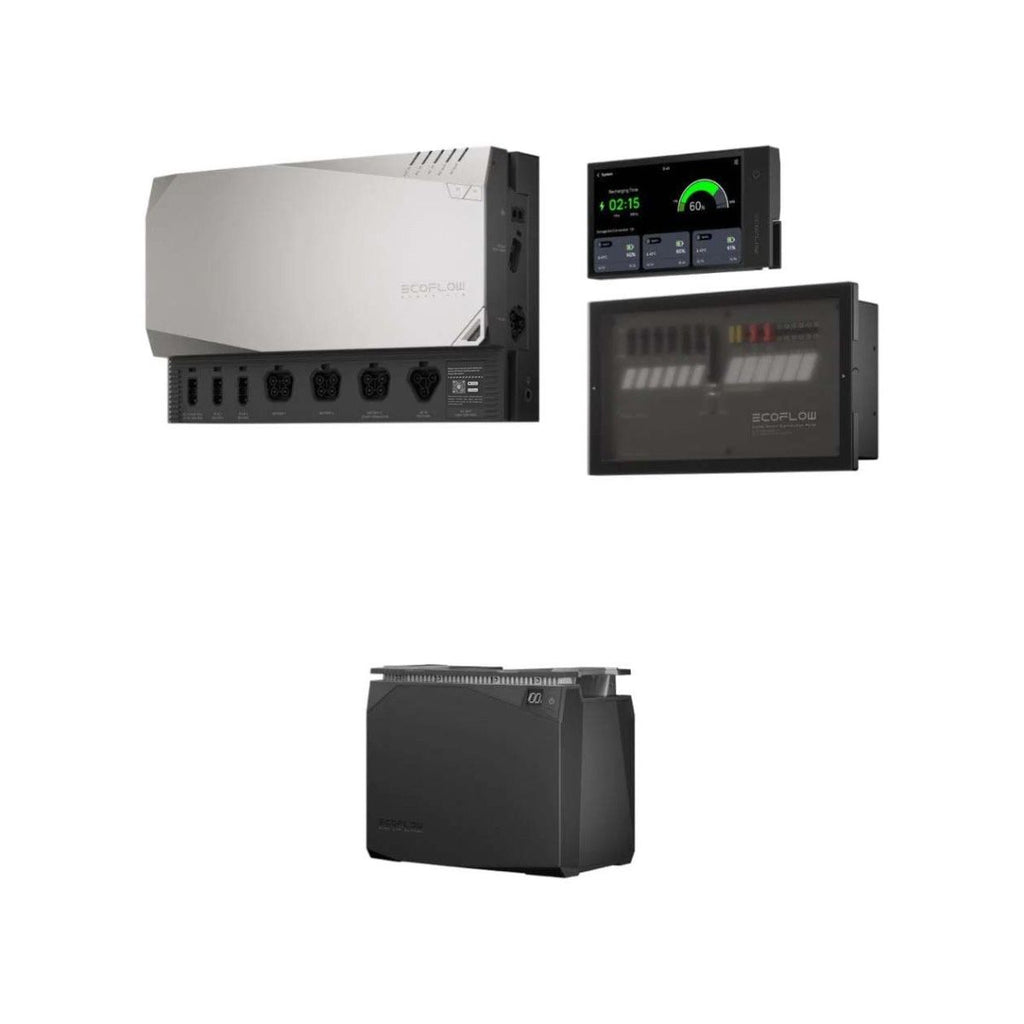

The EcoFlow Power Kits consist of the LFP Battery , Power Hub , AC/DC Smart Distribution Panel and Power Kit Console.

The Modular Power System aims to meet the needs of customers in off-grid scenarios such as caravans, off-grid build, recreational marine, and home backup.

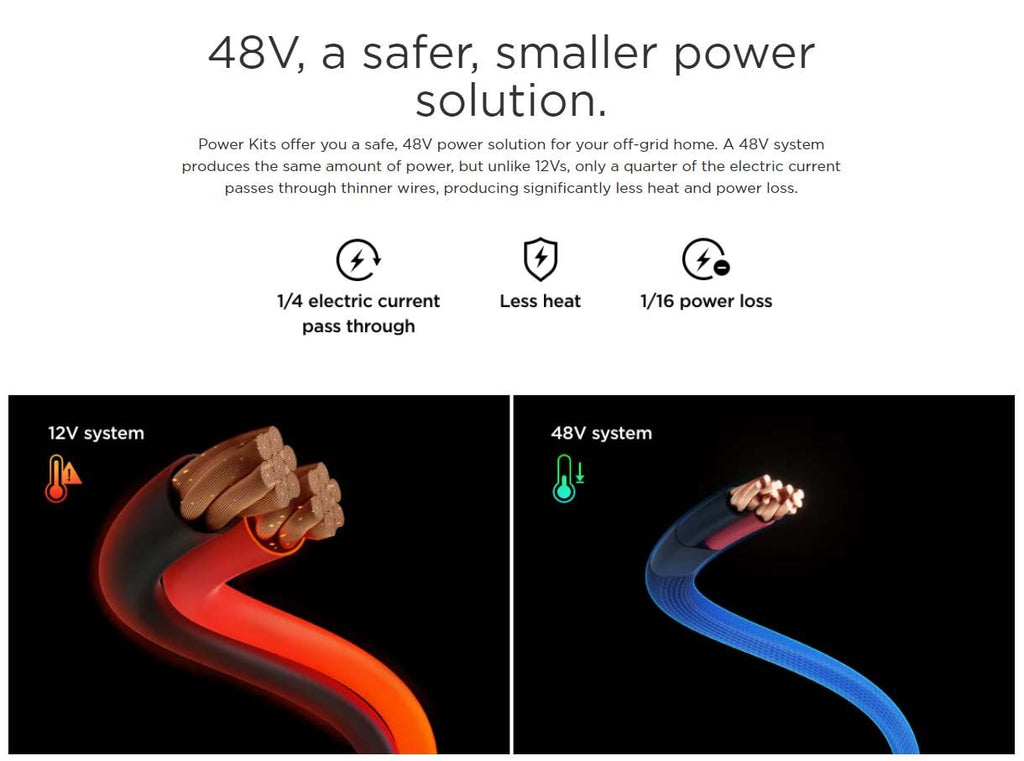

The Modular Power System is extremely easy to install straight out of the box. Using 48V battery system significantly reduces the gauge and weight of battery cables, reducing wiring cost and increasing safety. The system's power consumption can be monitored anytime and anywhere via EcoFlow App.

The Modular Power System supports multiple charging methods, including solar charging, alternator charging, smart generator charging, and AC charging. It is capable of outputting 12V or 24V DC and 120V AC (according to local standards) via the AC/DC Smart Distribution Panel, allowing it to power most AC and DC devices.

2kWh Power Kits fulfill the essential energy needs of your RV or off- grid build. Expand this kit to 6kWh by adding up to 2 batteries.

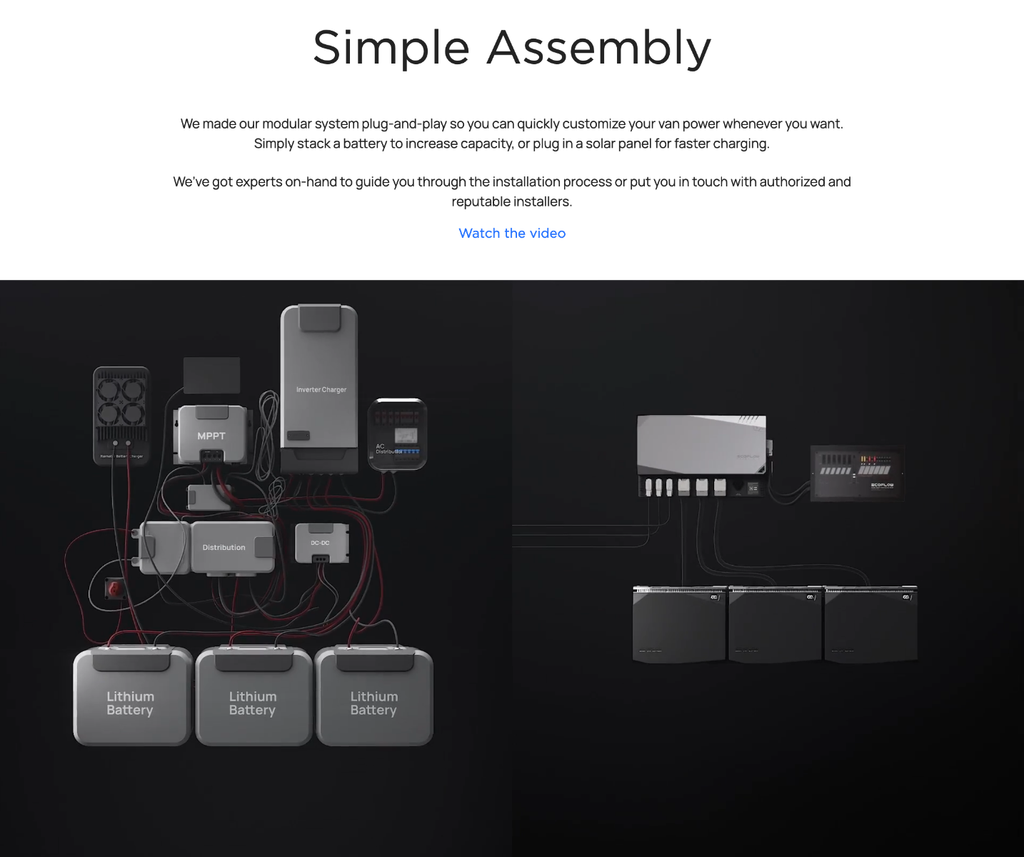

Easy Set Up: The integrated EcoFlow Power Hub has a simple plug-and-play design, allowing you to expand and customize your kit faster than any other power solution on the market.

Save Space: EcoFlow Power Hub combines two MPPT solar charge controllers, one battery charger with MPPT, one DC-DC step-down converter, and an inverter- charger. With fewer modules and thinner wires, this 48V system saves you space and installation hassle.

Charge Your Way: EcoFlow Power Kits support multiple charging methods. Get plenty of solar power, use your alternator, plug in shore power, or even use an EcoFlow Smart Generator for emergency charging.

LFP BATTERY

Built-in auto heating to use in as low as -4°F

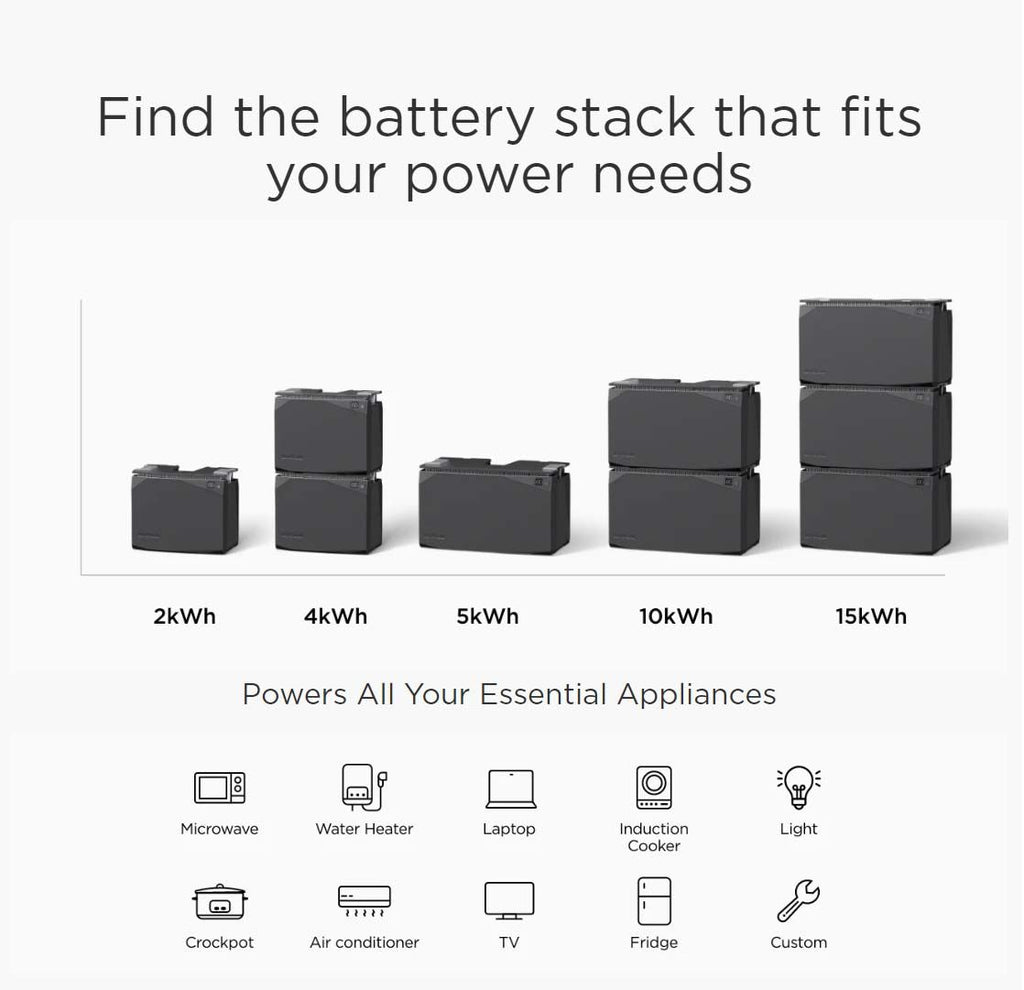

Stackable and expandable up to 6kWh/15kWh

Hot-swap enabled for safety protection

Advanced BMS for battery protection and smart control

Long-lasting, 3000/3500+ 100%/charging cycles

POWER HUB

The heart of Power Kits with a 3600W AC Output

5 components in 1, with 2 MPPT solar chargers, 1

DC-DC battery charger with MPPT, 1 Inverter-charger, and 1 DC-DC converter

Built-in Wi-Fi and Bluetooth

*** AC output is not available now due to Australian standards**

AC/DC SMART DISTRIBUTION PANEL

Safe power distribution

Easy installation

Customize your own power

Track your energy

POWER KIT CONSOLE

Customize charging and discharging levels and methods

Monitor real-time data

Stay up-to-date

Includes:

1x Power Hub
1x 2kWh LFP Battery
1x Cable Pack
1x AC / DC Smart Distribution Panel
1x Power Kit Console
1x Battery Mounting Strap

|

❖Specifications

Brand | Ecoflow
Model | 2kWh Power Independence Kits
2KWh LFP Battery
**
**General Information
Net weight | Approx. 37.7 Ibs(17.1 kg)
Dimensions | 13.7 x 7.8 x 11.2 in
348 x 198 x 285 mm
Nominal Capacity | 2048Wh(40Ah)
Nominal Voltage | 51.2V
Configuration | 16S2P
Charging Cut-off Voltage | 57.6V
Discharging Cut-off Voltage | 40V
Max Continued Charging Current | 32A
Max Continued Discharge current | 80A
Battery Chemistry | LiFePO4
Cycle life | 3,000 cycles to 80% capacity
IP Rating | IP54
Operating Temperature
Discharge Temperature Range | -20°C~50°C (-4°F~122°F)
Charge Temperature Range | -20°C~50°C (-4°F~122°F)
(auto-heating below 0°C (32°F))
Humidity Range | Max. 90%RH
Storage Temperature | -20°C~50°C (-4°F~122°F)
(optimal 15°C~25°C (59°F~77°F))
Power Hub
Basic Information
Net Weight | 14 kg (31 lbs)
Dimensions (L × W × H) | 48 cm × 14 cm × 30 cm (18.9“ x 5.5” x 11.8“)
Wi-Fi | Supported (<120 Meters)
Bluetooth (v4.0) | Supported (<15 Meters)
Output Spec
AC Output | Pure sine wave, 3600 W (surge 7200 W, 100 ms), 230 V, 50 Hz (Australian Version: 240 V, 50 Hz)
Linear derating to 1800 W when 40℃ (104°F) < Ambient Temperature < 60℃ (140°F)
Derating to 3000 W when battery voltage < 49 V
Maximum AC Output
Supported by X-Boost | 5200 W
DC Output | 13.6 V 70 A, maximum power: 1000 W
or 26.4 V 60 A, maximum power: 1600 W
Input Spec
AC Input Power | 3000 W maximum power, 15 A maximum current,
supported by EcoFlow X-Stream Technology
AC Input Voltage | 220–240 V, 50 Hz/60 Hz
Alternator Input 2/3
PV Input 2/3 | 13–60 V 30 A, maximum power: 1600 W
15–60 V 30 A, maximum power: 1600 W
Alternator Input 1
PV Input 1 | 13–60 V 60 A, maximum power: 1600 W
15–60 V 30 A, maximum power: 1600 W
Battery Port Spec
Battery Port (x3) | 40-60 V 100 A, supports up to three 2kWh or 5kWh LFP batteries, which are sold separately.(Not recommended to use one Power Hub with both EFM100-BPB and EFM100-BP at the same time.)
Operating Environment
Operating Temperature | –25°C to 60°C (-13°F to 140°F)
Storage Temperature | –25°C to 60°C (-13°F to 140°F)
Other
EcoFlow Smart Generator | 1800 W maximum charging power, sold separately.
AC/DC Smart Distribution Panel
Basic Information
Net Weight | 2.6 kg (5.8 lbs)
Dimensions (L x W xH) | 35.4 cm x 21cm x 9.8 cm
(14" x 8.3" x 3.9")
Output Spec
AC Output | Six circuits, maximum current 10 A each circuit
220-240 V, 50 Hz
DC Output | Six controllable circuits + Six regular circuits, maximum current 20 A each circuit 10–30 VDC
Input Spec
AC Input | 220-240 V, 50 Hz
Maximum current 30 A
DC Input | 10–30 VDC
Maximum current 70 A
Operating Environment
Operating Temperature | –25°C to 60°C ( -13°F to 140°F )
Storage Temperature | –25°C to 60°C ( -13°F to 140°F )
Power Kit Console
Basic parameters
Net weight | 450 g (1lb) (Bracket included)
Dimensions | 204.5 mm × 113.3 mm × 22.3 mm / (8" × 4.5" × 0.9")
Screen size | 154.2 mm × 85.9 mm (6" × 3.4")
Screen resolution | 1024 (H) × 600 (V)
Touch control | Supported
DC Input / RJ45
DC Input / USB-C
DC Output / USB-A | 12V / 1A, 12W Max
5V / 2A, 10W Max
5V / 1A, 5W Max
Operating temperature | -20°C to 50°C (-4°F to 122°F)
