Eberspächer Airtronic D2L Diesel Heater AS3 12v 1 Outlet E/S Pro Kit with 10L Diesel Fuel Tank

|

❖Features

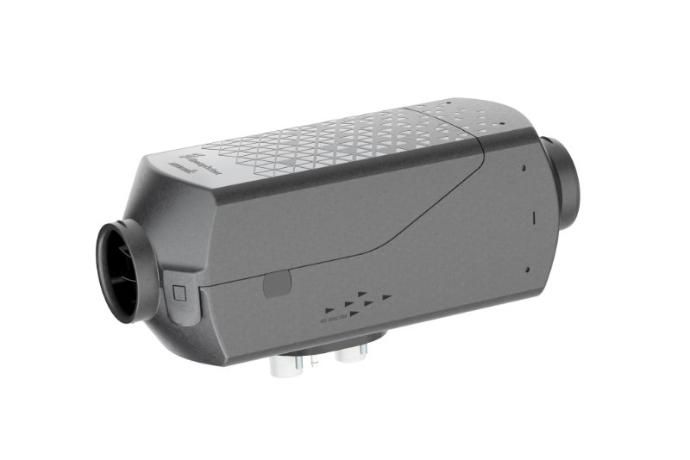

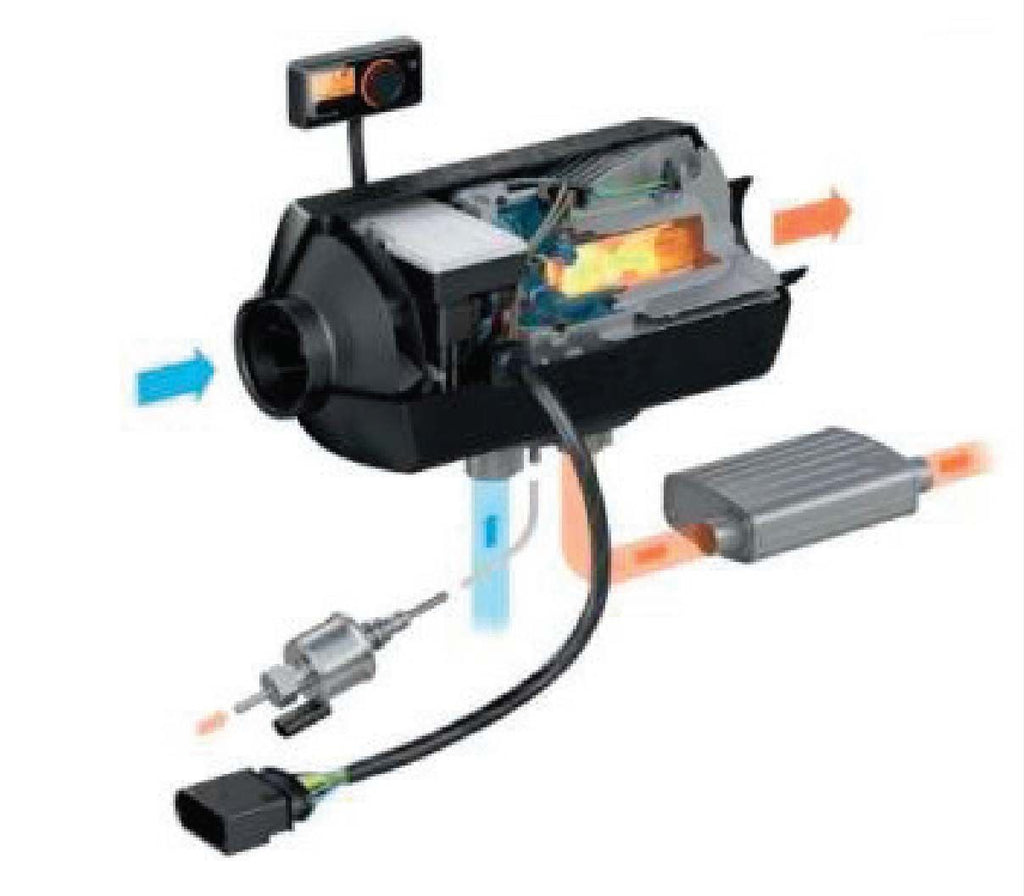

New Eberspächer D2L AS3 - Diesel Heater

With the third generation of the Airtronic, Eberspächer is launching a completely new product family of air heaters for commercial and special vehicles.

It combines high heating performance with a very compact design, quiet operation, automatic altitude

Adjustment up to 5,500 m* and flexible installation. The Eberspächer EasyStart Pro and EasyStart Web control units offer particularly convenient and userfriendly operation for the Airtronic. All other control units are also compatible.

The Airtronic 3 complements Eberspächer’s segment-focused product strategy perfectly, boasting a new combustion chamber concept and other new features, including a new casing design.

And of course, the enhancements previously made to the Airtronic 2 are included in the thirdgeneration heaters as well.

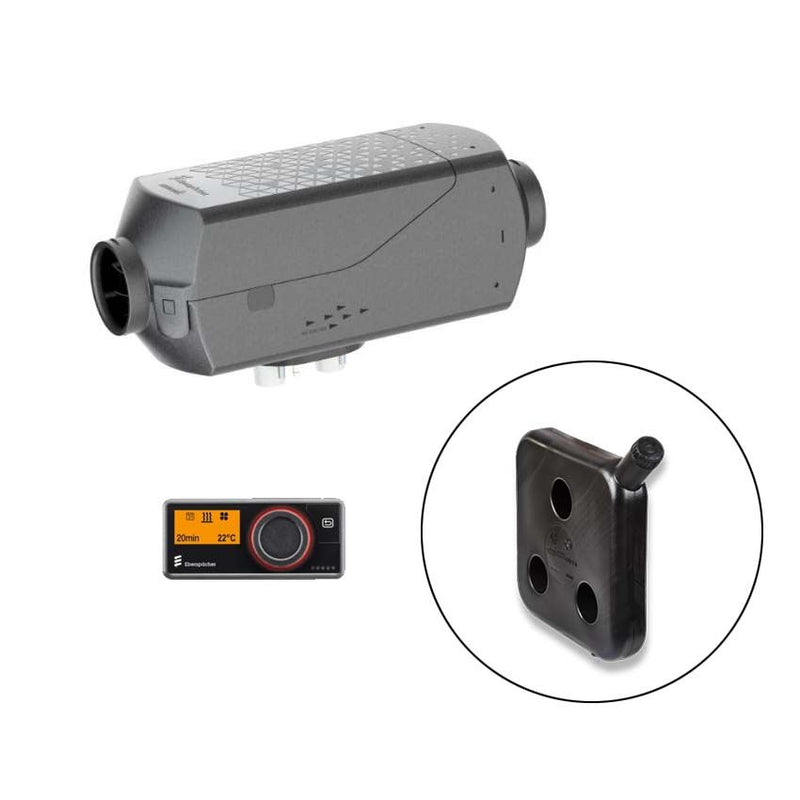

Eberspächer Airtronic D2L AS3 12v 1 Outlet E/S Pro Kit

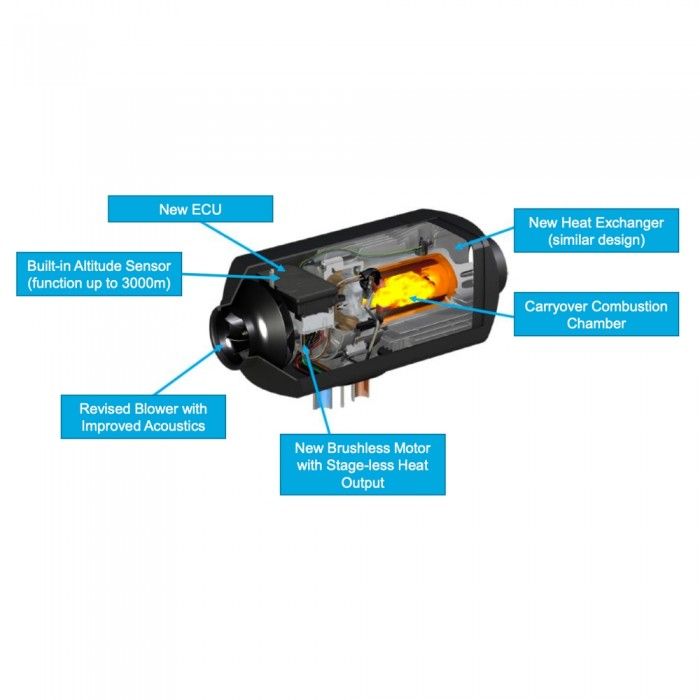

ADDITIONAL FEATURES:

• Patented housing design for improved plagiarism protection
• Lifetime of up to 5,000 operating hours due to brushless motor
• Backward compatibility through carry-over connections
• Sensor-controlled, optimized start-up sequences through measurement of environmental parameters
• Optimized heat air flow due to improved heat exchanger

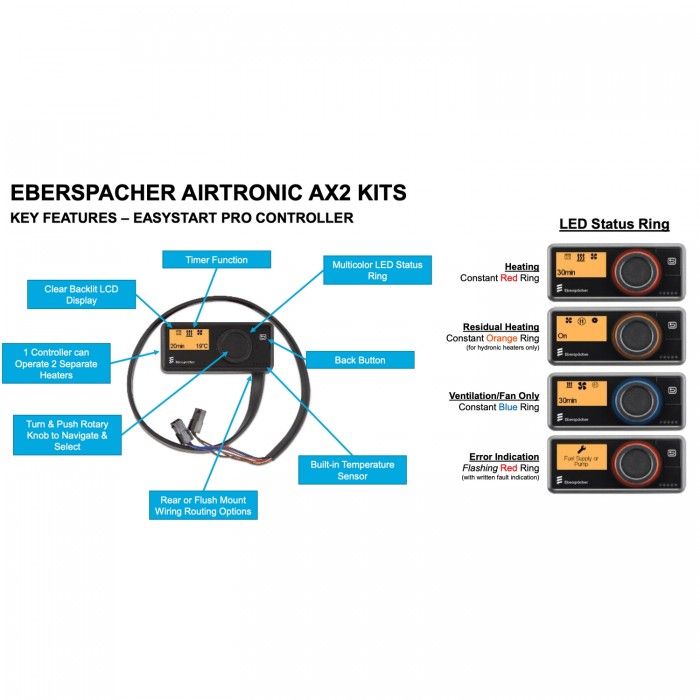

• Maximum control with EasyStart Pro and EasyStart Web
• Compatibility with all other control units
• Diagnostics and parameter assignment via EasyScan
• Can also be integrated into on-board systems via CAN (12/24V), LIN (12V), S+(12/24V) interfaces

ADVANTAGES

• High heating power, yet compact design
• Automatic altitude adjustment up to 5,500 m*
• Flexible installation with 90° tilt possible to either side
• Stepless heating performance control ensures quiet operation

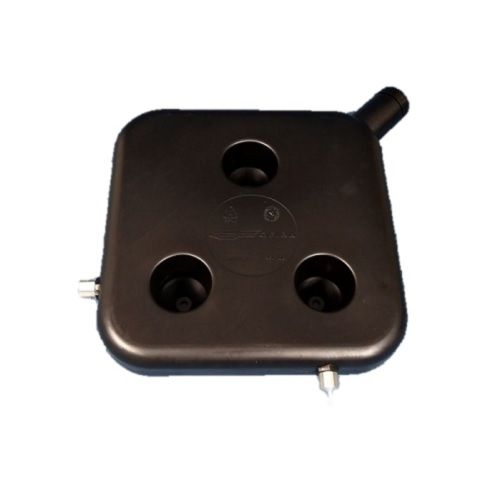

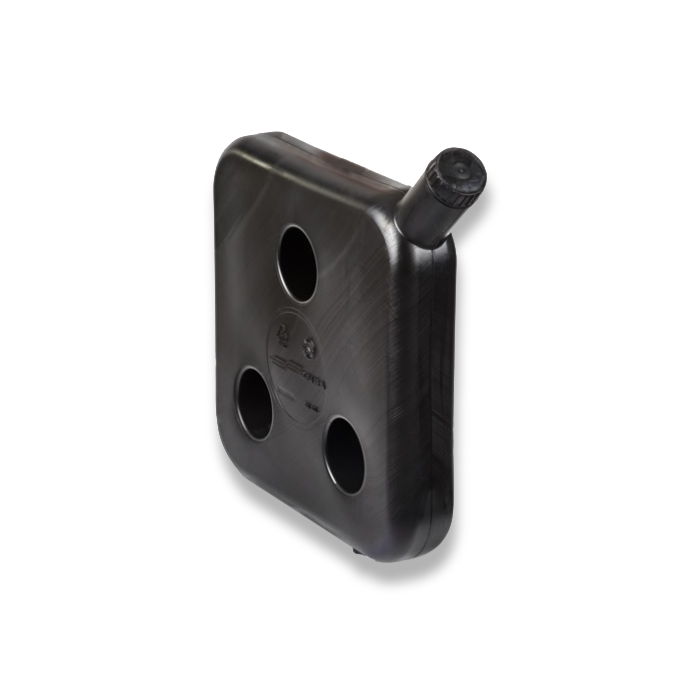

Eberspächer 10L Diesel Fuel Tank

• It has an screw cap opening at the top, plus the outlet to allow the tank to be placed in either direction.
• Slim design makes the tank easy to store
• Very light weight when empty
• Secure lid

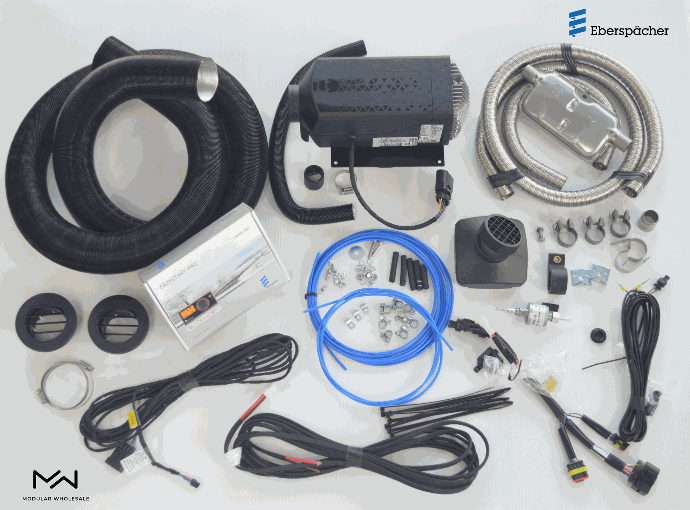

Kit inclusion:

• 1 x Airtronic D2L AS3 D/Heater Body

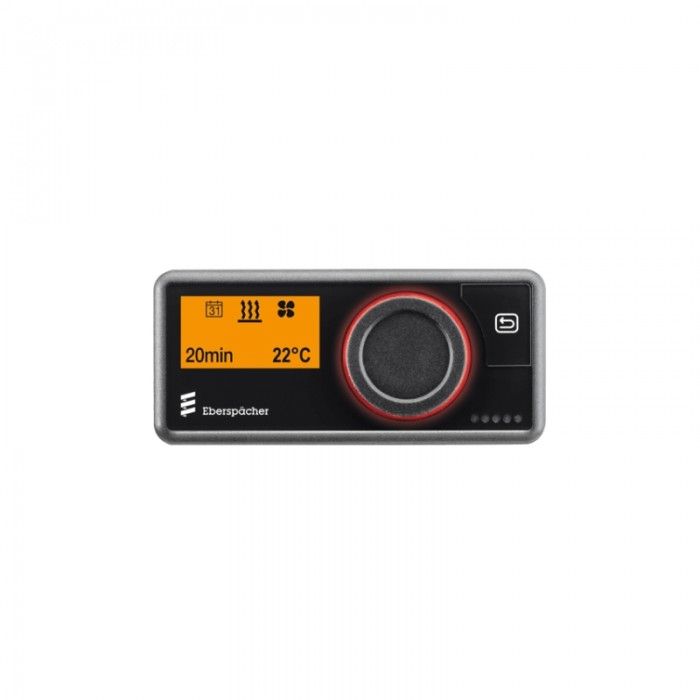

• 1 x Easystart Pro Controller
• 1 x Mounting Plate
• 1 x Fuel Metering Pump Inc Pump Holder
• 1 x 6mtr Fuel Line
• 1 x 2m S/Steel Exhaust Pipe & Silencer
• 1 x 0.5m Air Intake Tube
• 1 x 2 Meters 60mm Ducting
• 2 x 60mm Vent Flanges & Flat Vent Covers
• 1 x Wiring Harness (plug & play throughout heater kit) & 6m Twin Core Power Supply Cable
• 1 x Miscellany Pack, Screws & Washes, Clamps, P Clips, Zip Ties, Fuel Line Joiners, Warranty Card, QR Code For Digital
• 1 x 10L Diesel Fuel Tank

|

❖Specifications

Brand | Eberspacher
Model | 292113000019
Product Type | Diesel Heater
Voltage | 12V
Fuel | Diesel
Heating Capacity (kw) | 0.85 - 2.2
Heating Air Flow Rate * (kg/h) | max. 105
Electaical Power Consumption (W) | max. 28
Fuel Consumption (l/h) | 0.1 - 0.27
Operating Temperature Heater (˚C) | -40 to +70
Auto dimmer function on controller | Standard
Main Dimensions LxWxH (mm) | 310x115x122
Net Weight (kg) | 2.5
Manufacturers Warranty | 3 years
