❖Features

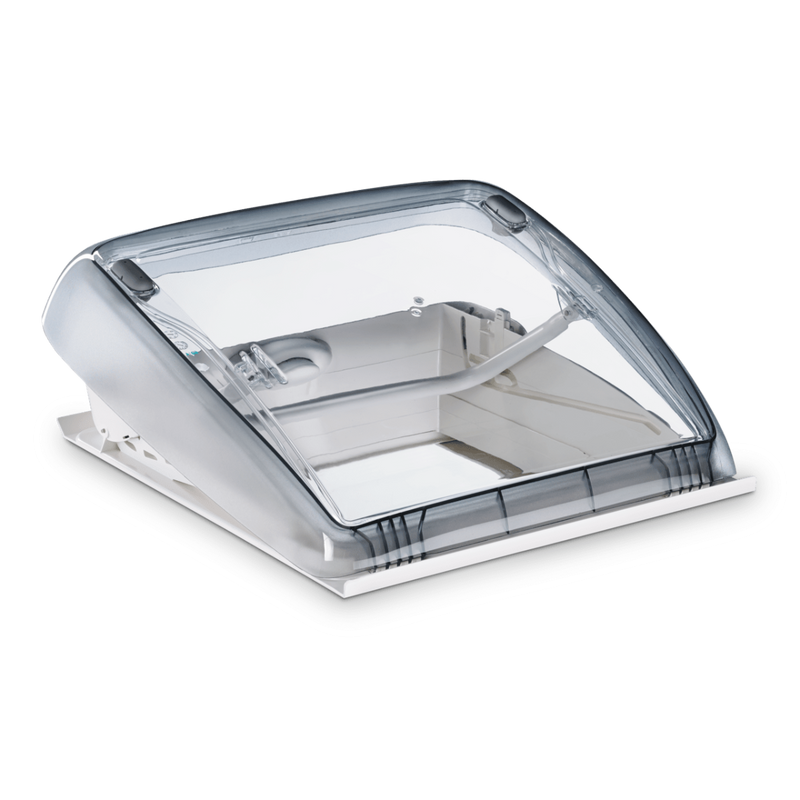

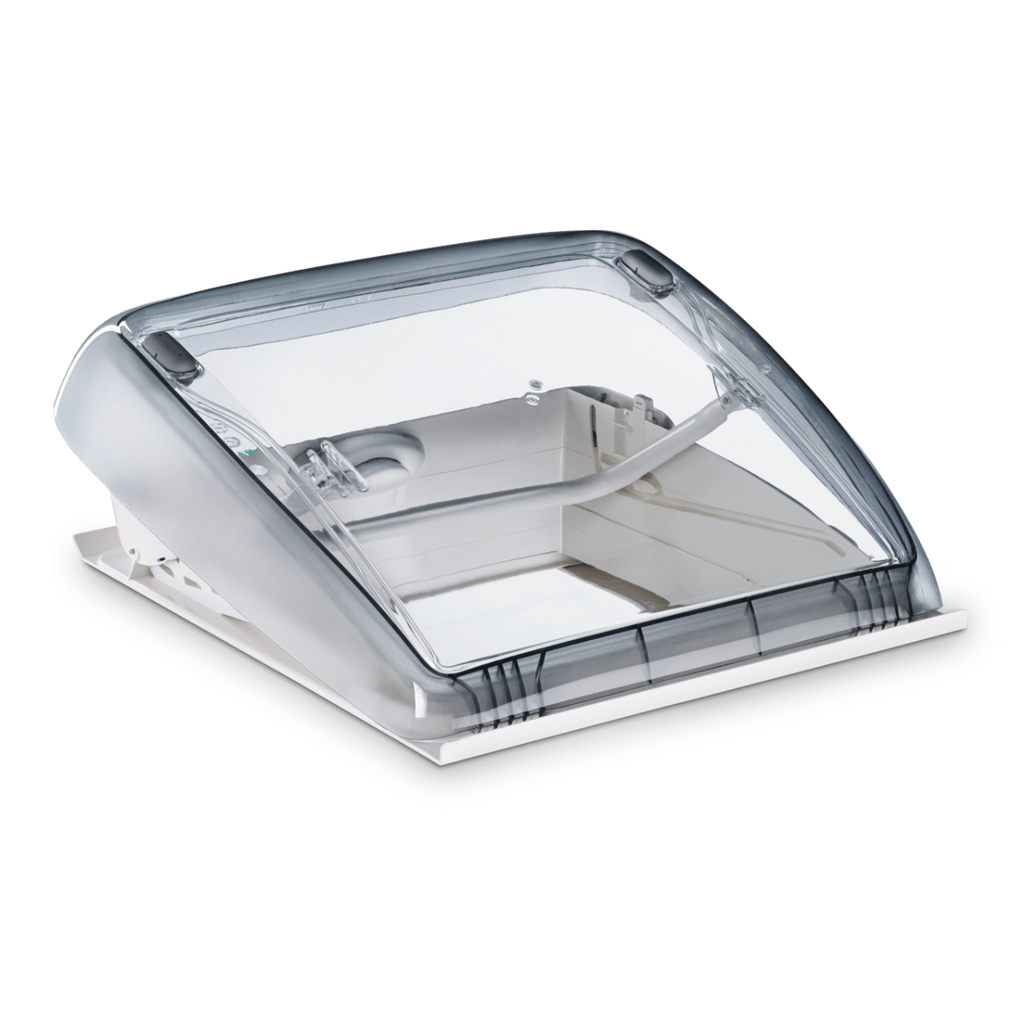

Dometic Mini Heki Plus
Roof light
This sturdy, compact roof light can be opened to three different positions,
allowing use even in bad weather! Includes optional forced ventilation for
plenty of fresh air and separately adjustable fly and darkening screens to
keep out unwanted sunlight and insects.
Features
- Using handles, it can be placed in three different positions: fully open, half-open, and bad weather
- Separately adjustable darkening and fly screens keep light and insects out
- Forced ventilation maximises intake of fresh air
- 400 x 400 mm
- For roofs 25-42mm thick
- Insulated dome with single acrylic glazing
|
❖Specifications
Brand | Dometic
General |
SKU number | 9104119638
Model | Mini Heki plus
Model on label | Mini Heki plus Art.1352
Scope of delivery | Roof light
Product Description | Roof light
Dimensions |
Dimensions product depth, [mm] | 520
Dimensions product height, [mm] | 520
Dimensions product width, [mm] | 535
Dimensions ordered width, [mm] | 400
Dimensions ordered height, [mm] | 400
Net weight, [kg] | 3,3
Dimensions opening width, [mm] | 380
Dimensions opening height, [mm] | 370
Standard mount. material thickness 1 min, [mm] | 42
Standard mount. material thickness 1 max, [mm] | 42
Possible material thickness 1 min, [mm] | 25
Possible material thickness 1 max, [mm] | 42
Ventilation opening, [cm2] | 140
Cut out height, [mm] | 400
Cut out width, [mm] | 400
Additional |
Opening angle max, [°] | 50
Positions fixed **
*| 3
Certificates *
**| ECE R43
