❖Features

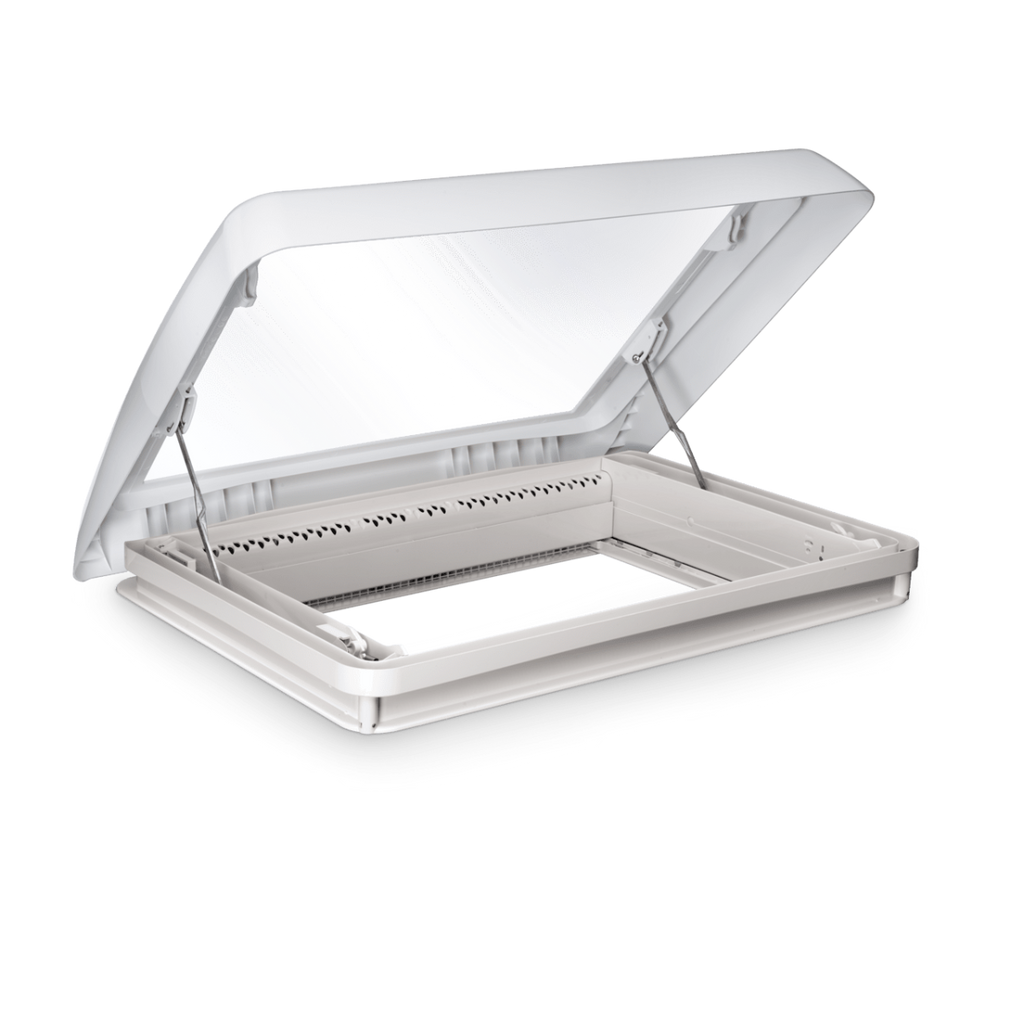

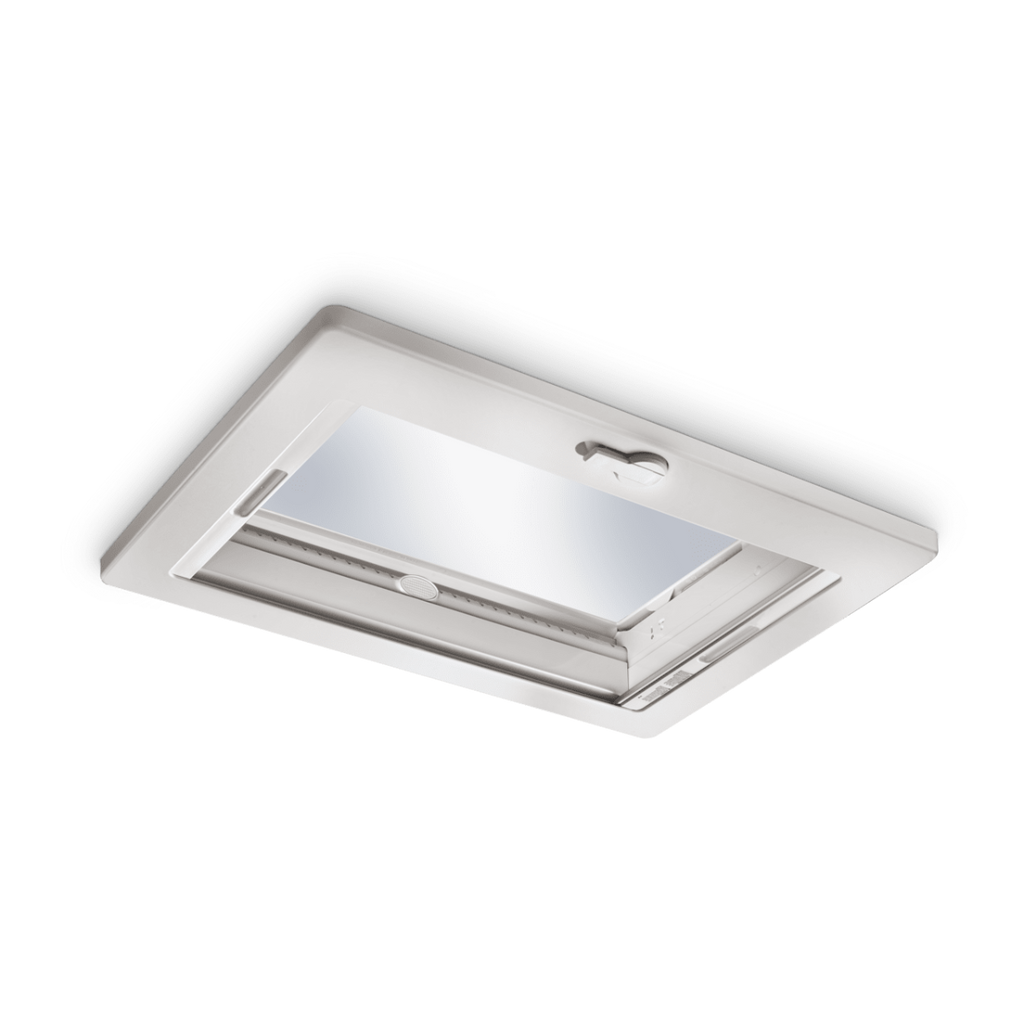

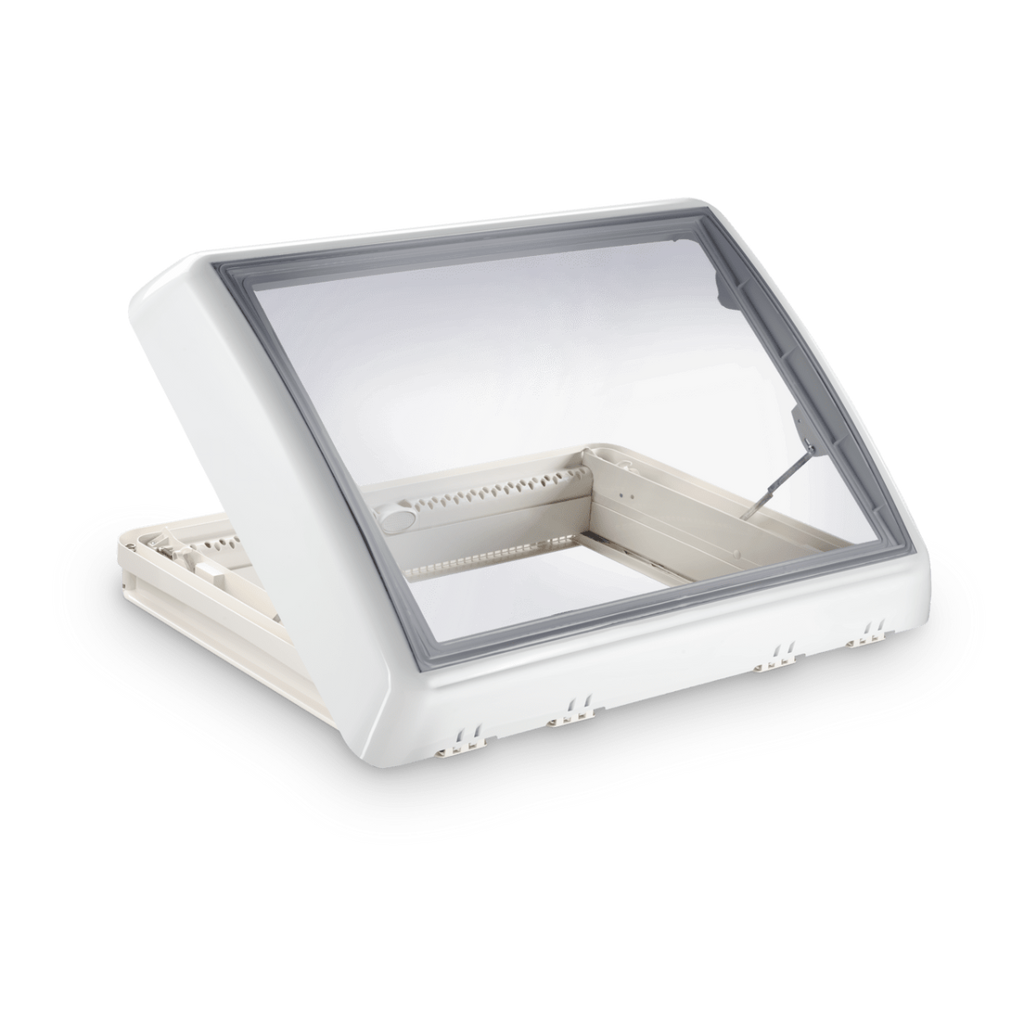

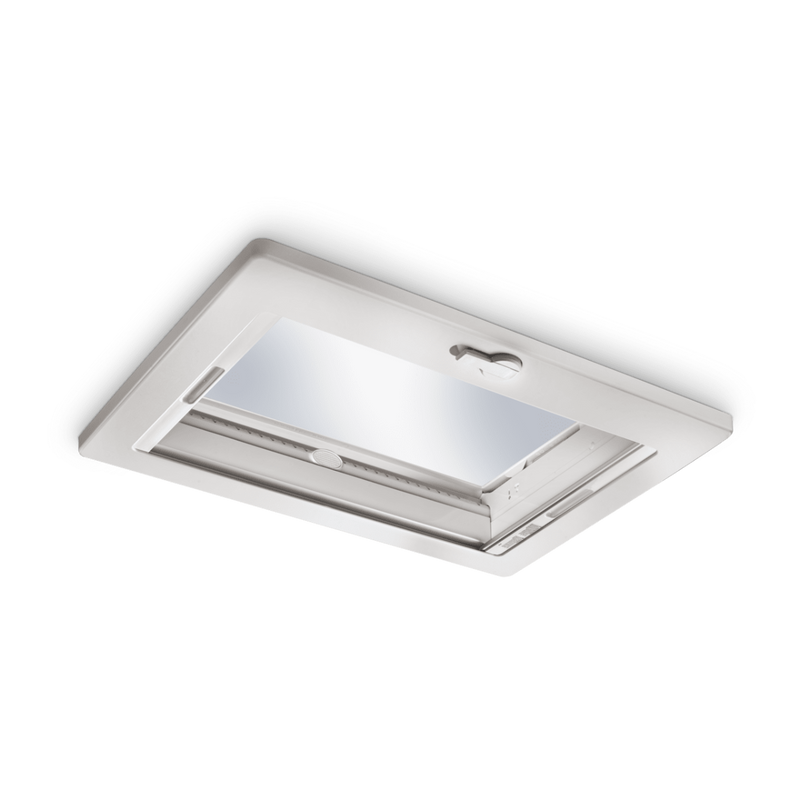

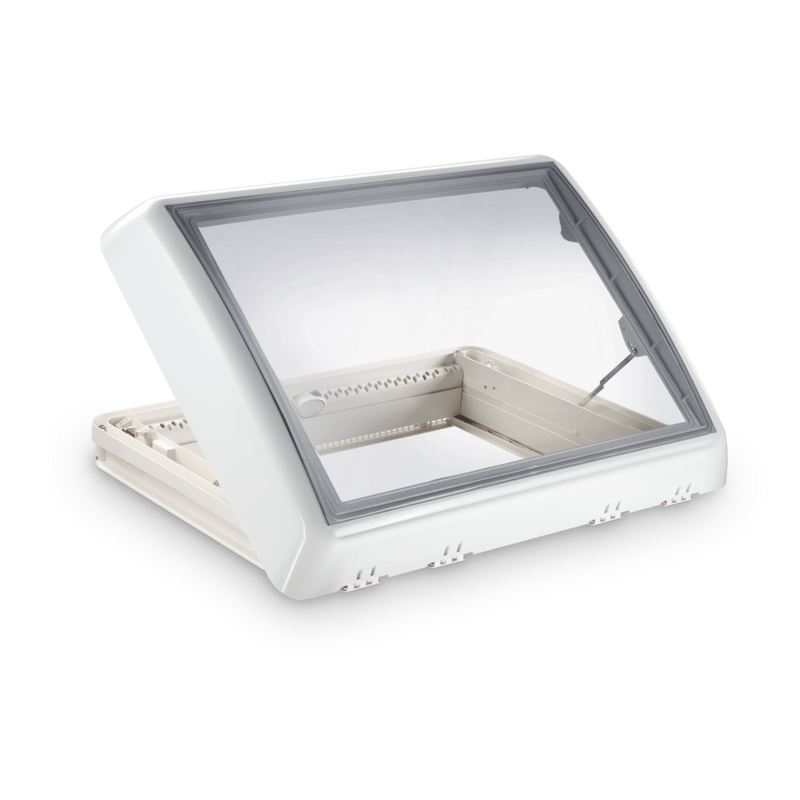

Dometic Midi Heki
Roof light
Open up your vehicle to fresh air and light! This well-insulated roof light
boasts convenient features including a fly screen and hassle-free cleaning.
Features
- Opens to three positions: fully open, half-open, and bad weather position
- Dome with double acrylic glazing
- Separately adjustable darkening and fly screens
- Crank-operated
- Hassle-free cleaning
*** Please add notes to confirm which thickness of the bracket do you need,
normally we send the ZUB1379.**
ZUB1376: 25-29mm
ZUB1377: 30-34mm
ZUB1378: 35-42mm
ZUB1379: 43-52mm
ZUB1380: 52-60mm
|
❖Specifications
Brand | Dometic
General |
SKU number | 9104120383
Model | Midi Heki GD Crank Version
Model on label | Midi Heki GD Art.1493 crank model
Scope of delivery | Midi Heki GD Art.1493 crank model
Product Description | Roof light
Dimensions |
Dimensions product depth, [mm] | 617
Dimensions product height, [mm] | 617
Dimensions product width, [mm] | 846
Dimensions ordered width, [mm] | 700
Dimensions ordered height, [mm] | 500
Net weight, [kg] | 8,5
Dimensions opening width, [mm] | 585
Dimensions opening height, [mm] | 404
Possible material thickness 1 min, [mm] | 25
Possible material thickness 1 max, [mm] | 60
Ventilation opening, [cm2] | 150
Cut out height, [mm] | 500
Cut out width, [mm] | 700
Additional |
Opening angle max, [°] | 60
Positions fixed **
| Variable
Certificates **
*| ECE R43
*Logistics |
Dimensions parcel depth, [mm] | 680
Dimensions parcel height, [mm] | 230
Dimensions parcel width, [mm] | 920
Parcel weight, [kg] | 9.50
