❖Features

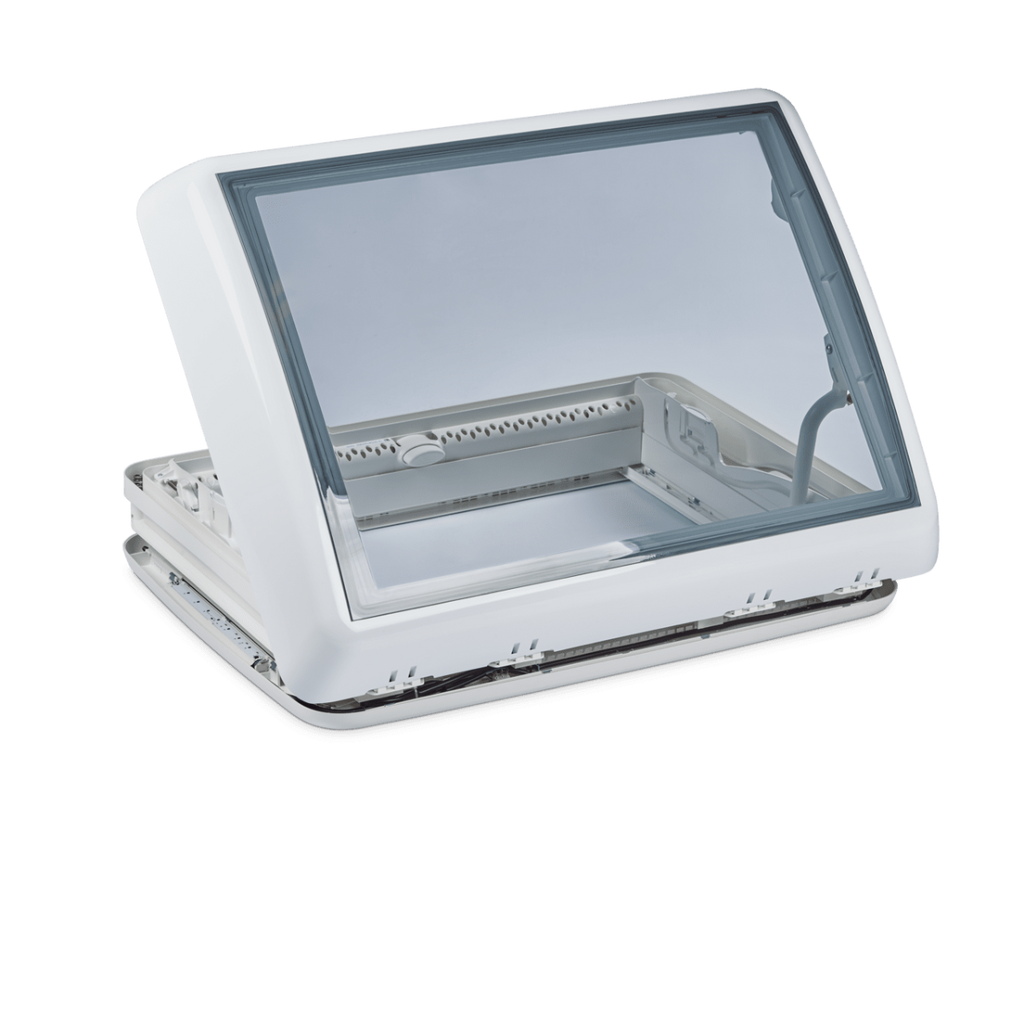

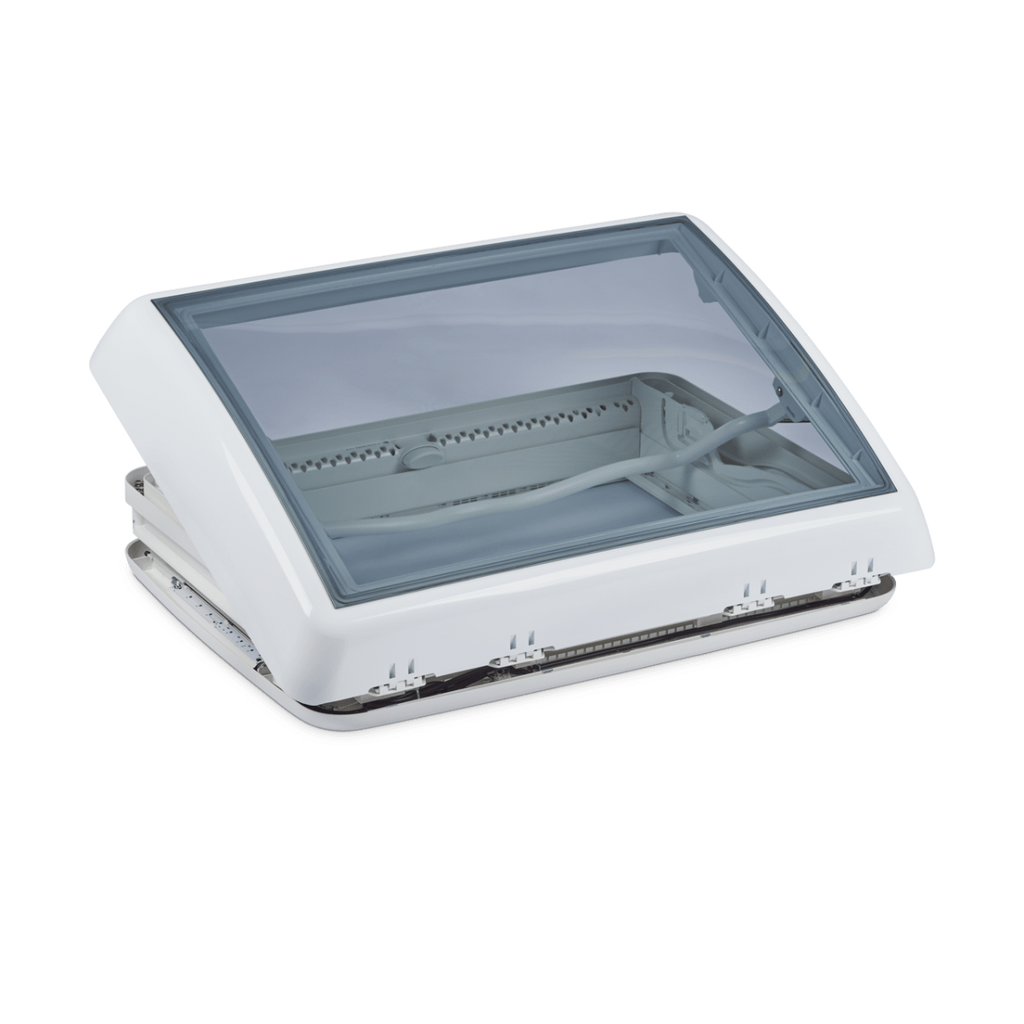

Dometic Midi Heki FL Lever LED
Roof window with lever, 700 x 500 mm, white, with forced ventilation
Experience the redesigned MidiHeki, crafted to maximize fresh air and natural
light. Trusted by millions globally, this updated version offers enhanced
design features. Enjoy the convenience of its darkening blind and fly screen,
ensuring comfort on the road. Effortlessly operated with one hand, it provides
premium insulation and noise reduction, enhancing your journey to new heights
of comfort and tranquility.
- Modern interior design
- Shade, privacy and protection from insects
- Effortless one-hand operation
- Opens to three positions
- Fresh air even when closed
Features

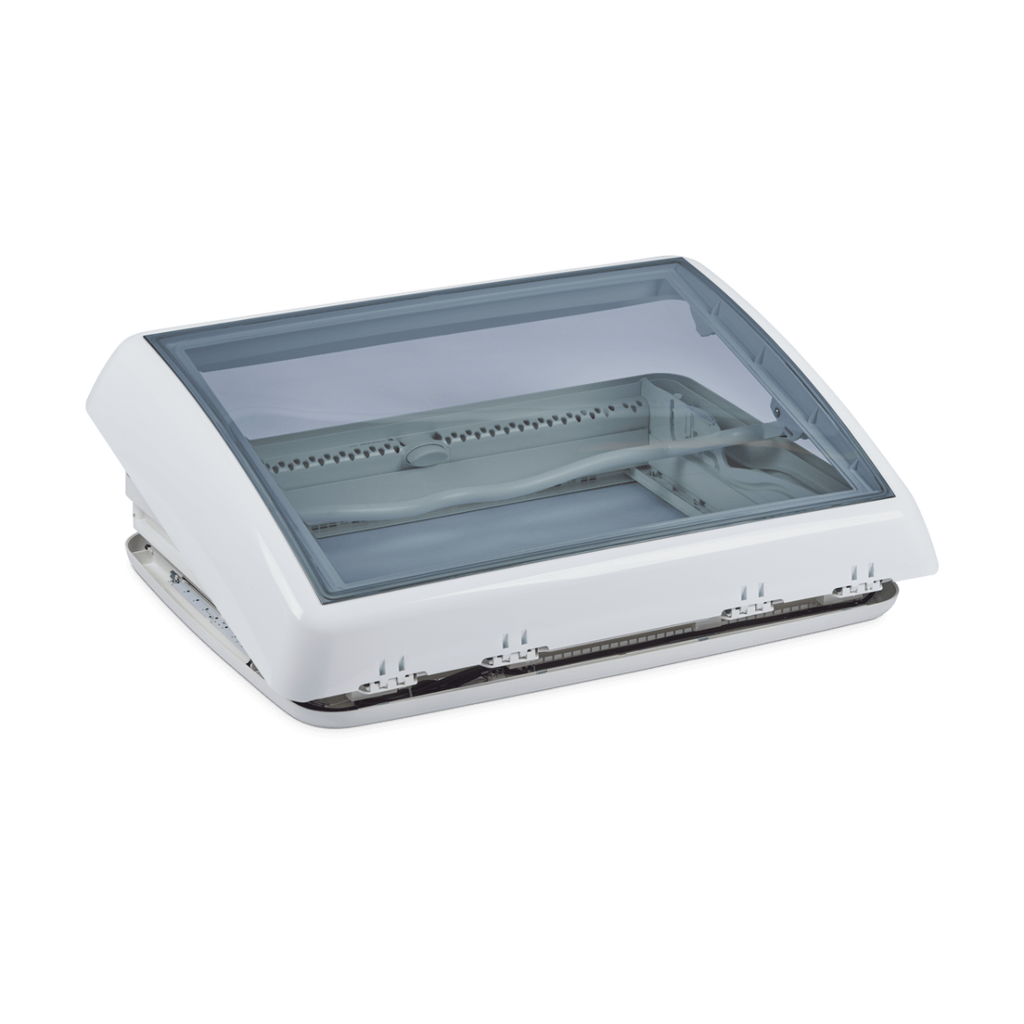

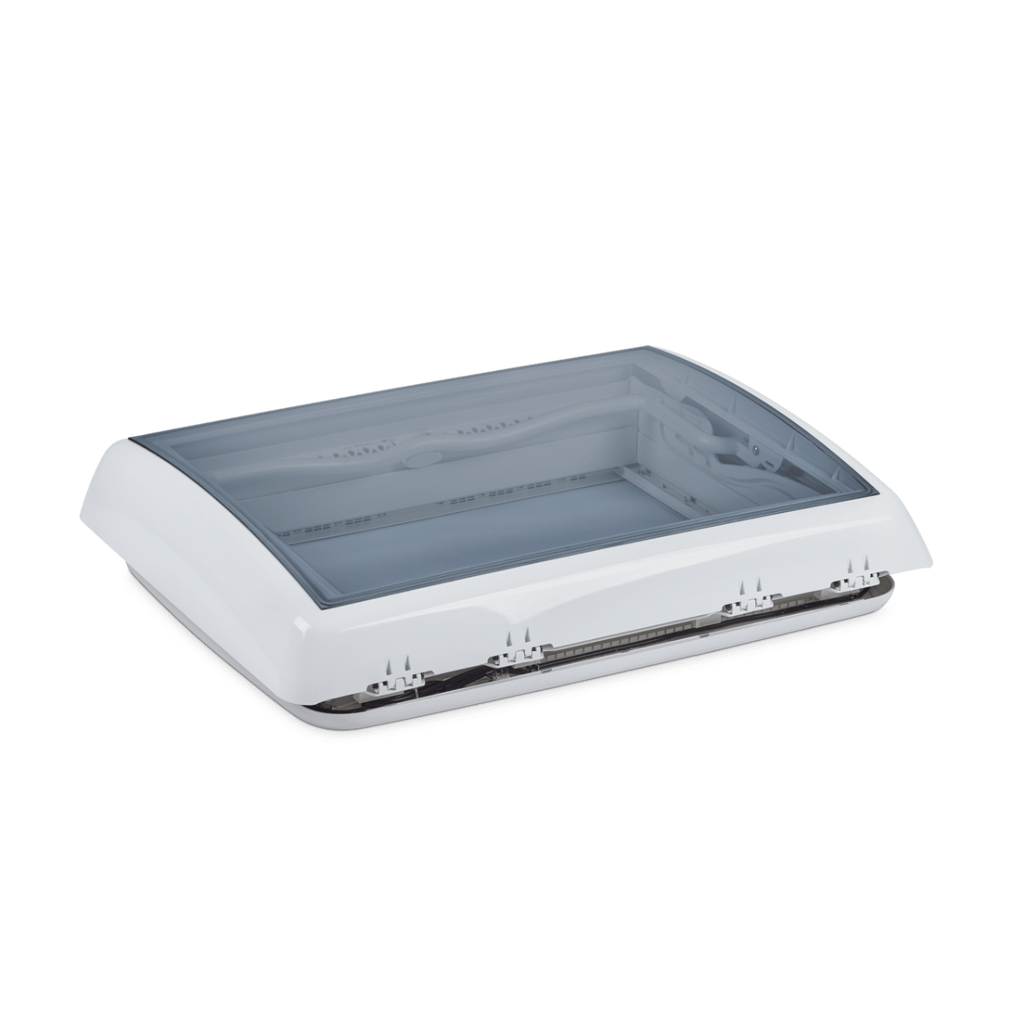

- Aerodynamically shaped glass dome

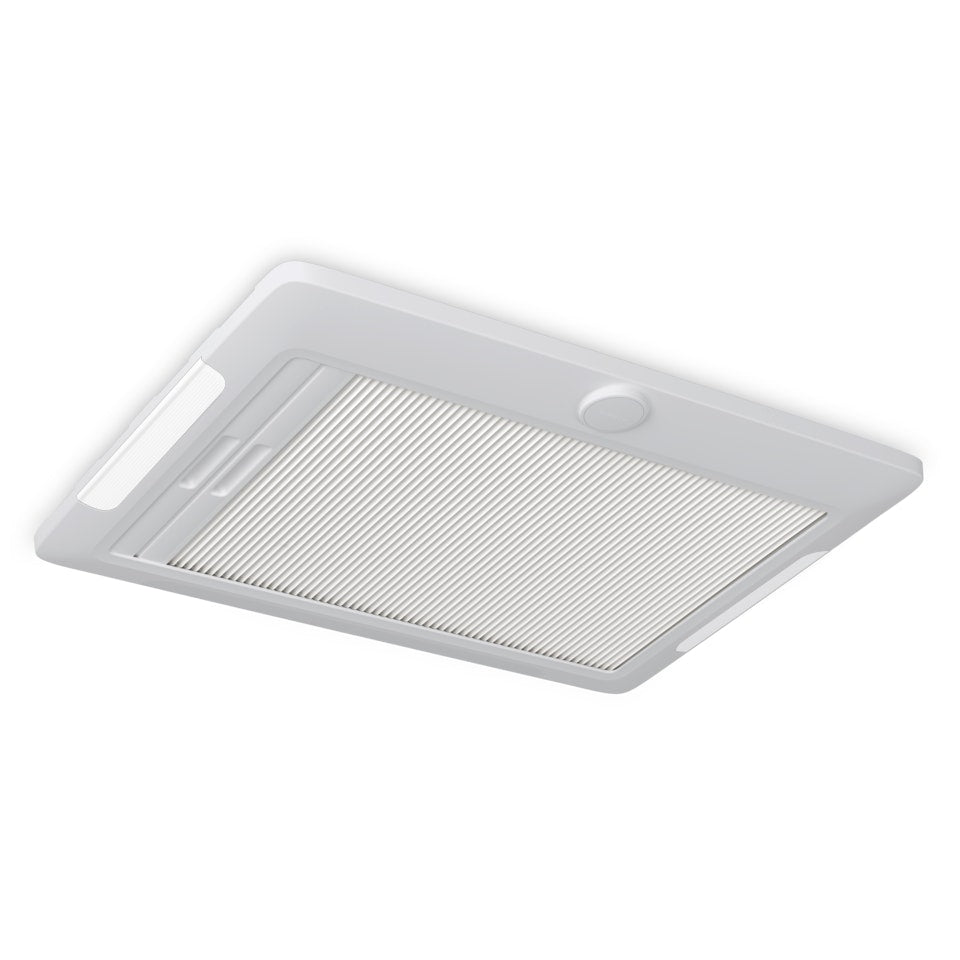

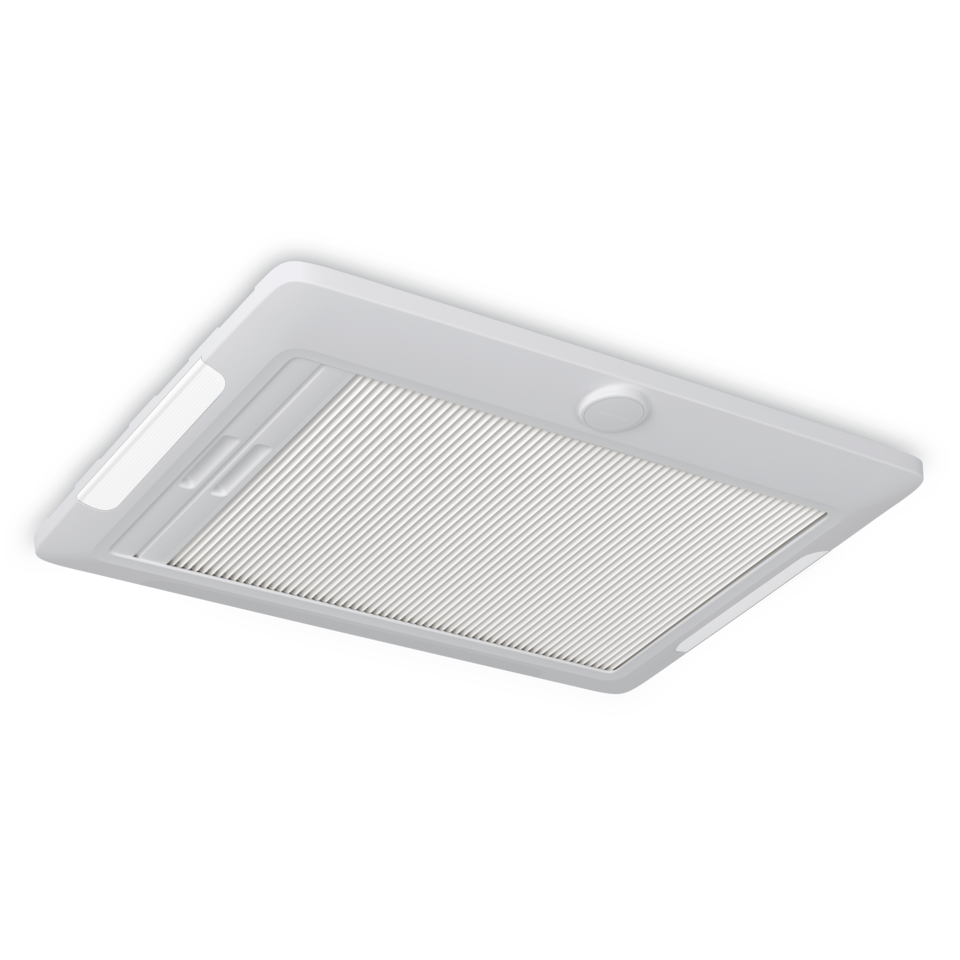

- Stylish interior frame and plain, single-colored blind fabric

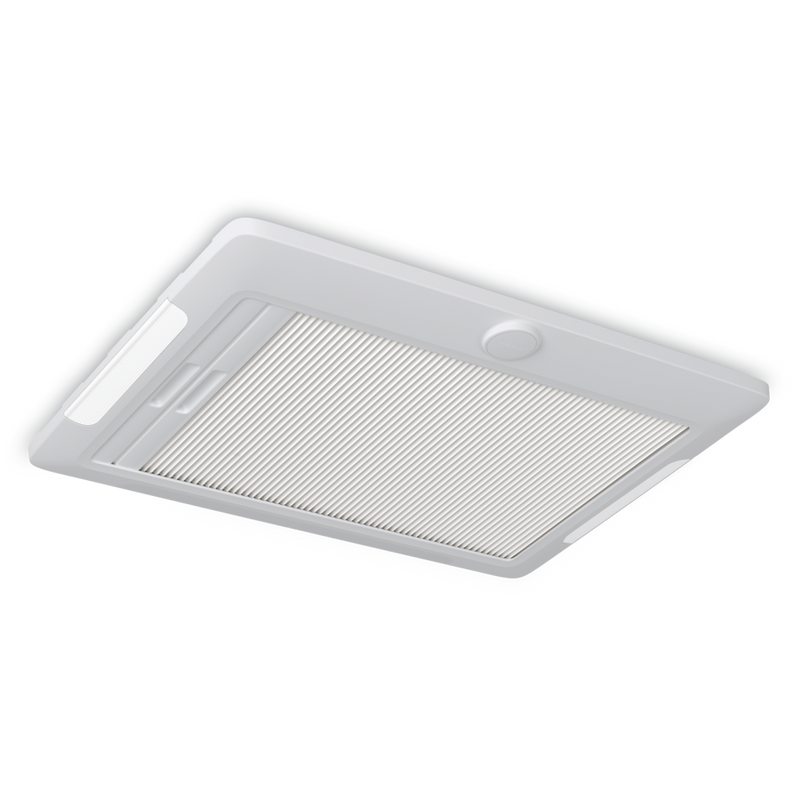

- Inner frame holds a darkening blind and fly screen, separately adjustable

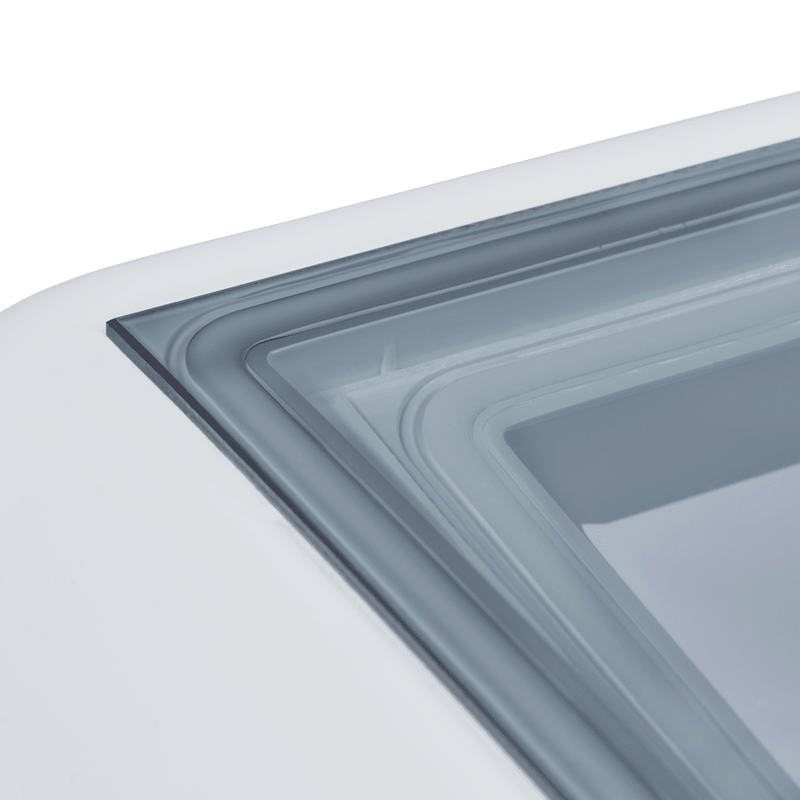

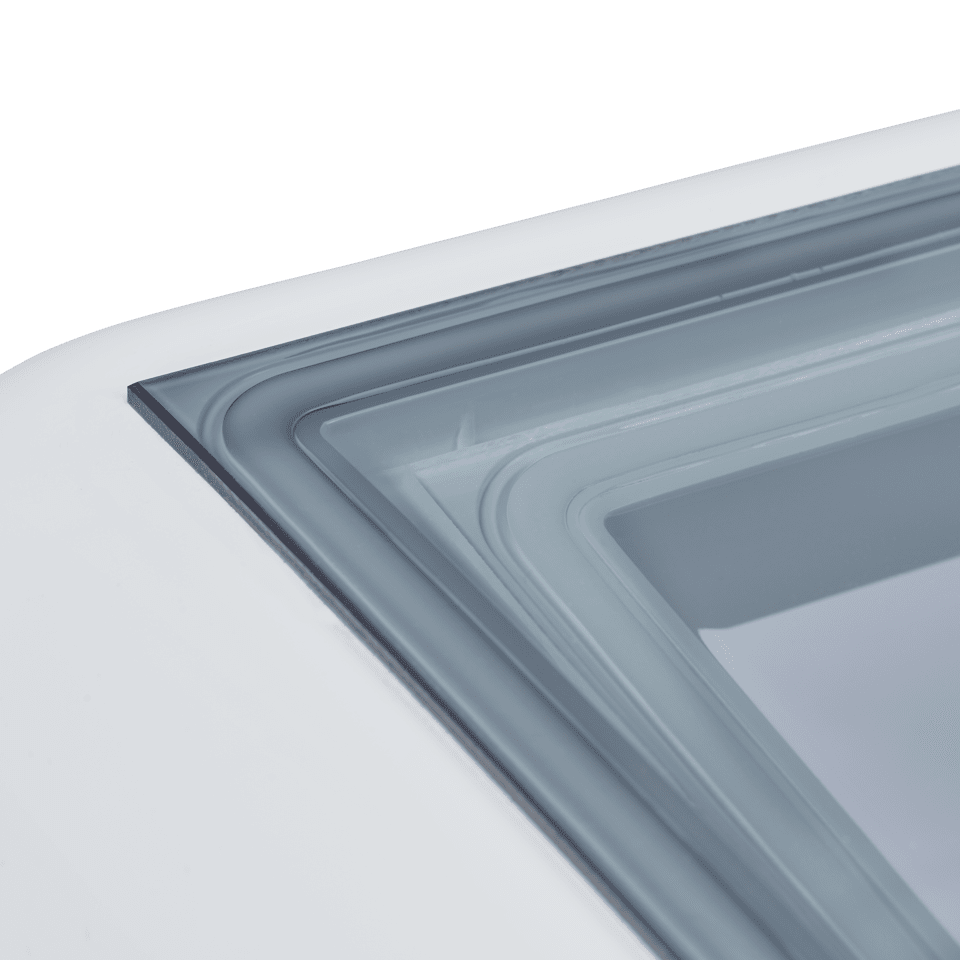

- Premium double-walled PMMA acrylic glazing minimizes noise from rain or hail

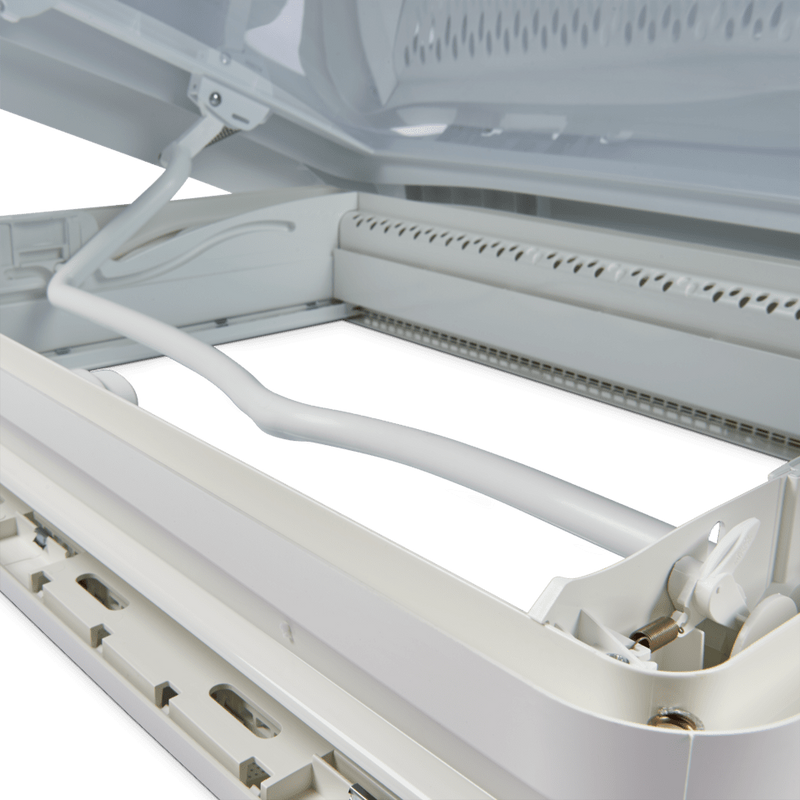

- Lever version
- Switch easily between fully open, half-open and a position for inclement weather
- Hinge and additional locking integrated in frame
Product Highlights
Modern interior design
Stylish interior frame and plain, single-colored blind fabric
Shade, privacy and protection from insects
Inner frame holds a darkening blind and fly screen, separately adjustable
Effortless one-hand operation

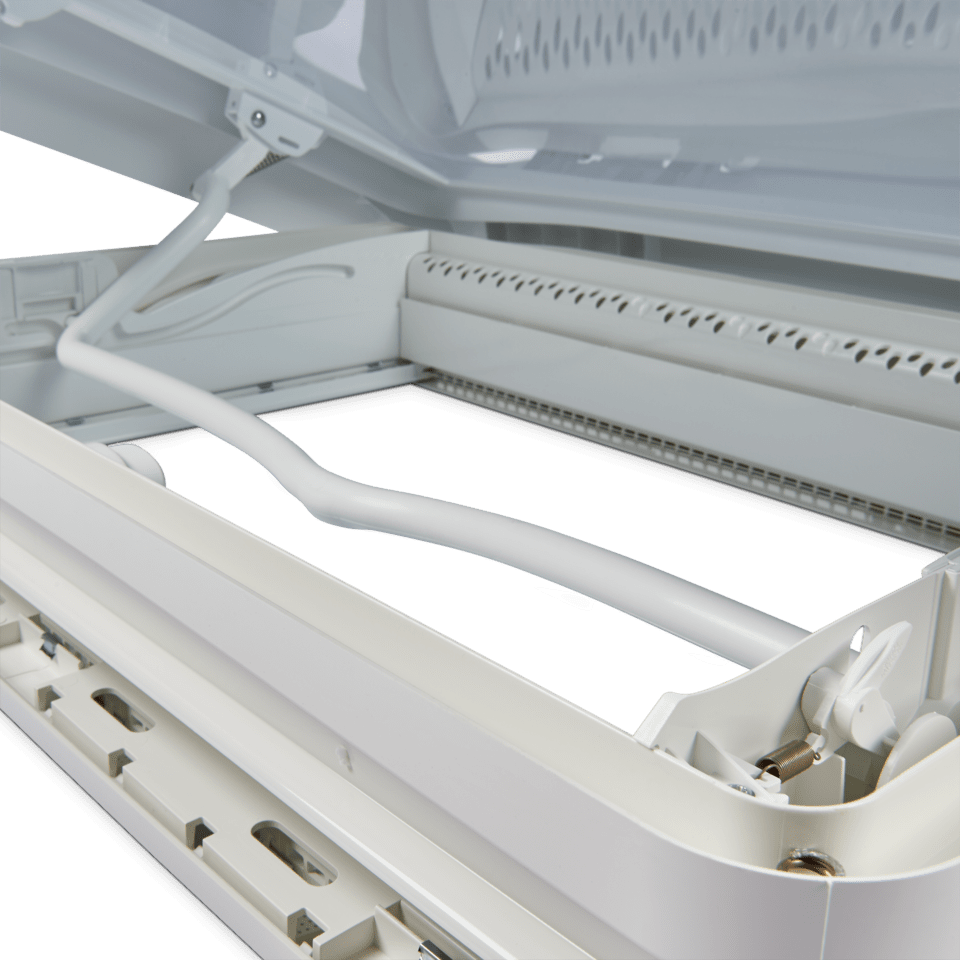

Lever version
Opens to three positions
Switch easily between fully open, half-open and a position for inclement
weather
Fresh air even when closed

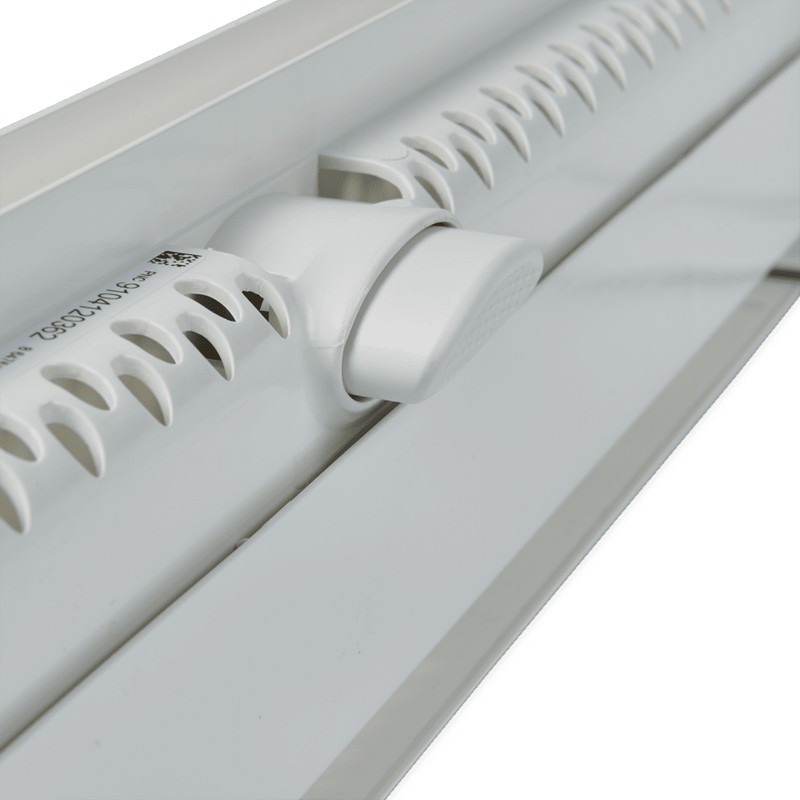

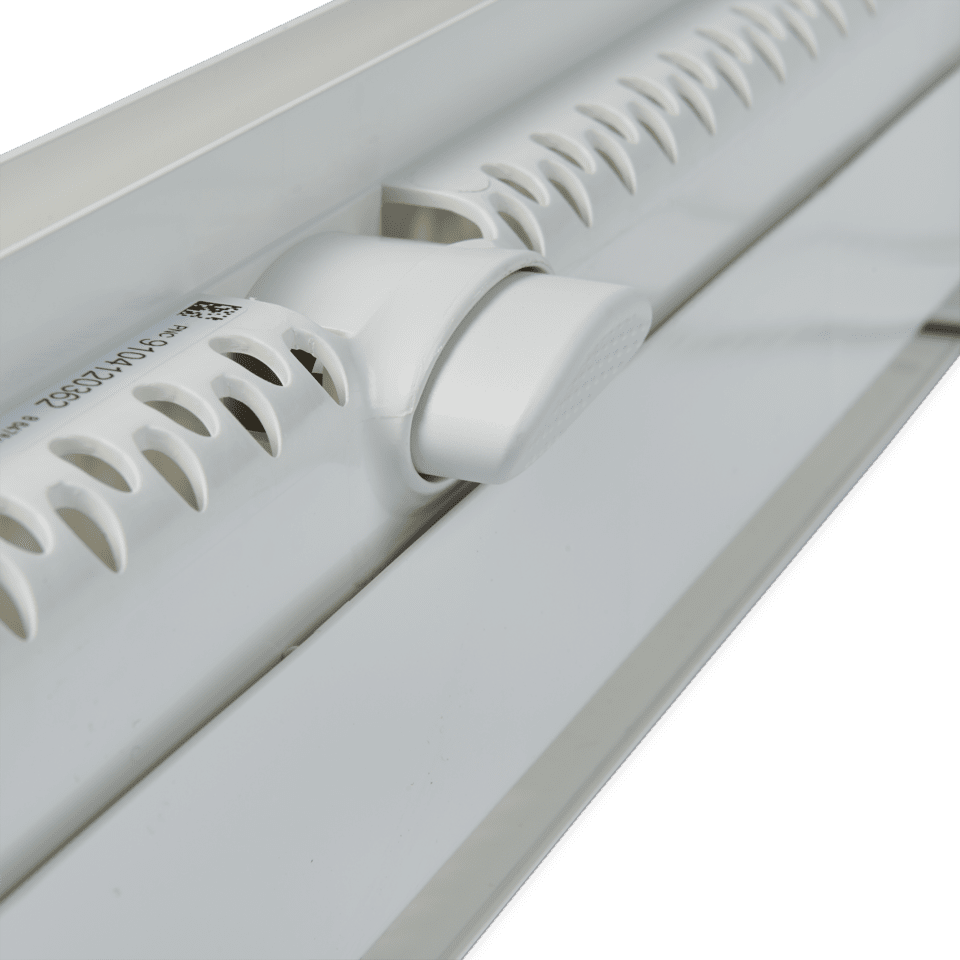

Continuous ventilation
*** The new version eliminates the light switch and blue LED light.**
*** Please add notes to confirm which thickness of the bracket do you need,
normally we send the ZUB1379.**
ZUB1376: 25-29mm
ZUB1377: 30-34mm
ZUB1378: 35-42mm
ZUB1379: 43-52mm
ZUB1380: 52-60mm
|
❖Specifications
Brand | Dometic
General |
SKU number | 9620015780
Model | Midi Heki FL lever
Model on label | Midi Heki FL Art.1529 lever
Scope of delivery | Midi Heki FL Art.1529 lever model
Product Description | Roof window with lever, 700 x 500 mm, white, with forced
ventilation
Dimensions |
Dimensions product depth, [mm] | 617
Dimensions product height, [mm] | 617
Dimensions product width, [mm] | 846
Dimensions ordered width, [mm] | 700
Dimensions ordered height, [mm] | 500
Net weight, [kg] | 8.10
Dimensions opening width, [mm] | 585
Dimensions opening height, [mm] | 404
Standard mount. material thickness 1 min, [mm] | 25
Standard mount. material thickness 1 max, [mm] | 29
Possible material thickness 1 min, [mm] | 25
Possible material thickness 1 max, [mm] | 60
Ventilation opening, [cm2] | 150
Cut out height, [mm] | 500
Cut out width, [mm] | 700
Additional |
Opening angle max, [°] | 45
Positions fixed **
| 3
Certificates **
*| ECE R43
*Logistics |
Dimensions parcel depth, [mm] | 710
Dimensions parcel height, [mm] | 230
Dimensions parcel width, [mm] | 920
Parcel weight, [kg] | 10.28
