❖Features
PLUS SERIES EXCLUSIVE FEATURES
Patented “Checklock” Gen.2 Dust Cap & Bumper for an easy, secure seal
Improved Bumper now includes reflective reversing strip for easy alignment
Rear support webbing allows for mounting upside down on the underside of the
drawbar
FEATURES
D-Value & V-Value ADR Compliant
2 Stage ADR compliant locking mechanism
Low profile Bumper & Cap for impressive clearance
High articulation for improved handling off-road and on unmaintained roads
Available with or without handbrake
Suitable for use with Weight Distribution System’s (where applicable)
Forged Yoke and Rear Nut for added strength
One piece light weight Cast Housing
Improved towing safety
Combination of zn-ni and e-coat for superior corrosion protection
Greaseable Bushes for easy maintenance and noise free towing
No tow ball height restrictions
R.A.T Run Tested and Proven

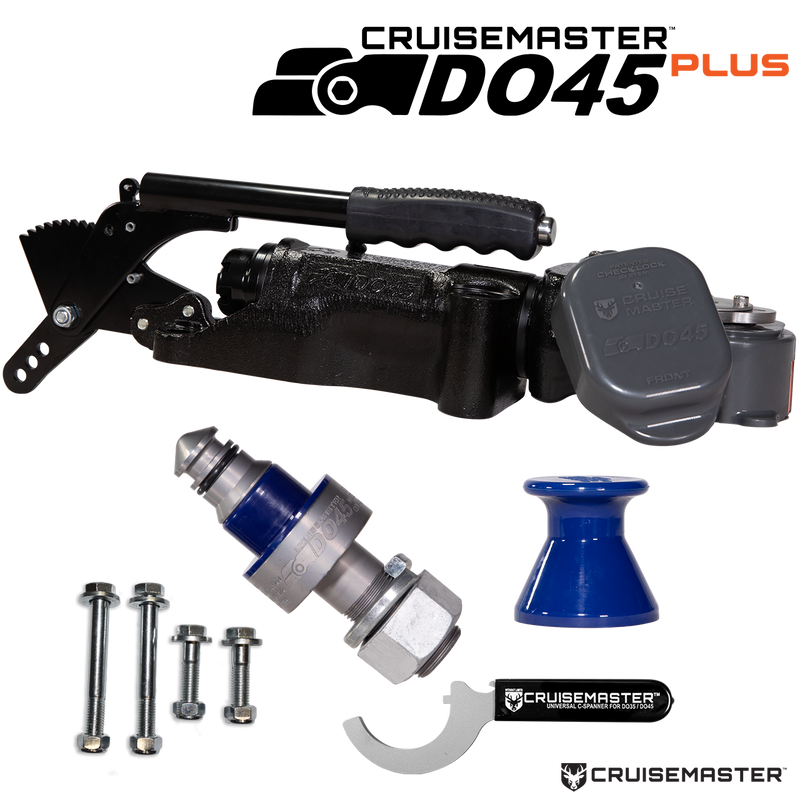

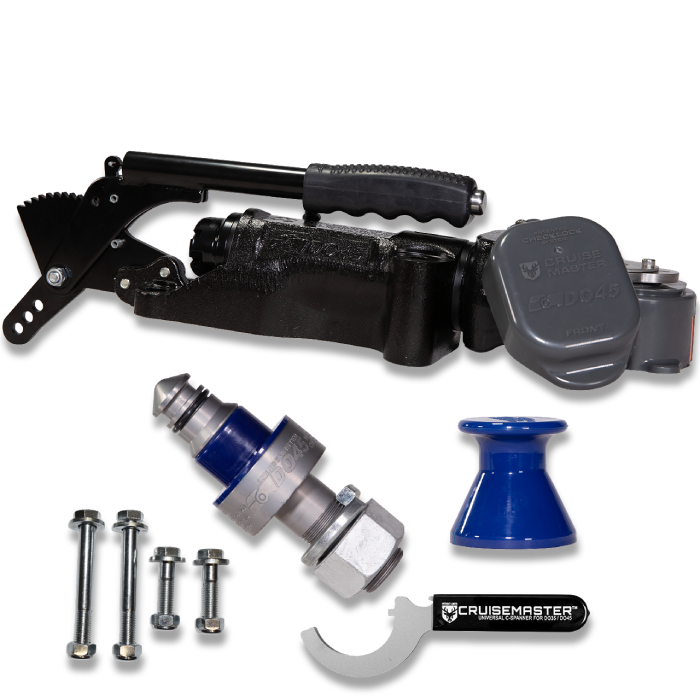

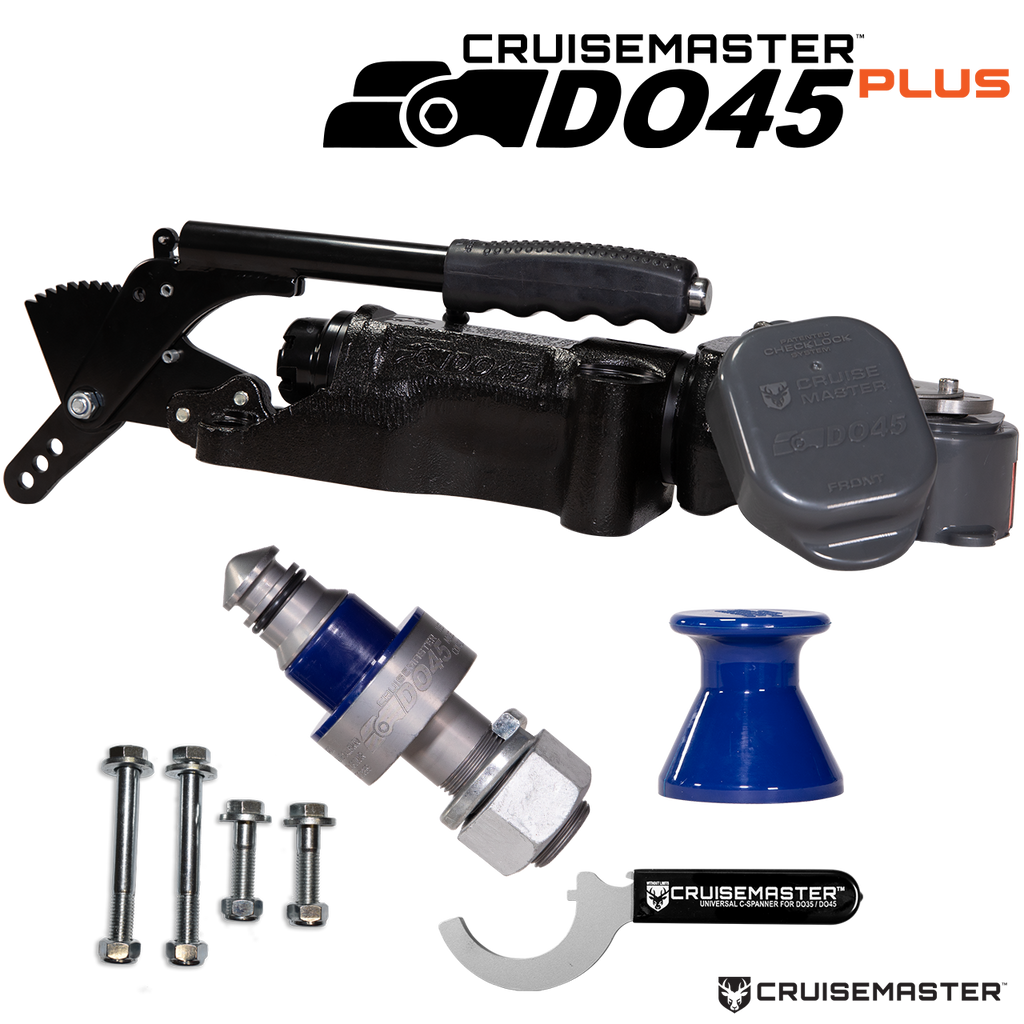

ITEM INCLUDES
- DO45 Plus (With Handbrake)
- Tow Pin 1 1/4" Shaft
- Tow Pin Cover
- Universal C-Spanner
- Fitment Bolts
- User Guide
|
❖Specifications
Brand | Cruisemaster
Model | 18D-DO45PLUS-I
Articulation | 360 degrees axial, minimum 70 degrees other axes
Locking | Fully ADR 62/02 compliant including automatic secondary lock
Bolt pattern | 4 bolts at 185mm x 76mm (Front) x 54mm (Rear)
Rating | 4.5 Tonne
Action | Drop-On
Maintenance | Fully Greasable
Weight | 14.35kg
Manufacturers Warranty | 3 years
