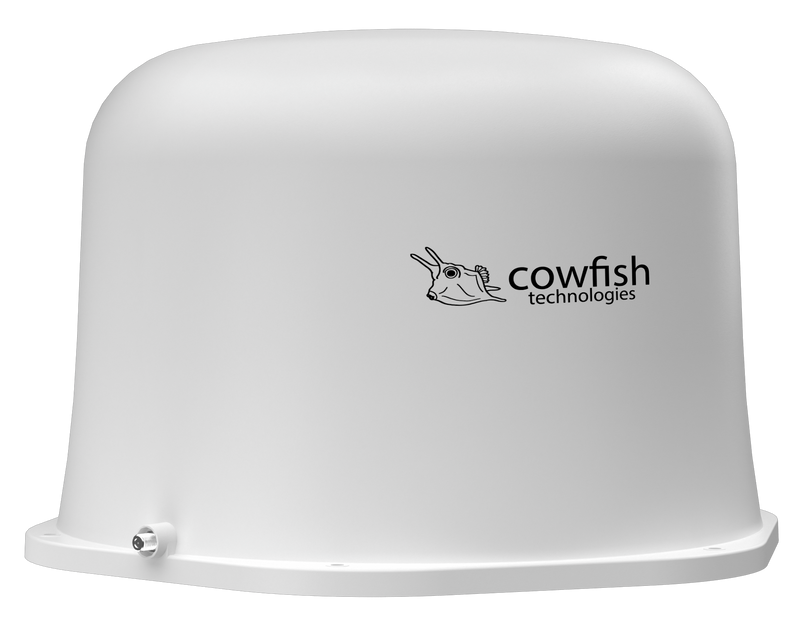

Cowfish VanTenna - HD TV antenna

The Cowfish VanTenna is the Caravan TV Antenna that you are looking for

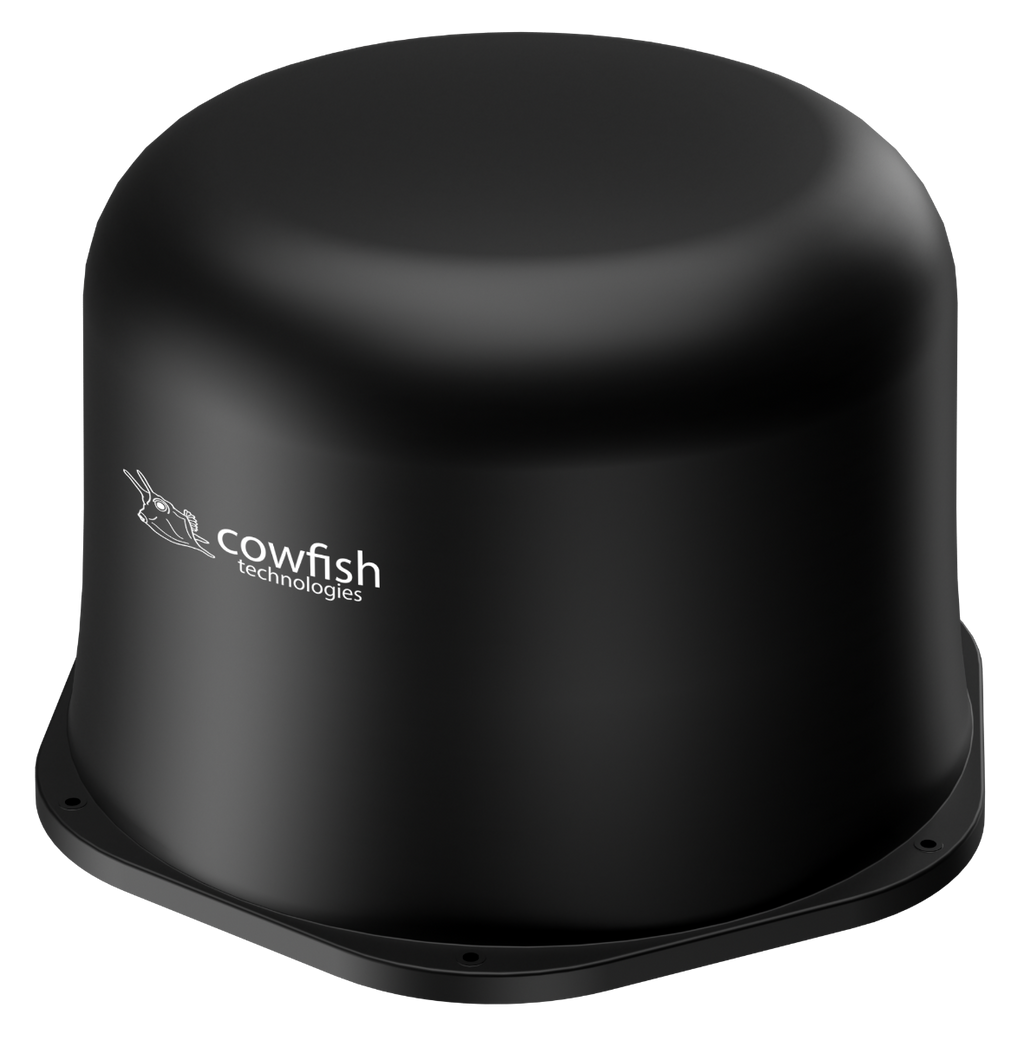

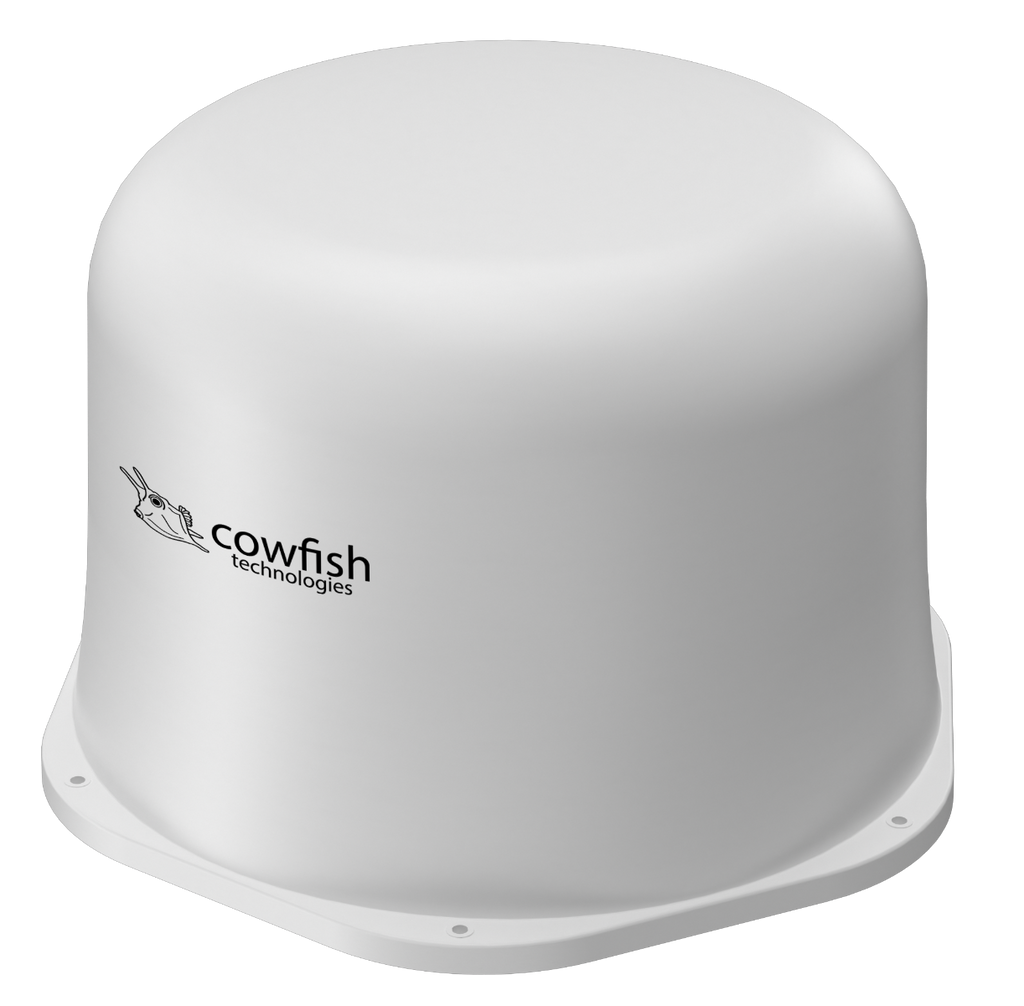

The VanTenna is the next generation of Caravan TV Antennas. It is the only omni directional TV antenna that can receive both a horizontally polarised as well as a vertically polarised TV signal.

This antenna provides you with TV reception, regardless of the orientation your Caravan or Motorhome is parked in. With the VanTenna there is no need to wind up an antenna and attempt to point it in the direction of the nearest Television Broadcasting Tower. There is no need to wind the antenna down in bad weather or storms. There is no wind noise coming from the antenna as you sit inside trying to watch TV. There is also no chance of breaking the antenna when travelling over corrugated roads as there are no hinges or moving parts. You simply turn the Caravan TV Antenna on and scan for TV channels on your television. The VanTenna does all the work for you!

Your VanTenna will receive signals equally from all directions. This means that you can pick up TV channels from multiple Television broadcasting towers at the same time. As a result, you will be able to watch all available channels in your area, regardless of which TV tower is sending out the channel signal.

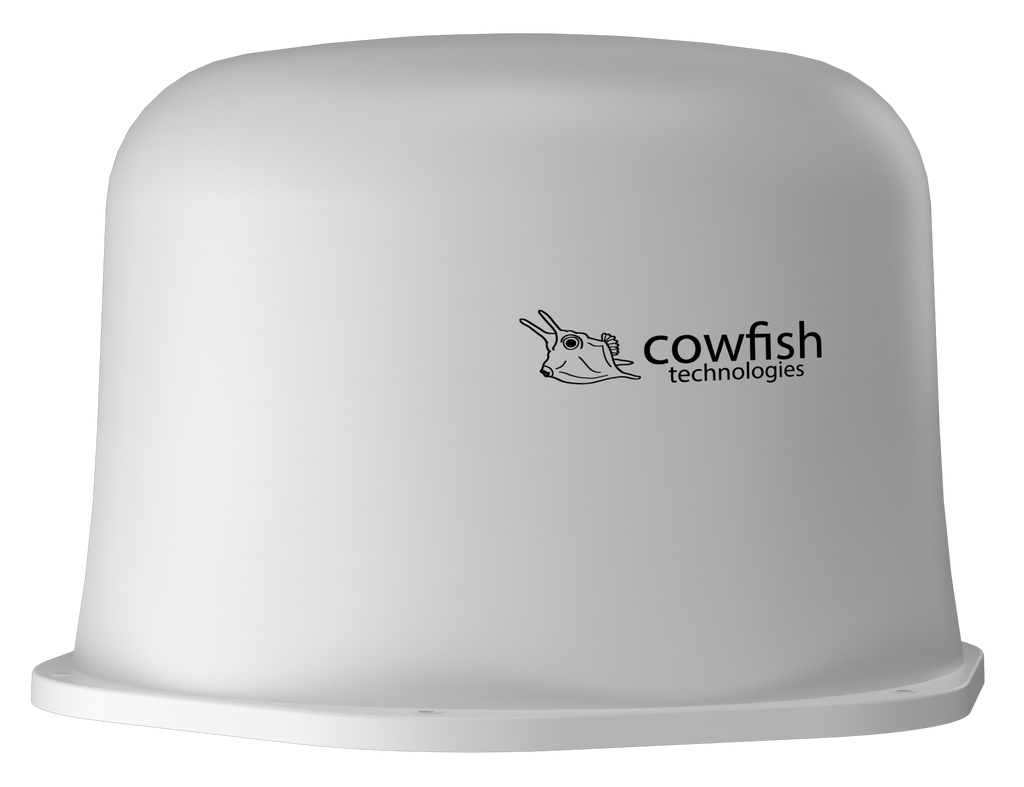

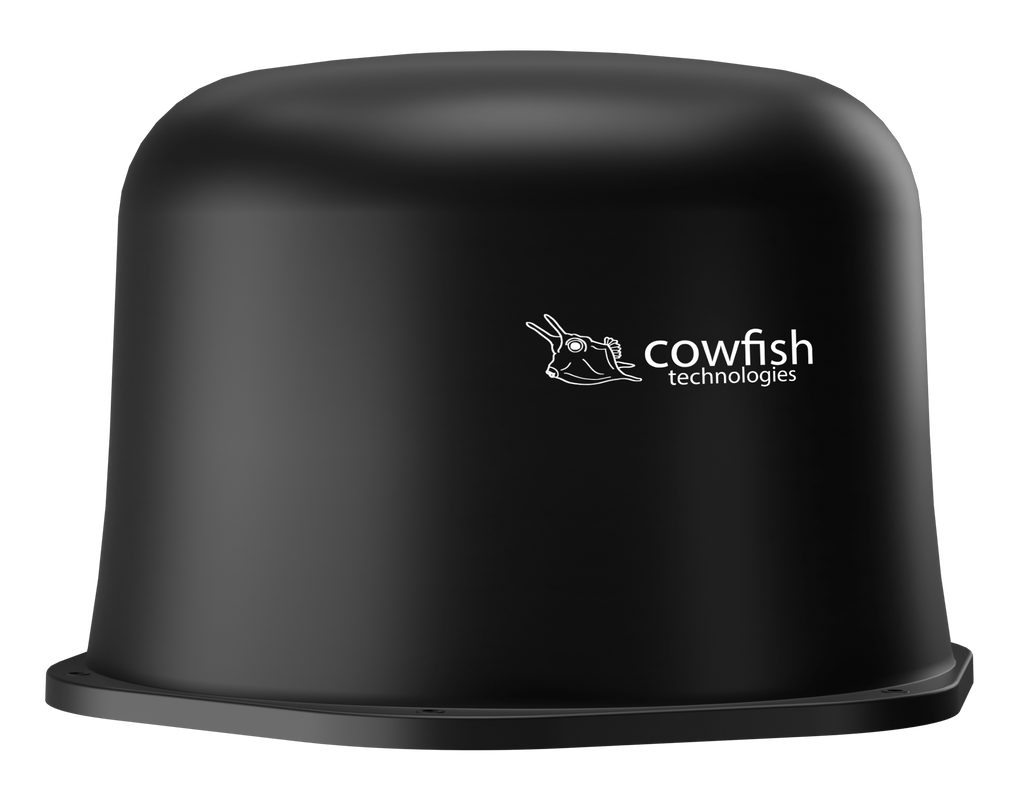

The VanTenna is 302mm in diameter and is also 302mm high. We have designed the VanTenna specifically with this height in mind, as most caravan air-conditioning units are also 300mm in height. The result is that the VanTenna does not protrude any higher than what is already installed on your caravan roof, but also gives you the best design to receive Digital Television signal.

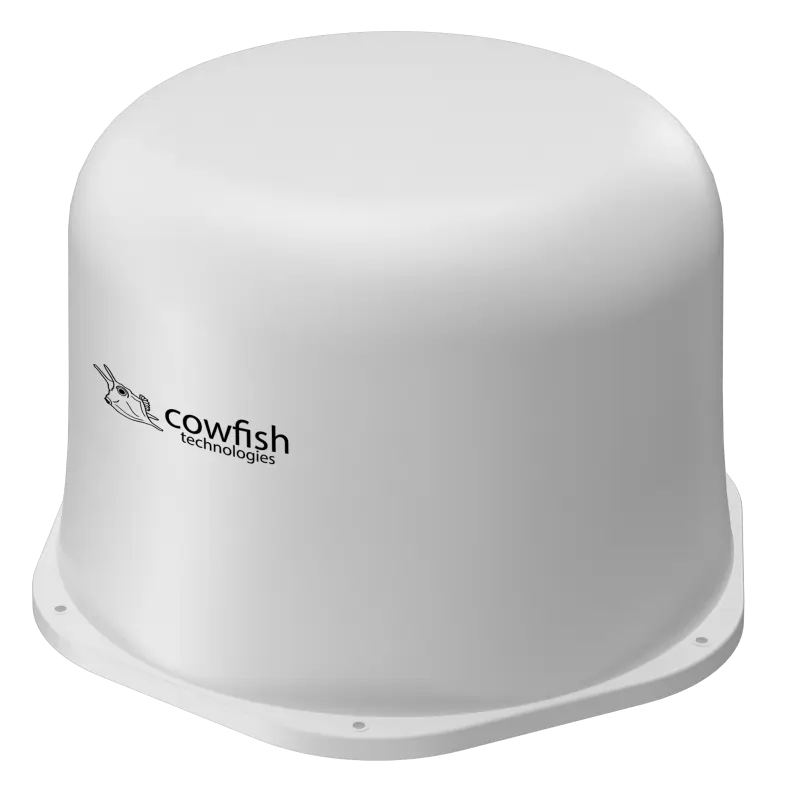

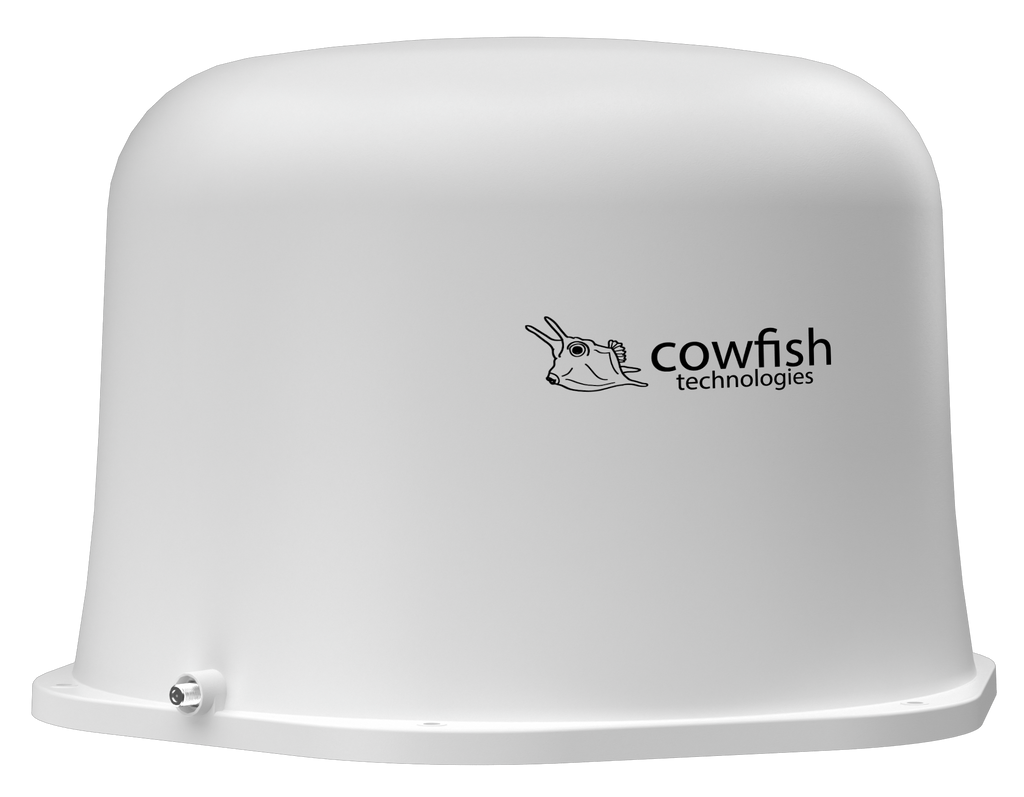

Model A comes with a TV connector (F type) on the bottom of the unit. This version is ideal for new antenna installations on a caravan where a coax cable has not yet been installed, or when replacing on older TV antenna that had an internal coax cable, for instance a King Jack TV antenna. This version also includes an integrated AM/FM antenna.

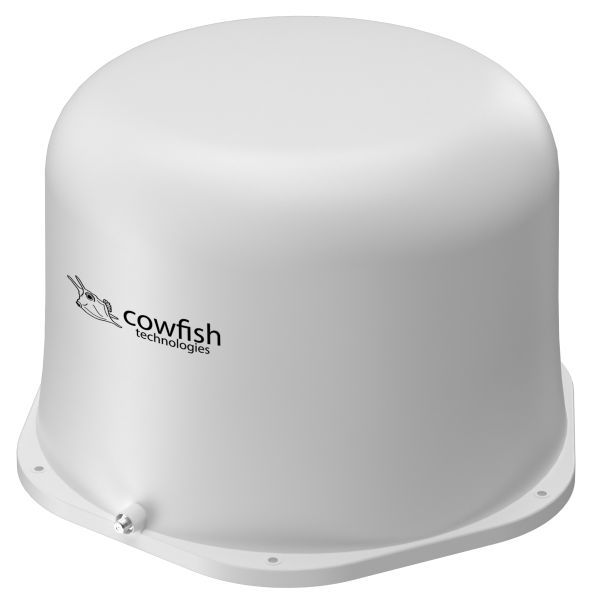

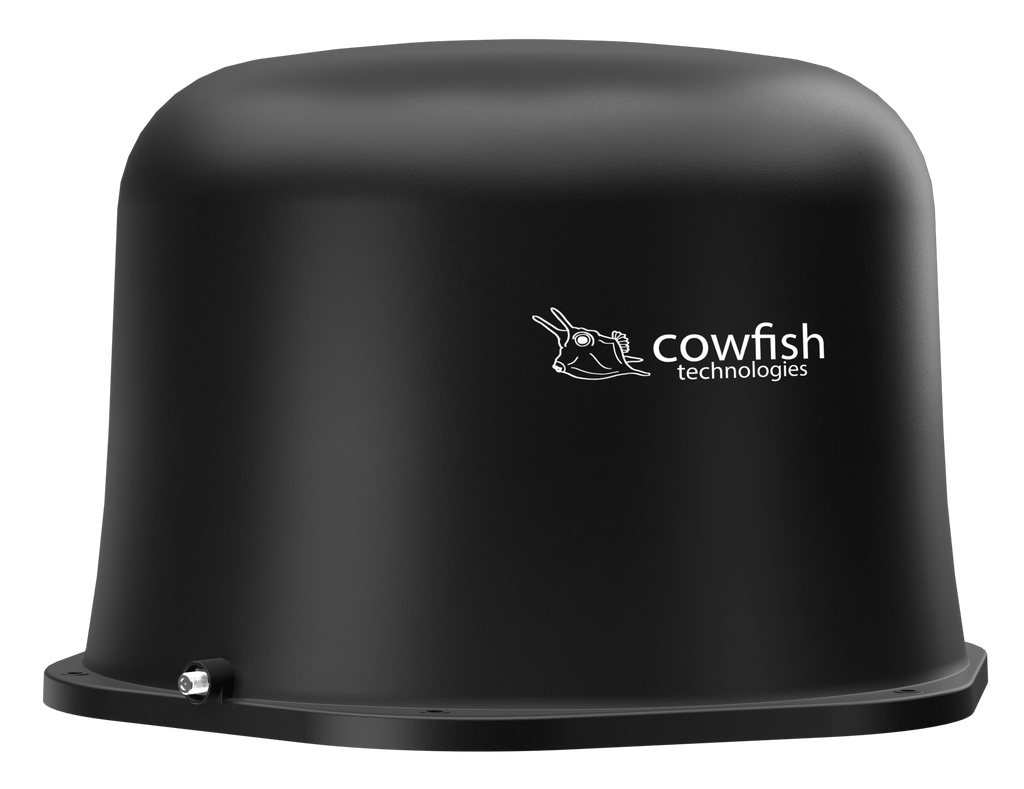

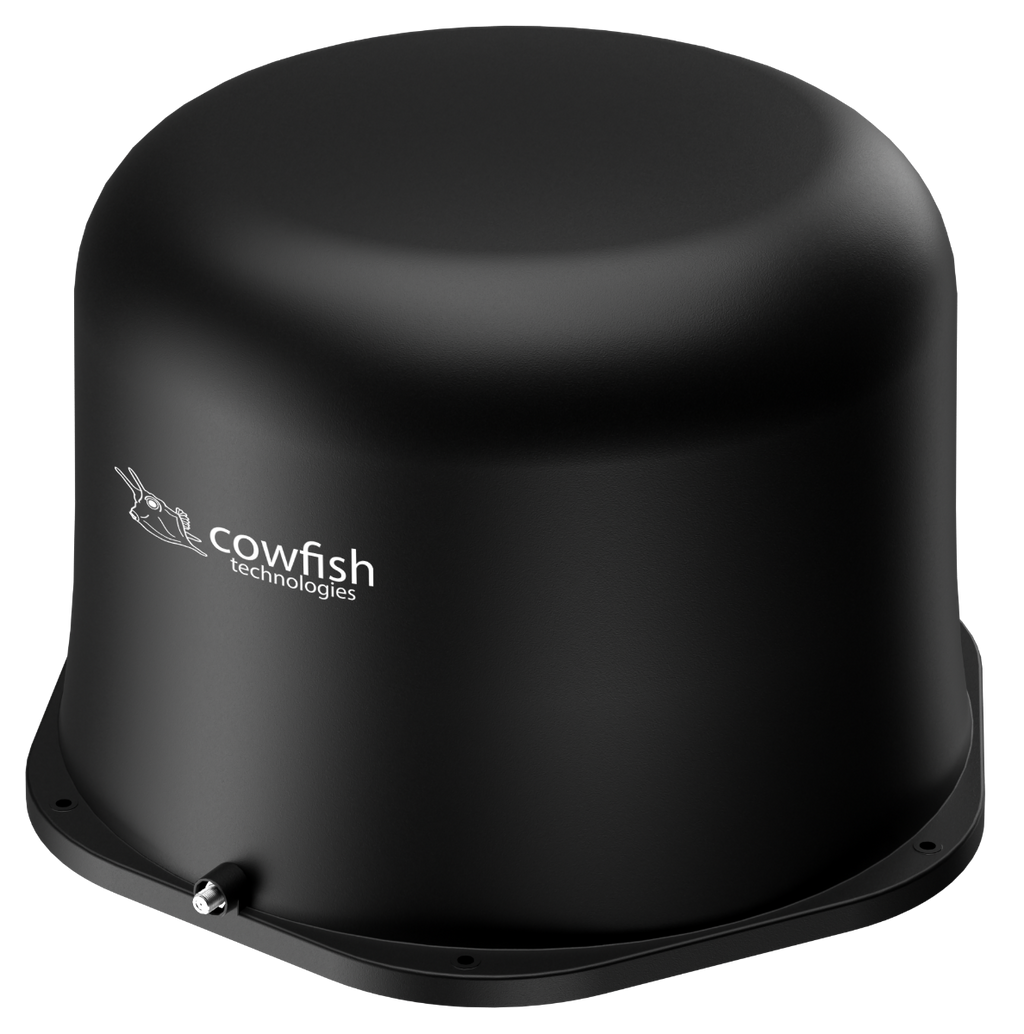

Model B comes with a TV connector (F type) on the side of the unit. This version is ideal for customers that already have a TV coax cable coming through their roof, that connects to an older antenna on the outside, for instance a Winegard or AntennaTek.

Specifications

• Frequency Range:
• VHF: 87.5-230MHz
• UHF: 470-862MHz
• Polarisation: Horizontal and Vertical
• Antenna Gain: 36dB
• Noise Figure: <4.5dB
• Max Output Level: 102dBμV
• Impedence: 75Ω
• Power: DC 12V 150mA
• Size: 302x302x302mm
