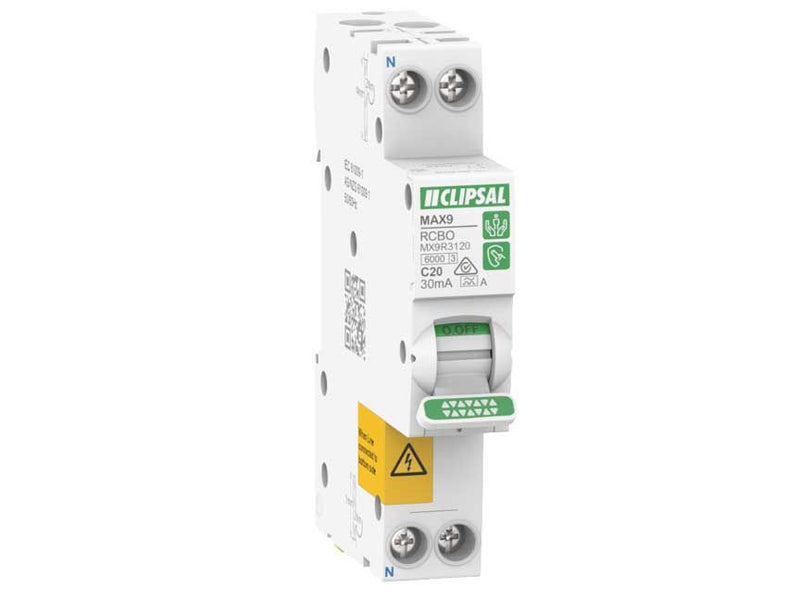

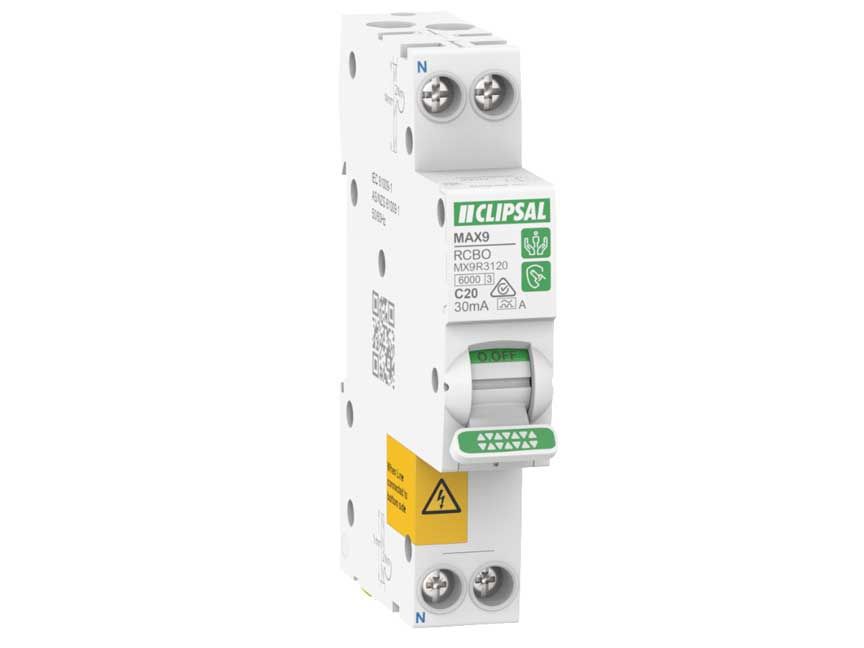

Clipsal MAX9 Residual Current Breaker with Overcurrent Protection (RCBO)

|

❖Features

Clipsal Max 4 _ combination residual current devices and miniature circuit breaker, remember to test these on a monthly basis by operating their inbuilt test button, standard slim type, non-delayed, 240V, 16A _ 30mA, 1-phase +N, 6kA, 1 module wide, 50Hz.

Fast installation speed with unmatched flexibility

• Up to 15 times faster installation with MAXBAR
• Installation flexibility with the choice of line connection either from top or bottom
• Compatible with multiple types of screw-drivers with combination head screws
• Compact SLIM module design, allows for more RCDs/MCBs to be installed in the one enclosure

Specifications

• non-delayed
• 240V
• 16A _ 30mA
• 1-phase +N
• 6kA
• 1 module wide
• 50Hz.

|

❖Specifications

Brand | Clipsal
Model | MX9R3116
Design |
Range of product | MAX9
Product or component type | residual current breaker with overcurrent protection (RCBO)
Sustainable offer status | Green Premium product
Warranty | 7-year
Physical |
[In] rated current | 16 A at 30 °C conforming to AS/NZS 61009.1
[Ue] rated operational voltage | 240 V AC 50/60 Hz
Height | 93 mm
Width | 18 mm
Depth |

73 mm

Net weight |

136 g

Connections - terminals |

tunnel type terminal (top) - 1...16 mm² - rigid
tunnel type terminal (top) - 1...10 mm² - flexible
tunnel type terminal (bottom) - 1...10 mm² - rigid
tunnel type terminal (bottom) - 1...6 mm² - flexible

Standards |

IEC 61009-2-2
EN/IEC 61009-1
AS/NZS 61009.1

IP degree of protection |

IP20

Ambient air temperature for operation |

-25...70 °C

REACh Regulation |

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive |

Compliant

Mercury free |

Yes

RoHS exemption information |

Yes

Environmental Disclosure |

ENVPEP2209021
