DESCRIPTION

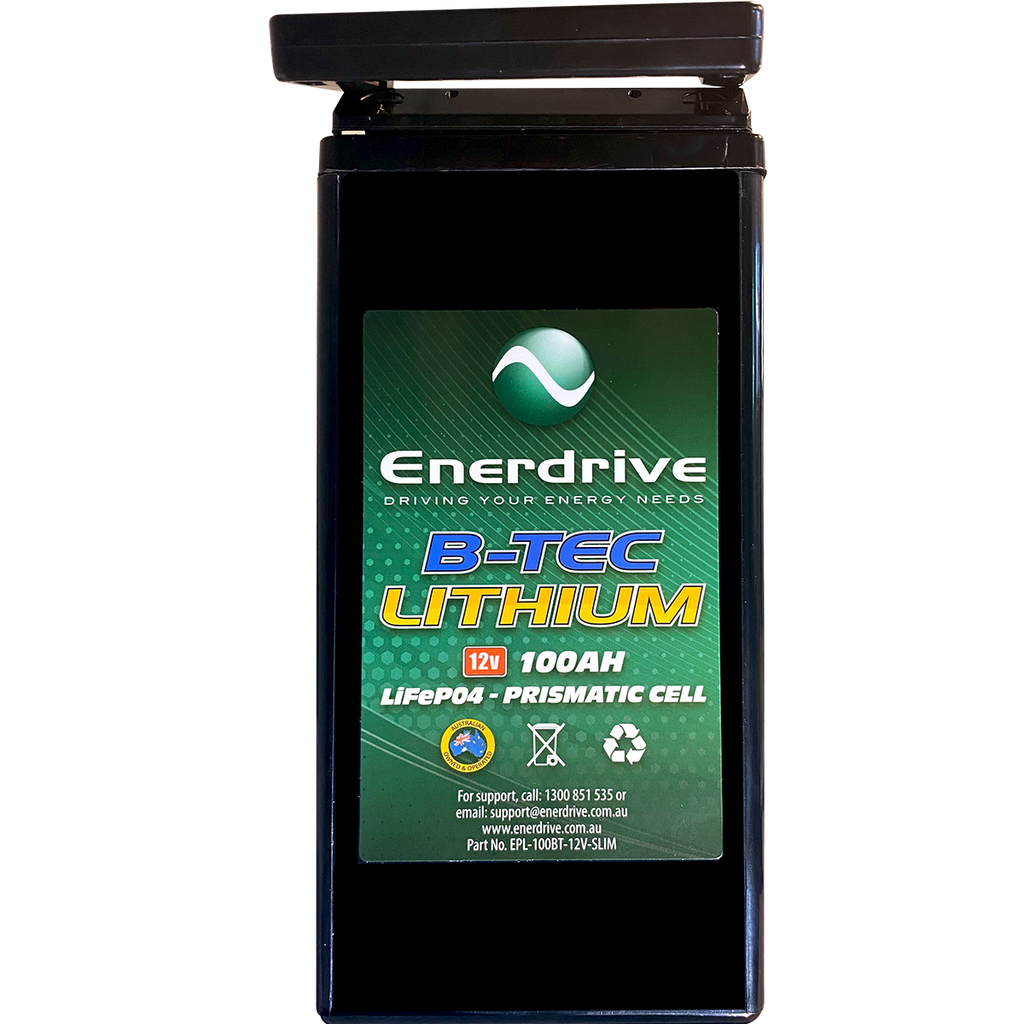

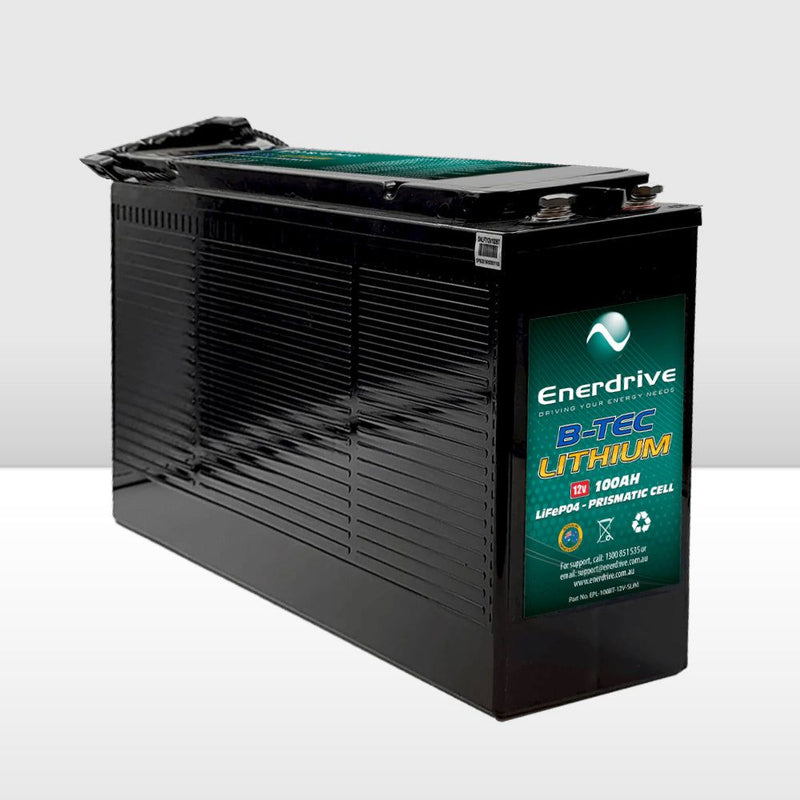

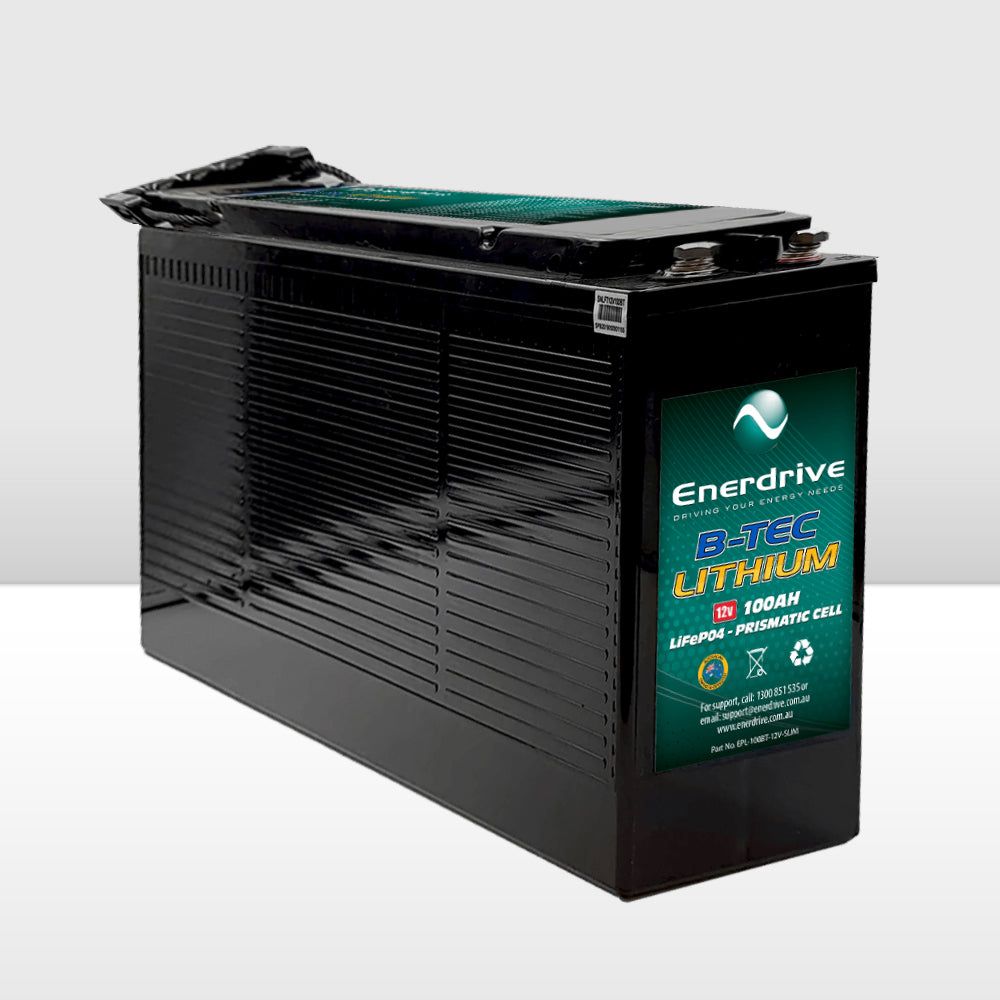

Available in 12v 100Ah, the ePOWER B-TEC lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity. The Enerdrive Enerdrive B-TEC Slimline battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information:Battery Capacity,Battery Voltage,Battery Current (Amps),Battery State of Charge (SOC),Battery State of Health (SOH),Battery Status,Individual Cell Voltage,Battery Temperature,Battery Cycles,Battery Alarms,Battery Event Information The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

FEATURES
The Enerdrive B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.
The Enerdrive B-TEC Slimline battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.
With over 7 years of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.
With over 3000 complete systems in operation Australia wide, Enerdrive is regarded as the leader in the field of lithium batteries and energy systems for Mobile, Marine and Remote applications.
Please Note; The B-TEC Slimline battery is capable to be paralleled to a second B-TEC battery of the same size. For maximum performance and lifespan of your B-TEC Slimline battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.
The 100Ah Slimline battery is able to accept a maximum inverter capacity of 1000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.

SPECIFICATIONS
Model Description EPL-100BT-12V-SLIM
Nominal Voltage 12.8V
Nominal Capacity 100Ah
Cycle Life (DOD 80% under controlled conditions) 2000 Cycles
Standard Charge Specification (Lithium profile charger required)
Battery Charge Temperature 0 ̴ 45C
Normal Charge Voltage CV/CC* 14.20 ̴ 14.60V
Standby (Float) Voltage 13.50 ̴ 13.80V
Maximum Charge Current 80A @ 25C for 30mins
Recommended Charge Current for Maximum Life 20A-50A
Standard Discharge Specification
Battery Discharge Temperature -20 ̴ 60C
Battery Output Voltage Range 11.00 ̴ 14.60V
Maximum Discharge Current 100A@25C 5C for 30mins
Pulse Discharge Current 250A for 1.0s
Discharge Cut-off Voltage 11.20V
Over-Charge Protection
Over-charge Protection Per Cell 3.90V 0.03V
Over-charge Release Per Cell 3.60V 0.05V
Over-charge Release Method Discharge below release voltage
Over-Discharge Protection
Over-discharge Protection Per
PACKAGE INCLUDES
1 x LiFePO4 Battery

WARRANTY
5 Years Warranty
