DESCRIPTION
If you want solar panels that deliver higher energy yields, look no further
than our shingled bifacial solar panels! They capture sunlight from both
sides, providing 15% more energy compared to monofacial panels. Shingle
technology also elevates efficiency, generating more power even in low-light
conditions. Thanks to its ability to capture sunlight from both sides and the
incorporation of PERC and bypass diodes, this 130W bifacial solar panel
maximizes energy output on cloudy days and performs exceptionally on snowy
days. The back side is always available, ensuring a continuous supply of solar
power for your off-grid life. And that's not all – the shingled technology
boosts output by 15~20% compared to traditional solar panels. Wired in
parallel, these shingled solar panels significantly reduce losses and
eliminating the hot spot effect caused by shade. On top of that, its IP-68
rating allows it to defy harsh conditions, while no visible circuitry gives it
a sleek look.
FEATURES

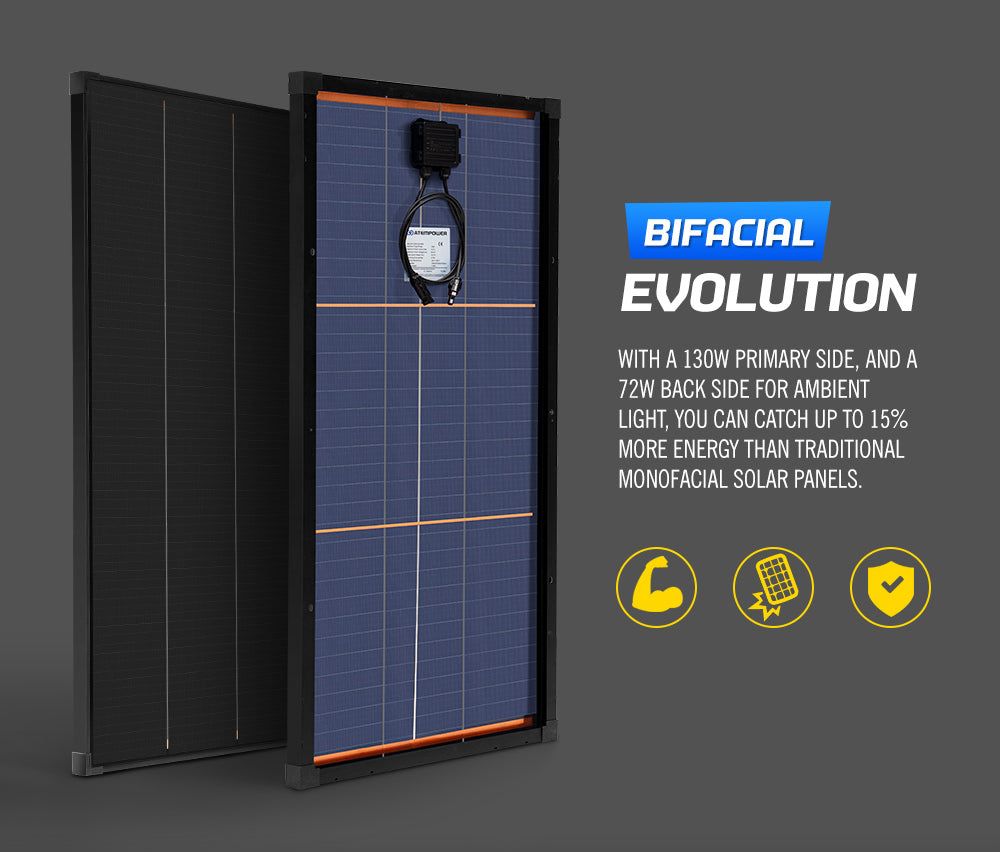

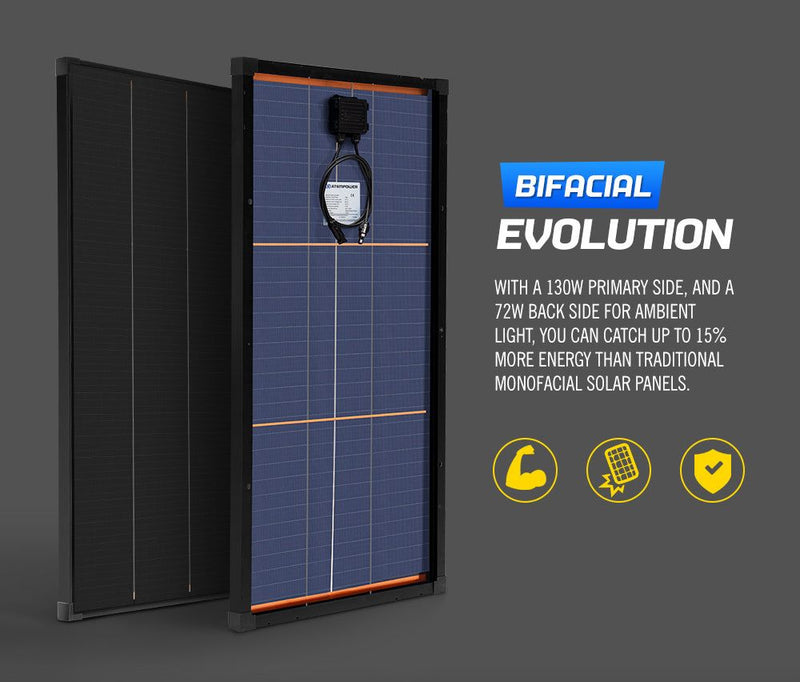

Bifacial Evolution: With a 130W primary side, and a 72W back side for ambient
light, you can catch up to 15% more energy than traditional monofacial solar
panels.

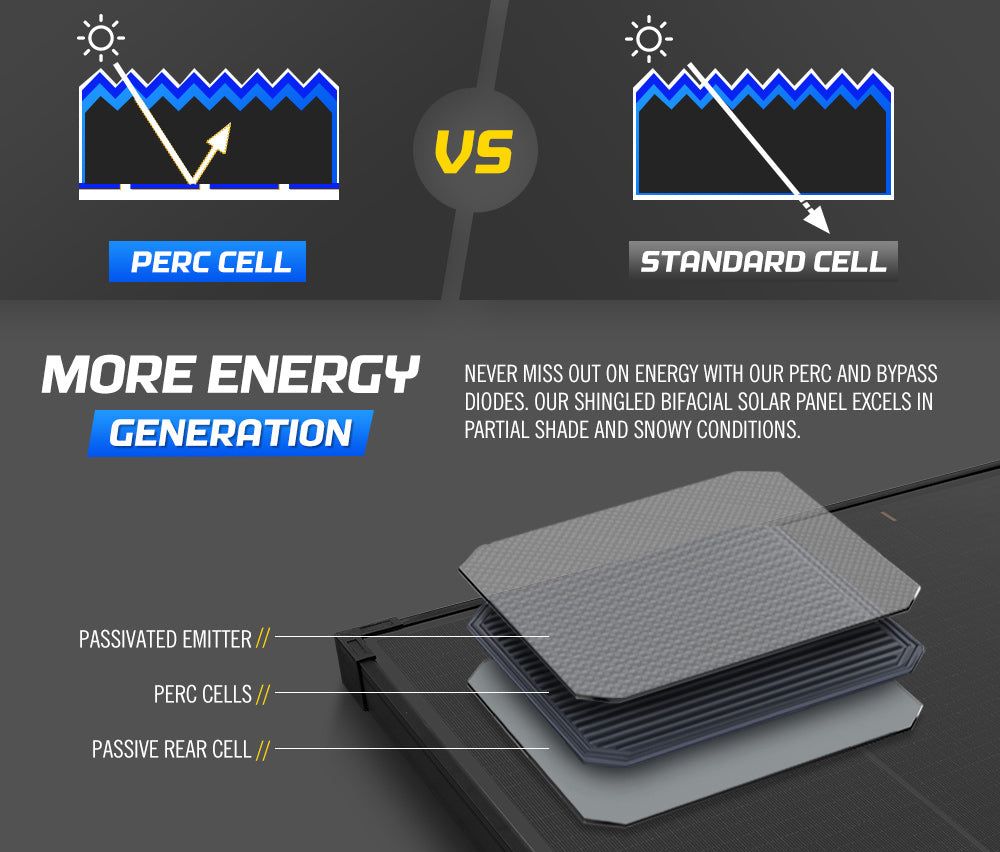

More Energy Generation: Never miss out on energy with our PERC and bypass
diodes. Our shingled bifacial solar panel excels in partial shade and snowy
conditions.

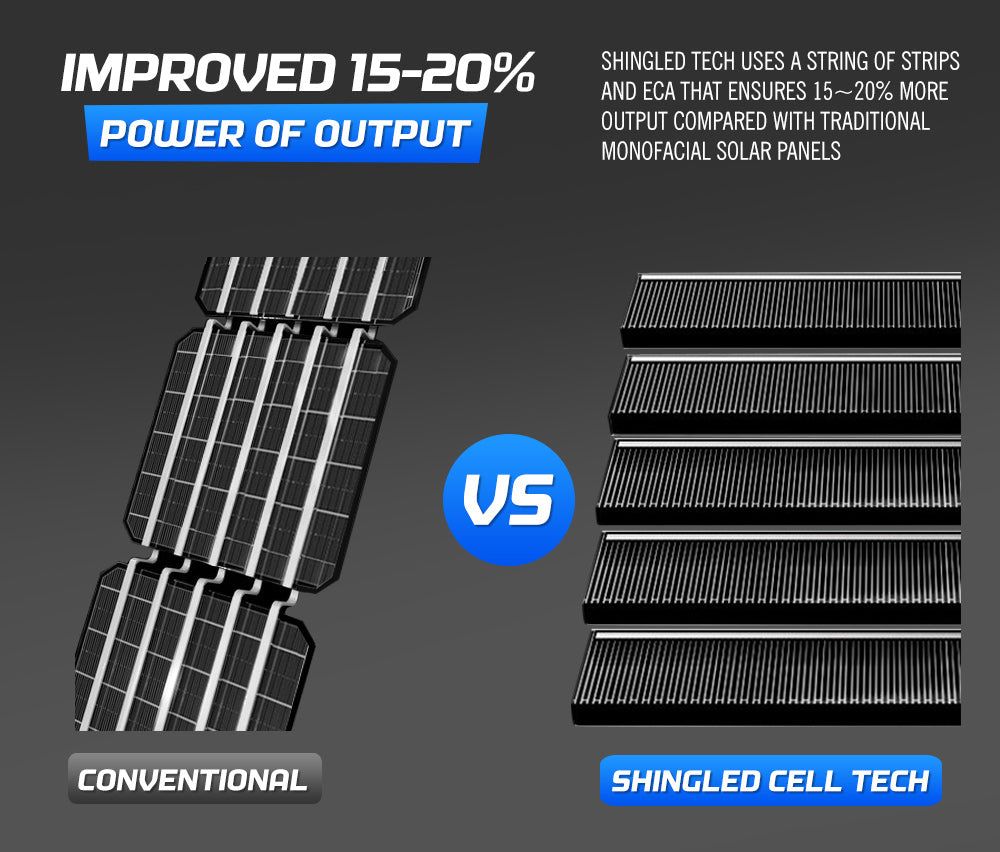

Shingled Cell Tech: Shingled tech uses a string of strips and ECA that ensures
15~20% more output compared with traditional monofacial solar panels

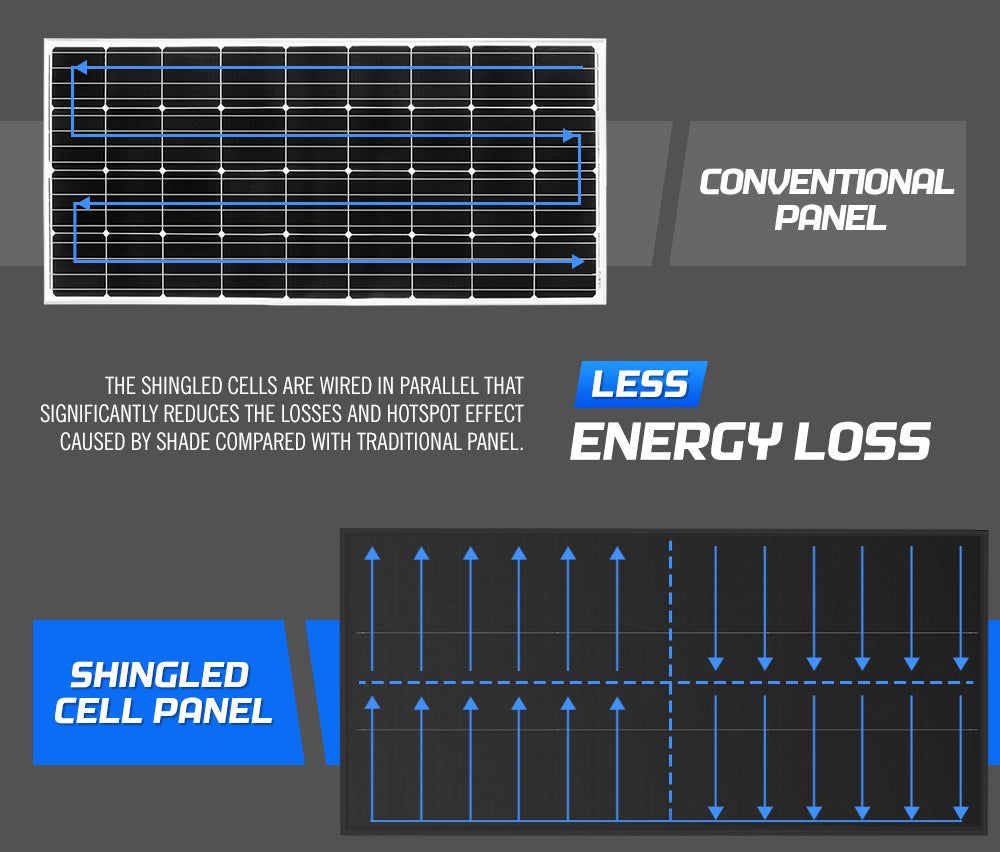

Less Energy Loss: The shingled cells are wired in parallel that significantly
reduces the losses and hotspot effect caused by shade compared with
traditional panel.

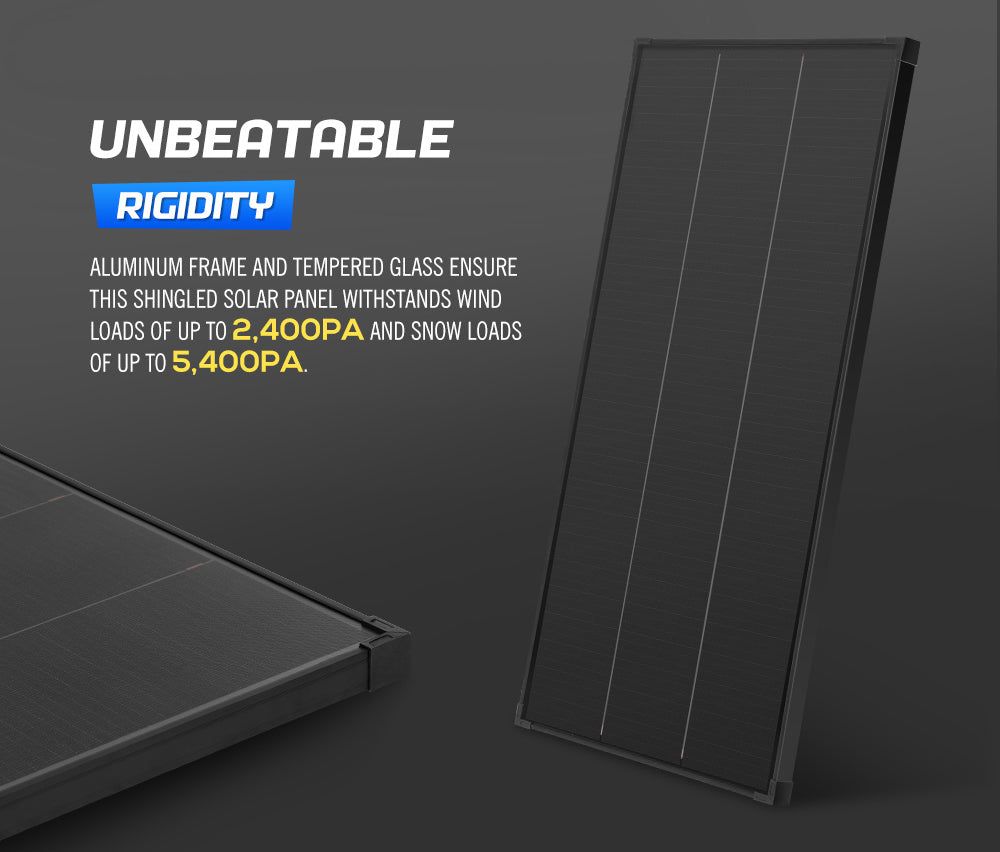

Unbeatable Rigidity: Aluminum frame and tempered glass ensure this shingled
solar panel withstands wind loads of up to 2,400Pa and snow loads of up to
5,400Pa.
All Weatherproof: Rain or shine, our shingled bifacial solar panel's IP68
waterproof rating keeps your electronics running, worry-free.

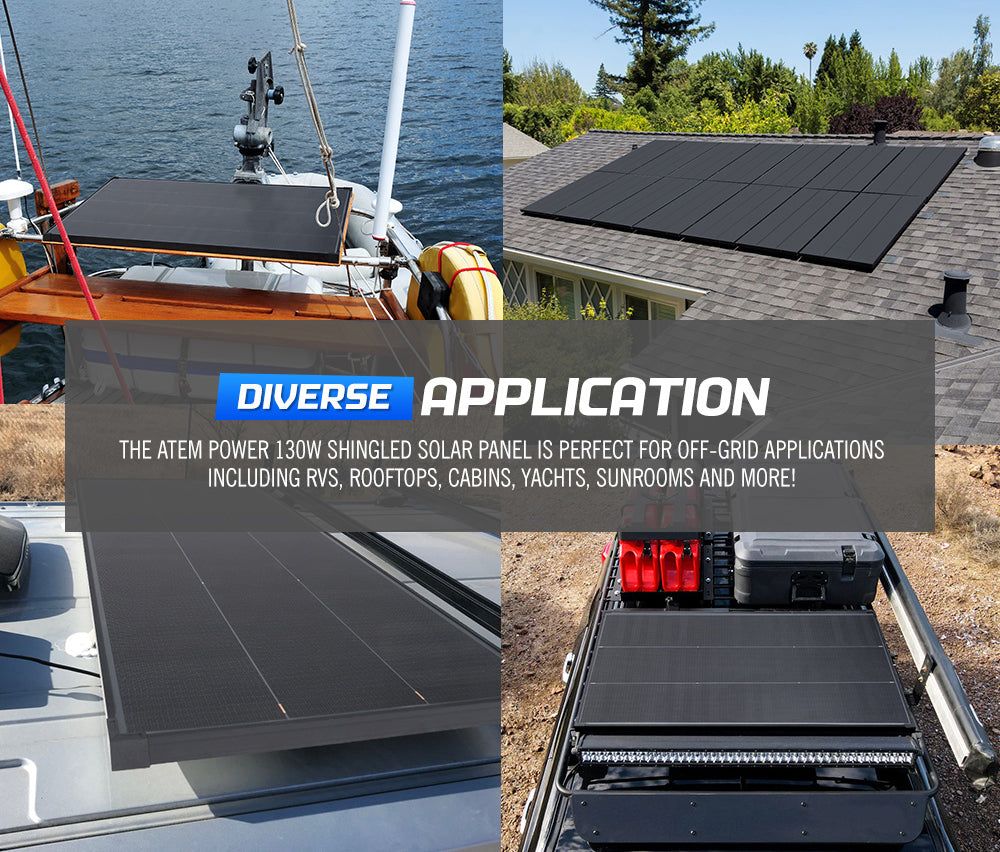

Diverse Application: The ATEM POWER 130W shingled solar panel is perfect for
off-grid applications including RVs, rooftops, cabins, yachts, sunrooms and
more!
More Aesthetic: Sleek and circuitry-free, our shingled bifacial solar panel
adds a clean and stylish touch while delivering unmatched performance.
SPECIFICATIONS
Material:Shingled Cells
Front Glass:Tempered Glass
Frame:Aluminum
Color:Black
Wire Size:2.5mm2
Max Power at STC:130W(Front)/72W(Rear)
Max. System Voltage:500V
Open Circuit Voltage (VOC):24.27V
Short Circuit Current (ISC):6.37A(Front)/5.21A(Rear)
Max Power Voltage (VMP):20.42V
Max Power Current (IMP):6.37A
Power Tolerance:0~3%
Output Tolerance:0~3%
Module Efficiency:22%
Bifaciality Coefficients:55.3%
Operating Temperature:-40℃~80℃
Nominal Operating Cell Temerature (NOCT):25℃
IP Rating:IP-68
Wind Resistance:2,400Pa
Snow Load:5,400Pa
Certifications:CE/RoHS

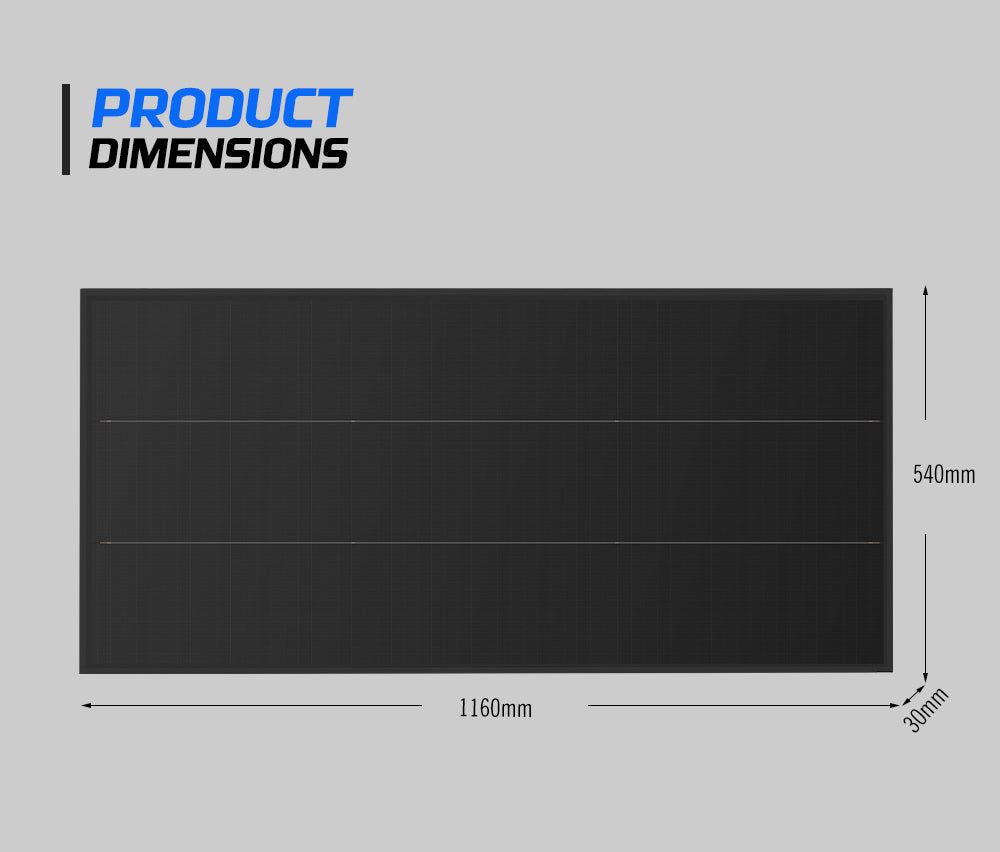

Package Size:118(L) x 5.80(W) x 56.30cm(H)
Product Weight:6.5kg
PACKAGE INCLUDES

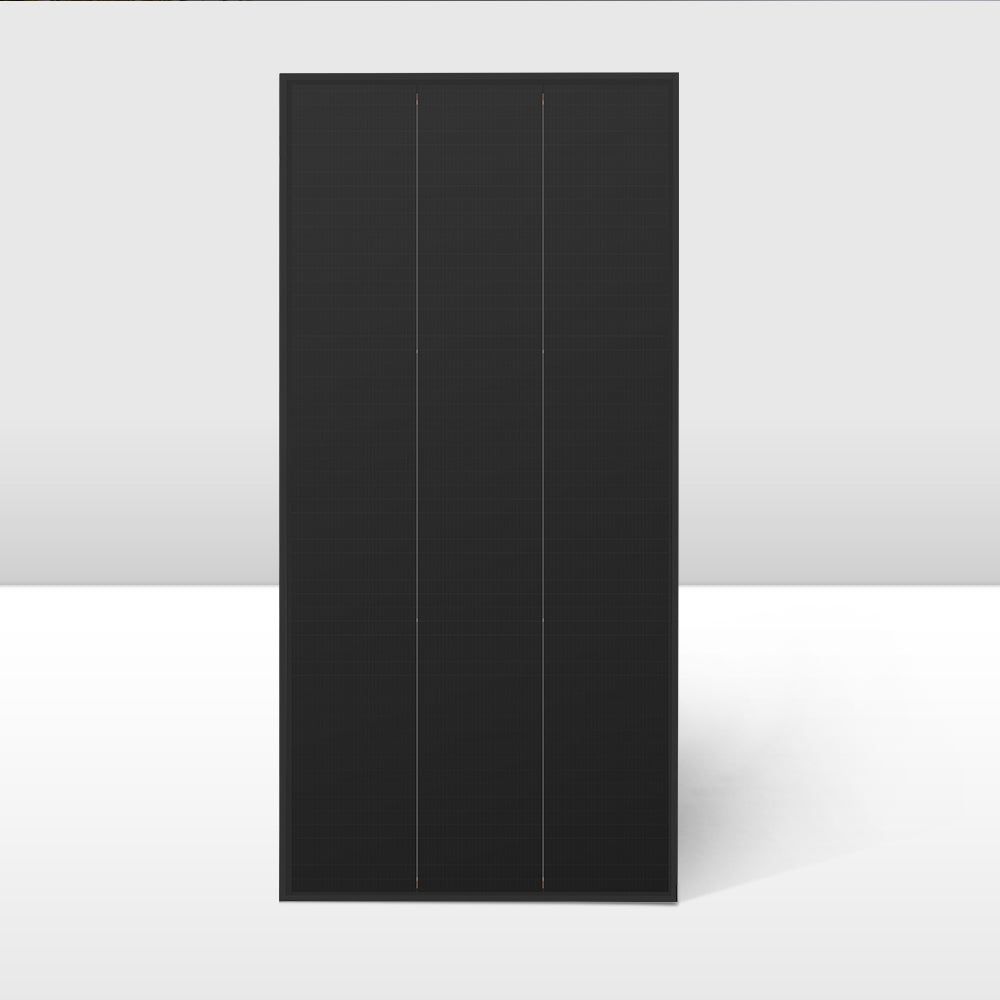

1 x ATEM POWER 130W Shingled Bifacial Solar Panel
1 x User Manual
WARRANTY
5 Year Warranty
