DESCRIPTION

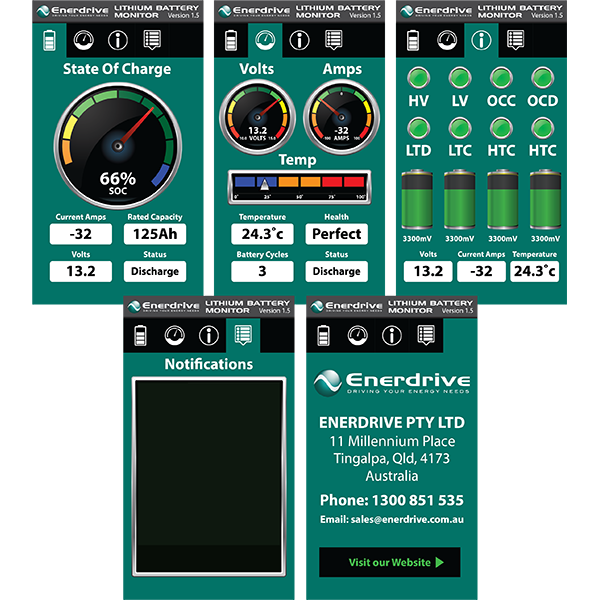

Available in 12v 100Ah, 125Ah, 200Ah and 300Ah capacities and 24v 100Ah & 36v 100Ah, the ePOWER B-TEC lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity. The Enerdrive B-TEC G2 battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information:Battery Capacity,Battery Voltage,Battery Current (Amps),Battery State of Charge (SOC),Battery State of Health (SOH),Battery Status,Individual Cell Voltage,Battery Temperature,Battery Cycles,Battery Alarms,Battery Event Information It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

FEATURES
The Enerdrive B-TEC G2 battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.
The Enerdrive B-TEC G2 battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

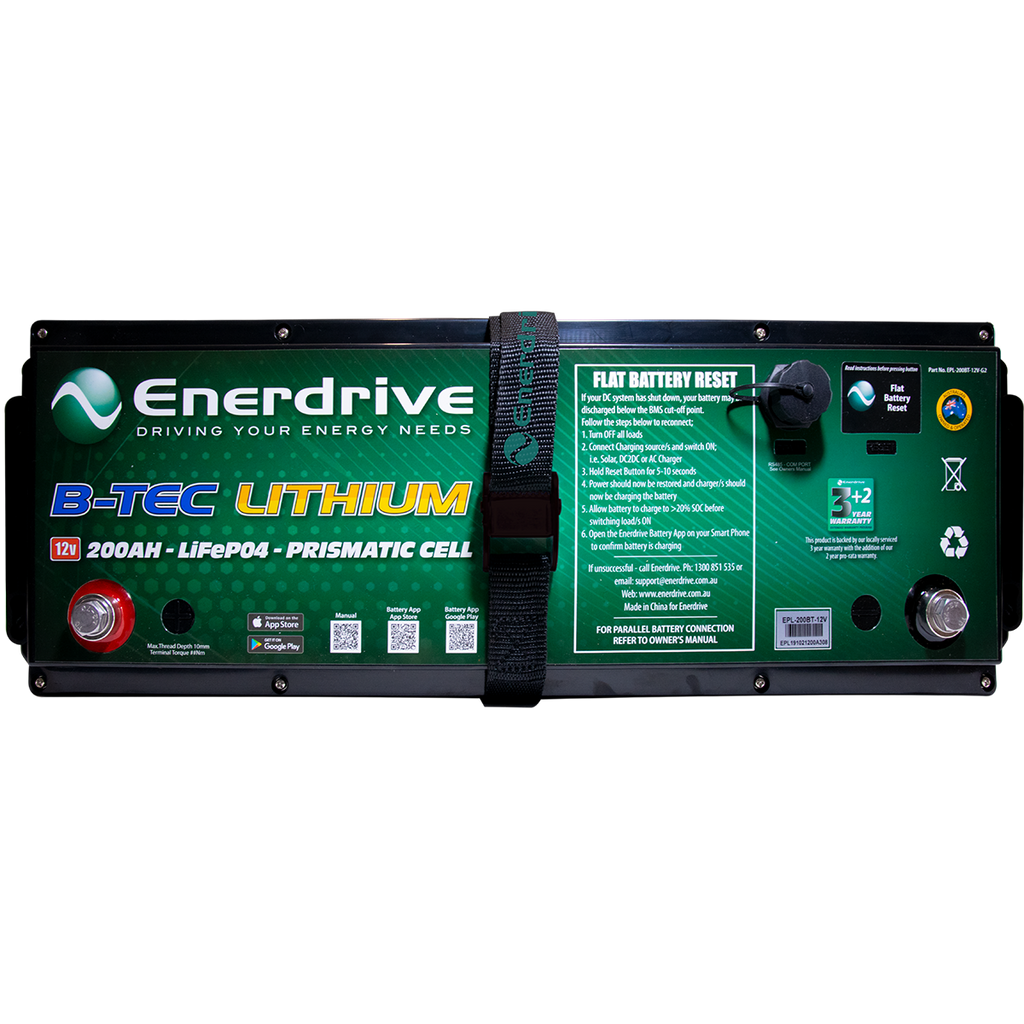

The increase in height allows for full 360° connection of the battery cables the make installation easier and more flexible. Also included for free is a metal battery tray and hold down strap to complete the installation process. The G2 now incorporates a “Built-In Reset Button” making re-starting a flat battery a breeze. No longer do you need to apply a voltage to the battery terminals to wake up the battery. Press the button and within seconds, the battery will come back to life ready to accept a charge source to rejuvenate the battery. The new G2 also includes a RS485 communications port located on the top of the battery. This port allows for integration onto other CanBus systems for data monitoring and recording.
The New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery now comes with a 5 year warranty, giving you peace of mind that this product will keep you covered. With over 7 years of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.
With over 3000 complete systems in operation Australia wide, Enerdrive is regarded as the leader in the field of lithium batteries and energy systems for Mobile, Marine and Remote applications.
Please Note; The G2 battery is capable to be paralleled to a second G2 battery. For maximum performance and lifespan of your G2 battery, no more than 4 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.
The G2 200Ah battery is able to accept a maximum inverter capacity of 2600W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.

SPECIFICATIONS
Model Description EPL-200BT-12V G2
Nominal Voltage 12.8V
Nominal Capacity 200Ah
Cycle Life (DOD 80% under controlled conditions) 2000 Cycles
Standard Charge Specification (Lithium profile charger required)
Battery Charge Temperature 0 ̴ 45C
Normal Charge Voltage CV/CC* 14.20 ̴ 14.60V
Standby (Float) Voltage 13.50 ̴ 13.80V
Maximum Charge Current 150A @ 25C for 30mins
Recommended Charge Current for Maximum Life,Charge in the lower amperage range 40~100A
Standard Discharge Specification
Battery Discharge Temperature -20 ̴ 60C
Battery Output Voltage Range 11.00 ̴ 14.60V
Maximum Discharge/Pulse Current 200A @ 25˚C 5˚C for 30 mins
Pulse Discharge Current 450A for 1.0s
Discharge Cut-off Voltage 11.20V
Over-Charge Protection
Over-charge Protection Per Cell 3.90V 0.03V
Over-charge Release Per Cell 3.60V 0.05V
Over-charge Release Method Discharge below release voltage
Over-Discharge
PACKAGE INCLUDES
1 x LiFePO4 Battery

WARRANTY
5 Years Warranty
