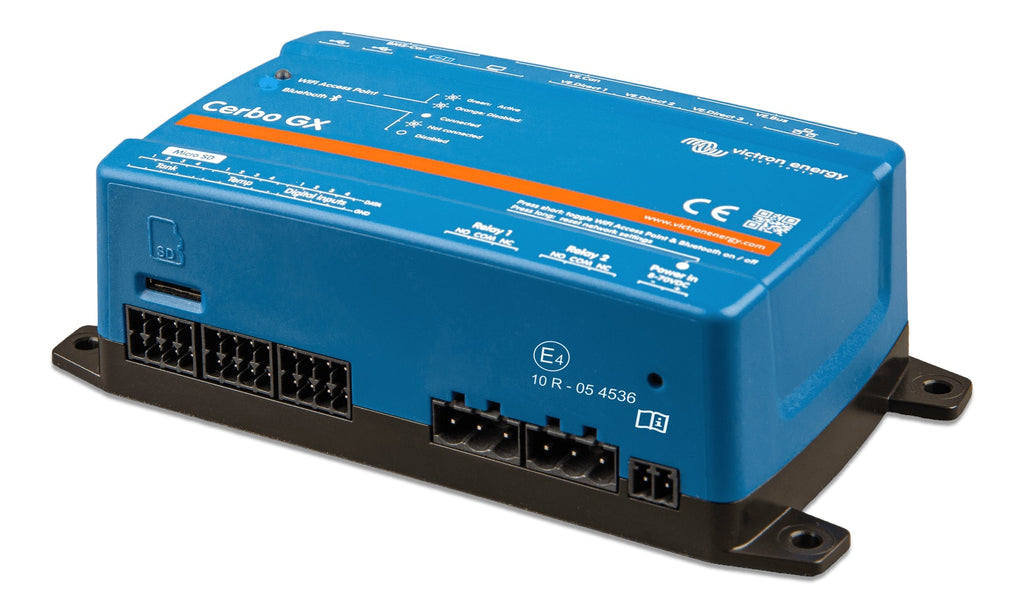

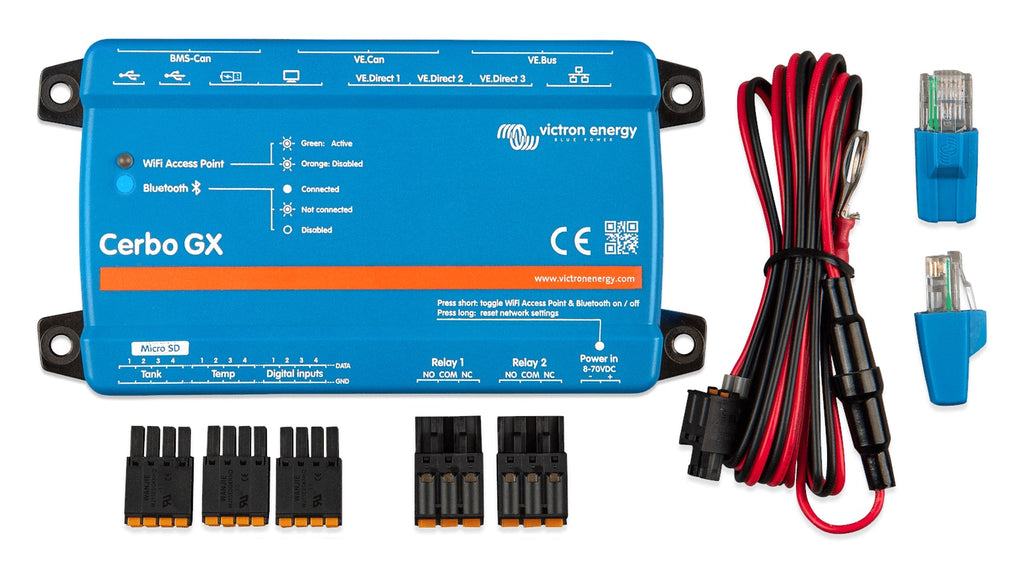

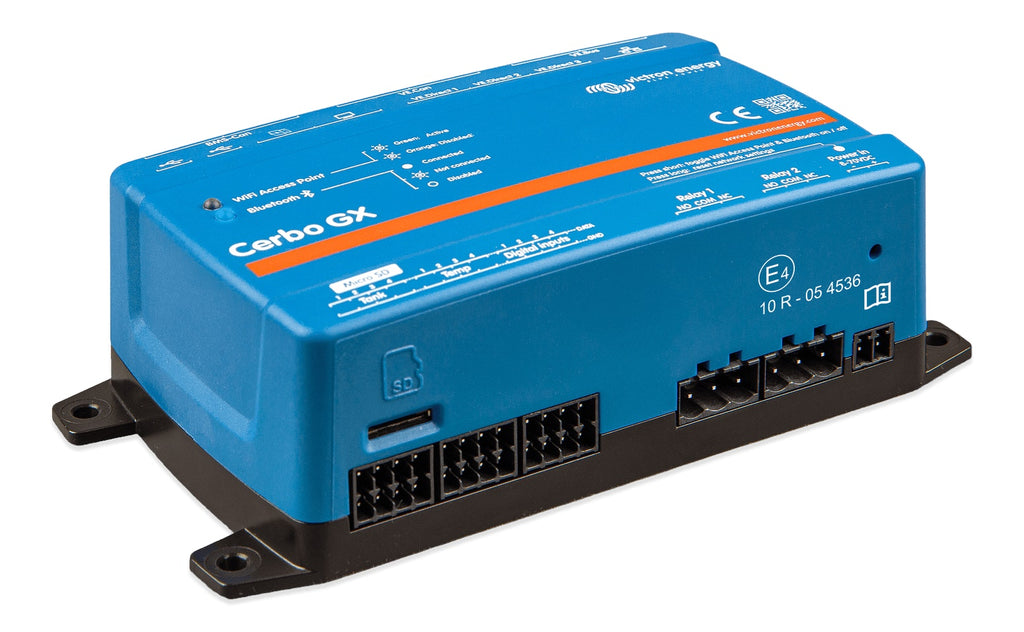

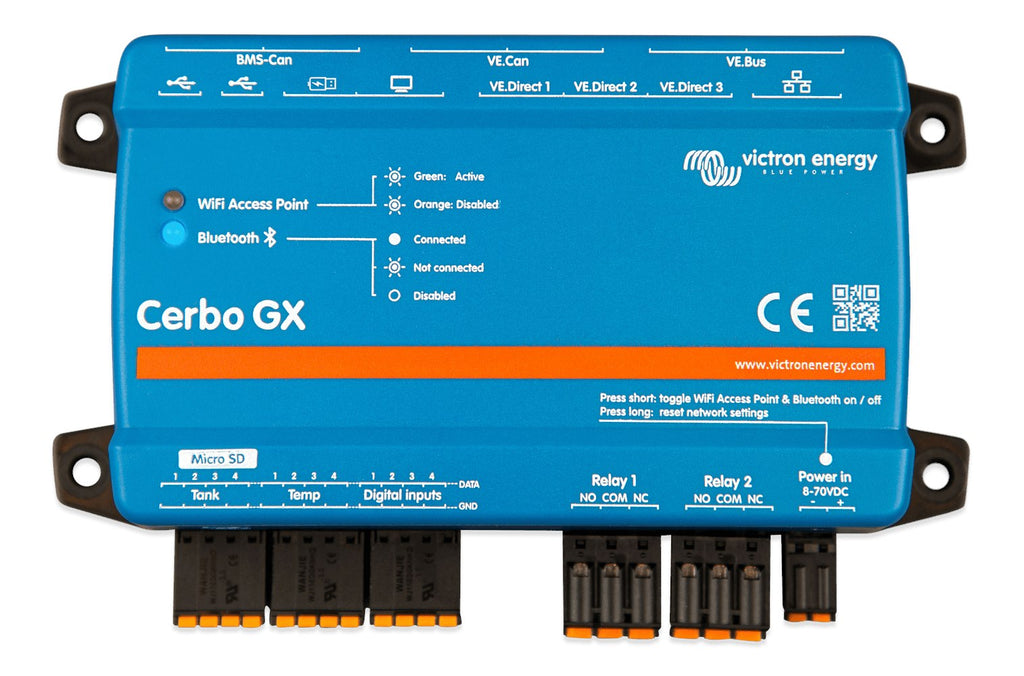

Victron Cerbo GX MK2: Power System Monitor
This all-new communication-centre allows you to always have perfect control
over your system from wherever you are and maximises its performance. Simply
connect through our Victron Remote Management (VRM) portal, or access
directly, using the separate GX Touch 50, a MFD or our VictronConnect app
thanks to its added Bluetooth capability. This latest addition to the GX-range
combines all the best of connectivity, redefining smart power solutions in
every way.
Perfect monitoring & control
Instantly monitor the battery state of charge, power consumption, power
harvest from PV, generator, and mains, or check tank levels and temperature
measurements. Easily control the shore power input current limit,
(auto)start/stop generator(s) or change any setting to optimise the system.
Follow up on alerts, perform diagnostic checks and resolve challenges
remotely. The Cerbo GX MK2 turns any power challenge into an effortless
experience.
Maximise your system performance
The Cerbo GX MK2 maximises the performance of your systems components in real-
time and keeps them in perfect tune. With its Dual Core Processor and the
addition of an extra CAN-bus port you can now support even bigger systems;
closely follow managed (lithium) batteries while the second port can support
up to 25 simultaneously connected VE.Can solar chargers. The new NMEA 2000-out
support has the GX easily integrated into any boats network. Four tank- and
four temperature ports as well as 3 VE.Direct ports, 3 USB ports, 4 digital
inputs and 2 relays allow you to expand control to a new level. Maximising
systems performance was never this easy.
Expand your view
The new GX Touch 50 display allows you to have an instant overview of your
system and adjust settings in the blink of an eye. Its super slim 5 inch
waterproof design, top-mountable setup and its simple installation bring a lot
of flexibility when creating a crisp and clean dashboard.
Simple mounting and configuration
The Cerbo GX MK2 is now optimised to more than meet the standards of installer
professionals. The device is easily mountable on a DIN-Rail (with DIN35
adapter small, not included) and its separate touchscreen can now be bolted on
top of a dashboard, eliminating the need to create perfect cut-outs (like with
the Color Control GX) and is connected through just one cable, taking away the
hassle of having to bring many wires to a dashboard. Its new Bluetooth feature
enables a quick connection and configuration via our VictronConnect app.
Outsmart any power challenge
The Cerbo GX MK2 serves endless purposes, extending perfect control to the
most diverse applications. For solutions including generators, such as Marine,
or Backup & Off-grid, it will auto-start/stop your generator, or delays
ignition until the end of ‘quiet’ periods. For Energy Storage Systems it keeps
backup batteries at 100%, kicks-in during power-cuts and diverts excess
(solar) power to self-consumption, saving you money. For RV and Emergency
vehicles it keeps vital systems function flawlessly. But that’s just to name a
few...

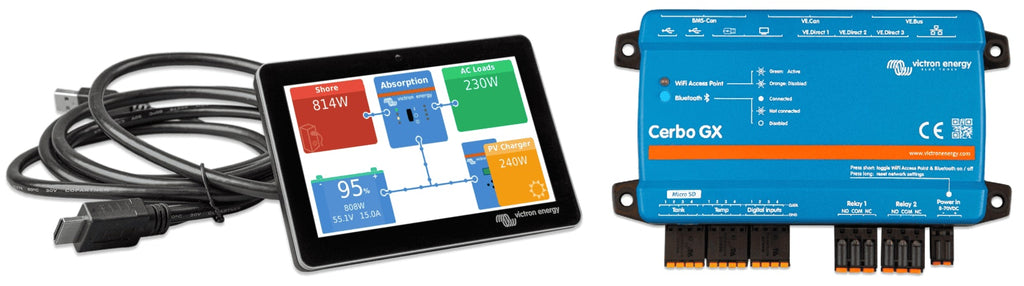

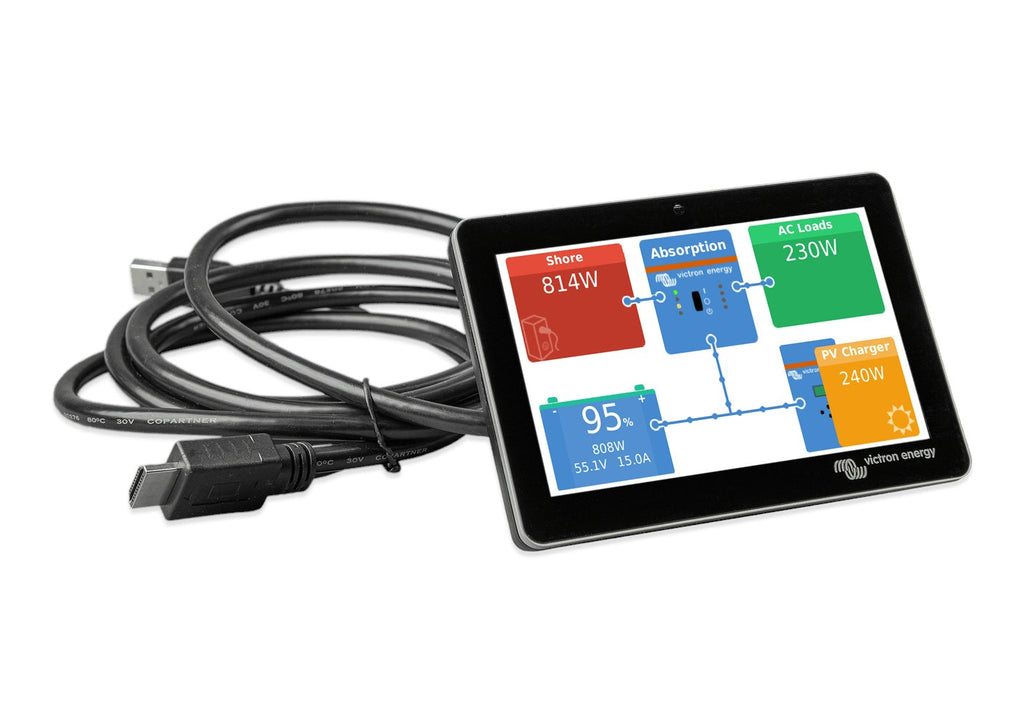

Victron GX Touch 70: The Essential 7" Display for System Monitoring and
Control
Intuitive Touchscreen Interface for Cerbo GX : Upgrade your system's
control and monitoring capabilities with the Victron GX Touch 70. This 7-inch
touchscreen display offers the same detailed overview of your system as its
smaller counterpart but with larger visuals for improved ease of use. Ideal
for those who prefer or require bigger on-screen elements for clarity, it
ensures quick and efficient adjustments and settings optimization. Perfectly
integrating with the Cerbo GX, the GX Touch 70 maintains an unparalleled user
experience in system management with enhanced visibility.
Effortless Installation and Sleek Design
The GX Touch 70 redefines installation convenience. Its bolt-on, top-mountable
design means no complex cut-outs are necessary, making it ideal for clean and
crisp dashboard setups. The super slim profile of the screen adds
sophistication to your control panel. With just one cable connection, it
simplifies the setup process, perfect for both professional installers and DIY
enthusiasts.
Enhanced System Control with the Cerbo GX
As a companion to the Cerbo GX, the communication centre of your power system,
the GX Touch 70 allows for complete control over your setup. Whether you're
on-site or remote, you have the power to maximize system performance at your
fingertips.
Seamless Integration with Cerbo GX for Superior Control
Experience enhanced system management with the Victron GX Touch 70, a
dedicated 7" touchscreen display designed exclusively for use with the Cerbo
GX. This display serves as a visual interface, offering you a clear and
interactive overview of your system's status and performance. It allows you to
monitor and adjust settings conveniently, ensuring your system operates at its
best.
Though the GX Touch 70 itself does not have Bluetooth capability or direct
access to the Victron Remote Management (VRM) portal, it works in tandem with
the Cerbo GX to provide these functionalities. By connecting to the Cerbo GX,
which is the hub of communication and connectivity, you can access a wide
range of features including remote system management and data monitoring
through the VRM portal, as well as connectivity options with the
VictronConnect app when used with compatible devices.
The GX Touch 70 enhances the usability of your Cerbo GX, making it easier to
interact with your system in real-time. Its intuitive interface simplifies the
process of monitoring and adjusting your system, ensuring that you have all
the critical information at your fingertips. With the GX Touch 70, managing
your Victron energy system becomes more straightforward and efficient,
providing a user-friendly gateway to advanced power solutions.
Protection Cover Included for Added Durability
Now included with the GX Touch 70 is a protection cover, ensuring your display
remains safe from environmental elements, enhancing its durability and
longevity.
Choose the Victron GX Touch 70 for a smarter, more connected, and efficient
power management experience. Its combination of intuitive control, sleek
design, and advanced connectivity options make it a pivotal addition to any
Victron energy system.
