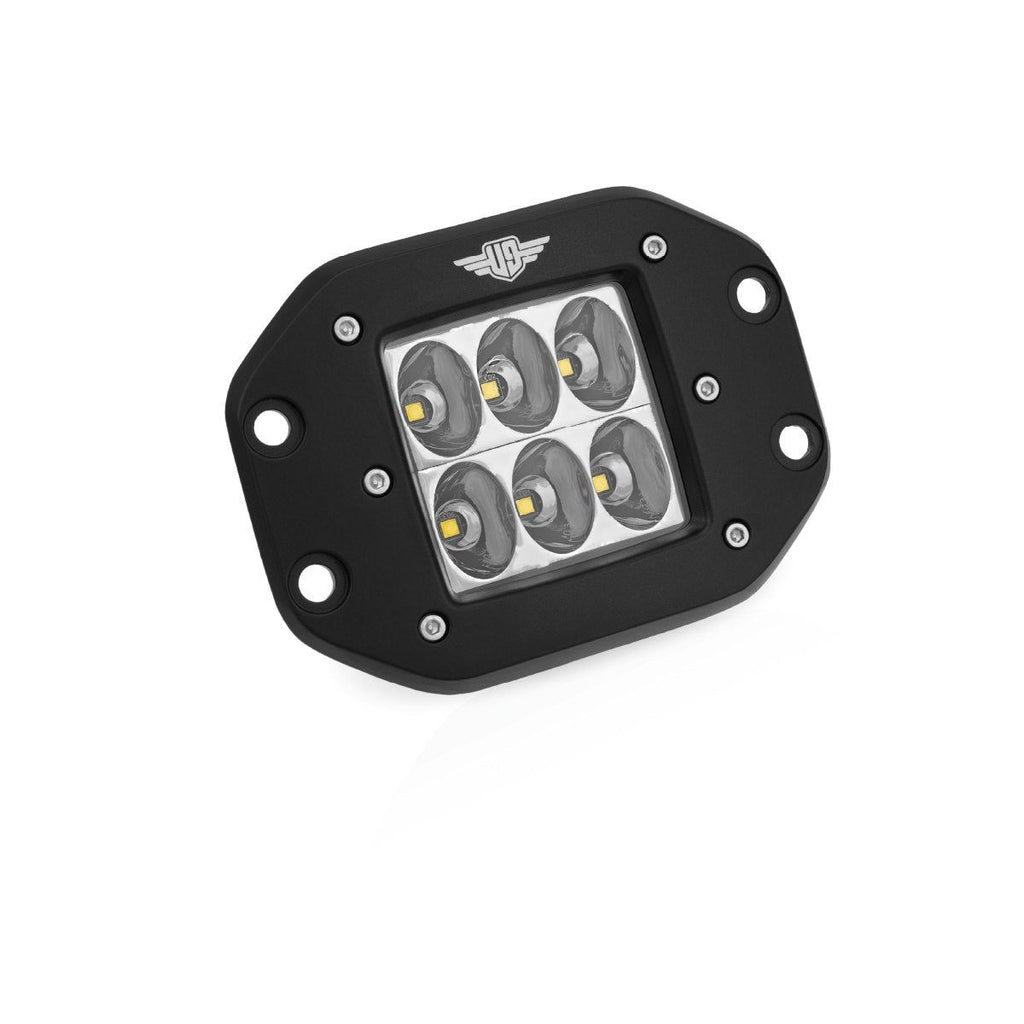

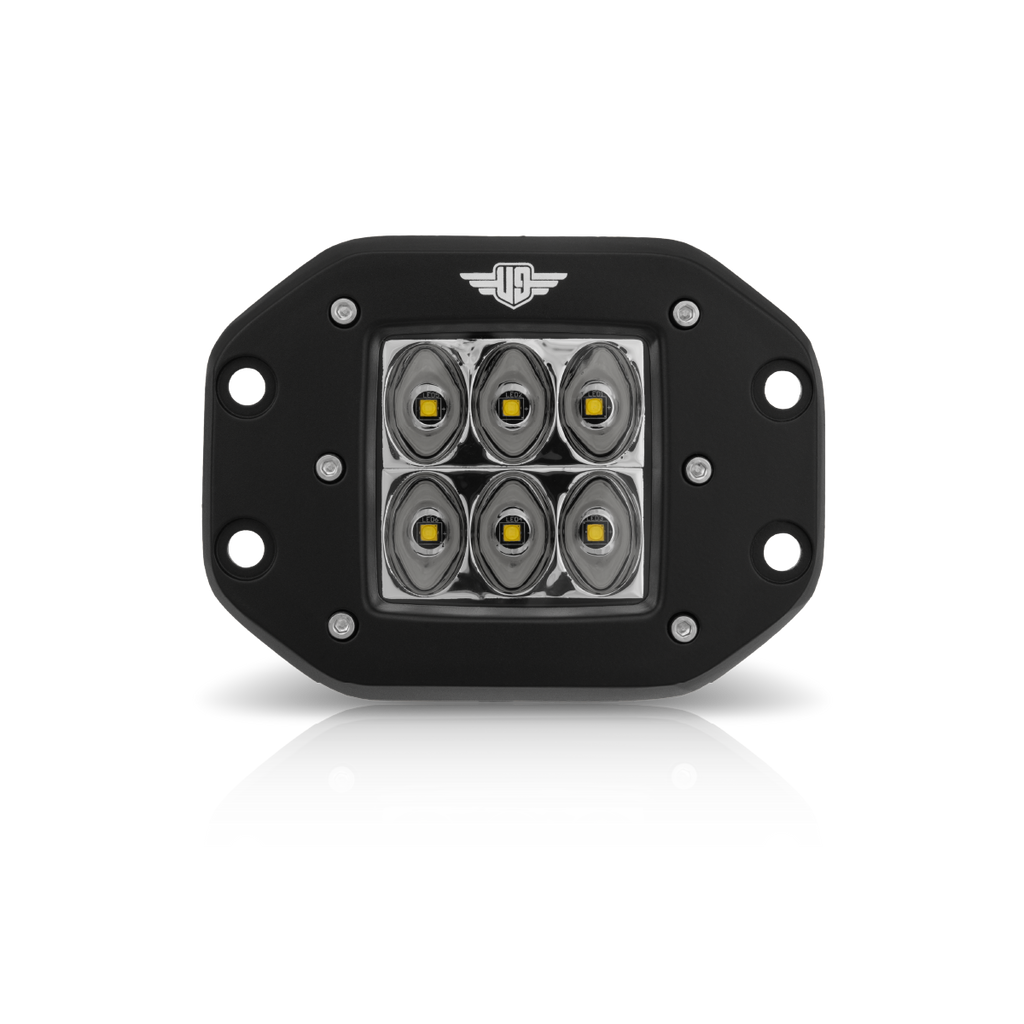

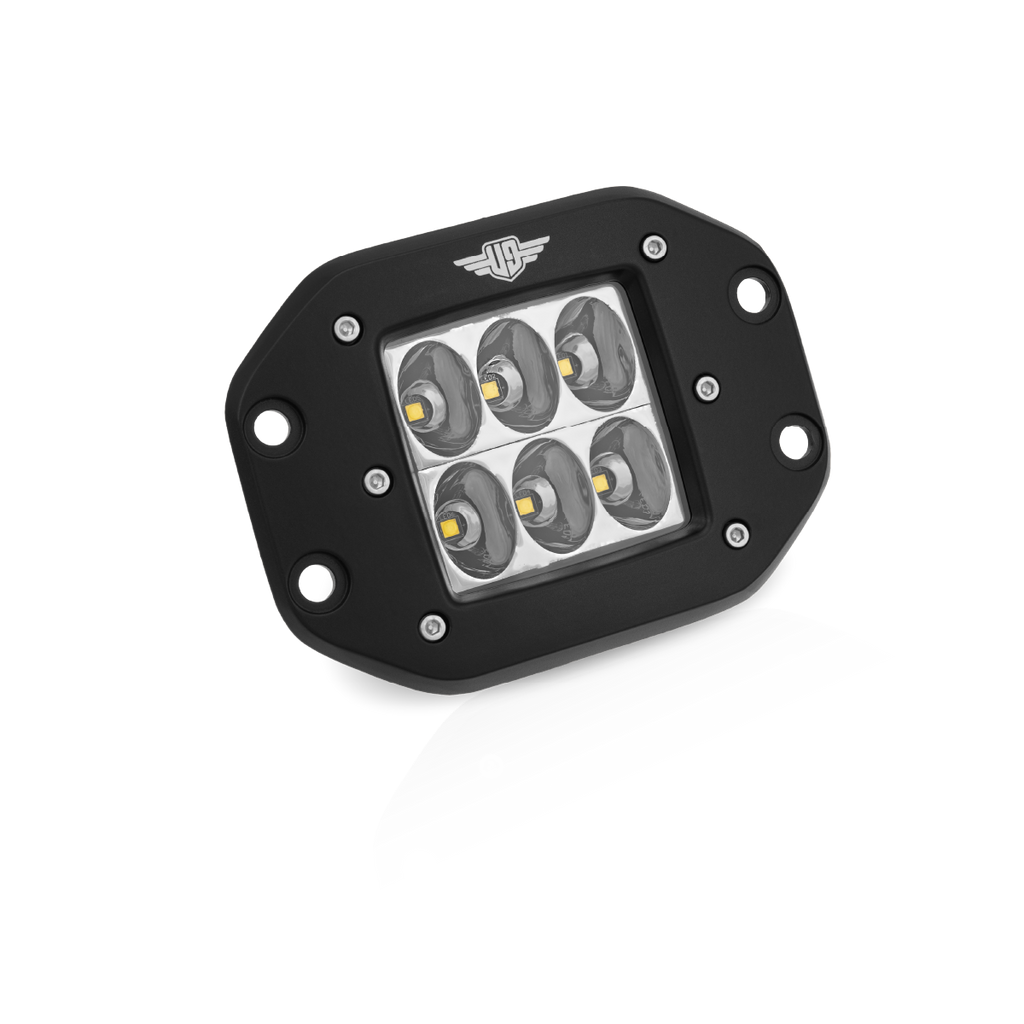

Ultimate9 LED Work Lamp: Flush Mount

For a clean and factory looking build, it's hard to look past flush mount lights - enter the Ultimate9 Work Lamp: Flush Mount.

With x6 Osram 5W LED chips, a driving pattern reflector, and a Lexan® Polycarbonate lens - the Flush Work Light will cast a clean beam of light, reaching 1 Lux at 89m. Paired well with bull bars & nudge bars to uncover terrain immediately approaching while keeping a tidy finish.

Tested to meet the highest waterproof ratings, a 6063 grade aluminium housing and military grade breather allow wider & greater heat dissipation - improving longevity.

Features:

• Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
  IP68 for term-long submersion and total dust ingress.
  IP69K for stream jet cleaning.

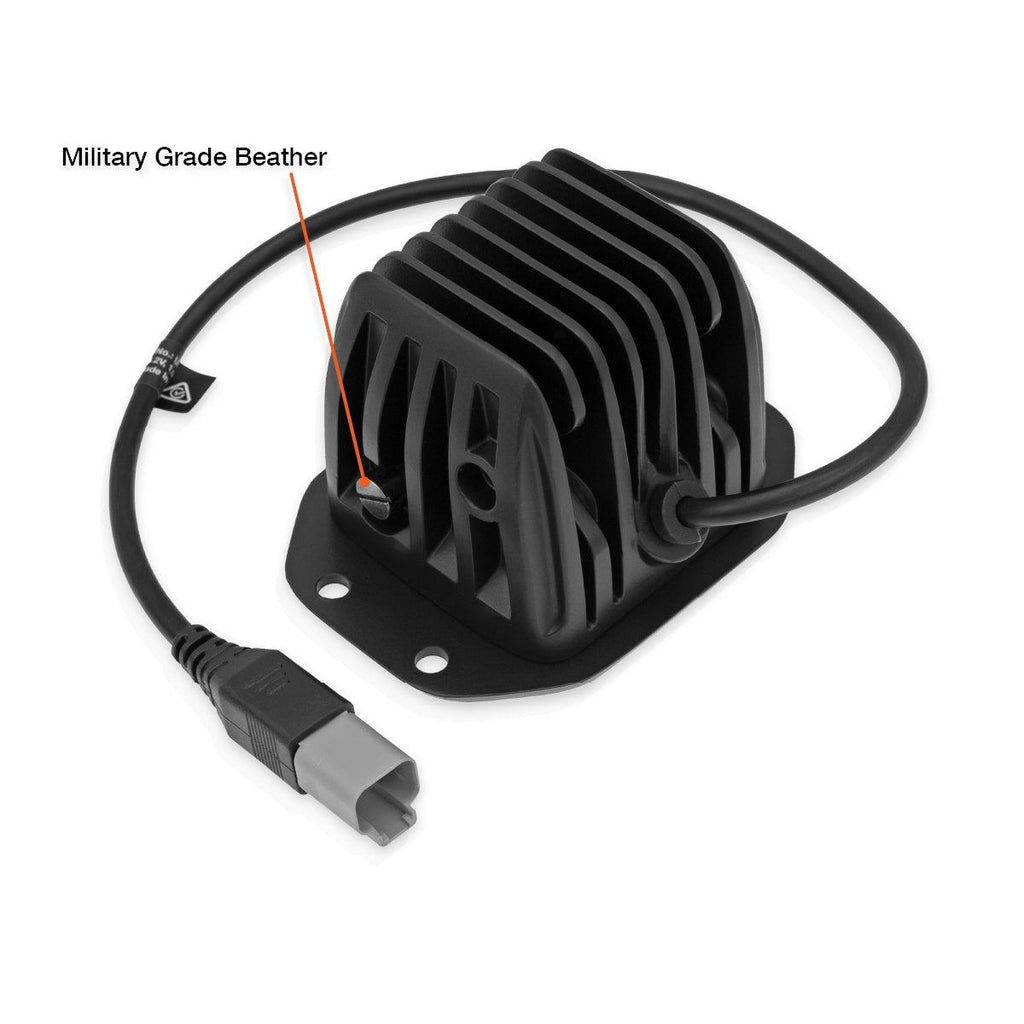

• Ventilation: Military grade breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.

• Housing: Die-cast 6063 aluminium housing with 304 Stainless Steel fastener. Overlaid with a UV & corrosion resistant Dupont® coating.

• Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.

• Optics: Driving Beam Pattern.

• Technology: 6x Grade A Osram 5W LED chips & sealed DT connectors.

What Harness Do I Need?

Ultimate9 Work Lamps come supplied with their own individual harness. However, when installing two Work Lamps, our Twin Output Harnesses can be utilised - see link below.

{Links are not supported}

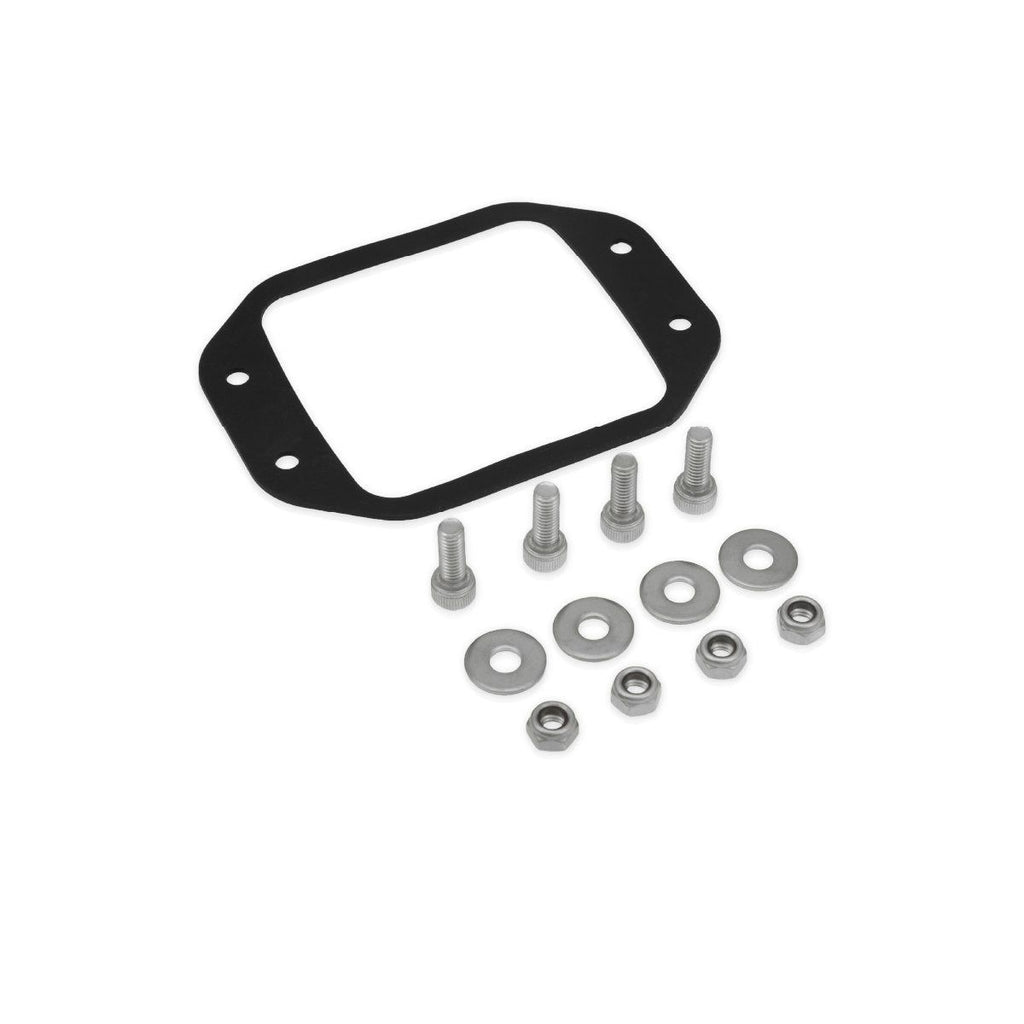

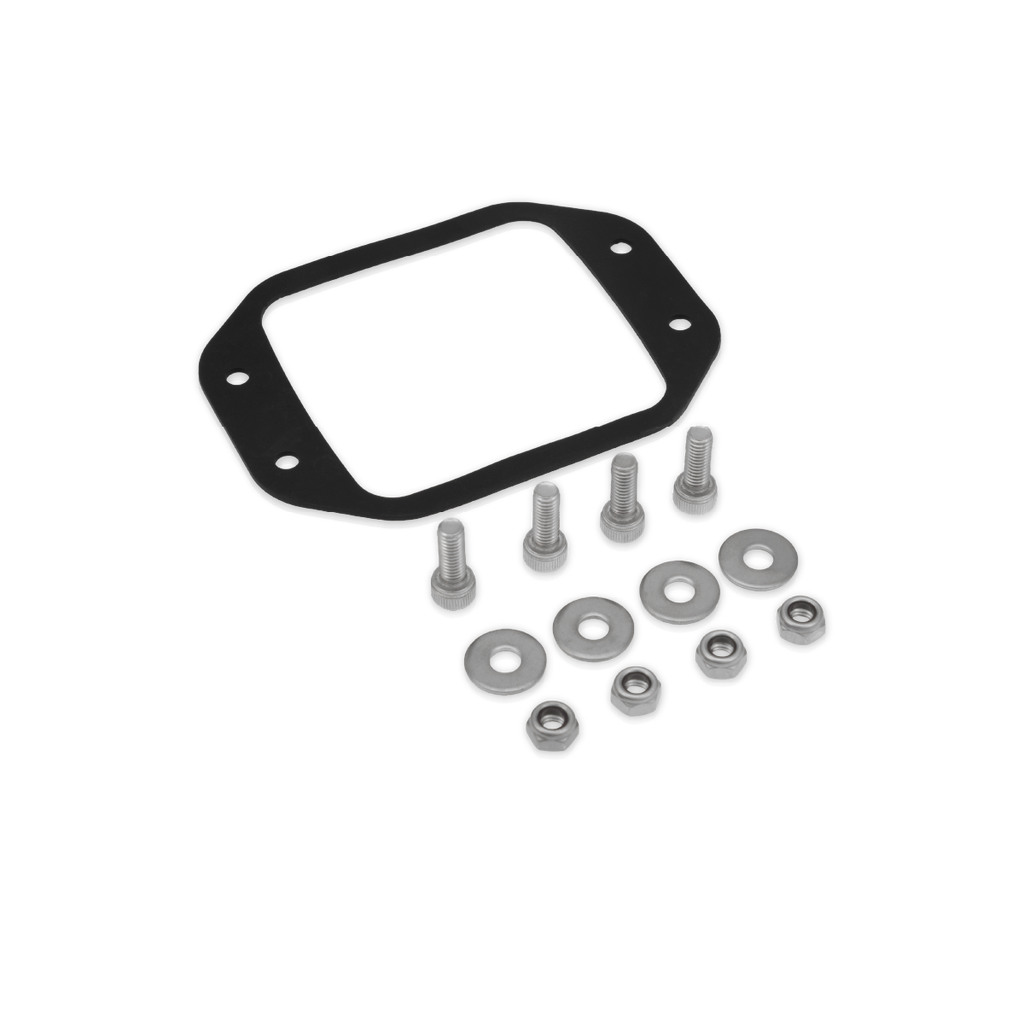

Kit Includes:

• Work Lamp: Flush Mount
• 304 Stainless Steel fasteners
• Rubber Gasket
• Wiring Harness: 2.5m Relay ~ DT connector | 1.3m Relay ~ Light Switch | 1.3m Relay ~ Power Terminals

Specifications:

• Input Power: 9-36V
• Beam Pattern: Driving
• Power: 30W
• Current Draw: 1.5A @ 13.2V
• Effective Lumen: 1,396 lm

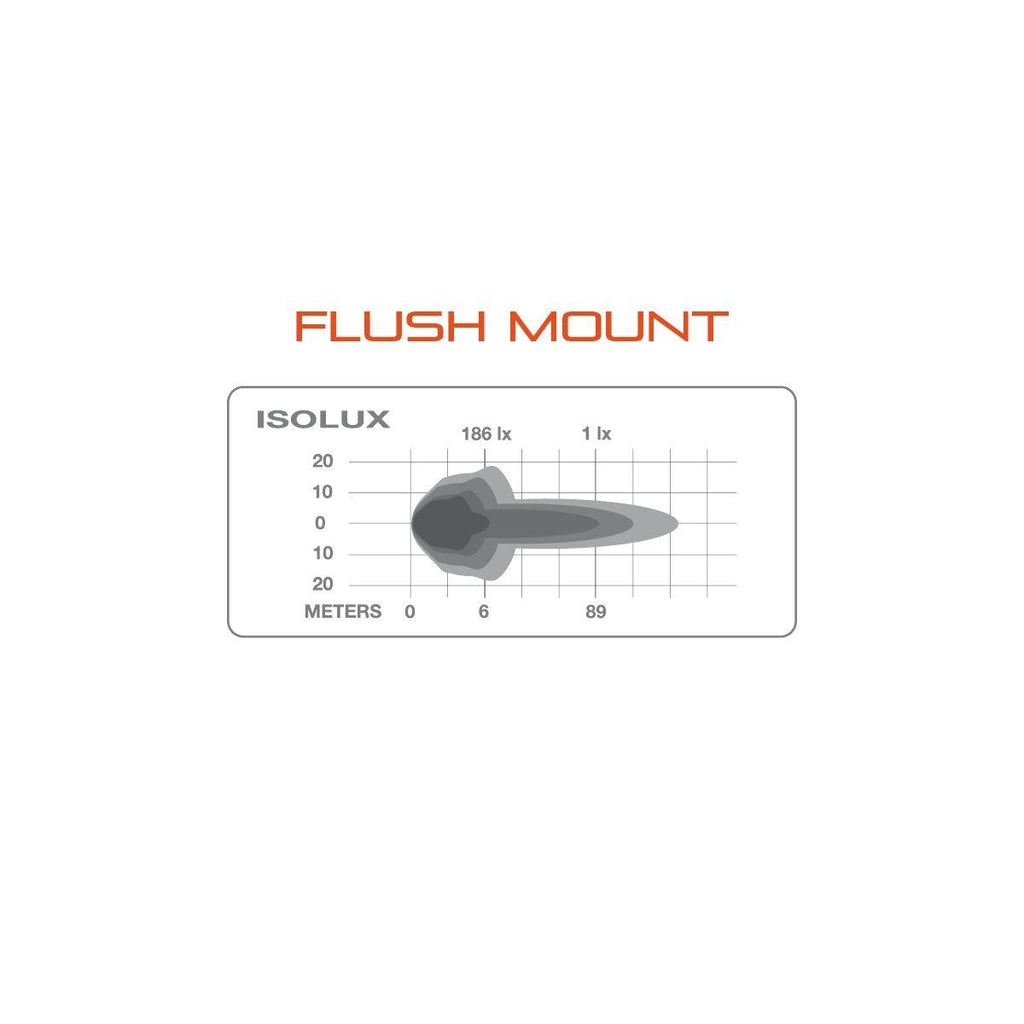

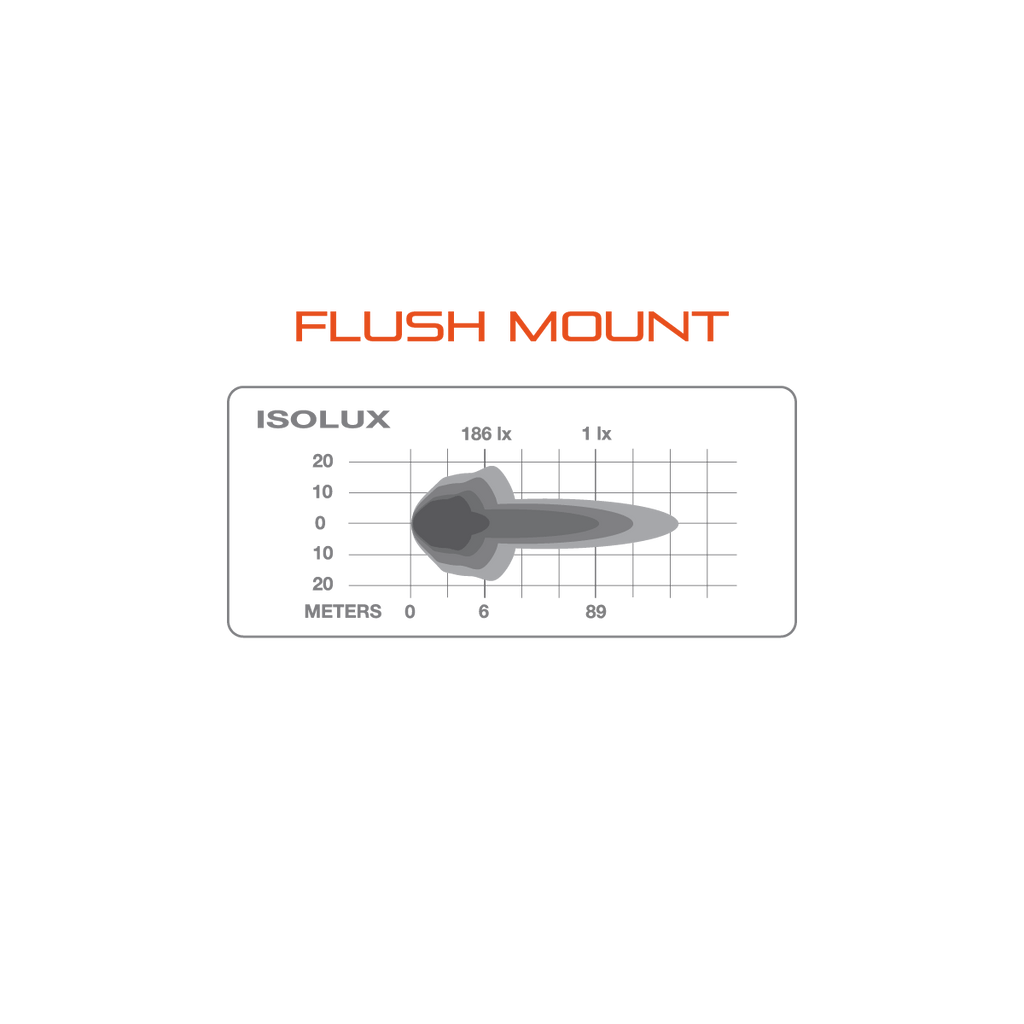

• Beam @ 1 Lux: 89m
• LED Chips: Osram 5W
• Colour Temp: 6000-6500K
• Housing Material: Die Cast 6063 Aluminium
• Housing Coating: DuPont®
• Lens Material: GE Lexan® Polycarbonate
• IP Rating: IP68 / IP69K
• Ventilation: Military Grade
• Weight: 0.9Kg, Loom - 0.25Kg
• Body Dimensions: (L)123 x (H)92 x (W)83mm
• Lens Dimensions: 2" x 2" (50 x 50mm)
• Connector Type: DT Sealed
• Operating Temp: -40ºC - 145ºC
• Certification: CE, RoHS, RCM

• Flush Mount
• Dimensions
• What Harness Do I Need?

Input Power: 9-36V
Beam Pattern: Driving
Power: 30W
Current Draw: 1.5A @ 13.2V
Effective Lumen: 1,396 lm
Beam @ 1 Lux: 89m
LED Chips: Osram 5W
Colour Temp: 6000-6500K
Housing Material: Die Cast 6063 Aluminium
Housing Coating: DuPont®
Lens Material: GE Lexan® Polycarbonate
IP Rating: IP68 / IP69K
Ventilation: Military Grade
Weight: 0.9Kg, Loom - 0.25Kg
Body Dimensions: (L)123 x (H)92 x (W)83mm
Lens Dimensions: 2" x 2" (50 x 50mm)
Connector Type: DT Sealed
Operating Temp: -40ºC - 145ºC
Certification: CE, RoHS, RCM

{Images are not supported}{Images are not supported}

Work Lamps:
Ultimate9 Work Lamps come supplied with their own individual harness. However, when installing two Work Lamps, our Twin Output Harnesses can be utilised.
