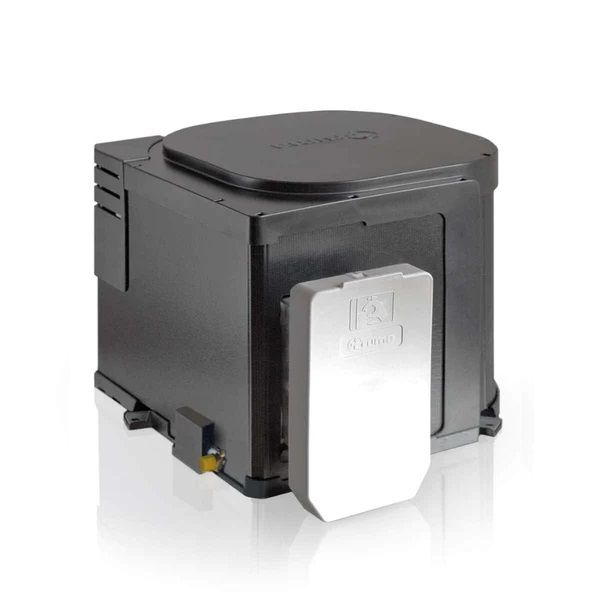

Truma UltraRapid B14 Gas/Electric Hot Water System with Cream Cowl & Cover

|

❖Features

Enjoy hot water wherever you go

• Very compact, requires little installation space

• Stronger heating element 1415 W (240 V) for shorter heating and reheating times

• Improved corrosion resistance due to the heating element and the water tank

• Extended warranty period of 24 months

• AGA certified product

More details about the Truma UltraRapid hot water system

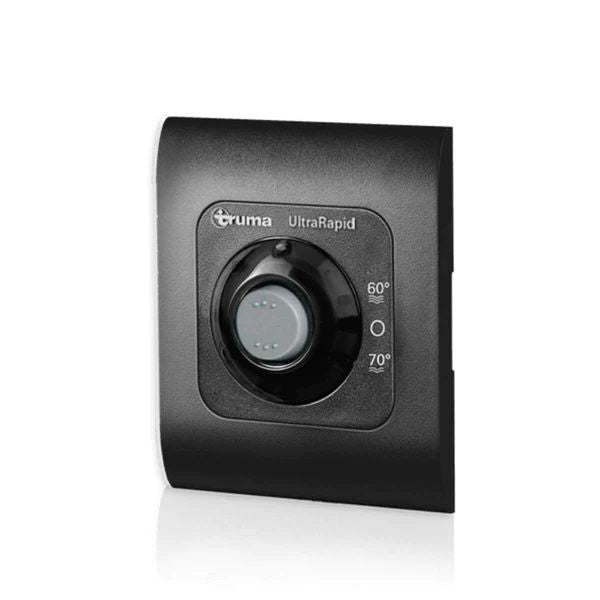

In the Truma UltraRapid hot water system a powerful gas burner heats the water in your RV within a short time. The hot water system has excellent insulation to ensure that almost no heat is lost. If the water temperature drops, the electronics in UltraRapid reignite automatically. Set your desired water temperature conveniently on the control unit.

UltraRapid Gas runs independently of a power supply.
UltraRapid Gas / Electric has an additional electric heating element. In mixed mode, the water heats faster.

When the water is hot, you can take a long shower with ample time to soap yourself. When the Truma UltraRapid Gas water heater is running, water is continuously reheated while you’re showering. This means that a second person can shower immediately afterwards.

• Only JG connections for easier and faster installation
• Safety ensured with electronic control components and overpressure valve
• Straight water connections for easy, faster assembly of elbow fittings
• All pressure or immersion pumps up to 2.8 bar can be used to operate the hot water system

|

❖Specifications

Brand | Truma
Model | 73214-23
Cowl & Cover | Cream
Power supply | 12 V DC + 230 V ~ / 240 V ~
Output of electric heating element | 1415 W
Gas output | 1200 W
Power consumption (at 12 V) | Ignition: 0.16 A Heating: 0.12 A Stand-by: 0.05 A
Power consumption (at 230 V) | 5.7 A / 5.9 A
Water capacity | 14 litres
Heating time | from approx. 20 °C to approx. 65 °C: approx. 45 min. (gas mode) approx. 40 min. (electric mode) approx. 28 min. (mixed mode)
Pump pressure | max. 400 kPa
System pressure | max. 500 kPa
Gas consumption | 96 g/h
Weight | approx. 8.1 kg

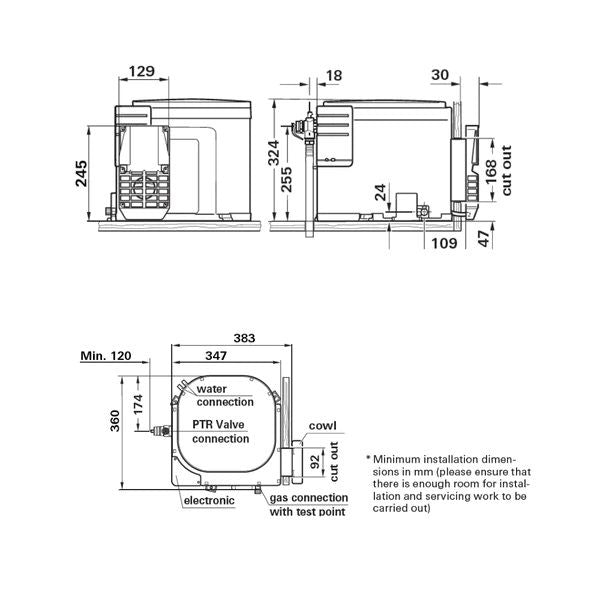

Dimensions (L x W x H) | 360 x 383 x 324 mm
Inlet pressure | —
Outlet pressure | —
Operating pressure | —
Operating temperature range | —
Weight (without accessories) | —
