Codebreaker OBD HUD Speedometer

Stay informed with customisable alarms that are at the ready if you go over the set speed, experience high engine temperatures or an abnormal battery voltage.

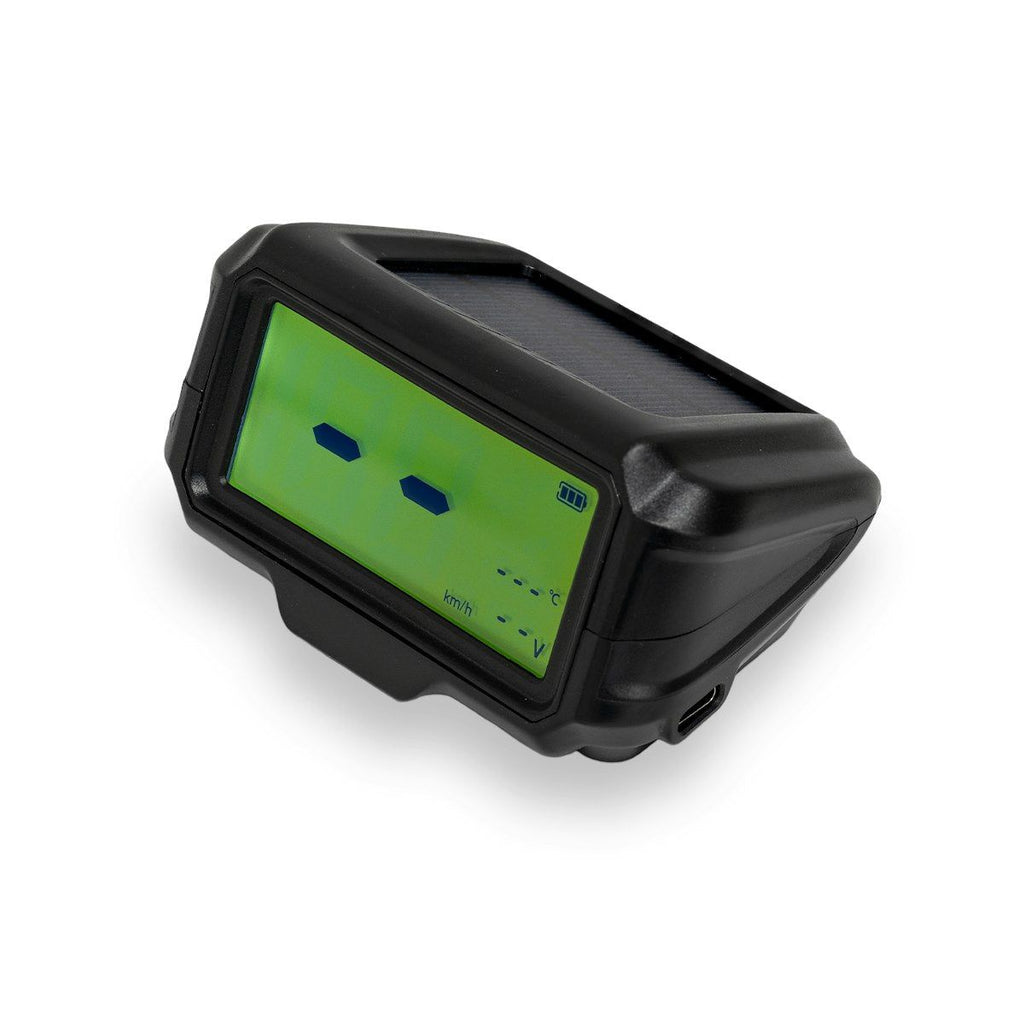

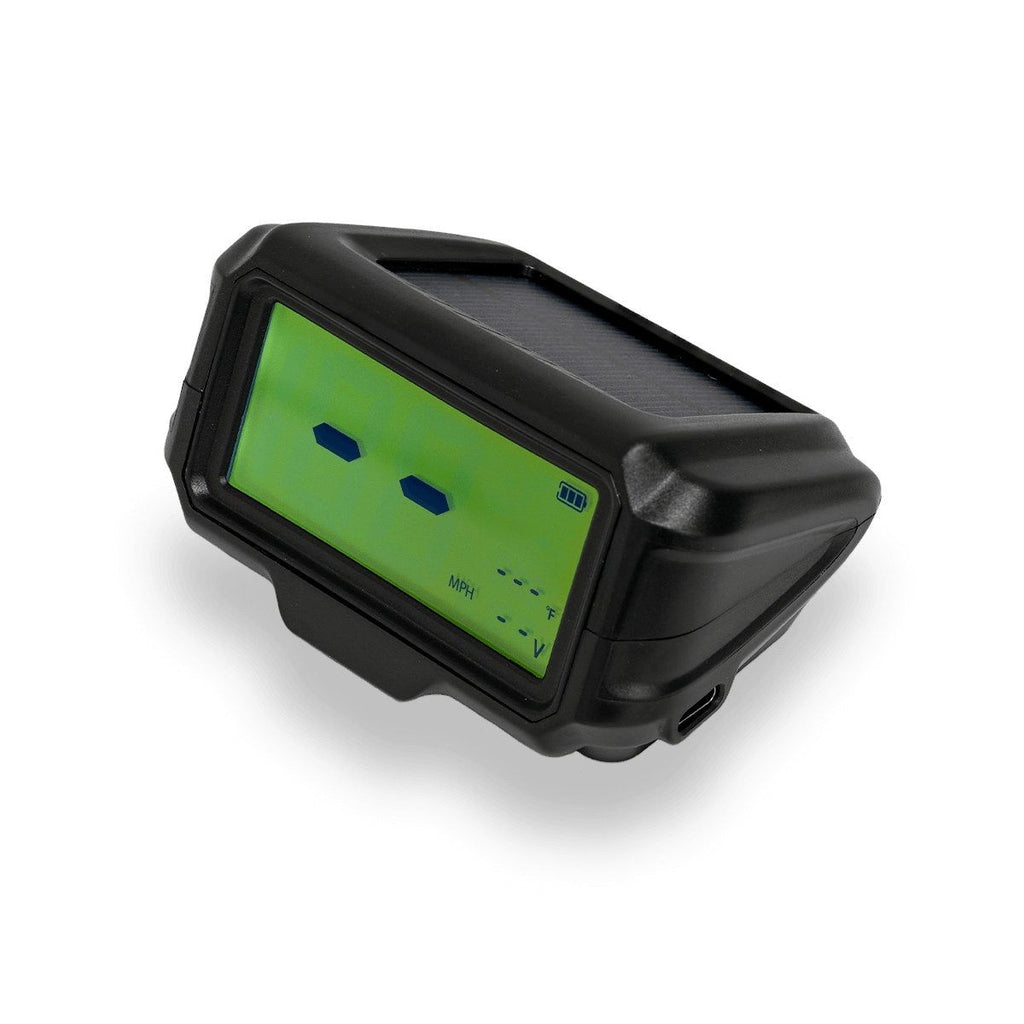

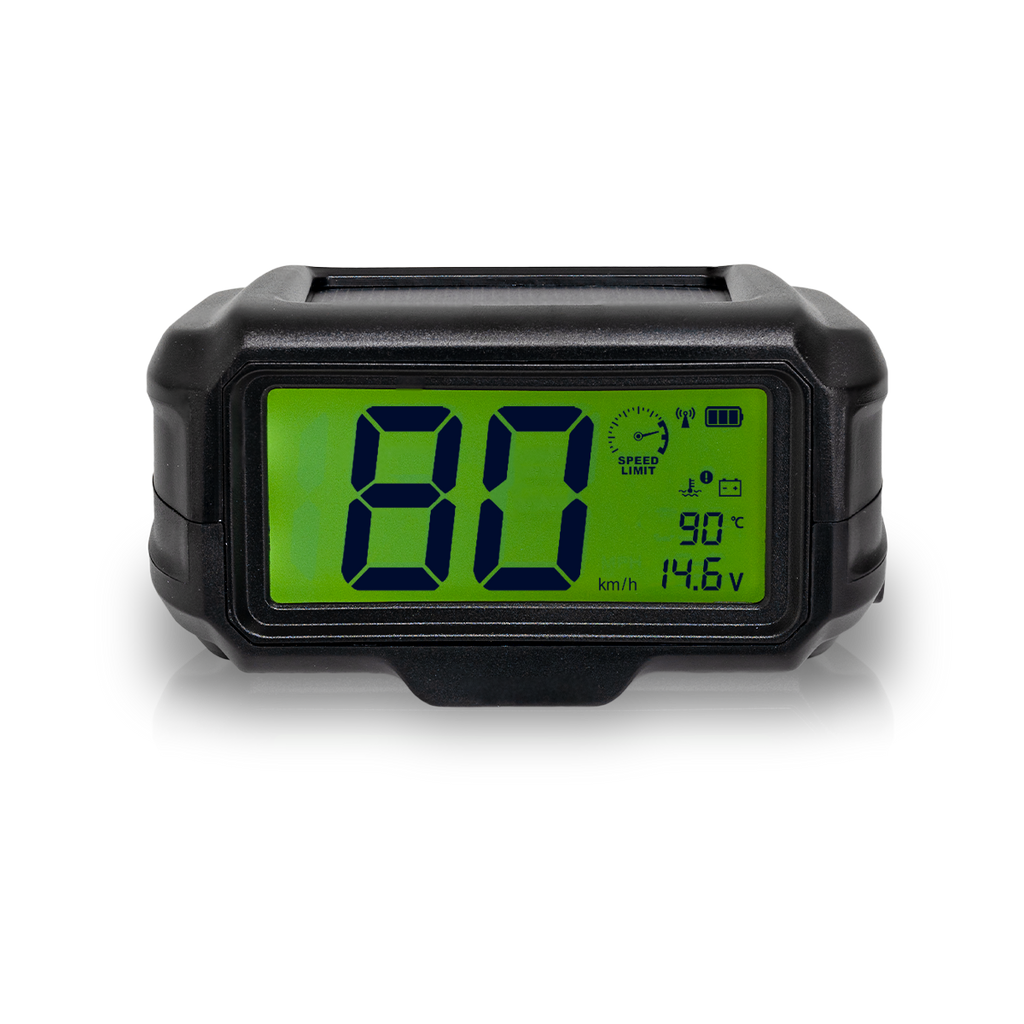

The Codebreaker OBD HUD Speedometer provides core dash information at a glance for a more accurate digital readout over traditional analogue/needle readouts on instrument clusters.

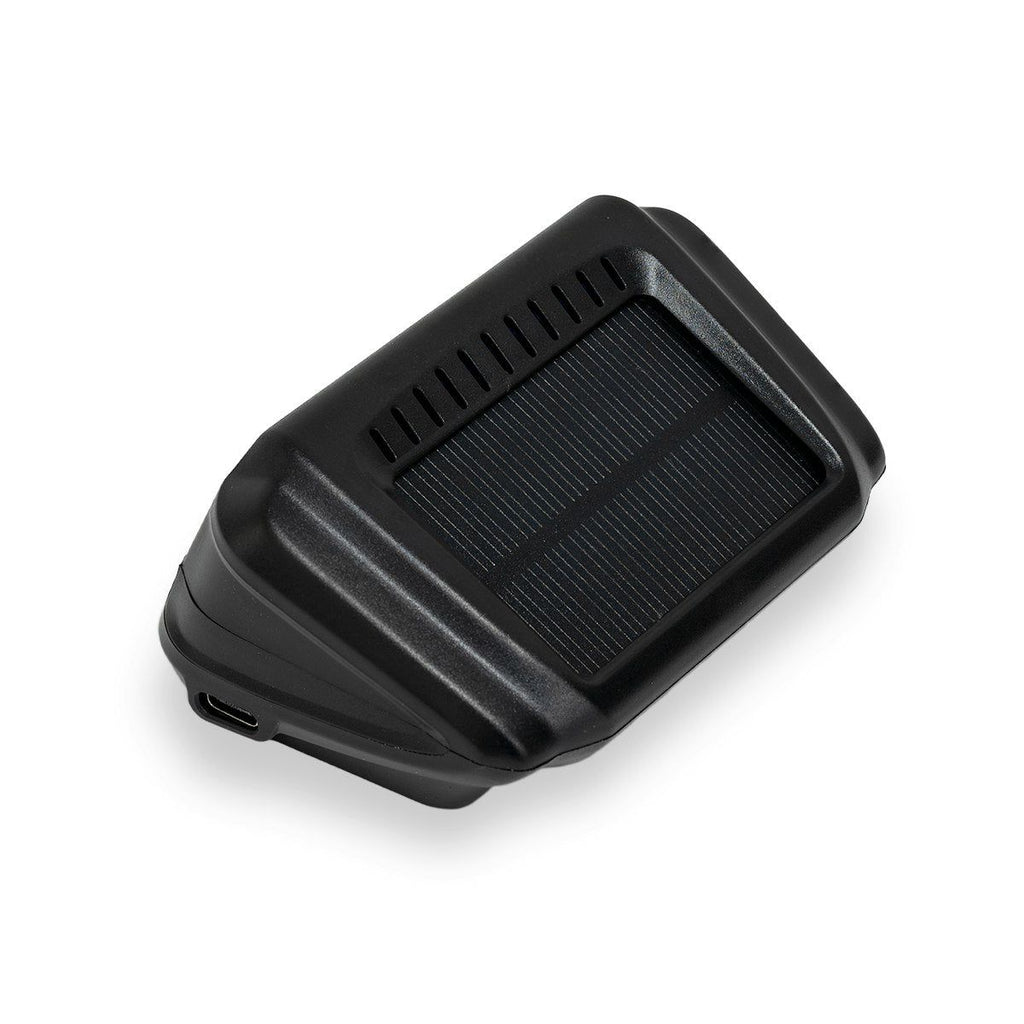

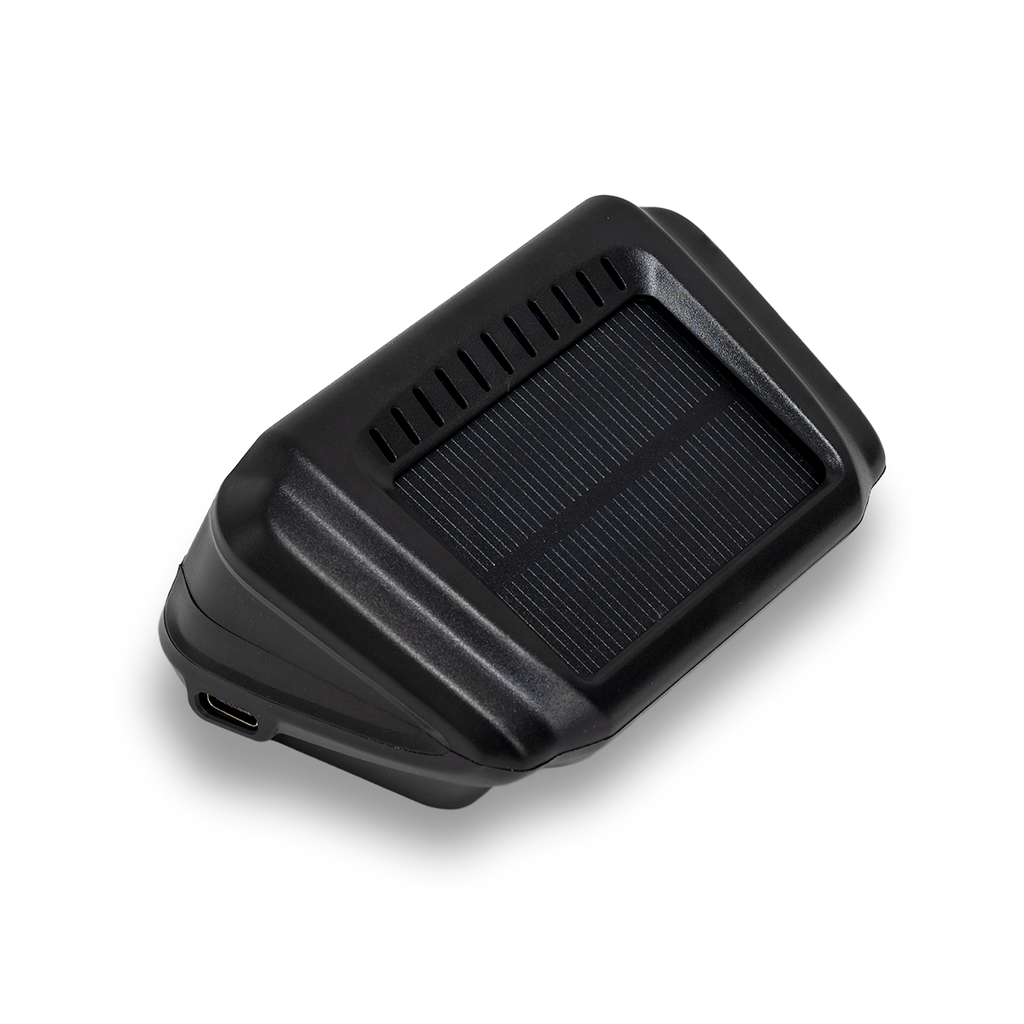

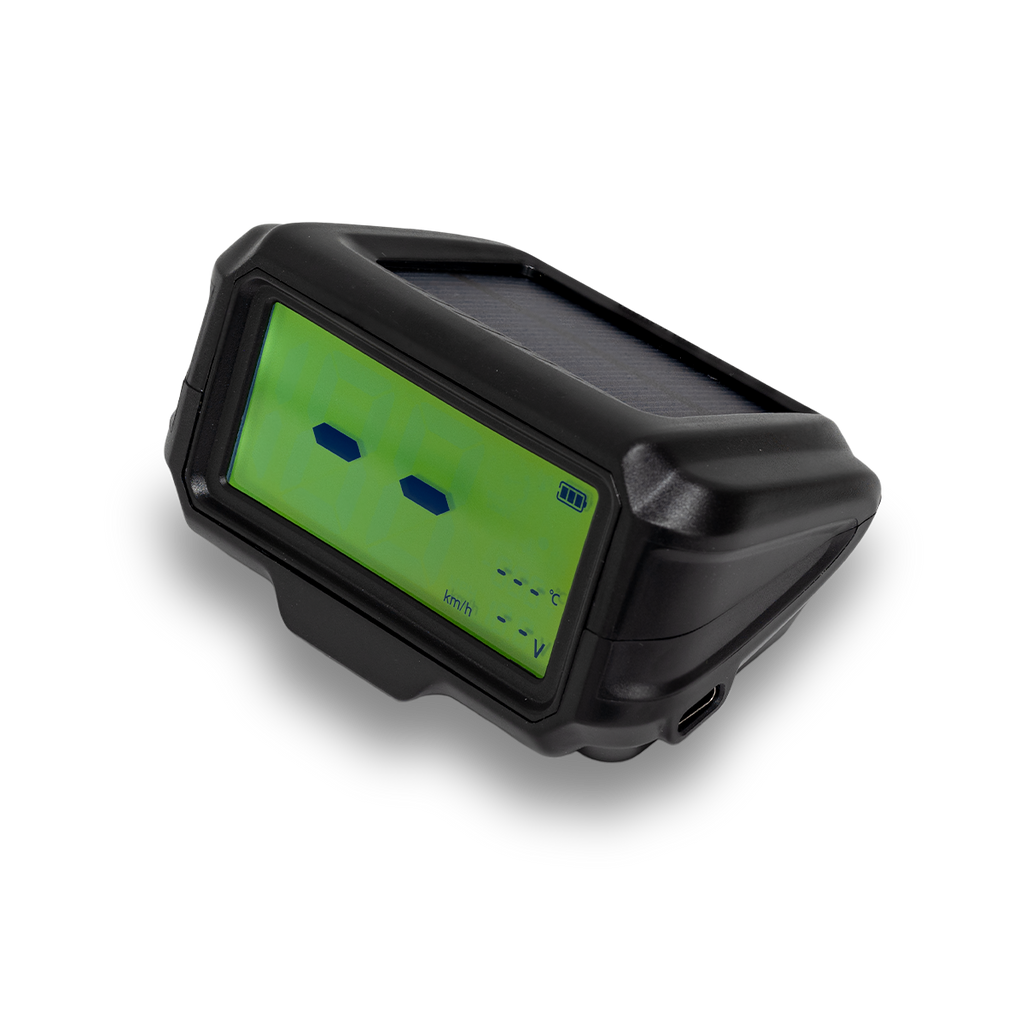

The system incorporates a solar panel on top to keep the built-in lithium battery topped up and is also rechargeable via USB, for when the sun isn’t available.

**Compatible with OBD2/EOBD compliant vehicles (most vehicles manufactured in AU & NZ since 2007).

In the United States, OBD2 became compulsory in January 1996.

**

Features:

• Plug & play fitment
• Wireless OBD transmitter

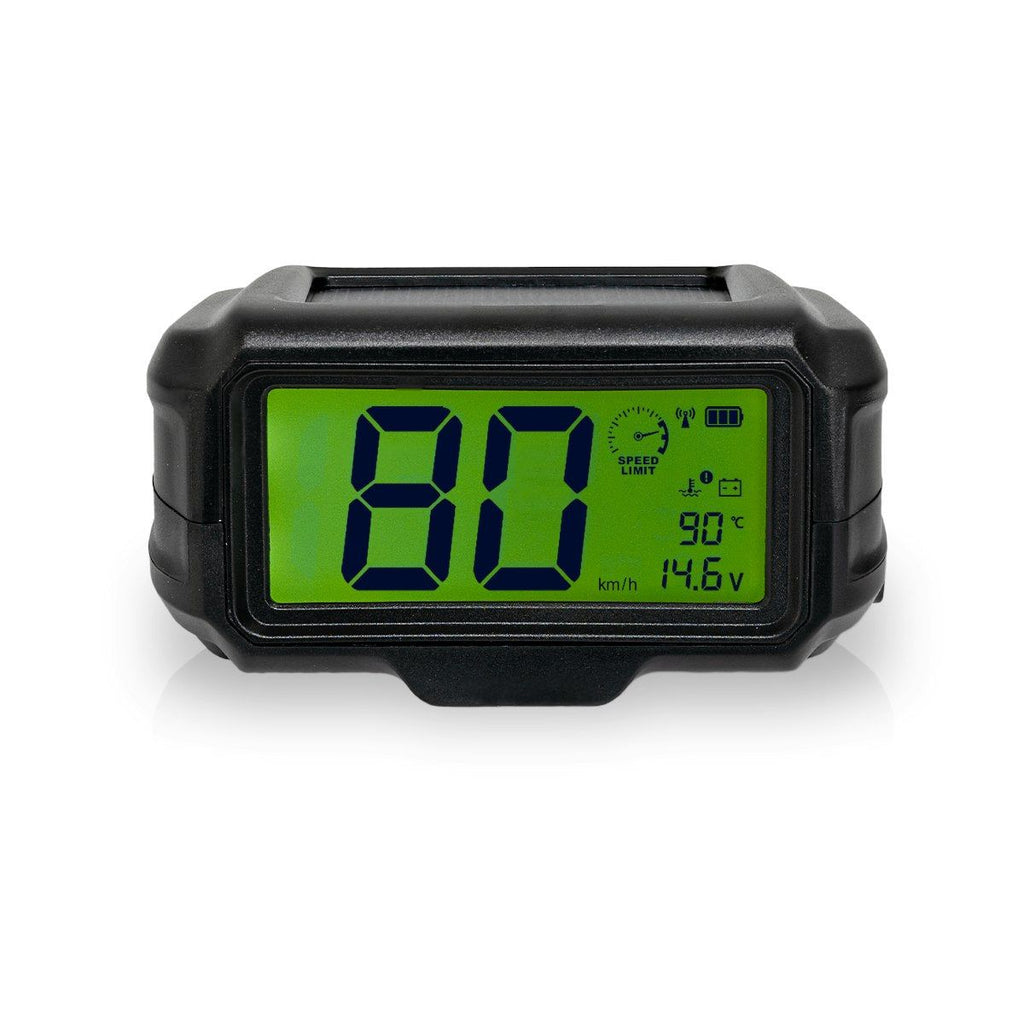

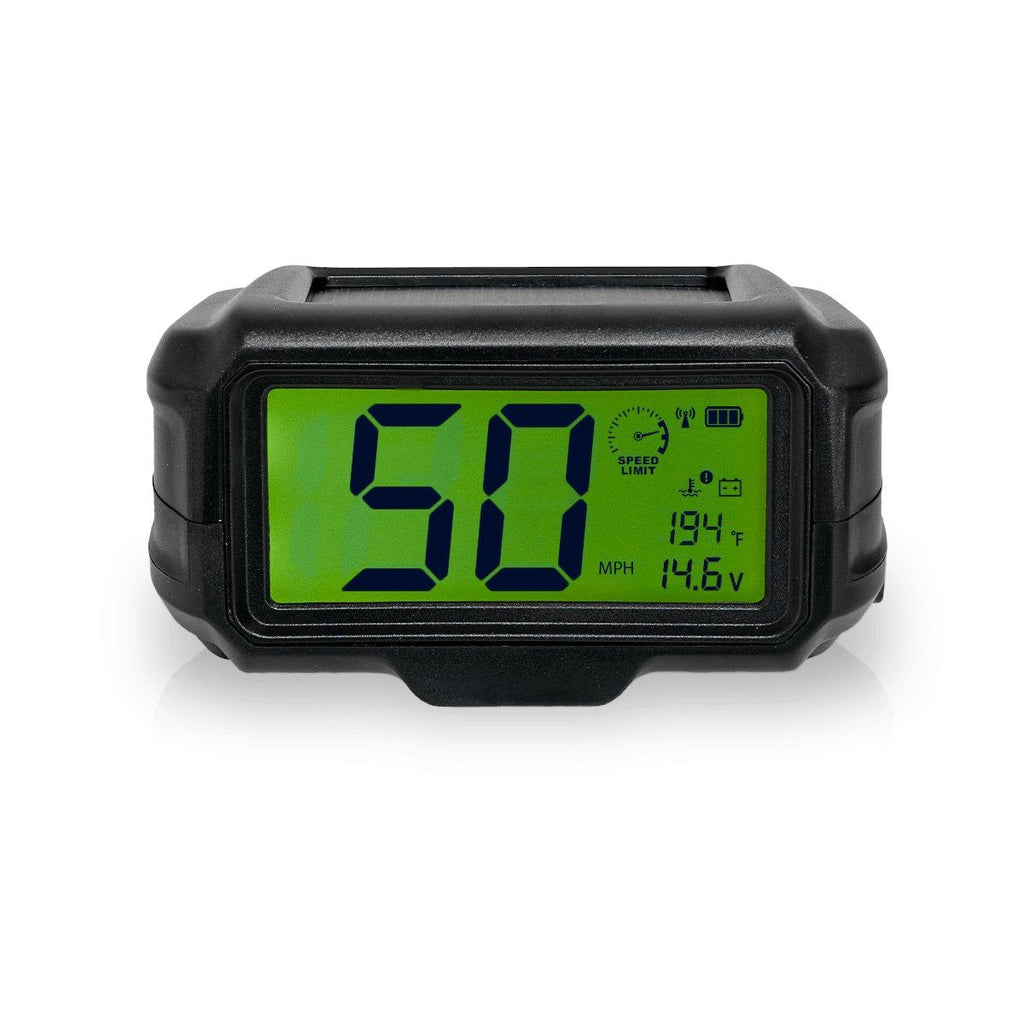

• Displays vehicle speed, coolant temperature and battery voltage
• Adjustable over-speed, high coolant temp. & abnormal voltage alarms
• Built-in lithium battery
• Solar-charged head unit with backup USB charge cable

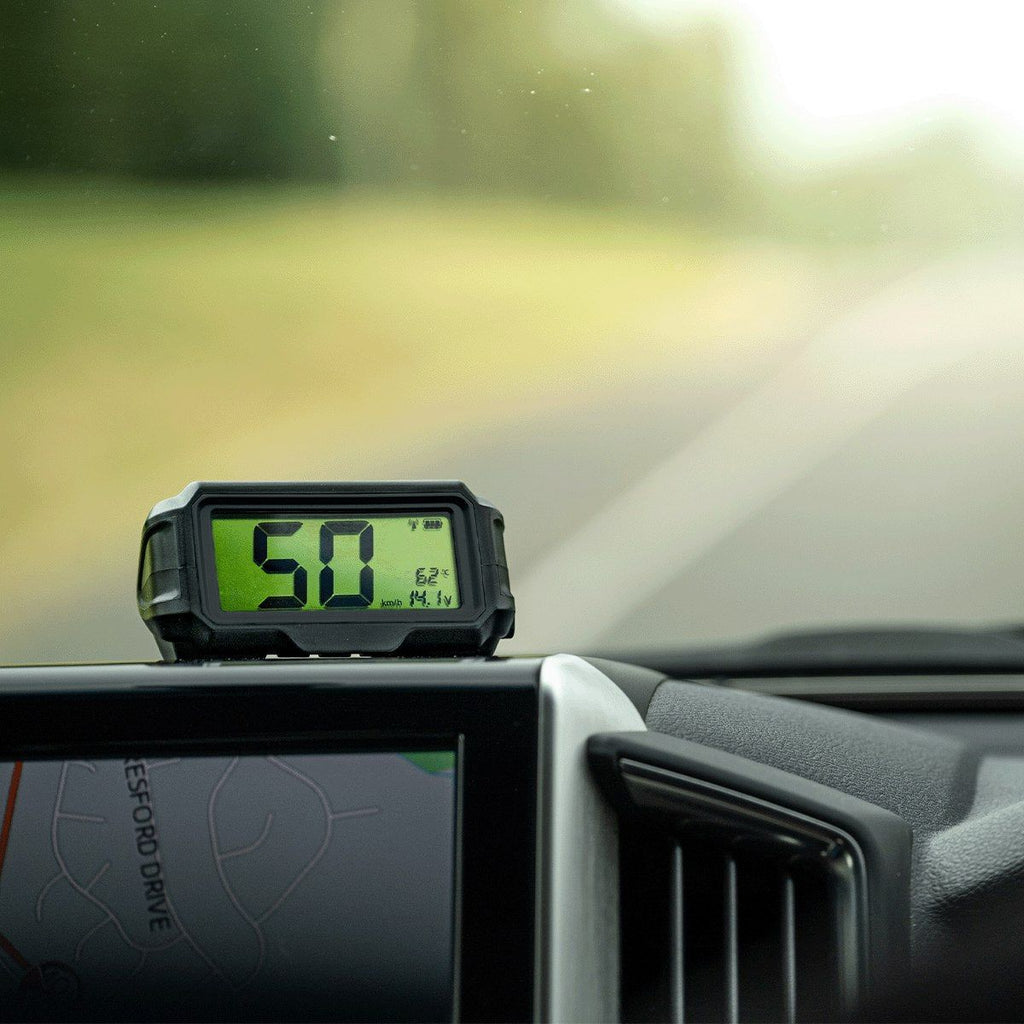

• Self-adhering to dash and easily removed
• Automatic power on/off

Specifications:

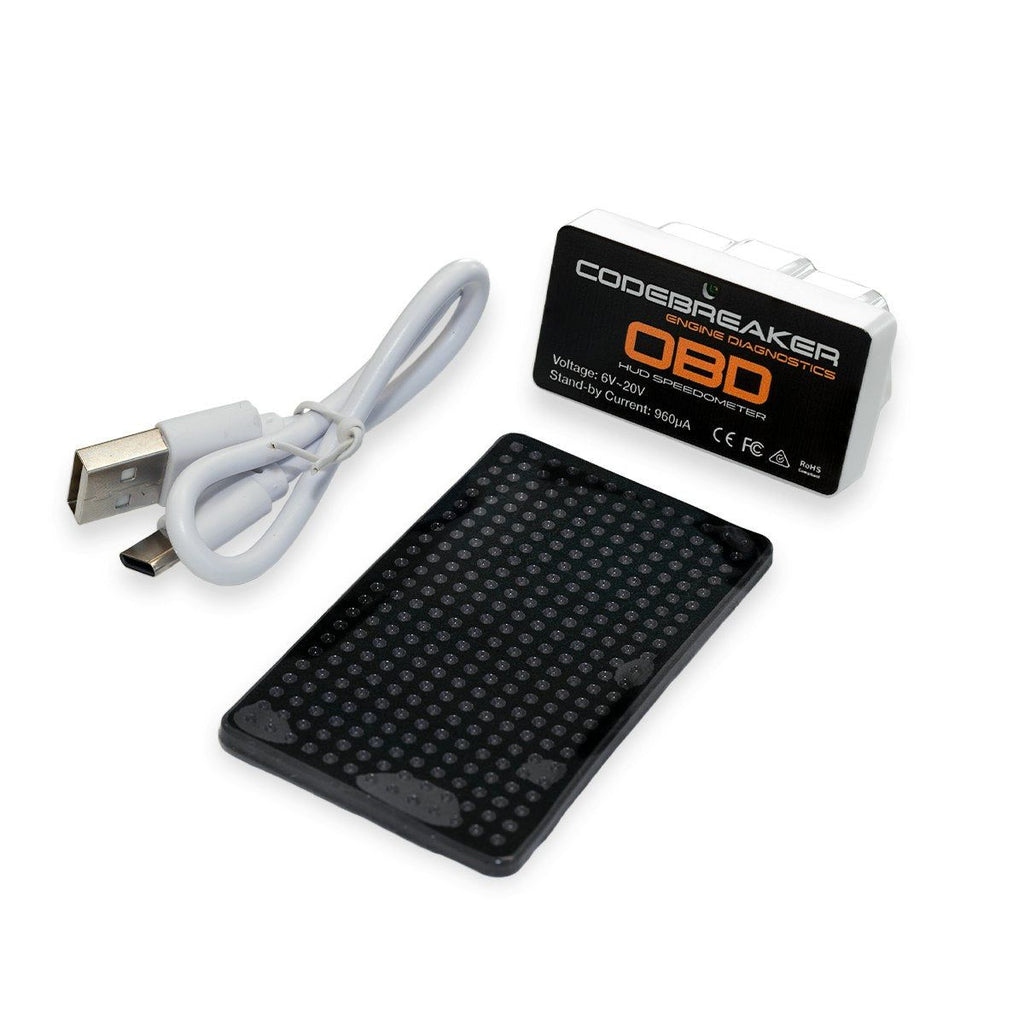

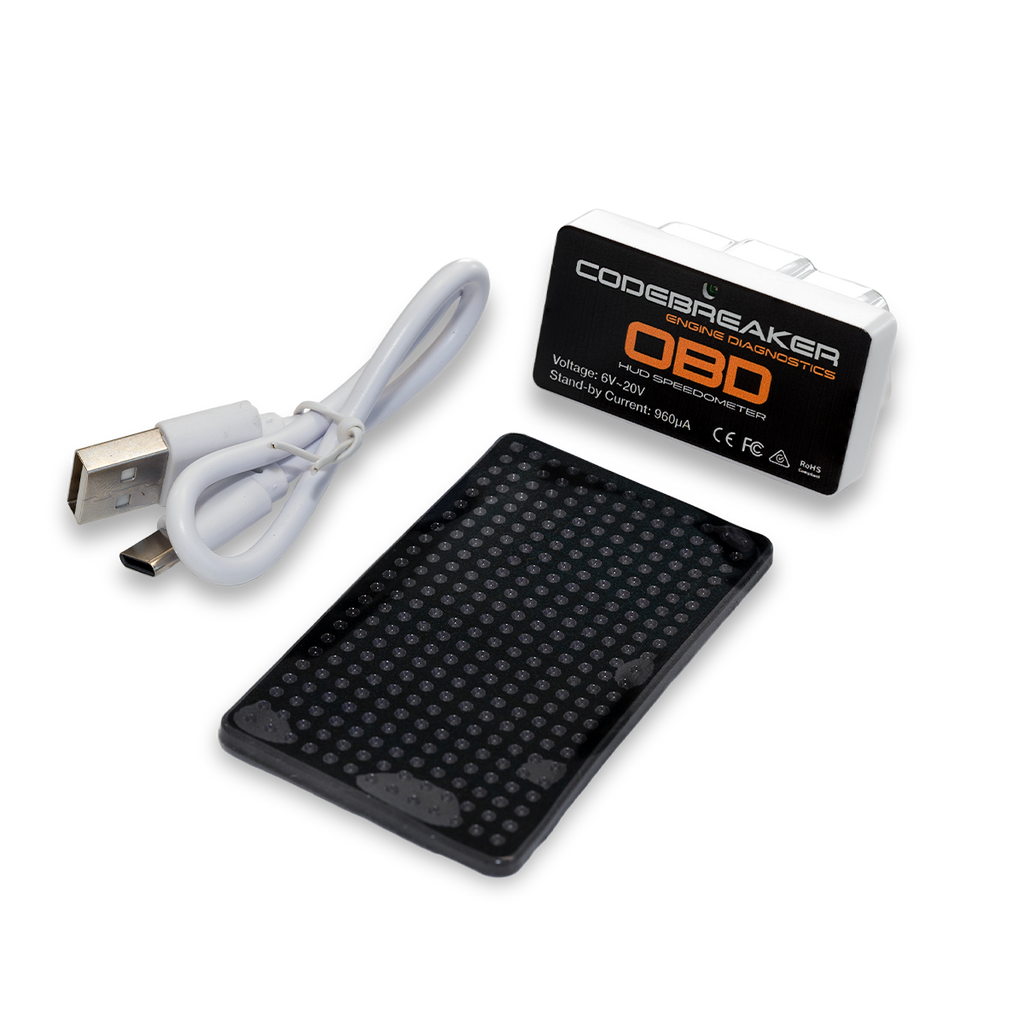

** Transmitter:**

• Application: All Vehicles that support OBD2 Protocol
• Input Voltage: 6V - 24V
• Working Current: 30mA
• Stand-by Current: 960µA
• Working Temperature: -30°C - 80°C (-22°F ~ 176°F)
• Radio Frequency: 433MHz
• Protection: Short-circuit & Overcurrent Protection

Monitor:

• Lithium Battery Capacity: 750mAh
• Charging input: Solar Panel & Type-C Port (5V)
• Display: Monochrome LCD with Backlight
• Protection: Short-circuit & Overcurrent Protection
• Radio Frequency: 433MHz
• Working Temperature: -20°C ~ 70°C (-4°F ~ 158°F)
• Shortage Temperature: -30°C ~ 80°C (-22°F ~ 176°F)
